Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11022 - CYZ RHD
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶
5-01 — FRAME AND OTHER PARTS
(#29344) — 54 parça
Tümü
A - WHEEL BASE 5300MM
B - WHEEL BASE 5900MM
◀

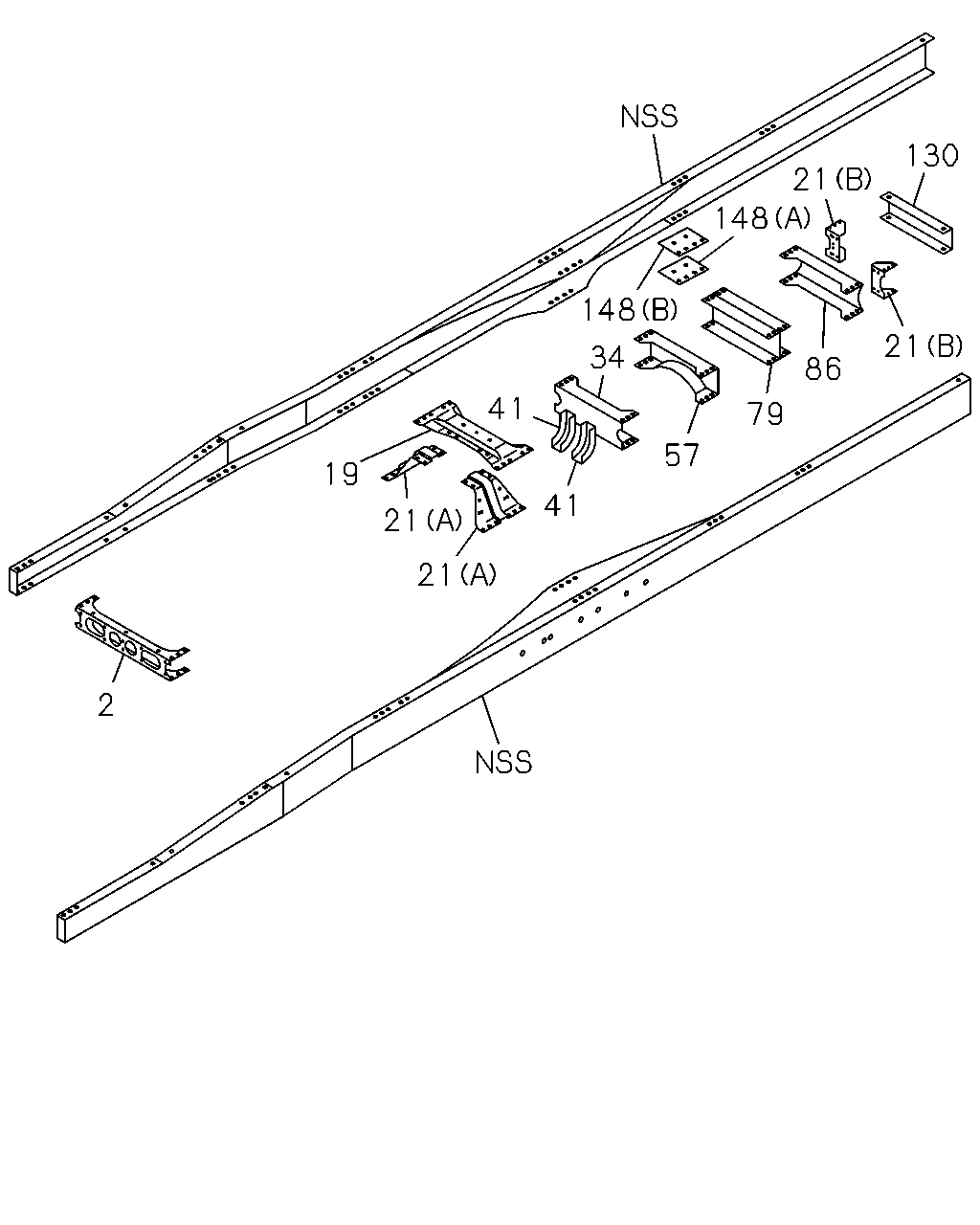

[501A] CROSS MEMBER (12 parça)

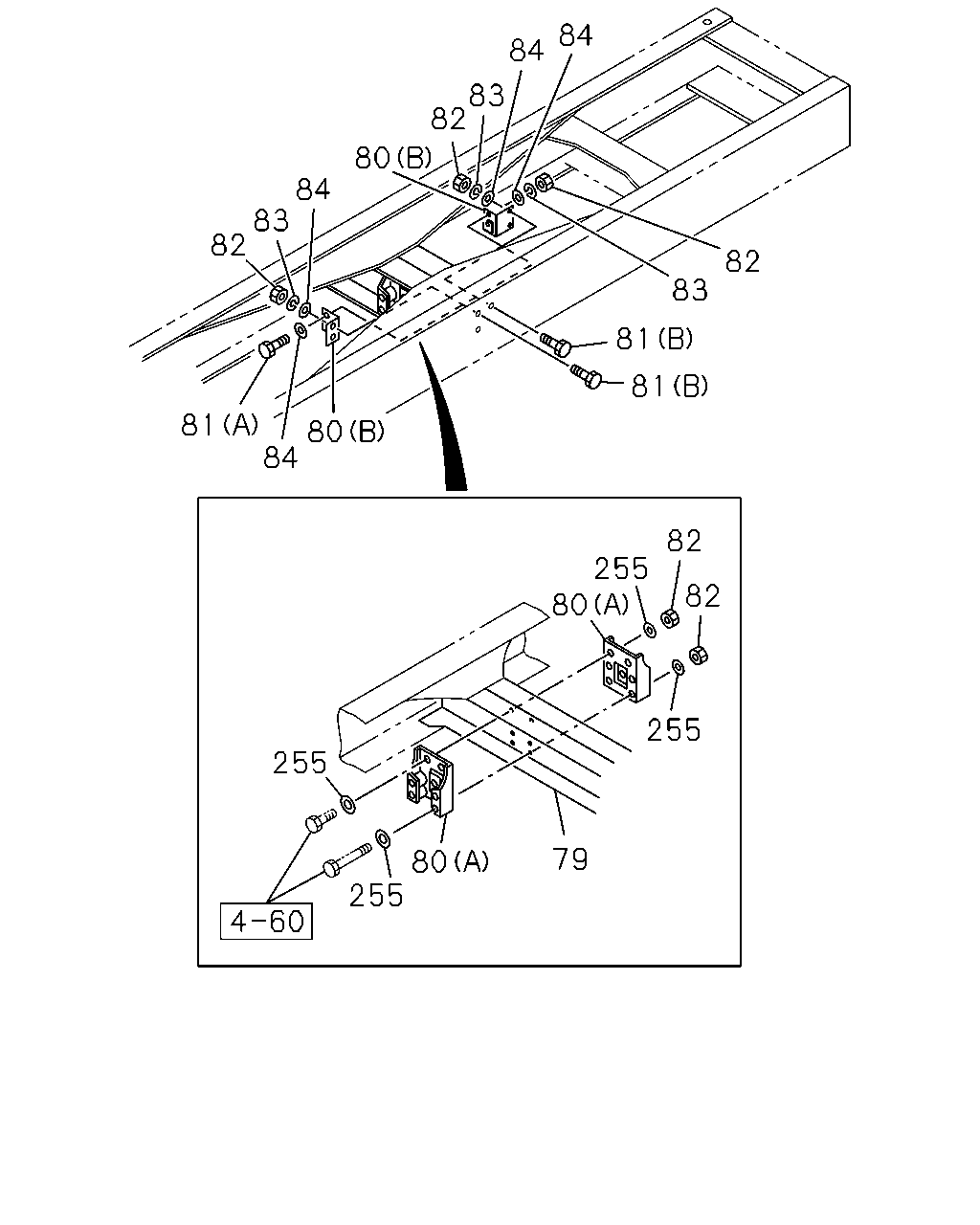

[501A] BRACKET;REAR (16 parça)

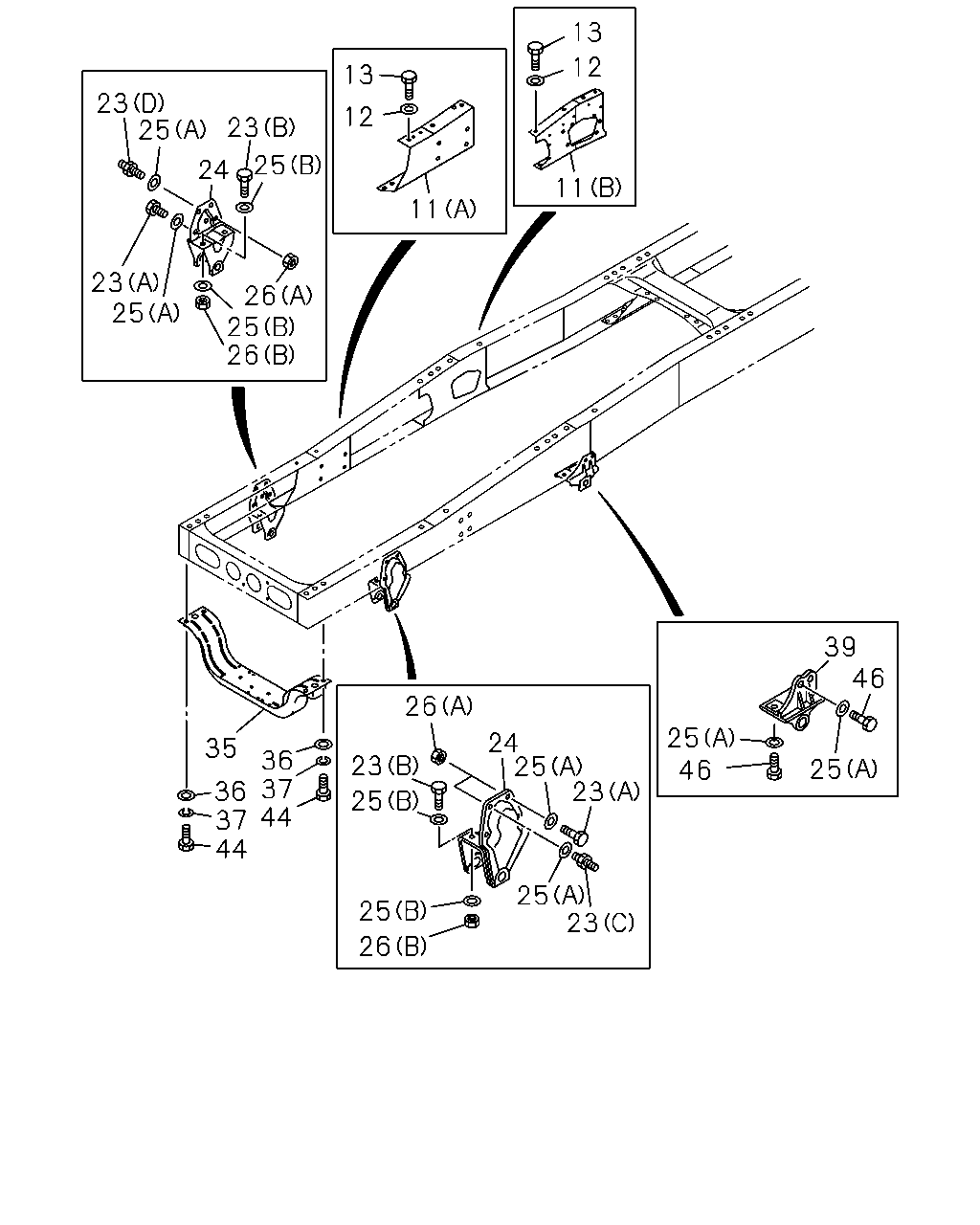

[501A] BRACKET;FRONT AND UNDER MEMBER (26 parça)
▶
130
21
148
148
34
21
86
41
79
57
19
41
21
21
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
MEMBER; CROSS,1ST
1-53181-975-7
01
1
0604-
●
●
19
MEMBER; CROSS,2ND
1-53174-221-0
01
1
0604-
●
●
21
GUSSET; 2ND CROSS
(A)
1-53164-208-0
02
1
0604-
●
●
21
GUSSET; 2ND CROSS
(B)
1-53167-287-3
02
1
0604-
●
●
34
MEMBER; CROSS,3RD
1-53182-072-1
01
1
0604-
●
●
41
BRACKET; CENTER BRG,FRAME SIDE
L=320
1-53271-385-0
02
1
0604-
●
57
MEMBER; CROSS,RR SUSP FRT
1-53171-685-3
01
1
0604-
●
●
79
MEMBER; CROSS,TRUNNION ASM
1-53181-657-5
01
1
0604-
●
●
86
MEMBER; CROSS,RR SUSP RR
1-53181-134-2
01
1
0604-
●
●
130
MEMBER; CROSS,END
1-53171-876-4
01
1
0604-
●
148
SPACER; C/MBR
(A) T=7.0
1-53168-486-0
02
1
0604-
●
●
148
SPACER; C/MBR
(B) T=8.0
1-53168-508-0
02
1
0604-
●
●
84
84
83
82
80
84
83
82
82
83
81
81
81
80
84
82
255
80
82
255
25
79
80
255
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-223-0
08
1
0604-
●
●
25
WASHER; PL,BRKT
(A) ID=15
9-09651-069-0
16
1
0604-1201
●
●
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
16
1
1202-
●
●
79
MEMBER; CROSS,TRUNNION ASM
1-53181-657-5
01
1
0604-
●
●
80
BRACKET; C/MBR
(A)
1-53363-031-2
02
1
0604-
●
●
80
BRACKET; C/MBR
(B)
1-53167-288-1
04
1
0604-
●
●
81
BOLT; BRKT
(A) M14X55
9-91066-455-0
04
1
0604-
●
●
81
BOLT; BRKT
(B) M14X45
9-92061-445-0
08
1
0604-
●
●
82
NUT; BRKT
M14
0-91110-514-0
04
1
0604-
●
●
82
NUT; BRKT
M14
0-91110-514-0
12
1
0604-
●
●
83
WASHER; LK,BRKT
ID=14.2
9-09150-614-0
12
1
0604-0604
●
●
83
WASHER; LK,BRKT
ID=14.2
0-91510-614-0
12
1
0604-
●
●
84
WASHER; PL,BRKT
ID=15 OD=26
9-09164-514-0
16
1
0604-1104
●
●
84
WASHER; PL,BRKT
ID=15 OD=26
0-91614-514-0
16
1
1105-
●
●
255
WASHER; PL,BRKT
ID=15
9-09651-069-0
08
1
0604-1201
●
●
255
WASHER; PL,BRKT
ID=15
8-98010-627-1
08
1
1202-
●
●
13
12
13
23
25
12
23
25
24
11
11
23
25
26
25
26
39
46
26
25
46
24
25
35
36
37
44
23
23
25
36
37
44
25
25
23
25
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
11
BRACKET; ENG MTG
(A)
1-53211-399-0
01
1
0604-
●
●
11
BRACKET; ENG MTG
(A)
1-53211-400-0
01
1
0604-
●
●
11
BRACKET; ENG MTG
(B)
1-53239-141-1
01
1
0604-
●
●
11
BRACKET; ENG MTG
(B)
1-53239-142-1
01
1
0604-
●
●
12
WASHER; PL,BRKT,ENG MTG
ID=15
9-09651-069-0
06
1
0604-1201
●
●
12
WASHER; PL,BRKT,ENG MTG
ID=15
8-98010-627-1
06
1
1202-
●
●
13
BOLT; BRKT,ENG MTG
M14X40
0-20951-440-0
06
1
0604-
●
●
23
BOLT; BRKT,SPR
(A) M14X50
0-20951-450-0
05
1
0604-
●
●
23
BOLT; BRKT,SPR
(D) M12X35,M14X45 L=100
1-09029-075-0
01
1
0604-
●
●
23
BOLT; BRKT,SPR
(B) M16X50
0-20951-650-0
04
1
0604-
●
●
23
BOLT; BRKT,SPR
(C) M12X25,M14X45 L=81
1-09029-103-0
02
1
0604-
●
●
24
BRACKET; FRT SPR,FRT
1-53351-237-1
01
1
0604-
●
●
24
BRACKET; FRT SPR,FRT
1-53351-238-1
01
1
0604-
●
●
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-223-0
08
1
0604-
●
●
25
WASHER; PL,BRKT
(A) ID=15
9-09651-069-0
16
1
0604-1201
●
●
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
16
1
1202-
●
●
26
NUT; BRKT,SPR
(A) M14
0-91110-514-0
08
1
0604-
●
●
26
NUT; BRKT,SPR
(B) M16
0-91110-516-0
04
1
0604-
●
●
35
MEMBER; UNDER
1-53174-263-2
01
1
0604-
●
●
36
WASHER; PL,UNDER MBR
ID=17
9-09164-516-0
04
1
0604-
●
●
37
WASHER; LK,UNDER MBR
ID=16.2
9-09150-816-0
04
1
0604-0604
●
●
37
WASHER; LK,UNDER MBR
ID=16.2
0-91510-816-0
04
1
0604-
●
●
39
BRACKET; FRT SPR,RR
1-53352-179-0
01
1
0604-
●
●
39
BRACKET; FRT SPR,RR
1-53352-180-0
01
1
0604-
●
●
44
BOLT; UNDER MBR
M16X60
0-20951-660-0
04
1
0604-
●
●
46
BOLT; BRKT FIX
M14X50
0-20951-450-0
08
1
0604-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
