◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11022 - CYZ RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#29343) — 33 parça

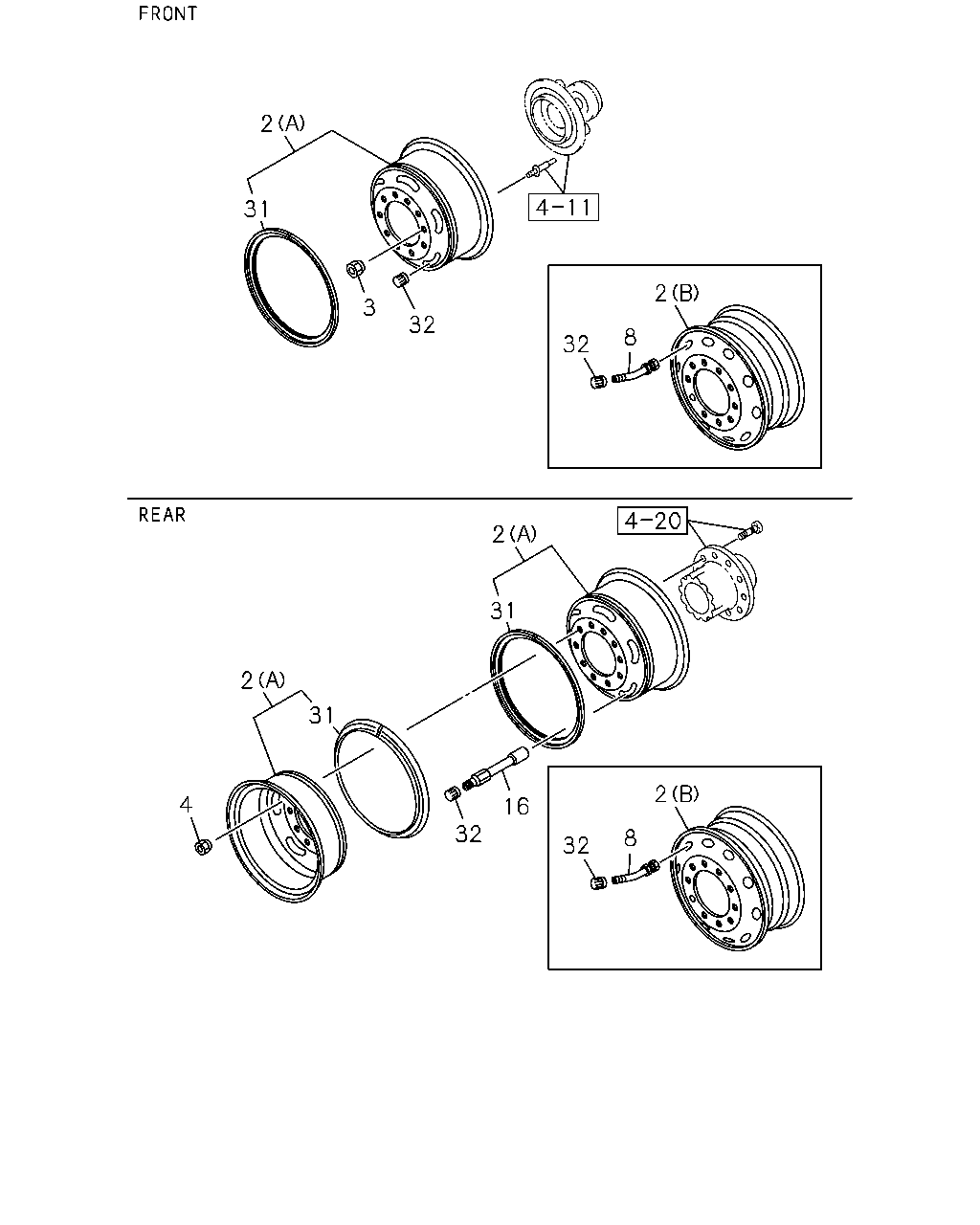

çizim 89173
2 31 2 3 32 8 32 2 31 2 31 2 4 16 32 8 32
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> (B) 		1-42350-730-0 10 1 0611-1205
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> (B) 		8-98217-247-0 10 1 1206-1407
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> (B) 		8-98281-497-0 10 1 1408-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		1-42350-730-0 01 1 0611-1205
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		8-98217-247-0 01 1 1206-1407
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		8-98281-497-0 01 1 1408-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42350-448-0 01 1 0604-0610
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) 		1-42350-448-0 01 1 0611-
2 WHEEL; DISC
(A) 		1-42350-448-0 10 1 0604-0610
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (A) 		1-42350-448-0 10 1 0611-
3 NUT; WHEEL,FRT AXLE
M22X1.5 		1-42333-050-1 20 1 0604-0907
3 NUT; WHEEL,FRT AXLE
M22X1.5 		1-42333-055-0 20 1 0908-
4 NUT; WHEEL,RR AXLE
M22X1.5 		1-42333-050-1 40 1 0604-0907
4 NUT; WHEEL,RR AXLE
M22X1.5 		1-42333-055-0 40 1 0908-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> 		1-42370-020-3 10 1 0611-1205
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> 		1-42370-048-0 10 1 1206-1407
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> 		1-42370-019-3 10 1 1408-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42370-020-3 01 1 0611-1205
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42370-048-0 01 1 1206-1407
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42370-019-3 01 1 1408-
16 HOLDER; TIRE VALVE,DISC WHEEL
L=170 		1-42370-024-0 04 1 0604-0610
16 HOLDER; TIRE VALVE,DISC WHEEL
L=170 		1-42370-024-0 04 1 0611-1003
16 HOLDER; TIRE VALVE,DISC WHEEL
L=170 		8-98167-052-0 04 1 1004-
31 RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42355-014-0 01 1 0604-0610
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42355-014-0 01 1 0611-
31 RING; SIDE,DISC WHEEL 1-42355-014-0 10 1 0604-0610
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) 		1-42355-014-0 10 1 0611-
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> 		1-42374-001-0 10 1 0611-
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 01 1 0611-
32 CAP; VALVE
SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 07 1 0604-0610
32 CAP; VALVE
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 07 1 0611-
32 CAP; VALVE
EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 06 1 0604-0610
32 CAP; VALVE
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 06 1 0611-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
