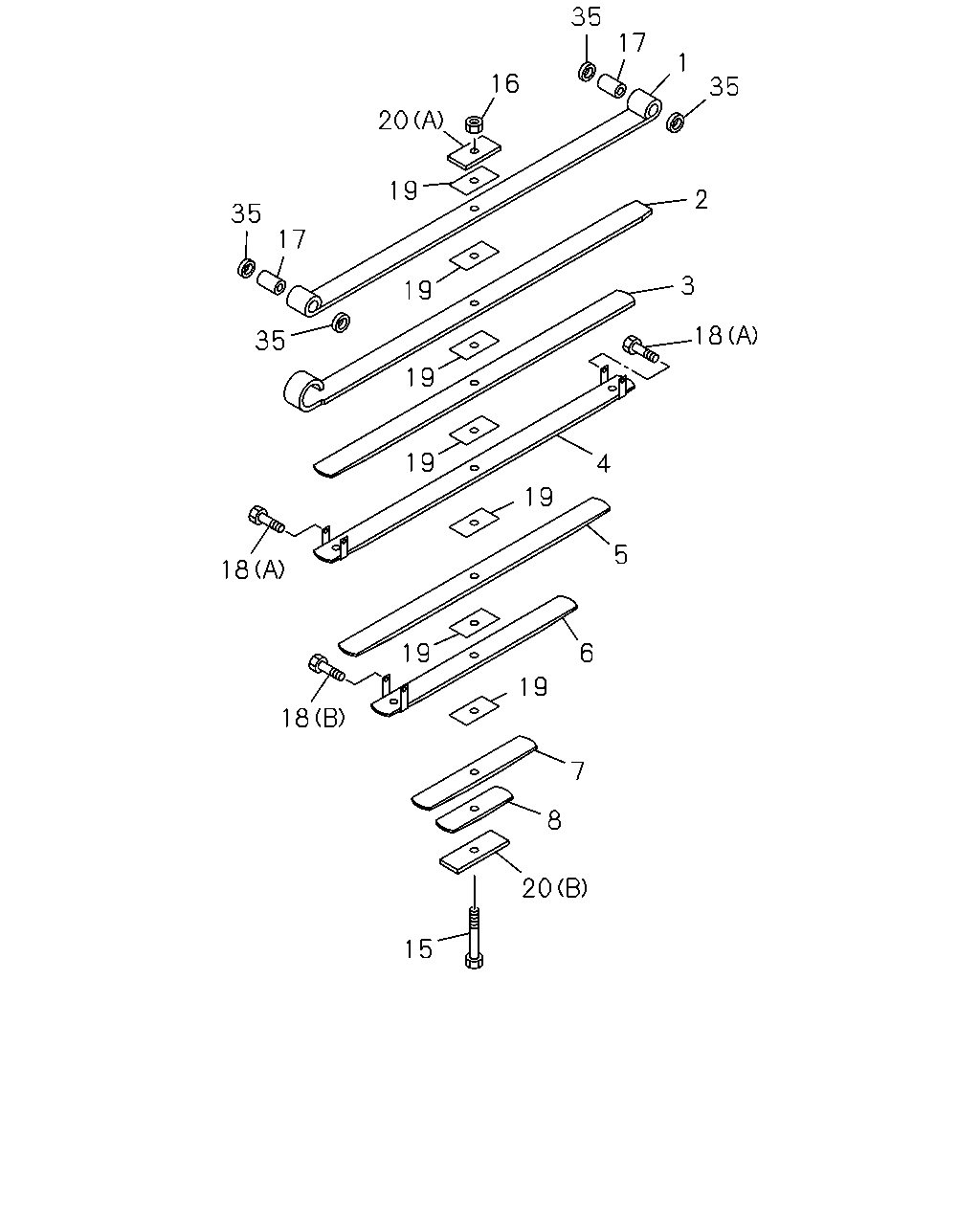

4-55 — FRONT LEAF SPRING (#29340) — 21 parça

35 17 1 16 35 20 19 2 35 17 3 19 18 35 19 19 4 19 5 18 19 6 19 18 7 8 20 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 8-97614-071-0, B = 8-98098-674-0	8-97615-360-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 8-98159-685-0	8-98165-033-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 8-97614-071-0, B = 8-98098-674-0	8-97615-361-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 8-98159-685-0	8-98165-034-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 8-97614-071-0, B = 8-98098-674-0, C = 8-98159-685-0	8-97615-362-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: A = 8-97614-071-0, B = 8-98098-674-0, C = 8-98159-685-0	8-97615-363-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: A = 8-97614-071-0, B = 8-98098-674-0, C = 8-98159-685-0	8-97615-364-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: A = 8-97614-071-0, B = 8-98098-674-0, C = 8-98159-685-0	8-97615-365-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: A = 8-97614-071-0, B = 8-98098-674-0, C = 8-98159-685-0	8-97615-366-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: A = 8-97614-071-0, B = 8-98098-674-0, C = 8-98159-685-0	8-97615-367-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=175 ASM PART: A = 8-97614-071-0	1-51156-345-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=165 ASM PART: B = 8-98098-674-0, C = 8-98159-685-0	1-51156-366-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 8-97614-071-0, B = 8-98098-674-0, C = 8-98159-685-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38 ASM PART: C = 8-98159-685-0	1-51351-009-0	02	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: A = 8-97614-071-0, B = 8-98098-674-0	1-51351-044-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X103 ASM PART: A = 8-97614-071-0, B = 8-98098-674-0, C = 8-98159-685-0	8-97615-331-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X99 ASM PART: A = 8-97614-071-0, B = 8-98098-674-0, C = 8-98159-685-0	8-97615-895-0	01	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 8-97614-071-0, B = 8-98098-674-0, C = 8-98159-685-0	1-51177-071-0	07	1	-
20	SEAT; LEAF SPR,FRT (B), T=10 ASM PART: A = 8-97614-071-0	1-51177-078-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=14 ASM PART: A = 8-97614-071-0, B = 8-98098-674-0, C = 8-98159-685-0	1-51177-097-0	01	1	-
35	SEAL; DUST ASM PART: A = 8-97614-071-0, B = 8-98098-674-0	1-51177-321-0	04	1	-
