Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#29335) — 93 parça

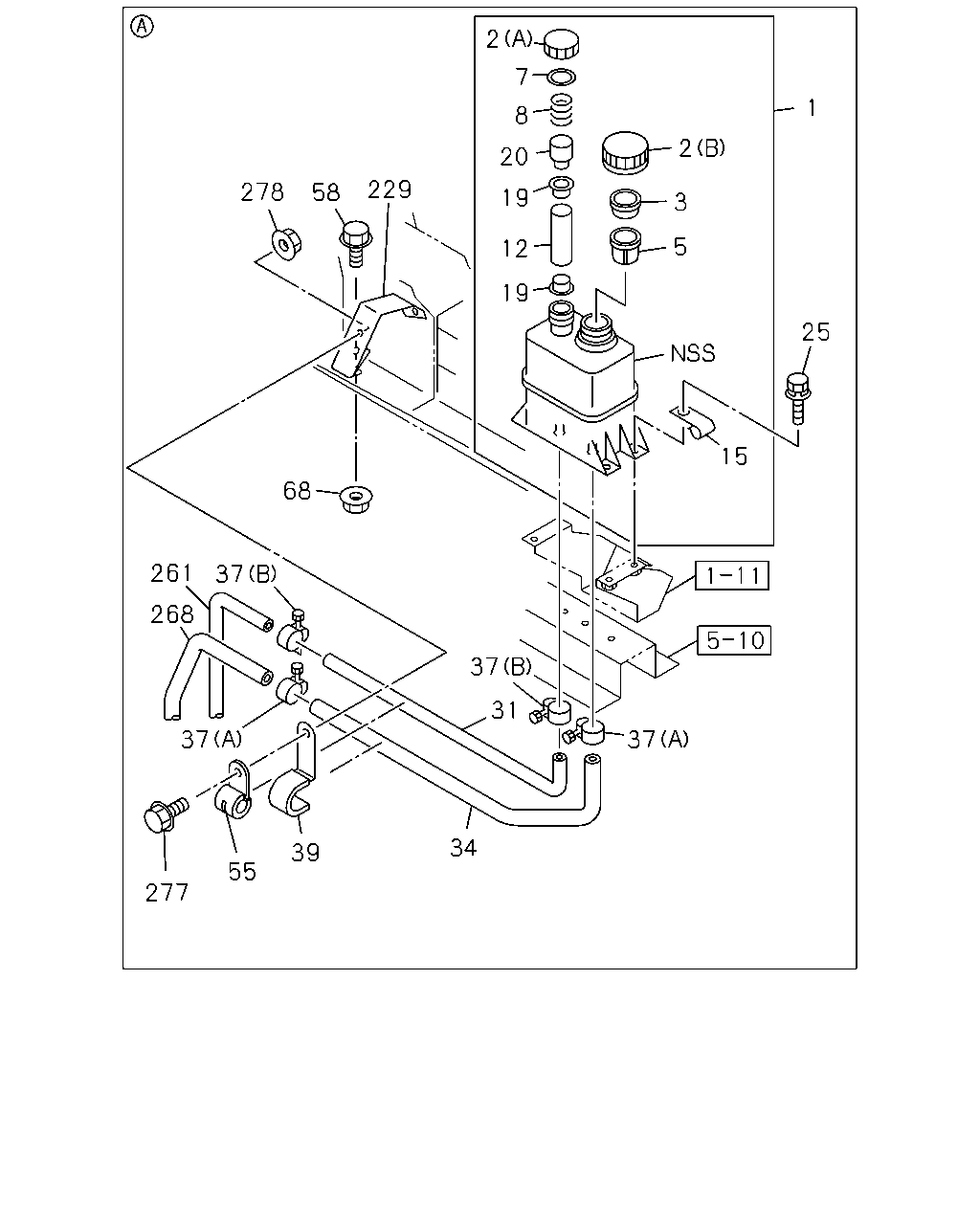

2 7 1 8 2 20 229 278 58 19 3 5 12 19 25 1 1 15 68 37 261 268 37 31 37 37 34 39 55 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0604-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0604-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0604-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0604-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0604-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0604-
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	0604-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0604-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0604-
19	SEAT; OIL TANK	1-21262-001-0	02	1	0604-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0604-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	0604-
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	0604-
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	0604-
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	02	1	0604-
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	0604-
39	CLIP; FLEX HOSE ID=32 L=75	1-09700-702-0	01	1	0604-
55	CLIP; P/S RUBBER HOSE ID=28 L=30	1-09700-607-1	01	1	0604-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	04	1	0604-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0604-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	03	1	0604-
58	BOLT; CLIP M10X25 FLANGE	0-28651-025-0	02	1	0604-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0604-
229	BRACKET; HOSE,POWER STRG	1-21464-407-1	01	1	0604-
261	PIPE; OIL,UNION TO HOSE L=2500	1-21117-369-1	01	1	0604-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1276	1-21117-830-0	01	1	0604-
277	BOLT; HOSE CLIP M10X25 FLANGE	0-28651-025-0	01	1	0604-
278	NUT; HOSE CLIP M10 FLANGE	0-91180-210-0	01	1	0604-

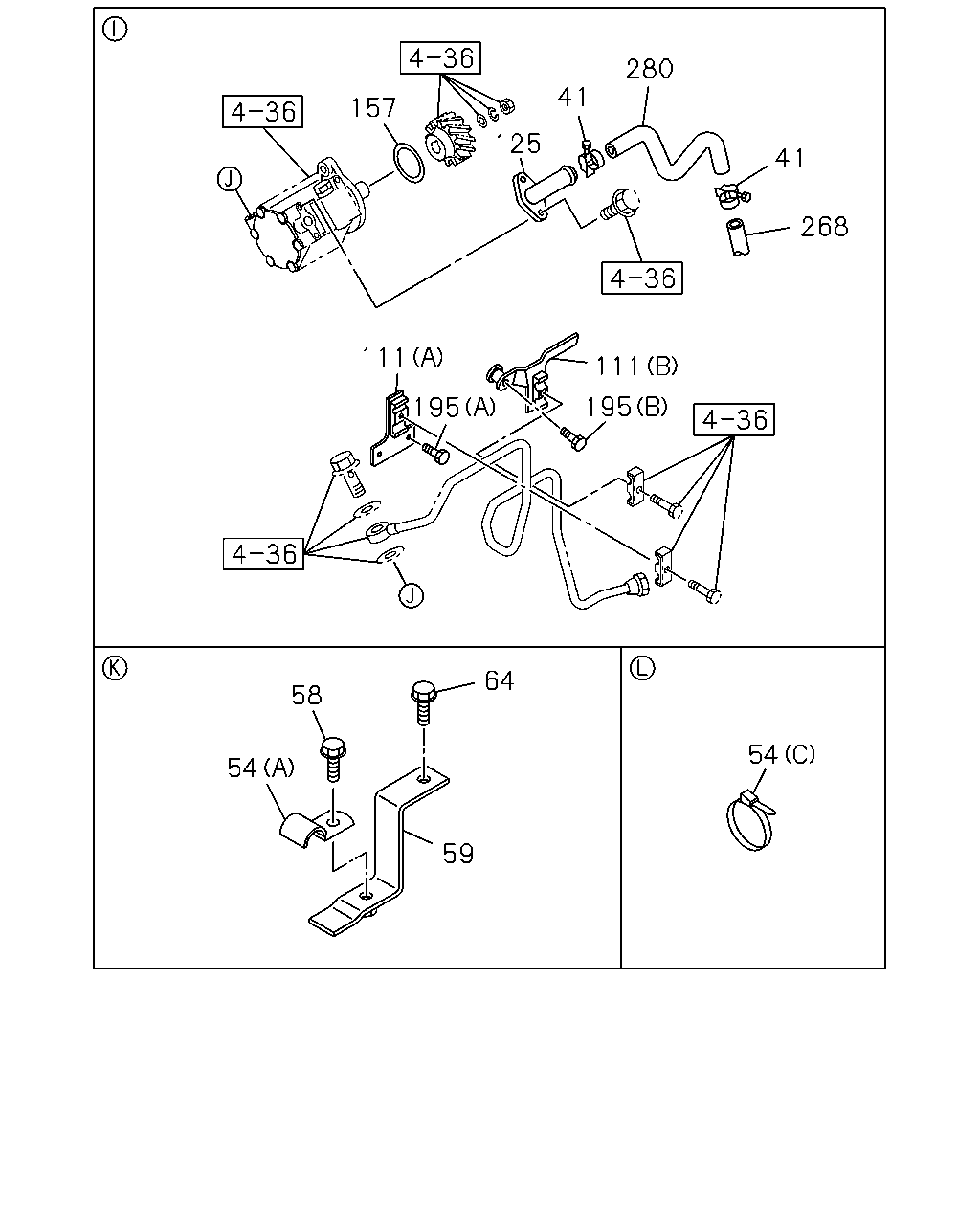

157 125 41 280 41 268 111 195 111 58 64 59 54 54 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	0604-
54	CLIP; OIL PIPE (C) L=350	1-09707-183-0	02	1	1310-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	0604-
54	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	01	1	0604-0606
54	CLIP; OIL PIPE (B) ID=16 L=20	0-95235-535-0	01	1	0607-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	04	1	0604-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0604-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	03	1	0604-
58	BOLT; CLIP M10X25 FLANGE	0-28651-025-0	02	1	0604-
59	BRACKET; CLIP,OIL PIPE	1-47477-145-0	01	1	0604-
64	BOLT; CLIP BRKT M8X30 FLANGE	0-28050-830-0	01	1	0604-
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	0604-
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	0604-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	0604-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0604-
195	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	02	1	0604-
195	BOLT; BRKT (B) M10X35 FLANGE	0-28151-035-0	01	1	0604-
195	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	02	1	0604-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1276	1-21117-830-0	01	1	0604-
280	HOSE; P/S OIL PUMP,INL	1-21117-831-0	01	1	0604-

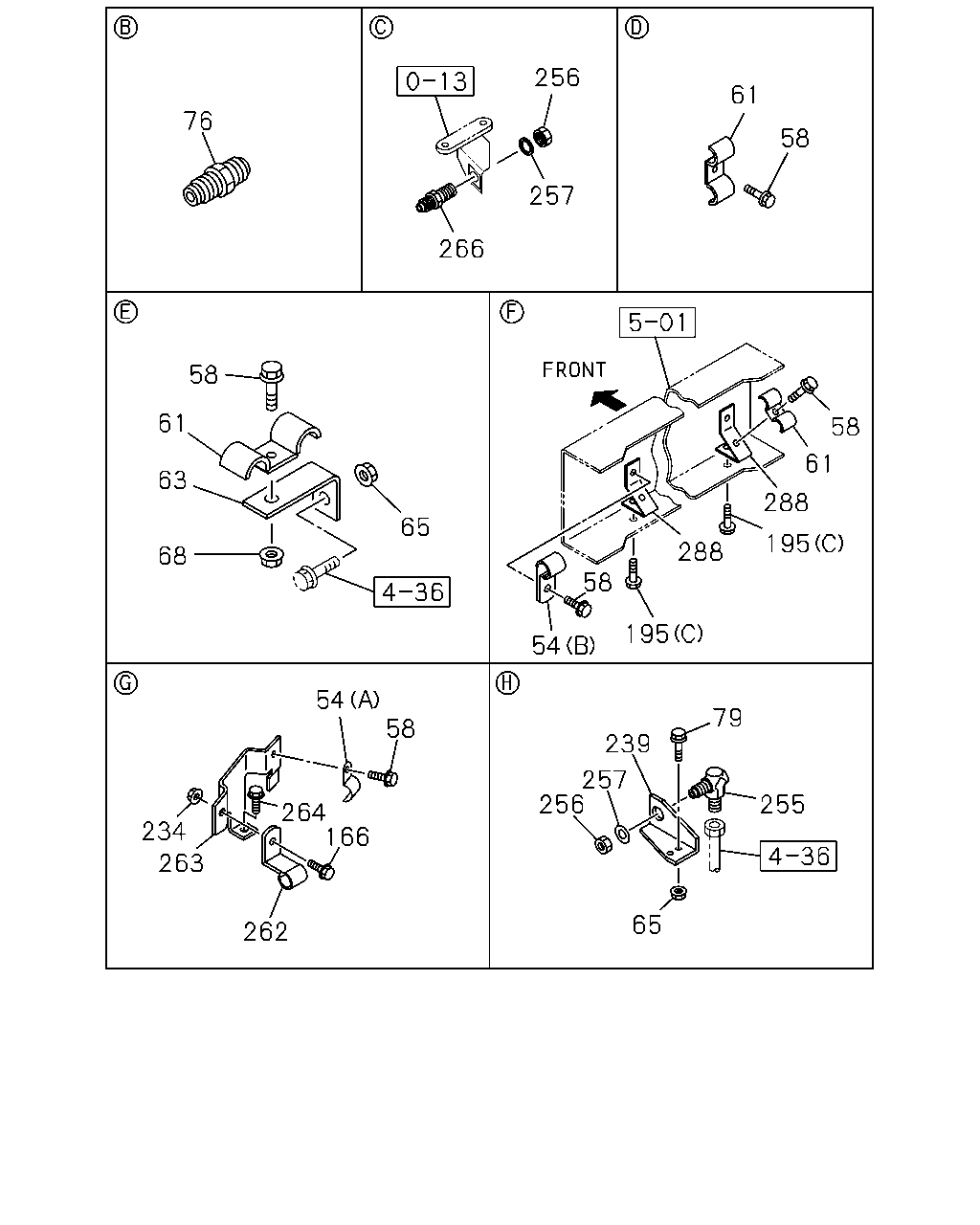

256 61 76 58 257 266 58 61 58 61 63 288 65 195 288 68 58 195 54 54 58 79 239 257 256 255 264 166 234 263 65 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE (C) L=350	1-09707-183-0	02	1	1310-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	0604-
54	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	01	1	0604-0606
54	CLIP; OIL PIPE (B) ID=16 L=20	0-95235-535-0	01	1	0607-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	04	1	0604-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0604-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	03	1	0604-
58	BOLT; CLIP M10X25 FLANGE	0-28651-025-0	02	1	0604-
61	CLIP; OIL PIPE ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	0604-
61	CLIP; OIL PIPE ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	03	1	0604-
63	BRACKET; CLIP,P/S L=115 B=25	1-47476-758-0	01	1	0604-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0604-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0604-
76	UNION; OIL PIPE M22	9-09233-015-1	01	1	0604-0607
76	UNION; OIL PIPE M22	9-09233-015-1	01	1	0604-0607
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	01	1	0608-
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	01	1	0608-
79	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0604-
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0604-
195	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	02	1	0604-
195	BOLT; BRKT (B) M10X35 FLANGE	0-28151-035-0	01	1	0604-
195	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	02	1	0604-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	0604-
239	BRACKET; FLEX HOSE	1-47479-664-0	01	1	0604-
255	UNION; FLEX HOSE M22 & M22 ELBOW	1-09650-375-1	01	1	0604-
256	NUT; UNION M22	0-91111-522-0	01	1	0604-
256	NUT; UNION M22	0-91111-522-0	01	1	0604-
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0604-0604
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0604-0604
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	0604-
263	BRACKET; P/S PIPE	1-47476-483-2	01	1	0604-
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	0604-
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	0604-
288	BRACKET; CLIP,P/S	1-47479-521-0	02	1	0604-

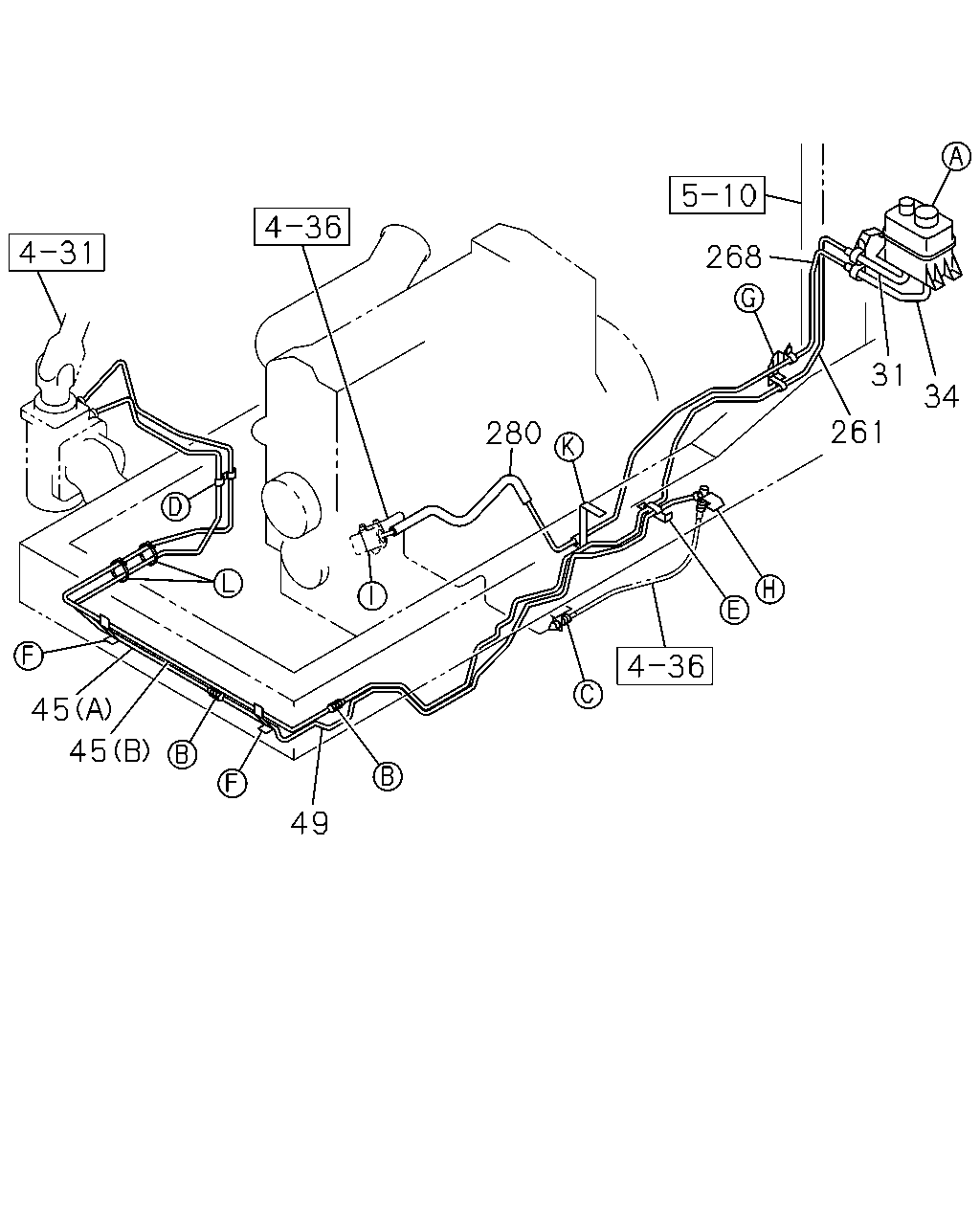

45 45 49 280 261 31 268 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	0604-
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	0604-
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1565	1-21117-678-0	01	1	0604-
45	PIPE; OIL,P/S UNIT TO UNION (B) L=2212	1-21117-844-0	01	1	0604-1309
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98257-517-0	01	1	1310-
49	PIPE; OIL,FLEX HOSE TO UNION L=2050	1-21117-367-0	01	1	0604-
261	PIPE; OIL,UNION TO HOSE L=2500	1-21117-369-1	01	1	0604-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1276	1-21117-830-0	01	1	0604-
280	HOSE; P/S OIL PUMP,INL	1-21117-831-0	01	1	0604-
