◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11022 - CYZ RHD ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#29326) — 242 parça

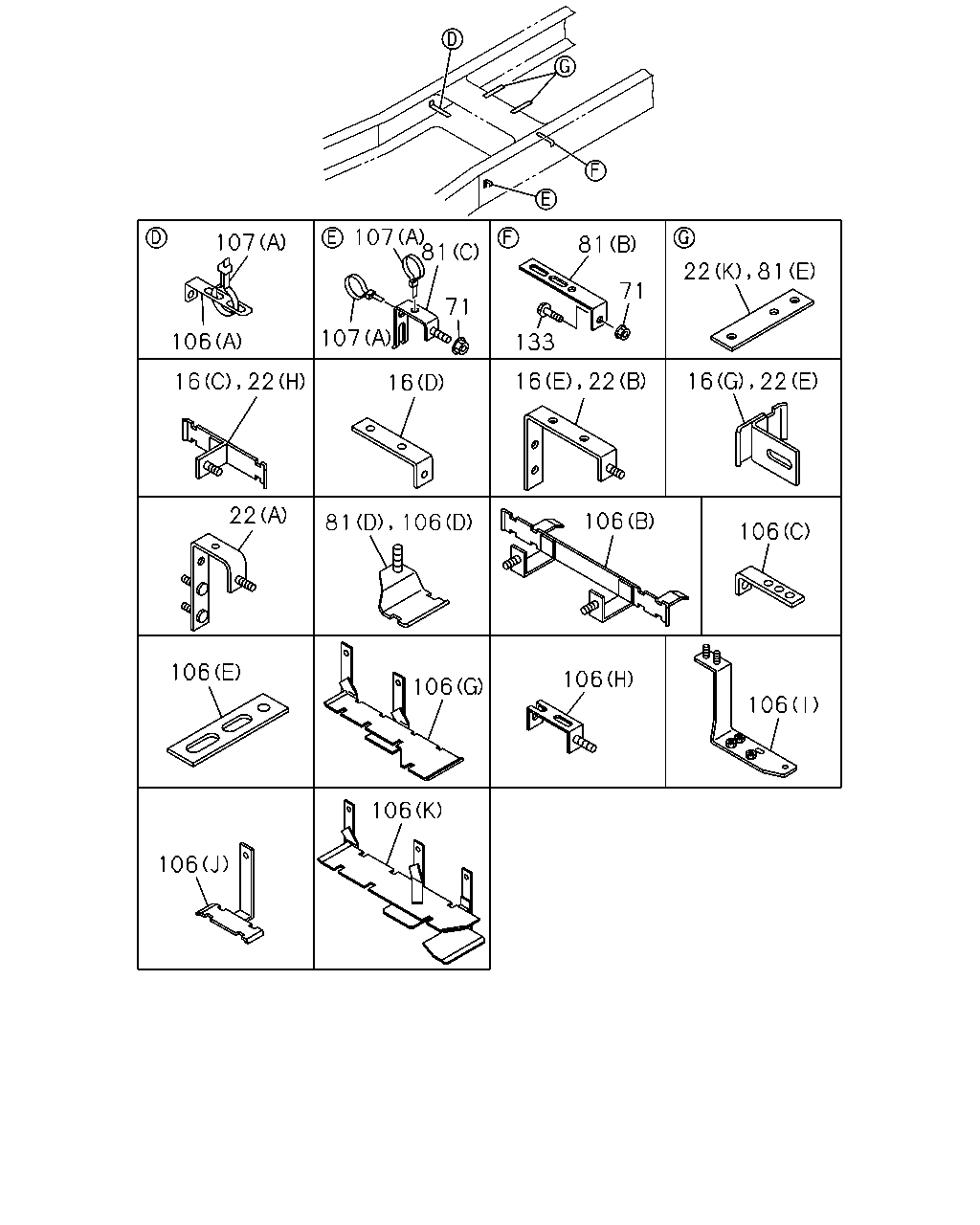

çizim 90048
107 81 107 81 71 71 107 106 133 16 22 16 22 106 81 106 106 106 106 106 106 106 106
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; PIPE CLIP
WHEEL BASE 5300MM(53W) (I) 		1-47479-381-2 06 1 0604-
16 BRACKET; PIPE CLIP
WHEEL BASE 5900MM(59W) (I) 		1-47479-381-2 04 1 0604-
16 BRACKET; PIPE CLIP
(D) L=30 		1-47479-481-0 01 1 0604-
16 BRACKET; PIPE CLIP
(A) 		1-47479-546-0 01 1 0604-
16 BRACKET; PIPE CLIP
(C) 		1-47479-554-0 01 1 0604-
16 BRACKET; PIPE CLIP
(G) 		1-47479-693-0 02 1 0604-
16 BRACKET; PIPE CLIP
(F) 		1-47479-720-0 01 1 0604-
16 BRACKET; PIPE CLIP
(H) 		1-47479-721-0 02 1 0604-
16 BRACKET; PIPE CLIP
(J) 		1-47479-722-1 01 1 0604-
16 BRACKET; PIPE CLIP
(E) 		1-47479-800-0 01 1 0604-
16 BRACKET; PIPE CLIP
(B) 		1-47479-898-0 01 1 0604-
22 BRACKET; CLIP
WHEEL BASE 5900MM(59W) (F) 		1-47479-381-2 03 1 0604-
22 BRACKET; CLIP
EXC. MIXER TRUCK<RA2> (J) L=100 H=30 		1-47477-645-2 01 1 0604-
22 BRACKET; CLIP
WHEEL BASE 5300MM(53W) (A) 		1-47479-329-0 01 1 0604-
22 BRACKET; CLIP
WHEEL BASE 5900MM(59W) (A) 		1-47471-188-0 01 1 0604-
22 BRACKET; CLIP
WHEEL BASE 5900MM(59W) (K) L=130 		1-47478-959-0 02 1 0604-
22 BRACKET; CLIP
WHEEL BASE 5300MM(53W) (F) 		1-47479-381-2 06 1 0604-
22 BRACKET; CLIP
(C) 		1-47479-546-0 01 1 0604-
22 BRACKET; CLIP
(H) 		1-47479-554-0 01 1 0604-
22 BRACKET; CLIP
(E) 		1-47479-693-0 02 1 0604-
22 BRACKET; CLIP
(D) 		1-47479-720-0 01 1 0604-
22 BRACKET; CLIP
(I) 		1-47479-722-1 01 1 0604-
22 BRACKET; CLIP
(B) 		1-47479-800-0 01 1 0604-
22 BRACKET; CLIP
(G) 		1-47479-898-0 01 1 0604-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 13 1 0604-
81 BRACKET; CLIP
(D) W/STUD M8X20 		1-47471-209-0 02 1 0604-
81 BRACKET; CLIP
(E) L=150 		1-47471-217-0 02 1 0604-
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 0604-
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 04 1 0604-
81 BRACKET; CLIP
(C) 		1-47479-381-2 04 1 0604-
106 BRACKET; TUBE CLIP
(H) 		1-47471-450-0 01 1 0604-
106 BRACKET; TUBE CLIP
(I) 		1-47471-108-0 01 1 0604-
106 BRACKET; TUBE CLIP
(G) 		1-47471-144-0 01 1 0604-0812
106 BRACKET; TUBE CLIP
(K) 		8-98122-297-0 01 1 0901-
106 BRACKET; TUBE CLIP
(D) W/STUD M8X20 		1-47471-209-0 02 1 0604-
106 BRACKET; TUBE CLIP
(E) 		1-47477-514-3 01 1 0604-
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 02 1 0604-
106 BRACKET; TUBE CLIP
(F) 		1-47479-381-2 02 1 0604-
106 BRACKET; TUBE CLIP
(B) 		1-47479-553-0 01 1 0604-
106 BRACKET; TUBE CLIP
(J) 		1-47479-870-0 01 1 0604-
106 BRACKET; TUBE CLIP
(C) L=120 H=35 		1-82699-970-0 01 1 0604-0905
106 BRACKET; TUBE CLIP
(C) 		1-82698-358-0 01 1 0906-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 13 1 0604-
107 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 03 1 0604-
107 CLIP; NYLON TUBE
(B) ID=19 L=60 		9-09525-896-0 01 1 0604-0606
107 CLIP; NYLON TUBE
(B) ID=19 L=60 		0-95235-896-0 01 1 0607-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 06 1 0901-
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 03 1 0901-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0604-
133 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 0604-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0604-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0604-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 06 1 0604-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 06 1 0604-0812
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 06 1 0604-0812
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0901-
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0604-
133 BOLT; BRKT
EXC. MIXER TRUCK<RA2> M6X10 FLANGE 		0-28050-610-0 01 1 0604-

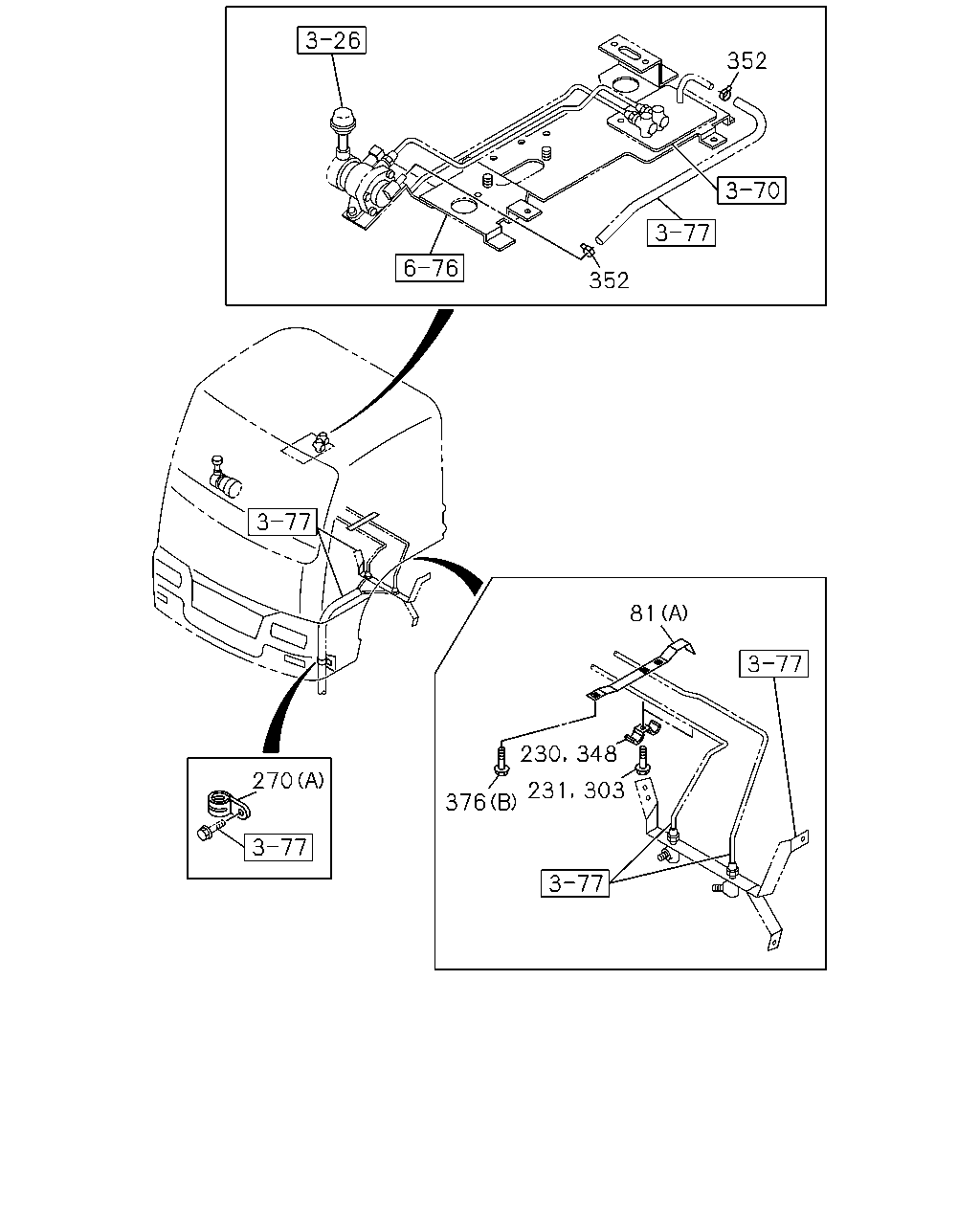

çizim 90072
352 352 81 270 376 230 348 231 303
BalonParca AdiParca NoAdetTipApplied Date
81 BRACKET; CLIP
(D) W/STUD M8X20 		1-47471-209-0 02 1 0604-
81 BRACKET; CLIP
(E) L=150 		1-47471-217-0 02 1 0604-
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 0604-
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 04 1 0604-
81 BRACKET; CLIP
(C) 		1-47479-381-2 04 1 0604-
230 CLIP; PIPE,AIR
ID=11 & 9 L=15 & 15 		1-09700-062-0 02 1 0604-
231 BOLT; CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0604-
270 CLIP; NYLON TUBE
(B) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0604-
270 CLIP; NYLON TUBE
(A) ID=28 L=40 		1-09700-995-1 01 1 0604-
270 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 02 1 0604-
303 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0604-
348 CLIP; AIR PIPE
ID=9 & 9 L=15 & 15 		1-09700-061-0 02 1 0604-
352 CLIP; EXH HOSE
ID=14 		8-94238-572-0 02 1 0604-
376 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0604-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0604-

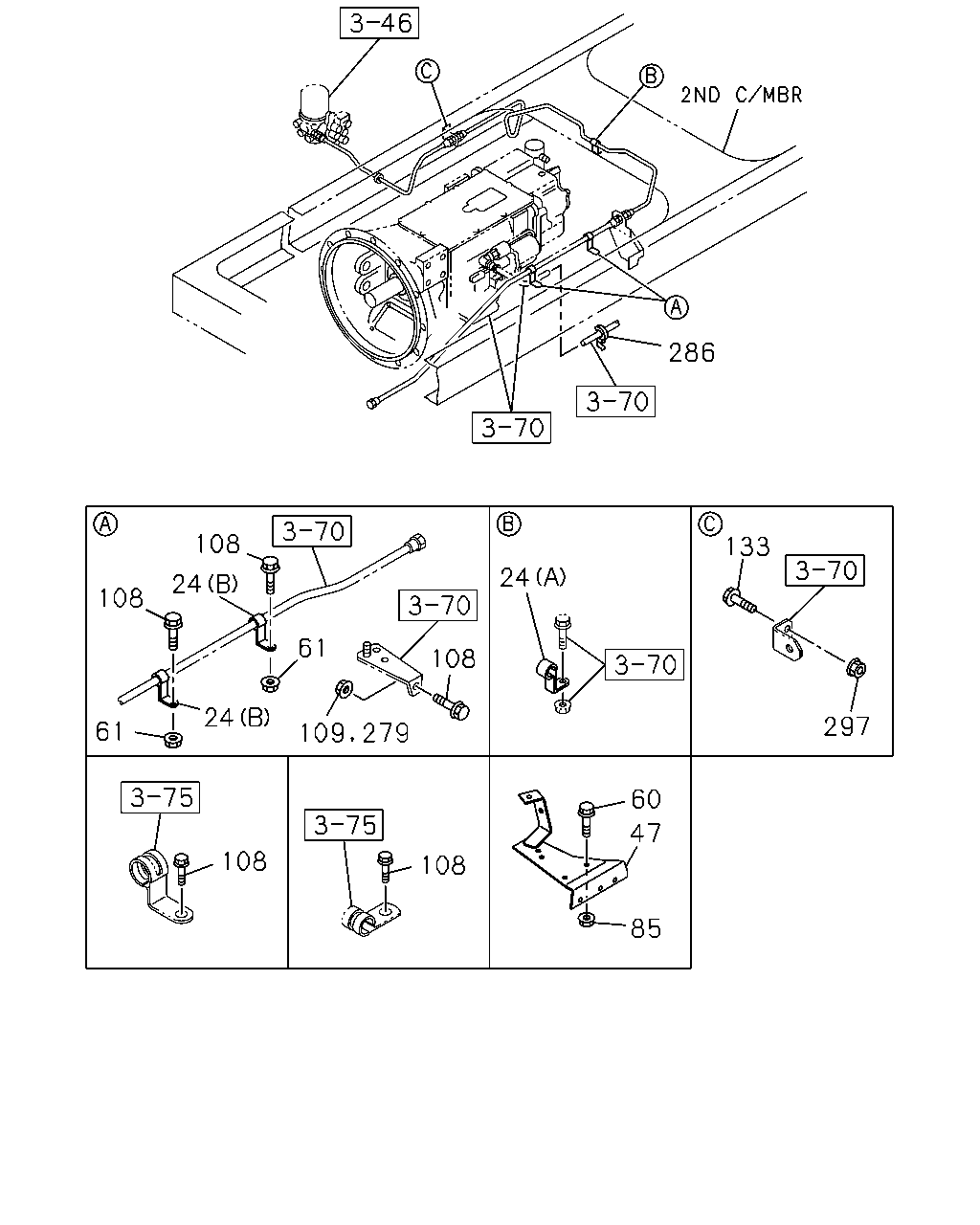

çizim 90074
286 133 108 24 24 108 61 108 24 297 61 60 47 108 108 85 109 279
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 0604-
24 CLIP; PIPE
(B) ID=25 H=30 L=35 		1-09700-875-0 02 1 0604-
47 BRACKET; PIPE CLIP 1-47471-389-0 01 1 0604-
60 BOLT; CLIP FIX
M8X30 FLANGE 		0-28650-830-0 02 1 0604-
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 04 1 0604-
85 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 0604-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 0604-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 03 1 0604-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 08 1 0604-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0604-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 02 1 0604-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 06 1 0604-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 06 1 0901-
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 03 1 0901-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0604-
133 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 0604-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0604-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0604-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 06 1 0604-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 06 1 0604-0812
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 06 1 0604-0812
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0901-
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0604-
133 BOLT; BRKT
EXC. MIXER TRUCK<RA2> M6X10 FLANGE 		0-28050-610-0 01 1 0604-
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0604-
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 16 1 0604-
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 20 1 0604-
286 CLIP; NYLON TUBE
ASSISTOR SHIFT CONTROL<WX8> ID=15 & 7 		1-09709-311-0 01 1 0604-
297 NUT; BRKT
WHEEL BASE 5300MM(53W) M8 FLANGE 		0-91180-108-0 12 1 0604-
297 NUT; BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91180-108-0 09 1 0604-
297 NUT; BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91180-108-0 11 1 0604-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 0604-

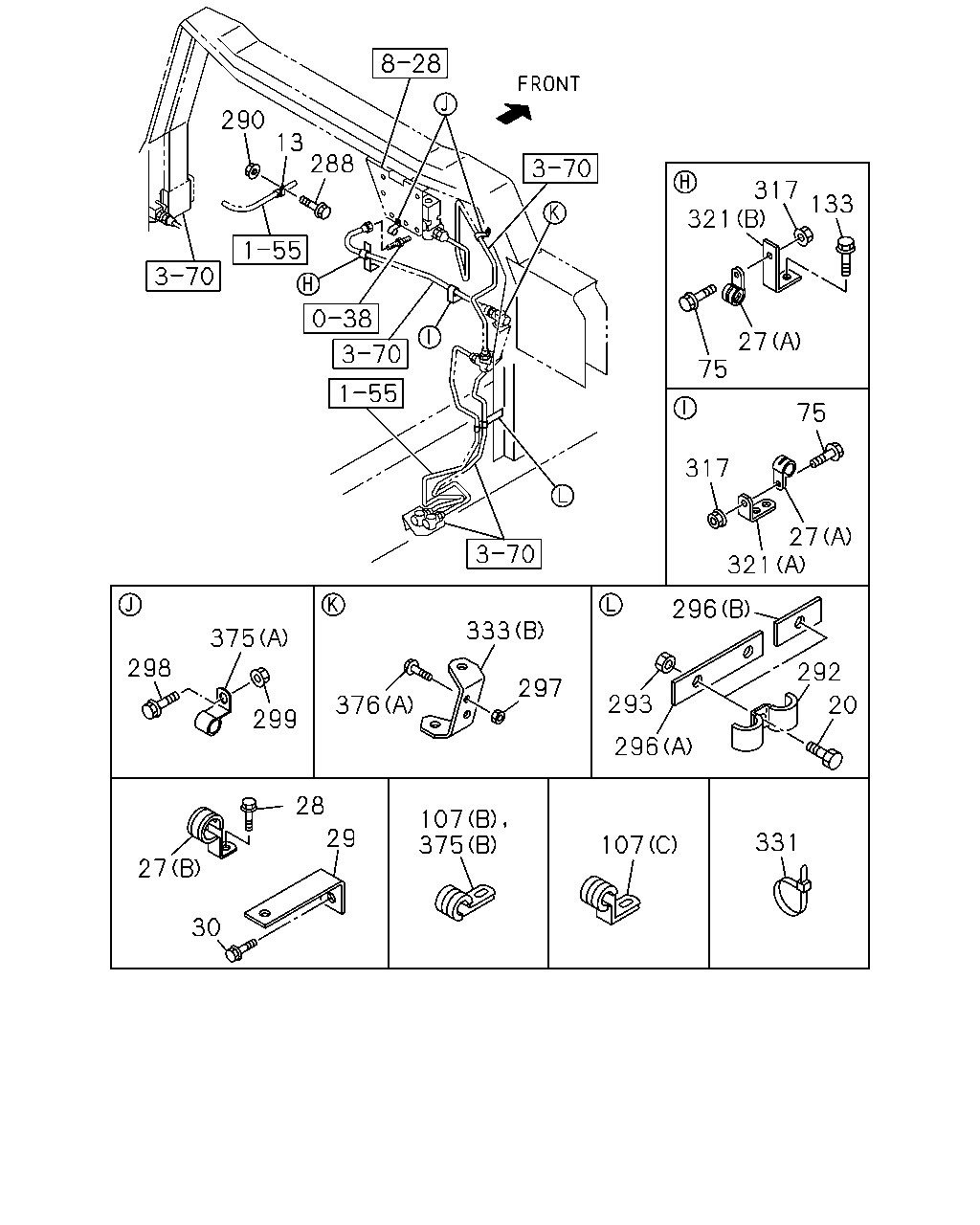

çizim 90802
290 13 288 317 321 133 27 75 75 317 27 321 296 333 375 298 292 297 293 376 20 299 296 28 107 375 29 331 107 27 30
BalonParca AdiParca NoAdetTipApplied Date
13 CLIP; AIR PIPE
ID=6 H=20 L=20 		1-09700-603-0 01 1 0604-
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0604-
27 CLIP; FLEX HOSE
(B) ID=25 H=30 L=35 		1-09700-875-0 02 1 0604-
27 CLIP; FLEX HOSE
EXC. MIXER TRUCK<RA2> (A) ID=15 L=28 		1-09701-216-0 02 1 0604-
28 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28650-820-0 02 1 0604-
29 BRACKET; CLIP,AIR PIPE
L=60 		1-47476-217-0 01 1 0604-
30 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0604-
75 BOLT; CLIP
EXC. MIXER TRUCK<RA2> M8X20 FLANGE 		0-28650-820-0 02 1 0604-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 13 1 0604-
107 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 03 1 0604-
107 CLIP; NYLON TUBE
(B) ID=19 L=60 		9-09525-896-0 01 1 0604-0606
107 CLIP; NYLON TUBE
(B) ID=19 L=60 		0-95235-896-0 01 1 0607-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 06 1 0901-
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 03 1 0901-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0604-
133 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 0604-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0604-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0604-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 06 1 0604-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 06 1 0604-0812
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 06 1 0604-0812
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0901-
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0604-
133 BOLT; BRKT
EXC. MIXER TRUCK<RA2> M6X10 FLANGE 		0-28050-610-0 01 1 0604-
288 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0604-
290 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-208-0 01 1 0604-
292 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 0604-
293 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0604-
296 BRACKET; CLIP
(A) L=50 		1-47475-299-2 01 1 0604-
296 BRACKET; CLIP
(B) 		1-47475-648-0 01 1 0604-
297 NUT; BRKT
WHEEL BASE 5300MM(53W) M8 FLANGE 		0-91180-108-0 12 1 0604-
297 NUT; BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91180-108-0 09 1 0604-
297 NUT; BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91180-108-0 11 1 0604-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 0604-
298 BOLT; CLIP
MIXER TRUCK<RA2> M8X20 FLANGE 		0-28650-820-0 01 1 0604-0907
298 BOLT; CLIP
MIXER TRUCK<RA2> M8X20 FLANGE 		0-28650-820-0 03 1 0908-
299 NUT; CLIP
MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 01 1 0604-0907
299 NUT; CLIP
MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 03 1 0908-
317 NUT; CLIP
EXC. MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 02 1 0604-
321 BRACKET; CLIP
EXC. MIXER TRUCK<RA2> (A) 		1-47477-337-1 01 1 0604-
321 BRACKET; CLIP
EXC. MIXER TRUCK<RA2> (B) L=75 		1-47478-328-0 01 1 0604-
331 CLIP; NYLON TUBE
L=350 		1-09707-183-0 02 1 0604-
333 BRACKET; BRK AIR PIPE
(B) 		1-47477-045-0 01 1 0604-
333 BRACKET; BRK AIR PIPE
(A) 		1-79997-360-6 01 1 0604-0702
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-131-0 01 1 0703-0801
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-150-0 01 1 0802-
375 CLIP; AIR PIPE
MIXER TRUCK<RA2> ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> (B) ID=7 L=20 		0-95234-635-0 02 1 0707-
375 CLIP; AIR PIPE
MIXER TRUCK<RA2> (A) ID=6 H=20 L=20 		1-09700-603-0 01 1 0604-
376 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0604-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0604-

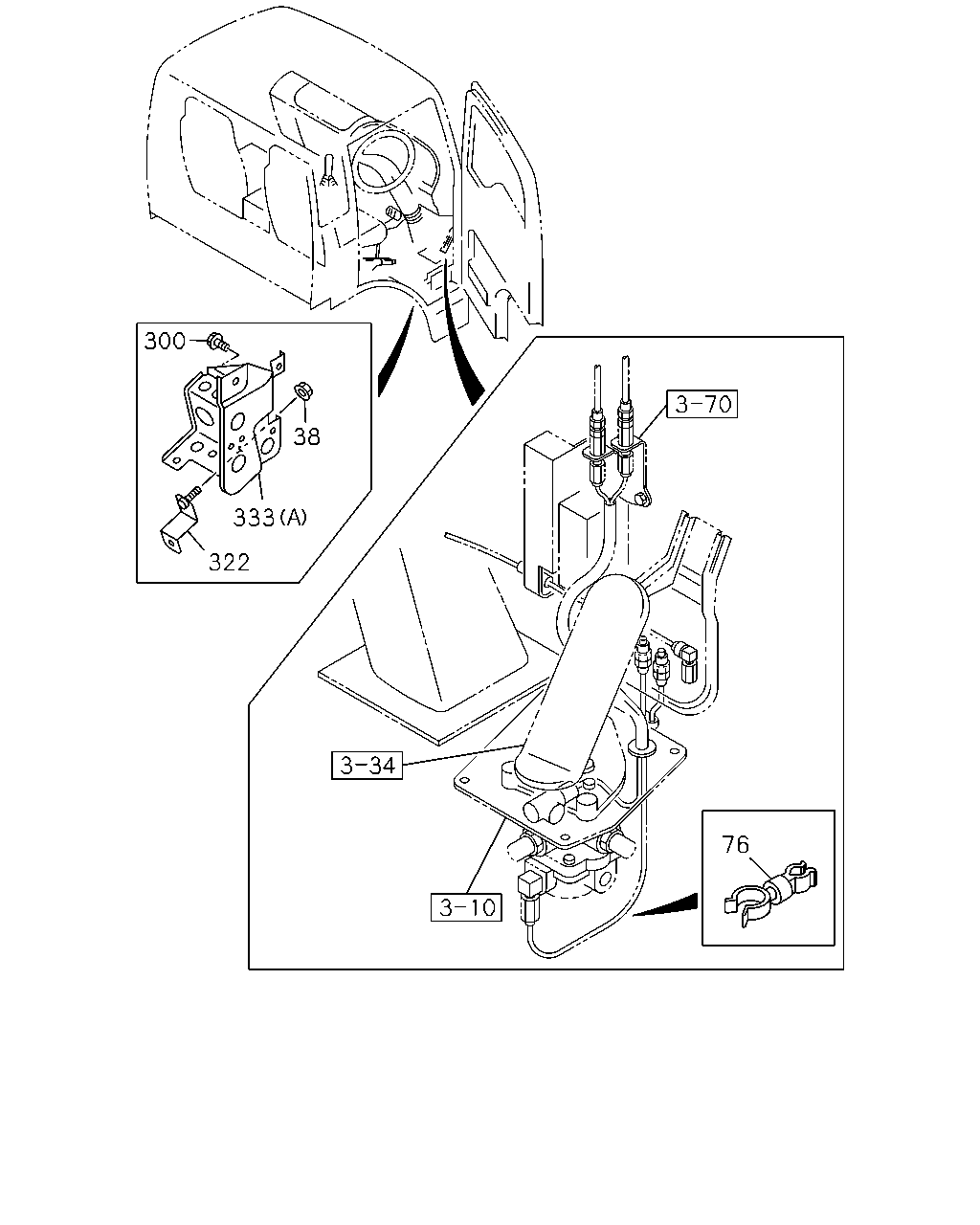

çizim 105563
300 38 333 322 76
BalonParca AdiParca NoAdetTipApplied Date
38 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0604-0702
76 CLIP; NYLON TUBE
ID=6 & 8.3 		8-94167-742-0 02 1 0604-
300 BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0604-0904
300 BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905-
322 BRACKET; CLIP 1-79996-659-1 01 1 0604-0702
333 BRACKET; BRK AIR PIPE
(B) 		1-47477-045-0 01 1 0604-
333 BRACKET; BRK AIR PIPE
(A) 		1-79997-360-6 01 1 0604-0702
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-131-0 01 1 0703-0801
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-150-0 01 1 0802-

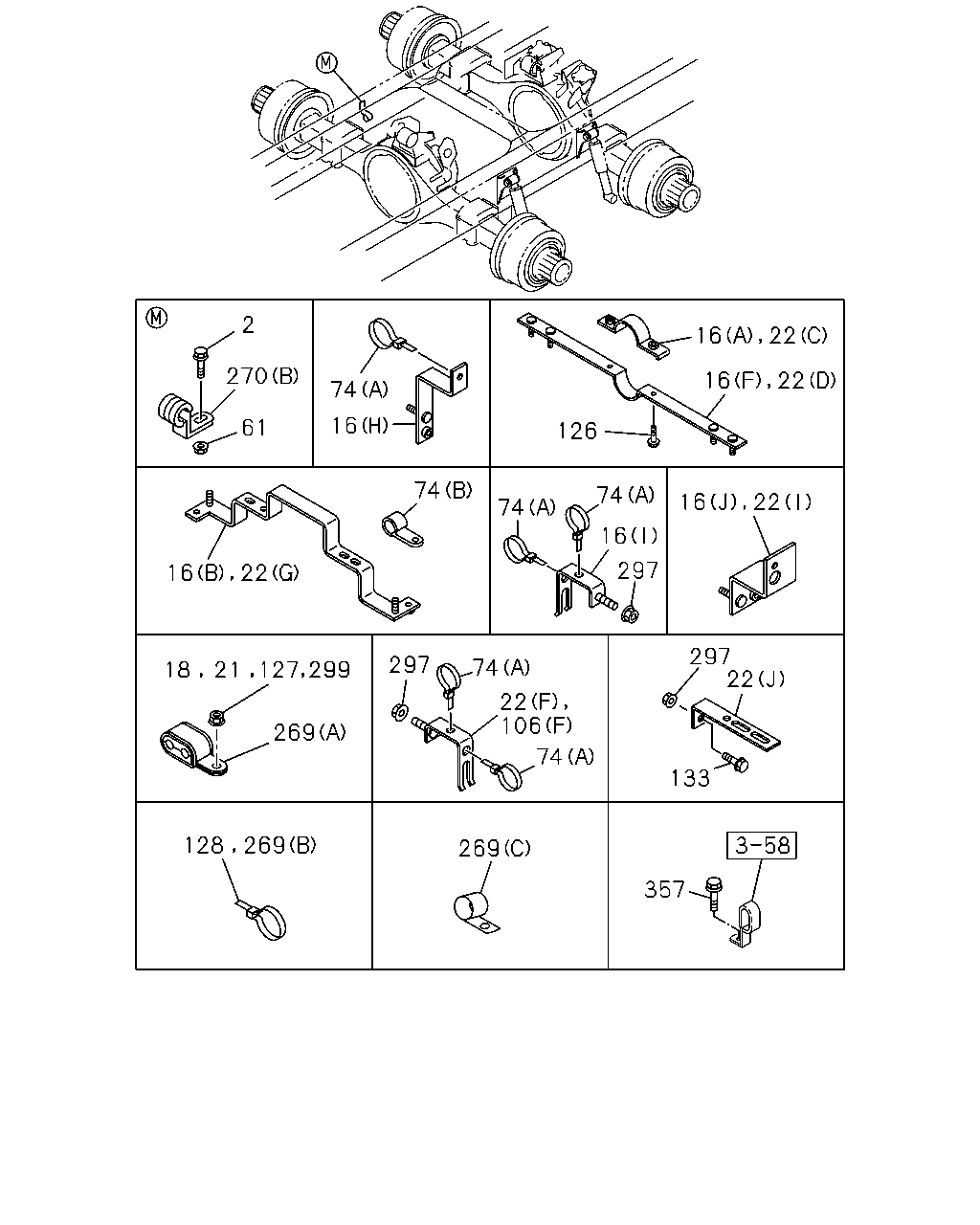

çizim 105564
2 16 22 270 74 16 61 126 74 74 74 16 297 297 22 297 74 18 21 22 106 269 74 133 269 357 16 22 16 22 16 22 127 299 128 269
BalonParca AdiParca NoAdetTipApplied Date
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 01 1 0604-
16 BRACKET; PIPE CLIP
WHEEL BASE 5300MM(53W) (I) 		1-47479-381-2 06 1 0604-
16 BRACKET; PIPE CLIP
WHEEL BASE 5900MM(59W) (I) 		1-47479-381-2 04 1 0604-
16 BRACKET; PIPE CLIP
(D) L=30 		1-47479-481-0 01 1 0604-
16 BRACKET; PIPE CLIP
(A) 		1-47479-546-0 01 1 0604-
16 BRACKET; PIPE CLIP
(C) 		1-47479-554-0 01 1 0604-
16 BRACKET; PIPE CLIP
(G) 		1-47479-693-0 02 1 0604-
16 BRACKET; PIPE CLIP
(F) 		1-47479-720-0 01 1 0604-
16 BRACKET; PIPE CLIP
(H) 		1-47479-721-0 02 1 0604-
16 BRACKET; PIPE CLIP
(J) 		1-47479-722-1 01 1 0604-
16 BRACKET; PIPE CLIP
(E) 		1-47479-800-0 01 1 0604-
16 BRACKET; PIPE CLIP
(B) 		1-47479-898-0 01 1 0604-
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0604-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 06 1 0604-
22 BRACKET; CLIP
WHEEL BASE 5900MM(59W) (F) 		1-47479-381-2 03 1 0604-
22 BRACKET; CLIP
EXC. MIXER TRUCK<RA2> (J) L=100 H=30 		1-47477-645-2 01 1 0604-
22 BRACKET; CLIP
WHEEL BASE 5300MM(53W) (A) 		1-47479-329-0 01 1 0604-
22 BRACKET; CLIP
WHEEL BASE 5900MM(59W) (A) 		1-47471-188-0 01 1 0604-
22 BRACKET; CLIP
WHEEL BASE 5900MM(59W) (K) L=130 		1-47478-959-0 02 1 0604-
22 BRACKET; CLIP
WHEEL BASE 5300MM(53W) (F) 		1-47479-381-2 06 1 0604-
22 BRACKET; CLIP
(C) 		1-47479-546-0 01 1 0604-
22 BRACKET; CLIP
(H) 		1-47479-554-0 01 1 0604-
22 BRACKET; CLIP
(E) 		1-47479-693-0 02 1 0604-
22 BRACKET; CLIP
(D) 		1-47479-720-0 01 1 0604-
22 BRACKET; CLIP
(I) 		1-47479-722-1 01 1 0604-
22 BRACKET; CLIP
(B) 		1-47479-800-0 01 1 0604-
22 BRACKET; CLIP
(G) 		1-47479-898-0 01 1 0604-
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 04 1 0604-
74 CLIP; NYLON TUBE
WHEEL BASE 5300MM(53W) (A) L=350 		1-09707-183-0 16 1 0604-
74 CLIP; NYLON TUBE
WHEEL BASE 5900MM(59W) (A) L=350 		1-09707-183-0 17 1 0604-
74 CLIP; NYLON TUBE
(B) ID=13 		1-09701-030-1 03 1 0604-
106 BRACKET; TUBE CLIP
(H) 		1-47471-450-0 01 1 0604-
106 BRACKET; TUBE CLIP
(I) 		1-47471-108-0 01 1 0604-
106 BRACKET; TUBE CLIP
(G) 		1-47471-144-0 01 1 0604-0812
106 BRACKET; TUBE CLIP
(K) 		8-98122-297-0 01 1 0901-
106 BRACKET; TUBE CLIP
(D) W/STUD M8X20 		1-47471-209-0 02 1 0604-
106 BRACKET; TUBE CLIP
(E) 		1-47477-514-3 01 1 0604-
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 02 1 0604-
106 BRACKET; TUBE CLIP
(F) 		1-47479-381-2 02 1 0604-
106 BRACKET; TUBE CLIP
(B) 		1-47479-553-0 01 1 0604-
106 BRACKET; TUBE CLIP
(J) 		1-47479-870-0 01 1 0604-
106 BRACKET; TUBE CLIP
(C) L=120 H=35 		1-82699-970-0 01 1 0604-0905
106 BRACKET; TUBE CLIP
(C) 		1-82698-358-0 01 1 0906-
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 0604-
126 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0604-
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 04 1 0604-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0604-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0604-
127 NUT; CLIP BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91180-108-0 09 1 0604-
127 NUT; CLIP BRKT
WHEEL BASE 5300MM(53W) M8 FLANGE 		0-91180-108-0 11 1 0604-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 0604-
128 CLIP; NYLON TUBE
WHEEL BASE 5300MM(53W) L=350 		1-09707-183-0 13 1 0604-
128 CLIP; NYLON TUBE
WHEEL BASE 5900MM(59W) L=350 		1-09707-183-0 15 1 0604-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 06 1 0901-
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 03 1 0901-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0604-
133 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 0604-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0604-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0604-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 06 1 0604-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 06 1 0604-0812
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 06 1 0604-0812
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0901-
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0604-
133 BOLT; BRKT
EXC. MIXER TRUCK<RA2> M6X10 FLANGE 		0-28050-610-0 01 1 0604-
269 CLIP; BAND,NYLON TUBE
(C) ID=13 		1-09701-030-1 03 1 0604-
269 CLIP; BAND,NYLON TUBE
(A) ID=11X2 L=42 		1-09701-306-0 06 1 0604-
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 03 1 0604-
270 CLIP; NYLON TUBE
(B) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0604-
270 CLIP; NYLON TUBE
(A) ID=28 L=40 		1-09700-995-1 01 1 0604-
270 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 02 1 0604-
297 NUT; BRKT
WHEEL BASE 5300MM(53W) M8 FLANGE 		0-91180-108-0 12 1 0604-
297 NUT; BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91180-108-0 09 1 0604-
297 NUT; BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91180-108-0 11 1 0604-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 0604-
299 NUT; CLIP
MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 01 1 0604-0907
299 NUT; CLIP
MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 03 1 0908-
357 BOLT; CLIP FIX
M8X10 FLANGE 		0-28050-810-0 02 1 0604-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
