Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11022 - CYZ RHD
▶
3 - Brakes, Brake System
▶
3-75 - BRAKE PIPING; AIR,FRONT
▶
3-75 — BRAKE PIPING; AIR,FRONT
(#29324) — 62 parça
◀

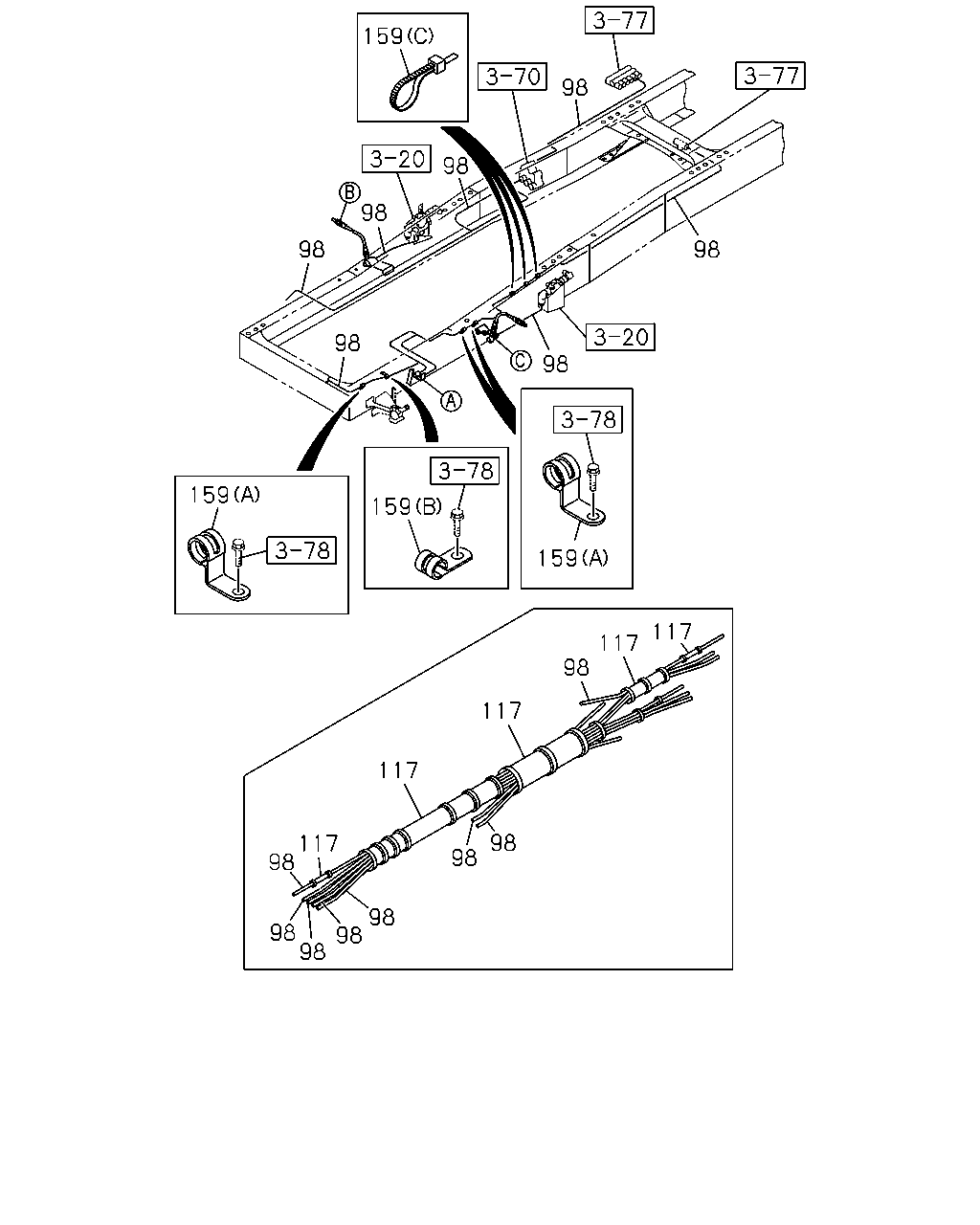

[375A] NO.1 (26 parça)

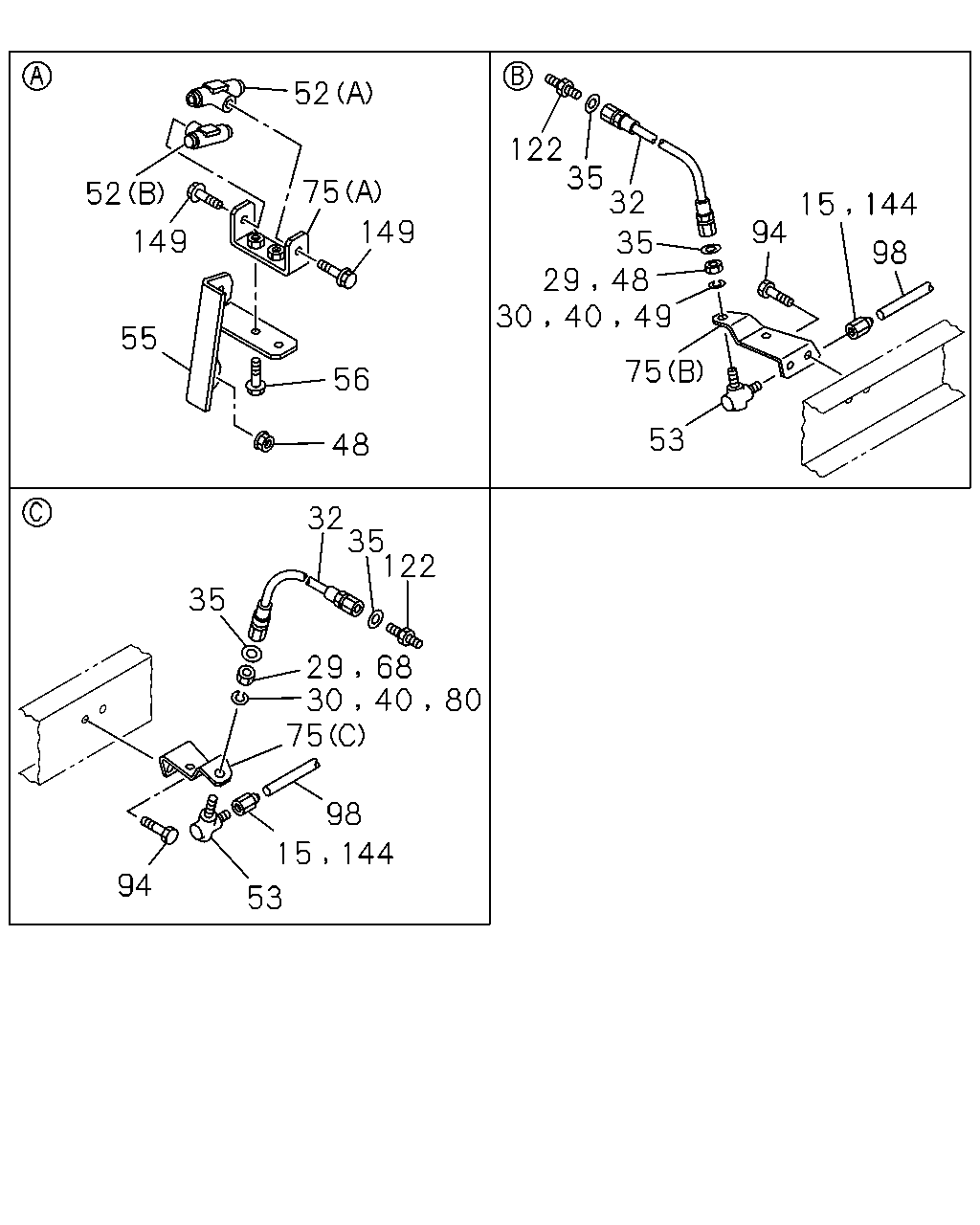

[375A] NO.2 (36 parça)
▶
159
98
98
98
98
98
98
98
159
159
159
117
117
98
117
117
98
117
98
98
98
98
98
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
98
TUBE; NYLON
L=170 OD=12
1-49222-063-0
02
1
0604-
98
TUBE; NYLON
SERVICED BY L=6000 OD=6
1-87411-003-0
AR
1
0604-
98
TUBE; NYLON
SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
0604-
98
TUBE; NYLON
SERVICED BY L=8000 OD=8
1-87411-009-0
AR
1
0604-
98
TUBE; NYLON
SERVICED BY L=12000 OD=8
1-87411-010-0
AR
1
0604-
98
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0604-
98
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
0604-
98
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0604-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
0604-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
0604-
117
TUBE; CORRUGATE
SERVICED BY L=4000 ID=13
1-87411-023-0
AR
1
0604-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=19
1-87411-027-0
AR
1
0604-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
0604-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28
1-87411-033-0
AR
1
0604-
159
CLIP; NYLON TUBE
(A) ID=45 H=31 L=35
1-09701-308-0
01
1
0701-
159
CLIP; NYLON TUBE
(C) L=350
1-09707-183-0
21
1
0604-0812
159
CLIP; NYLON TUBE
(C) L=350
1-09707-183-0
20
1
0901-
159
CLIP; NYLON TUBE
(B) ID=35 L=33
1-09700-945-0
01
1
0604-
159
CLIP; NYLON TUBE
(B) ID=35 L=33
1-09700-945-0
02
1
0604-
159
CLIP; NYLON TUBE
(A) ID=19 L=39 H=21
1-09700-972-1
02
1
0604-
159
CLIP; NYLON TUBE
(A) ID=31 H=30 L=35
1-09700-994-0
01
1
0604-
159
CLIP; NYLON TUBE
(A) ID=31 H=30 L=35
1-09700-994-0
02
1
0604-
159
CLIP; NYLON TUBE
(B) ID=28 L=40
1-09701-261-0
01
1
0604-
159
CLIP; NYLON TUBE
(A) ID=45 H=31 L=35
1-09701-308-0
01
1
0604-0609
159
CLIP; NYLON TUBE
(B) ID=19 L=28
9-09525-856-0
02
1
0604-0606
159
CLIP; NYLON TUBE
(B) ID=19 L=28
0-95235-856-0
02
1
0607-
52
122
35
32
75
52
15
144
149
94
149
35
98
55
75
56
53
48
32
35
122
35
75
80
98
15
144
94
53
29
48
49
40
30
29
68
40
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
CONNECTOR; AIR PIPE
DIN12 & M20 STRAIGHT
1-09660-877-0
02
1
0604-
29
NUT; NIPPLE
M20
0-91111-520-0
02
1
0604-
30
WASHER; LK,NIPPLE
ID=20.2
9-09150-520-0
02
1
0604-0604
30
WASHER; LK,NIPPLE
ID=20.2
0-91510-520-0
02
1
0604-
32
HOSE; FLEX,FRT
L=430
0-07847-430-1
02
1
0604-0605
32
HOSE; FLEX,FRT
L=430
0-57847-430-1
02
1
0606-
35
GASKET; FLEX HOSE
ID=11 OD=18
9-09572-510-0
04
1
0604-
40
WASHER; LK,PIPE UNION
ID=20.2
9-09150-520-0
02
1
0604-0604
40
WASHER; LK,PIPE UNION
ID=20.2
0-91510-520-0
02
1
0604-
48
NUT; UNION BRKT
M12 FLANGE
0-91180-212-0
02
1
0604-
48
NUT; UNION BRKT
M20
0-91111-520-0
01
1
0604-
49
WASHER; LK,UNION BRKT
ID=20.2
9-09150-520-0
01
1
0604-0604
49
WASHER; LK,UNION BRKT
ID=20.2
0-91510-520-0
01
1
0604-
52
CONNECTOR; NYLON TUBE
(A) DIN7.5X2 & M8 2WAY
1-09661-128-0
01
1
0604-
52
CONNECTOR; NYLON TUBE
(B) DIN8X2 & M8 2WAY
1-09661-133-0
01
1
0604-
53
UNION; ELBOW
M20 & M20 ELBOW
1-09654-128-1
02
1
0604-
55
BRACKET; TUBE UNION
1-47478-381-1
01
1
0604-
56
BOLT; UNION BRKT
M8X16 FLANGE
0-28050-816-0
02
1
0604-
68
NUT; UNION
M20
0-91111-520-0
01
1
0604-
75
BRACKET; UNION
(C)
1-47479-765-1
01
1
0604-
75
BRACKET; UNION
(B)
1-47479-766-1
01
1
0604-
75
BRACKET; UNION
(A)
1-47479-768-0
01
1
0604-
80
WASHER; LK,UNION
ID=20.2
9-09150-520-0
01
1
0604-0604
80
WASHER; LK,UNION
ID=20.2
0-91510-520-0
01
1
0604-
94
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
04
1
0604-
98
TUBE; NYLON
L=170 OD=12
1-49222-063-0
02
1
0604-
98
TUBE; NYLON
SERVICED BY L=6000 OD=6
1-87411-003-0
AR
1
0604-
98
TUBE; NYLON
SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
0604-
98
TUBE; NYLON
SERVICED BY L=8000 OD=8
1-87411-009-0
AR
1
0604-
98
TUBE; NYLON
SERVICED BY L=12000 OD=8
1-87411-010-0
AR
1
0604-
98
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0604-
98
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
0604-
98
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0604-
122
CONNECTOR; FLEX HOSE
M20 & PT3/8
1-09660-731-1
02
1
0604-
144
ADAPTER
DIN12 & M20 STRAIGHT
1-09660-877-0
01
1
0604-
149
BOLT; UNION
M8X16 FLANGE
0-28050-816-0
02
1
0604-
