◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11022 - CYZ RHD ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#29323) — 202 parça

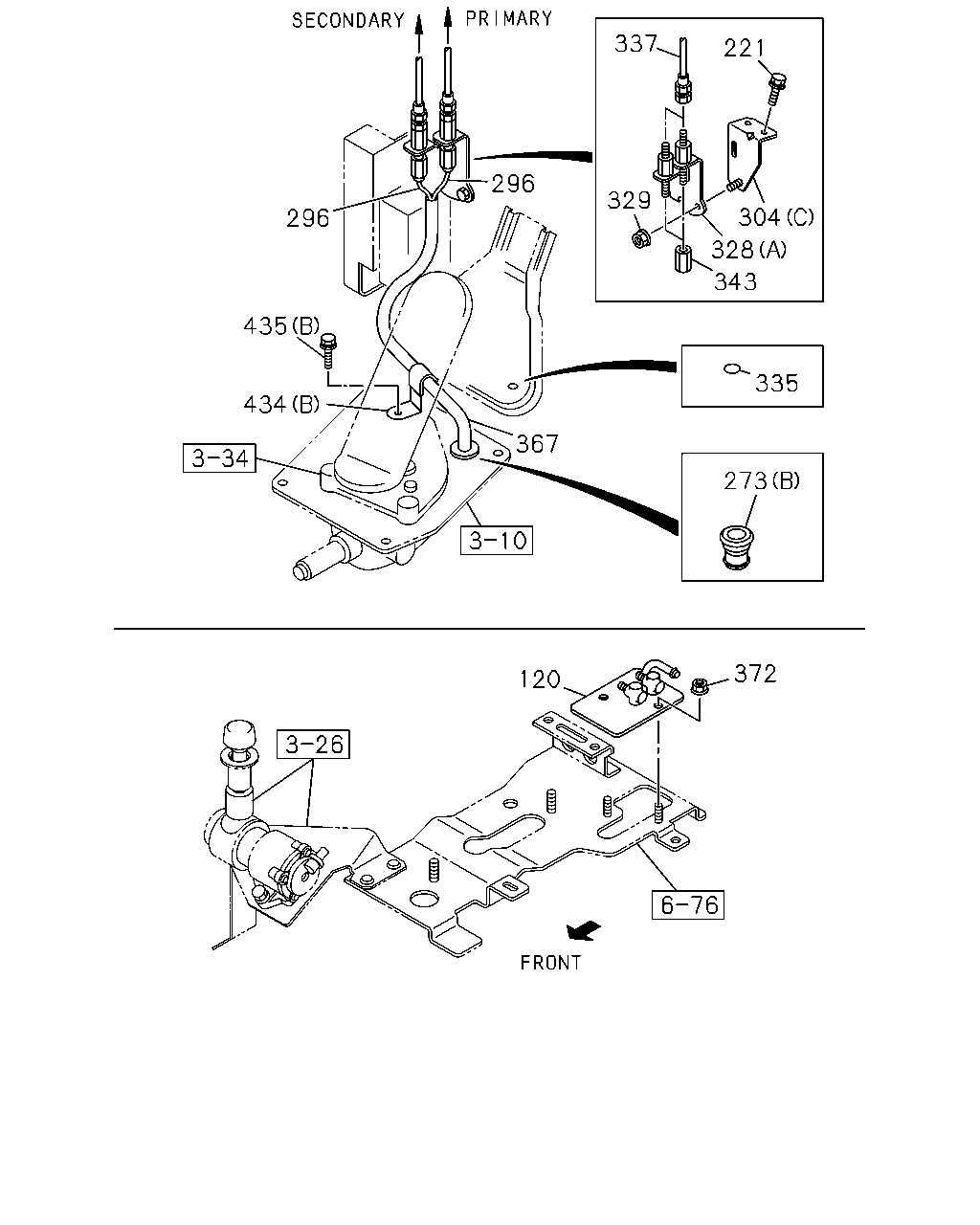

çizim 89563
337 221 296 329 304 296 328 343 435 335 434 367 273 372 120
BalonParca AdiParca NoAdetTipApplied Date
120 CONNECTOR; AIR PIPE 1-47470-492-1 01 1 0604-
221 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0604-
273 GROMMET
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0604-
273 GROMMET
(B) 		1-09332-135-0 01 1 0604-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0604-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0604-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0604-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0604-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0604-
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 0604-
304 BRACKET; UNION
(C) 		1-71117-211-0 01 1 0604-
304 BRACKET; UNION
(B) 		8-97610-319-1 01 1 0604-
328 UNION; AIR PIPE
MIXER TRUCK<RA2> ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> (B) M12 2WAY 		1-09654-059-2 01 1 0707-
328 UNION; AIR PIPE
(A) 		1-47470-442-0 01 1 0604-
329 NUT; UNION,AIR PIPE
M6 FLANGE 		0-91180-106-0 01 1 0604-
335 SEAL; UNION
OD=30 BLACK 		1-76798-035-0 01 1 0604-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=520 		0-07210-520-0 02 1 0604-0605
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=520 		0-57210-520-0 02 1 0606-
343 UNION; NYLON TUBE 1-09660-796-1 02 1 0604-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0604-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0604-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 0604-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0604-
372 NUT
M8 FLANGE 		0-91180-108-0 02 1 0604-
434 CLIP
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 0604-
434 CLIP
(B) ID=17 		8-94449-734-1 01 1 0604-
435 BOLT; CLIP
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0604-0904
435 BOLT; CLIP
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
435 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0604-
435 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0604-

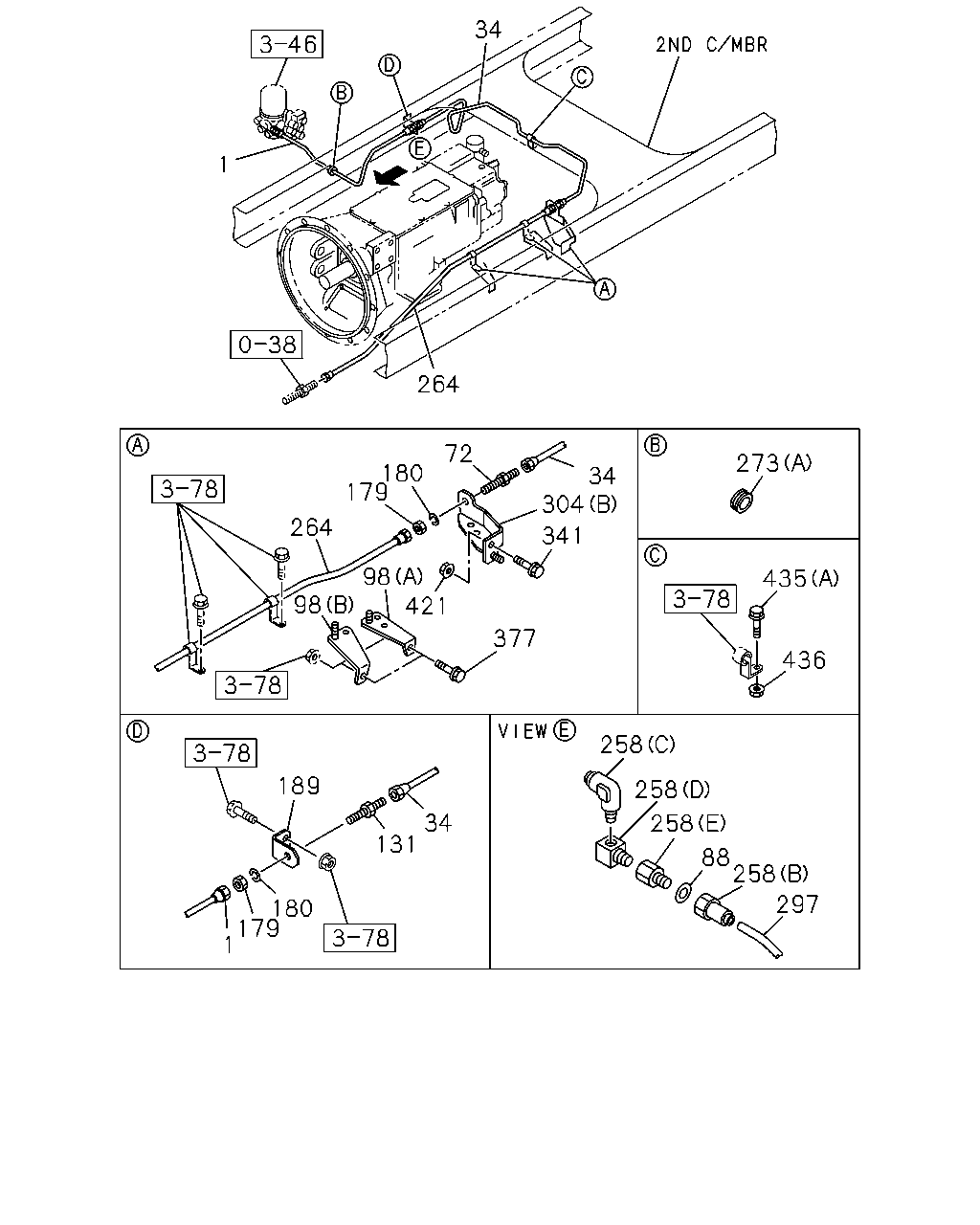

çizim 89565
34 1 264 72 273 180 179 34 304 264 341 98 98 421 435 377 436 258 189 258 34 258 131 88 258 297 180 179 1
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=1350 		1-09363-925-0 01 1 0604-
34 PIPE; AIR
L=1126 		1-49124-667-0 01 1 0604-
72 UNION; AIR PIPE
M22 		9-09233-315-1 01 1 0604-0607
72 UNION; AIR PIPE
M22 		0-92123-315-0 01 1 0608-
88 GASKET; NYLON TUBE
ID=14.2 OD=23.0 		9-09572-014-0 01 1 0604-
98 BRACKET; AIR PIPE
(B) 		1-47479-639-0 01 1 0604-
98 BRACKET; AIR PIPE
(A) 		1-47479-723-0 01 1 0604-
131 UNION; AIR PIPE
M22 		9-09233-315-1 01 1 0604-0607
131 UNION; AIR PIPE
M22 		0-92123-315-0 01 1 0608-
179 NUT; UNION
M22 		0-91111-522-0 02 1 0604-
180 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 0604-0604
180 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 02 1 0604-
189 BRACKET; FLEX HOSE 1-47479-473-0 01 1 0604-
258 CONNECTOR; NYLON TUBE
ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0604-
258 CONNECTOR; NYLON TUBE
ASSISTOR SHIFT CONTROL<WX8> (A) PT3/8 3WAY 		1-09661-300-0 01 1 0604-
258 CONNECTOR; NYLON TUBE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0604-
258 CONNECTOR; NYLON TUBE
(D) PT3/8 & PT3/8 		1-09661-303-0 01 1 0604-
258 CONNECTOR; NYLON TUBE
(E) 		1-48319-059-0 01 1 0604-
264 HOSE; FLEX
L=1000 		1-09363-794-0 01 1 0604-
273 GROMMET
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0604-
273 GROMMET
(B) 		1-09332-135-0 01 1 0604-
297 TUBE; NYLON
MAL6 M/T<X9G> EXC. MIXER TRUCK<RA2> L=270 OD=12 		1-49219-177-0 01 1 0604-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0604-
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 0604-
304 BRACKET; UNION
(C) 		1-71117-211-0 01 1 0604-
304 BRACKET; UNION
(B) 		8-97610-319-1 01 1 0604-
341 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0604-
377 BOLT; BRKT FIX
M8X35 FLANGE 		0-28650-835-0 02 1 0604-
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0604-
435 BOLT; CLIP
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0604-0904
435 BOLT; CLIP
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
435 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0604-
435 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0604-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0604-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0604-

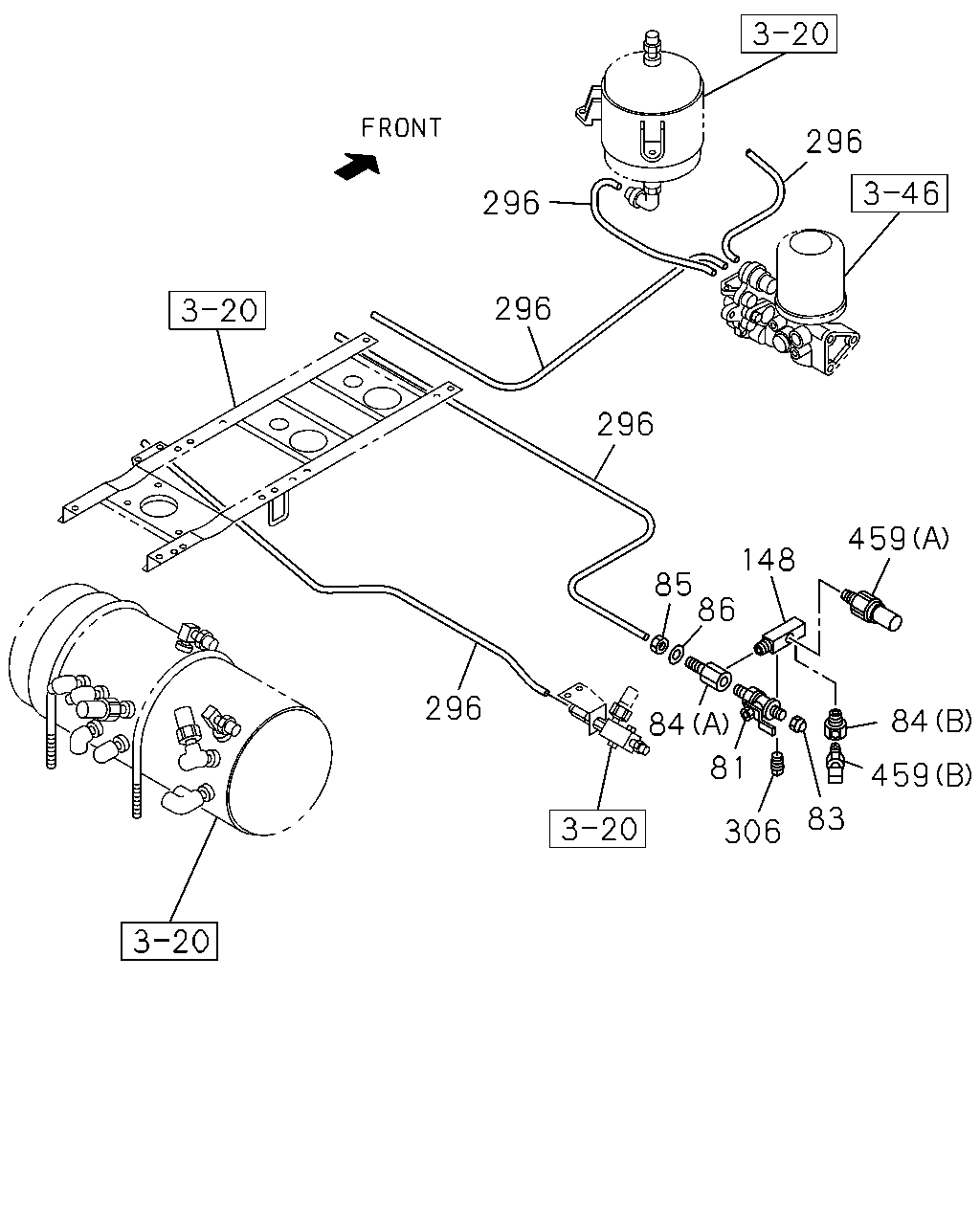

çizim 89566
296 296 296 296 459 148 85 86 84 296 84 81 459 83 306
BalonParca AdiParca NoAdetTipApplied Date
81 COCK; AIR 1-09680-099-0 01 1 0604-0609
81 COCK; AIR
TIRE INFLATOR DEVICE<SG4> 		1-09680-099-0 01 1 0610-
83 CAP; AIR COCK 9-48319-102-0 01 1 0607-0609
83 CAP; AIR COCK
TIRE INFLATOR DEVICE<SG4> 		9-48319-102-0 01 1 0610-
84 UNION; NYLON TUBE
(B) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 0604-0804
84 UNION; NYLON TUBE
(A) 		1-09661-092-0 01 1 0604-
84 UNION; NYLON TUBE
(C) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0604-
85 NUT; UNION
M18 		0-91110-518-0 01 1 0604-
86 WASHER; LK,TUBE UNION
ID=18.2 		9-09150-518-0 01 1 0604-0604
86 WASHER; LK,TUBE UNION
ID=18.2 		0-91510-518-0 01 1 0604-
148 CONNECTOR; UNION
PT1/4 4WAY 		1-09660-358-0 01 1 0604-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0604-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0604-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0604-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0604-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0604-
306 PLUG; NYLON TUBE
EXC. TIRE INFLATOR DEVICE<SG4> PT1/4 		9-99204-513-0 02 1 0610-
306 PLUG; NYLON TUBE
PT1/4 		9-99204-513-0 01 1 0604-0609
306 PLUG; NYLON TUBE
TIRE INFLATOR DEVICE<SG4> PT1/4 		9-99204-513-0 01 1 0610-
459 SWITCH; PRESS
(A) 		1-48340-058-2 01 1 0604-
459 SWITCH; PRESS
(B) THREAD R1/4 		1-80220-023-1 01 1 0604-

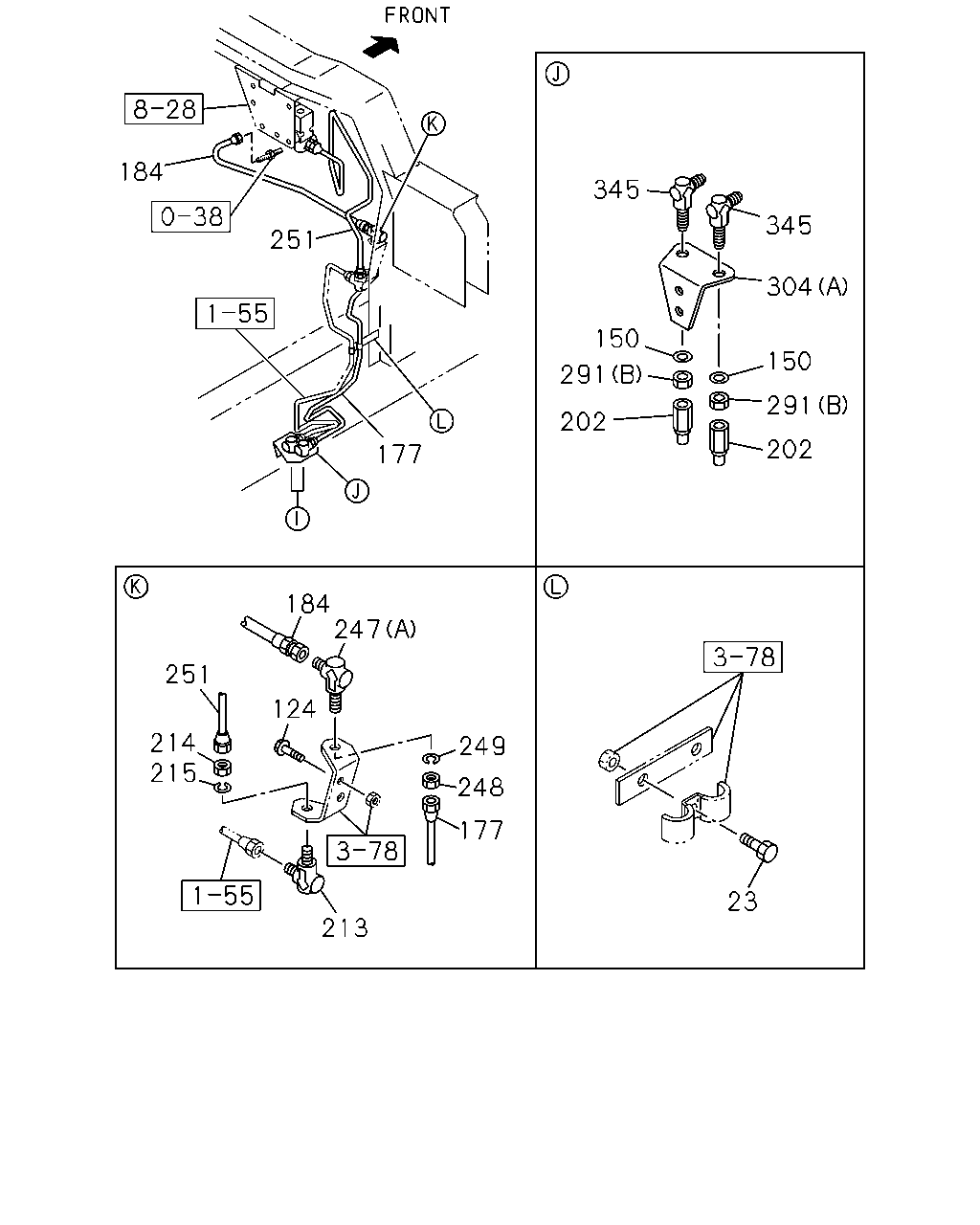

çizim 89994
184 345 345 251 304 150 150 291 291 202 202 177 184 247 251 124 214 215 249 248 177 23 213
BalonParca AdiParca NoAdetTipApplied Date
23 BOLT; BRKT,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0604-
124 BOLT; BRKT
MIXER TRUCK<RA2> ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> M8X25 FLANGE 		0-28650-825-0 04 1 0707-
124 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0604-
150 WASHER; LK,UNION
MIXER TRUCK<RA2> ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> ID=12.2 		0-91510-512-0 01 1 0707-
150 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 02 1 0604-0604
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 0604-
177 PIPE; AIR,UNION TO UNION
L=812 SERVICED BY L=900 		1-47428-813-0 01 1 0604-
184 HOSE; FLEX,AIR GOV
MIXER TRUCK<RA2> L=370 		1-09363-771-0 01 1 0604-
184 HOSE; FLEX,AIR GOV
EXC. MIXER TRUCK<RA2> L=780 		1-09363-620-0 01 1 0604-
202 ADAPTER
DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0604-
213 UNION; AIR PIPE
M12 ELBOW 		9-09225-206-1 01 1 0604-0607
213 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0608-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0604-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		9-09150-512-0 01 1 0604-0604
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 0604-
247 UNION; AIR PIPE
MIXER TRUCK<RA2> (B) M12 L=66.5 		9-09223-306-1 01 1 0604-0607
247 UNION; AIR PIPE
MIXER TRUCK<RA2> (B) M12 L=66.5 		0-92113-306-0 01 1 0608-
247 UNION; AIR PIPE
EXC. MIXER TRUCK<RA2> (A) M12 ELBOW 		9-09225-206-1 01 1 0604-0607
247 UNION; AIR PIPE
EXC. MIXER TRUCK<RA2> (A) M12 ELBOW 		0-92125-206-0 01 1 0608-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0604-
249 WASHER; LK,PIPE UNION
ID=12.2 		9-09150-512-0 01 1 0604-0604
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 0604-
251 PIPE; AIR,UNION TO MAG VLV
L=771 SERVICED BY L=800 		1-47428-812-0 01 1 0604-
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 0604-
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 0604-
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 0604-
304 BRACKET; UNION
(C) 		1-71117-211-0 01 1 0604-
304 BRACKET; UNION
(B) 		8-97610-319-1 01 1 0604-
345 UNION; AIR PIPE
M12 ELBOW 		9-09225-206-1 02 1 0604-0607
345 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 0608-

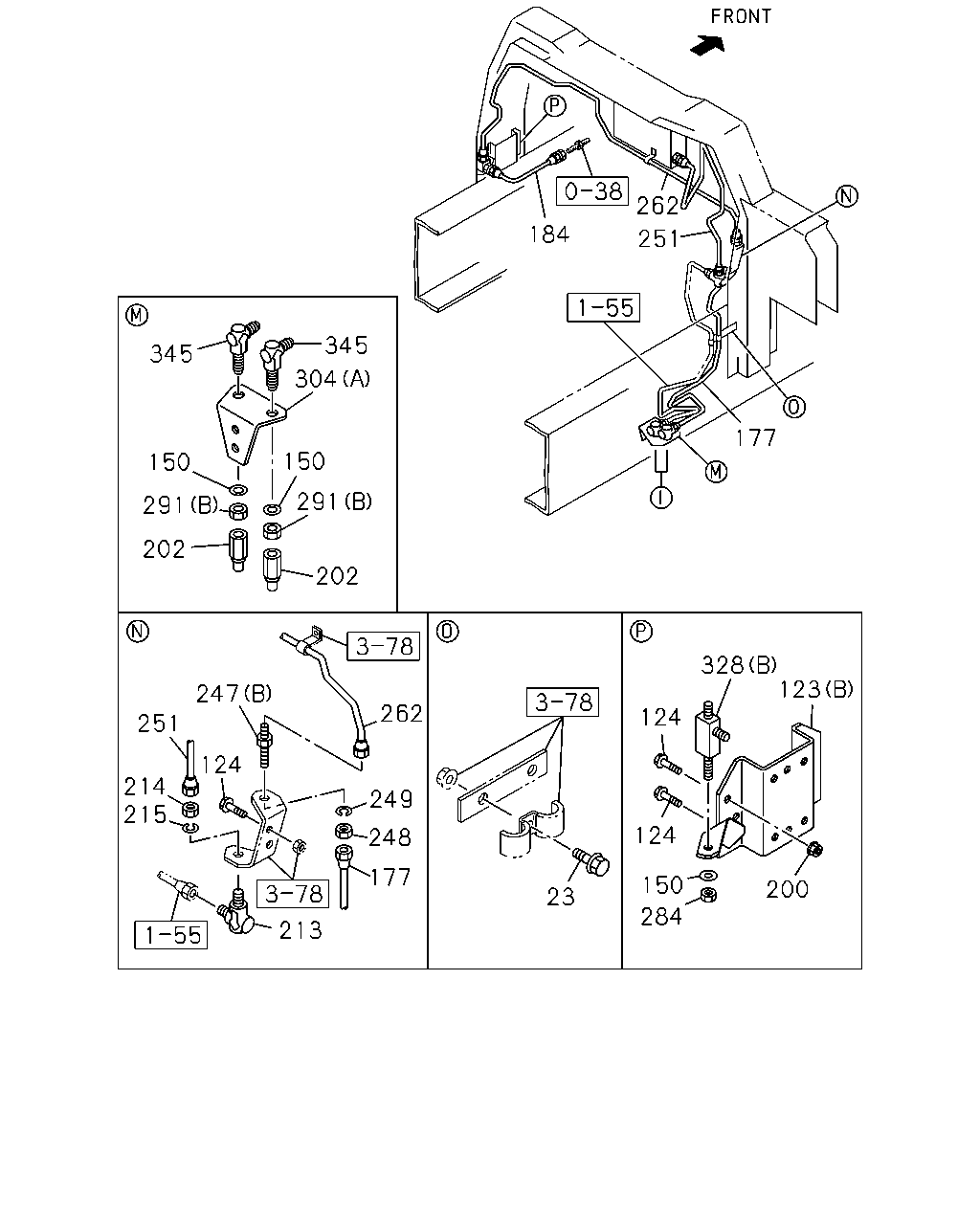

çizim 90801
262 184 251 345 345 304 177 150 150 291 291 202 202 328 123 247 262 124 251 124 214 215 249 124 248 177 150 200 23 284 213
BalonParca AdiParca NoAdetTipApplied Date
23 BOLT; BRKT,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0604-
123 BRACKET; UNION
MIXER TRUCK<RA2> ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> (B) 		1-82569-367-1 01 1 0707-
123 BRACKET; UNION
(A) 		1-47479-401-0 01 1 0604-
124 BOLT; BRKT
MIXER TRUCK<RA2> ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> M8X25 FLANGE 		0-28650-825-0 04 1 0707-
124 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0604-
150 WASHER; LK,UNION
MIXER TRUCK<RA2> ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> ID=12.2 		0-91510-512-0 01 1 0707-
150 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 02 1 0604-0604
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 0604-
177 PIPE; AIR,UNION TO UNION
L=812 SERVICED BY L=900 		1-47428-813-0 01 1 0604-
184 HOSE; FLEX,AIR GOV
MIXER TRUCK<RA2> L=370 		1-09363-771-0 01 1 0604-
184 HOSE; FLEX,AIR GOV
EXC. MIXER TRUCK<RA2> L=780 		1-09363-620-0 01 1 0604-
200 NUT; BRKT
MIXER TRUCK<RA2> ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91180-108-0 04 1 0707-
202 ADAPTER
DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0604-
213 UNION; AIR PIPE
M12 ELBOW 		9-09225-206-1 01 1 0604-0607
213 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0608-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0604-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		9-09150-512-0 01 1 0604-0604
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 0604-
247 UNION; AIR PIPE
MIXER TRUCK<RA2> (B) M12 L=66.5 		9-09223-306-1 01 1 0604-0607
247 UNION; AIR PIPE
MIXER TRUCK<RA2> (B) M12 L=66.5 		0-92113-306-0 01 1 0608-
247 UNION; AIR PIPE
EXC. MIXER TRUCK<RA2> (A) M12 ELBOW 		9-09225-206-1 01 1 0604-0607
247 UNION; AIR PIPE
EXC. MIXER TRUCK<RA2> (A) M12 ELBOW 		0-92125-206-0 01 1 0608-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0604-
249 WASHER; LK,PIPE UNION
ID=12.2 		9-09150-512-0 01 1 0604-0604
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 0604-
251 PIPE; AIR,UNION TO MAG VLV
L=771 SERVICED BY L=800 		1-47428-812-0 01 1 0604-
262 PIPE; AIR,UNION TO FLEX
MIXER TRUCK<RA2> 		1-49124-345-0 01 1 0604-
284 NUT; UNION
MIXER TRUCK<RA2> ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> M12 		9-09840-280-0 01 1 0707-
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 0604-
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 0604-
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 0604-
304 BRACKET; UNION
(C) 		1-71117-211-0 01 1 0604-
304 BRACKET; UNION
(B) 		8-97610-319-1 01 1 0604-
328 UNION; AIR PIPE
MIXER TRUCK<RA2> ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> (B) M12 2WAY 		1-09654-059-2 01 1 0707-
328 UNION; AIR PIPE
(A) 		1-47470-442-0 01 1 0604-
345 UNION; AIR PIPE
M12 ELBOW 		9-09225-206-1 02 1 0604-0607
345 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 0608-

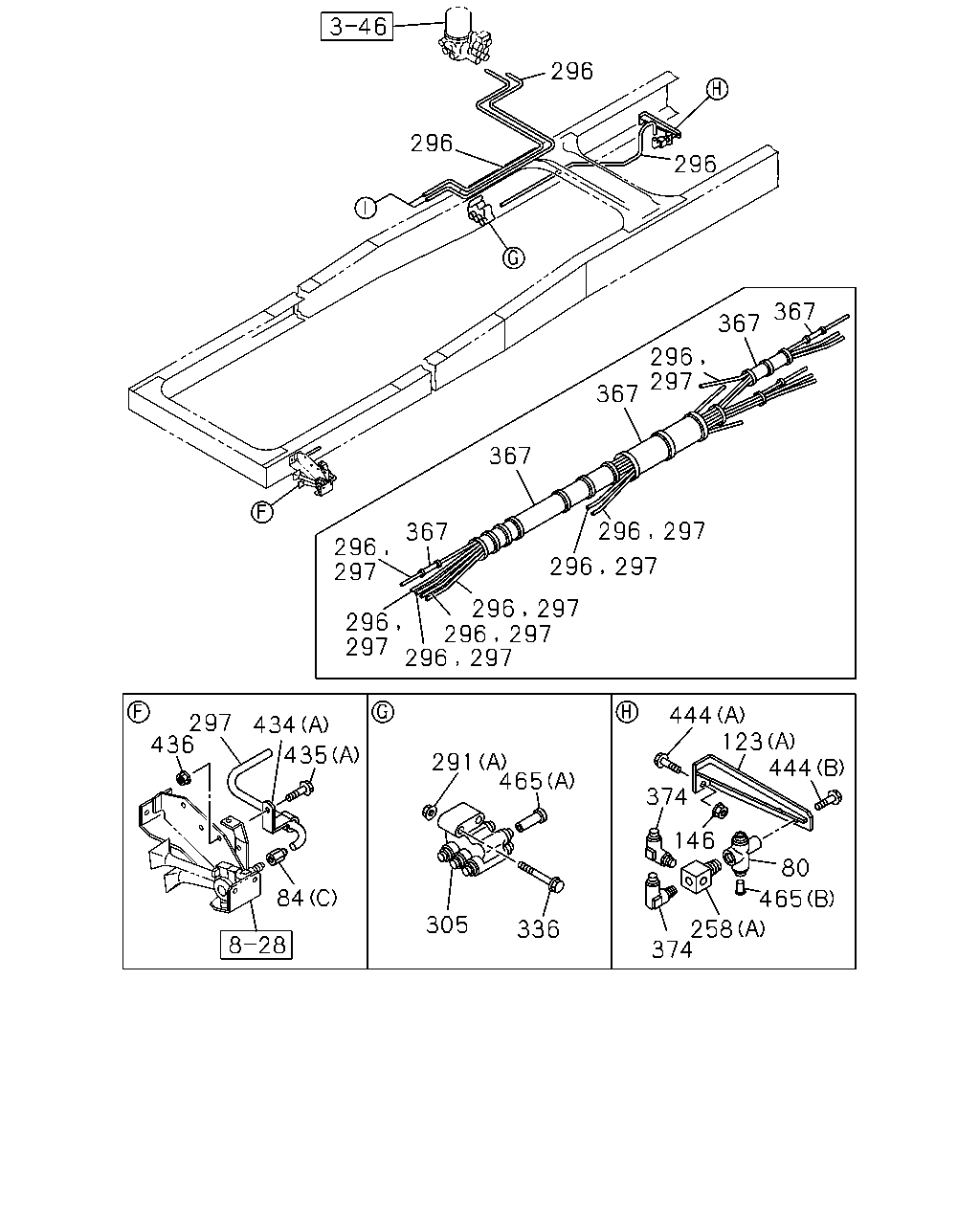

çizim 105561
296 296 296 367 367 296 297 367 367 296 367 296 297 296 296 296 296 296 297 444 123 444 297 436 434 435 291 465 374 146 80 84 465 305 258 374 336 297 297 297 297 297
BalonParca AdiParca NoAdetTipApplied Date
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0604-
84 UNION; NYLON TUBE
(B) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 0604-0804
84 UNION; NYLON TUBE
(A) 		1-09661-092-0 01 1 0604-
84 UNION; NYLON TUBE
(C) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0604-
123 BRACKET; UNION
MIXER TRUCK<RA2> ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> (B) 		1-82569-367-1 01 1 0707-
123 BRACKET; UNION
(A) 		1-47479-401-0 01 1 0604-
146 NUT; UNION
M8 FLANGE 		0-91180-108-0 01 1 0604-
258 CONNECTOR; NYLON TUBE
ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0604-
258 CONNECTOR; NYLON TUBE
ASSISTOR SHIFT CONTROL<WX8> (A) PT3/8 3WAY 		1-09661-300-0 01 1 0604-
258 CONNECTOR; NYLON TUBE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0604-
258 CONNECTOR; NYLON TUBE
(D) PT3/8 & PT3/8 		1-09661-303-0 01 1 0604-
258 CONNECTOR; NYLON TUBE
(E) 		1-48319-059-0 01 1 0604-
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 0604-
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 0604-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0604-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0604-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0604-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0604-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0604-
297 TUBE; NYLON
MAL6 M/T<X9G> EXC. MIXER TRUCK<RA2> L=270 OD=12 		1-49219-177-0 01 1 0604-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0604-
305 UNION ASM; NYLON TUBE 1-09661-613-1 01 1 0604-
336 BOLT; PIPE UNION
M8X80 FLANGE 		0-28050-880-0 02 1 0604-0906
336 BOLT; PIPE UNION
M8X70 FLANGE 		0-28050-870-0 02 1 0907-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0604-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0604-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 0604-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0604-
374 CONNECTOR
ASSISTOR SHIFT CONTROL<WX8> DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 0604-
374 CONNECTOR
EXC. ASSISTOR SHIFT CONTROL<WX8> DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0604-
434 CLIP
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 0604-
434 CLIP
(B) ID=17 		8-94449-734-1 01 1 0604-
435 BOLT; CLIP
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0604-0904
435 BOLT; CLIP
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
435 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0604-
435 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0604-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0604-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0604-
444 BOLT; UNION
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0604-
444 BOLT; UNION
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0604-0810
444 BOLT; UNION
(A) M8X35 FLANGE 		0-28650-835-0 02 1 0811-
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 02 1 0604-0611
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 0612-0612
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 0612-0612
465 PLUG
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) OD=6 L=27 		1-09661-615-0 01 1 0612-0612
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 0701-
465 PLUG
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) OD=6 L=27 		1-09661-615-0 01 1 0701-
465 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 0604-
465 PLUG
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) OD=6 L=27 		1-09661-615-0 01 1 0604-0611
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
