◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 11020 - CXZ AUSTRALIA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#29315) — 18 parça

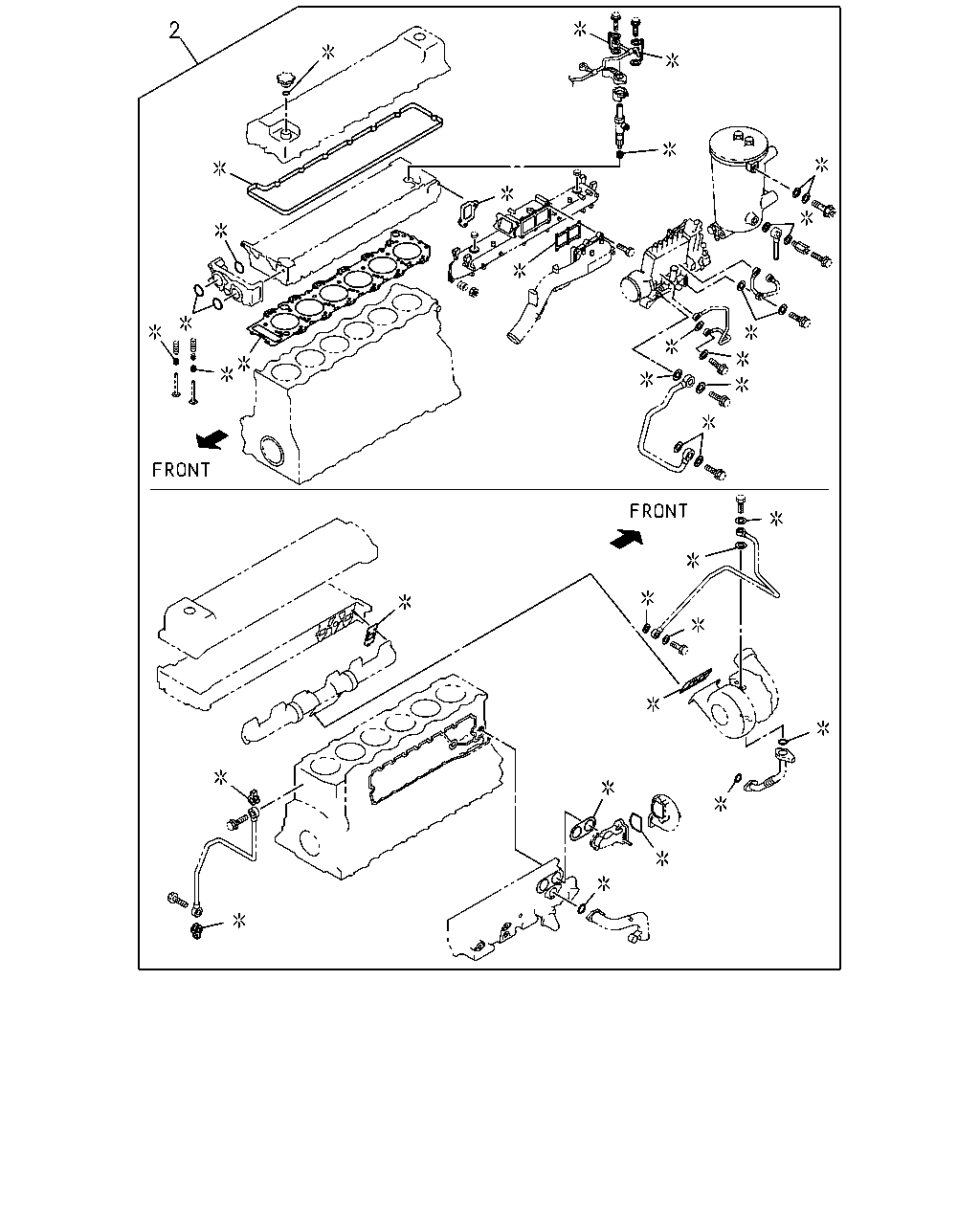

çizim 105794
2
BalonParca AdiParca NoAdetTipApplied Date
2 GASKET SET; ENG HD OVERHAUL 1-87812-419-2 01 1 0603-0702
2 GASKET SET; ENG HD OVERHAUL 1-87813-248-4 01 1 0703-1111
2 GASKET SET; ENG HD OVERHAUL 1-87813-936-0 01 1 1112-1312
2 GASKET SET; ENG HD OVERHAUL 1-87814-604-0 01 1 1401-

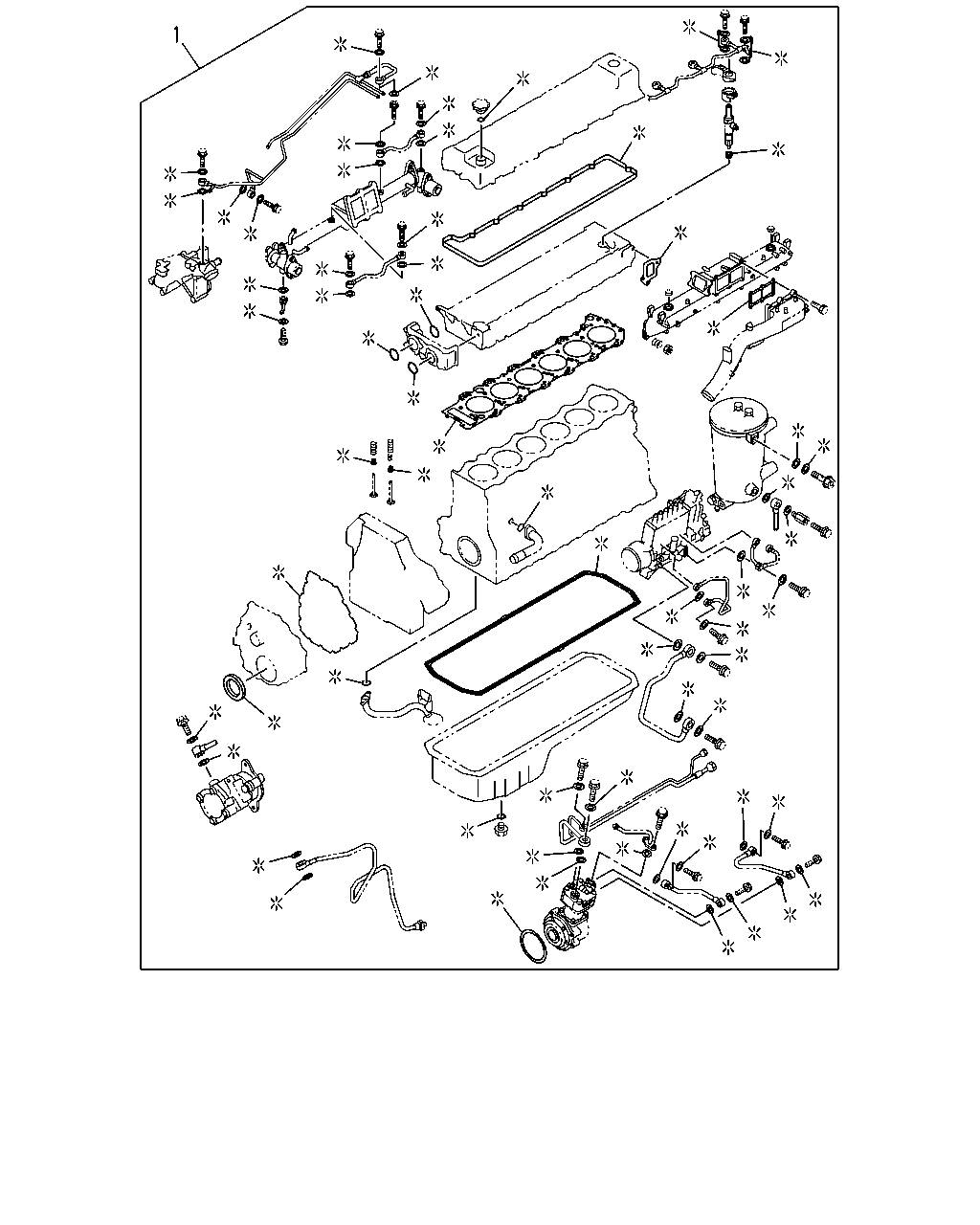

çizim 105882
1
BalonParca AdiParca NoAdetTipApplied Date
1 GASKET SET; ENG OVERHAUL 1-87812-406-5 01 1 0603-0608
1 GASKET SET; ENG OVERHAUL 1-87813-138-0 01 1 0609-0702
1 GASKET SET; ENG OVERHAUL 1-87813-185-1 01 1 0703-0703
1 GASKET SET; ENG OVERHAUL 1-87813-247-5 01 1 0704-1111
1 GASKET SET; ENG OVERHAUL 1-87813-926-0 01 1 1112-1312
1 GASKET SET; ENG OVERHAUL 1-87814-603-0 01 1 1401-1502
1 GASKET SET; ENG OVERHAUL 1-87815-569-0 01 1 1503-

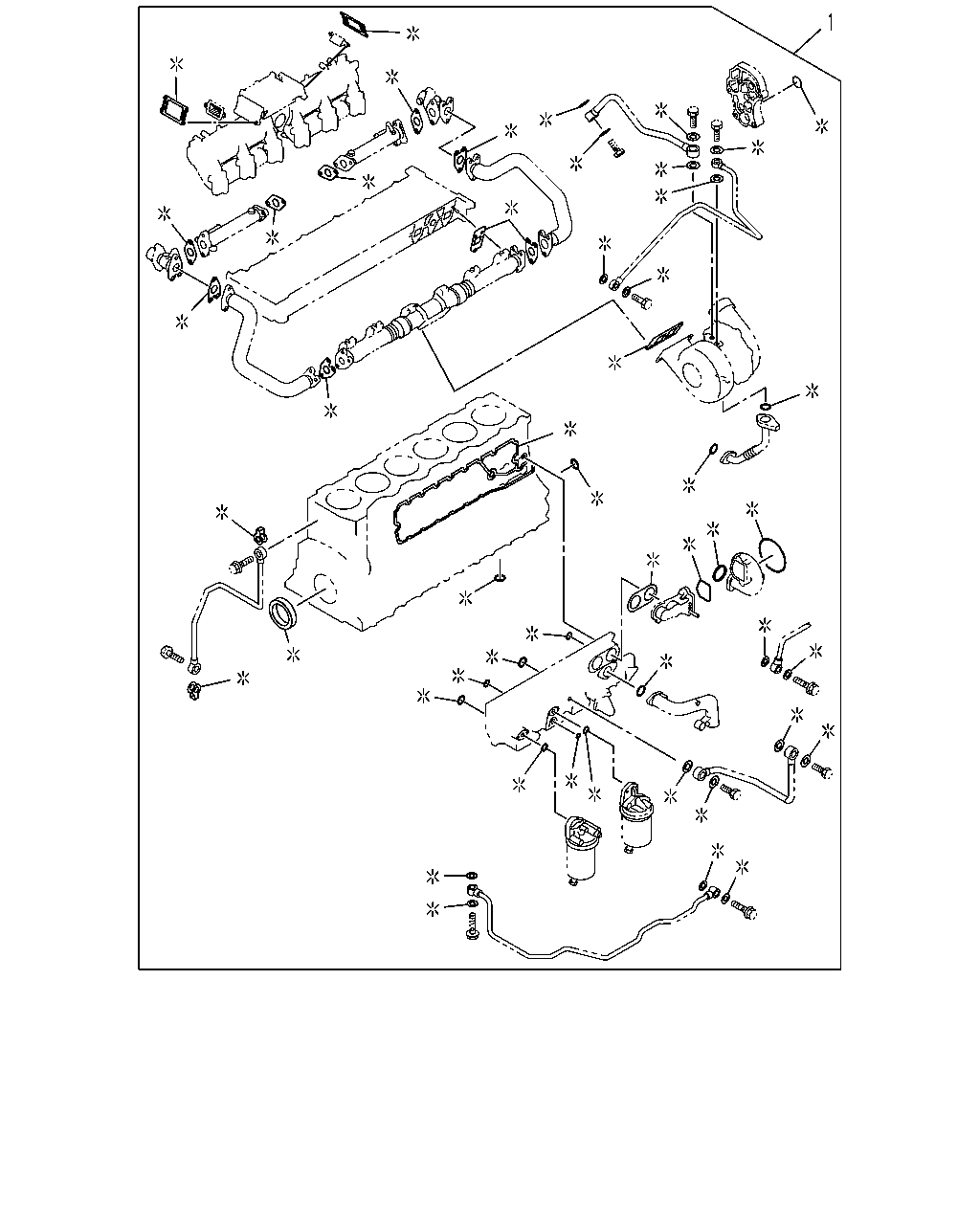

çizim 105885
1
BalonParca AdiParca NoAdetTipApplied Date
1 GASKET SET; ENG OVERHAUL 1-87812-406-5 01 1 0603-0608
1 GASKET SET; ENG OVERHAUL 1-87813-138-0 01 1 0609-0702
1 GASKET SET; ENG OVERHAUL 1-87813-185-1 01 1 0703-0703
1 GASKET SET; ENG OVERHAUL 1-87813-247-5 01 1 0704-1111
1 GASKET SET; ENG OVERHAUL 1-87813-926-0 01 1 1112-1312
1 GASKET SET; ENG OVERHAUL 1-87814-603-0 01 1 1401-1502
1 GASKET SET; ENG OVERHAUL 1-87815-569-0 01 1 1503-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
