2-05 — CLUTCH PIPING (#29312) — 84 parça

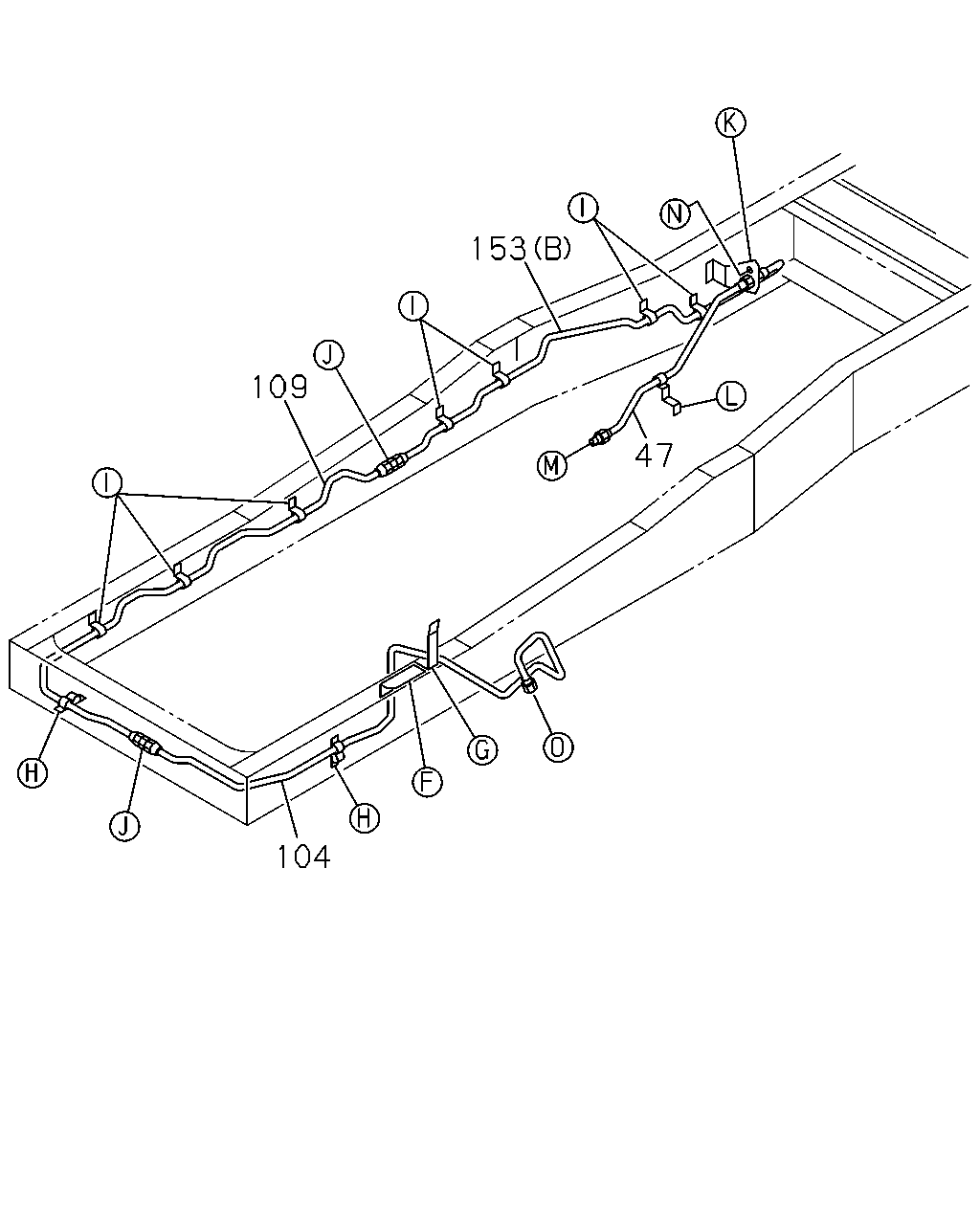

153 109 47 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	HOSE; FLEX,CLU CONT MIXER TRUCK<RA2> L=550	1-09364-434-0	01	1	0411-	●	●
47	HOSE; FLEX,CLU CONT EXC. MIXER TRUCK<RA2> L=600	1-09364-705-0	01	1	0411-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1415 SERVICED BY L=1550	1-47426-390-0	01	1	0411-	●	●
109	PIPE; AIR,UNION TO UNION L=1712 SERVICED BY L=1800	1-47426-392-0	01	1	0411-	●	●
153	PIPE ASM; CLU,UNION TO FLEX L=2025 SERVICED BY L=2150	1-47426-394-0	01	1	0411-0411	●	●
153	PIPE ASM; CLU,UNION TO FLEX L=2033 SERVICED BY L=2150	1-47426-394-0	01	1	0411-0411	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=395	1-49166-204-0	01	1	0411-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=2033 SERVICED BY L=2150	1-47426-394-0	01	1	0411-	●	●

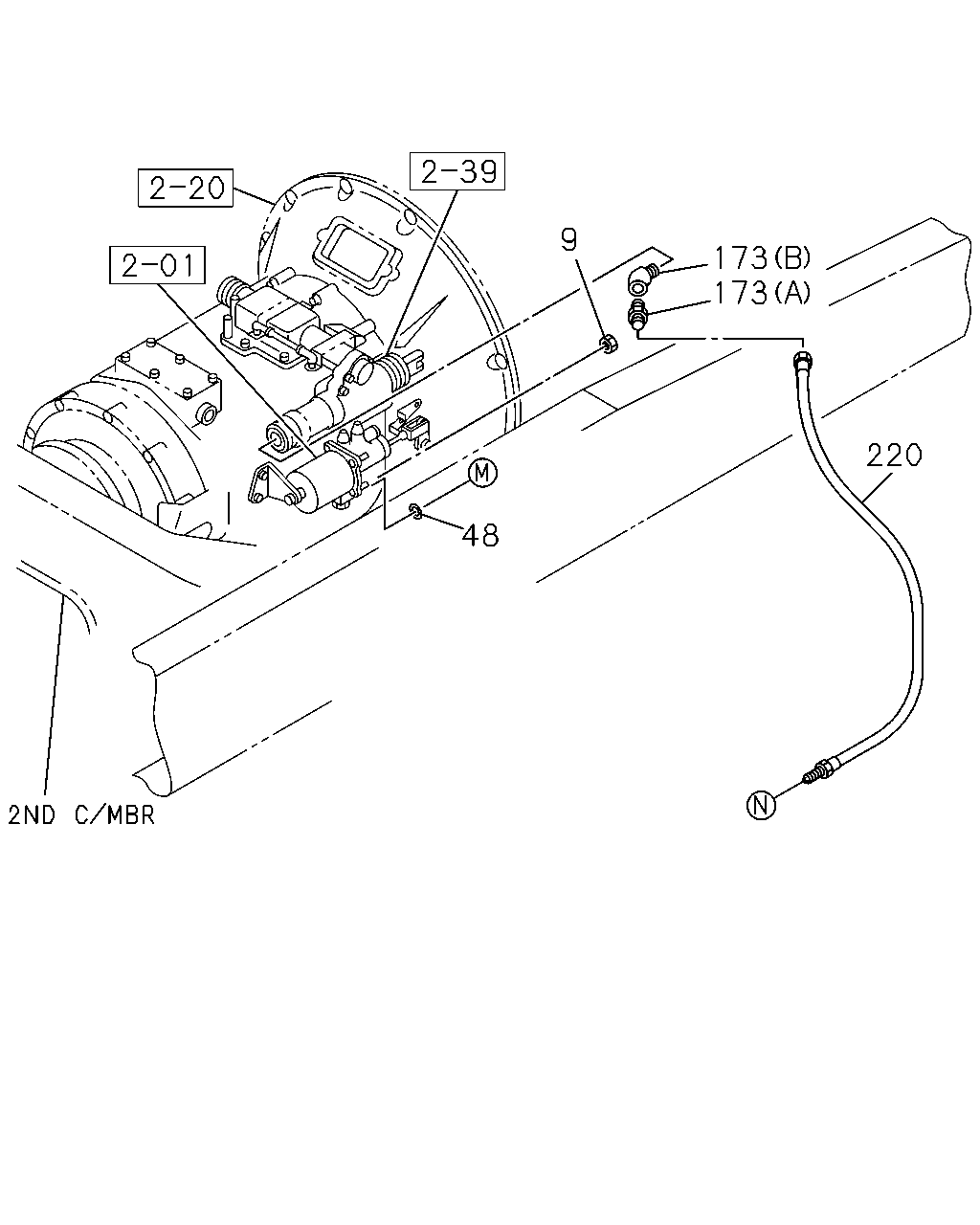

173 173 220 48 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	0411-	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0411-	●	●
173	CONNECTOR (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0411-	●	●
173	CONNECTOR (B) R1/4 & RC1/4	1-09664-211-0	01	1	0411-	●	●
220	HOSE; FLEX,POWER ASSIST MIXER TRUCK<RA2> L=300	1-09363-608-0	01	1	0411-	●	●
220	HOSE; FLEX,POWER ASSIST EXC. MIXER TRUCK<RA2> L=350	1-09363-624-0	01	1	0411-	●	●

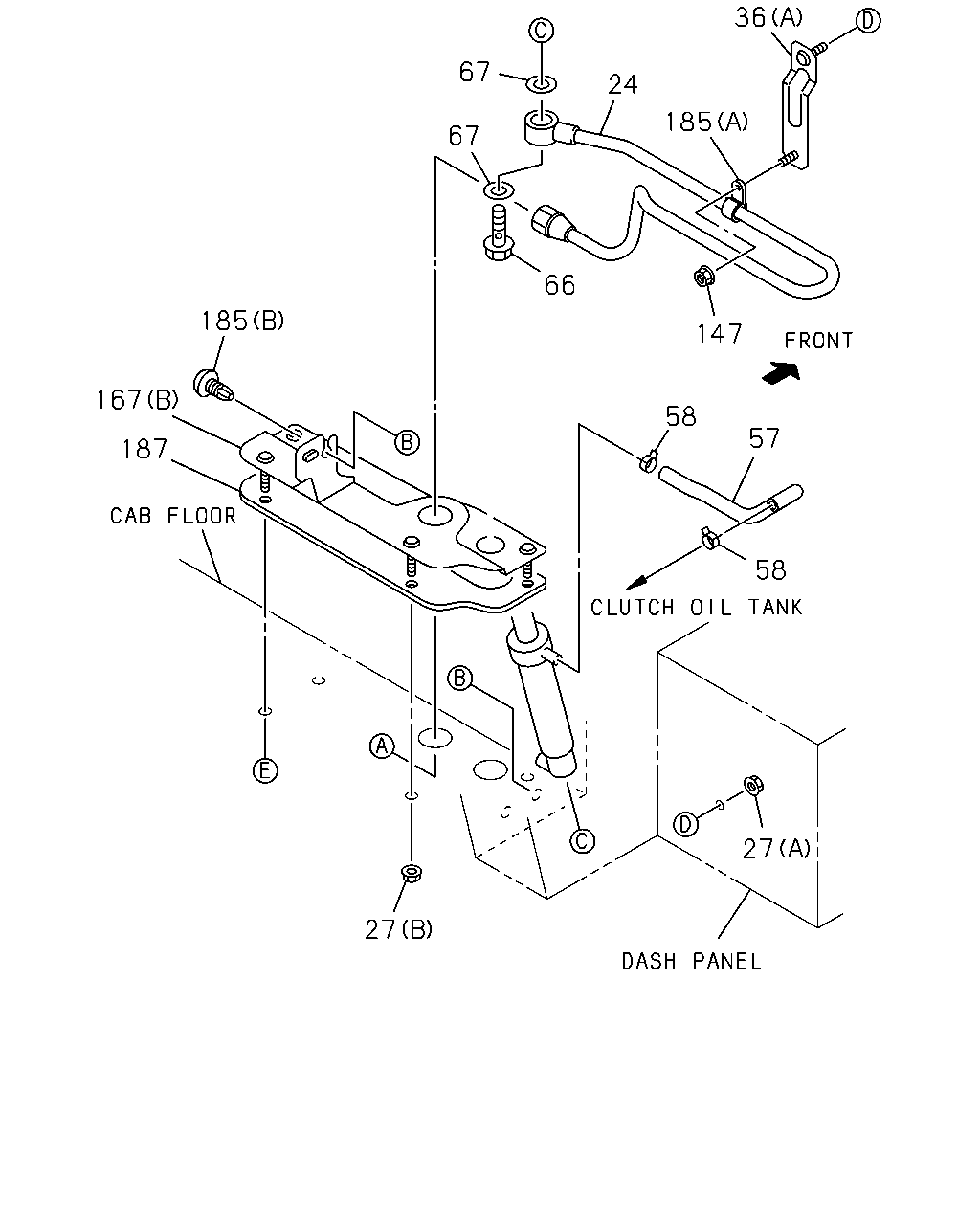

36 67 24 185 67 66 185 147 167 58 57 187 58 27 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	PIPE ASM; CLU,M/CYL TO UNION L=621	1-47428-362-1	01	1	0411-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0411-	●	●
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0411-	●	●
36	BRACKET; CLIP (B)	1-47475-689-0	01	1	0411-	●	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0411-	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	0411-	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0411-	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0411-	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0411-	●	●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0411-	●	●
167	BRACKET; UNION (B)	1-71117-207-1	01	1	0411-	●	●
167	BRACKET; UNION (A)	1-71907-376-1	01	1	0411-	●	●
185	CLIP; BRKT (B) D8X13.5	1-09987-248-1	01	1	0411-	●	●
185	CLIP; BRKT (A) ID=11 L=16	9-09525-025-0	01	1	0411-	●	●
187	SEAL; BRKT	1-71117-209-2	01	1	0411-	●	●

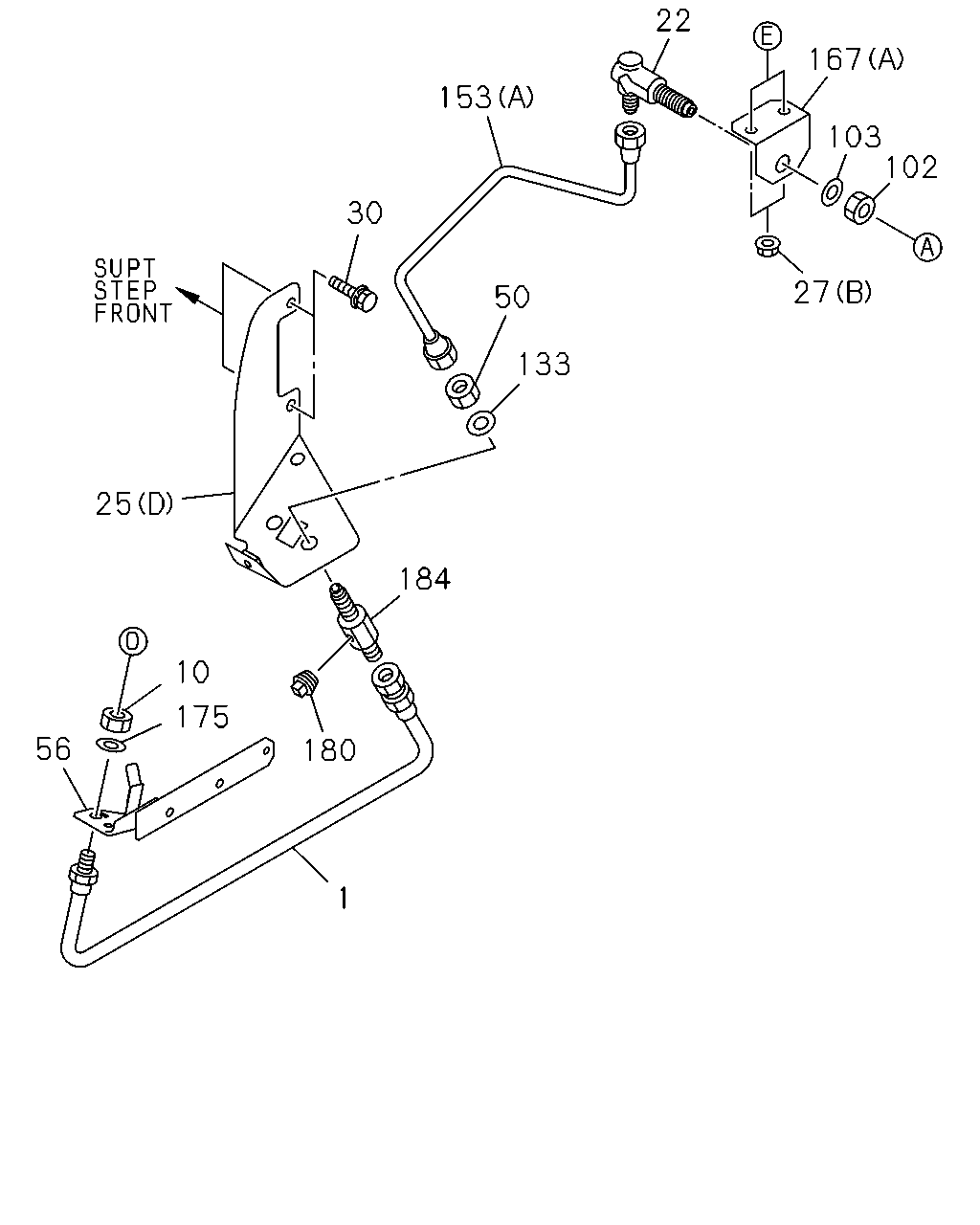

22 167 153 103 102 30 27 50 133 25 184 10 175 56 180 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	0411-	●	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0411-	●	●
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	0411-	●	●
25	BRACKET; OIL PIPE (A)	1-47471-197-0	01	1	0411-	●	●
25	BRACKET; OIL PIPE (B)	1-47471-021-0	01	1	0411-0411	●	●
25	BRACKET; OIL PIPE ENG CONTROL TICS<Q3P>	1-47471-218-0	01	1	0411-	●	●
25	BRACKET; OIL PIPE (C) L=50	1-47475-299-2	02	1	0411-	●	●
25	BRACKET; OIL PIPE (D)	1-71907-627-1	01	1	0411-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0411-	●	●
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0411-	●	●
30	BOLT; BRKT M8X40 FLANGE	0-28680-840-0	03	1	0411-	●	●
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0411-	●	●
50	NUT; UNION M14	9-99111-414-0	01	1	0411-	●	●
56	BRACKET; FLEX HOSE	1-47477-603-1	01	1	0411-	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0411-	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0411-	●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0411-	●	●
153	PIPE ASM; CLU,UNION TO FLEX L=2025 SERVICED BY L=2150	1-47426-394-0	01	1	0411-0411	●	●
153	PIPE ASM; CLU,UNION TO FLEX L=2033 SERVICED BY L=2150	1-47426-394-0	01	1	0411-0411	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=395	1-49166-204-0	01	1	0411-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=2033 SERVICED BY L=2150	1-47426-394-0	01	1	0411-	●	●
167	BRACKET; UNION (B)	1-71117-207-1	01	1	0411-	●	●
167	BRACKET; UNION (A)	1-71907-376-1	01	1	0411-	●	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0411-	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	0411-	●	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	0411-	●	●

30 25 30 25 28 29 29 34 28 25 106 33 35 117 4 44 45 46 42 36 115 116 37 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	CLIP; FLEX HOSE,CLU CONT ID=16 H=25 L=25	1-09701-162-0	01	1	0411-	●	●
25	BRACKET; OIL PIPE (A)	1-47471-197-0	01	1	0411-	●	●
25	BRACKET; OIL PIPE (B)	1-47471-021-0	01	1	0411-0411	●	●
25	BRACKET; OIL PIPE ENG CONTROL TICS<Q3P>	1-47471-218-0	01	1	0411-	●	●
25	BRACKET; OIL PIPE (C) L=50	1-47475-299-2	02	1	0411-	●	●
25	BRACKET; OIL PIPE (D)	1-71907-627-1	01	1	0411-	●	●
28	CLIP; OIL PIPE ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	0411-	●	●
28	CLIP; OIL PIPE ID=11 & 9 L=15 & 15	1-09700-655-0	01	1	0411-	●	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	03	1	0411-	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0411-	●	●
30	BOLT; BRKT M8X40 FLANGE	0-28680-840-0	03	1	0411-	●	●
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0411-	●	●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	07	1	0411-	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28680-825-0	02	1	0411-	●	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	03	1	0411-	●	●
34	BOLT; PIPE CLIP M8X35 FLANGE	0-28680-835-0	02	1	0411-	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	07	1	0411-	●	●
36	BRACKET; CLIP (B)	1-47475-689-0	01	1	0411-	●	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0411-	●	●
37	BOLT; CLIP BRKT M10X20 FLANGE	0-28181-020-0	01	1	0411-	●	●
42	BRACKET; FLEX HOSE,CLU CONT	1-47471-203-0	01	1	0411-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X40 FLANGE	0-28680-840-0	02	1	0411-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0411-	●	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	0411-	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	9-09150-512-0	01	1	0411-	●	●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	02	1	0411-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0411-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0411-	●	●
117	BOLT; CLIP,FLEX HOSE M8X16 FLANGE	0-28080-816-0	01	1	0411-	●	●
