Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10949 - CXZ CHINA
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-30 - AIR CLEANER
▶

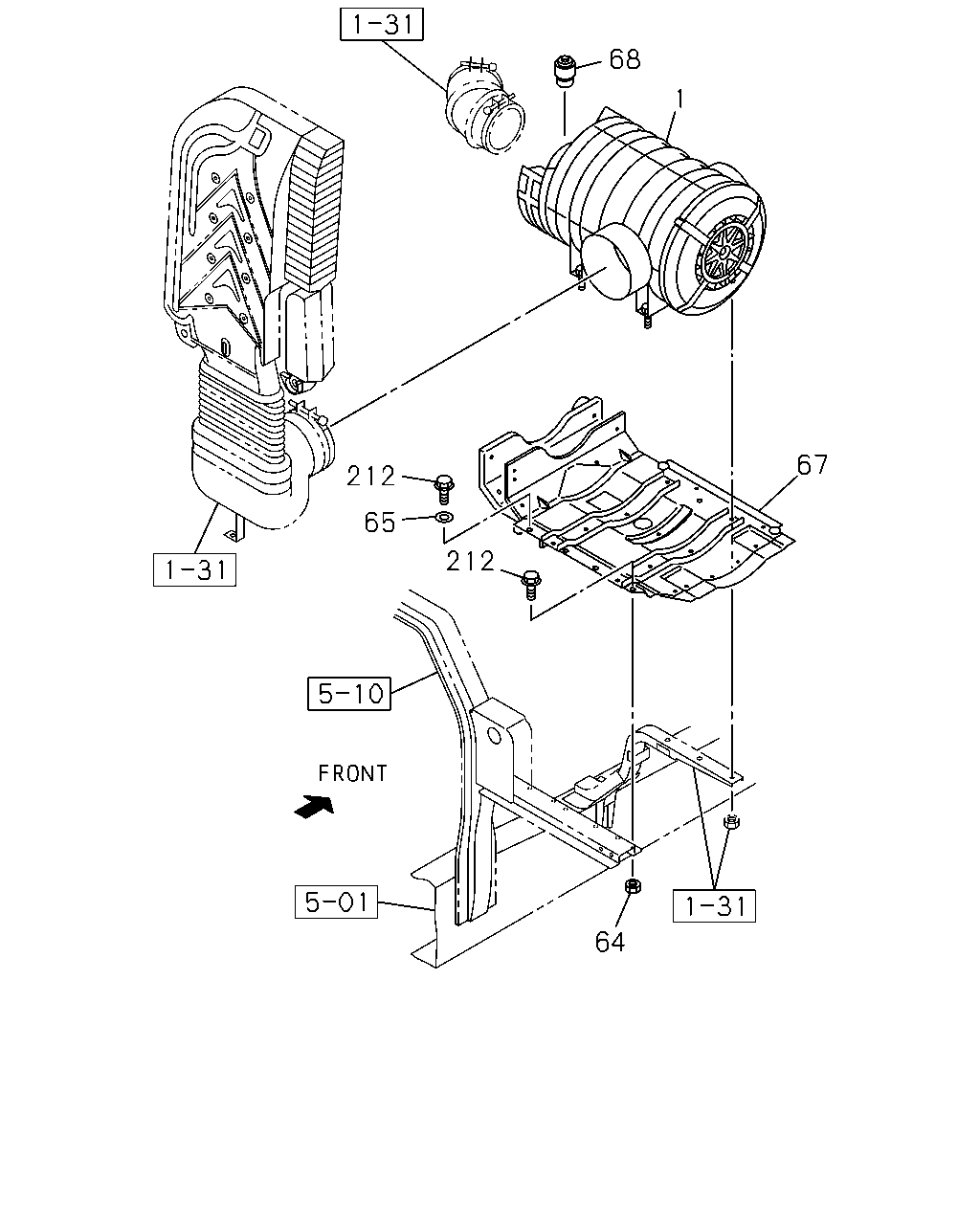

1-30 — AIR CLEANER
(#29302) — 15 parça
◀
[130A] FIXING (7 parça)
[130A] COMPONENT (8 parça)
▶
68
1
67
212
65
212
64
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>
1-14210-832-0
01
1
0411-
1
CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>
1-14210-740-0
01
1
0411-
64
NUT; BAND BRKT
M10 FLANGE
0-91150-210-0
04
1
0411-
65
WASHER; PL
ID=10.5 OD=26
9-09160-710-0
04
1
0411-
67
COVER; ACL
1-53490-073-0
01
1
0411-
68
INDICATOR; SERVICE
1-14219-212-0
01
1
0411-
212
BOLT; MUD COVER
M10X25 FLANGE
0-28681-025-0
04
1
0411-
253
1
8
6
94
253
1
8
26
94
27

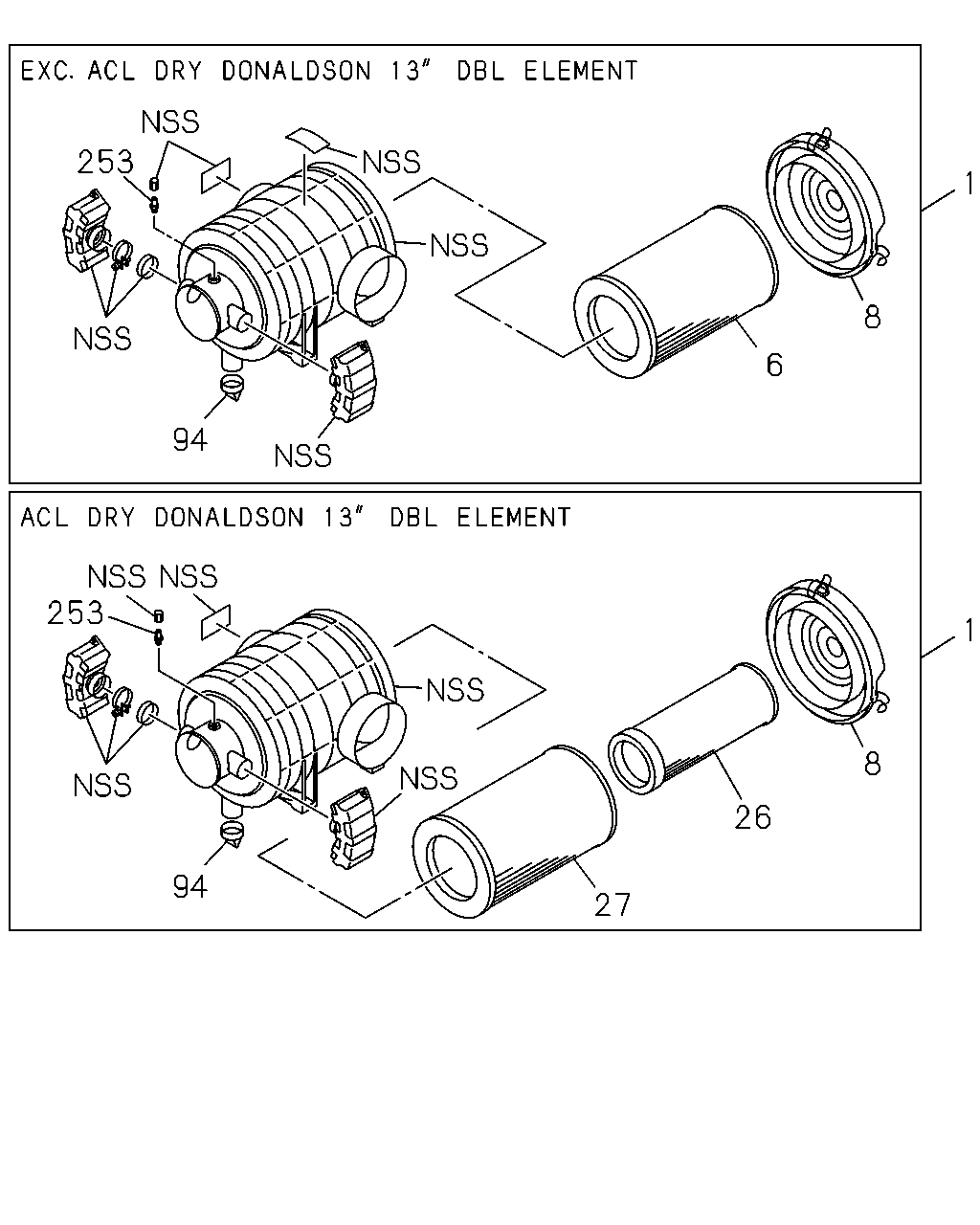

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>
1-14210-832-0
01
1
0411-
1
CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>
1-14210-740-0
01
1
0411-
6
FILTER; ACL
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>
1-14215-203-0
01
1
0411-
8
COVER ASM; ACL
1-14212-129-0
01
1
0411-
26
FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>
1-14215-217-0
01
1
0411-
27
FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>
1-14215-203-0
01
1
0411-
94
VALVE; VACUATOR
1-14219-251-0
01
1
0411-
253
NIPPLE
1-14219-252-0
01
1
0411-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
