Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10949 - CXZ CHINA
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶

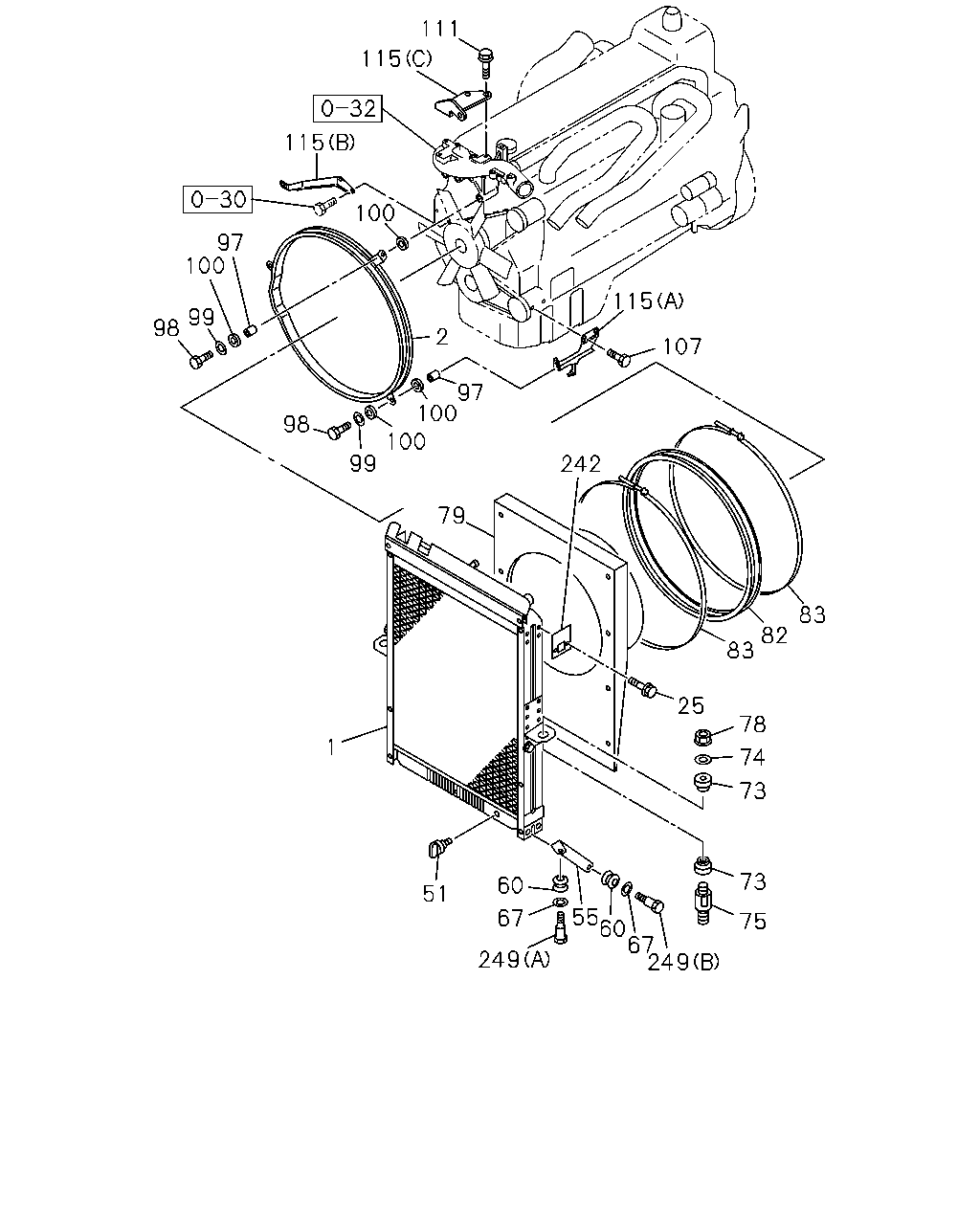

1-10 — RADIATOR
(#29300) — 36 parça
◀
[110A] FIXING (29 parça)
[110A] COMPONENT (7 parça)
▶
111
115
115
100
97
100
115
99
98
2
107
97
100
100
98
99
242
79
83
82
83
25
78
1
74
73
73
60
51
55
60
67
249
67
75
249
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
ENG CONTROL TICS<Q3P>
1-21410-922-0
01
1
0411-
2
GUIDE; FAN
1-21551-500-0
01
1
0411-
21
SEAL; RAD
ENG CONTROL TICS<Q3P>
1-21460-138-0
01
1
0411-
25
BOLT; BRKT
ENG CONTROL TICS<Q3P> M8X16 FLANGE
0-28080-816-0
09
1
0411-
51
PLUG; DRAIN
ENG CONTROL TICS<Q3P> W/GASKET
1-09609-023-0
01
1
0411-
55
STAY; RAD TO UPR MBR
1-21464-766-0
01
1
0411-
55
STAY; RAD TO UPR MBR
1-21464-767-0
01
1
0411-
60
GROMMET
1-09332-117-0
04
1
0411-
67
WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26
9-09160-612-0
04
1
0411-
73
RUBBER; CUSHION,RAD MTG
T=14
1-21467-004-0
04
1
0411-
74
WASHER; PL,CUSHION RUBBER
ID=8.4 OD=22
1-09503-154-1
02
1
0411-
75
BOLT; CUSHION RUBBER,RAD MTG
1-21466-005-0
02
1
0411-
78
NUT; CUSHION RUBBER
M10 FLANGE
0-91150-210-0
02
1
0411-
79
GUIDE; FAN,RAD
ENG CONTROL TICS<Q3P>
1-21551-549-0
01
1
0411-
82
COVER; FAN,RAD
1-21559-465-0
01
1
0411-
83
CLIP; FAN COVER
1-09707-152-2
02
1
0411-
97
TUBE; DIST,FAN GUIDE
ID=11.8 L=27
1-21559-149-0
03
1
0411-
98
BOLT; RAD FAN GUIDE
M10X45 FLANGE
0-28081-045-0
03
1
0411-
99
WASHER; PL
ID=10.5 OD=26
9-09164-710-0
03
1
0411-
100
RUBBER; MTG
1-09337-017-0
06
1
0411-
107
BOLT; BRKT TO STAY
M14X25 FLANGE
0-28981-425-0
02
1
0411-
111
BOLT; BRKT
M8X20 FLANGE
0-28680-820-0
02
1
0411-
115
BRACKET; FAN GUIDE
(A)
1-21559-353-0
01
1
0411-
115
BRACKET; FAN GUIDE
(C)
1-21559-463-0
01
1
0411-
115
BRACKET; FAN GUIDE
(B)
1-21559-485-0
01
1
0411-
242
BRACKET; RAD
ENG CONTROL TICS<Q3P>
1-21464-759-0
01
1
0411-
242
BRACKET; RAD
ENG CONTROL TICS<Q3P>
1-21464-760-0
01
1
0411-
249
BOLT; STAY,RAD MBR
(A) M8X30
1-09009-020-1
02
1
0411-
249
BOLT; STAY,RAD MBR
(B) M8X26
1-09009-175-0
02
1
0411-
1
528
526
529
528
529
527
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
ENG CONTROL TICS<Q3P>
1-21410-922-0
01
1
0411-
21
SEAL; RAD
ENG CONTROL TICS<Q3P>
1-21460-138-0
01
1
0411-
526
TANK; UPR,RADIATOR CORE
ENG CONTROL TICS<Q3P>
1-21414-031-0
01
1
0411-
527
TANK; LWR,RADIATOR CORE
ENG CONTROL TICS<Q3P>
1-21415-031-0
01
1
0411-
528
PLATE; SIDE,RADIATOR CORE
ENG CONTROL TICS<Q3P>
1-21416-113-0
01
1
0411-
528
PLATE; SIDE,RADIATOR CORE
ENG CONTROL TICS<Q3P>
1-21416-114-0
01
1
0411-
529
GASKET; CORE,RADIATOR
ENG CONTROL TICS<Q3P>
1-21439-121-0
02
1
0411-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
