1 |

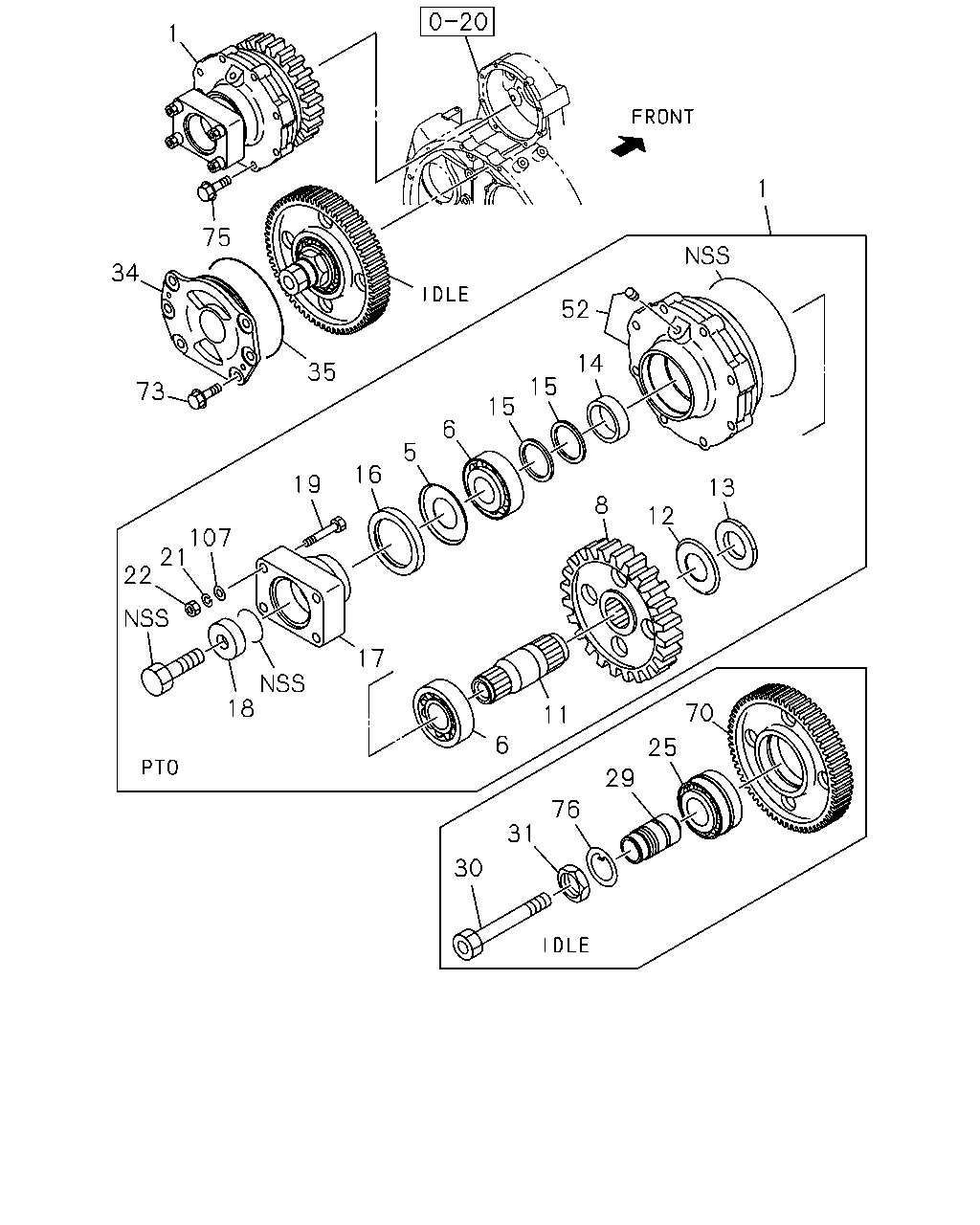

POWER TAKE OFF ASM; ENG RR
ENGINE REAR PTO(SV1)
|
1-38000-388-1 |
01 |
1 |
0411-0501 |
| |
1 |
POWER TAKE OFF ASM; ENG RR
ENGINE REAR PTO(SV1)
|
1-38000-394-0 |
01 |
1 |
0502- |
| |
5 |
SEAL; OIL,BRG CASE,PTO
ALSO INCLUDED IN GASKET SET(ENGINE).
ENGINE REAR PTO(SV1)
|
1-09625-128-0 |
01 |
1 |
0411- |
| |
6 |
BEARING; FLYWHEEL PTO
ENGINE REAR PTO(SV1)
NSK
|
9-00093-149-0 |
02 |
1 |
0411- |
| |
8 |
GEAR; FLYWHEEL PTO
ENGINE REAR PTO(SV1)
Z=61
|
1-38241-136-0 |
01 |
1 |
0411- |
| |
11 |
SHAFT; PTO,FLYWHEEL
ENGINE REAR PTO(SV1)
|
1-38221-031-1 |
01 |
1 |
0411- |
| |
12 |
WASHER; LK,SHAFT NUT,FLYWHEEL PTO
ENGINE REAR PTO(SV1)
|
9-09853-865-0 |
01 |
1 |
0411- |
| |
13 |
NUT; SHAFT,FLYWHEEL PTO
ENGINE REAR PTO(SV1)
|
9-09843-720-1 |
01 |
1 |
0411- |
| |
14 |
SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1)
T=17.95
|
9-38226-045-0 |
01 |
1 |
0411- |
| |
14 |
SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1)
T=18.20
|
9-38226-046-0 |
01 |
1 |
0411- |
| |
14 |
SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1)
T=18.45
|
9-38226-047-0 |
01 |
1 |
0411- |
| |
14 |
SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1)
T=18.70
|
9-38226-048-0 |
01 |
1 |
0411- |
| |
14 |
SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1)
T=18.95
|
9-38226-049-0 |
01 |
1 |
0411- |
| |
14 |
SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1)
T=19.20
|
9-38226-050-0 |
01 |
1 |
0411- |
| |
14 |
SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1)
T=19.45
|
9-38226-051-0 |
01 |
1 |
0411- |
| |
15 |
SHIM; PTO
ENGINE REAR PTO(SV1)
T=3.50
|
9-41229-324-0 |
AR |
1 |
0411- |
| |
15 |
SHIM; PTO
ENGINE REAR PTO(SV1)
T=3.51
|
9-41229-325-0 |
AR |
1 |
0411- |
| |
15 |
SHIM; PTO
ENGINE REAR PTO(SV1)
T=3.52
|
9-41229-326-0 |
AR |
1 |
0411- |
| |
15 |
SHIM; PTO
ENGINE REAR PTO(SV1)
T=3.53
|
9-41229-327-0 |
AR |
1 |
0411- |
| |
15 |
SHIM; PTO
ENGINE REAR PTO(SV1)
T=3.54
|
9-41229-328-0 |
AR |
1 |
0411- |
| |
15 |
SHIM; PTO
ENGINE REAR PTO(SV1)
T=3.55
|
9-41229-329-0 |
AR |
1 |
0411- |
| |
15 |
SHIM; PTO
ENGINE REAR PTO(SV1)
T=3.56
|
9-41229-330-0 |
AR |
1 |
0411- |
| |
15 |
SHIM; PTO
ENGINE REAR PTO(SV1)
T=3.57
|
9-41229-331-0 |
AR |
1 |
0411- |
| |
15 |
SHIM; PTO
ENGINE REAR PTO(SV1)
T=3.58
|
9-41229-332-0 |
AR |
1 |
0411- |
| |
15 |
SHIM; PTO
ENGINE REAR PTO(SV1)
T=3.59
|
9-41229-333-0 |
AR |
1 |
0411- |
| |
15 |
SHIM; PTO
ENGINE REAR PTO(SV1)
T=3.60
|
9-41229-334-0 |
AR |
1 |
0411- |
| |
16 |
THROWER; OIL,FLYWHEEL PTO
ENGINE REAR PTO(SV1)
|
9-38175-011-0 |
01 |
1 |
0411- |
| |
17 |
FLANGE; PTO,FLYWHEEL
ENGINE REAR PTO(SV1)
|
1-38189-010-2 |
01 |
1 |
0411- |
| |
18 |
WASHER; FLANGE,FLYWHEEL PTO
ENGINE REAR PTO(SV1)
|
1-09509-014-1 |
01 |
1 |
0411- |
| |
19 |
BOLT; FLANGE
ENGINE REAR PTO(SV1)
M12X70
|
9-92621-270-0 |
04 |
1 |
0411-0501 |
| |
19 |
BOLT; FLANGE
ENGINE REAR PTO(SV1)
M12X40
|
9-92061-240-0 |
04 |
1 |
0502- |
| |
21 |
WASHER; LK,FLANGE
ENGINE REAR PTO(SV1)
ID=12.2
|
9-09150-612-0 |
04 |
1 |
0411- |
| |
22 |
NUT; FLANGE
ENGINE REAR PTO(SV1)
M12
|
9-99110-512-0 |
04 |
1 |
0411- |
| |
25 |
BEARING; IDLE DRIVEN GEAR,FLYWHEEL PTO
ENGINE REAR PTO(SV1)
|
1-09820-105-0 |
01 |
1 |
0411- |
| |
29 |
SPINDLE; IDLE GEAR,PTO
ENGINE REAR PTO(SV1)
|
1-12531-108-0 |
01 |
1 |
0411- |
| |
30 |
BOLT; SPINDLE
ENGINE REAR PTO(SV1)
|
9-09805-081-1 |
01 |
1 |
0411- |
| |
31 |
NUT; IDLE GEAR
ENGINE REAR PTO(SV1)
|
9-09843-063-0 |
01 |
1 |
0411- |
| |
34 |
COVER; PTO,FLYWHEEL
ENGINE REAR PTO(SV1)
|
1-11343-012-1 |
01 |
1 |
0411- |
| |
35 |
GASKET; COVER
ENGINE REAR PTO(SV1)
|
1-09623-266-0 |
01 |
1 |
0411- |
| |
52 |
CASE; BRG,PTO
ENGINE REAR PTO(SV1)
|
9-38181-007-2 |
01 |
1 |
0411- |
| |
70 |
GEAR; IDLE DRIVEN,PTO
ENGINE REAR PTO(SV1)
Z=63
|
1-38261-040-0 |
01 |
1 |
0411- |
| |
73 |
BOLT; COVER,PTO
ENGINE REAR PTO(SV1)
|
0-28191-220-0 |
06 |
1 |
0411- |
| |
75 |
BOLT; COVER
ENGINE REAR PTO(SV1)
M10X30 FLANGE
|
0-28781-030-0 |
08 |
1 |
0411- |
| |
76 |
WASHER; LK,IDLE GEAR
ENGINE REAR PTO(SV1)
|
9-09854-034-0 |
01 |
1 |
0411- |
| |
107 |
WASHER; PL,FLANGE
ENGINE REAR PTO(SV1)
ID=12.5
|
9-09160-512-0 |
04 |
1 |
0411- |
