0-81 — GOVERNOR; INJECTION PUMP (#29295) — 48 parça

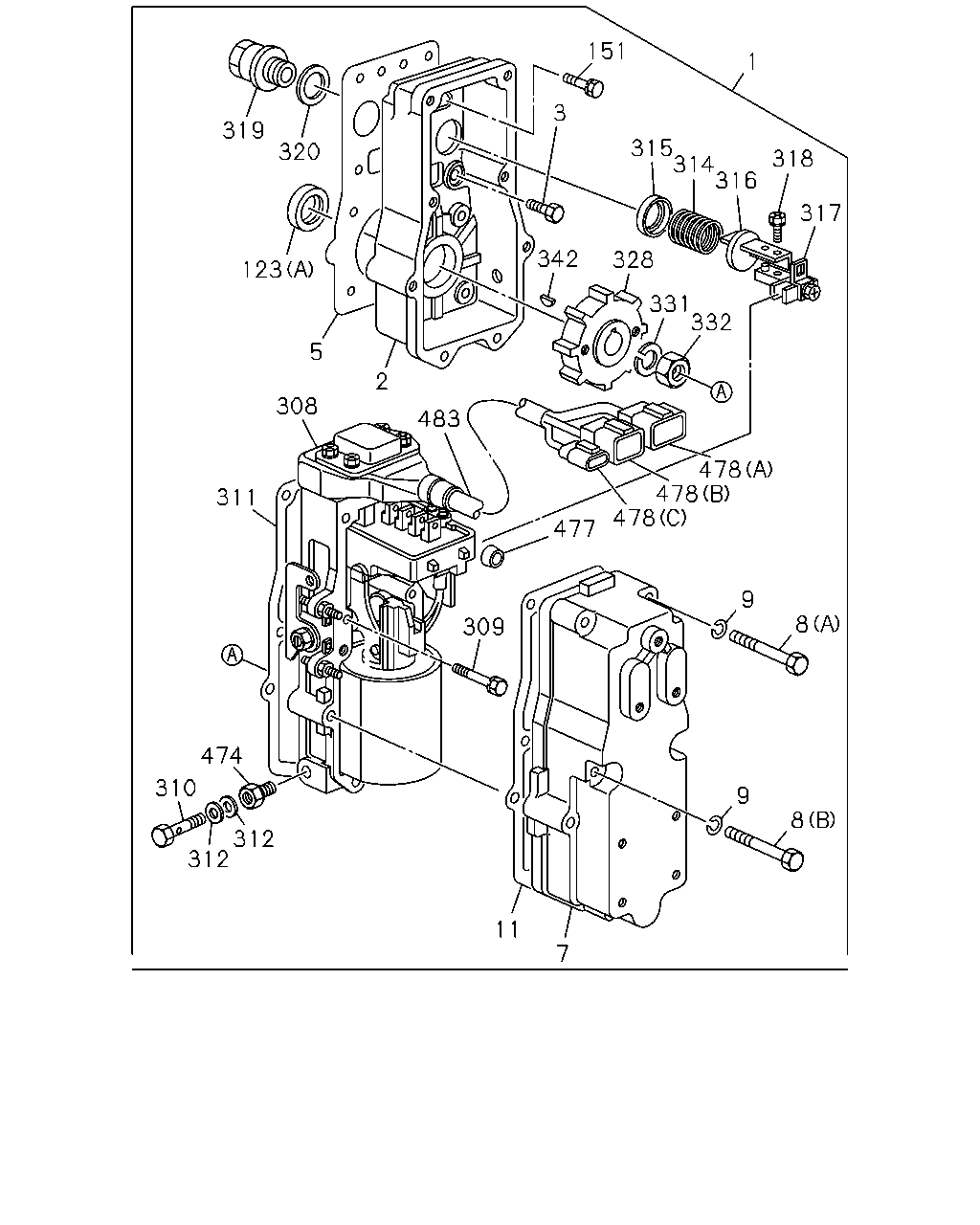

çizim 22868
151 1 3 319 315 314 316 320 318 317 342 328 123 331 332 5 2 308 483 478 478 478 311 477 9 8 309 474 310 9 8 312 312 11 7
BalonParca AdiParca NoAdetTipApplied Date
1 GOVERNOR ASM; INJ PUMP
ASM PART: A = 1-15603-420-2 		1-15790-043-5 01 1 -
2 HOUSING; GOV,INJ PUMP
ASM PART: A = 1-15603-420-2 		1-15721-359-0 01 1 -
3 BOLT; GOV HSG,INJ PUMP
ASM PART: A = 1-15603-420-2 		1-15729-846-0 10 1 -
5 GASKET; GOV TO INJ PUMP HSG
ASM PART: A = 1-15603-420-2 		1-15779-636-0 01 1 -
7 COVER; GOV HSG,INJ PUMP
ASM PART: A = 1-15603-420-2 		1-15721-360-0 01 1 -
11 GASKET; COVER TO HSG,GOV
ASM PART: A = 1-15603-420-2 		1-15779-637-0 01 1 -
123 SEAL; OIL,CONT SHAFT,GOV
(A) ASM PART: A = 1-15603-420-2 		1-15639-012-0 01 1 -
123 SEAL; OIL,CONT SHAFT,GOV
(B) ASM PART: A = 1-15603-420-2 		1-15779-731-0 02 1 -
151 BOLT; ADAPTER,GOV HSG,INJ PUMP
ASM PART: A = 1-15603-420-2 		1-15779-281-0 01 1 -
308 ACTUATOR; GOV,ELEC
ASM PART: A = 1-15603-420-2 		1-15779-635-3 01 1 -
309 BOLT; ACTUATOR FIX,ELEC GOV
ASM PART: A = 1-15603-420-2 		1-15729-535-0 02 1 -
310 BOLT; EYE,ACTUATOR,ELEC GOV
ASM PART: A = 1-15603-420-2 		1-15729-538-0 01 1 -
311 GASKET; ACTUATOR,ELEC GOV
ASM PART: A = 1-15603-420-2 		1-15779-147-0 01 1 -
312 GASKET; EYE BOLT,ACTUATOR,GOV
ID=14.2 OD=19.2 ASM PART: A = 1-15603-420-2 		1-09630-085-0 02 1 -
314 SPRING; CONT RACK,GOV
ASM PART: A = 1-15603-420-2 		1-15723-575-0 01 1 -
315 SEAT; SPRING,CONT RACK,HSG SIDE
ASM PART: A = 1-15603-420-2 		1-15723-307-0 01 1 -
316 SEAT; SPRING,CONT RACK,CONNECTOR SIDE
ASM PART: A = 1-15603-420-2 		1-15723-576-0 01 1 -
317 CONNECTOR; CONT RACK,GOV,ELEC
OFFSET=3.5 ASM PART: A = 1-15603-420-2 		1-15779-685-1 01 1 -
317 CONNECTOR; CONT RACK,GOV,ELEC
OFFSET=4.0 ASM PART: A = 1-15603-420-2 		1-15779-686-1 01 1 -
317 CONNECTOR; CONT RACK,GOV,ELEC
OFFSET=4.5 ASM PART: A = 1-15603-420-2 		1-15779-687-1 01 1 -
318 BOLT; CONT RACK,GOV,ELEC
ASM PART: A = 1-15603-420-2 		1-83569-079-0 01 1 -
319 CAP; CONT RACK,GOV,ELEC
ASM PART: A = 1-15603-420-2 		1-15779-152-0 01 1 -
320 GASKET; CAP,CONT RACK,GOV
ASM PART: A = 1-15603-420-2 		1-15629-056-0 01 1 -
328 GEAR; HSG TO MAGNET
ASM PART: A = 1-15603-420-2 		1-15779-706-0 01 1 -
331 WASHER; LK,GEAR
ASM PART: A = 1-15603-420-2 		1-15749-007-0 01 1 -
332 NUT; GEAR
ASM PART: A = 1-15603-420-2 		1-15779-012-0 01 1 -
342 KEY; WOODRUFF,SHAFT
13MM ASM PART: A = 1-15603-420-2 		9-81325-030-0 01 1 -
477 BUSHING; GOVERNOR
ASM PART: A = 1-15603-420-2 		1-15779-643-0 02 1 -
478 HOUSING; PLUG,GOVERNOR
(A), L=44.35 B=31.8 ASM PART: A = 1-15603-420-2 		1-15779-640-0 01 1 -
478 HOUSING; PLUG,GOVERNOR
(B), L=44.35 B=25.6 ASM PART: A = 1-15603-420-2 		1-15779-641-0 01 1 -
478 HOUSING; PLUG,GOVERNOR
(C), L=44.35 B=26.7 ASM PART: A = 1-15603-420-2 		1-15779-642-0 01 1 -

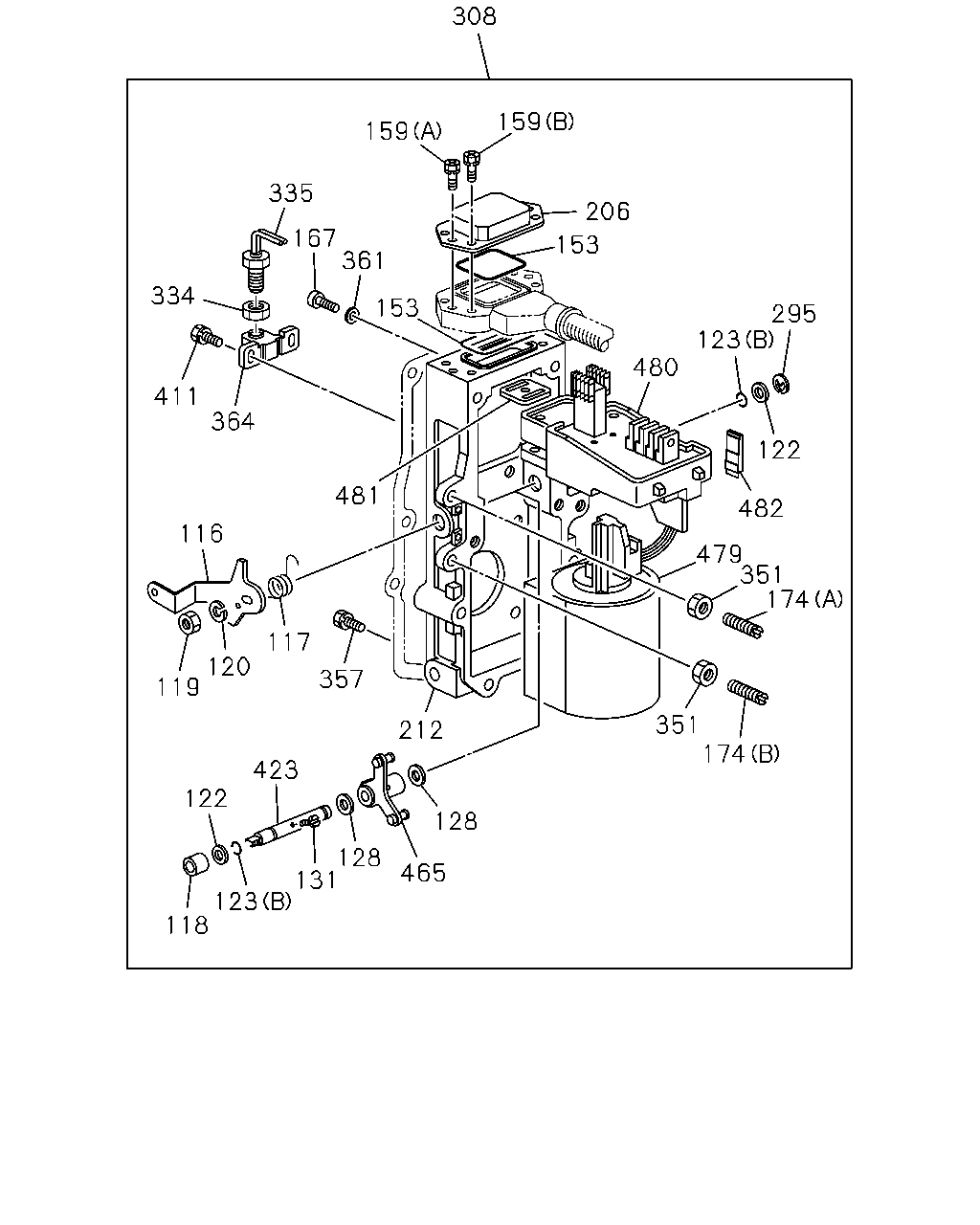

çizim 85113
308 159 159 335 206 167 361 153 153 334 295 123 480 411 364 122 481 482 116 479 351 174 117 120 119 357 351 174 212 423 122 128 128 131 123 118 465
BalonParca AdiParca NoAdetTipApplied Date
116 LEVER; ENG STOP,GOV
ASM PART: A = 1-15603-420-2 		1-15725-972-0 01 1 -
117 SPRING; STOP LEVER,GOV
ASM PART: A = 1-15603-420-2 		1-15723-612-0 01 1 -
118 COLLAR; CONT SHAFT,GOV
ASM PART: A = 1-15603-420-2 		1-15779-738-0 01 1 -
119 NUT; ENG STOP LEVER,GOV
ASM PART: A = 1-15603-420-2 		1-15629-117-0 01 1 -
120 WASHER; LK,SPD ADJ LEVER,GOV
ASM PART: A = 1-15603-420-2 		1-83579-492-0 01 1 -
122 WASHER; CONT SHAFT,GOV
ID=10.5 ASM PART: A = 1-15603-420-2 		9-09164-510-0 02 1 -
123 SEAL; OIL,CONT SHAFT,GOV
(A) ASM PART: A = 1-15603-420-2 		1-15639-012-0 01 1 -
123 SEAL; OIL,CONT SHAFT,GOV
(B) ASM PART: A = 1-15603-420-2 		1-15779-731-0 02 1 -
128 SHIM; CONT SHAFT,GOV
ASM PART: A = 1-15603-420-2 		1-15779-730-0 02 1 -
131 SCREW; LEVER TO SHAFT,GOV
ASM PART: A = 1-15603-420-2 		1-15779-739-0 01 1 -
174 SCREW; PLATE
(A) ASM PART: A = 1-15603-420-2 		1-15779-740-0 01 1 -
174 SCREW; PLATE
(B) ASM PART: A = 1-15603-420-2 		1-15779-750-0 01 1 -
295 RING; SNAP
ASM PART: A = 1-15603-420-2 		1-15729-723-0 01 1 -
308 ACTUATOR; GOV,ELEC
ASM PART: A = 1-15603-420-2 		1-15779-635-3 01 1 -
351 NUT; SCREW
ASM PART: A = 1-15603-420-2 		9-81325-081-0 02 1 -
423 SHAFT; CONT,GOV HSG,INJ PUMP
ASM PART: A = 1-15603-420-2 		1-15779-729-0 01 1 -
465 LINK; GOVERNOR
ASM PART: A = 1-15603-420-2 		1-15725-968-0 01 1 -
