0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#29291) — 119 parça

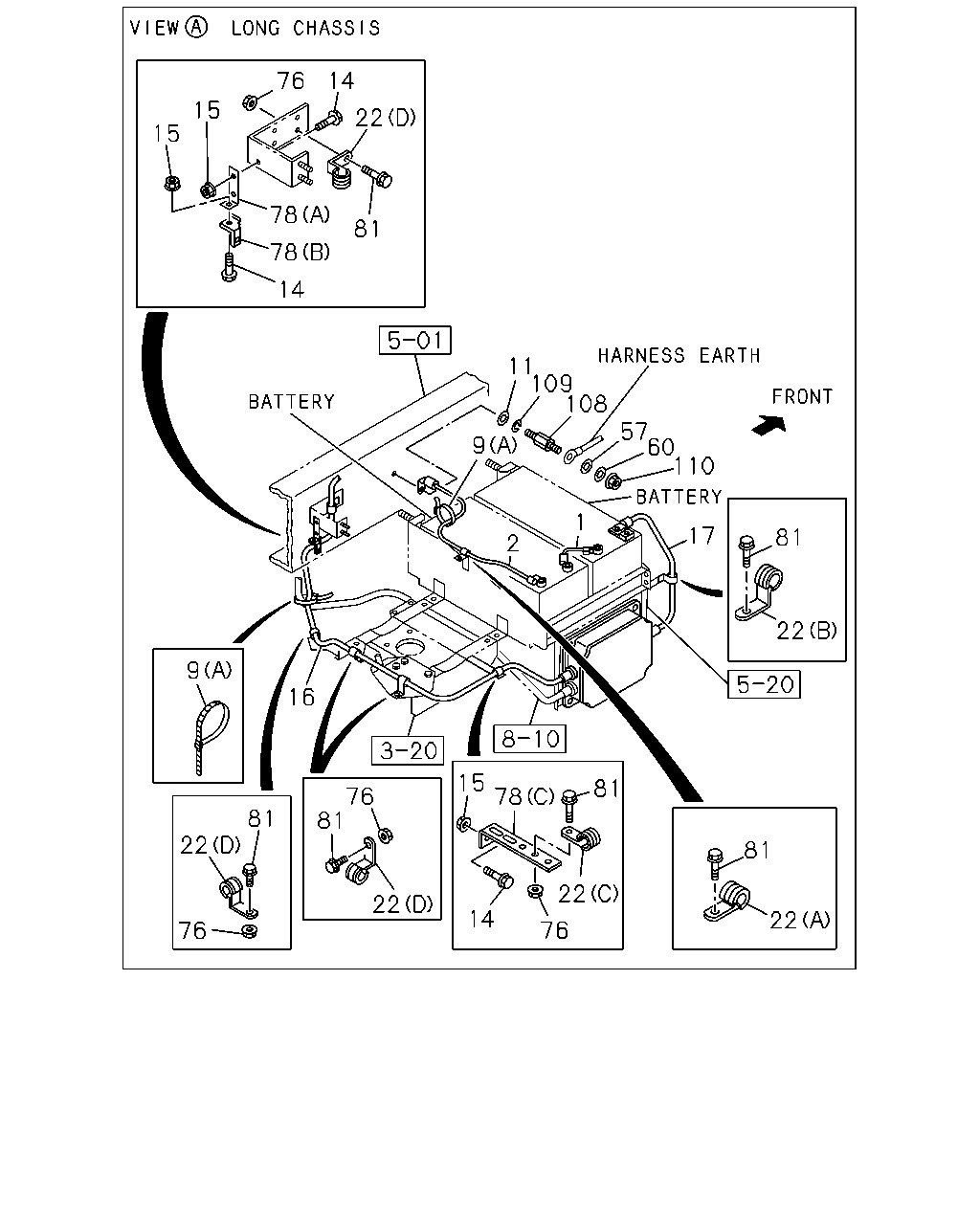

14 78 81 81 22 15 76 22 11 109 108 76 57 60 110 17 9 1 2 22 81 9 81 22 16 22 81 76 15 15 14 81 14 81 81 14 22 76 22 78 78 22 23 76 22 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; BATTERY BATTERY 115F51 N120<SJ3> <+> TO <-> L=265	1-82650-388-1	01	1	0411-	●	●
1	CABLE; BATTERY BATTERY 145G51 N150<SJ8> <+> TO <-> L=450	1-82650-389-1	01	1	0411-	●	●
2	CABLE; BATTERY <-> TO FRAME L=720	1-82650-384-1	01	1	0411-	●
2	CABLE; BATTERY <-> TO FRAME L=680	1-82650-385-1	01	1	0411-		●
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	02	1	0411-	●	●
9	CLIP; BATTERY CABLE (C) ID=20 L=50	1-09700-679-1	01	1	0411-	●	●
9	CLIP; BATTERY CABLE (D) ID=18 L=28	1-09701-067-0	02	1	0411-	●	●
9	CLIP; BATTERY CABLE (B) ID=19 L=28	9-09525-856-0	01	1	0411-	●	●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	9-09164-708-0	01	1	0411-	●	●
14	BOLT; BRKT CLIP M8X20 FLANGE	0-28680-820-0	03	1	0411-		●
14	BOLT; BRKT CLIP M8X20 FLANGE	0-28680-820-0	03	1	0411-0411	●	●
14	BOLT; BRKT CLIP M8X20 FLANGE	0-28680-820-0	04	1	0411-	●
15	NUT; BRKT CLIP M8 FLANGE	0-91150-108-0	03	1	0411-	●	●
16	CABLE; STARTER TO RELAY L=5730	1-82652-896-1	01	1	0411-	●
16	CABLE; STARTER TO RELAY WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) L=5000	1-82652-850-1	01	1	0411-		●
17	CABLE; BATTERY (+) TO RELAY L=640	1-82652-760-3	01	1	0411-	●	●
22	CLIP; BATTERY CABLE (D) ID=20 H=23 L=27	1-09700-861-0	05	1	0411-	●
22	CLIP; BATTERY CABLE (C) ID=21 L=24	8-94176-807-1	03	1	0411-	●
22	CLIP; BATTERY CABLE (B) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0411-	●	●
22	CLIP; BATTERY CABLE (A) ID=25 L=50	1-09701-019-0	01	1	0411-	●	●
22	CLIP; BATTERY CABLE (D) ID=20 H=23 L=27	1-09700-861-0	04	1	0411-		●
22	CLIP; BATTERY CABLE (C) ID=21 L=24	8-94176-807-1	01	1	0411-		●
23	BRACKET; CABLE CLIP TO FRAME EXC. MIXER TRUCK<RA2> (C)	1-47479-642-0	01	1	0411-	●
23	BRACKET; CABLE CLIP TO FRAME EXC. MIXER TRUCK<RA2> (A) L=112	1-47475-694-1	01	1	0411-	●	●
23	BRACKET; CABLE CLIP TO FRAME (B) L=95	1-82699-085-0	03	1	0411-	●	●
57	WASHER; PL,BATTERY CABLE ID=6.4	9-09164-506-0	01	1	0411-	●	●
60	WASHER; LK,BATTERY CABLE ID=6.1	9-09150-606-0	01	1	0411-	●	●
76	NUT; BATTERY CABLE M8 FLANGE	0-91150-108-0	07	1	0411-	●
76	NUT; BATTERY CABLE M8 FLANGE	0-91150-108-0	05	1	0411-		●
78	BRACKET; CLIP BATTERY	1-47476-396-1	01	1	0411-	●
78	BRACKET; CLIP BATTERY (D) L=117	1-47478-116-0	01	1	0411-	●
78	BRACKET; CLIP BATTERY (E) L=110	1-82699-589-0	01	1	0411-	●
78	BRACKET; CLIP BATTERY (C) L=160 H=30	1-47479-759-0	01	1	0411-	●	●
78	BRACKET; CLIP BATTERY (A) L=90 B=25	1-47476-630-0	01	1	0411-		●
78	BRACKET; CLIP BATTERY (B)	8-97304-944-0	01	1	0411-		●
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28680-825-0	10	1	0411-	●
81	BOLT; BATTERY CABLE WHEEL BASE 5900MM(59W) M8X25 FLANGE	0-28680-825-0	07	1	0411-		●
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	0411-	●	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	9-09150-808-0	01	1	0411-	●	●
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	0411-	●	●

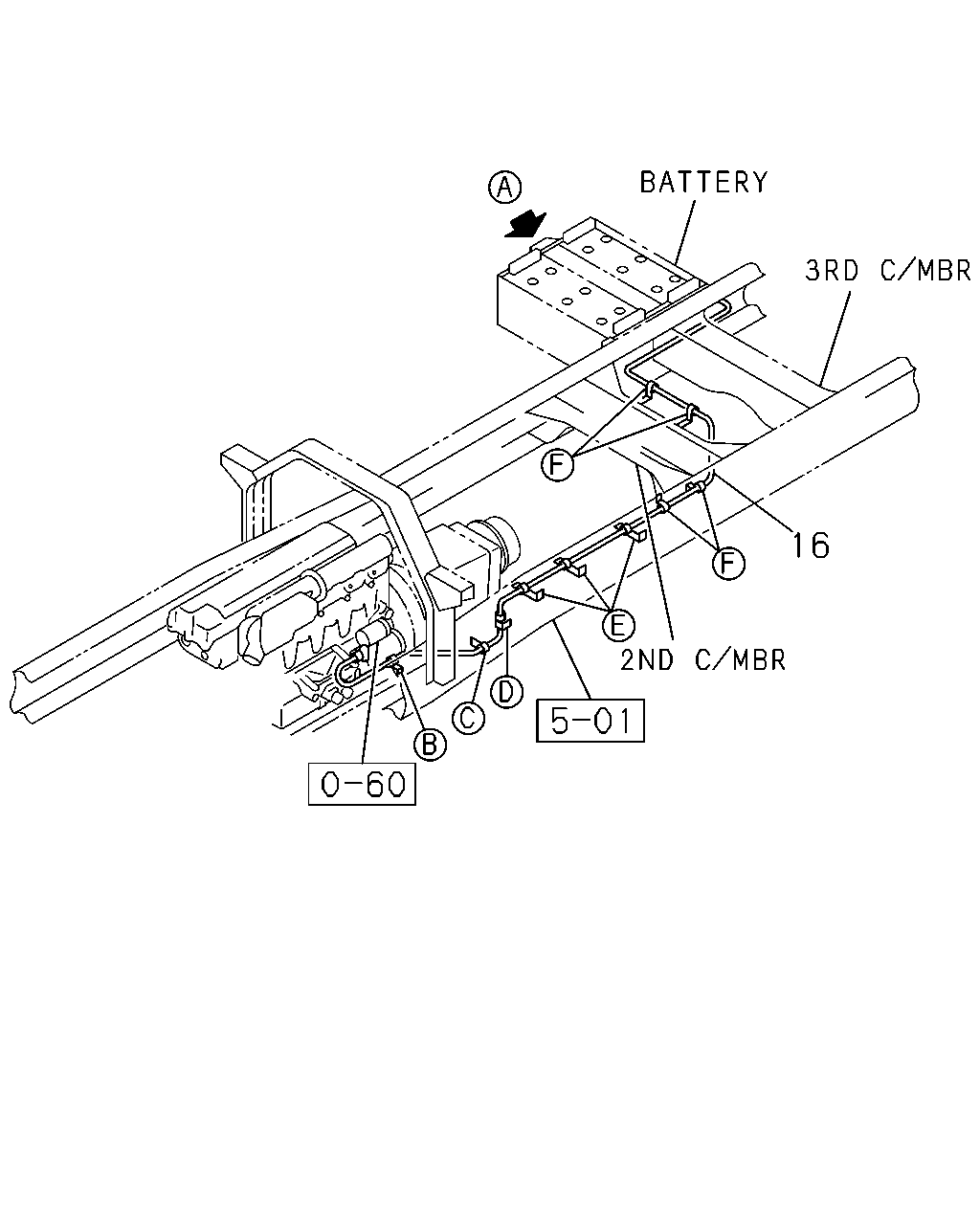

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	16	CABLE; STARTER TO RELAY L=5730	1-82652-896-1	01	1	0411-	●
	16	CABLE; STARTER TO RELAY WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) L=5000	1-82652-850-1	01	1	0411-		●

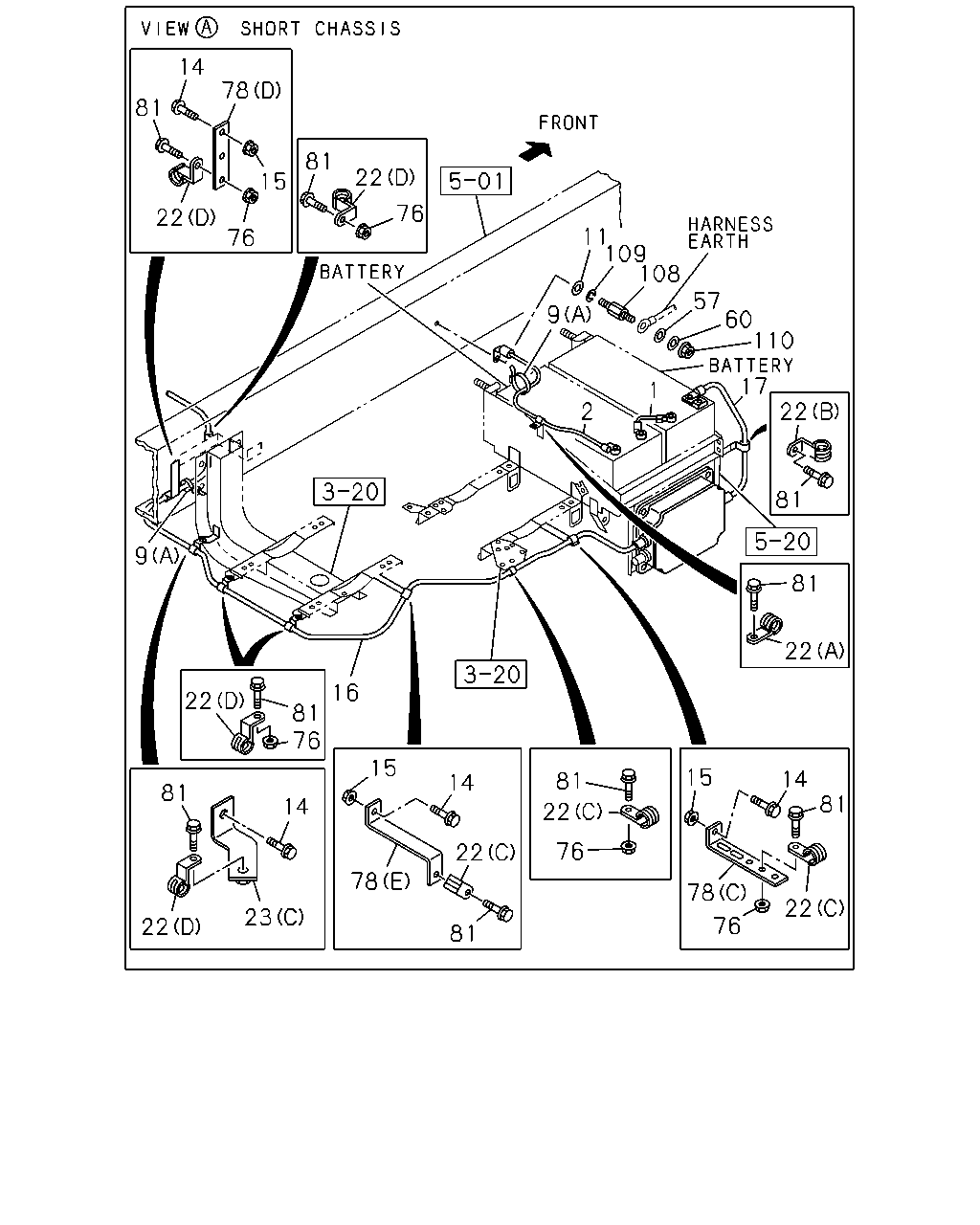

76 14 15 22 15 78 81 78 14 11 109 108 57 60 110 9 1 17 81 2 22 9 16 15 78 81 76 81 81 22 81 22 22 14 22 76 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; BATTERY BATTERY 115F51 N120<SJ3> <+> TO <-> L=265	1-82650-388-1	01	1	0411-	●	●
1	CABLE; BATTERY BATTERY 145G51 N150<SJ8> <+> TO <-> L=450	1-82650-389-1	01	1	0411-	●	●
2	CABLE; BATTERY <-> TO FRAME L=720	1-82650-384-1	01	1	0411-	●
2	CABLE; BATTERY <-> TO FRAME L=680	1-82650-385-1	01	1	0411-		●
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	02	1	0411-	●	●
9	CLIP; BATTERY CABLE (C) ID=20 L=50	1-09700-679-1	01	1	0411-	●	●
9	CLIP; BATTERY CABLE (D) ID=18 L=28	1-09701-067-0	02	1	0411-	●	●
9	CLIP; BATTERY CABLE (B) ID=19 L=28	9-09525-856-0	01	1	0411-	●	●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	9-09164-708-0	01	1	0411-	●	●
14	BOLT; BRKT CLIP M8X20 FLANGE	0-28680-820-0	03	1	0411-		●
14	BOLT; BRKT CLIP M8X20 FLANGE	0-28680-820-0	03	1	0411-0411	●	●
14	BOLT; BRKT CLIP M8X20 FLANGE	0-28680-820-0	04	1	0411-	●
15	NUT; BRKT CLIP M8 FLANGE	0-91150-108-0	03	1	0411-	●	●
16	CABLE; STARTER TO RELAY L=5730	1-82652-896-1	01	1	0411-	●
16	CABLE; STARTER TO RELAY WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) L=5000	1-82652-850-1	01	1	0411-		●
17	CABLE; BATTERY (+) TO RELAY L=640	1-82652-760-3	01	1	0411-	●	●
22	CLIP; BATTERY CABLE (D) ID=20 H=23 L=27	1-09700-861-0	05	1	0411-	●
22	CLIP; BATTERY CABLE (C) ID=21 L=24	8-94176-807-1	03	1	0411-	●
22	CLIP; BATTERY CABLE (B) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0411-	●	●
22	CLIP; BATTERY CABLE (A) ID=25 L=50	1-09701-019-0	01	1	0411-	●	●
22	CLIP; BATTERY CABLE (D) ID=20 H=23 L=27	1-09700-861-0	04	1	0411-		●
22	CLIP; BATTERY CABLE (C) ID=21 L=24	8-94176-807-1	01	1	0411-		●
57	WASHER; PL,BATTERY CABLE ID=6.4	9-09164-506-0	01	1	0411-	●	●
60	WASHER; LK,BATTERY CABLE ID=6.1	9-09150-606-0	01	1	0411-	●	●
76	NUT; BATTERY CABLE M8 FLANGE	0-91150-108-0	07	1	0411-	●
76	NUT; BATTERY CABLE M8 FLANGE	0-91150-108-0	05	1	0411-		●
78	BRACKET; CLIP BATTERY	1-47476-396-1	01	1	0411-	●
78	BRACKET; CLIP BATTERY (D) L=117	1-47478-116-0	01	1	0411-	●
78	BRACKET; CLIP BATTERY (E) L=110	1-82699-589-0	01	1	0411-	●
78	BRACKET; CLIP BATTERY (C) L=160 H=30	1-47479-759-0	01	1	0411-	●	●
78	BRACKET; CLIP BATTERY (A) L=90 B=25	1-47476-630-0	01	1	0411-		●
78	BRACKET; CLIP BATTERY (B)	8-97304-944-0	01	1	0411-		●
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28680-825-0	10	1	0411-	●
81	BOLT; BATTERY CABLE WHEEL BASE 5900MM(59W) M8X25 FLANGE	0-28680-825-0	07	1	0411-		●
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	0411-	●	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	9-09150-808-0	01	1	0411-	●	●
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	0411-	●	●

10 28 21 18 9 12 18 23 24 12 100 9 10 28 9 101 23 99 99 12 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	02	1	0411-	●	●
9	CLIP; BATTERY CABLE (C) ID=20 L=50	1-09700-679-1	01	1	0411-	●	●
9	CLIP; BATTERY CABLE (D) ID=18 L=28	1-09701-067-0	02	1	0411-	●	●
9	CLIP; BATTERY CABLE (B) ID=19 L=28	9-09525-856-0	01	1	0411-	●	●
10	BOLT; BATTERY CABLE CLIP M8X20 FLANGE	0-28680-820-0	04	1	0411-	●	●
12	NUT; BATTERY CABLE CLIP MIXER TRUCK<RA2> (B) M8 FLANGE	0-91150-108-0	03	1	0411-	●
12	NUT; BATTERY CABLE CLIP (A) M10 FLANGE	0-91150-210-0	01	1	0411-	●	●
12	NUT; BATTERY CABLE CLIP EXC. MIXER TRUCK<RA2> (B) M8 FLANGE	0-91150-108-0	04	1	0411-	●	●
18	CLIP; BATTERY CABLE (A) ID=20 H=23 L=27	1-09700-861-0	01	1	0411-	●	●
18	CLIP; BATTERY CABLE (B) ID=18 L=54	1-09701-106-0	01	1	0411-	●	●
21	BOLT; CLIP CABLE M8X16 FLANGE	0-28080-816-0	01	1	0411-	●	●
23	BRACKET; CABLE CLIP TO FRAME EXC. MIXER TRUCK<RA2> (C)	1-47479-642-0	01	1	0411-	●
23	BRACKET; CABLE CLIP TO FRAME EXC. MIXER TRUCK<RA2> (A) L=112	1-47475-694-1	01	1	0411-	●	●
23	BRACKET; CABLE CLIP TO FRAME (B) L=95	1-82699-085-0	03	1	0411-	●	●
24	BOLT; BRKT TO FRAME MIXER TRUCK<RA2> M8X20 FLANGE	0-28680-820-0	01	1	0411-	●
24	BOLT; BRKT TO FRAME MIXER TRUCK<RA2> M8X30 FLANGE	0-28680-830-0	03	1	0411-	●
24	BOLT; BRKT TO FRAME EXC. MIXER TRUCK<RA2> M8X30 FLANGE	0-28680-830-0	04	1	0411-	●	●
28	NUT; BRKT TO FRAME MIXER TRUCK<RA2> M8 FLANGE	0-91150-108-0	03	1	0411-	●
28	NUT; BRKT TO FRAME EXC. MIXER TRUCK<RA2> M8 FLANGE	0-91150-108-0	04	1	0411-	●	●
99	CLIP; BATTERY CABLE (B) ID=18 L=25 H=50	1-09701-096-0	02	1	0411-	●	●
99	CLIP; BATTERY CABLE (A) ID=18 H=23 L=28	1-09701-070-0	02	1	0411-	●	●
100	BOLT; BATTERY CABLE CLIP M8X25 FLANGE	0-28680-825-0	04	1	0411-	●	●
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91150-108-0	04	1	0411-	●	●

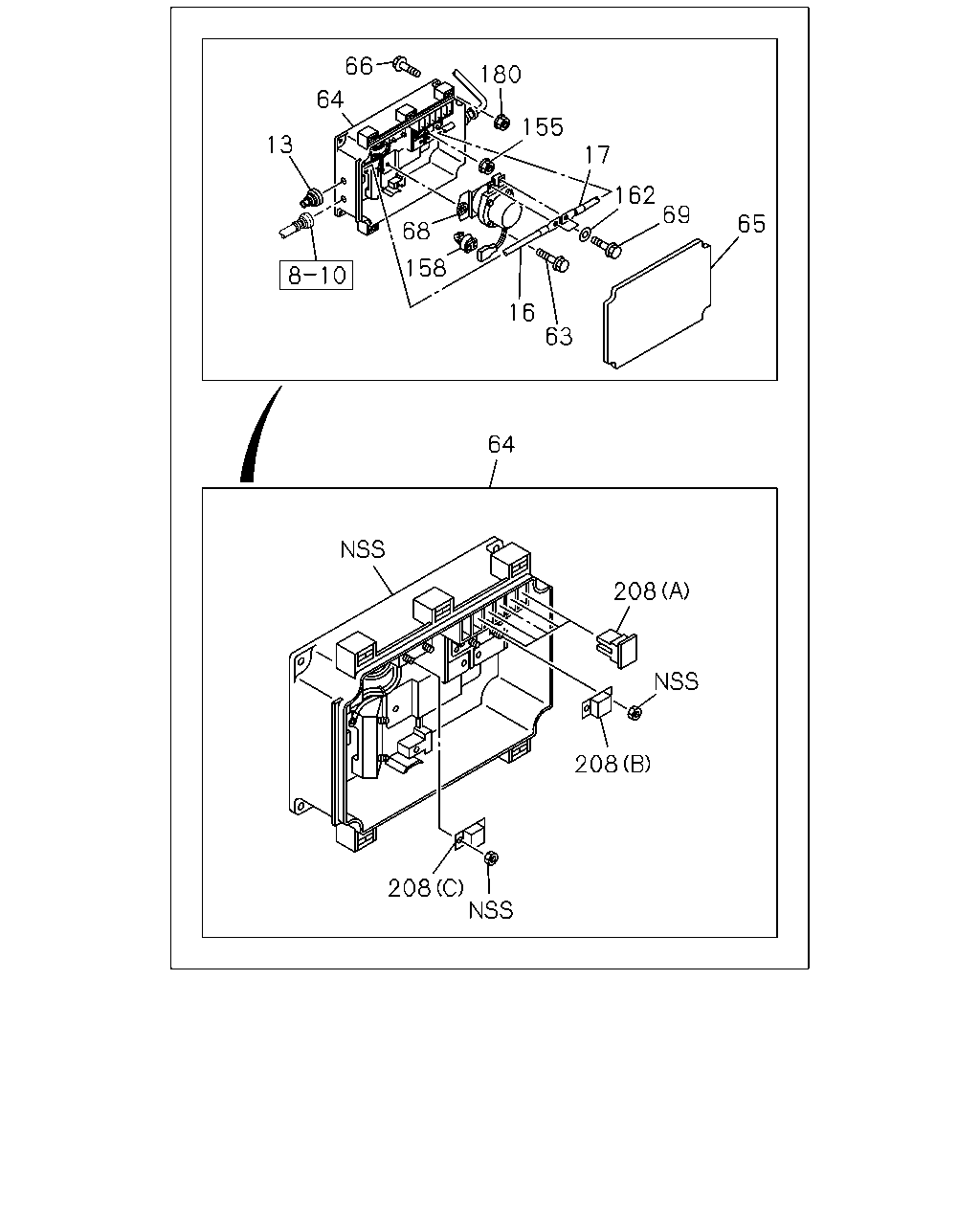

66 180 64 155 13 17 162 69 65 68 158 16 63 64 208 208 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	GROMMET; BATTERY CABLE ID=26	1-09333-140-0	01	1	0411-	●	●
16	CABLE; STARTER TO RELAY L=5730	1-82652-896-1	01	1	0411-	●
16	CABLE; STARTER TO RELAY WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) L=5000	1-82652-850-1	01	1	0411-		●
17	CABLE; BATTERY (+) TO RELAY L=640	1-82652-760-3	01	1	0411-	●	●
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0411-	●	●
64	BOX; BATTERY RELAY	1-82510-506-4	01	1	0411-	●	●
65	COVER; BATTERY RELAY	1-82510-505-2	01	1	0411-	●	●
66	BOLT; COVER,BATTERY RELAY M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0411-	●	●
68	RELAY; BATTERY	1-82550-313-0	01	1	0411-	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	0411-	●	●
155	NUT; RELAY,BATTERY M8 FLANGE	0-91150-108-0	01	1	0411-	●	●
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	02	1	0411-	●	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	9-09164-608-0	02	1	0411-	●	●
180	NUT; COVER M8 FLANGE	0-91150-108-0	02	1	0411-	●	●
208	FUSE (C) 80A	1-82516-031-0	01	1	0411-	●	●
208	FUSE (B) 100A	1-82516-032-0	01	1	0411-	●	●
208	FUSE (A) 40A GREEN	8-94468-662-0	05	1	0411-	●	●
