◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10660 - CXZ RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-90 - RADIO AND TV ▶
8-90 — RADIO AND TV (#2929) — 46 parça

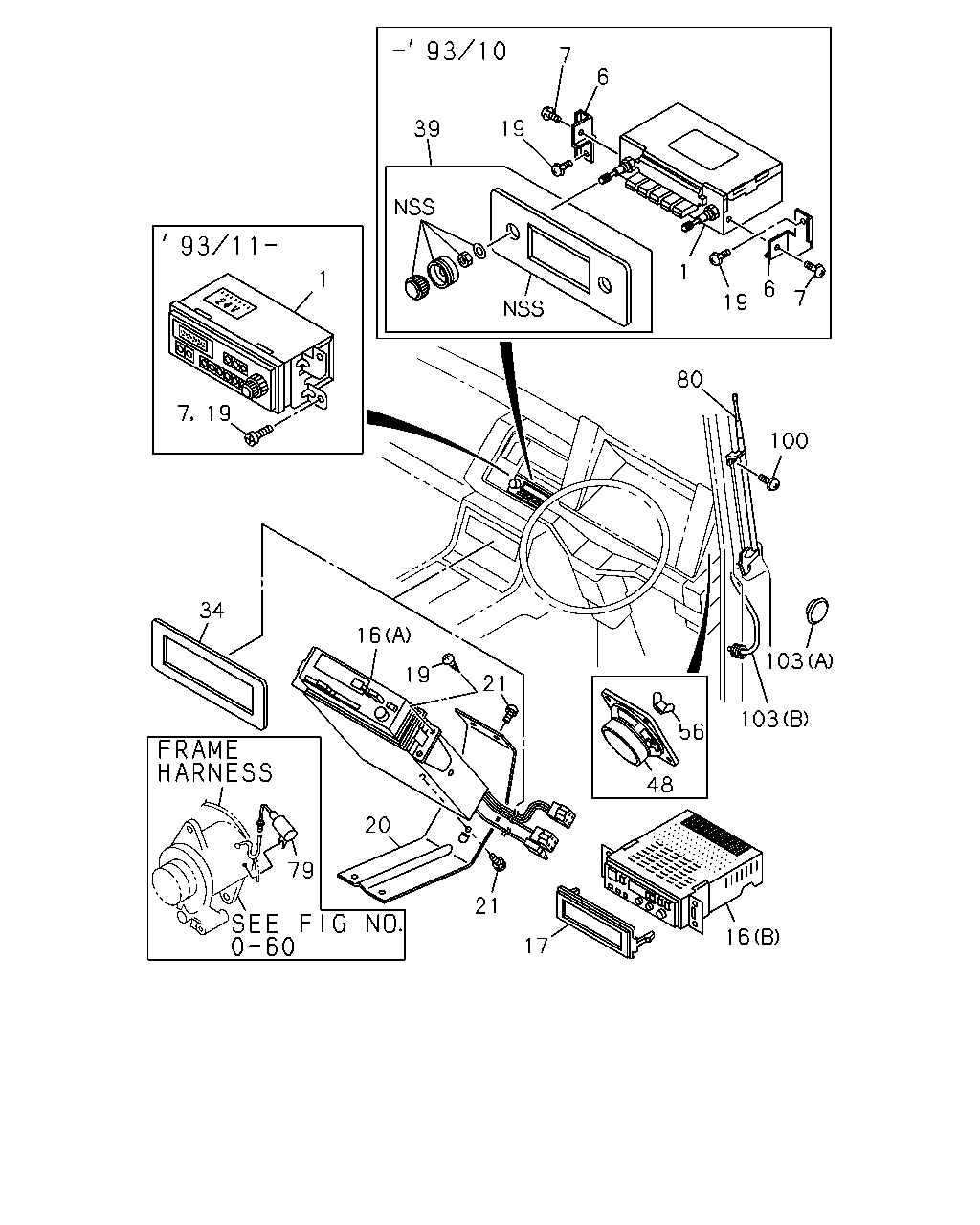

çizim 95195
103 103 16 17 21 20 79 48 56 100 80 7 6 19 1 6 7 19 39 1 7 19 34 16 19 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIO
RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1) TUNER BAND LATIN AMERICA<TCG> EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6>,ANTENNA RADIO<U73> 		1-84112-062-0 01 1 9311- ● ●
1 RADIO
RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1) 		1-84112-034-0 01 1 9307-9307 ● ●
1 RADIO
RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1) 		1-84112-061-0 01 1 9308-9310 ● ●
1 RADIO
RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1) EXC. TUNER BAND LATIN AMERICA<TCG>,SPEAKER SYSTEM FRT 2 SPEAKERS<UX6>,ANTENNA RADIO<U73> 		1-84112-061-0 01 1 9311- ● ●
1 RADIO
RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) 		1-84112-025-0 01 1 9002-9212 ● ●
1 RADIO
RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) 		1-84112-034-0 01 1 9301-9306 ● ●
6 BRACKET; RADIO TO PANEL
RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1) 		1-84116-051-0 01 1 9002-9310 ● ●
6 BRACKET; RADIO TO PANEL
RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1) 		1-84116-050-0 01 1 9002-9310 ● ●
7 SCREW; RADIO
RADIO CLARION(SK2),RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) M5X8 W/LK WASHER 		9-03910-508-0 02 1 9002- ● ●
16 CASSETTE STEREO
RADIO AM & TAPE PLAYER(UM1) (A) 		1-84120-024-0 01 1 9002-9212 ● ●
16 CASSETTE STEREO
RADIO AM & TAPE PLAYER(UM1) (B) 		1-84120-051-0 01 1 9301-9307 ● ●
16 CASSETTE STEREO
RADIO AM & TAPE PLAYER(UM1) (B) 		1-84120-057-0 01 1 9308- ● ●
17 ATTACH KIT; CASSETTE
RADIO AM & TAPE PLAYER(UM1) 		1-84125-016-0 01 1 9301- ● ●
19 SCREW; DECK
RADIO CLARION(SK2),RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) M6X16 W/LK&PL WASHER 		1-09981-141-0 02 1 9002- ● ●
20 BRACKET; STEREO
RADIO AM & TAPE PLAYER(UM1) 		1-84126-025-0 01 1 9002-9212 ● ●
20 BRACKET; STEREO
RADIO AM & TAPE PLAYER(UM1) 		1-84126-033-0 01 1 9301- ● ●
21 SCREW; STEREO
RADIO AM & TAPE PLAYER(UM1) M5X12 TAPPING W/PL WASHER 		0-74300-512-0 04 1 9002- ● ●
21 SCREW; STEREO
RADIO AM & TAPE PLAYER(UM1) M5X8 W/LK WASHER 		9-03910-508-0 01 1 9002- ● ●
21 SCREW; STEREO
RADIO AM & TAPE PLAYER(UM1) M5X10 W/LK WASHER 		9-03910-510-0 04 1 9002- ● ●
34 COVER; RADIO HOLE
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-84125-007-2 01 1 9002- ● ●
34 COVER; RADIO HOLE
EXC. RADIO CLARION(SK2),RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) 		1-84125-007-2 01 1 9002- ● ●
39 ESCUTCHEON
RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) 		1-84119-033-1 01 1 9002-9212 ● ●
39 ESCUTCHEON
RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) 		1-84119-034-1 01 1 9301-9306 ● ●
39 ESCUTCHEON
RADIO CLARION(SK2),RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) 		1-84119-034-1 01 1 9307-9310 ● ●
48 SPEAKER; AUDIO
RADIO AM & TAPE PLAYER(UM1) 		1-84114-033-0 02 1 9002-9003 ● ●
48 SPEAKER; AUDIO
RADIO AM & TAPE PLAYER(UM1) 		1-84114-033-0 02 1 9004-9012 ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-84114-033-0 02 1 9004-9012 ● ●
48 SPEAKER; AUDIO
RADIO FUJITUU(SQ2) 		1-84114-033-0 01 1 9002-9003 ● ●
48 SPEAKER; AUDIO
RADIO AM & TAPE PLAYER(UM1) 		1-84114-033-0 02 1 9101- ● ●
48 SPEAKER; AUDIO
RADIO CLARION(SK2),RADIO FUJITUU(SQ2) 		1-84114-033-0 01 1 9004- ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-84114-049-0 02 1 9101- ● ●
56 NUT; SPEAKER,RADIO OR STEREO
RADIO AM & TAPE PLAYER(UM1) 		1-09984-118-0 04 1 9002-9003 ● ●
56 NUT; SPEAKER,RADIO OR STEREO
RADIO AM & TAPE PLAYER(UM1) 		1-09984-118-0 04 1 9004- ● ●
56 NUT; SPEAKER,RADIO OR STEREO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-09984-118-0 04 1 9004- ● ●
56 NUT; SPEAKER,RADIO OR STEREO
RADIO CLARION(SK2),RADIO FUJITUU(SQ2) 		1-09984-118-0 02 1 9002- ● ●
79 CONDENSER; RADIO
RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1) EXC. GENERATOR NIKKO 24V-40A 1KW(SC5) RN-ECN-SR50F-46A 		1-84132-001-1 02 1 9307- ● ●
79 CONDENSER; RADIO
RADIO CLARION(SK2),RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) EXC. GENERATOR NIKKO 24V-40A 1KW(SC5) RN-ECN-SR50F-90 		1-84132-006-0 01 1 9002- ● ●
79 CONDENSER; RADIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. GENERATOR NIKKO 24V-40A 1KW(SC5) RN-ECN-SR50F-90 		1-84132-006-0 01 1 9002- ● ●
79 CONDENSER; RADIO
RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) EXC. GENERATOR NIKKO 24V-40A 1KW(SC5) RN-ECN-SR50F-46A 		1-84132-001-1 02 1 9002-9306 ● ●
80 ANTENNA
RADIO CLARION(SK2),RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) 		1-84115-051-1 01 1 9002- ● ●
80 ANTENNA
ANTENNA RADIO<U73> 		1-84115-051-1 01 1 9002- ● ●
100 SCREW; ANTENNA HOLE,FRT
EXC. RADIO CLARION(SK2),RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1),SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-09983-094-0 03 1 9004- ● ●
100 SCREW; ANTENNA HOLE,FRT
EXC. RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) M4X12 TAPPING 		9-07067-412-0 03 1 9002-9003 ● ●
103 GROMMET; ANTENNA HOLE,FRT
RADIO CLARION(SK2),RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) (B) ID=10 OD=42 T=5 		1-09983-111-0 01 1 9002- ● ●
103 GROMMET; ANTENNA HOLE,FRT
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (B) ID=10 OD=42 T=5 		1-09983-111-0 01 1 9002- ● ●
103 GROMMET; ANTENNA HOLE,FRT
EXC. RADIO CLARION(SK2),RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1),SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (A) 		9-09756-038-0 01 1 9002- ● ●
