Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10949 - CXZ CHINA
▶
0 - Engine, Emission, Engine Electrical
▶
0-52 - OIL AND VACUUM PIPING; ENGINE
▶
0-52 — OIL AND VACUUM PIPING; ENGINE
(#29288) — 56 parça
◀

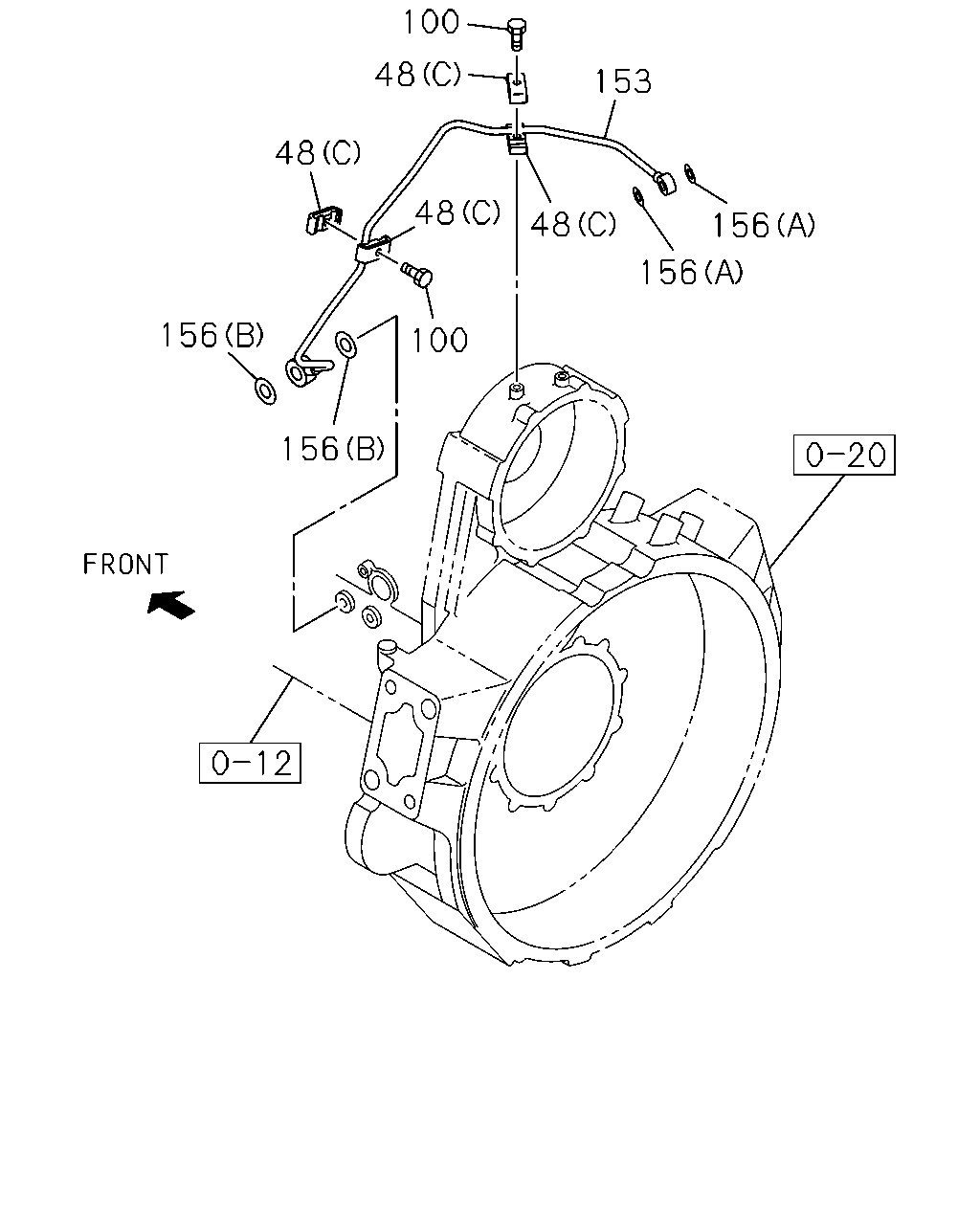

[052A] OIL,C/BL TO PTO PIPE (7 parça)

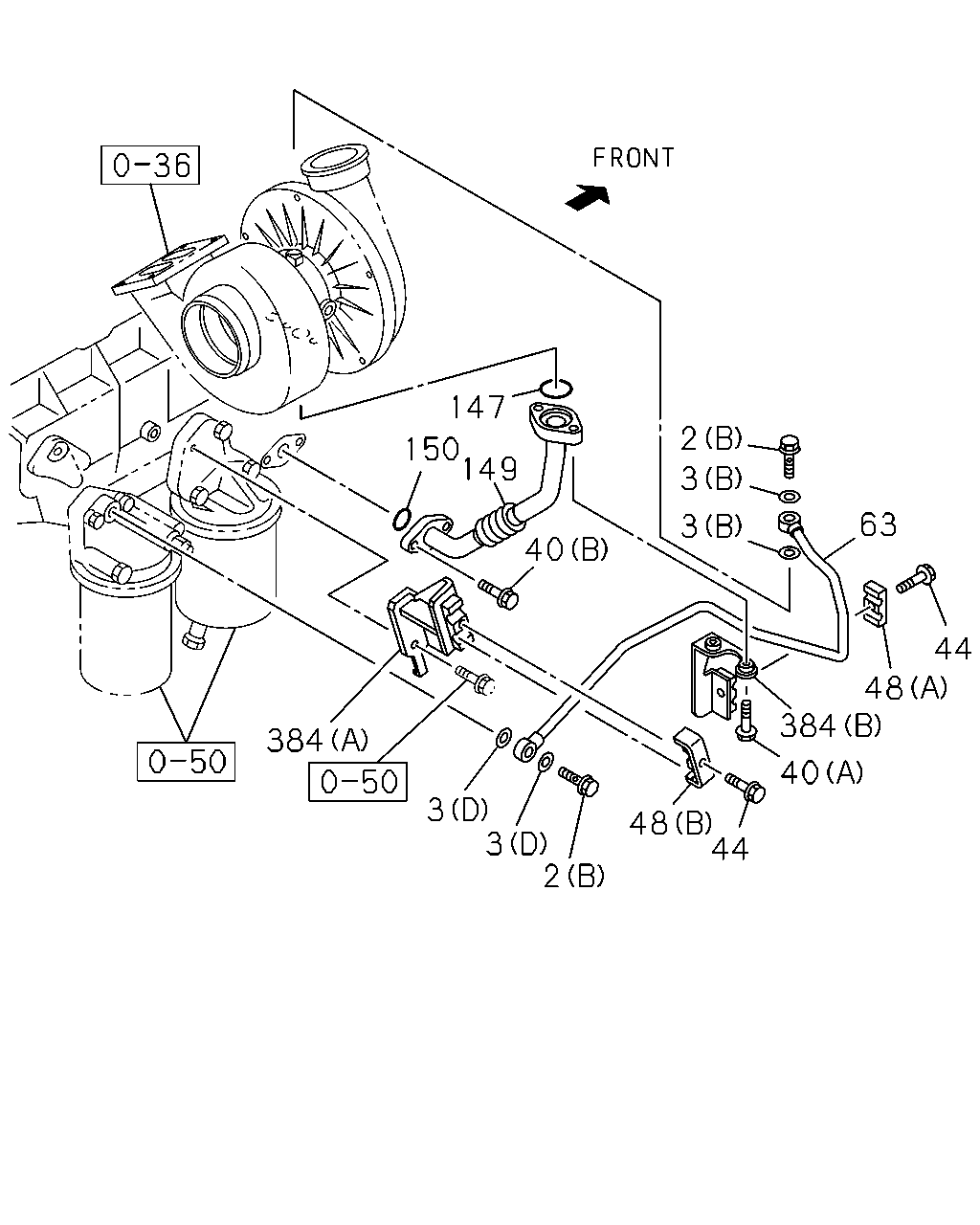

[052A] PIPING;RH SIDE (21 parça)

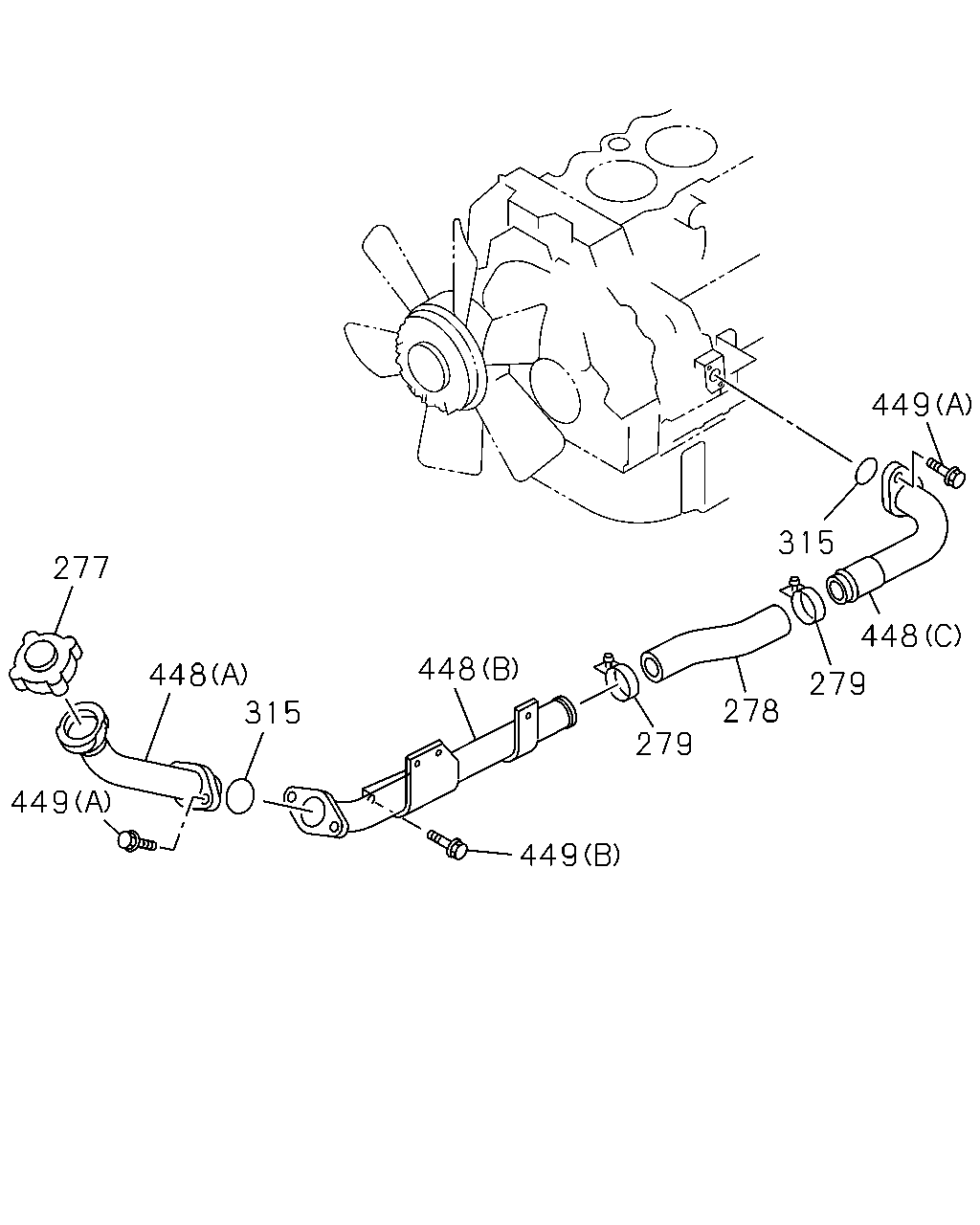

[052A] OIL FILLER (12 parça)

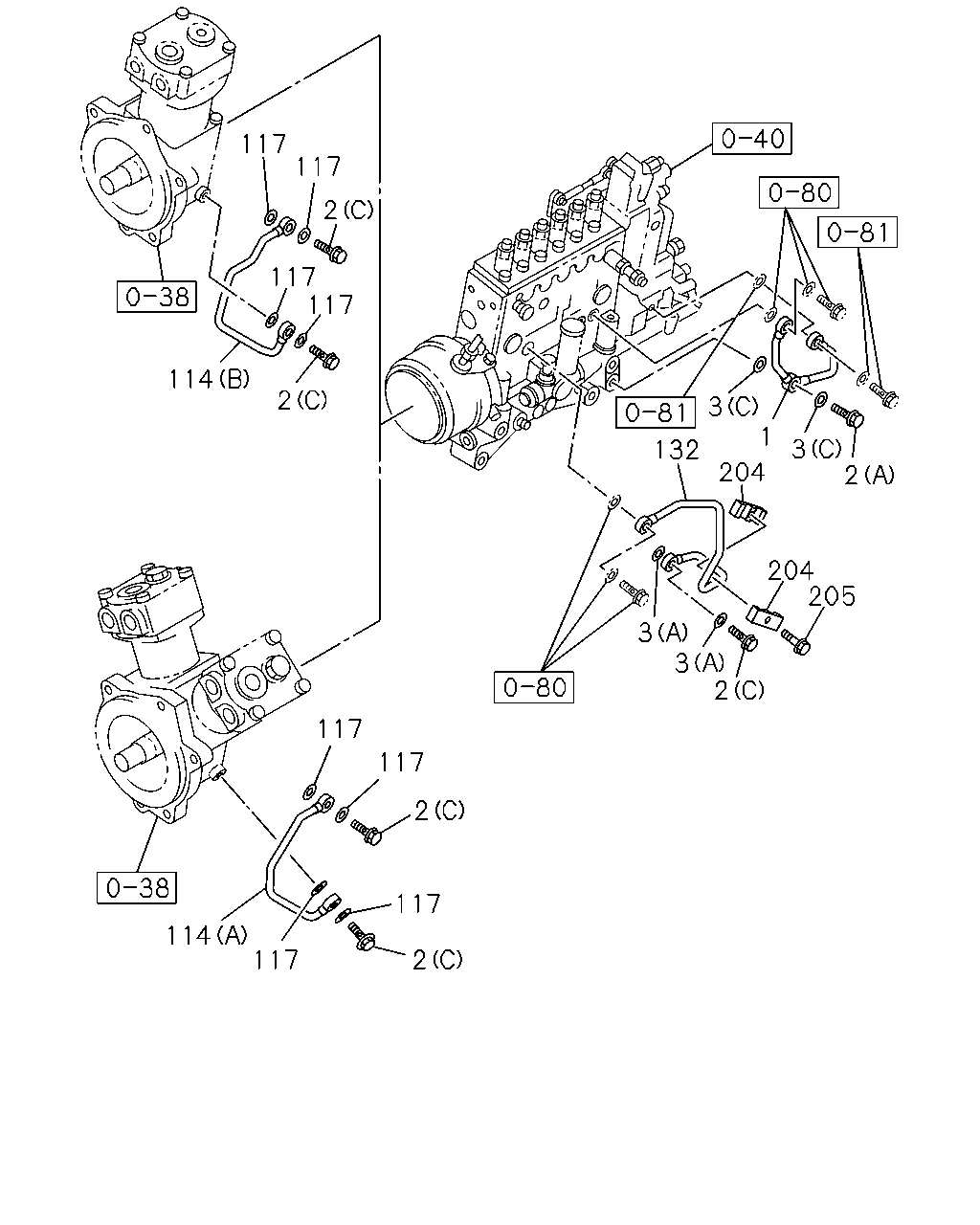

[052A] PIPING;LH SIDE (16 parça)
▶
100
48
153
48
48
48
156
156
156
100
156
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
CLIP; OIL PIPE
(A) ID=9 & 9 L=25
1-09701-212-2
01
1
0411-
48
CLIP; OIL PIPE
(B)
1-09701-265-1
01
1
0411-
48
CLIP; OIL PIPE
ENGINE REAR PTO(SV1) (C)
1-09701-132-1
04
1
0411-
100
BOLT; CLIP
ENGINE REAR PTO(SV1) M6X30 FLANGE
0-28680-630-0
02
1
0411-
153
PIPE; OIL,C/BL TO PTO
ENGINE REAR PTO(SV1)
1-13313-969-0
01
1
0411-
156
GASKET; EYE JOINT,OIL PIPE
ENGINE REAR PTO(SV1) (A) ID=10.2 OD=15.2
1-09630-083-0
02
1
0411-
156
GASKET; EYE JOINT,OIL PIPE
ENGINE REAR PTO(SV1) (B) ID=14.2 OD=19.2
1-09630-085-0
02
1
0411-
147
2
150
149
3
63
3
40
44
48
384
384
40
3
3
2
48
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BOLT; EYE,OIL PIPE
(C) M10X21 FLANGE
1-09675-077-0
03
1
0411-
2
BOLT; EYE,OIL PIPE
(A) M14X27 FLANGE
1-09675-086-0
01
1
0411-
2
BOLT; EYE,OIL PIPE
ENGINE REAR PTO(SV1) (A) M14X27 FLANGE
1-09675-086-0
01
1
0411-
2
BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE
1-09675-160-0
02
1
0411-
2
BOLT; EYE,OIL PIPE
ENGINE REAR PTO(SV1) (C) M10X21 FLANGE
1-09675-077-0
01
1
0411-
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2
1-09630-083-0
02
1
0411-
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=12.2
1-09630-084-0
02
1
0411-
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=25
1-09630-141-0
02
1
0411-
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2
9-09571-412-0
02
1
0411-
40
BOLT; OIL PIPE
(B) M10X25 FLANGE
0-28181-025-0
02
1
0411-
40
BOLT; OIL PIPE
(A) M8X35 FLANGE
0-28680-835-0
02
1
0411-
44
BOLT; CLIP,OIL PIPE
M6X30 FLANGE
0-28080-630-0
02
1
0411-
48
CLIP; OIL PIPE
(A) ID=9 & 9 L=25
1-09701-212-2
01
1
0411-
48
CLIP; OIL PIPE
(B)
1-09701-265-1
01
1
0411-
48
CLIP; OIL PIPE
ENGINE REAR PTO(SV1) (C)
1-09701-132-1
04
1
0411-
63
PIPE; OIL,TURBOCHARGER FEED
1-13313-978-0
01
1
0411-
147
GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1
8-94399-399-0
01
1
0411-
149
PIPE; OIL RETURN,TURBOCHARGER
1-13313-980-0
01
1
0411-
150
GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7
1-09623-450-0
01
1
0411-
384
BRACKET; CLIP,OIL PIPE,TURBOCHARGER
(A)
1-13345-191-0
01
1
0411-
384
BRACKET; CLIP,OIL PIPE,TURBOCHARGER
(B)
1-13345-213-0
01
1
0411-
449
315
277
448
448
448
315
279
278
279
449
449
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
277
CAP; OIL FILLER
1-11750-020-0
01
1
0411-
278
HOSE; RUBBER,OIL FILLER
1-11749-205-0
01
1
0411-
279
CLIP; RUBBER HOSE
ID=48
9-09915-512-1
02
1
0411-
315
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-299-0
01
1
0411-
315
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7
1-09623-299-0
01
1
0411-
448
FILLER; OIL
(C)
1-11740-227-2
01
1
0411-
448
FILLER; OIL
(A)
1-11741-175-4
01
1
0411-
448
FILLER; OIL
(B)
1-11741-304-0
01
1
0411-0411
448
FILLER; OIL
ENG CONTROL TICS<Q3P>
1-11741-312-0
01
1
0411-
449
BOLT; OIL FILLER
(A) M8X16 FLANGE
0-28080-816-0
02
1
0411-
449
BOLT; OIL FILLER
(A) M8X16 FLANGE
0-28080-816-0
02
1
0411-
449
BOLT; OIL FILLER
(B) M8X25 FLANGE
0-28680-825-0
02
1
0411-
117
117
2
117
117
114
2
3
1
3
2
132
204
204
205
3
3
2
117
117
2
117
114
117
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; OIL,INJ PUMP TO C/BL
1-13313-750-1
01
1
0411-
2
BOLT; EYE,OIL PIPE
(C) M10X21 FLANGE
1-09675-077-0
03
1
0411-
2
BOLT; EYE,OIL PIPE
(A) M14X27 FLANGE
1-09675-086-0
01
1
0411-
2
BOLT; EYE,OIL PIPE
ENGINE REAR PTO(SV1) (A) M14X27 FLANGE
1-09675-086-0
01
1
0411-
2
BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE
1-09675-160-0
02
1
0411-
2
BOLT; EYE,OIL PIPE
ENGINE REAR PTO(SV1) (C) M10X21 FLANGE
1-09675-077-0
01
1
0411-
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2
1-09630-083-0
02
1
0411-
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=12.2
1-09630-084-0
02
1
0411-
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=25
1-09630-141-0
02
1
0411-
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2
9-09571-412-0
02
1
0411-
114
PIPE ASM; OIL,BODY
AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)
1-13314-040-0
01
1
0411-
114
PIPE ASM; OIL,BODY
EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)
1-13314-027-0
01
1
0411-
117
GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2
1-09630-083-0
04
1
0411-
132
PIPE ASM; OIL,INJ PUMP FEED
1-13313-993-0
01
1
0411-
204
CLIP; OIL PIPE
1-09701-132-1
02
1
0411-
205
BOLT; CLIP
M6X30 FLANGE
0-28080-630-0
01
1
0411-
