0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#29281) — 119 parça

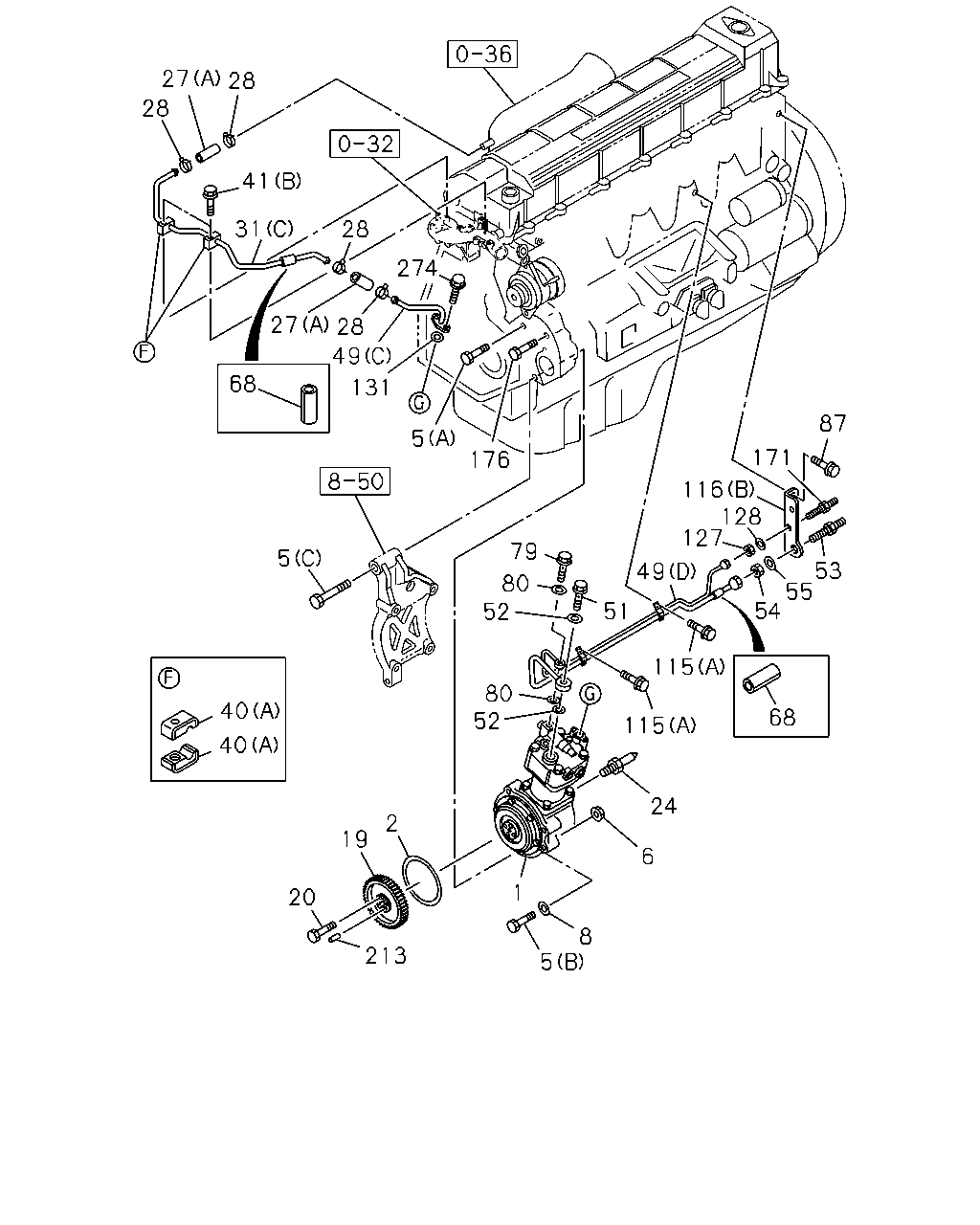

27 28 28 41 274 31 28 27 49 68 131 87 5 171 176 116 128 127 79 5 53 55 54 49 80 52 51 115 80 52 40 68 115 40 24 2 19 6 1 20 8 5 213 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19100-332-4	01	1	0411-
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19100-328-6	01	1	0411-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	0411-
5	BOLT; AIR CMPR FIX (C) M14X128	8-94399-253-1	01	1	0411-
5	BOLT; AIR CMPR FIX (A) M14X90	9-91666-490-0	01	1	0411-
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (B) M14X150	9-09804-172-1	01	1	0411-
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	9-91666-400-0	01	1	0411-
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	0411-
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	01	1	0411-
19	GEAR; INJ PUMP Z=54	1-12524-164-0	01	1	0411-
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	0411-
24	POINTER; AIR CMPR	1-11327-017-1	01	1	0411-
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	0-02117-080-0	02	1	0411-
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-09360-916-0	02	1	0411-
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A) L=55	1-09360-784-0	02	1	0411-
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=22.7	8-94466-382-0	08	1	0411-
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=28.5	1-09707-150-0	04	1	0411-
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-19193-403-0	01	1	0411-0411
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	8-97606-595-0	01	1	0411-
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-19193-463-0	01	1	0411-0411
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	8-97606-596-0	01	1	0411-
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-19193-279-0	01	1	0411-
40	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-09701-210-0	04	1	0411-
40	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-09701-284-0	04	1	0411-
40	CLIP; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09701-281-1	04	1	0411-
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C) M6X40 FLANGE	0-28080-640-0	02	1	0411-
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A) M8X40 FLANGE	0-28080-840-0	02	1	0411-
41	BOLT; CLIP EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) M8X45 FLANGE	0-28080-845-0	02	1	0411-
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-19193-402-0	02	1	0411-
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-19193-448-0	01	1	0411-
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-19193-122-1	01	1	0411-
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (D)	1-19193-126-2	01	1	0411-
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	0411-
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M24X39	1-09675-175-1	01	1	0411-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	02	1	0411-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=24.5 OD=32	9-09571-424-0	02	1	0411-
53	UNION; CHARGE PIPE	1-09654-318-1	01	1	0411-
54	NUT; PIPE UNION M22	9-09111-522-0	01	1	0411-
55	WASHER; LK,PIPE UNION ID=22.5	9-09150-522-0	01	1	0411-
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	0411-
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0411-
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M14X27 FLANGE	1-09675-086-0	01	1	0411-
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0411-
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=14.2 OD=25	1-09630-141-0	02	1	0411-
87	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	02	1	0411-
115	BOLT; AIR PIPE (A) M10X20 FLANGE	0-28181-020-0	02	1	0411-
115	BOLT; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) M6X30 FLANGE	0-28080-630-0	01	1	0411-
116	BRACKET; AIR PIPE (B)	1-19199-308-0	01	1	0411-
116	BRACKET; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-19199-221-0	02	1	0411-
127	NUT; UNION M12	9-09840-280-0	01	1	0411-
128	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0411-
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=26.8	1-09623-415-0	02	1	0411-
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=26.8	1-09623-415-0	01	1	0411-
171	UNION M12 L=62.5	9-09223-206-1	01	1	0411-
176	BOLT; BRKT FIX M10X130 FLANGE	0-28196-013-0	01	1	0411-
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	0411-
274	BOLT; PIPE M8X20 FLANGE	0-28080-820-0	02	1	0411-

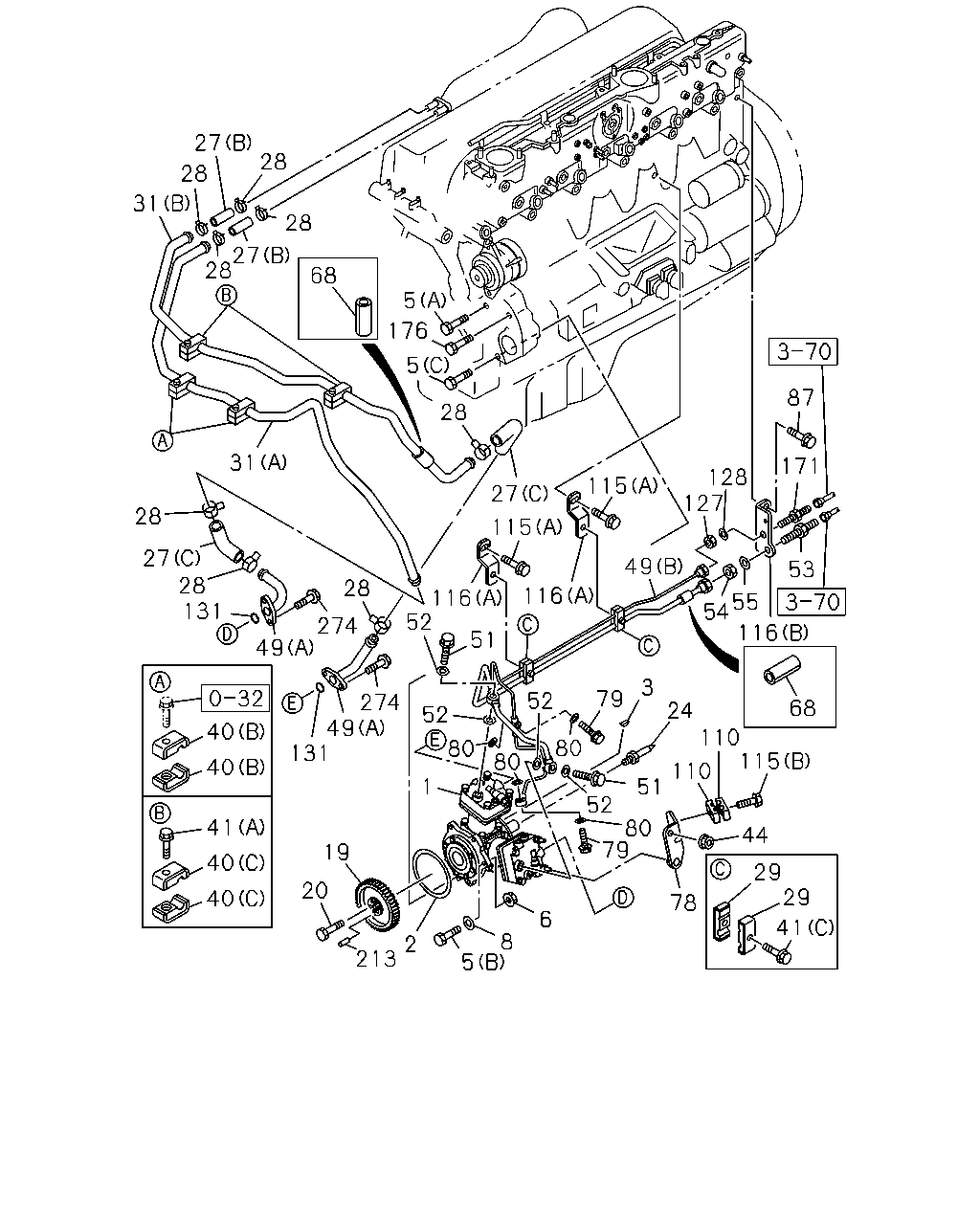

27 28 28 31 28 27 28 68 5 176 5 28 87 31 171 128 127 115 27 28 115 27 28 131 49 53 28 116 116 52 55 54 274 116 51 49 3 79 52 274 49 131 68 24 110 115 52 80 40 80 80 40 110 52 51 1 41 80 79 44 19 40 29 29 20 40 78 6 41 8 5 2 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19100-332-4	01	1	0411-
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19100-328-6	01	1	0411-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	0411-
3	KEY; COUPLING,INJ PUMP AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	9-08055-622-0	01	1	0411-
5	BOLT; AIR CMPR FIX (C) M14X128	8-94399-253-1	01	1	0411-
5	BOLT; AIR CMPR FIX (A) M14X90	9-91666-490-0	01	1	0411-
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (B) M14X150	9-09804-172-1	01	1	0411-
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	9-91666-400-0	01	1	0411-
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	0411-
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	01	1	0411-
19	GEAR; INJ PUMP Z=54	1-12524-164-0	01	1	0411-
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	0411-
24	POINTER; AIR CMPR	1-11327-017-1	01	1	0411-
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	0-02117-080-0	02	1	0411-
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-09360-916-0	02	1	0411-
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A) L=55	1-09360-784-0	02	1	0411-
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=22.7	8-94466-382-0	08	1	0411-
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=28.5	1-09707-150-0	04	1	0411-
29	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-09701-210-0	04	1	0411-
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-19193-403-0	01	1	0411-0411
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	8-97606-595-0	01	1	0411-
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-19193-463-0	01	1	0411-0411
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	8-97606-596-0	01	1	0411-
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-19193-279-0	01	1	0411-
40	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-09701-210-0	04	1	0411-
40	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-09701-284-0	04	1	0411-
40	CLIP; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09701-281-1	04	1	0411-
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C) M6X40 FLANGE	0-28080-640-0	02	1	0411-
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A) M8X40 FLANGE	0-28080-840-0	02	1	0411-
41	BOLT; CLIP EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) M8X45 FLANGE	0-28080-845-0	02	1	0411-
44	NUT AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M8 FLANGE	0-91150-208-0	02	1	0411-
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-19193-402-0	02	1	0411-
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-19193-448-0	01	1	0411-
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-19193-122-1	01	1	0411-
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (D)	1-19193-126-2	01	1	0411-
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	0411-
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M24X39	1-09675-175-1	01	1	0411-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	02	1	0411-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=24.5 OD=32	9-09571-424-0	02	1	0411-
53	UNION; CHARGE PIPE	1-09654-318-1	01	1	0411-
54	NUT; PIPE UNION M22	9-09111-522-0	01	1	0411-
55	WASHER; LK,PIPE UNION ID=22.5	9-09150-522-0	01	1	0411-
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	0411-
78	BRACKET; PIPE,AIR GOV AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-13729-095-0	01	1	0411-
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0411-
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M14X27 FLANGE	1-09675-086-0	01	1	0411-
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0411-
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=14.2 OD=25	1-09630-141-0	02	1	0411-
87	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	02	1	0411-
110	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-09701-132-1	02	1	0411-
115	BOLT; AIR PIPE (A) M10X20 FLANGE	0-28181-020-0	02	1	0411-
115	BOLT; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) M6X30 FLANGE	0-28080-630-0	01	1	0411-
116	BRACKET; AIR PIPE (B)	1-19199-308-0	01	1	0411-
116	BRACKET; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-19199-221-0	02	1	0411-
127	NUT; UNION M12	9-09840-280-0	01	1	0411-
128	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0411-
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=26.8	1-09623-415-0	02	1	0411-
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=26.8	1-09623-415-0	01	1	0411-
171	UNION M12 L=62.5	9-09223-206-1	01	1	0411-
176	BOLT; BRKT FIX M10X130 FLANGE	0-28196-013-0	01	1	0411-
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	0411-
274	BOLT; PIPE M8X20 FLANGE	0-28080-820-0	02	1	0411-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
