Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10660 - CXZ RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-80 - WINDSHIELD WIPER AND WASHER
▶

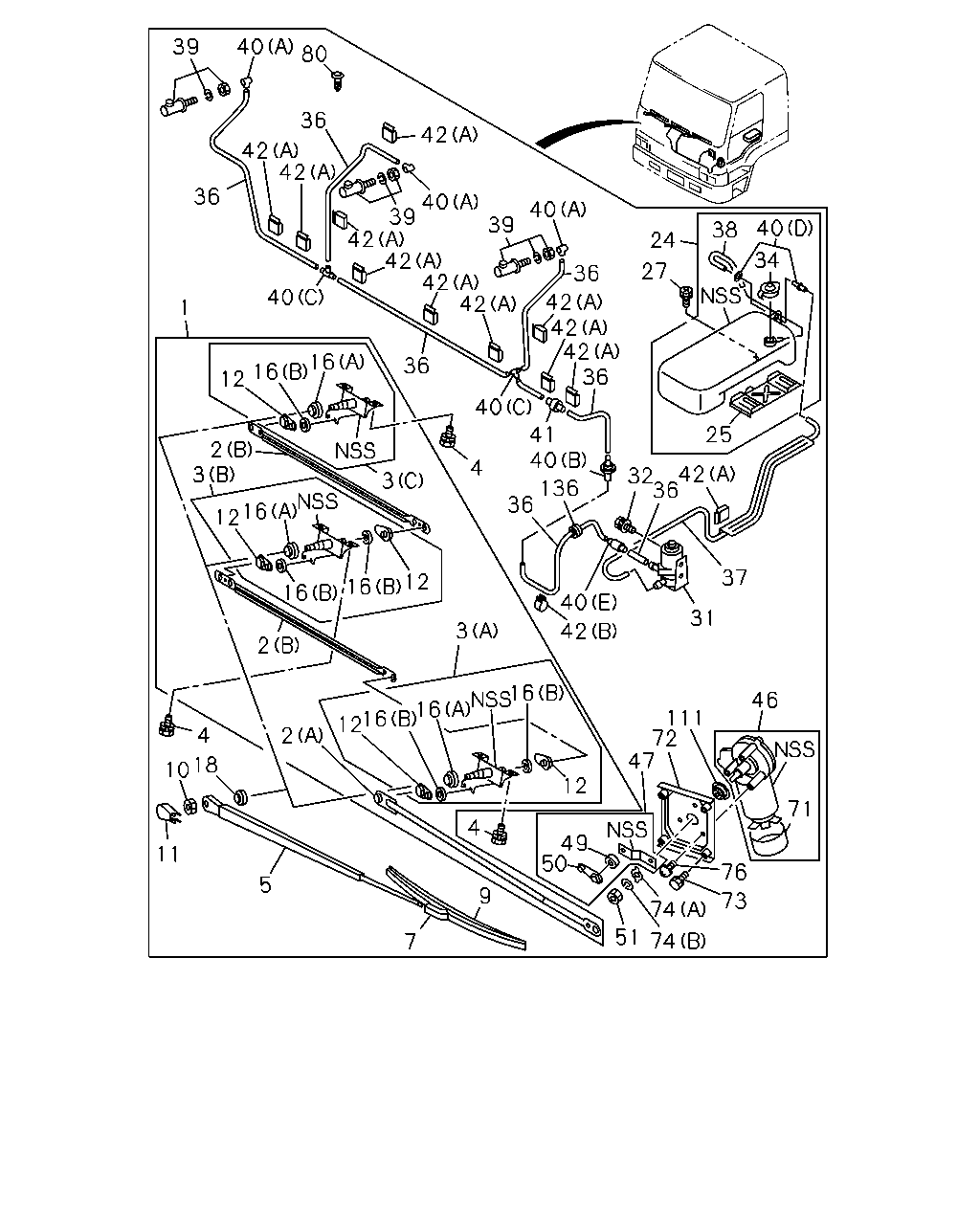

8-80 — WINDSHIELD WIPER AND WASHER
(#2928) — 52 parça
Tümü
A - CXZ5MC
B - CXZ5MF
71
46
111
72
47
12
76
73
74
74
51
49
50
4
9
7
5
11
10
18
4
2
12
2
16
16
16
3
12
16
16
12
16
3
2
3
12
16
16
1
36
40
36
4
40
41
36
136
40
32
42
25
36
40
42
31
37
36
42
42
42
36
27
24
38
40
34
40
39
42
42
42
42
39
40
42
36
42
42
80
40
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
LINK ASM; FRT WIPER
1-83312-039-3
01
1
9002-
●
●
2
LINK; FRT WIPER
(B)
1-83312-041-0
02
1
9002-
●
●
2
LINK; FRT WIPER
(A)
1-83312-073-0
01
1
9002-
●
●
3
PIVOT ASM; FRT WIPER
(A)
1-83313-064-0
01
1
9002-
●
●
3
PIVOT ASM; FRT WIPER
(B)
1-83313-065-0
01
1
9002-
●
●
3
PIVOT ASM; FRT WIPER
(C)
1-83313-066-0
01
1
9002-
●
●
4
BOLT; WIPER LINK TO BODY
M6X20
1-09980-279-0
06
1
9002-
●
●
5
ARM; WIPER
1-83314-056-0
03
1
9002-
●
●
7
BLADE; WIPER
1-83315-009-0
03
1
9002-
●
●
9
RUBBER; FRT WIPER BLADE
1-83355-001-0
03
1
9002-
●
●
10
NUT; WIPER ARM TO WIPER PIVOT
M10
9-09111-410-0
03
1
9002-
●
●
11
COVER; WIPER ARM
1-83319-004-1
03
1
9002-
●
●
12
RETAINER; BALL JOINT,FRT WIPER LINK
5-83318-029-0
05
1
9002-
●
●
16
SEAL; BALL JOINT
(A)
1-83318-022-0
03
1
9002-
●
●
16
SEAL; BALL JOINT
(B)
8-94235-628-0
05
1
9002-
●
●
18
GROMMET; WIPER PIVOT HOLE
1-09983-060-1
03
1
9002-
●
●
24
TANK ASM; WASHER
1-83332-017-6
01
1
9002-
●
●
25
BRACKET; WASHER TANK
1-83338-002-0
01
1
9002-
●
●
27
BOLT; WASHER TANK
M6X20 W/PL WASHER
5-09981-023-0
02
1
9002-9104
●
●
27
BOLT; WASHER TANK
M6X14 W/LK&PL WASHER
9-03920-614-0
02
1
9105-
●
●
31
PUMP ASM; WINDSHIELD WASHER
1-83331-005-1
01
1
9002-
●
●
32
BOLT; WASHER PUMP
M6X16 W/LK&PL WASHER
9-01960-616-0
02
1
9002-9204
●
●
32
BOLT; WASHER PUMP
M6X16 W/LK&PL WASHER
0-50140-616-0
02
1
9205-9307
●
●
32
BOLT; WASHER PUMP
M6X20
1-09980-279-0
02
1
9308-
●
●
34
CAP; WASHER TANK
1-83362-012-0
01
1
9002-
●
●
36
HOSE; WASHER
9-09914-906-0
AR
1
9002-
●
●
37
TUBE ASM; WASHER TANK
L=1500 SERVICED BY L=10000
9-09914-906-0
01
1
9002-9306
●
●
38
HOSE; JOINT,TANK
SERVICED BY L=10000
9-09914-906-0
01
1
9002-
●
●
39
NOZZLE; WINDSHIELD WASHER
1-83334-027-0
03
1
9002-
●
●
40
JOINT; WASHER HOSE
(A)
1-83339-004-0
03
1
9002-
●
●
40
JOINT; WASHER HOSE
(E)
1-83339-005-0
01
1
9002-
●
●
40
JOINT; WASHER HOSE
(D)
1-83339-006-0
01
1
9002-
●
●
40
JOINT; WASHER HOSE
(B)
1-83363-002-0
01
1
9002-
●
●
40
JOINT; WASHER HOSE
(C)
5-83363-003-0
02
1
9002-
●
●
41
VALVE; CHECK,WASHER TANK
1-83338-007-1
01
1
9002-
●
●
42
CLIP; WASHER HOSE
(A) ID=7
1-09987-055-0
14
1
9002-9003
●
●
42
CLIP; WASHER HOSE
(A) 1 SET=5 PIECE
1-09987-214-0
14
1
9004-
●
●
42
CLIP; WASHER HOSE
(B)
1-09987-121-0
01
1
9002-
●
●
46
MOTOR ASM; FRT WINDSHIELD WIPER
1-83311-037-1
01
1
9002-
●
●
47
ARM; CRANK,WIPER MOTOR
1-83314-064-1
01
1
9002-
●
●
49
SEAL; BALL JOINT,CRANK ARM,FRT WIPER
8-94235-628-0
01
1
9002-
●
●
50
RETAINER; BALL JOINT,CRANK ARM,FRT WIP
5-83318-029-0
01
1
9002-
●
●
51
NUT; WIPER MOTOR LINK
M8
9-09111-408-0
01
1
9002-
●
●
71
COVER; WIPER MOTOR
1-83318-021-0
01
1
9002-
●
●
72
BRACKET; WIPER MOTOR
1-83318-019-0
01
1
9002-
●
●
73
BOLT
1-09980-410-0
04
1
9002-
●
●
74
WASHER; ARM TO MOTOR
(A)
1-83319-005-1
01
1
9002-
●
●
74
WASHER; ARM TO MOTOR
(B)
9-09150-508-0
01
1
9002-
●
●
76
SCREW; BRKT TO WIPER MOTOR
8-94232-910-0
03
1
9002-
●
●
80
PLUG; BRKT HOLE
DOOR WITH UNDER VIEW WINDOW<YD8> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> D4.7X11
1-76378-154-0
06
1
9002-
●
●
111
SEAL; FRT WIPER MOTOR TO BRKT
1-83318-020-0
01
1
9002-
●
●
136
GROMMET; HOSE,WASHER TANK
1-83338-009-0
01
1
9002-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
