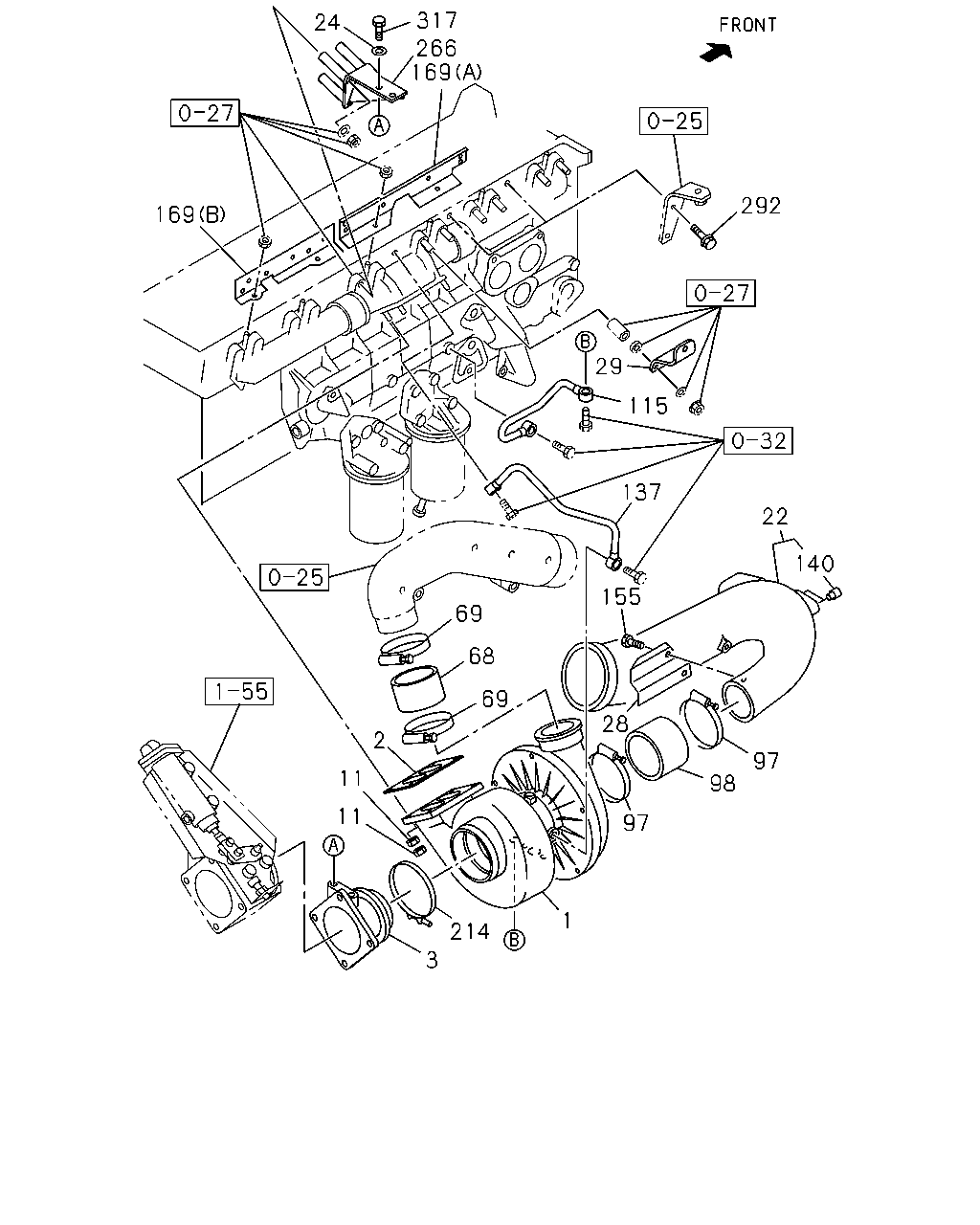

0-36 — TURBOCHARGER SYSTEM (#29279) — 23 parça

317 266 169 24 292 169 29 115 137 22 140 155 69 68 69 28 2 97 11 98 11 97 1 214 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	1-14400-401-2	01	1	0411-
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-187-0	01	1	0411-
3	PIPE; EXH,TURBOCHARGER	1-14144-633-3	01	1	0411-
11	NUT; TURBOCHARGER M10	1-09420-005-0	08	1	0411-
22	DUCT; INL,ACL TO TURBOCHARGER AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-14134-445-1	01	1	0411-
22	DUCT; INL,ACL TO TURBOCHARGER EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-14134-331-2	01	1	0411-
24	WASHER; PL,PIPE	1-09500-007-0	02	1	0411-
28	PROTECTOR; HEAT,HOSE,AIR DUCT	1-14181-272-0	01	1	0411-
29	BRACKET; INL PIPE,ACL TO TURBOCHARGER	1-14119-392-0	01	1	0411-
68	HOSE; RUBBER,TURBOCHARGER TO INL COVER	1-09361-125-0	01	1	0411-
69	CLIP; RUBBER HOSE,TURBOCHARGER ID=68-85	1-09707-202-0	02	1	0411-
97	CLIP; HOSE,TURBOCHARGER,INL ID=104-139	1-09707-200-0	02	1	0411-
98	HOSE; RUBBER,TURBOCHARGER OUTLET	1-09360-988-0	01	1	0411-
115	PIPE; WATER,TURBOCHARGER OUT	1-13721-797-0	01	1	0411-
137	PIPE; WATER,TURBOCHARGER IN	1-13721-968-0	01	1	0411-
140	PIPE; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	9-14119-228-1	02	1	0411-
155	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	02	1	0411-
169	PROTECTOR; HEAT,HD COVER (A)	1-14181-302-1	01	1	0411-
169	PROTECTOR; HEAT,HD COVER (B)	1-14181-320-0	01	1	0411-
214	BAND; "V",TURBOCHARGER TO EXH PIPE	1-09709-094-1	01	1	0411-
266	BRACKET; EXH PIPE	1-14149-219-3	01	1	0411-
292	BOLT; BRKT TO CYL HD M10X16 FLANGE	0-28181-016-0	04	1	0411-
317	BOLT; EXH PIPE M10X20	1-09020-073-2	02	1	0411-
