Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10949 - CXZ CHINA
▶
0 - Engine, Emission, Engine Electrical
▶
0-31 - THERMOSTAT AND HOUSING
▶

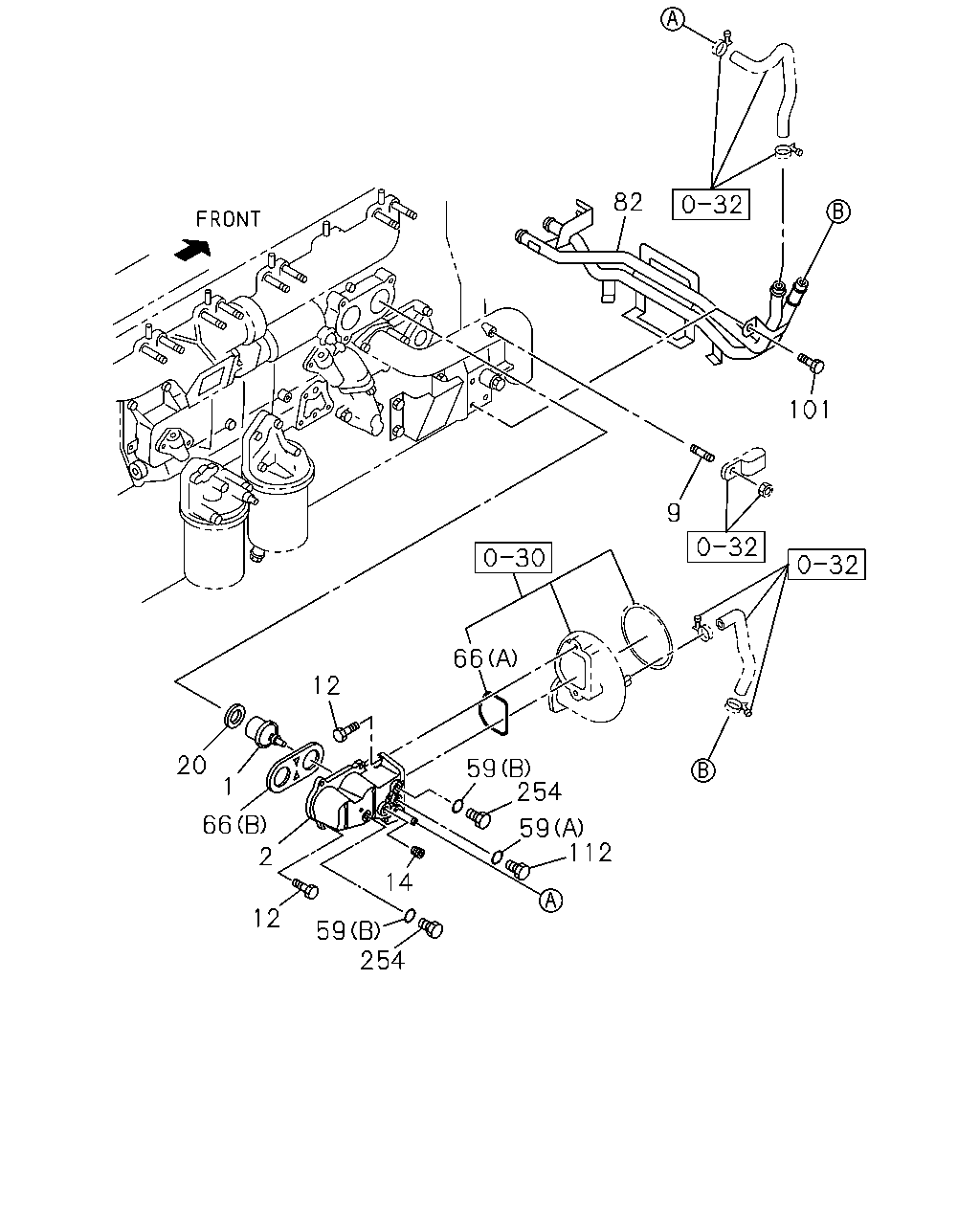

0-31 — THERMOSTAT AND HOUSING
(#29275) — 19 parça
◀
[031A] WATER OUTLET PIPING (5 parça)
[031A] THRMOSTAT AND THRMOSTAT HOUSING (14 parça)
▶
52
60
60
50
50
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
50
BOLT; OUTLET PIPE
(B) M10X85 FLANGE
8-94397-359-1
02
1
0411-
50
BOLT; OUTLET PIPE
(A) M10X55 FLANGE
8-94399-863-1
02
1
0411-
52
BOLT; JOINT,THERMOSTAT
M8X16 FLANGE
0-28080-816-0
02
1
0411-
60
GASKET; OUTLET PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=55.6
1-09623-452-0
01
1
0411-
60
GASKET; OUTLET PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=62.6
1-09623-505-0
01
1
0411-
82
101
9
66
12
20
59
254
1
66
2
59
112
14
12
59
254
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
THERMOSTAT
82 CELSIUS
8-98271-161-0
02
1
0411-
2
HOUSING; THERMOSTAT
1-13710-550-0
01
1
0411-
9
STUD; WATER PIPE
M10X20 L=35
9-04411-020-0
01
1
0411-
12
BOLT; HSG
M10X25 FLANGE
0-28181-025-0
05
1
0411-
14
PLUG; SW
PT3/8
8-94475-259-0
01
1
0411-
20
RING; SEAL
1-13779-011-0
02
1
0411-
59
GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2
1-09630-084-0
01
1
0411-
59
GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2
1-09630-086-0
02
1
0411-
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=105.6
1-09623-247-0
01
1
0411-
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)
1-13743-036-1
01
1
0411-
82
PIPE; WATER,HTR
1-13722-039-0
01
1
0411-
101
BOLT; PIPE
M10X20 FLANGE
0-28081-020-0
01
1
0411-
112
PLUG
M12X9
1-09604-095-0
01
1
0411-
254
PLUG; HSG
M16X12
9-99202-316-0
02
1
0411-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
