Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10949 - CXZ CHINA
▶
0 - Engine, Emission, Engine Electrical
▶
0-30 - WATER PUMP AND CORROSION RESISTOR
▶

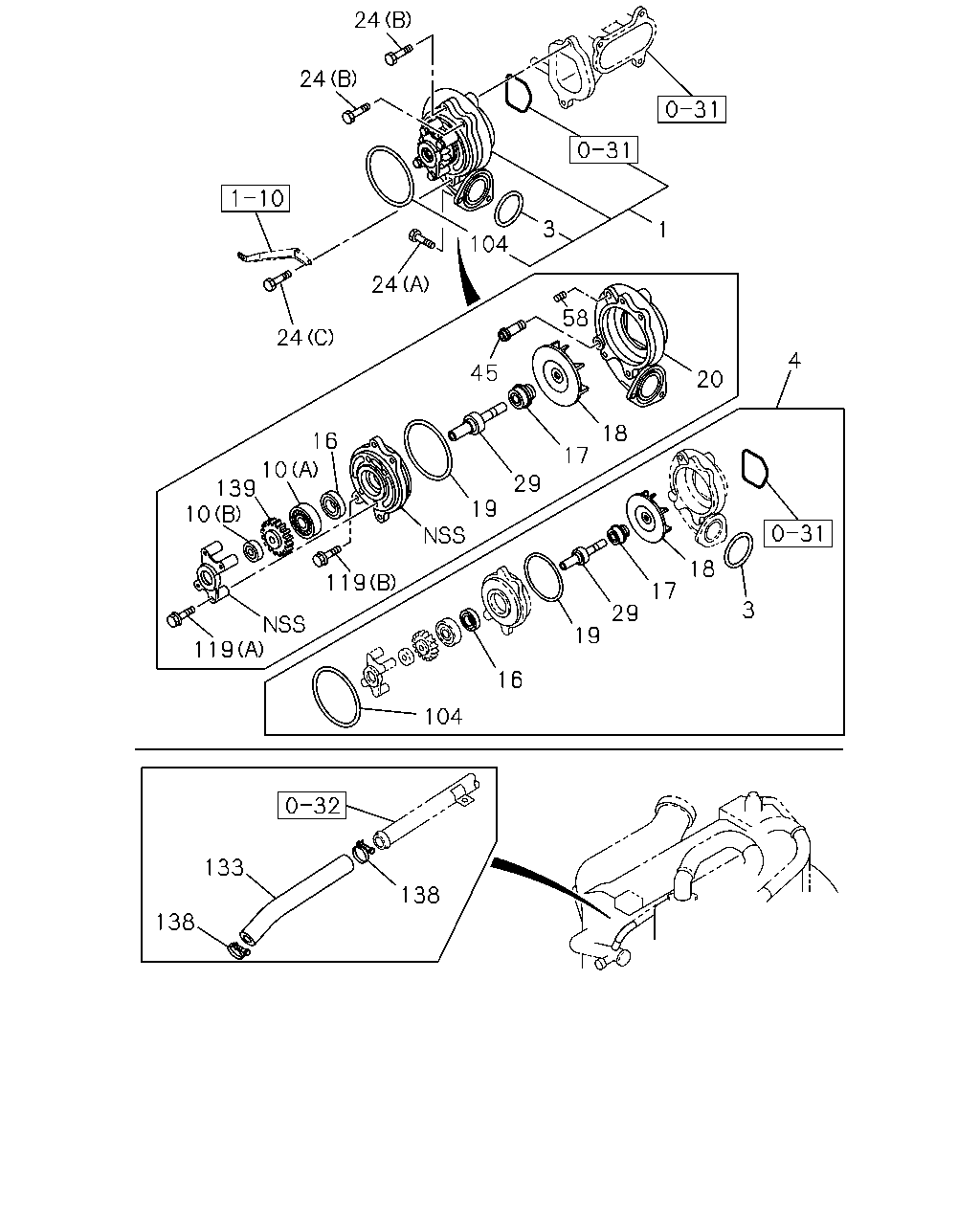

0-30 — WATER PUMP AND CORROSION RESISTOR
(#29274) — 24 parça
24
24
3
1
104
24
58
24
4
45
20
18
16
17
10
139
10
29
19
18
119
17
3
29
19
119
16
104
133
138
138
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; WATER,W/GASKET
8-97606-249-0
01
1
0411-0501
3
GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-586-1
01
1
0411-
4
REPAIR KIT; WATER PUMP
1-87811-879-0
01
1
0411-0412
4
REPAIR KIT; WATER PUMP
1-87812-922-0
01
1
0501-
10
BEARING; WATER PUMP
(A)
1-09800-252-0
01
1
0411-
10
BEARING; WATER PUMP
(B)
1-09800-253-0
01
1
0411-
16
SEAL; OIL,WATER PUMP
1-09625-551-0
01
1
0411-
17
SEAL UNIT; WATER PUMP
8-94392-090-0
01
1
0411-
18
IMPELLER; WATER PUMP
1-13621-060-0
01
1
0411-
19
GASKET; COVER TO BODY
1-09623-587-0
01
1
0411-0501
19
GASKET; COVER TO BODY
8-97606-729-0
01
1
0502-
20
COVER; WATER PUMP
1-13612-055-1
01
1
0411-
24
BOLT; WATER PUMP
(A) M10X25 FLANGE
0-28181-025-0
02
1
0411-
24
BOLT; WATER PUMP
(B) M10X90 FLANGE
0-28181-090-0
02
1
0411-
24
BOLT; WATER PUMP
(C) M10X95 FLANGE
8-94397-027-1
02
1
0411-
29
SHAFT; WATER PUMP
1-13631-078-1
01
1
0411-
45
JOINT; HTR HOSE,WATER PUMP
PT3/8 & OD=18.3 L=47
9-09903-631-0
01
1
0411-
58
PLUG; HTR
PT3/8
5-09605-005-0
01
1
0411-
104
GASKET; WATER PUMP
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-494-0
01
1
0411-
119
BOLT; PUMP COVER
(A) M8X40 FLANGE
0-28080-840-0
04
1
0411-
119
BOLT; PUMP COVER
(B) M10X20 FLANGE
0-28181-020-0
01
1
0411-
133
HOSE; RUBBER,WATER PIPE
L=100 SERVICED BY L=3000
0-03580-300-0
01
1
0411-
138
CLIP; RUBBER HOSE
ID=44
1-09704-077-0
02
1
0411-
139
GEAR; WATER PUMP,DRIVE
8-97606-219-0
01
1
0411-
