0-25 — INLET MANIFOLD (#29271) — 25 parça

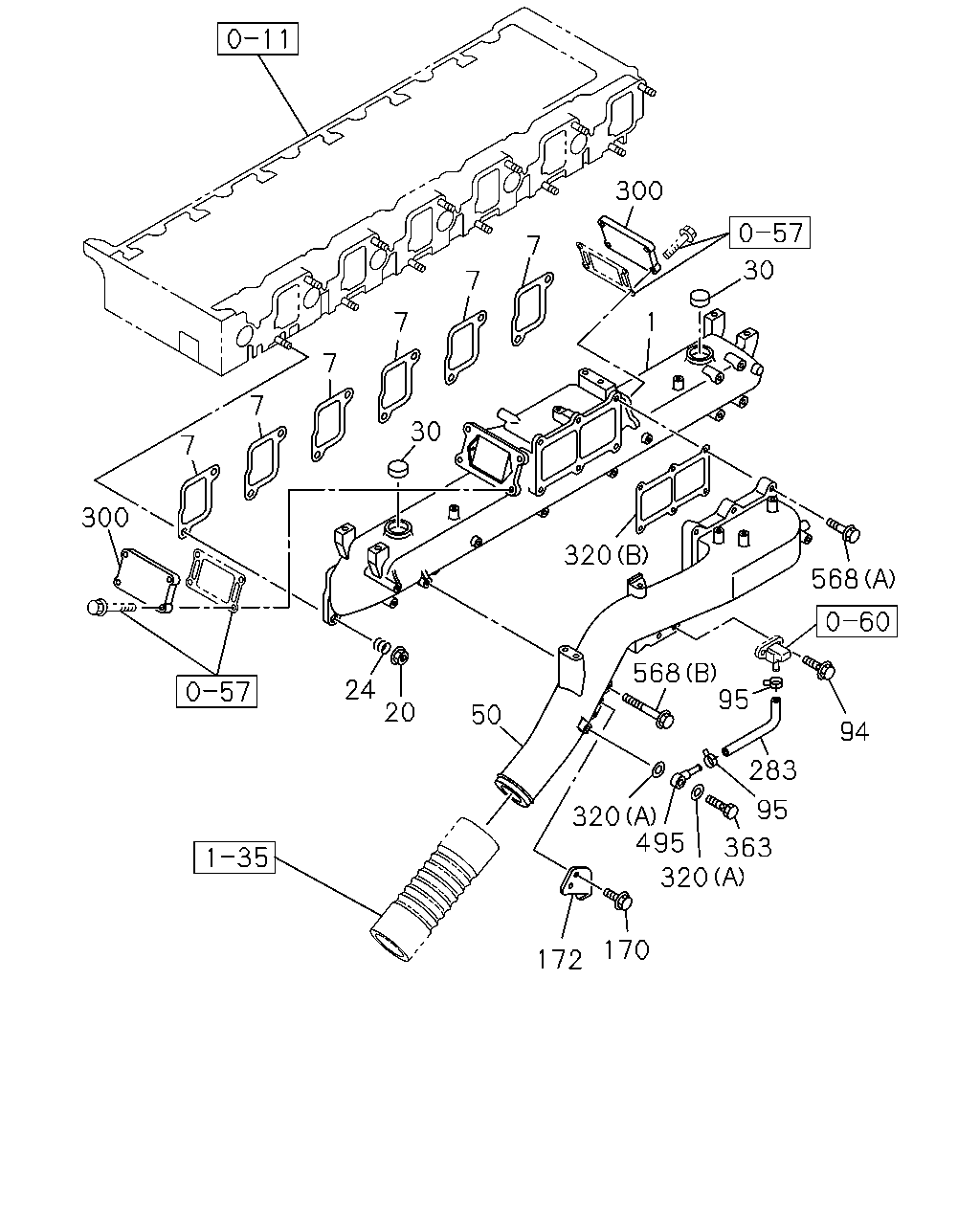

300 7 30 7 7 1 7 7 30 7 300 320 568 568 95 24 20 50 94 283 95 320 495 363 320 170 172

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MANIFOLD; INL	1-14112-714-5	01	1	0411-
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-096-1	06	1	0411-0501
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97607-598-0	06	1	0502-
20	NUT; INL MANIF M10 FLANGE	0-91150-110-0	12	1	0411-
24	SPRING; INL MANIF	1-09580-156-0	12	1	0411-
30	CUP; SEALING,INL MANIF OD=40	8-94241-637-0	02	1	0411-
50	PIPE; INL	1-14112-711-4	01	1	0411-
94	BOLT M6X12 FLANGE	0-28080-612-0	02	1	0411-
95	CLIP; RUBBER HOSE ID=11 WHITE	5-09707-005-1	02	1	0411-
170	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	02	1	0411-
172	BRACKET; HARNESS	1-14119-428-1	01	1	0411-
283	RUBBER	1-14119-416-0	01	1	0411-
300	COVER; INL MANIF	1-11749-208-0	02	1	0411-
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	02	1	0411-
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-14115-094-1	01	1	0411-
363	BOLT; EYE M8X24	8-97257-826-0	01	1	0411-
495	PIPE; BOOST SENSOR	8-94428-807-0	01	1	0411-
568	BOLT; PIPE (A) M10X30 FLANGE	0-28181-030-0	06	1	0411-
568	BOLT; PIPE (B) M10X80 FLANGE	0-28181-080-0	01	1	0411-

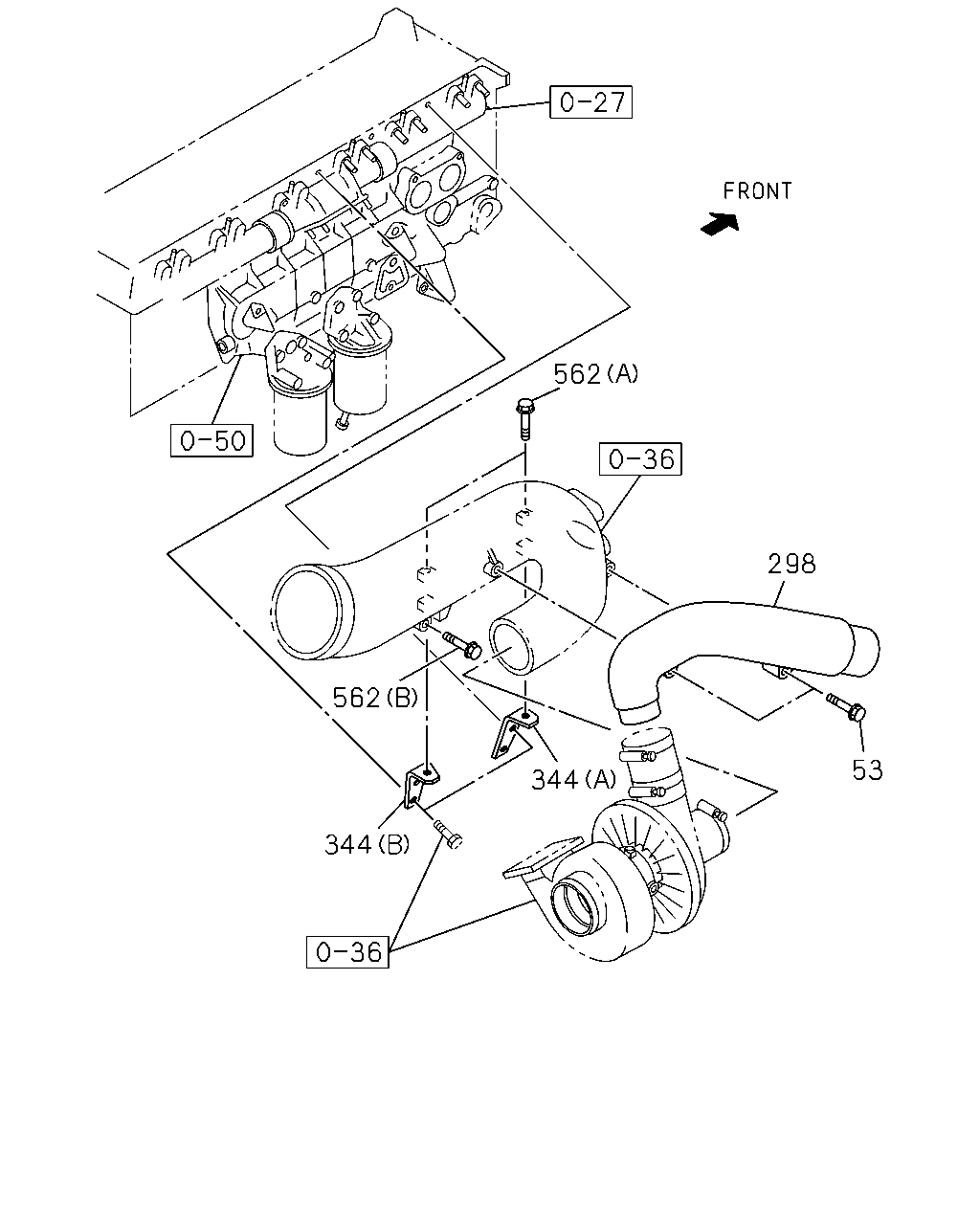

562 298 562 53 344 344

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	BOLT; INL PIPE M10X60 FLANGE	0-28181-060-0	02	1	0411-
298	PIPE; INL,TURBOCHARGER TO INL COVER	1-14112-709-0	01	1	0411-
344	BRACKET; INL PIPE (A)	1-14119-417-1	01	1	0411-
344	BRACKET; INL PIPE (B)	1-14119-418-1	01	1	0411-
562	BOLT; INL DUCT (A) M10X100 FLANGE	0-28081-000-0	02	1	0411-
562	BOLT; INL DUCT (B) M10X40 FLANGE	0-28181-040-0	01	1	0411-
