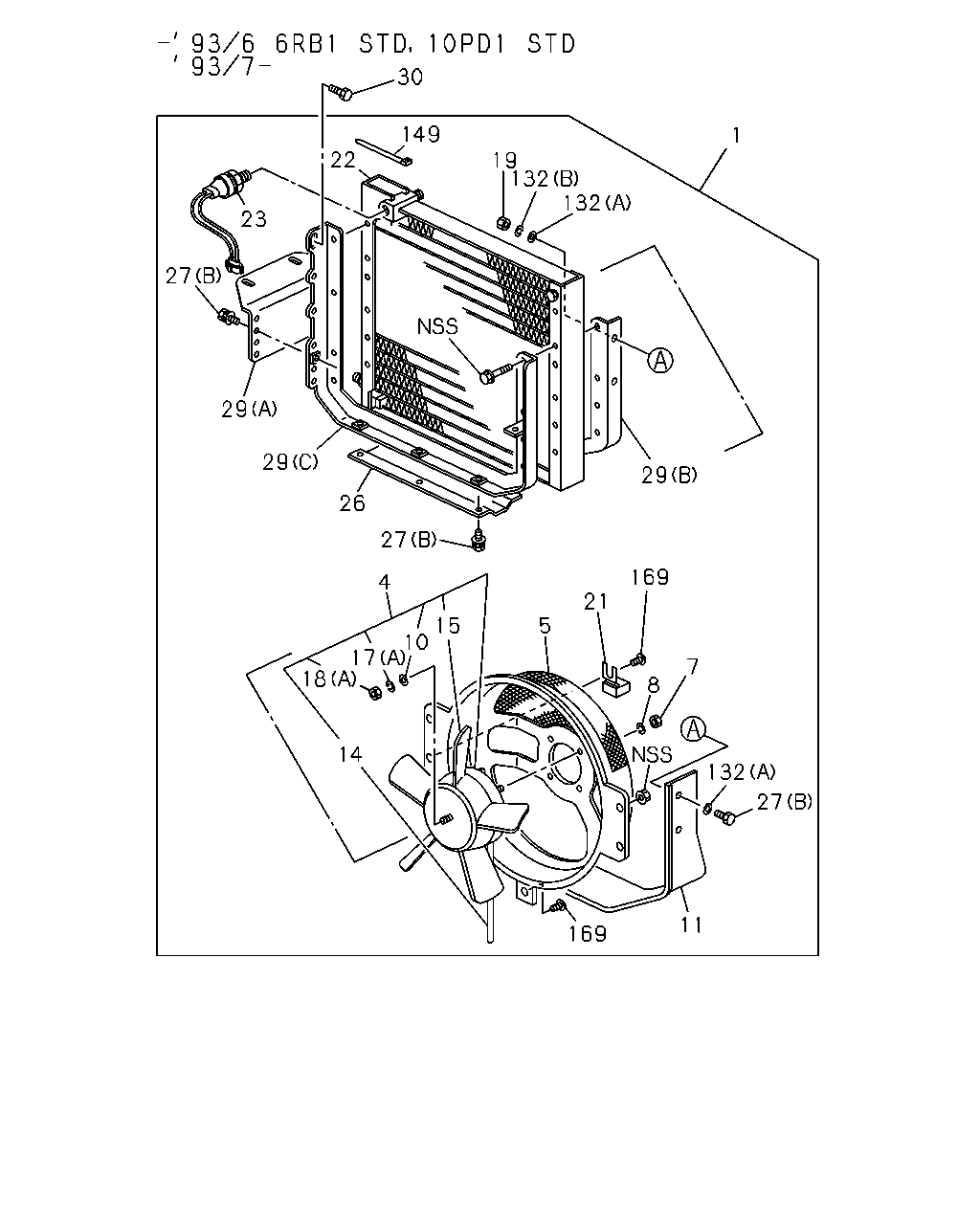

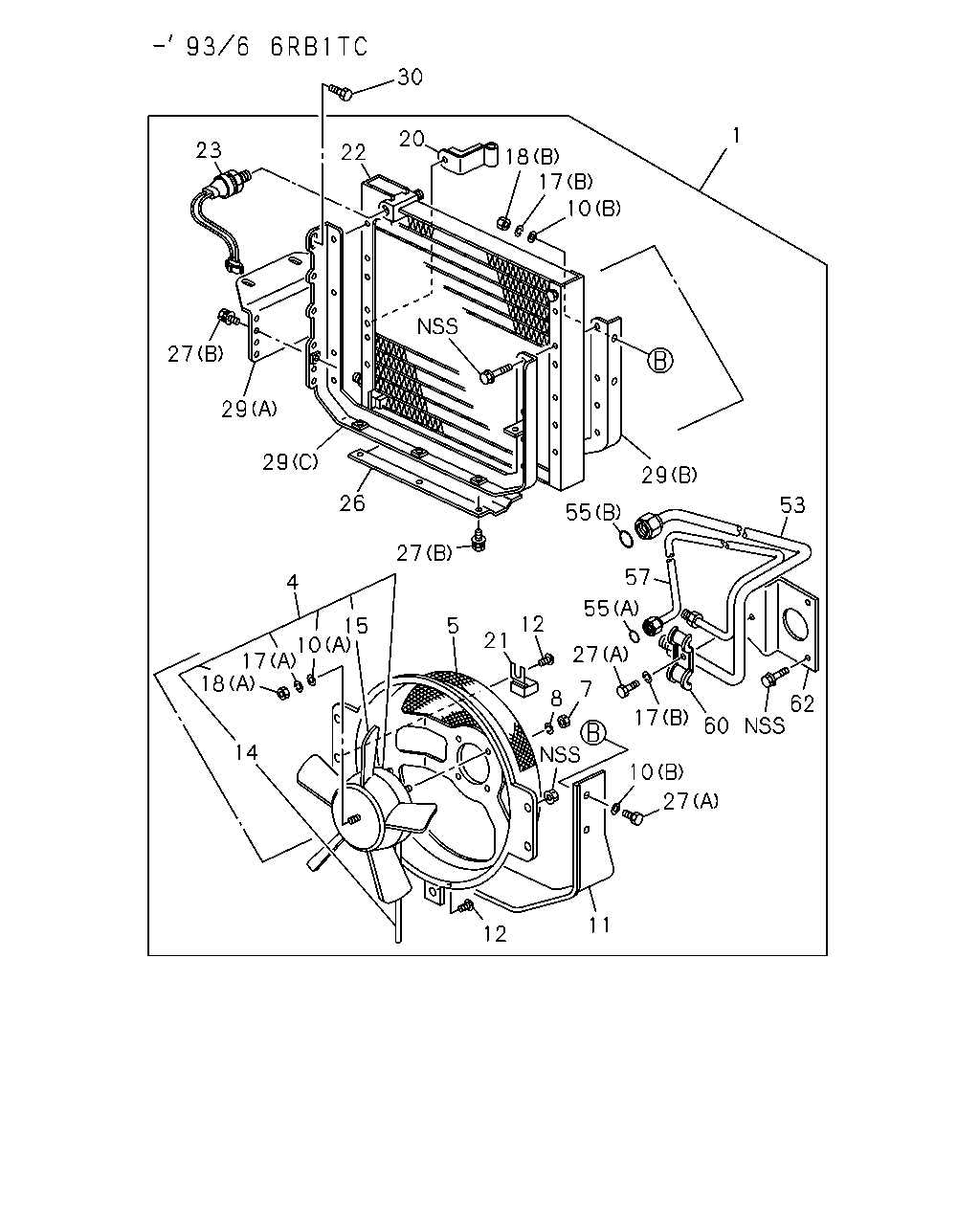

8-75 — CONDENSER (#2927) — 118 parça

1 10 17 18 20 30 22 23 27 29 29 26 27 4 29 55 53 57 55 12 21 5 27 7 8 17 62 60 10 27 11 12 14 18 15 10 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-166-0	01	1	9307-	●	●
1	CONDENSER; A/C 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-055-2	01	1	9002-9306	●	●
1	CONDENSER; A/C 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-064-1	01	1	9002-9306	●	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-033-0	01	1	9002-9306	●	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-175-0	01	1	9307-	●	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-034-0	01	1	9002-9106	●	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-185-0	01	1	9107-	●	●
7	NUT; FAN AIR CONDITIONER MANUAL CONTROL(C60) M4	1-83539-065-0	04	1	9002-	●	●
8	WASHER; LK,FAN AIR CONDITIONER MANUAL CONTROL(C60) ID=4.1	9-09150-504-0	04	1	9002-	●	●
10	WASHER; PL,FAN 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) ID=5.3 OD=12	9-09160-605-0	01	1	9002-9106	●	●
10	WASHER; PL,FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-045-0	01	1	9107-	●	●
10	WASHER; PL,FAN 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=8	1-14319-034-0	05	1	9002-9306	●	●
10	WASHER; PL,FAN 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=5.3	9-09160-505-0	01	1	9002-9106	●	●
11	COVER; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-035-0	01	1	9002-	●	●
12	BOLT; FAN MOTOR 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-066-0	02	1	9002-9306	●	●
14	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-258-0	01	1	9002-	●	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-064-0	01	1	9002-	●	●
17	WASHER; LK,FAN AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=5.1	9-09150-505-0	01	1	9002-9106	●	●
17	WASHER; LK,FAN AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=5	1-83539-044-0	01	1	9107-	●	●
17	WASHER; LK,FAN 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=8.2	9-09150-608-0	03	1	9002-9106	●	●
17	WASHER; LK,FAN 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-492-0	03	1	9107-9306	●	●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60) (A) M5	9-99110-505-0	01	1	9002-	●	●
18	NUT; FAN,CENTER 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8 FLANGE	1-83539-068-0	03	1	9002-9306	●	●
20	CLIP; CONDENSER 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-081-0	01	1	9002-9306	●	●
21	CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	8-94150-133-0	01	1	9307-	●	●
21	CONDENSER 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-046-0	01	1	9002-9106	●	●
21	CONDENSER 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-84132-007-0	02	1	9002-9106	●	●
21	CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-84132-007-0	01	1	9107-9306	●	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-170-0	01	1	9307-	●	●
22	CONDENSER ASM; A/C 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-076-0	01	1	9002-9106	●	●
22	CONDENSER ASM; A/C 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-140-0	01	1	9107-9306	●	●
22	CONDENSER ASM; A/C 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-083-1	01	1	9002-9306	●	●
23	SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-82380-127-0	01	1	9307-	●	●
23	SWITCH; PRESSURE,CONDENSER 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-82410-085-0	01	1	9002-9306	●	●
23	SWITCH; PRESSURE,CONDENSER 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-82510-085-0	01	1	9002-9306	●	●
26	BRACKET; LOW 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-505-0	01	1	9002-9106	●	●
26	BRACKET; LOW 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-071-0	01	1	9002-9106	●	●
26	BRACKET; LOW AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-071-0	01	1	9107-	●	●
27	BOLT; BRKT,LOW SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X22	1-83579-198-0	09	1	9002-9306	●	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X22	1-83579-198-0	09	1	9307-	●	●
27	BOLT; BRKT,LOW SIDE 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X22	1-83579-198-0	09	1	9002-9306	●	●
27	BOLT; BRKT,LOW SIDE 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18	9-02040-818-0	03	1	9002-9306	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-503-0	01	1	9002-	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-070-0	01	1	9107-	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-072-0	01	1	9307-	●	●
29	BRACKET; SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-504-0	01	1	9002-9106	●	●
29	BRACKET; SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-072-0	01	1	9107-9306	●	●
29	BRACKET; SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-506-0	01	1	9002-9106	●	●
29	BRACKET; SIDE 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-070-0	01	1	9002-9106	●	●
29	BRACKET; SIDE 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-084-0	01	1	9002-9306	●	●
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M10X35 W/LK&PL WASHER	0-50141-035-0	05	1	9002-	●	●
53	PIPE; CONDENSER 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-088-0	01	1	9002-9306	●	●
55	GASKET; PIPE 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) (A) D=10.77	8-94243-998-0	01	1	9002-9106	●	●
55	GASKET; PIPE 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09623-517-0	01	1	9107-9306	●	●
55	GASKET; PIPE 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=6.5 OD=7.65	8-94244-315-0	01	1	9002-9106	●	●
55	GASKET; PIPE 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=7.65	8-94113-332-0	01	1	9107-9306	●	●
57	PIPE; CONDENSER 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-085-0	01	1	9002-9306	●	●
60	CLIP; PIPE 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-080-0	01	1	9002-9306	●	●
62	BRACKET; PIPE 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-89964-445-3	01	1	9002-9306	●	●

11 169 27 7 8 132 1 169 21 5 15 10 17 4 18 14 27 26 29 29 27 23 22 149 30 19 1 132 132 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-166-0	01	1	9307-	●	●
1	CONDENSER; A/C 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-055-2	01	1	9002-9306	●	●
1	CONDENSER; A/C 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-064-1	01	1	9002-9306	●	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-033-0	01	1	9002-9306	●	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-175-0	01	1	9307-	●	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-034-0	01	1	9002-9106	●	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-185-0	01	1	9107-	●	●
7	NUT; FAN AIR CONDITIONER MANUAL CONTROL(C60) M4	1-83539-065-0	04	1	9002-	●	●
8	WASHER; LK,FAN AIR CONDITIONER MANUAL CONTROL(C60) ID=4.1	9-09150-504-0	04	1	9002-	●	●
10	WASHER; PL,FAN 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) ID=5.3 OD=12	9-09160-605-0	01	1	9002-9106	●	●
10	WASHER; PL,FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-045-0	01	1	9107-	●	●
10	WASHER; PL,FAN 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=8	1-14319-034-0	05	1	9002-9306	●	●
10	WASHER; PL,FAN 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=5.3	9-09160-505-0	01	1	9002-9106	●	●
11	COVER; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-035-0	01	1	9002-	●	●
14	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-258-0	01	1	9002-	●	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-064-0	01	1	9002-	●	●
17	WASHER; LK,FAN AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=5.1	9-09150-505-0	01	1	9002-9106	●	●
17	WASHER; LK,FAN AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=5	1-83539-044-0	01	1	9107-	●	●
17	WASHER; LK,FAN 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=8.2	9-09150-608-0	03	1	9002-9106	●	●
17	WASHER; LK,FAN 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-492-0	03	1	9107-9306	●	●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60) (A) M5	9-99110-505-0	01	1	9002-	●	●
18	NUT; FAN,CENTER 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8 FLANGE	1-83539-068-0	03	1	9002-9306	●	●
19	NUT; BRKT 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	1-83539-068-0	02	1	9002-9306	●	●
19	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	1-83539-068-0	02	1	9307-	●	●
21	CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	8-94150-133-0	01	1	9307-	●	●
21	CONDENSER 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-046-0	01	1	9002-9106	●	●
21	CONDENSER 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-84132-007-0	02	1	9002-9106	●	●
21	CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-84132-007-0	01	1	9107-9306	●	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-170-0	01	1	9307-	●	●
22	CONDENSER ASM; A/C 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-076-0	01	1	9002-9106	●	●
22	CONDENSER ASM; A/C 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-140-0	01	1	9107-9306	●	●
22	CONDENSER ASM; A/C 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-083-1	01	1	9002-9306	●	●
23	SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-82380-127-0	01	1	9307-	●	●
23	SWITCH; PRESSURE,CONDENSER 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-82410-085-0	01	1	9002-9306	●	●
23	SWITCH; PRESSURE,CONDENSER 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-82510-085-0	01	1	9002-9306	●	●
26	BRACKET; LOW 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-505-0	01	1	9002-9106	●	●
26	BRACKET; LOW 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-071-0	01	1	9002-9106	●	●
26	BRACKET; LOW AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-071-0	01	1	9107-	●	●
27	BOLT; BRKT,LOW SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X22	1-83579-198-0	09	1	9002-9306	●	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X22	1-83579-198-0	09	1	9307-	●	●
27	BOLT; BRKT,LOW SIDE 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X22	1-83579-198-0	09	1	9002-9306	●	●
27	BOLT; BRKT,LOW SIDE 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18	9-02040-818-0	03	1	9002-9306	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-503-0	01	1	9002-	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-070-0	01	1	9107-	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-072-0	01	1	9307-	●	●
29	BRACKET; SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-504-0	01	1	9002-9106	●	●
29	BRACKET; SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-072-0	01	1	9107-9306	●	●
29	BRACKET; SIDE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-506-0	01	1	9002-9106	●	●
29	BRACKET; SIDE 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-070-0	01	1	9002-9106	●	●
29	BRACKET; SIDE 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-084-0	01	1	9002-9306	●	●
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M10X35 W/LK&PL WASHER	0-50141-035-0	05	1	9002-	●	●
132	WASHER; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=8	1-14319-034-0	04	1	9307-	●	●
132	WASHER; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-492-0	02	1	9307-	●	●
132	WASHER; BRKT 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=8	1-14319-034-0	04	1	9002-9306	●	●
132	WASHER; BRKT 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=8.2	9-09150-608-0	02	1	9002-9106	●	●
132	WASHER; BRKT 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-492-0	02	1	9107-9306	●	●
149	CLIP; HARNESS AIR CONDITIONER MANUAL CONTROL(C60) L=140	5-09707-008-0	01	1	9307-	●	●
169	SCREW; SHROUD 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-066-0	02	1	9002-9306	●	●
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-066-0	02	1	9307-	●	●
