Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10949 - CXZ CHINA
▶
0 - Engine, Emission, Engine Electrical
▶
0-15 - CRANKSHAFT,PISTON AND FLYWHEEL
▶

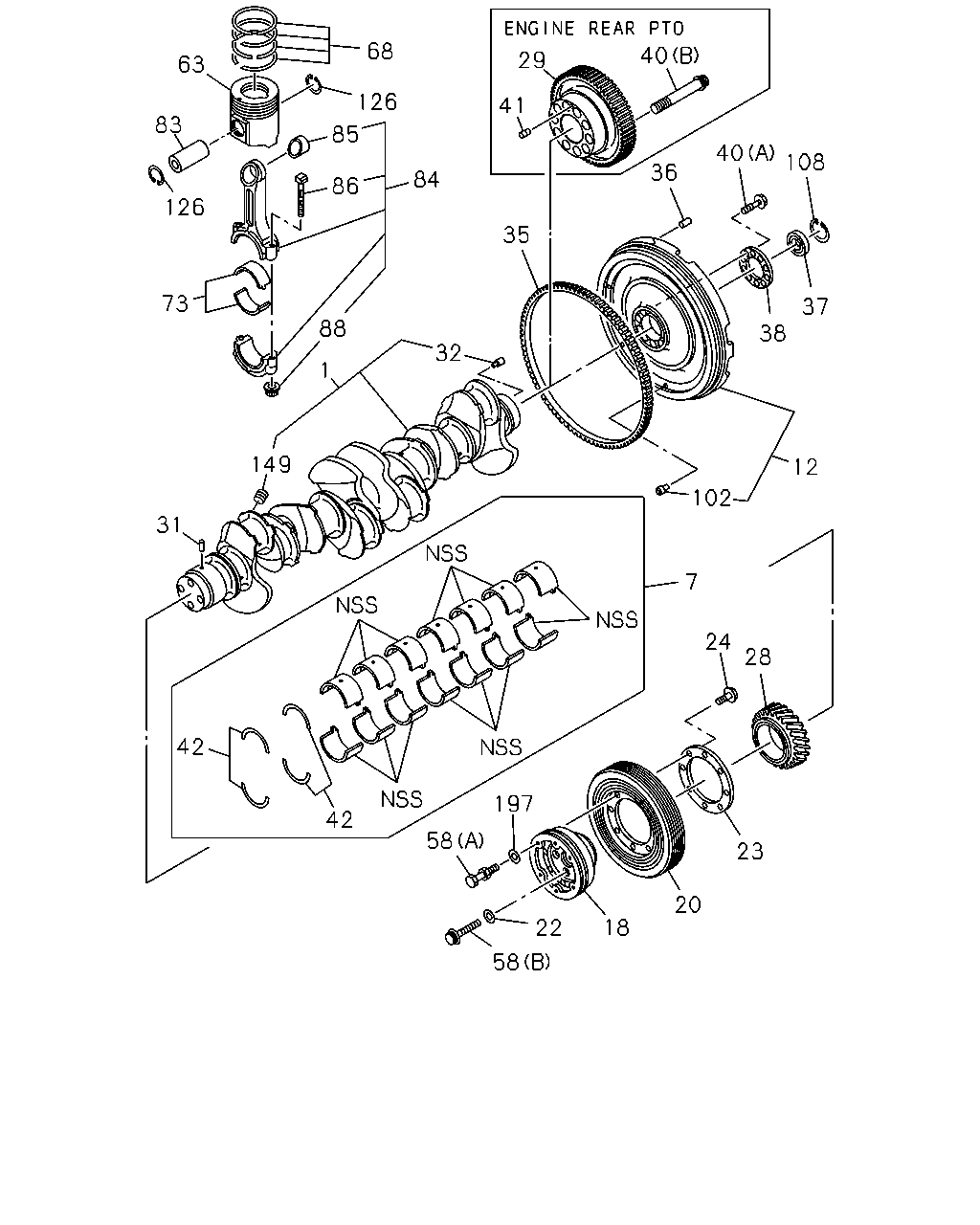

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL
(#29268) — 35 parça
68
40
29
63
126
41
83
85
40
108
36
84
86
126
35
73
37
88
38
32
1
149
12
102
31
7
24
28
42
197
42
58
23
20
18
22
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CRANKSHAFT
1-12310-682-2
01
1
0411-
7
METAL KIT; CRANKSHAFT,STANDARD
1-11510-093-3
01
1
0411-
12
FLYWHEEL
1-12330-403-1
01
1
0411-
18
PULLEY; CR/SHF
1-GROOVE
1-12371-420-2
01
1
0411-
20
DAMPER; CR/SHF
1-12375-214-0
01
1
0411-
22
PLATE; PULLEY
ID=18
9-09851-862-0
04
1
0411-
23
WASHER; DAMPER
1-12379-039-0
01
1
0411-
24
BOLT; DAMPER
M12X30 FLANGE
0-28791-230-0
08
1
0411-
28
GEAR; CR/SHF
Z=48
1-12521-061-2
01
1
0411-
29
GEAR; CR/SHF,PTO
ENGINE REAR PTO(SV1)
1-38261-041-0
01
1
0411-
31
KEY; FEATHER,CR/SHF
OD=5 L=6
9-09878-626-0
01
1
0411-
32
PIN; FLYWHEEL
OD=8 L=16
9-08150-816-0
01
1
0411-
35
GEAR; RING
Z=139
1-12333-013-1
01
1
0411-
36
PIN; FLYWHEEL
OD=10 L=22
9-08151-022-0
02
1
0411-
37
BEARING; PILOT,TOP GEAR SHAFT
1-09800-257-0
01
1
0411-
38
WASHER; FLYWHEEL
1-12336-011-0
01
1
0411-
40
BOLT; FLYWHEEL
ENGINE REAR PTO(SV1) (B)
1-09070-133-1
10
1
0411-
40
BOLT; FLYWHEEL
EXC. ENGINE REAR PTO(SV1) (A)
1-09070-017-1
10
1
0411-
41
PIN; GEAR,CR/SHF PTO
ENGINE REAR PTO(SV1) OD=8 L=16
9-08150-816-0
01
1
0411-
42
WASHER; THRUST,CR/SHF
1-11599-009-0
02
1
0411-
58
BOLT; CR/SHF PULLEY
(A)
1-09029-073-0
06
1
0411-
58
BOLT; CR/SHF PULLEY
(B)
1-09070-017-1
04
1
0411-
63
PISTON
ALSO INCLUDED IN LINER SET. NON GRADE
1-12111-999-1
06
1
0411-
68
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
1-12121-154-0
06
1
0411-
73
METAL SET; CONN ROD,STANDARD
1-12271-072-1
06
1
0411-
83
PIN; PISTON
ALSO INCLUDED IN LINER SET.
1-12211-029-1
06
1
0411-
84
ROD ASM; CONN
1-12230-185-1
06
1
0411-
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
1-12251-037-4
06
1
0411-
86
BOLT; CONNROD
1-12235-036-3
12
1
0411-
88
NUT; CONNROD
1-12239-005-1
12
1
0411-
102
PIN; TIMING SENSOR
1-12339-013-0
06
1
0411-
108
RING; SNAP,BRG SET
OD=67.2
9-09180-163-0
01
1
0411-
126
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
1-09587-082-0
12
1
0411-
149
PLUG
PT1
1-09605-021-0
06
1
0411-
197
WASHER; PL,FAN DRIVE
ID=10.5
9-09164-510-0
06
1
0411-
