0-13 — OIL PAN AND LEVEL GAUGE (#29266) — 27 parça

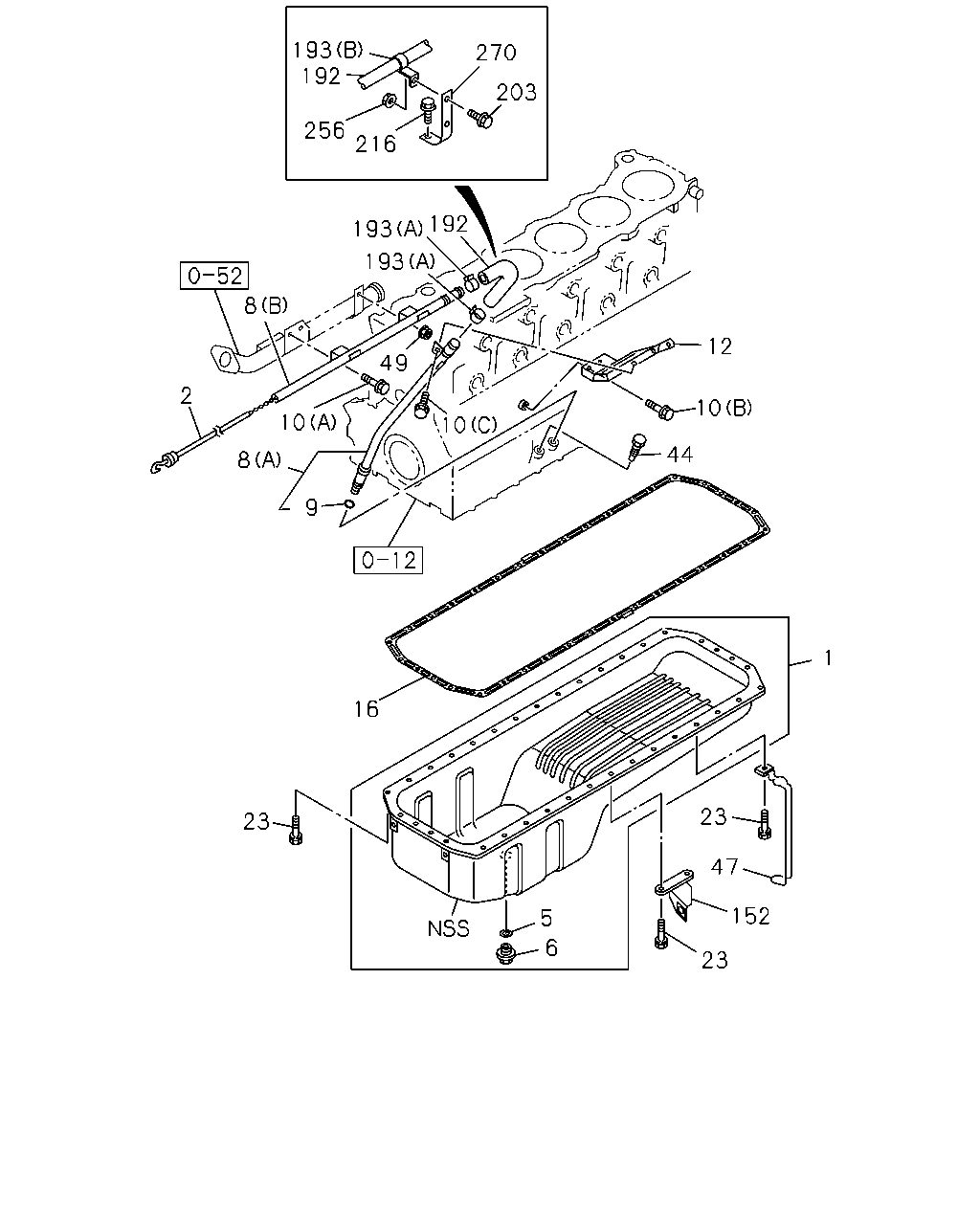

çizim 84574
193 192 270 203 256 216 192 193 193 8 12 49 2 10 10 10 44 8 9 1 16 23 23 47 152 5 6 23
BalonParca AdiParca NoAdetTipApplied Date
1 PAN ASM; OIL 1-11360-912-0 01 1 0411-
2 GAUGE; OIL LEVEL
AIR COMPRESSOR HEAVY DUTY VAR2(E6A) 		1-11760-442-0 01 1 0411-
2 GAUGE; OIL LEVEL
EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) 		1-11760-427-0 01 1 0411-
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 0411-
6 PLUG; OIL DRAIN 9-09662-012-0 01 1 0411-
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		1-11766-470-0 01 1 0411-
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		1-11766-604-2 01 1 0411-
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-496-0 01 1 0411-
10 BOLT; GUIDE TUBE
(C) M10X20 FLANGE 		0-28081-020-0 01 1 0411-
10 BOLT; GUIDE TUBE
(B) M10X20 FLANGE 		0-28181-020-0 02 1 0411-
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0411-
12 BRACKET; TUBE,OIL LEVEL GAUGE 1-11769-170-0 01 1 0411-
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11367-130-0 01 1 0411-
23 BOLT; OIL PAN
M10X28 W/LK&PL WASHER 		0-50151-028-0 36 1 0411-
44 PLUG 1-09604-098-0 01 1 0411-
47 CLIP; HOSE,AIR BREATHER 1-11369-147-1 01 1 0411-
49 NUT; GUIDE TUBE
M8 FLANGE 		0-91150-108-0 01 1 0411-
152 BRACKET; CLIP POWER STRG PIPE 1-21119-130-1 01 1 0411-
192 HOSE; GUIDE TUBE
AIR COMPRESSOR HEAVY DUTY VAR2(E6A) L=620 SERVICED BY L=3000 		0-02361-300-0 01 1 0501-
192 HOSE; GUIDE TUBE
L=600 SERVICED BY L=3000 		0-02361-300-0 01 1 0411-0412
192 HOSE; GUIDE TUBE
EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) L=600 SERVICED BY L=3000 		0-02361-300-0 01 1 0501-
193 CLIP; HOSE,GUIDE TUBE
(B) ID=20 H=23 L=27 		1-09700-861-0 01 1 0411-
193 CLIP; HOSE,GUIDE TUBE
(A) ID=17 		1-09707-158-0 02 1 0411-
203 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0411-
216 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0411-
256 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0411-
270 BRACKET ASM; TUBE,OIL LEVEL GAUGE 1-47479-855-0 01 1 0411-
