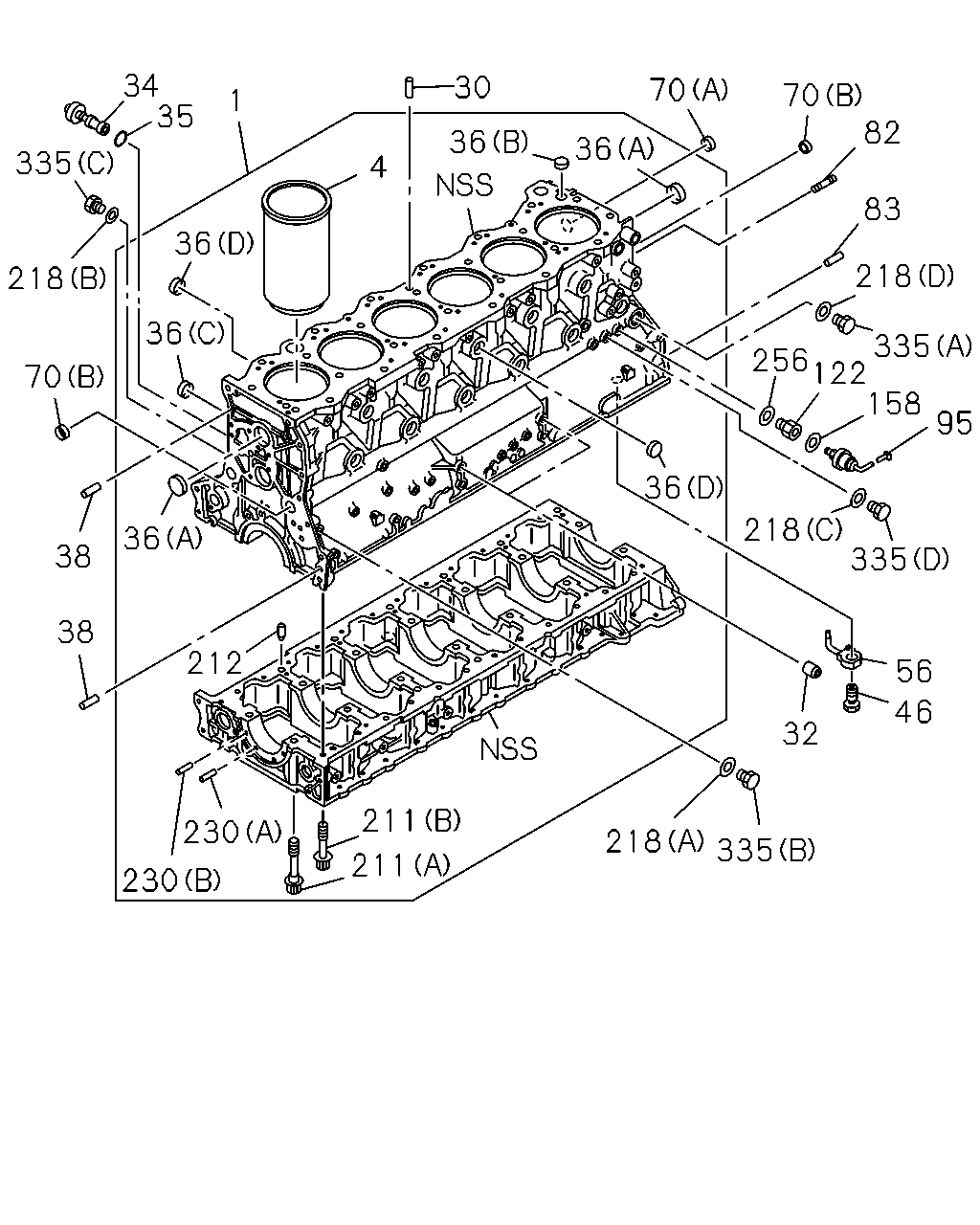

0-12 — CYLINDER BLOCK (#29265) — 40 parça

34 35 30 70 70 82 1 36 36 335 4 83 36 218 218 36 335 256 122 158 70 95 36 218 335 212 36 38 38 56 46 32 211 230 218 335 211 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOCK ASM; CYL	1-11210-656-6	01	1	0411-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-379-2	06	1	0411-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-380-2	06	1	0411-
30	PIN; CYL HD GASKET SETTING OD=10 L=18	9-08151-018-0	03	1	0411-
32	PIN; INJ PUMP BRKT	8-94325-506-1	02	1	0411-
34	VALVE; OIL RELIEF	1-13160-030-2	01	1	0411-
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-297-0	01	1	0411-
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	04	1	0411-
36	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	01	1	0411-
36	CUP; SEALING,WATER JACKET (C) OD=40	1-09600-065-1	02	1	0411-
36	CUP; SEALING,WATER JACKET (D) OD=40	8-94241-637-0	13	1	0411-
38	PIN; TIMING GEAR CASE OD=10 L=18	9-08151-018-0	02	1	0411-
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-13349-014-0	06	1	0411-
56	JET; OIL,PISTON COOLING	1-13342-125-3	06	1	0411-
70	CUP; SEALING,FRT & RR (A) OD=32	1-09600-012-2	01	1	0411-
70	CUP; SEALING,FRT & RR ENGINE REAR PTO(SV1) (B) OD=25	1-09600-016-0	03	1	0411-
70	CUP; SEALING,FRT & RR EXC. ENGINE REAR PTO(SV1) (B) OD=25	1-09600-016-0	04	1	0411-
82	STUD; FLYWHEEL HSG EXC. ENGINE REAR PTO(SV1) M14X35 L=56	9-04411-435-0	01	1	0411-
83	PIN; FLYWHEEL HSG	9-08151-428-0	02	1	0411-
95	PRESSURE UNIT; OIL	1-83151-042-0	01	1	0411-
122	ADAPTER; OIL PRESSURE SWITCH	8-94390-391-0	01	1	0411-
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	0411-
211	BOLT; CRANKCASE (B) M12X114	1-09070-087-2	28	1	0411-
211	BOLT; CRANKCASE (A) M18X150	1-09070-151-0	14	1	0411-
212	PIN; CRANKCASE	1-09740-068-1	02	1	0411-
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (A) LH SIDE ID=10.2 OD=15.2	1-09630-083-0	01	1	0411-
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (B) RH SIDE ID=12.2	1-09630-084-0	01	1	0411-
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (D) LH SIDE ID=22	1-09630-089-0	01	1	0411-
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE REAR PTO(SV1) (C) LH SIDE ID=14.2 OD=25	1-09630-141-0	01	1	0411-
230	PIN; THRUST METAL,CR/SHF (A) L=25	1-09749-025-1	02	1	0411-
230	PIN; THRUST METAL,CR/SHF (B) OD=5 L=10	9-08160-510-0	02	1	0411-
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	0411-
335	PLUG; C/BL,SIDE (A) LH SIDE M22X12	1-09604-035-0	01	1	0411-
335	PLUG; C/BL,SIDE (B) LH SIDE M10X7	1-09604-094-0	01	1	0411-
335	PLUG; C/BL,SIDE (C) RH SIDE M12X9	1-09604-095-0	01	1	0411-
335	PLUG; C/BL,SIDE EXC. ENGINE REAR PTO(SV1) (D) LH SIDE M14X9	9-99202-314-0	01	1	0411-

2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LINER SET; ENG CYL GRADE=1X	1-87812-863-0	06	1	0411-
2	LINER SET; ENG CYL GRADE=3X	1-87812-864-0	06	1	0411-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-379-2	06	1	0411-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-380-2	06	1	0411-
