0-11 — CYLINDER HEAD (#29264) — 90 parça

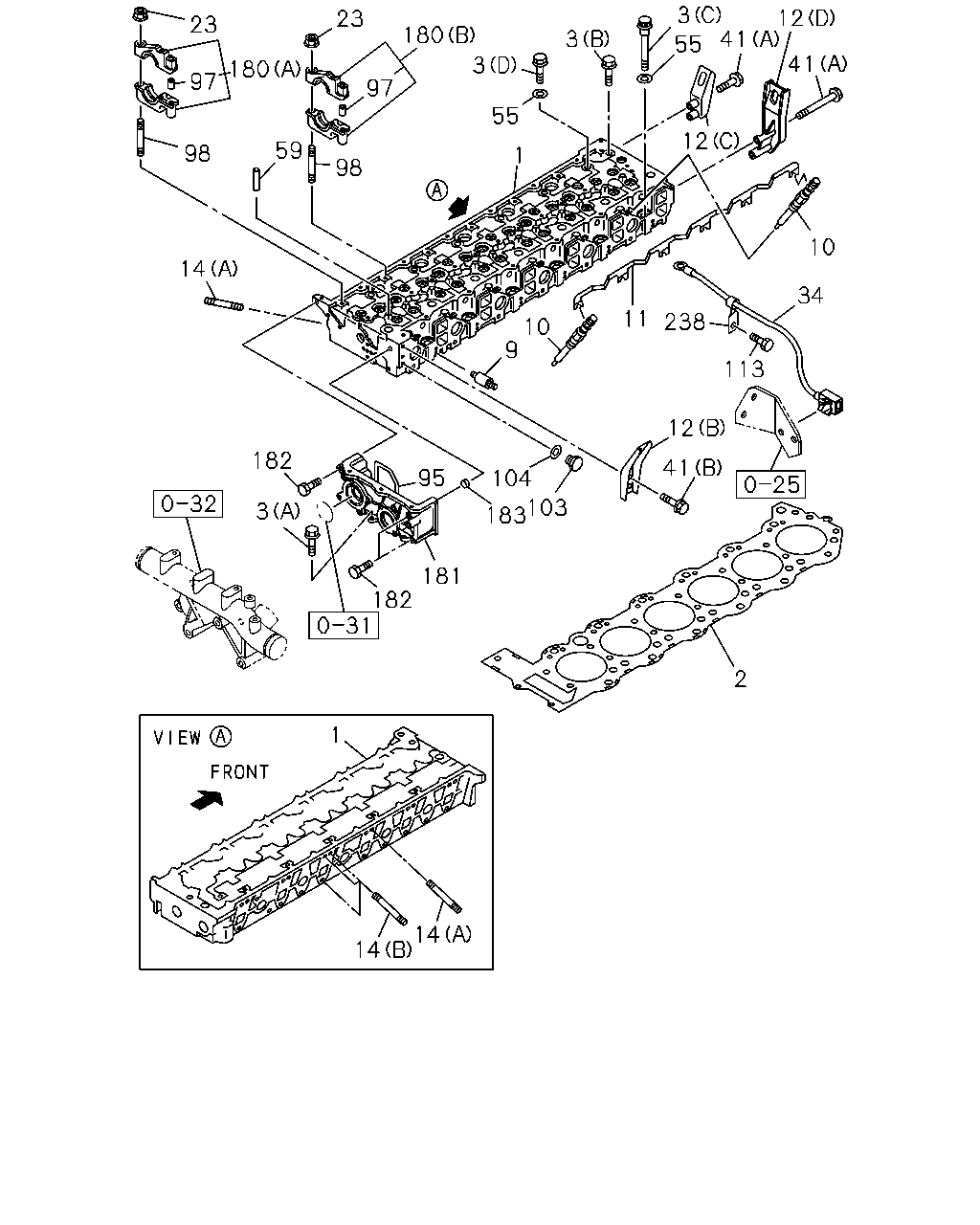

3 41 12 41 23 23 180 3 55 3 180 97 97 55 59 12 98 1 98 10 14 34 11 238 10 9 113 12 182 41 95 104 103 183 3 181 182 2 1 14 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HEAD ASM; CYL	1-11110-896-6	01	1	0411-
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-265-3	01	1	0411-
3	BOLT; CYL HD TO BLOCK (A) M10X35 FLANGE	0-28181-035-0	02	1	0411-
3	BOLT; CYL HD TO BLOCK (B) M12X120 FLANGE	0-28186-212-0	01	1	0411-
3	BOLT; CYL HD TO BLOCK (C) M18X115 FLANGE	1-09070-141-0	06	1	0411-
3	BOLT; CYL HD TO BLOCK (D) M18X159	1-09070-142-0	20	1	0411-
9	STUD; INL MANIF M10X13,M10X17 L=65	1-09309-008-0	12	1	0411-
10	PLUG; GLOW	1-82513-043-1	06	1	0411-
11	CONNECTOR; GLOW PLUG	1-19732-030-2	01	1	0411-
12	HANGER; ENG,RR (B)	1-11777-217-0	01	1	0411-
12	HANGER; ENG,RR ENGINE REAR PTO(SV1) (A)	1-11777-264-0	01	1	0411-
12	HANGER; ENG,RR ENGINE REAR PTO(SV1) (E)	1-11777-272-0	01	1	0411-
12	HANGER; ENG,RR EXC. ENGINE REAR PTO(SV1) (C)	1-11777-239-1	01	1	0411-
12	HANGER; ENG,RR EXC. ENGINE REAR PTO(SV1) (D)	1-11777-263-0	01	1	0411-
14	STUD; EXH MANIF (A) M10X95 L=110	1-09302-063-0	15	1	0411-
14	STUD; EXH MANIF (B) M10X130 L=145	1-09302-107-0	03	1	0411-
23	NUT; CAM BRKT M4 FLANGE	1-09440-004-0	14	1	0411-
34	HARNESS; GLOW PLUG CONNECTOR	1-82641-001-0	01	1	0411-
41	BOLT; ENG HANGER (B) M12X25 FLANGE	0-28191-225-0	02	1	0411-
41	BOLT; ENG HANGER ENGINE REAR PTO(SV1) (A) M12X120 FLANGE	0-28186-212-0	02	1	0411-
41	BOLT; ENG HANGER ENGINE REAR PTO(SV1) (A) M12X37	8-94440-908-0	02	1	0411-
41	BOLT; ENG HANGER EXC. ENGINE REAR PTO(SV1) (A) M12X120 FLANGE	0-28186-212-0	01	1	0411-
41	BOLT; ENG HANGER EXC. ENGINE REAR PTO(SV1) (A) M12X30 FLANGE	0-28191-230-0	02	1	0411-
41	BOLT; ENG HANGER EXC. ENGINE REAR PTO(SV1) (A) M14X120 FLANGE	0-28986-412-0	01	1	0411-
55	WASHER; PL,CYL HD TO BLOCK ID=18.2 OD=29	1-09503-032-0	26	1	0411-
59	GUIDE; BRIDGE	8-97378-021-0	12	1	0411-
95	GASKET; CYL HD TO GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09623-403-0	01	1	0411-
97	DOWEL; CAM BRKT SET OD=16	1-13119-005-0	28	1	0411-
98	STUD; CAM BRKT M12X100 L=120	8-94397-322-0	14	1	0411-
103	PLUG; HD M10X7	1-09604-094-0	01	1	0411-
104	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	0411-
113	BOLT; CLIP M8X12 FLANGE	0-28080-812-0	01	1	0411-
180	BRACKET SET; CAM,CYL HD (A)	1-12516-148-1	01	1	0411-
180	BRACKET SET; CAM,CYL HD (B)	1-12516-152-1	06	1	0411-
181	CASE; HEAD GEAR	1-11310-055-0	01	1	0411-
182	BOLT; CASE M10X80	9-05921-080-0	07	1	0411-
183	DOWEL; CYL HEAD	1-13119-004-0	02	1	0411-
238	CLIP; GLOW HARNESS ID=11 L=58	9-09917-135-2	01	1	0411-

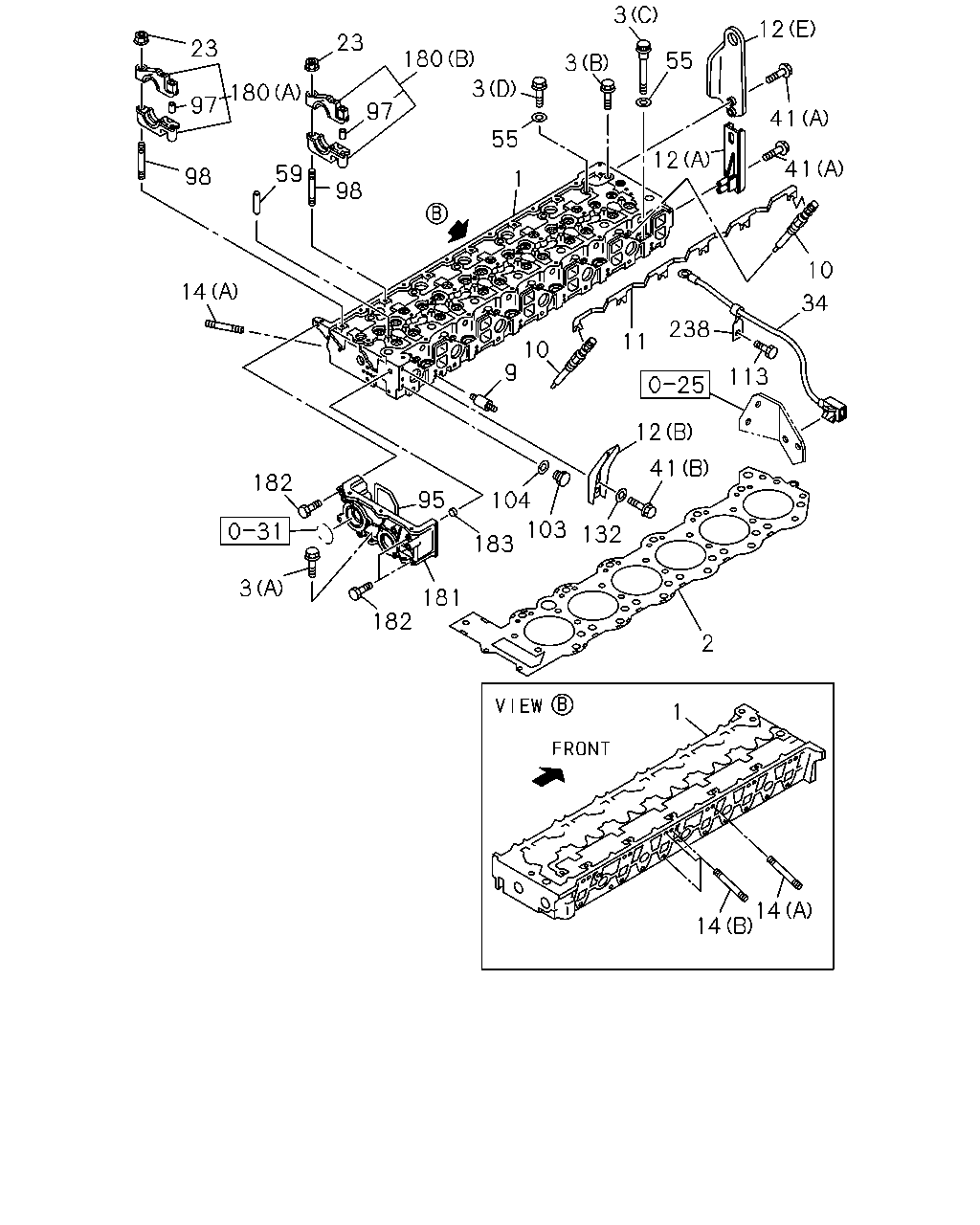

3 12 23 23 180 55 3 3 180 97 97 41 55 12 59 41 98 1 98 10 14 34 238 11 10 9 113 12 41 182 95 104 103 132 183 3 181 182 2 1 14 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HEAD ASM; CYL	1-11110-896-6	01	1	0411-
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-265-3	01	1	0411-
3	BOLT; CYL HD TO BLOCK (A) M10X35 FLANGE	0-28181-035-0	02	1	0411-
3	BOLT; CYL HD TO BLOCK (B) M12X120 FLANGE	0-28186-212-0	01	1	0411-
3	BOLT; CYL HD TO BLOCK (C) M18X115 FLANGE	1-09070-141-0	06	1	0411-
3	BOLT; CYL HD TO BLOCK (D) M18X159	1-09070-142-0	20	1	0411-
9	STUD; INL MANIF M10X13,M10X17 L=65	1-09309-008-0	12	1	0411-
10	PLUG; GLOW	1-82513-043-1	06	1	0411-
11	CONNECTOR; GLOW PLUG	1-19732-030-2	01	1	0411-
12	HANGER; ENG,RR (B)	1-11777-217-0	01	1	0411-
12	HANGER; ENG,RR ENGINE REAR PTO(SV1) (A)	1-11777-264-0	01	1	0411-
12	HANGER; ENG,RR ENGINE REAR PTO(SV1) (E)	1-11777-272-0	01	1	0411-
12	HANGER; ENG,RR EXC. ENGINE REAR PTO(SV1) (C)	1-11777-239-1	01	1	0411-
12	HANGER; ENG,RR EXC. ENGINE REAR PTO(SV1) (D)	1-11777-263-0	01	1	0411-
14	STUD; EXH MANIF (A) M10X95 L=110	1-09302-063-0	15	1	0411-
14	STUD; EXH MANIF (B) M10X130 L=145	1-09302-107-0	03	1	0411-
23	NUT; CAM BRKT M4 FLANGE	1-09440-004-0	14	1	0411-
34	HARNESS; GLOW PLUG CONNECTOR	1-82641-001-0	01	1	0411-
41	BOLT; ENG HANGER (B) M12X25 FLANGE	0-28191-225-0	02	1	0411-
41	BOLT; ENG HANGER ENGINE REAR PTO(SV1) (A) M12X120 FLANGE	0-28186-212-0	02	1	0411-
41	BOLT; ENG HANGER ENGINE REAR PTO(SV1) (A) M12X37	8-94440-908-0	02	1	0411-
41	BOLT; ENG HANGER EXC. ENGINE REAR PTO(SV1) (A) M12X120 FLANGE	0-28186-212-0	01	1	0411-
41	BOLT; ENG HANGER EXC. ENGINE REAR PTO(SV1) (A) M12X30 FLANGE	0-28191-230-0	02	1	0411-
41	BOLT; ENG HANGER EXC. ENGINE REAR PTO(SV1) (A) M14X120 FLANGE	0-28986-412-0	01	1	0411-
55	WASHER; PL,CYL HD TO BLOCK ID=18.2 OD=29	1-09503-032-0	26	1	0411-
59	GUIDE; BRIDGE	8-97378-021-0	12	1	0411-
95	GASKET; CYL HD TO GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09623-403-0	01	1	0411-
97	DOWEL; CAM BRKT SET OD=16	1-13119-005-0	28	1	0411-
98	STUD; CAM BRKT M12X100 L=120	8-94397-322-0	14	1	0411-
103	PLUG; HD M10X7	1-09604-094-0	01	1	0411-
104	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	0411-
113	BOLT; CLIP M8X12 FLANGE	0-28080-812-0	01	1	0411-
132	WASHER; PL,ENG HANGER ENGINE REAR PTO(SV1) ID=12.5 OD=26	9-09164-612-0	02	1	0411-
180	BRACKET SET; CAM,CYL HD (A)	1-12516-148-1	01	1	0411-
180	BRACKET SET; CAM,CYL HD (B)	1-12516-152-1	06	1	0411-
181	CASE; HEAD GEAR	1-11310-055-0	01	1	0411-
182	BOLT; CASE M10X80	9-05921-080-0	07	1	0411-
183	DOWEL; CYL HEAD	1-13119-004-0	02	1	0411-
238	CLIP; GLOW HARNESS ID=11 L=58	9-09917-135-2	01	1	0411-

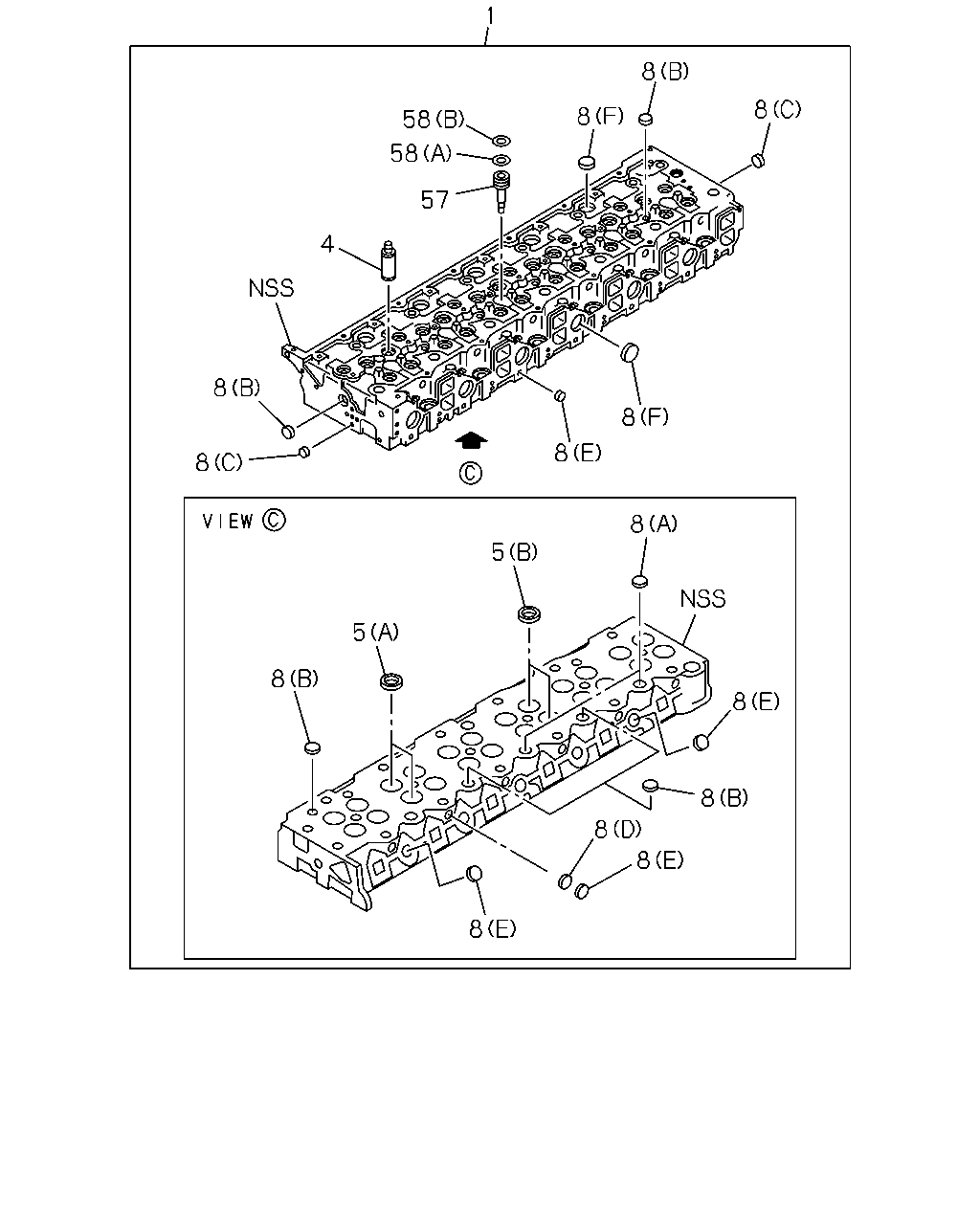

1 8 8 8 58 58 57 4 8 8 8 8 8 5 5 8 8 8 8 8 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HEAD ASM; CYL	1-11110-896-6	01	1	0411-
4	GUIDE; VLV	1-11721-012-0	24	1	0411-
5	SEAT; VLV INSERT (A) EXHAUST	1-11711-074-0	12	1	0411-
5	SEAT; VLV INSERT (B) INLET	1-11715-109-0	12	1	0411-
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	02	1	0411-
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	10	1	0411-
8	CUP; SEALING,WATER JACKET (C) OD=12.3	5-09600-013-0	02	1	0411-
8	CUP; SEALING,WATER JACKET (D) OD=16	5-11129-006-0	06	1	0411-
8	CUP; SEALING,WATER JACKET (E) OD=18	5-11219-008-0	12	1	0411-
8	CUP; SEALING,WATER JACKET (F) OD=40	8-94241-637-0	18	1	0411-
57	SLEEVE; NOZZLE HOLDER	1-11129-067-0	06	1	0411-
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=30.9 BLACK	8-97233-126-0	06	1	0411-
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=30.9 RED	8-97233-127-0	06	1	0411-
