8-74 — EVAPORATOR (#2926) — 36 parça

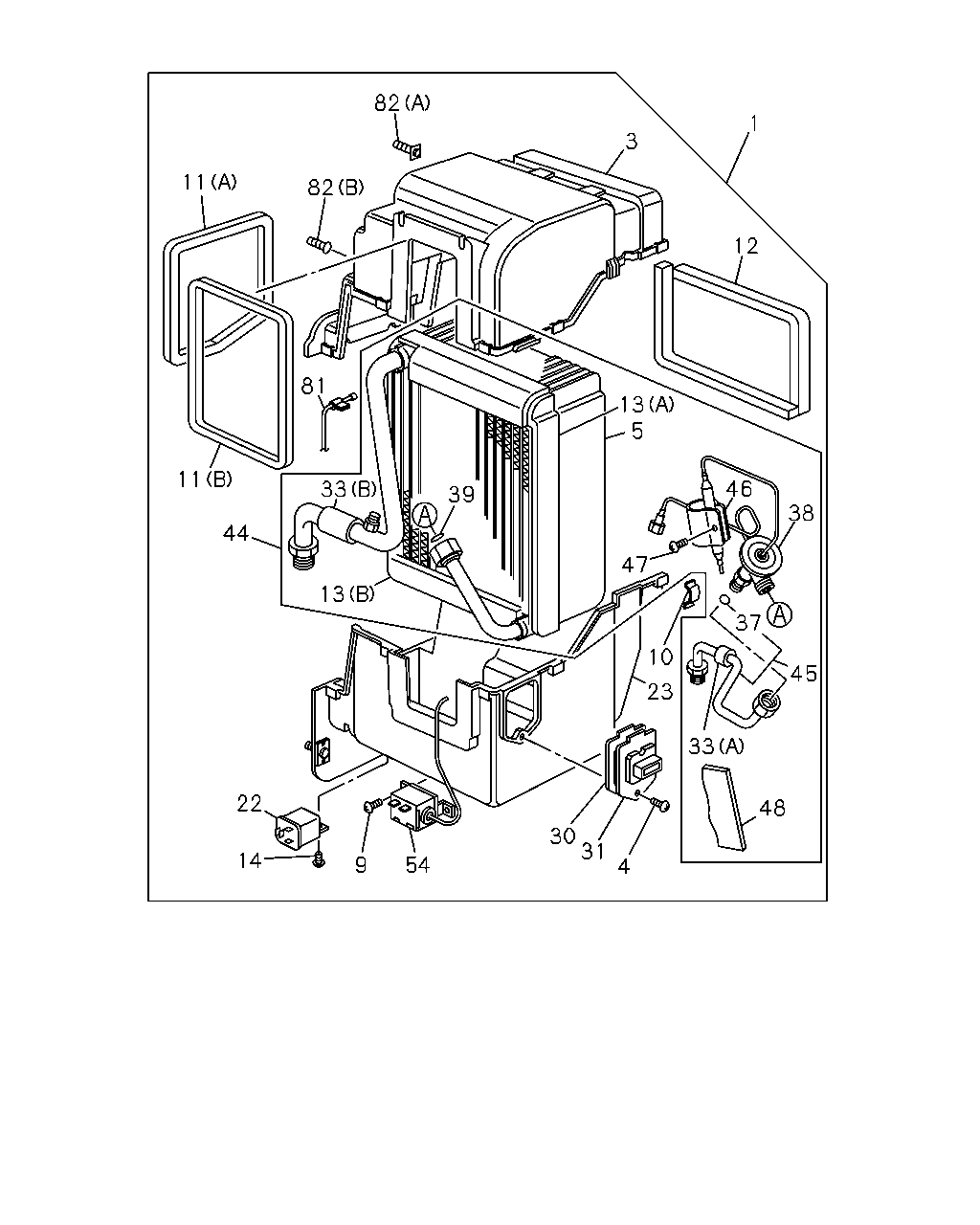

çizim 96297
1 3 12 13 5 38 46 47 37 45 48 23 10 33 4 31 30 54 9 14 22 13 39 33 44 11 81 82 11 82
BalonParca AdiParca NoAdetTipApplied Date A B
1 EVAPORATOR ASM
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83541-074-4 01 1 9002-9306 ● ●
1 EVAPORATOR ASM
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83541-114-0 01 1 9307- ● ●
3 CASE; EVAP,UPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-290-0 01 1 9002- ● ●
4 SCREW; RESISTOR TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) 		0-71181-414-0 01 1 9002- ● ●
5 EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83562-040-3 01 1 9002-9306 ● ●
5 EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83562-073-0 01 1 9307- ● ●
9 SCREW; THERMOSTAT TO CASE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-769-0 01 1 9002- ● ●
10 CLIP; EVAP CASE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-148-0 11 1 9002- ● ●
11 LINING; EVAP A/C
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-172-0 01 1 9002- ● ●
11 LINING; EVAP A/C
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-238-0 01 1 9002- ● ●
12 LINING; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-173-0 02 1 9002- ● ●
13 SEAL; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-166-0 02 1 9002- ● ●
13 SEAL; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-167-0 02 1 9002- ● ●
14 SCREW; RELAY TO BRKT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-807-0 02 1 9002- ● ●
22 RELAY; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-094-0 02 1 9002- ● ●
23 CASE; EVAP,LWR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-289-0 01 1 9002- ● ●
30 LINING; EVAP RESISTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-368-0 01 1 9002- ● ●
31 RESISTOR; POWER EVAP
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83519-028-1 01 1 9002- ● ●
33 LINING; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-168-0 01 1 9002- ● ●
33 LINING; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-169-0 01 1 9002- ● ●
37 GASKET; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) ID=7.65 		8-94113-332-0 01 1 9002-9306 ● ●
37 GASKET; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) ID=6 		8-94481-700-0 01 1 9307- ● ●
38 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94243-996-0 01 1 9002-9306 ● ●
38 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83569-157-0 01 1 9307- ● ●
39 GASKET; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) 		1-09623-517-0 01 1 9002- ● ●
44 EVAPORATOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83541-082-2 01 1 9002-9306 ● ●
44 EVAPORATOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83562-072-0 01 1 9307- ● ●
45 PIPE; EXPANSION VLV
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-222-1 01 1 9002-9306 ● ●
45 PIPE; EXPANSION VLV
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-495-0 01 1 9307- ● ●
46 CLIP; EXPANSION VLV
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-124-0 01 1 9002- ● ●
47 SCREW; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) M5X14 		8-94244-002-0 01 1 9002- ● ●
48 INSULATOR; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) 		5-83579-024-0 01 1 9002- ● ●
54 THERMOSTAT; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-466-0 01 1 9002- ● ●
81 CLIP; THERMOSTAT A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94122-018-0 01 1 9002- ● ●
82 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-092-0 01 1 9002- ● ●
82 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-176-0 01 1 9002- ● ●
