Isuzu WW
▶
TRUCKS
▶
EXR
▶
11047 - EXR LHD EURO4 WITH 2STEPS
▶
3 - Brakes, Brake System
▶
3-20 - AIR TANK
▶
3-20 — AIR TANK
(#29257) — 138 parça
◀
[320A] FIXING NO.2 (36 parça)
[320A] FIXING PARTS;TRAILER CONTROL (1 parça)
[320A] FIXING NO.1 (30 parça)
[320A] COMPONENT (45 parça)
[320A] MODULATOR AND CONNECTOR (26 parça)
▶

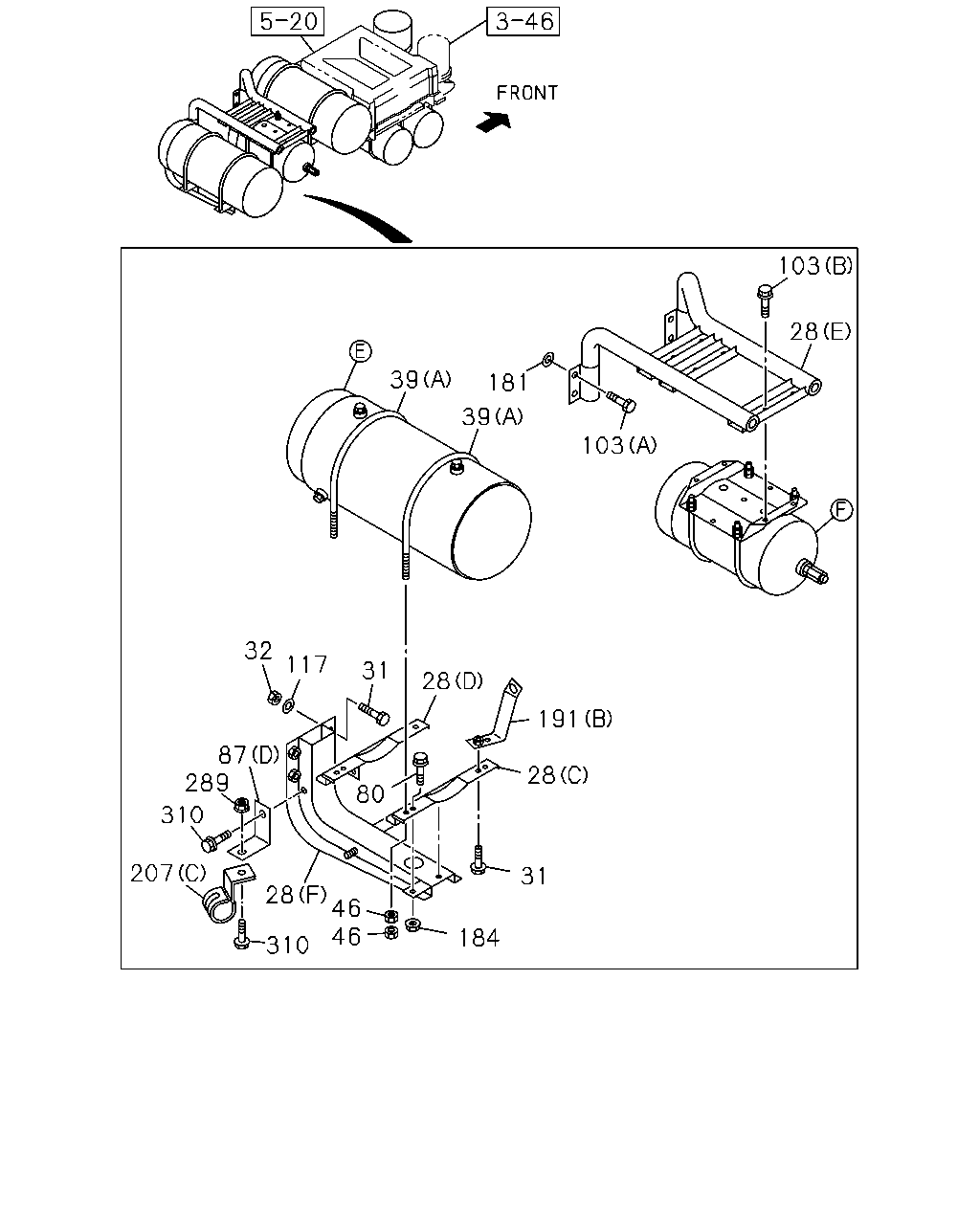

103
28
39
181
39
103
32
117
31
28
191
87
289
28
80
310
207
31
28
46
46
184
310
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
28
BRACKET; AIR TANK
(A)
1-47471-153-0
01
1
0611-
28
BRACKET; AIR TANK
(F)
1-48316-024-3
01
1
0611-
28
BRACKET; AIR TANK
(D)
1-48316-026-0
01
1
0611-
28
BRACKET; AIR TANK
(B)
1-48317-473-2
01
1
0611-
28
BRACKET; AIR TANK
(E)
1-48317-985-1
01
1
0611-
28
BRACKET; AIR TANK
(C)
1-48317-994-2
01
1
0611-
31
BOLT; BRKT TO FRAME
M14X50
0-20851-450-0
04
1
0611-
32
NUT; BRKT TO FRAME
M14
0-91110-514-0
02
1
0611-
39
U-BOLT; AIR TANK
(A) L=303
1-48317-087-2
04
1
0611-
39
U-BOLT; AIR TANK
(B) L=210
1-48317-458-1
06
1
0611-
46
NUT; U-BOLT
M8
0-91110-508-0
24
1
0611-
80
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
01
1
0611-
80
BOLT; BRKT
M12X25 FLANGE
0-28651-225-0
04
1
0611-
87
BRACKET; AIR PIPE JOINT
(B)
8-98060-053-0
01
1
0611-
87
BRACKET; AIR PIPE JOINT
(E)
1-47471-189-0
02
1
0611-
87
BRACKET; AIR PIPE JOINT
(C)
1-47471-241-0
01
1
0611-
87
BRACKET; AIR PIPE JOINT
(F)
1-47477-694-0
02
1
0611-
87
BRACKET; AIR PIPE JOINT
(D)
8-98053-747-0
01
1
0611-
87
BRACKET; AIR PIPE JOINT
(A)
8-98054-525-0
01
1
0611-
103
BOLT; BRKT
(A) M14X35
0-28081-435-0
04
1
0611-0810
103
BOLT; BRKT
(A) M14X35
0-20851-435-0
04
1
0811-
103
BOLT; BRKT
(C) M8X25 FLANGE
0-28650-825-0
04
1
0611-
103
BOLT; BRKT
(B) M10X30 FLANGE
0-28651-030-0
04
1
0611-
117
WASHER; LK,BRKT
ID=14.2
0-91510-514-0
04
1
0611-
181
WASHER; LK,AIR TANK
ID=14.2
0-91510-514-0
04
1
0611-
184
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
0611-
184
NUT; BRKT
M12 FLANGE
0-91180-212-0
01
1
0611-
191
BRACKET; STOPPER,AIR TANK
(B)
1-48316-014-1
01
1
0611-
191
BRACKET; STOPPER,AIR TANK
(A)
1-48316-015-1
01
1
0611-
207
CLIP; AIR PIPE
(B) L=350
1-09707-183-0
17
1
0611-
207
CLIP; AIR PIPE
(A) ID=35 L=33
1-09700-945-0
02
1
0611-
207
CLIP; AIR PIPE
(C) ID=31 H=30 L=35
1-09700-994-0
01
1
0611-
207
CLIP; AIR PIPE
(B) L=256
1-09707-189-0
02
1
0611-
289
NUT; CLIP,AIR PIPE
M8 FLANGE
0-91180-108-0
08
1
0611-
310
BOLT; CLIP,AIR PIPE
M8X20 FLANGE
0-28650-820-0
07
1
0611-
310
BOLT; CLIP,AIR PIPE
M8X25 FLANGE
0-28650-825-0
06
1
0611-
241
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
241
BOLT; SET,CONT VLV
M8X30 W/LK&PL WASHER
0-50640-830-0
01
1
0611-

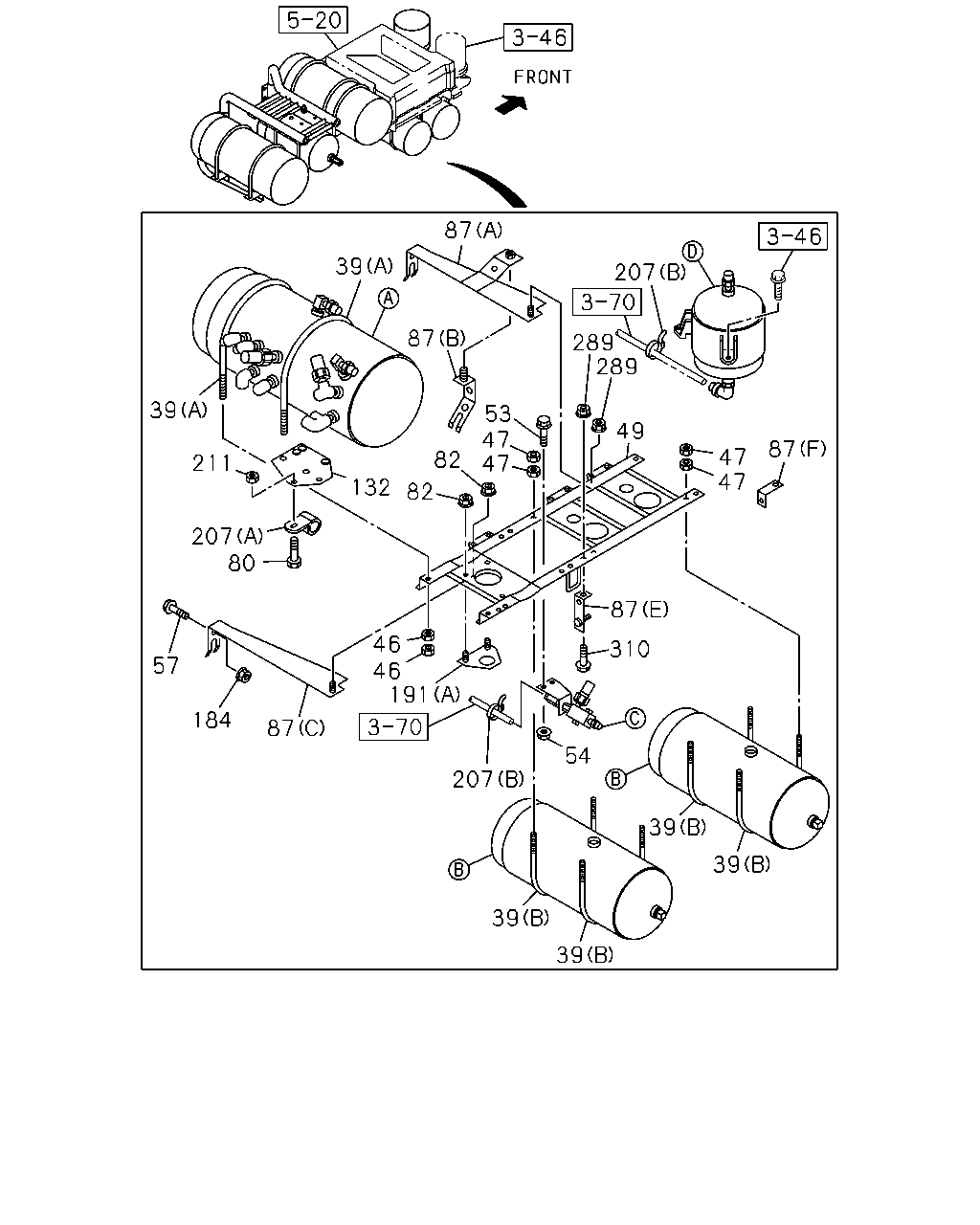

87
207
39
87
289
289
39
53
47
47
49
87
47
47
82
211
132
82
207
80
87
46
46
191
310
57
184
87
54
207
39
39
39
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
39
U-BOLT; AIR TANK
(A) L=303
1-48317-087-2
04
1
0611-
39
U-BOLT; AIR TANK
(B) L=210
1-48317-458-1
06
1
0611-
46
NUT; U-BOLT
M8
0-91110-508-0
24
1
0611-
47
NUT; LK,U BOLT,AIR TANK
M8
0-91110-508-0
16
1
0611-
49
BRACKET; AIR TANK
1-48316-065-1
01
1
0611-
53
BOLT; STAY,AIR TANK
M8X20 FLANGE
0-28650-820-0
02
1
0611-
54
NUT; STAY
M8 FLANGE
0-91180-108-0
02
1
0611-
57
BOLT; BRKT,AIR TANK TO FRAME
M10X25 FLANGE
0-28651-025-0
04
1
0611-
80
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
01
1
0611-
80
BOLT; BRKT
M12X25 FLANGE
0-28651-225-0
04
1
0611-
82
NUT; STAY,AIR MASTER BRKT
M8 FLANGE
0-91180-108-0
02
1
0611-
87
BRACKET; AIR PIPE JOINT
(B)
8-98060-053-0
01
1
0611-
87
BRACKET; AIR PIPE JOINT
(E)
1-47471-189-0
02
1
0611-
87
BRACKET; AIR PIPE JOINT
(C)
1-47471-241-0
01
1
0611-
87
BRACKET; AIR PIPE JOINT
(F)
1-47477-694-0
02
1
0611-
87
BRACKET; AIR PIPE JOINT
(D)
8-98053-747-0
01
1
0611-
87
BRACKET; AIR PIPE JOINT
(A)
8-98054-525-0
01
1
0611-
132
BRACKET; STRING GUIDE
1-47471-204-0
01
1
0611-
184
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
0611-
184
NUT; BRKT
M12 FLANGE
0-91180-212-0
01
1
0611-
191
BRACKET; STOPPER,AIR TANK
(B)
1-48316-014-1
01
1
0611-
191
BRACKET; STOPPER,AIR TANK
(A)
1-48316-015-1
01
1
0611-
207
CLIP; AIR PIPE
(B) L=350
1-09707-183-0
17
1
0611-
207
CLIP; AIR PIPE
(A) ID=35 L=33
1-09700-945-0
02
1
0611-
207
CLIP; AIR PIPE
(C) ID=31 H=30 L=35
1-09700-994-0
01
1
0611-
207
CLIP; AIR PIPE
(B) L=256
1-09707-189-0
02
1
0611-
211
NUT; STRING GUIDE
M8 FLANGE
0-91180-108-0
03
1
0611-
289
NUT; CLIP,AIR PIPE
M8 FLANGE
0-91180-108-0
08
1
0611-
310
BOLT; CLIP,AIR PIPE
M8X20 FLANGE
0-28650-820-0
07
1
0611-
310
BOLT; CLIP,AIR PIPE
M8X25 FLANGE
0-28650-825-0
06
1
0611-

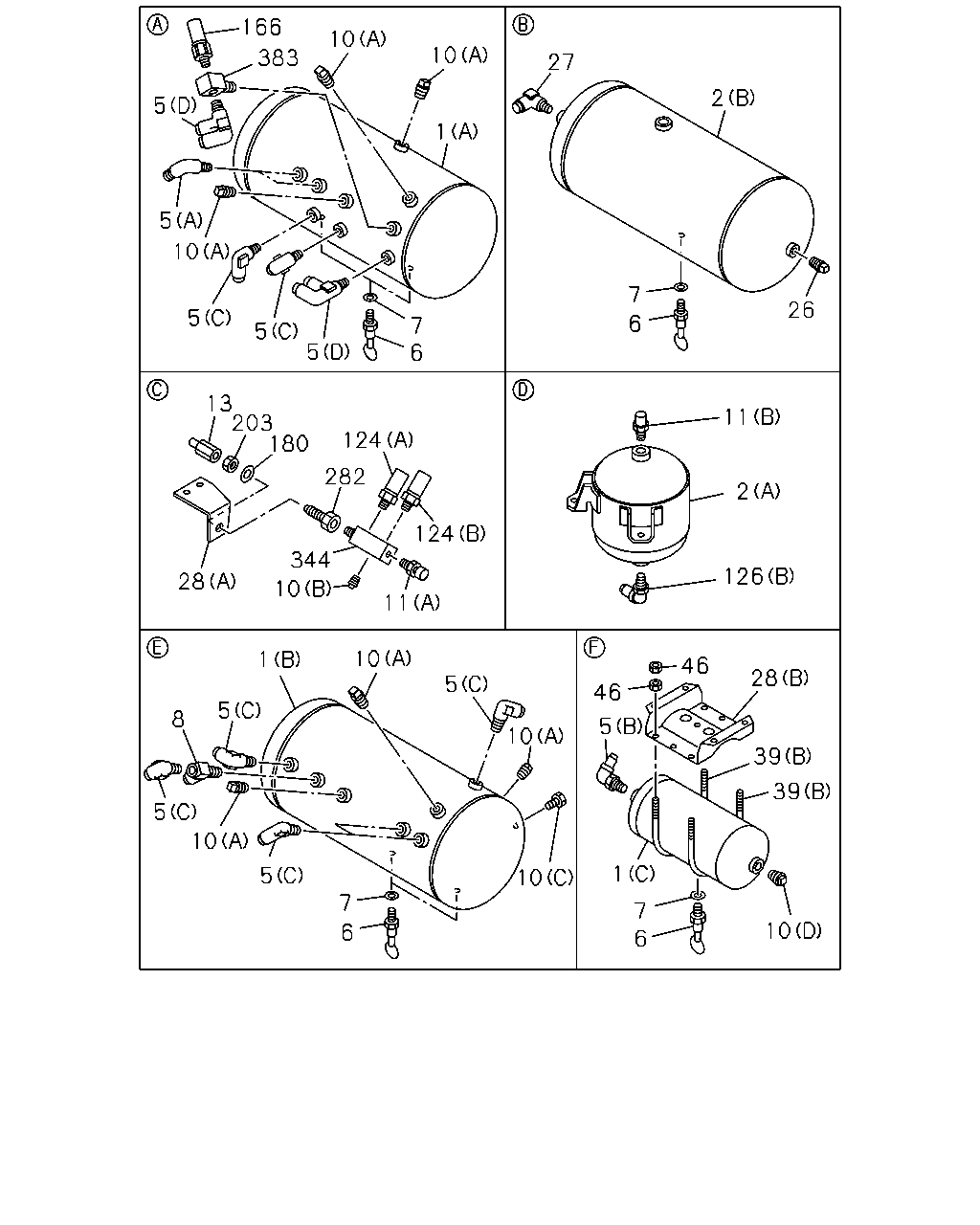

166
10
10
383
27
2
5
1
5
10
7
26
5
6
7
6
5
5
13
203
180
11
124
282
2
124
344
126
28
10
11
10
1
46
28
5
46
5
8
5
10
39
39
5
10
1
5
10
7
7
6
10
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK ASM; AIR
(C)
1-48371-165-3
01
1
0611-
1
TANK ASM; AIR
(A)
1-48371-387-1
01
1
0611-
1
TANK ASM; AIR
(B)
1-48371-434-1
01
1
0611-
2
TANK; AIR
(A)
1-48371-166-3
01
1
0611-
2
TANK; AIR
(B)
1-48371-389-1
02
1
0611-
5
UNION; AIR TANK
(C) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
0611-
5
UNION; AIR TANK
(C) DIN12 & R3/8 ELBOW
1-09660-959-0
04
1
0611-
5
UNION; AIR TANK
(D) DIN12X2 & PT3/8 DOUBLE ELBOW
1-09661-026-0
02
1
0611-
5
UNION; AIR TANK
(B) DIN12 & M22 ELBOW
1-09661-497-0
01
1
0611-
5
UNION; AIR TANK
(A)
1-09661-550-0
02
1
0611-
6
COCK; DRAIN,AIR TANK
1-48312-017-0
05
1
0611-
6
COCK; DRAIN,AIR TANK
1-48312-017-0
02
1
0611-
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
05
1
0611-
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
02
1
0611-
8
CONNECTOR; AIR TANK
DIN8 & R3/8 & RC3/8 3WAY
1-09661-271-0
01
1
0611-
10
PLUG; AIR TANK
(A) PT1/4
9-99204-513-0
03
1
0611-
10
PLUG; AIR TANK
(A) PT1/4
9-99204-513-0
03
1
0611-
10
PLUG; AIR TANK
(B) M22
1-09661-502-0
01
1
0611-
10
PLUG; AIR TANK
(C) PT3/8
9-09204-517-0
01
1
0611-
10
PLUG; AIR TANK
(C) PT3/8
9-09204-517-0
01
1
0611-
10
PLUG; AIR TANK
(D) PT3/4
9-09204-526-0
01
1
0611-
11
VALVE; SAFETY,AIR TANK
(A)
1-48320-012-2
01
1
0611-
11
VALVE; SAFETY,AIR TANK
(B)
1-48320-047-2
01
1
0611-
13
ADAPTER; NYLON TUBE
DIN8 & M16 STRAIGHT
1-09660-875-0
01
1
0611-
26
PLUG; SUB AIR TANK
PT3/8
9-09204-517-0
02
1
0611-
27
UNION; ELBOW,AIR TANK
DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
0611-
28
BRACKET; AIR TANK
(A)
1-47471-153-0
01
1
0611-
28
BRACKET; AIR TANK
(F)
1-48316-024-3
01
1
0611-
28
BRACKET; AIR TANK
(D)
1-48316-026-0
01
1
0611-
28
BRACKET; AIR TANK
(B)
1-48317-473-2
01
1
0611-
28
BRACKET; AIR TANK
(E)
1-48317-985-1
01
1
0611-
28
BRACKET; AIR TANK
(C)
1-48317-994-2
01
1
0611-
39
U-BOLT; AIR TANK
(A) L=303
1-48317-087-2
04
1
0611-
39
U-BOLT; AIR TANK
(B) L=210
1-48317-458-1
06
1
0611-
46
NUT; U-BOLT
M8
0-91110-508-0
24
1
0611-
124
SWITCH; AIR PRESSURE
(A)
1-48340-065-0
01
1
0611-
124
SWITCH; AIR PRESSURE
(B)
1-48340-066-0
01
1
0611-
126
CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
04
1
0611-
126
CONNECTOR; ELBOW
(B) DIN8 & M22 ELBOW
1-09661-495-0
01
1
0611-
166
SWITCH ASM; LOW PRESSURE,MAIN TANK
1-48340-065-0
01
1
0611-
180
WASHER; LK
ID=16.2
0-91510-516-0
01
1
0611-
203
NUT
M16
0-91110-516-0
01
1
0611-
282
UNION; 2 WAY
1-09650-222-1
01
1
0611-
344
CONNECTOR; 4WAY
1-09660-521-2
01
1
0611-
383
UNION; 3 WAY
1-09656-708-0
01
1
0611-

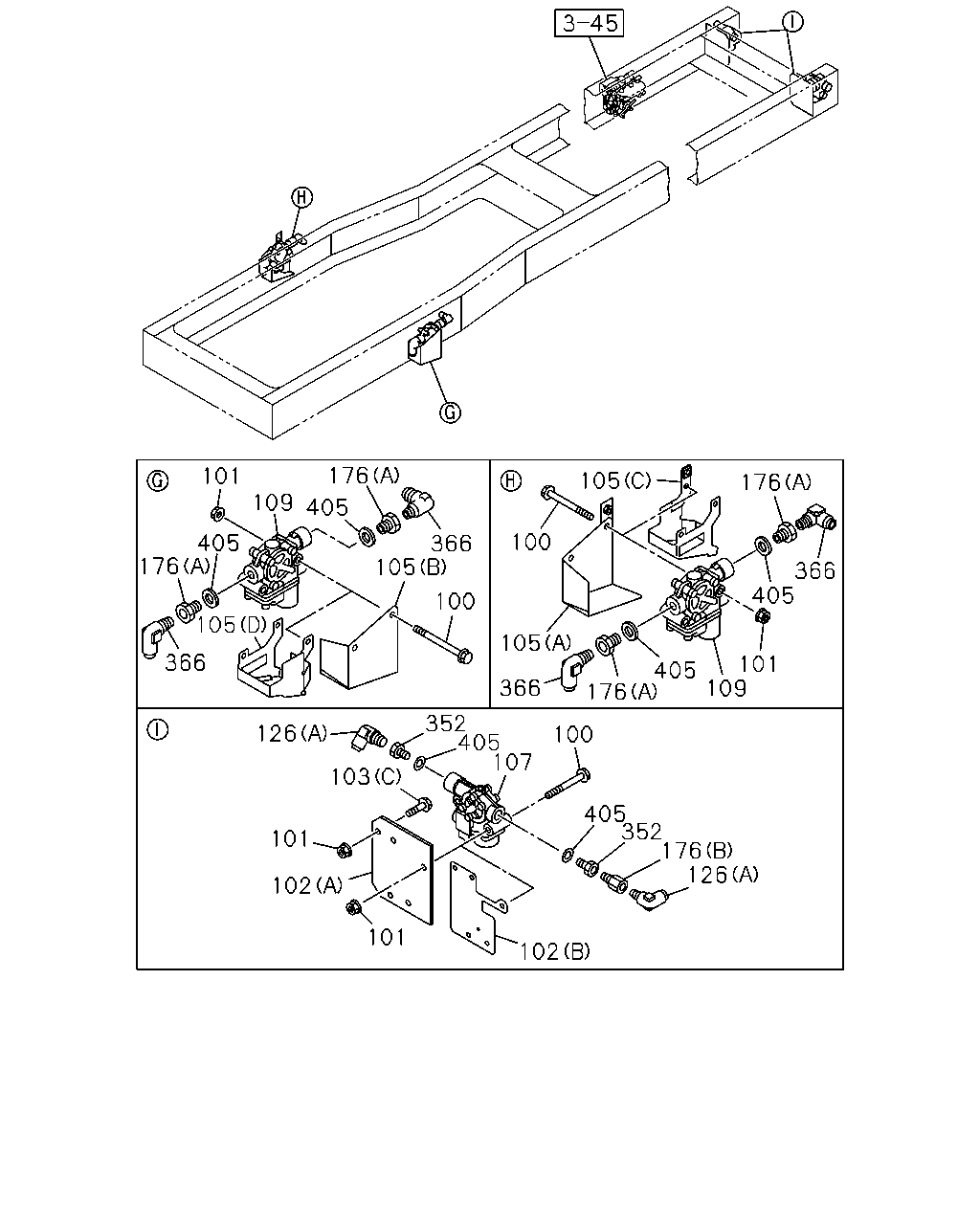

101
176
109
405
366
105
100
105
176
366
405
100
105
176
366
405
101
105
405
109
176
366
126
103
352
405
107
405
352
176
126
101
102
101
102
100
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
100
BOLT; MODULATOR
M8X85
1-09044-074-0
04
1
1505-
100
BOLT; MODULATOR
M8X80 FLANGE
0-28050-880-0
08
1
0611-1504
100
BOLT; MODULATOR
M8X80 FLANGE
0-28050-880-0
04
1
1505-
101
NUT; MODULATOR
M8 FLANGE
0-91180-108-0
08
1
0611-
102
BRACKET; MODULATOR
(A)
1-47471-369-0
02
1
0611-1504
102
BRACKET; MODULATOR
(B)
8-98300-007-0
02
1
1505-
103
BOLT; BRKT
(A) M14X35
0-28081-435-0
04
1
0611-0810
103
BOLT; BRKT
(A) M14X35
0-20851-435-0
04
1
0811-
103
BOLT; BRKT
(C) M8X25 FLANGE
0-28650-825-0
04
1
0611-
103
BOLT; BRKT
(B) M10X30 FLANGE
0-28651-030-0
04
1
0611-
105
COVER; MODULATOR
(B)
1-47471-307-0
01
1
0611-0810
105
COVER; MODULATOR
(B)
8-98061-814-0
01
1
0811-1504
105
COVER; MODULATOR
(D)
8-98300-150-0
01
1
1505-
105
COVER; MODULATOR
(A)
8-98049-454-0
01
1
0611-1504
105
COVER; MODULATOR
(C)
8-98300-154-0
01
1
1505-
107
MODULATOR; RR
1-48240-115-0
02
1
0611-1504
107
MODULATOR; RR
8-98215-454-0
02
1
1505-
109
MODULATOR; FRT
1-48240-115-0
02
1
0611-1504
109
MODULATOR; FRT
8-98215-454-0
02
1
1505-
126
CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
04
1
0611-
126
CONNECTOR; ELBOW
(B) DIN8 & M22 ELBOW
1-09661-495-0
01
1
0611-
176
ADAPTER
(A) INNER PT3/8,OUTER M22
1-09650-494-1
04
1
0611-
176
ADAPTER
(B) PT3/8
1-09664-210-0
02
1
0611-
352
CONNECTOR; STRAIGHT
INNER PT3/8,OUTER M22
1-09650-494-1
04
1
0611-
366
CONNECTOR; NYLON TUBE
DIN12 & R3/8 ELBOW
1-09660-959-0
04
1
0611-
405
GASKET
ID=22.5
9-09571-422-0
08
1
0611-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
