8-73 — BLOWER UNIT (#2925) — 25 parça

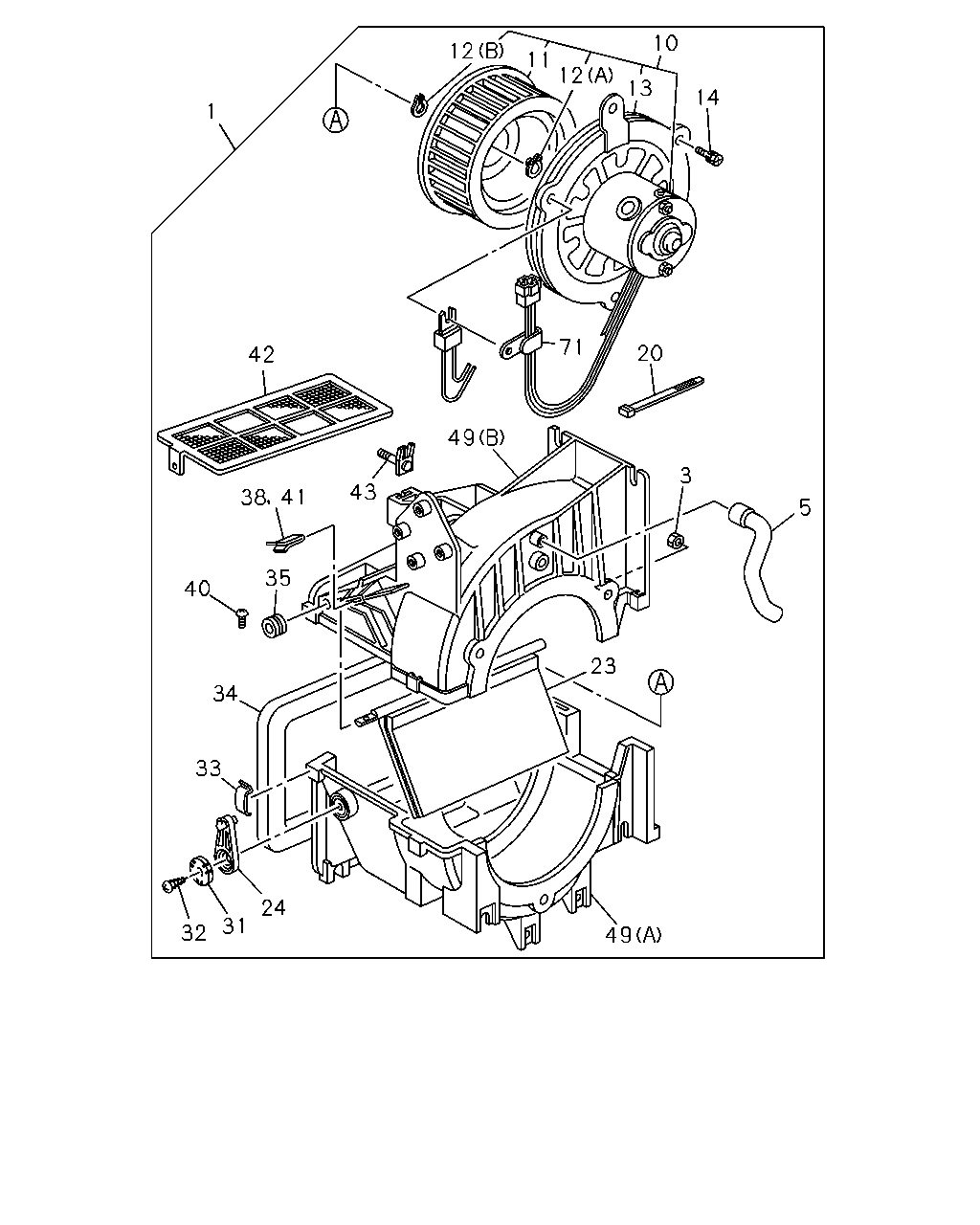

çizim 93924
5 3 23 49 24 31 32 33 34 40 35 38 41 43 49 20 71 42 1 12 11 10 12 13 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOWER ASM 1-83561-062-5 01 1 9002- ● ●
3 NUT; CASE 8-94233-154-0 04 1 9002- ● ●
5 HOSE; AIR 1-83563-096-0 01 1 9002- ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-070-1 01 1 9002- ● ●
11 IMPELLER; FAN MOTOR 1-83579-226-0 01 1 9002- ● ●
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 9002- ● ●
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 9002- ● ●
13 LINING; BLOWER UNIT 8-94233-165-0 01 1 9002- ● ●
14 SCREW; COVER TO CASE
M5X25 		5-15729-279-0 04 1 9002- ● ●
20 BAND; CLIP,BLOWER UNIT 1-83579-263-0 01 1 9002- ● ●
23 SHUTTER; BLOWER UNIT 1-83579-088-0 01 1 9002- ● ●
24 LEVER; CASE 1-83564-209-0 01 1 9002- ● ●
31 WASHER; LEVER 1-83579-095-0 01 1 9002- ● ●
32 SCREW; LEVER
M5X16 		8-94248-820-0 01 1 9002- ● ●
33 CLIP; BLOWER UNIT 1-83574-148-0 01 1 9002- ● ●
34 LINING; BLOWER UNIT 1-83579-286-0 01 1 9002- ● ●
35 BUSHING; LEVER 1-83576-028-0 01 1 9002- ● ●
38 CLIP; BLOWER UNIT 1-83574-149-0 01 1 9307- ● ●
40 SCREW; LEVER,BLOWER UNIT 5-83571-160-0 01 1 9002- ● ●
41 CLIP; SHUTTER 1-83574-149-0 01 1 9002-9306 ● ●
42 FILTER; BLOWER UNIT 1-83579-267-1 01 1 9002- ● ●
43 BOLT; CASE 1-83579-175-0 03 1 9002- ● ●
49 CASE; BLOWER UNIT
(A) 		1-83563-115-0 01 1 9002- ● ●
49 CASE; BLOWER UNIT
(B) 		1-83563-119-0 01 1 9002- ● ●
71 CLIP; HARNESS 1-83574-080-0 01 1 9002- ● ●
