0-40 — FUEL INJECTION SYSTEM (#29232) — 139 parça

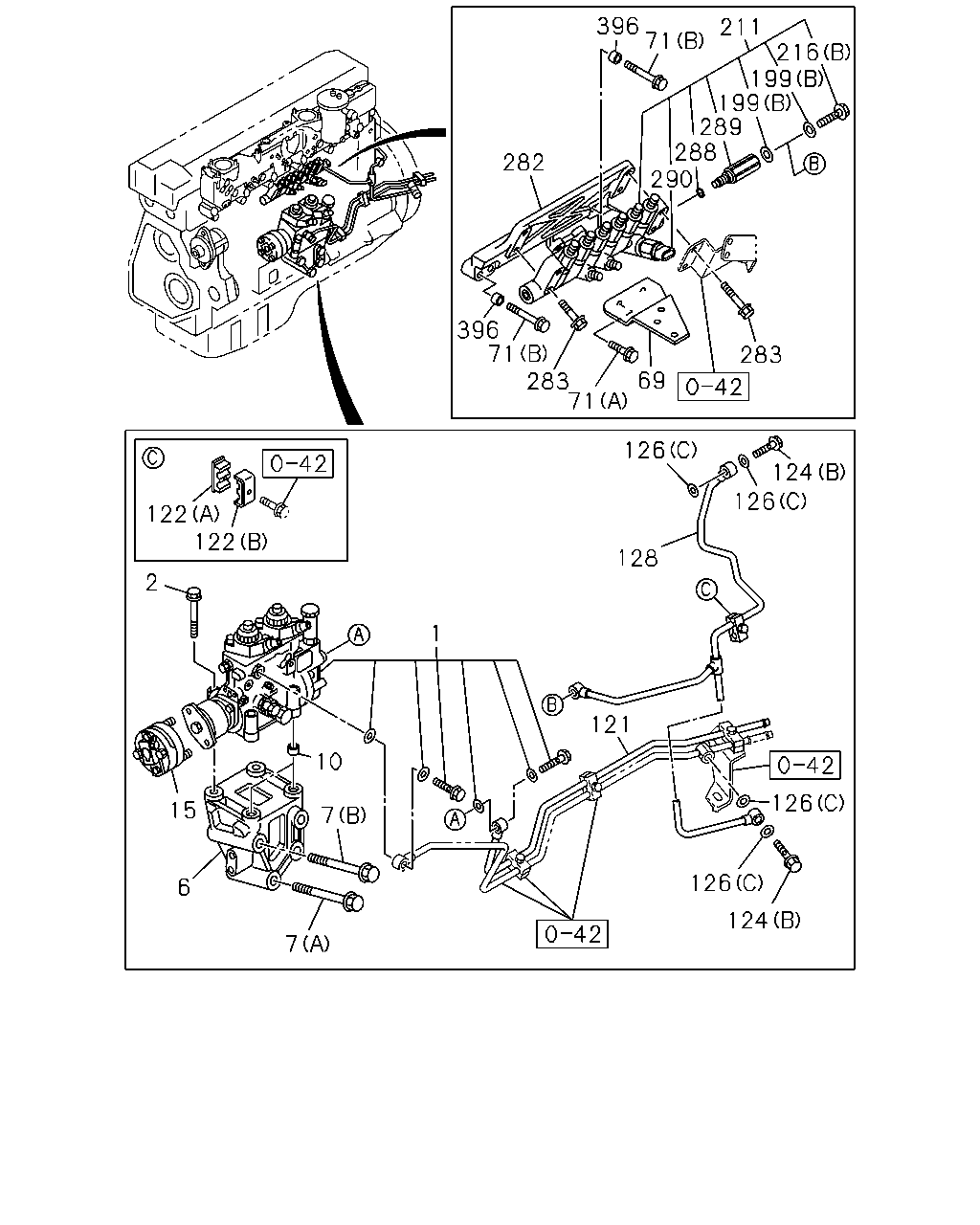

396 211 71 216 199 199 289 288 290 282 283 69 71 283 71 396 126 128 126 124 124 126 126 124 7 6 15 10 7 1 122 122 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97603-414-4	01	1	0509-
2	BOLT; INJ PUMP M8X90 FLANGE	0-28090-890-0	04	1	0509-0512
2	BOLT; INJ PUMP M8X90 FLANGE	0-28060-890-0	04	1	0601-
6	BRACKET; INJ PUMP TO C/BL	1-19751-179-0	01	1	0509-
7	BOLT; INJ PUMP BRKT (A) M14X90 FLANGE	0-28981-490-0	02	1	0509-0512
7	BOLT; INJ PUMP BRKT (A) M14X90 FLANGE	0-28951-490-0	02	1	0601-
7	BOLT; INJ PUMP BRKT (B) M14X120 FLANGE	0-28986-412-0	02	1	0509-0512
7	BOLT; INJ PUMP BRKT (B) M14X120 FLANGE	0-28956-412-0	02	1	0601-
10	DOWEL; INJ PUMP	1-11229-012-1	02	1	0509-
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-192-0	01	1	0509-
69	BRACKET; INJ PIPE CLIP	1-15419-720-1	01	1	0509-
71	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	02	1	0509-0512
71	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-
71	BOLT; BRKT (B) M10X60 FLANGE	0-28181-060-0	02	1	0509-0512
71	BOLT; BRKT (B) M10X60 FLANGE	0-28151-060-0	02	1	0601-
122	CLIP; LEAK OFF PIPE (A) ID=9 & 9 L=25	1-09701-180-0	01	1	1206-
122	CLIP; LEAK OFF PIPE (B) ID=9 & 9 L=25	8-94393-280-3	01	1	1206-
124	BOLT; EYE LEAK OFF PIPE (C) M8X18 EYE-BOLT	1-09675-037-1	06	1	0509-
124	BOLT; EYE LEAK OFF PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	0509-1205
124	BOLT; EYE LEAK OFF PIPE (B) M14X27 FLANGE	1-09675-086-0	01	1	1206-
124	BOLT; EYE LEAK OFF PIPE (A) M12X27 FLANGE	1-09675-160-0	01	1	0509-0805
124	BOLT; EYE LEAK OFF PIPE (A) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	01	1	0509-0702
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=20	8-98065-990-0	01	1	0703-
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=25	1-09630-141-0	04	1	0509-1205
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=25	1-09630-141-0	02	1	1206-
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.3 OD=15.0	8-98065-992-0	06	1	0509-
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=12.6	8-98065-993-0	01	1	0509-
128	PIPE ASM; INJ	1-15416-818-0	01	1	0509-1205
128	PIPE ASM; INJ	8-98218-279-0	01	1	1206-
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	02	1	0509-
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	0509-
211	RAIL ASM; COMMON	8-97603-121-2	01	1	0509-
216	BOLT; EYE (B)	8-97602-173-0	01	1	0509-
216	BOLT; EYE (A)	5-15759-003-0	01	1	0509-
282	BRACKET; COMMON RAIL	8-97603-122-2	01	1	0509-
283	BOLT; COMMON RAIL M10X40 FLANGE	0-28181-040-0	04	1	0509-0512
283	BOLT; COMMON RAIL M10X40 FLANGE	0-28151-040-0	04	1	0601-
288	GASKET ID=11 OD=16.3	1-15641-046-0	01	1	0509-
289	LIMITER; FUEL PRESS	8-98032-283-0	01	1	0509-
290	SENSOR; PRESS	8-97318-684-0	01	1	0509-1102
290	SENSOR; PRESS	8-98119-790-0	01	1	1103-
396	DOWEL; RAIL ASM	1-13119-004-0	02	1	0509-

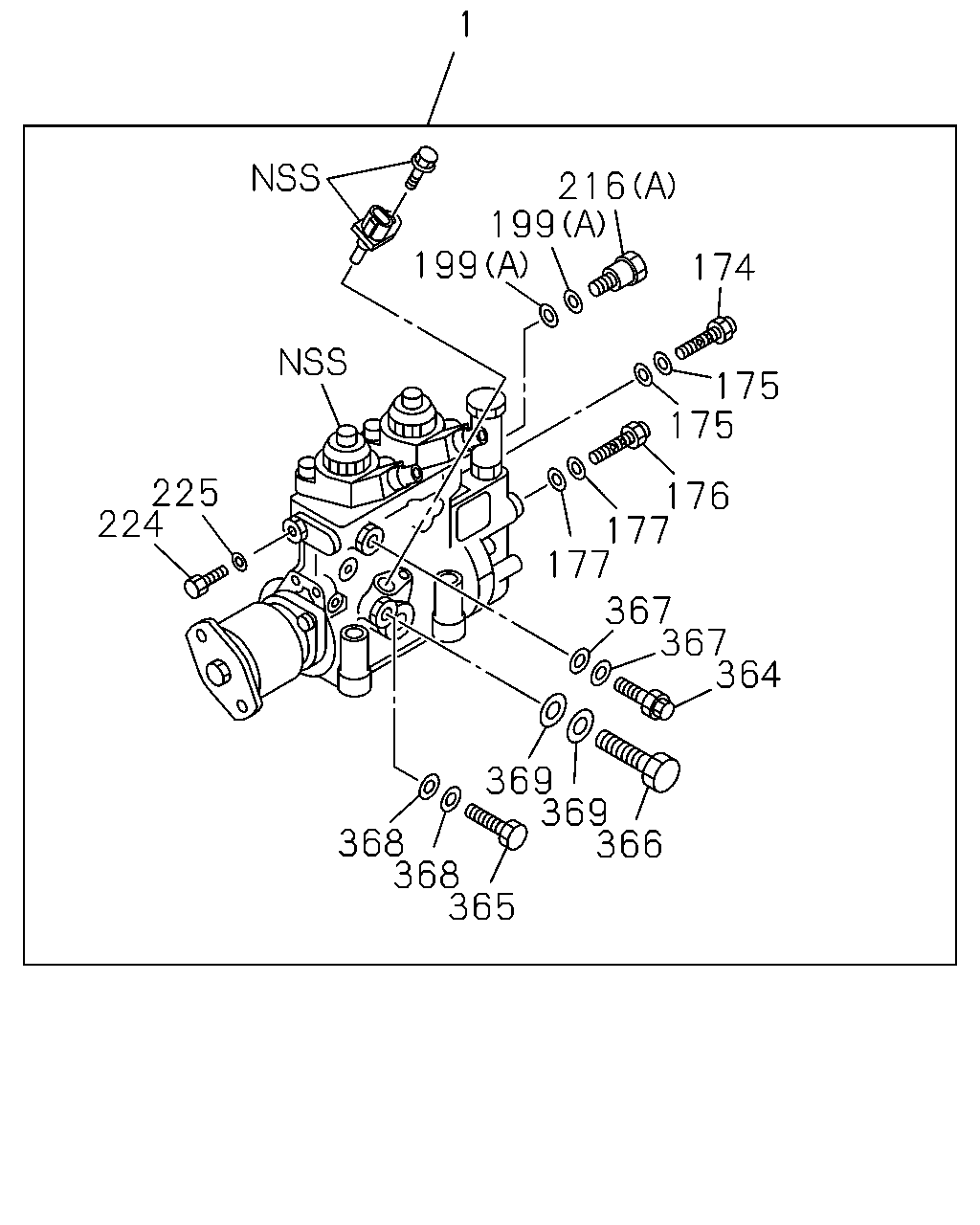

1 216 199 199 174 175 175 225 224 176 177 177 367 367 364 369 369 366 368 368 365

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97603-414-4	01	1	0509-
174	BOLT; EYE,FUEL OUTLET,FEED PUMP	5-15759-003-0	01	1	0509-
175	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP	1-15619-507-0	02	1	0509-
176	BOLT; EYE,FEED PUMP	1-15619-509-0	01	1	0509-
177	GASKET; EYE BOLT,INL,FUEL FEED PUMP	1-15619-507-0	02	1	0509-
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	02	1	0509-
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	0509-
216	BOLT; EYE (B)	8-97602-173-0	01	1	0509-
216	BOLT; EYE (A)	5-15759-003-0	01	1	0509-
224	PLUG; INJ PUMP	1-15619-500-0	01	1	0509-
225	GASKET; PLUG	1-15619-502-0	01	1	0509-
364	VALVE; OVER FLOW,INJ PUMP	1-15619-496-0	01	1	0509-
365	BOLT; EYE,OIL INLET	9-88130-088-0	01	1	0509-
366	BOLT; EYE,OIL OUTLET	1-15619-497-0	01	1	0509-
367	GASKET; VALVE,OVER FLOW	1-15619-501-0	02	1	0509-
368	GASKET; EYE BOLT,OIL INLET	1-15619-508-0	02	1	0509-
369	GASKET; EYE BOLT,OIL OUTLET	1-15619-504-0	02	1	0509-

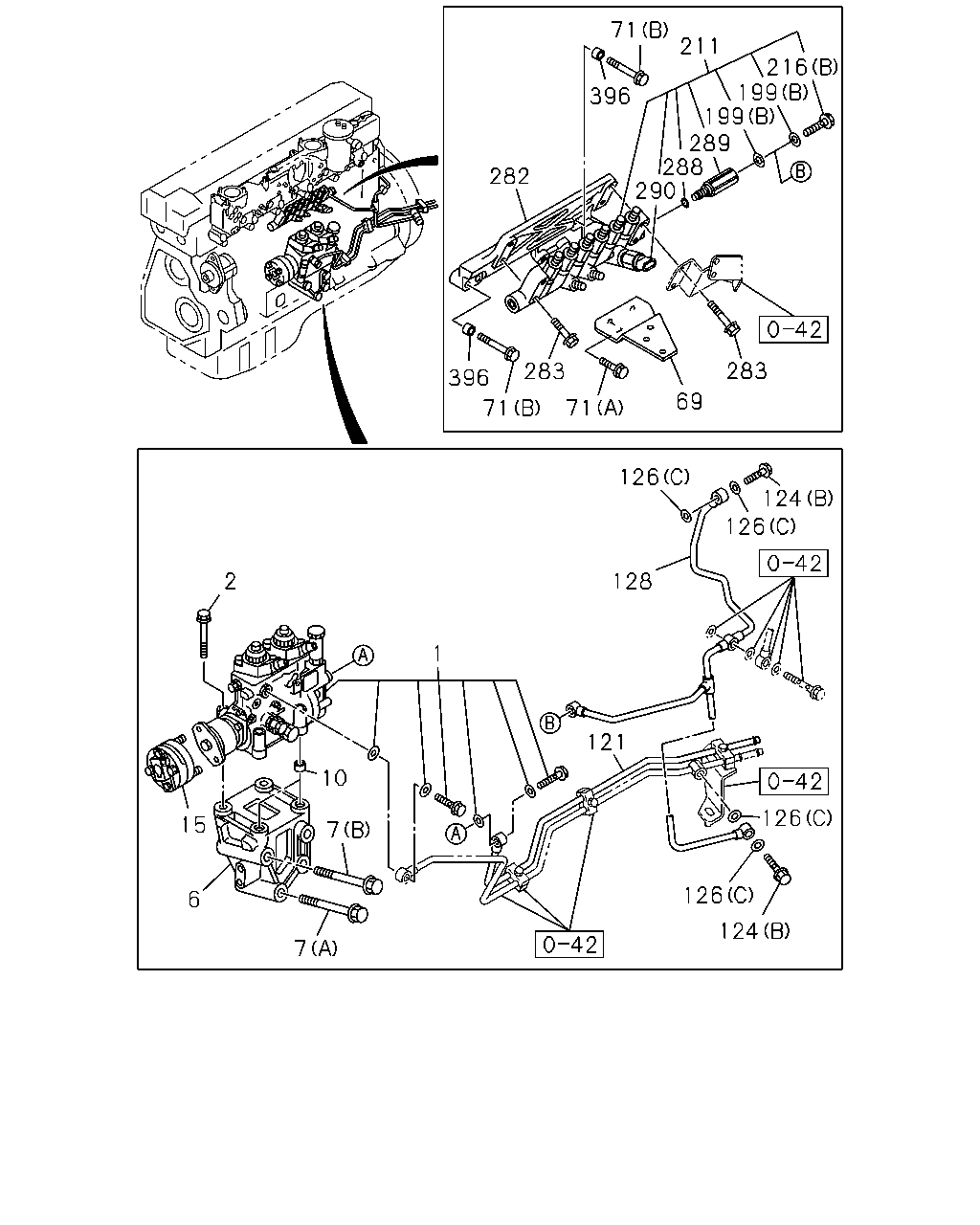

71 211 216 199 199 289 288 290 396 282 283 283 396 69 71 71 126 124 126 2 128 1 15 121 10 126 7 126 6 124 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97603-414-4	01	1	0509-
2	BOLT; INJ PUMP M8X90 FLANGE	0-28090-890-0	04	1	0509-0512
2	BOLT; INJ PUMP M8X90 FLANGE	0-28060-890-0	04	1	0601-
6	BRACKET; INJ PUMP TO C/BL	1-19751-179-0	01	1	0509-
7	BOLT; INJ PUMP BRKT (A) M14X90 FLANGE	0-28981-490-0	02	1	0509-0512
7	BOLT; INJ PUMP BRKT (A) M14X90 FLANGE	0-28951-490-0	02	1	0601-
7	BOLT; INJ PUMP BRKT (B) M14X120 FLANGE	0-28986-412-0	02	1	0509-0512
7	BOLT; INJ PUMP BRKT (B) M14X120 FLANGE	0-28956-412-0	02	1	0601-
10	DOWEL; INJ PUMP	1-11229-012-1	02	1	0509-
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-192-0	01	1	0509-
69	BRACKET; INJ PIPE CLIP	1-15419-720-1	01	1	0509-
71	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	02	1	0509-0512
71	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-
71	BOLT; BRKT (B) M10X60 FLANGE	0-28181-060-0	02	1	0509-0512
71	BOLT; BRKT (B) M10X60 FLANGE	0-28151-060-0	02	1	0601-
121	PIPE; FUEL,FEED PUMP,SUCTION	8-97607-212-0	01	1	0509-
124	BOLT; EYE LEAK OFF PIPE (C) M8X18 EYE-BOLT	1-09675-037-1	06	1	0509-
124	BOLT; EYE LEAK OFF PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	0509-1205
124	BOLT; EYE LEAK OFF PIPE (B) M14X27 FLANGE	1-09675-086-0	01	1	1206-
124	BOLT; EYE LEAK OFF PIPE (A) M12X27 FLANGE	1-09675-160-0	01	1	0509-0805
124	BOLT; EYE LEAK OFF PIPE (A) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	01	1	0509-0702
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=20	8-98065-990-0	01	1	0703-
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=25	1-09630-141-0	04	1	0509-1205
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=25	1-09630-141-0	02	1	1206-
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.3 OD=15.0	8-98065-992-0	06	1	0509-
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=12.6	8-98065-993-0	01	1	0509-
128	PIPE ASM; INJ	1-15416-818-0	01	1	0509-1205
128	PIPE ASM; INJ	8-98218-279-0	01	1	1206-
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	02	1	0509-
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	0509-
211	RAIL ASM; COMMON	8-97603-121-2	01	1	0509-
216	BOLT; EYE (B)	8-97602-173-0	01	1	0509-
216	BOLT; EYE (A)	5-15759-003-0	01	1	0509-
282	BRACKET; COMMON RAIL	8-97603-122-2	01	1	0509-
283	BOLT; COMMON RAIL M10X40 FLANGE	0-28181-040-0	04	1	0509-0512
283	BOLT; COMMON RAIL M10X40 FLANGE	0-28151-040-0	04	1	0601-
288	GASKET ID=11 OD=16.3	1-15641-046-0	01	1	0509-
289	LIMITER; FUEL PRESS	8-98032-283-0	01	1	0509-
290	SENSOR; PRESS	8-97318-684-0	01	1	0509-1102
290	SENSOR; PRESS	8-98119-790-0	01	1	1103-
396	DOWEL; RAIL ASM	1-13119-004-0	02	1	0509-

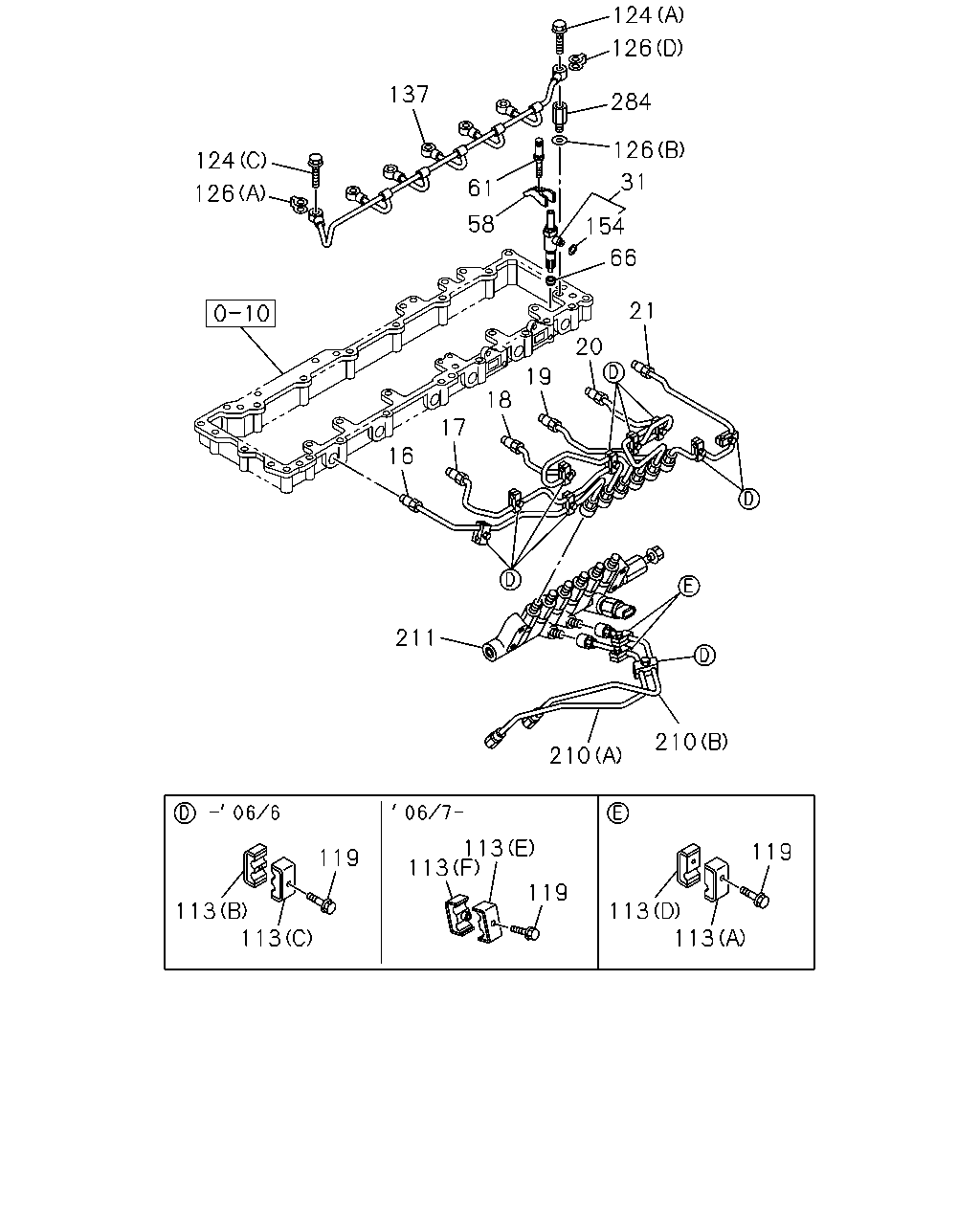

119 113 113 119 113 113 119 113 113 210 210 211 16 17 18 19 20 21 66 154 31 126 284 126 124 137 61 58 126 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	PIPE; INJ NO.1	1-15416-842-2	01	1	0509-
17	PIPE; INJ NO.2	1-15416-843-3	01	1	0509-
18	PIPE; INJ NO.3	1-15416-844-2	01	1	0509-
19	PIPE; INJ NO.4	1-15416-845-2	01	1	0509-
20	PIPE; INJ NO.5	1-15416-846-3	01	1	0509-
21	PIPE; INJ NO.6	1-15416-847-2	01	1	0509-
31	NOZZLE ASM; INJ	8-97603-415-7	06	1	0509-
58	FLANGE; INJ,NOZZLE HOLDER	8-97603-469-0	06	1	0509-
61	BOLT; CLAMP NOZZLE HOLDER	1-09070-121-0	06	1	0509-
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10	8-97216-082-0	06	1	0509-
113	CLIP; INJ PIPE (B)	1-09701-172-2	10	1	0509-0606
113	CLIP; INJ PIPE (E)	8-97330-118-3	10	1	0607-
113	CLIP; INJ PIPE (C)	1-09701-173-1	10	1	0509-0606
113	CLIP; INJ PIPE (F)	8-97330-119-3	10	1	0607-
113	CLIP; INJ PIPE (D)	1-09701-269-0	02	1	0509-
113	CLIP; INJ PIPE (A)	8-94396-371-0	02	1	0509-
119	BOLT; CLIP,INJ PIPE M6X30 FLANGE	0-28080-630-0	12	1	0509-0512
119	BOLT; CLIP,INJ PIPE M6X30 FLANGE	0-28050-630-0	12	1	0601-
124	BOLT; EYE LEAK OFF PIPE (C) M8X18 EYE-BOLT	1-09675-037-1	06	1	0509-
124	BOLT; EYE LEAK OFF PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	0509-1205
124	BOLT; EYE LEAK OFF PIPE (B) M14X27 FLANGE	1-09675-086-0	01	1	1206-
124	BOLT; EYE LEAK OFF PIPE (A) M12X27 FLANGE	1-09675-160-0	01	1	0509-0805
124	BOLT; EYE LEAK OFF PIPE (A) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	01	1	0509-0702
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=20	8-98065-990-0	01	1	0703-
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=25	1-09630-141-0	04	1	0509-1205
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=25	1-09630-141-0	02	1	1206-
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.3 OD=15.0	8-98065-992-0	06	1	0509-
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=12.6	8-98065-993-0	01	1	0509-
137	PIPE ASM; LEAK OFF	1-15416-851-0	01	1	0509-0702
137	PIPE ASM; LEAK OFF	8-97617-161-0	01	1	0703-
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	9-09561-111-0	06	1	0509-1106
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	0-95690-111-0	06	1	1107-
210	PIPE; INJ,C/R (A)	1-15416-811-1	01	1	0509-
210	PIPE; INJ,C/R (B)	1-15416-812-1	01	1	0509-
211	RAIL ASM; COMMON	8-97603-121-2	01	1	0509-
284	ADAPTER; FUEL LEAK OFF	1-15419-525-2	01	1	0509-
