Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10964 - EXZ LHD WEDGE BRAKE
▶
0 - Engine, Emission, Engine Electrical
▶
0-33 - FAN AND FAN BELT
▶

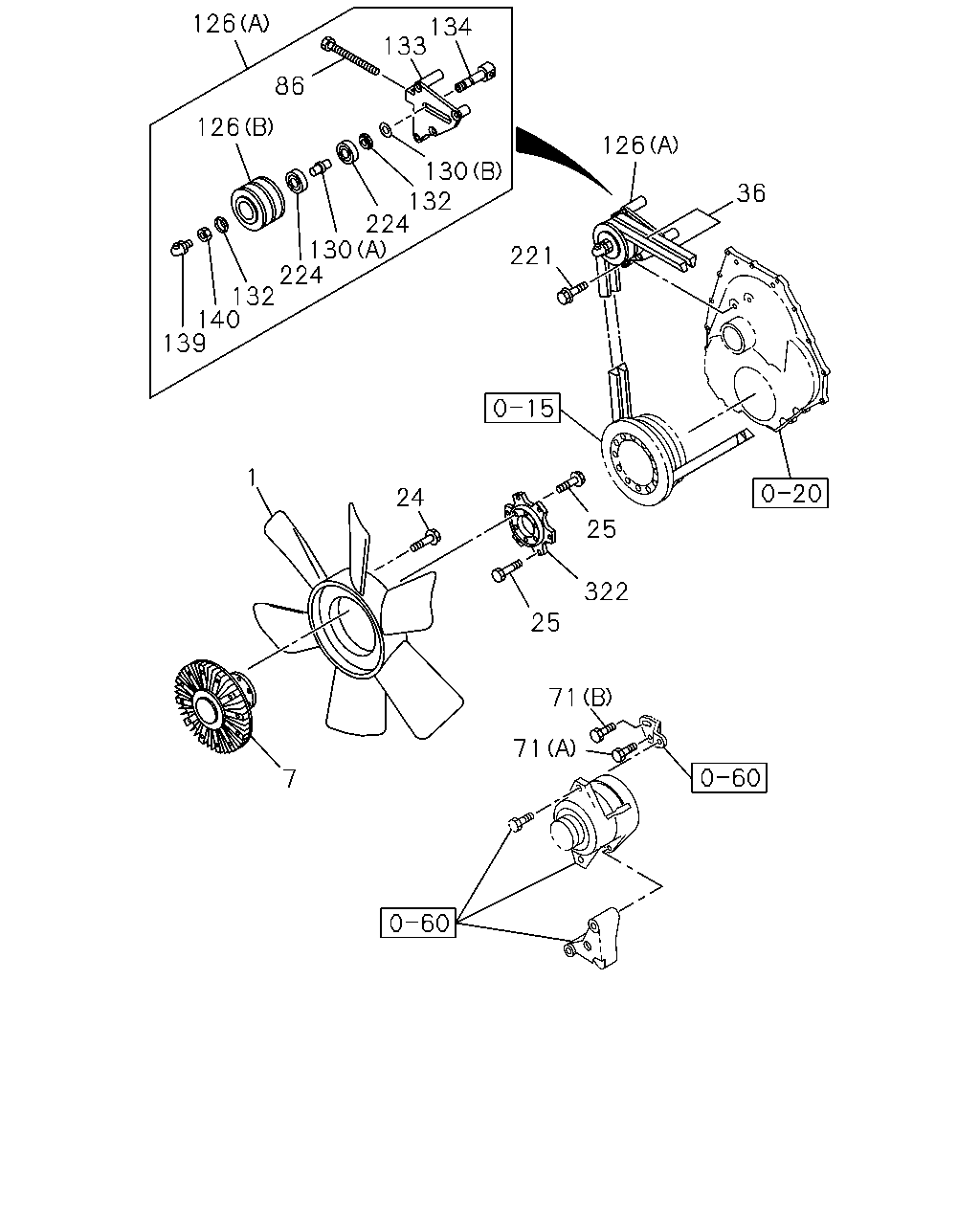

0-33 — FAN AND FAN BELT
(#29226) — 35 parça
126
134
133
86
126
126
130
132
224
130
224
132
140
139
36
221
1
24
25
322
25
71
71
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FAN; COOLING
1-13660-286-1
01
1
0509-
7
COUPLING; FAN
SAUDI ARABIA EQUIPMENT(WH1)
8-98119-742-0
01
1
0812-0901
7
COUPLING; FAN
8-98119-742-0
01
1
0902-
7
COUPLING; FAN
1-21650-212-1
01
1
0509-0702
7
COUPLING; FAN
8-98071-042-0
01
1
0703-0807
7
COUPLING; FAN
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2)
8-98071-042-0
01
1
0808-0901
24
BOLT; FAN
M10X16 FLANGE
0-28191-016-0
06
1
0509-0512
24
BOLT; FAN
M10X16 FLANGE
0-28161-016-0
06
1
0601-
25
BOLT; ADAPTER
M10X30 FLANGE
0-28191-030-0
12
1
0509-0512
25
BOLT; ADAPTER
M10X30 FLANGE
0-28161-030-0
12
1
0601-
36
BELT; COOLING FAN
1 SET=2 PIECE(1136714651) MITSUBOSHI
1-13671-463-1
01
1
0509-
36
BELT; COOLING FAN
BEST VALUE PARTS
1-87610-098-0
01
1
0509-
71
BOLT; ADJ PLATE,GEN
(A) M10X25 FLANGE
0-28181-025-0
01
1
0509-0512
71
BOLT; ADJ PLATE,GEN
(A) M10X25 FLANGE
0-28151-025-0
01
1
0601-
71
BOLT; ADJ PLATE,GEN
(B) M10X110 FLANGE
0-28186-011-0
01
1
0509-0512
71
BOLT; ADJ PLATE,GEN
(B) M10X110 FLANGE
0-28156-011-0
01
1
0601-
86
BOLT; ADJ
M10X135
1-09009-113-1
01
1
0509-
126
PULLEY; IDLE
(A)
1-13660-352-2
01
1
0509-
126
PULLEY; IDLE
(B)
1-13663-067-0
01
1
0509-
130
SPACER; IDLE PULLEY BRG
(A)
1-13666-007-0
01
1
0509-
130
SPACER; IDLE PULLEY BRG
(B)
1-13666-032-0
01
1
0509-
132
COVER; DUST
1-13664-009-2
02
1
0509-
133
BRACKET; IDLE PULLEY
1-13669-197-2
01
1
0509-
134
SPINDLE; IDLE PULLEY
1-13665-060-1
01
1
0509-
139
NIPPLE; GREASE,IDLE PULLEY
PT1/8 ELBOW
9-09031-210-0
01
1
0509-0512
139
NIPPLE; GREASE,IDLE PULLEY
PT1/8 ELBOW
0-90301-610-0
01
1
0601-
140
NUT; IDLE PULLEY
M18
9-99111-518-0
01
1
0509-0512
140
NUT; IDLE PULLEY
M18
0-91111-518-0
01
1
0601-
221
BOLT; IDLE PULLEY
M10X40 FLANGE
0-28151-040-0
01
1
1104-
221
BOLT; IDLE PULLEY
M10X50 FLANGE
0-28151-050-0
02
1
1104-
221
BOLT; IDLE PULLEY
M10X80 FLANGE
0-28181-080-0
04
1
0509-0512
221
BOLT; IDLE PULLEY
M10X80 FLANGE
0-28151-080-0
04
1
0601-
224
BEARING; IDLE PULLEY
1-09800-176-0
02
1
0509-0907
224
BEARING; IDLE PULLEY
8-97633-017-0
02
1
0908-
322
ADAPTER; COUPLING
8-97606-264-0
01
1
0509-
