8-60 — HEATER UNIT; FRONT (#2922) — 29 parça

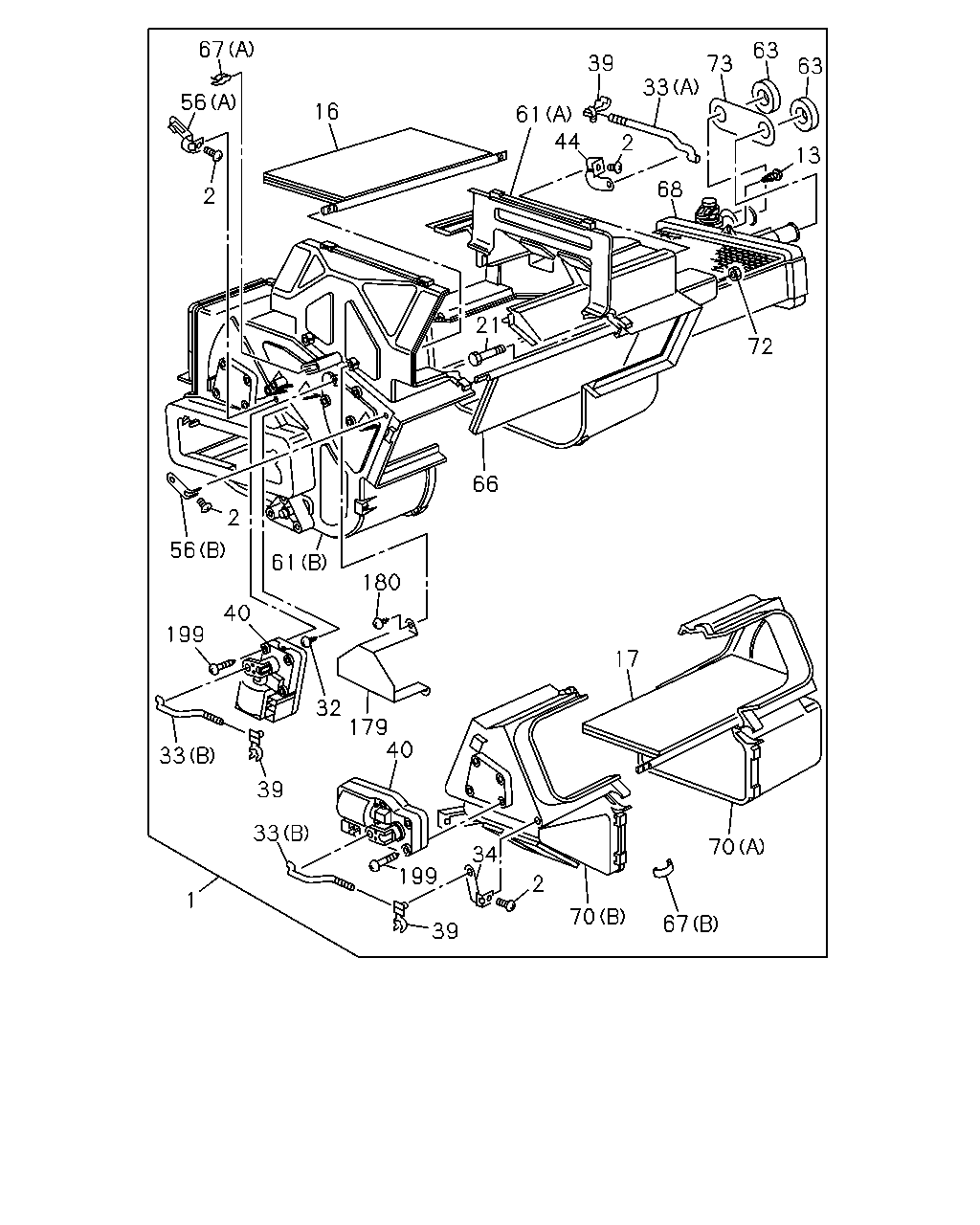

çizim 28252
70 67 70 2 34 199 39 17 40 179 32 39 33 33 199 61 40 56 2 180 66 72 21 68 2 44 61 13 63 63 73 33 39 16 56 2 67 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT 1-83511-109-4 01 1 9002- ● ●
2 SCREW; LEVER 5-83571-160-0 04 1 9002- ● ●
13 SCREW; THERMOSTAT TO BODY 8-94248-807-0 01 1 9002- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-096-1 01 1 9002- ● ●
17 SHUTTER; HTR UNIT,CENTER 1-83579-100-1 01 1 9002- ● ●
21 BOLT; CASE,HTR UNIT 1-15619-207-0 03 1 9002- ● ●
32 SCREW; HTR UNIT 1-83579-133-0 01 1 9002- ● ●
33 ROD; SHUTTER LEVER
(B) 		1-83579-099-0 02 1 9002- ● ●
33 ROD; SHUTTER LEVER
(A) 		1-83579-393-0 01 1 9002- ● ●
34 LEVER; SHUTTER,HTR UNIT 1-83564-113-0 01 1 9002- ● ●
39 CLIP; HTR UNIT 1-83574-143-0 03 1 9002- ● ●
40 ACTUATOR; HTR UNIT 1-83579-419-0 02 1 9002- ● ●
44 LEVER; SHUTTER,HTR UNIT 1-83564-111-0 01 1 9002- ● ●
56 LEVER; SHUTTER,HTR UNIT
(A) 		1-83564-110-0 01 1 9002- ● ●
56 LEVER; SHUTTER,HTR UNIT
(B) 		1-83564-112-0 01 1 9002- ● ●
61 CASE; HTR UNIT
(A) 		1-83564-106-0 01 1 9002- ● ●
61 CASE; HTR UNIT
(B) 		1-83564-205-0 01 1 9002- ● ●
63 LINING; HTR UNIT 1-83579-237-0 02 1 9002- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-097-1 01 1 9002- ● ●
67 CLIP; HTR UNIT
(B) 		1-83574-148-0 18 1 9002- ● ●
67 CLIP; HTR UNIT
(A) 		1-83574-149-0 01 1 9002- ● ●
68 CORE; HTR UNIT 1-83562-057-0 01 1 9002- ● ●
70 CASE; HTR UNIT,CENTER
(A) 		1-83564-108-0 01 1 9002- ● ●
70 CASE; HTR UNIT,CENTER
(B) 		1-83564-109-0 01 1 9002- ● ●
72 NUT; CASE,HTR UNIT 9-88410-525-0 03 1 9002- ● ●
73 PLATE; HTR UNIT 1-83579-103-0 01 1 9002- ● ●
179 COVER; ACTUATOR 1-83579-366-0 01 1 9002- ● ●
180 SCREW; COVER,ACTUATOR
M4X16 TAPPING 		1-83579-114-0 03 1 9002- ● ●
199 SCREW; ACTUATOR 1-83579-422-0 06 1 9002- ● ●
