Sayfa 8-52 - Isuzu EPC

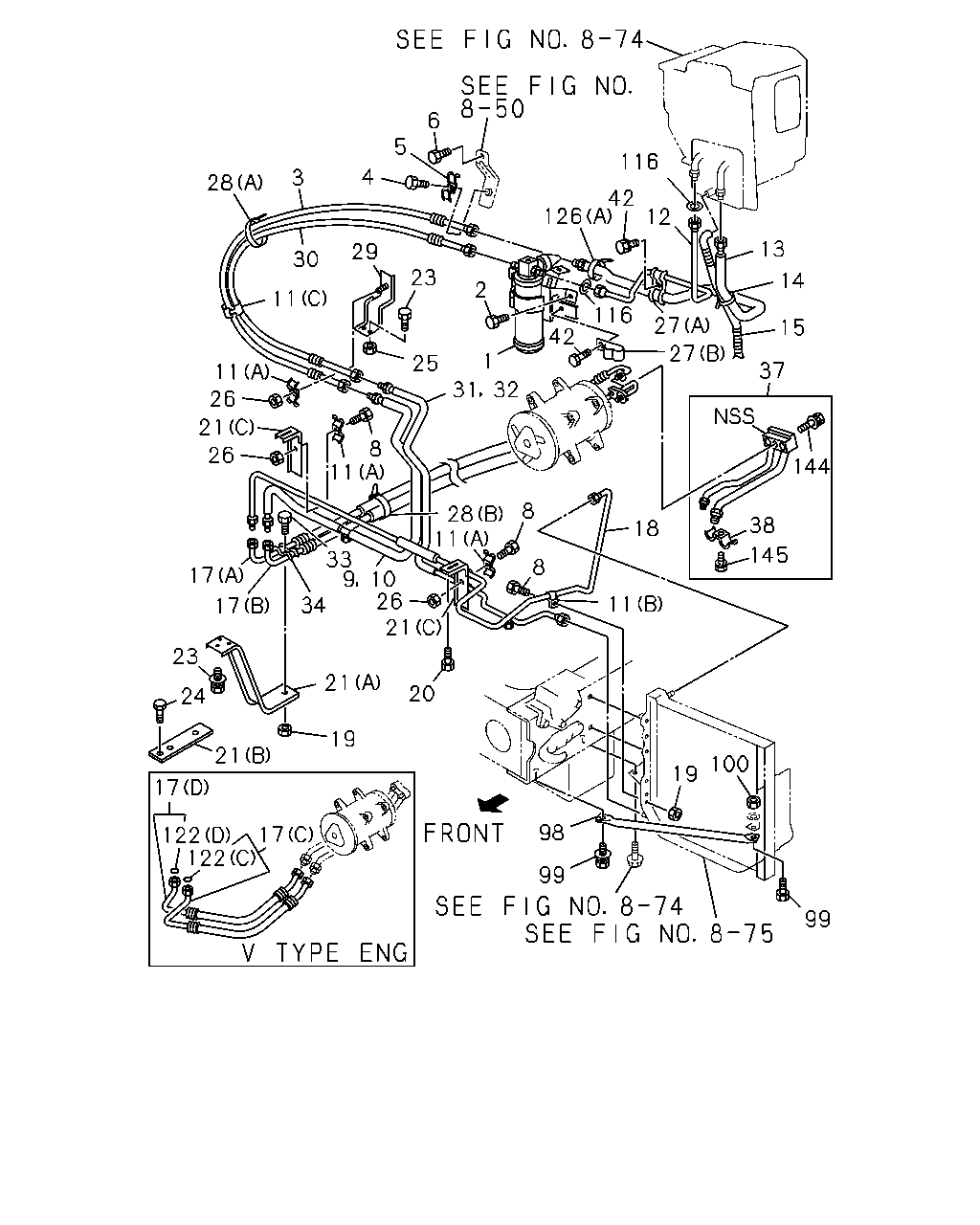

8-52 — PIPING; AIR CONDITIONING (#2921) — 167 parça

99 19 100 98 99 17 122 122 17 24 21 19 20 21 21 26 10 9 33 34 17 17 23 11 8 18 8 11 145 38 144 28 8 11 26 21 26 11 11 30 29 23 25 1 31 32 42 116 27 15 27 37 14 13 12 42 126 2 116 6 5 4 3 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-037-2	01	1	9002-9306	●	●
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-064-0	01	1	9307-9308	●	●
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-065-0	01	1	9309-	●	●
2	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) M6X20	1-09980-279-0	03	1	9002-	●	●
3	HOSE; FLEX,EVAP TO COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83566-608-0	01	1	9002-9306	●	●
3	HOSE; FLEX,EVAP TO COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-037-0	01	1	9307-	●	●
4	SCREW; CLIP,FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER	9-03910-616-0	01	1	9002-9203	●	●
4	SCREW; CLIP,FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK&PL WASHER	1-09980-574-0	01	1	9204-	●	●
5	CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-09700-636-1	01	1	9002-9306	●	●
5	CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-188-0	01	1	9307-	●	●
6	SCREW; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER	9-03910-616-0	01	1	9002-9203	●	●
6	SCREW; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK&PL WASHER	1-09980-574-0	01	1	9204-	●	●
8	BOLT; CLIP 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) M8X30 W/LK WASHER	9-01900-830-0	01	1	9002-9204	●	●
8	BOLT; CLIP 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) M8X30 W/LK WASHER	0-50040-830-0	01	1	9205-9302	●	●
8	BOLT; CLIP 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) M8X30 FLANGE	0-28080-830-0	01	1	9303-	●	●
8	BOLT; CLIP 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M6X20 W/LK WASHER	9-01900-620-0	02	1	9002-9204	●	●
8	BOLT; CLIP 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M6X20 W/LK WASHER	0-50040-620-0	02	1	9205-9302	●	●
8	BOLT; CLIP 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M6X20 FLANGE	0-28080-620-0	02	1	9303-9306	●	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X20 FLANGE	0-28080-620-0	02	1	9307-	●	●
8	BOLT; CLIP 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) M6X20 W/LK WASHER	9-01900-620-0	02	1	9002-9204	●	●
8	BOLT; CLIP 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) M6X20 W/LK WASHER	0-50040-620-0	02	1	9205-9302	●	●
8	BOLT; CLIP 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) M6X20 FLANGE	0-28080-620-0	02	1	9303-9306	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-508-0	01	1	9307-	●	●
9	PIPE; COOLER,HOSE TO HOSE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-175-1	01	1	9002-9306	●	●
10	PIPE; EVAP TO CMPR 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-216-0	01	1	9002-9306	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=10.5 & 16.6	1-09700-636-1	01	1	9002-9306	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.7 & 20	1-09700-640-0	01	1	9002-	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=9.6 & 12.7	1-83574-114-0	01	1	9307-	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=9.2 & 16.2	1-83574-188-0	01	1	9307-	●	●
11	CLIP; COOLER PIPE 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=12 H=24 L=20	1-09700-605-0	01	1	9002-	●	●
11	CLIP; COOLER PIPE 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-09707-123-0	01	1	9002-	●	●
11	CLIP; COOLER PIPE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=9.6 & 12.7	1-83574-114-0	01	1	9002-9306	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-100-0	01	1	9002-9306	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-506-0	01	1	9307-	●	●
13	PIPE; COOLER,EVAP TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-101-1	01	1	9002-9306	●	●
13	PIPE; COOLER,EVAP TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-507-0	01	1	9307-	●	●
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) L=250	5-09707-030-1	03	1	9002-	●	●
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60)	1-83566-254-1	01	1	9002-	●	●
17	HOSE; FLEX,CMPR TO PIPE 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83566-562-0	01	1	9002-9306	●	●
17	HOSE; FLEX,CMPR TO PIPE 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83566-563-0	01	1	9002-9306	●	●
17	HOSE; FLEX,CMPR TO PIPE 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83572-032-0	01	1	9307-	●	●
17	HOSE; FLEX,CMPR TO PIPE 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83572-033-0	01	1	9307-	●	●
17	HOSE; FLEX,CMPR TO PIPE 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83566-588-0	01	1	9002-9306	●	●
17	HOSE; FLEX,CMPR TO PIPE 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83566-589-0	01	1	9002-9306	●	●
17	HOSE; FLEX,CMPR TO PIPE 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-034-0	01	1	9307-	●	●
17	HOSE; FLEX,CMPR TO PIPE 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-035-0	01	1	9307-	●	●
17	HOSE; FLEX,CMPR TO PIPE 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83566-500-0	01	1	9002-9306	●	●
17	HOSE; FLEX,CMPR TO PIPE 8PD1 STD ENG(38L) AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83566-845-0	01	1	9307-9309	●	●
17	HOSE; FLEX,CMPR TO PIPE 8PD1 STD ENG(38L) AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83572-047-0	01	1	9310-	●	●
17	HOSE; FLEX,CMPR TO PIPE 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83566-501-0	01	1	9002-9306	●	●
17	HOSE; FLEX,CMPR TO PIPE 8PD1 STD ENG(38L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83566-846-0	01	1	9307-9309	●	●
17	HOSE; FLEX,CMPR TO PIPE 8PD1 STD ENG(38L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83572-048-0	01	1	9310-	●	●
18	PIPE; CONDENSER TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-502-0	01	1	9307-	●	●
18	PIPE; CONDENSER TO CMPR 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-176-1	01	1	9002-9306	●	●
18	PIPE; CONDENSER TO CMPR 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-214-0	01	1	9002-9306	●	●
19	NUT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) M6	9-09110-406-0	01	1	9002-9103	●	●
19	NUT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE	5-09440-004-0	01	1	9104-	●	●
19	NUT; CLIP FIX 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) M6	9-09110-408-0	01	1	9002-	●	●
20	BOLT; COOLER PIPE 6RB1 STD ENG(07L),6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) M10X40 W/LK&PL WASHER	9-01961-040-0	01	1	9002-9204	●	●
20	BOLT; COOLER PIPE 6RB1 STD ENG(07L),6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) M10X40 W/LK&PL WASHER	0-50141-040-0	01	1	9205-	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-710-0	02	1	9307-	●	●
21	BRACKET; COOLER HOSE 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-312-1	01	1	9002-	●	●
21	BRACKET; COOLER HOSE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-311-1	02	1	9002-9306	●	●
21	BRACKET; COOLER HOSE 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-359-0	01	1	9002-9306	●	●
21	BRACKET; COOLER HOSE 6RB1TC ENG(30L),V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-313-1	01	1	9002-	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 W/LK WASHER	9-01900-820-0	05	1	9002-9204	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 W/LK WASHER	0-50040-820-0	05	1	9205-9302	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28080-820-0	05	1	9303-	●	●
23	BOLT; BRKT 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M8X20 W/LK WASHER	9-01900-820-0	04	1	9002-9204	●	●
23	BOLT; BRKT 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M8X20 W/LK WASHER	0-50040-820-0	04	1	9205-9302	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28080-820-0	04	1	9303-	●	●
23	BOLT; BRKT 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●	●
23	BOLT; BRKT 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●	●
23	BOLT; BRKT 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28080-820-0	02	1	9303-9306	●	●
24	SCREW; CLIP FIX 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER	9-01910-616-0	01	1	9002-9005	●	●
24	SCREW; CLIP FIX 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER	0-50040-616-0	01	1	9006-9302	●	●
24	SCREW; CLIP FIX 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) M6X16 FLANGE	0-28080-616-0	01	1	9303-	●	●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	02	1	9002-	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6	9-09110-406-0	01	1	9002-9306	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE	5-09440-004-0	01	1	9307-	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6	9-09110-406-0	02	1	9307-	●	●
26	NUT; PIPE CLIP 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE	5-09440-004-0	01	1	9002-9306	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09700-639-0	01	1	9002-	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) D=12.5 & 9.5	1-83574-178-0	01	1	9403-	●	●
28	CLIP; PIPE,HOSE A/C AIR CONDITIONER MANUAL CONTROL(C60) (A) L=170	1-83574-139-0	01	1	9002-	●	●
28	CLIP; PIPE,HOSE A/C AIR CONDITIONER MANUAL CONTROL(C60) (B) L=250	5-09707-030-1	01	1	9002-	●	●
29	BRACKET; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-524-0	01	1	9002-	●	●
30	HOSE; FLEX,TANK TO CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-83566-339-2	01	1	9002-9306	●	●
30	HOSE; FLEX,TANK TO CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-036-0	01	1	9307-	●	●
31	PIPE; RECEIVER TANK TO CONDENSER 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-213-0	01	1	9002-9306	●	●
32	PIPE; COOLER,HOSE TO CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-503-0	01	1	9307-	●	●
32	PIPE; COOLER,HOSE TO CONDENSER 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-221-0	01	1	9002-9306	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X20 W/LK WASHER	9-01900-620-0	01	1	9002-9204	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X20 W/LK WASHER	0-50040-620-0	01	1	9205-9302	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X20 FLANGE	0-28080-620-0	01	1	9303-	●	●
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-157-0	01	1	9002-9306	●	●
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-190-0	01	1	9307-	●	●
37	CONNECTOR; CMPR TO FLEX HOSE V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60)	1-83575-077-0	01	1	9307-	●	●
38	CLIP; CONNECTOR V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-039-0	01	1	9206-9306	●	●
38	CLIP; CONNECTOR V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-177-0	01	1	9307-	●	●
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK WASHER	9-03910-616-0	01	1	9002-9203	●	●
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK&PL WASHER	1-09980-574-0	01	1	9204-9402	●	●
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/LK&PL WASHER	1-09980-574-0	02	1	9403-	●	●
98	STAY; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-295-1	01	1	9002-	●	●
99	BOLT; STAY FIX AIR CONDITIONER MANUAL CONTROL(C60) M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●
99	BOLT; STAY FIX AIR CONDITIONER MANUAL CONTROL(C60) M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●
99	BOLT; STAY FIX AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●
99	BOLT; STAY FIX AIR CONDITIONER MANUAL CONTROL(C60) M8X35	9-01970-835-0	01	1	9002-9005	●	●
99	BOLT; STAY FIX AIR CONDITIONER MANUAL CONTROL(C60) M8X35 W/LK&PL WASHER	0-50140-835-0	01	1	9006-	●	●
100	NUT; STAY FIX AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-508-0	01	1	9002-	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=6	8-94481-700-0	02	1	9307-	●	●
122	GASKET 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=13.9	8-94113-330-0	01	1	9307-	●	●
122	GASKET 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=10.8	8-94113-331-0	01	1	9307-	●	●
122	GASKET 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=11.0	8-94461-900-0	01	1	9307-	●	●
122	GASKET 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) (F) ID=14.8	8-94461-901-0	01	1	9307-	●	●
122	GASKET 6RB1 STD ENG(07L),6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-09623-488-0	01	1	9002-9306	●	●
122	GASKET 6RB1 STD ENG(07L),6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09623-489-0	01	1	9002-9306	●	●
122	GASKET 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-09623-514-0	01	1	9002-9306	●	●
122	GASKET 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) (F)	1-09623-515-0	01	1	9002-9306	●	●
122	GASKET 8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-09623-488-0	02	1	9002-9306	●	●
122	GASKET 8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-09623-489-0	02	1	9002-9306	●	●
122	GASKET 8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=13.9	8-94113-330-0	02	1	9307-	●	●
122	GASKET 8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=10.8	8-94113-331-0	02	1	9307-	●	●
126	CLIP; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) (A)	5-09707-031-1	01	1	9002-	●	●
126	CLIP; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97084-632-0	01	1	9002-	●	●
144	BOLT; CONN TO CMPR V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) M10X45	9-01961-045-0	01	1	9206-	●	●
145	BOLT; CLIP,CONNECTOR V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) M8X16 W/LK WASHER	9-01900-816-0	01	1	9206-	●	●

181 122 181 122 17 122 122 17 126 120 40 1 173 172

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-037-2	01	1	9002-9306	●	●
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-064-0	01	1	9307-9308	●	●
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-065-0	01	1	9309-	●	●
17	HOSE; FLEX,CMPR TO PIPE 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83566-562-0	01	1	9002-9306	●	●
17	HOSE; FLEX,CMPR TO PIPE 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83566-563-0	01	1	9002-9306	●	●
17	HOSE; FLEX,CMPR TO PIPE 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83572-032-0	01	1	9307-	●	●
17	HOSE; FLEX,CMPR TO PIPE 10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83572-033-0	01	1	9307-	●	●
17	HOSE; FLEX,CMPR TO PIPE 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83566-588-0	01	1	9002-9306	●	●
17	HOSE; FLEX,CMPR TO PIPE 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83566-589-0	01	1	9002-9306	●	●
17	HOSE; FLEX,CMPR TO PIPE 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-034-0	01	1	9307-	●	●
17	HOSE; FLEX,CMPR TO PIPE 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-035-0	01	1	9307-	●	●
17	HOSE; FLEX,CMPR TO PIPE 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83566-500-0	01	1	9002-9306	●	●
17	HOSE; FLEX,CMPR TO PIPE 8PD1 STD ENG(38L) AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83566-845-0	01	1	9307-9309	●	●
17	HOSE; FLEX,CMPR TO PIPE 8PD1 STD ENG(38L) AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83572-047-0	01	1	9310-	●	●
17	HOSE; FLEX,CMPR TO PIPE 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83566-501-0	01	1	9002-9306	●	●
17	HOSE; FLEX,CMPR TO PIPE 8PD1 STD ENG(38L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83566-846-0	01	1	9307-9309	●	●
17	HOSE; FLEX,CMPR TO PIPE 8PD1 STD ENG(38L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83572-048-0	01	1	9310-	●	●
40	BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-048-0	01	1	9002-	●	●
120	BRACKET; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-645-1	01	1	9002-9306	●	●
120	BRACKET; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-642-1	01	1	9307-9308	●	●
120	BRACKET; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-645-1	01	1	9309-	●	●
122	GASKET 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=13.9	8-94113-330-0	01	1	9307-	●	●
122	GASKET 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=10.8	8-94113-331-0	01	1	9307-	●	●
122	GASKET 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=11.0	8-94461-900-0	01	1	9307-	●	●
122	GASKET 6RB1 STD ENG(07L) AIR CONDITIONER MANUAL CONTROL(C60) (F) ID=14.8	8-94461-901-0	01	1	9307-	●	●
122	GASKET 6RB1 STD ENG(07L),6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-09623-488-0	01	1	9002-9306	●	●
122	GASKET 6RB1 STD ENG(07L),6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09623-489-0	01	1	9002-9306	●	●
122	GASKET 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-09623-514-0	01	1	9002-9306	●	●
122	GASKET 6RB1TC ENG(30L) AIR CONDITIONER MANUAL CONTROL(C60) (F)	1-09623-515-0	01	1	9002-9306	●	●
122	GASKET 8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-09623-488-0	02	1	9002-9306	●	●
122	GASKET 8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-09623-489-0	02	1	9002-9306	●	●
122	GASKET 8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=13.9	8-94113-330-0	02	1	9307-	●	●
122	GASKET 8PD1 STD ENG(38L),10PD1 STD ENG(40L) AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=10.8	8-94113-331-0	02	1	9307-	●	●
126	CLIP; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) (A)	5-09707-031-1	01	1	9002-	●	●
126	CLIP; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97084-632-0	01	1	9002-	●	●
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-283-0	01	1	9002-9306	●	●
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-224-0	01	1	9307-	●	●
173	COVER; PRESS SW AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-429-0	01	1	9002-9306	●	●
181	GASKET; CONNECTOR V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09623-514-0	01	1	9307-	●	●
181	GASKET; CONNECTOR V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-09623-515-0	01	1	9307-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
