9-01 — TOOLS (#29209) — 157 parça

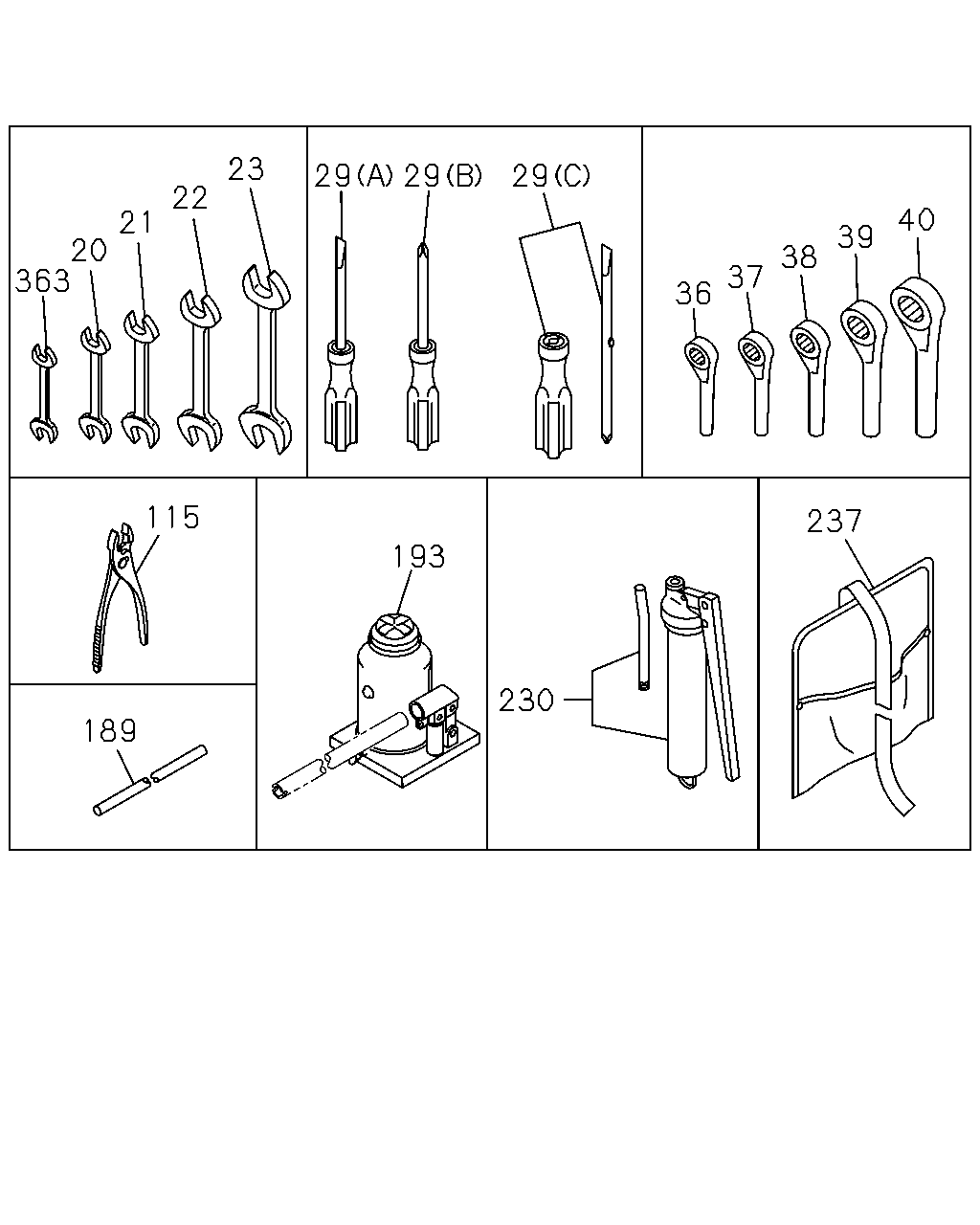

23 29 29 29 22 40 21 20 363 39 38 37 36 115 237 193 230 189

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	WRENCH; 10X12 10X12	9-09592-110-0	01	1	0407-0511
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12	9-09592-110-0	01	1	0512-0607
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12	0-95902-510-0	01	1	0608-
21	WRENCH; 14X17 14X17	9-09592-114-0	01	1	0407-0511
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17	9-09592-114-0	01	1	0512-0607
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17	0-95902-514-0	01	1	0608-
22	WRENCH; 19X22 19X22	9-99592-119-0	01	1	0407-0511
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22	9-99592-119-0	01	1	0512-0607
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22	0-95902-519-0	01	1	0608-
23	WRENCH; 24X27 24X27	9-09592-124-0	01	1	0407-0511
23	WRENCH; 24X27 TOOL B KIT<SL1> 24X27	9-09592-124-0	01	1	0512-0607
23	WRENCH; 24X27 TOOL B KIT<SL1> 24X27	0-95902-524-0	01	1	0608-
29	DRIVER; SCREW (A) <-> L=285	1-85151-004-0	01	1	0407-0511
29	DRIVER; SCREW TOOL B KIT<SL1> (A) <-> L=285	1-85151-004-0	01	1	0512-
29	DRIVER; SCREW (C) <+>,<-> L=160	8-94242-798-1	01	1	0407-0511
29	DRIVER; SCREW TOOL B KIT<SL1> (C) <+>,<-> L=160	8-94242-798-1	01	1	0512-
29	DRIVER; SCREW (B) <+> L=275	9-09595-023-0	01	1	0407-0511
29	DRIVER; SCREW TOOL B KIT<SL1> (B) <+> L=275	9-09595-023-0	01	1	0512-
36	WRENCH; 24	9-85111-377-0	01	1	0407-
37	WRENCH; 27	9-85111-375-0	01	1	0407-
38	WRENCH; 32	9-85111-358-0	01	1	0407-
39	WRENCH; 36	9-85111-374-0	01	1	0407-
40	WRENCH; 41	9-85111-356-0	01	1	0407-
115	PLIER	5-85171-002-0	01	1	0407-0511
115	PLIER TOOL B KIT<SL1>	5-85171-002-0	01	1	0512-
189	TUBE; AIR BREATHER L=460	9-85291-414-0	01	1	0407-0511
189	TUBE; AIR BREATHER TOOL B KIT<SL1> L=460	9-85291-414-0	01	1	0512-
193	JACK ASM 15TON	1-85510-019-1	01	1	0407-0511
193	JACK ASM TOOL B KIT<SL1> 15TON	1-85510-019-2	01	1	0512-
230	PUMP; GREASE	1-85556-007-3	01	1	0407-0511
230	PUMP; GREASE TOOL B KIT<SL1>	1-85556-007-5	01	1	0512-
237	BAG; TOOL	8-97130-902-0	01	1	0407-0511
237	BAG; TOOL TOOL B KIT<SL1>	8-97130-902-1	01	1	0512-
363	WRENCH; OPEN END 8X10 8X10	9-99592-108-0	01	1	0407-0511
363	WRENCH; OPEN END 8X10 TOOL B KIT<SL1> 8X10	9-99592-108-0	01	1	0512-0607
363	WRENCH; OPEN END 8X10 TOOL B KIT<SL1> 8X10	0-95902-508-0	01	1	0608-

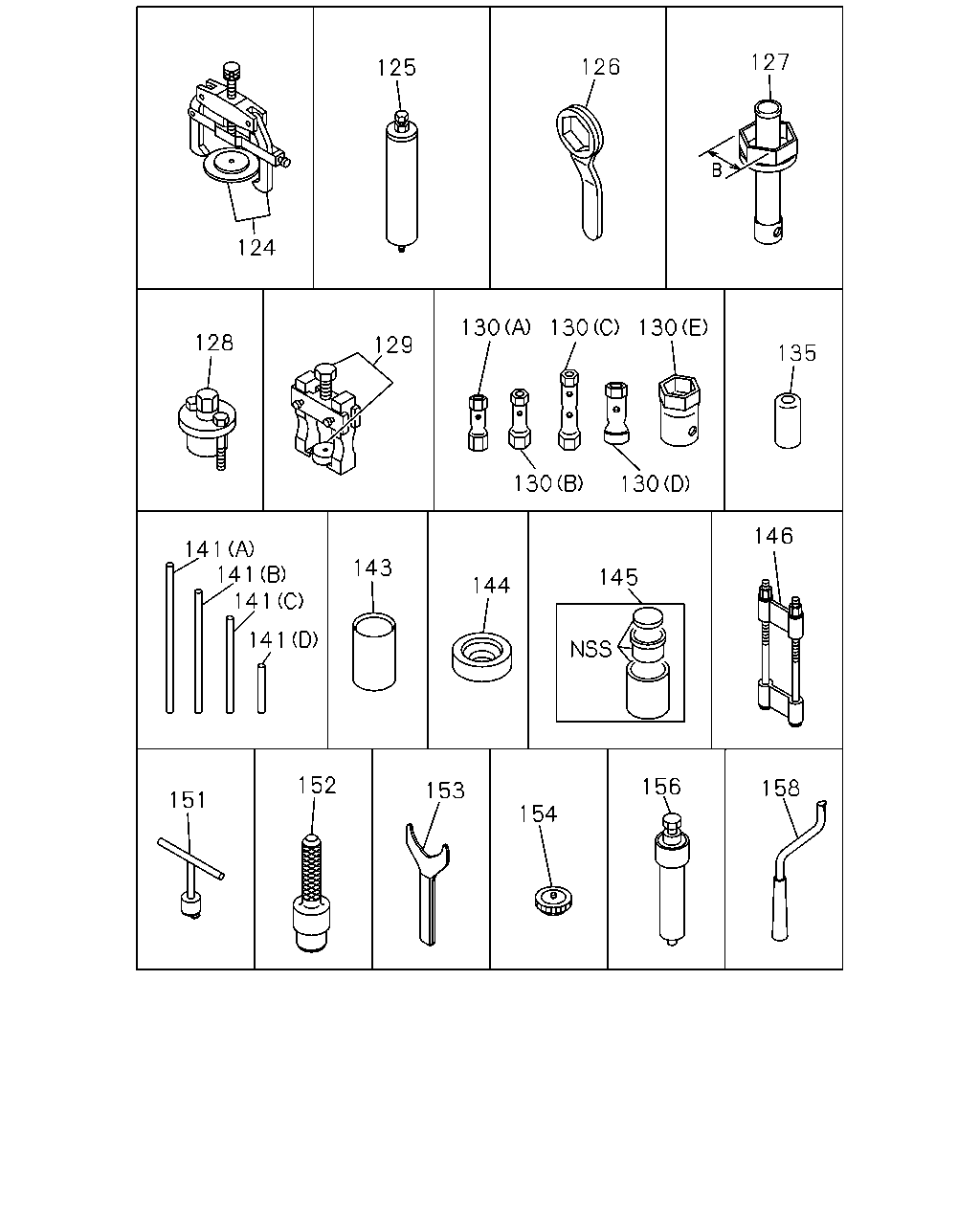

127 126 125 124 130 130 130 128 129 135 130 130 146 141 141 141 143 145 144 141 152 156 158 153 151 154

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	0407-
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	0407-
126	WRENCH; FRT HUB BRG NUT L=350 B=75	1-85110-002-1	01	1	0407-
127	WRENCH ASM; HUB BRG NUT L=400 B=116	9-85113-524-0	01	1	0407-0808
127	WRENCH ASM; HUB BRG NUT L=400 B=116	8-98119-000-1	01	1	0809-
128	PULLER ASM; STRG WHEEL	1-85210-078-0	01	1	0407-
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	0407-
130	WRENCH; BOX (E) B=63	9-85111-368-0	01	1	0407-
130	WRENCH; BOX (D) B=46 & 54 L=165	9-85112-320-0	01	1	0407-0511
130	WRENCH; BOX (A) B=32 & 41 L=150	9-85112-322-0	01	1	0407-0511
130	WRENCH; BOX (C) B=36 & 41 L=200	9-85112-330-0	01	1	0407-0511
130	WRENCH; BOX (B) B=41 & 46 L=165	9-85113-401-0	01	1	0407-0511
135	COVER; ENG MTG,FRT	9-85595-016-0	02	1	0407-
141	HANDLE; WRENCH (A) OD=25 L=480	1-85116-011-0	01	1	0407-0511
141	HANDLE; WRENCH (A) OD=25 L=480	1-85116-011-0	01	1	0512-1411
141	HANDLE; WRENCH (A) OD=25 L=480	8-98257-407-0	01	1	1412-
141	HANDLE; WRENCH (D) OD=16 L=200	9-85111-934-0	01	1	0407-
141	HANDLE; WRENCH (B) OD=19 L=400	9-85114-306-0	01	1	0407-0511
141	HANDLE; WRENCH (C) OD=16 L=300	9-85114-307-0	01	1	0407-0511
143	GUIDE; BOOT,TIE ROD END	1-85229-013-0	01	1	0407-
144	BASE; BOOT GUIDE,TIE ROD END	1-85229-009-0	01	1	0407-
145	REPLACER ASM; BUSHING	1-85230-008-0	01	1	0407-
146	REPLACER KIT; LEAF SPR	9-85231-556-0	01	1	0407-0511
146	REPLACER KIT; LEAF SPR	9-85231-556-0	01	1	0407-0511
146	REPLACER KIT; LEAF SPR	9-85231-556-0	01	1	0512-
151	REMOVER; OIL BRK,FRT RETURN SPR ID=16	1-85237-002-0	01	1	0407-
152	DRIVER; NEEDLE,KING PIN L=220	1-85238-001-0	01	1	0407-0511
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	0407-
154	SLEEPER; KING PIN	1-85238-003-0	01	1	0407-
156	PULLER; ANCHOR PIN	1-85210-025-0	01	1	0407-
158	SETTING TOOL; RETURN SPR	9-85221-231-0	01	1	0407-

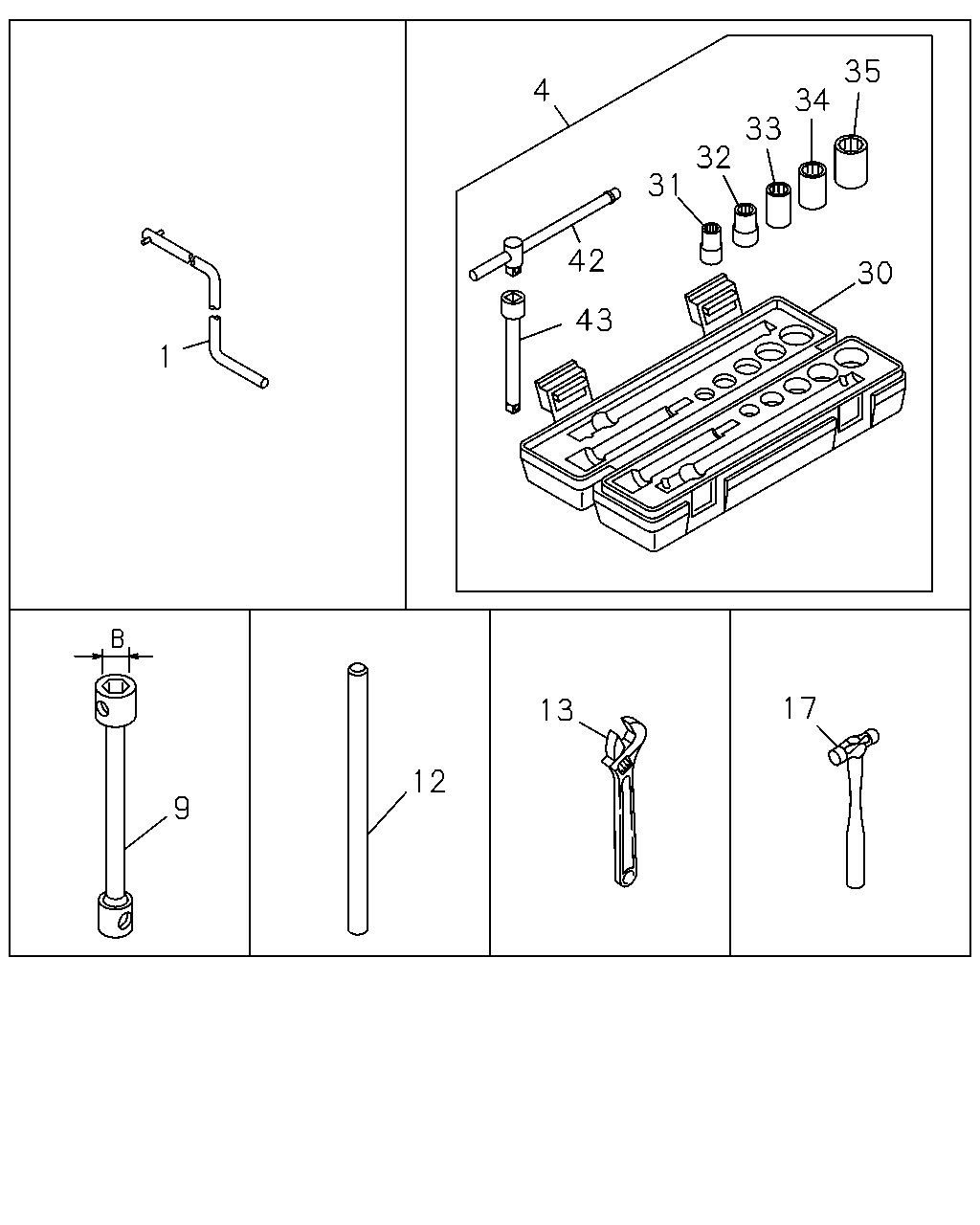

35 34 33 32 4 31 42 30 43 1 17 13 12 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HANDLE; SPARE TIRE CARRIER SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	9-23110-018-0	01	1	0512-
4	WRENCH KIT; SOCKET	1-85000-491-0	01	1	0407-0511
4	WRENCH KIT; SOCKET TOOL B KIT<SL1>	1-85000-491-0	01	1	0512-
9	WRENCH; WHEEL PIN B=33X30 L=450	1-85111-033-1	01	1	0407-0511
9	WRENCH; WHEEL PIN TOOL B KIT<SL1> B=33X30 L=450	1-85111-033-1	01	1	0512-
12	HANDLE; WRENCH,WHEEL PIN TOOL B KIT<SL1> OD=25 L=480	1-85116-011-0	01	1	0512-1411
12	HANDLE; WRENCH,WHEEL PIN TOOL B KIT<SL1> OD=25 L=480	8-98257-407-0	01	1	1412-
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	1-85116-011-0	01	1	0407-0511
13	WRENCH; MONKEY L=255	1-85117-002-1	01	1	0407-0511
13	WRENCH; MONKEY TOOL B KIT<SL1> L=255	1-85117-002-1	01	1	0512-0907
13	WRENCH; MONKEY TOOL B KIT<SL1> L=247	1-85117-006-0	01	1	0908-1407
13	WRENCH; MONKEY TOOL B KIT<SL1> L=255	8-98270-303-0	01	1	1408-
17	HAMMER	9-85121-406-0	01	1	0407-0511
17	HAMMER TOOL B KIT<SL1>	9-85121-406-0	01	1	0512-
30	BOX; SOCKET WRENCH	1-85000-492-0	01	1	0407-0511
30	BOX; SOCKET WRENCH TOOL B KIT<SL1>	1-85000-492-0	01	1	0512-
31	WRENCH; 12	1-85000-495-0	01	1	0407-0511
31	WRENCH; 12 TOOL B KIT<SL1>	1-85000-495-0	01	1	0512-
32	WRENCH; 14	1-85000-496-0	01	1	0407-0511
32	WRENCH; 14 TOOL B KIT<SL1>	1-85000-496-0	01	1	0512-
33	WRENCH; 17	1-85000-497-0	01	1	0407-0511
33	WRENCH; 17 TOOL B KIT<SL1>	1-85000-497-0	01	1	0512-
34	WRENCH; 19	1-85000-498-0	01	1	0407-0511
34	WRENCH; 19 TOOL B KIT<SL1>	1-85000-498-0	01	1	0512-
35	WRENCH; 22	1-85000-499-0	01	1	0407-0511
35	WRENCH; 22 TOOL B KIT<SL1>	1-85000-499-0	01	1	0512-
42	HANDLE; SLIDING	1-85000-500-0	01	1	0407-0511
42	HANDLE; SLIDING TOOL B KIT<SL1>	1-85000-500-0	01	1	0512-
43	BAR; EXTENSION,SOCKET WRENCH	1-85000-501-0	01	1	0407-0511
43	BAR; EXTENSION,SOCKET WRENCH TOOL B KIT<SL1>	1-85000-501-0	01	1	0512-

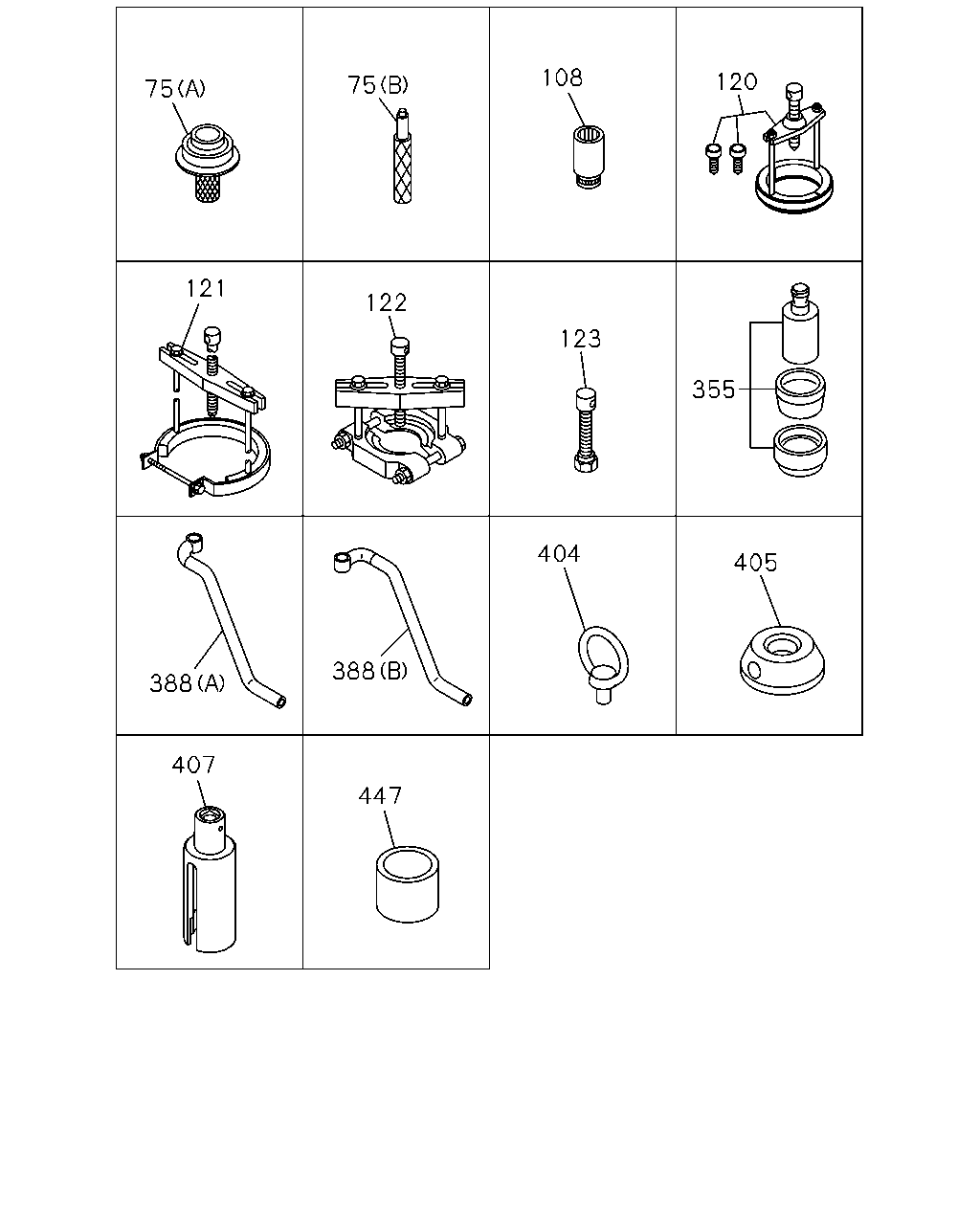

108 120 75 75 121 122 123 355 404 405 388 388 407 447

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
75	TOOL; SETTING,OIL SEAL (A)	1-85220-049-0	AR	1	0407-0511
75	TOOL; SETTING,OIL SEAL (B)	1-85221-096-0	01	1	0407-
108	WRENCH; SOCKET	9-85113-132-0	01	1	0407-
120	PULLER ASM; MAIN REAR BRG L=285	9-85210-184-0	01	1	0407-
121	PULLER ASM; COUNTER REAR	1-85210-069-0	01	1	0407-
122	PULLER ASM; COUNTER FRT	9-85210-195-0	01	1	0407-
123	PULLER; SPEEDOMETER BUSHING	9-85210-181-0	01	1	0407-0511
355	REPLACER KIT; BUSH,V-LINK BUSH OD=62	1-85230-016-0	01	1	0512-
355	REPLACER KIT; BUSH,V-LINK BUSH OD=70	1-85230-017-0	01	1	0512-
388	WRENCH; U-BOLT (A)	9-85111-954-0	01	1	0407-
388	WRENCH; U-BOLT (B)	9-85111-955-0	01	1	0407-
404	TOOL; SETTING,MAIN COUNTER	1-85221-262-0	02	1	0407-
405	GUIDE; COUNTER	1-85221-264-0	01	1	0407-
407	SOCKET; SW	1-85221-267-1	01	1	0407-
447	REPLACER KIT; BUSH,STABILIZER BAR ID=65 OD=90 L=65	8-97608-200-0	01	1	0502-
447	REPLACER KIT; BUSH,STABILIZER BAR ID=43.1 OD=48.6 L=65	8-97608-274-0	01	1	0502-

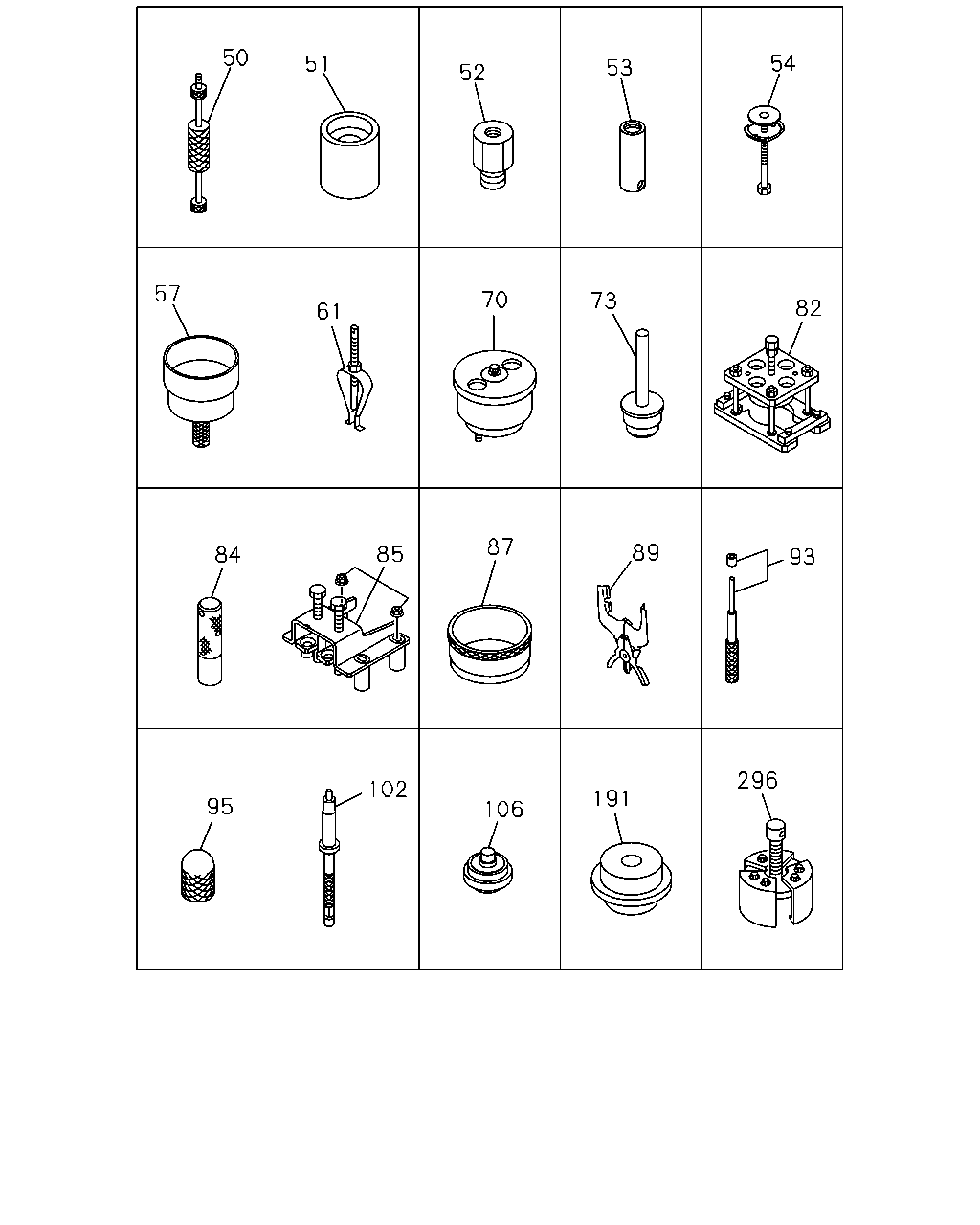

50 54 51 53 52 57 70 73 82 61 87 89 85 84 93 296 102 191 95 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	REPLACER; NOZZLE HOLDER L=300	1-85230-013-0	AR	1	0407-0511
51	PULLER ASM; WATER PUMP	1-85220-047-0	AR	1	0407-0511
52	REMOVER; WATER PUMP	1-85210-062-0	AR	1	0407-0511
53	PULLER; TAPER BUSHING	1-85210-063-0	AR	1	0407-0511
54	PULLER; THERMOSTAT SEAL	1-85210-067-0	AR	1	0407-0511
57	TOOL; SETTING CRANK GEAR OD=162	1-85220-045-0	AR	1	0407-0511
61	PULLER ASM; PILOT BRG	9-85210-157-0	AR	1	0407-0511
70	TOOL; SETTING,OIL SEAL	1-85220-043-0	AR	1	0407-0511
73	TOOL; SETTING,THERMOSTAT SEAL	1-85221-034-0	AR	1	0407-0511
82	PULLER ASM; CR/SHF GEAR	1-85210-064-0	AR	1	0407-0511
84	REPLACER; VALVE SEAL EXHAUST	1-85221-184-0	AR	1	0407-0511
84	REPLACER; VALVE SEAL INLET	1-85221-187-0	AR	1	0407-0511
85	REPLACER ASM; VALVE SPR	1-85235-013-0	AR	1	0407-0511
87	TOOL; PISTON	1-85220-059-0	AR	1	0407-0511
89	TOOL; PISTON RING	1-85221-025-0	AR	1	0407-0511
93	SETTING KIT; VALVE GUIDE L=260	9-85231-202-0	AR	1	0407-0511
95	SETTING TOOL; BRIDGE GUIDE	9-85221-324-0	AR	1	0407-0511
102	ADAPTER; COMP GAGE	1-85317-019-0	AR	1	0407-0511
106	TOOL; SETTING PILOT BRG	1-85221-057-0	AR	1	0407-0511
191	ADAPTER	1-85216-009-0	01	1	0407-
296	REPLACER; SLINGER	1-85210-027-0	AR	1	0407-0511

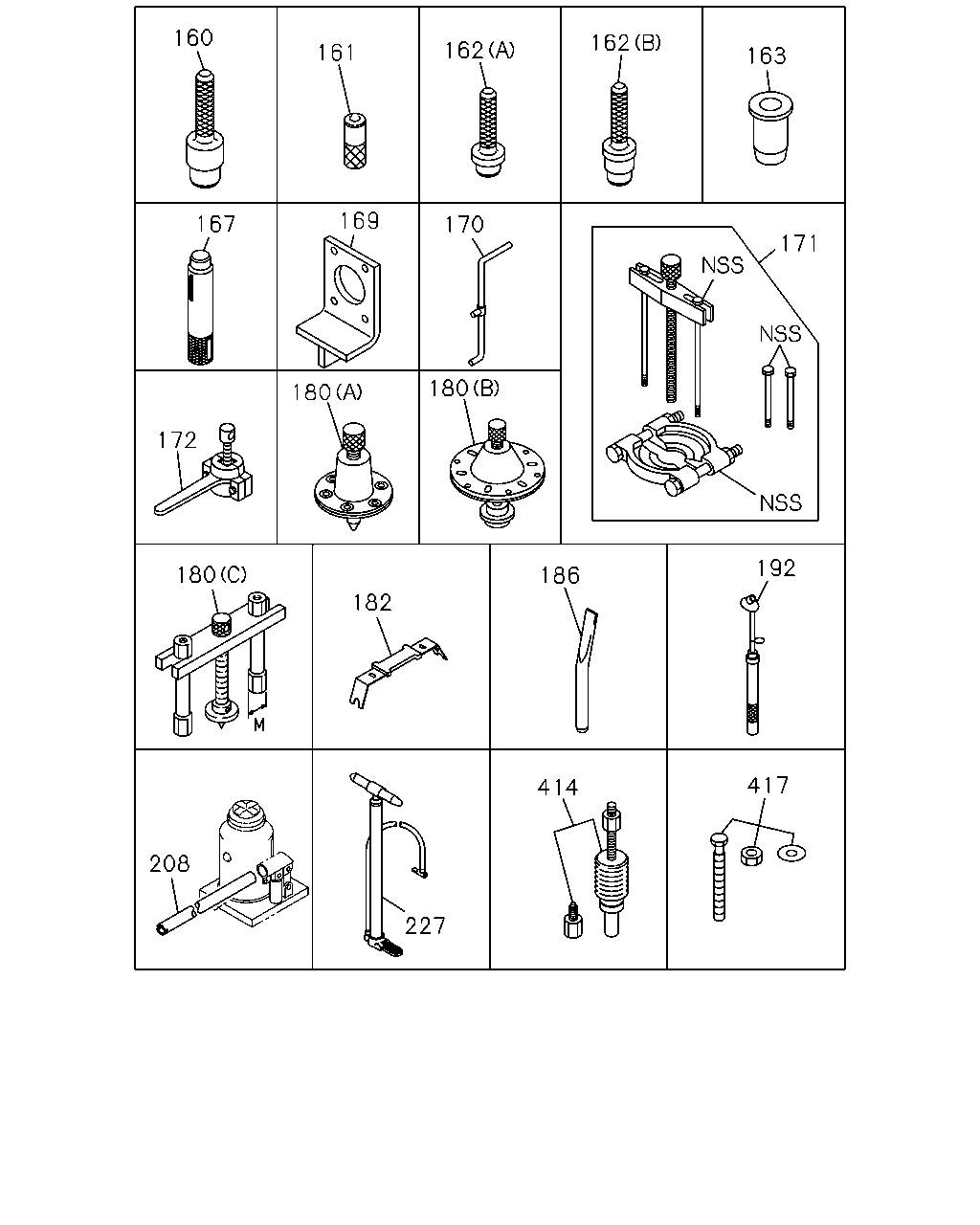

160 162 162 161 163 169 167 170 171 180 180 172 192 180 186 182 417 414 208 227

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
160	REMOVER; NEEDLE BRG L=220	1-85238-001-0	01	1	0407-
161	REMOVER; TIE ROD ARM	1-85176-001-0	01	1	0407-
162	SETTING TOOL; NEEDLE BRG (A) L=181	1-85238-008-0	01	1	0407-
162	SETTING TOOL; NEEDLE BRG (B) L=213	1-85238-009-0	01	1	0407-
163	TOOL; SETTING L=195	1-85221-162-1	01	1	0407-0511
163	TOOL; SETTING L=150	9-85221-248-0	01	1	0407-0511
167	ALIGNER; CLU PILOT L=300 OD=52.5	1-85253-025-0	01	1	0407-
169	BRACKET; SPLINE YOKE	1-85221-317-0	01	1	0407-
170	HANDLE; TURNING,FINAL	9-85251-121-0	01	1	0407-0511
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	0407-
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	0407-
180	PULLER; FRT & RR HUB (A)	1-85210-002-0	01	1	0407-
180	PULLER; FRT & RR HUB (B)	1-85210-003-0	01	1	0407-0511
180	PULLER; FRT & RR HUB (C) M22	1-85210-049-0	01	1	0407-0511
182	REMOVER ASM	1-85239-008-0	01	1	0407-
186	ADJUSTER; BRAKE	1-85269-008-0	01	1	0407-
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	0407-
208	HANDLE; JACK L=600	1-85515-009-0	01	1	0407-0511
208	HANDLE; JACK TOOL B KIT<SL1> L=600	1-85515-009-0	01	1	0512-1107
208	HANDLE; JACK TOOL B KIT<SL1> L=600	8-98181-437-0	01	1	1108-
227	PUMP ASM; TIRE	9-85521-132-0	01	1	0407-
414	PULLER; REV IDLE SHAFT	9-85210-095-0	01	1	0407-0511
417	BOLT; CHAMBER RELEASE 1/2-13 UNC L=124 4-SETS	1-85576-331-1	01	1	0407-
