Sayfa 8-75 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 10956 - EXY NEW ZEALAND ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-75 - CONDENSER ▶

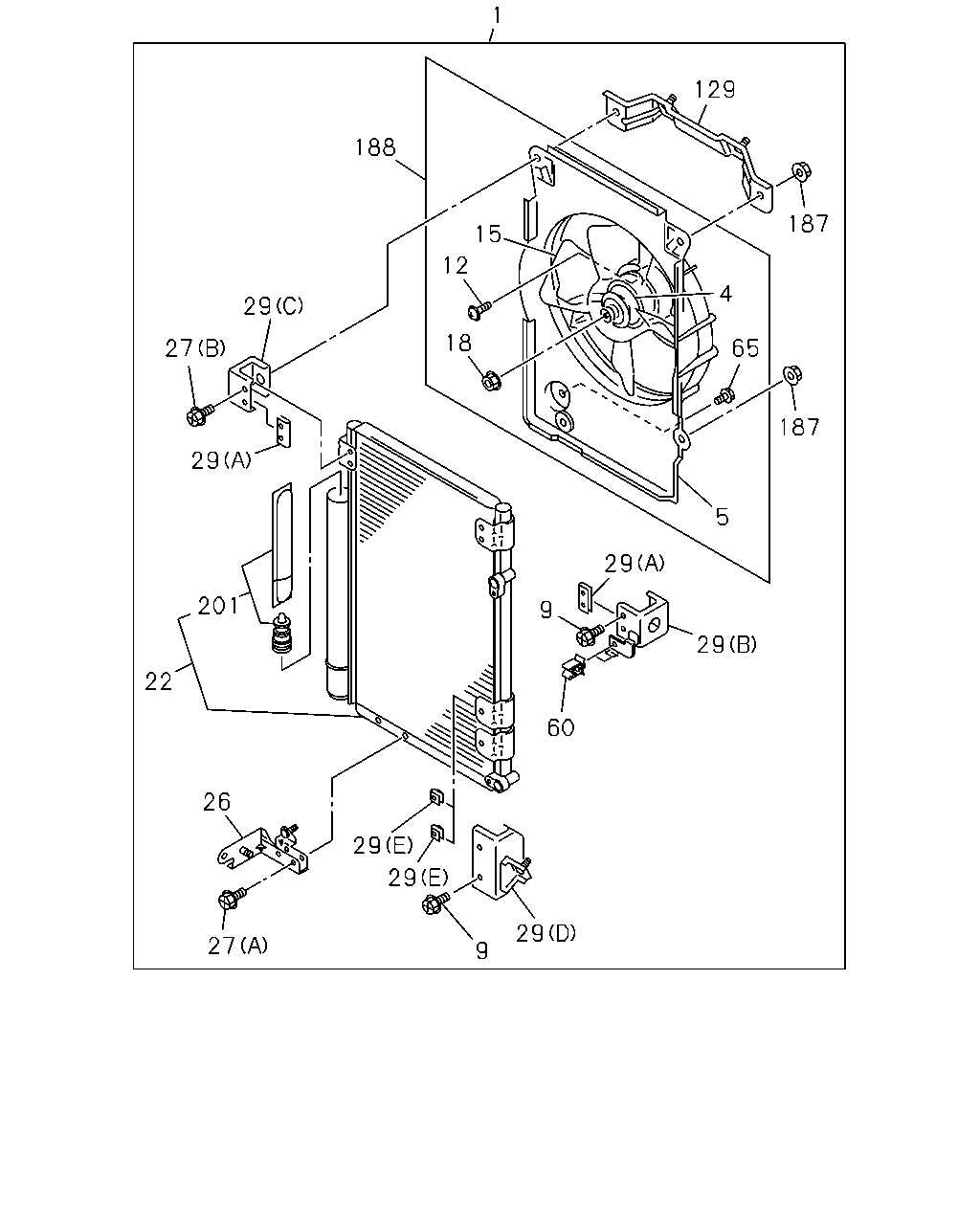

8-75 — CONDENSER (#29206) — 122 parça

1 129 188 187 15 12 4 29 18 65 27 187 29 5 29 201 9 29 22 60 26 29 29 29 27 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CONDENSER; A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83534-206-2	01	1	0407-0509
1	CONDENSER; A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	8-98024-412-0	01	1	0510-0511
1	CONDENSER; A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-97605-201-1	01	1	0512-0703
1	CONDENSER; A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-98076-087-2	01	1	0704-
4	MOTOR ASM; FAN AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83561-139-3	01	1	0407-0509
4	MOTOR ASM; FAN AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	8-98014-458-0	01	1	0510-0511
4	MOTOR ASM; FAN AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83561-139-3	01	1	0512-0703
4	MOTOR ASM; FAN AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-98078-763-0	01	1	0704-
5	SHROUD; FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83539-362-1	01	1	0407-0511
5	SHROUD; FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83539-362-1	01	1	0512-0703
5	SHROUD; FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-98076-093-0	01	1	0704-
9	BOLT; BRKT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M6X16	8-97096-525-0	04	1	0407-0511
9	BOLT; BRKT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M6X14	1-83539-382-0	04	1	0512-
12	BOLT; FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83539-314-0	03	1	0407-0511
12	BOLT; FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83539-314-0	03	1	0512-0703
12	BOLT; FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-98290-384-0	03	1	0704-1201
12	BOLT; FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-98290-384-0	01	1	1202-1409
12	BOLT; FAN MOTOR	8-98290-384-0	03	1	1410-
15	FAN; MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83561-140-0	01	1	0407-0511
15	FAN; MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83561-140-0	01	1	0512-0703
15	FAN; MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-98076-092-0	01	1	0704-
18	NUT; FAN,CENTER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83539-313-0	01	1	0407-0511
18	NUT; FAN,CENTER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83539-313-0	01	1	0512-
22	CONDENSER ASM; A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83534-231-1	01	1	0407-0511
22	CONDENSER ASM; A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83534-261-0	01	1	0512-1409
22	CONDENSER ASM; A/C	8-98275-189-0	01	1	1410-
26	BRACKET; LOW AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83573-128-1	01	1	0407-0511
26	BRACKET; LOW AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83573-281-0	01	1	0512-
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) M6X16	8-97096-525-0	02	1	0407-0511
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M6X14	1-83539-382-0	02	1	0512-
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) M5X25	8-97178-770-0	02	1	0407-0511
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M5X25	8-97178-770-0	02	1	0512-
29	BRACKET; SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83573-010-0	02	1	0407-0511
29	BRACKET; SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (F)	1-83573-278-0	01	1	0512-
29	BRACKET; SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83573-125-0	01	1	0407-0511
29	BRACKET; SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (G)	1-83573-279-0	01	1	0512-
29	BRACKET; SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (C)	1-83573-126-0	01	1	0407-0511
29	BRACKET; SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (H)	1-83573-280-0	01	1	0512-
29	BRACKET; SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (D)	1-83573-127-1	01	1	0407-0511
29	BRACKET; SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (E)	8-97180-263-0	02	1	0407-0511
60	CLIP; PIPE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83574-266-0	01	1	0407-0511
60	CLIP; PIPE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83574-266-0	01	1	0512-
65	BOLT; SHROUD AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M6X16	8-97096-525-0	01	1	0407-0511
65	BOLT; SHROUD AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M6X16	8-97096-525-0	01	1	0512-
129	BRACKET; UPR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83573-129-1	01	1	0407-0511
129	BRACKET; UPR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83573-129-0	01	1	0512-
187	NUT; SHROUD AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M6	1-83539-354-0	04	1	0407-0511
187	NUT; SHROUD AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M6	1-83539-354-0	04	1	0512-
188	BLOWER ASM; SHROUD AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83561-162-2	01	1	0407-0511
188	BLOWER ASM; SHROUD AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83561-162-1	01	1	0512-0703
188	BLOWER ASM; SHROUD AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-98078-760-1	01	1	0704-
201	DRYER ASM; CONDENSER	8-98282-482-0	01	1	1410-
201	DRYER ASM; CONDENSER	1-83535-097-0	01	1	0407-1409

150 30 30 35 150 35 150 35 1 35

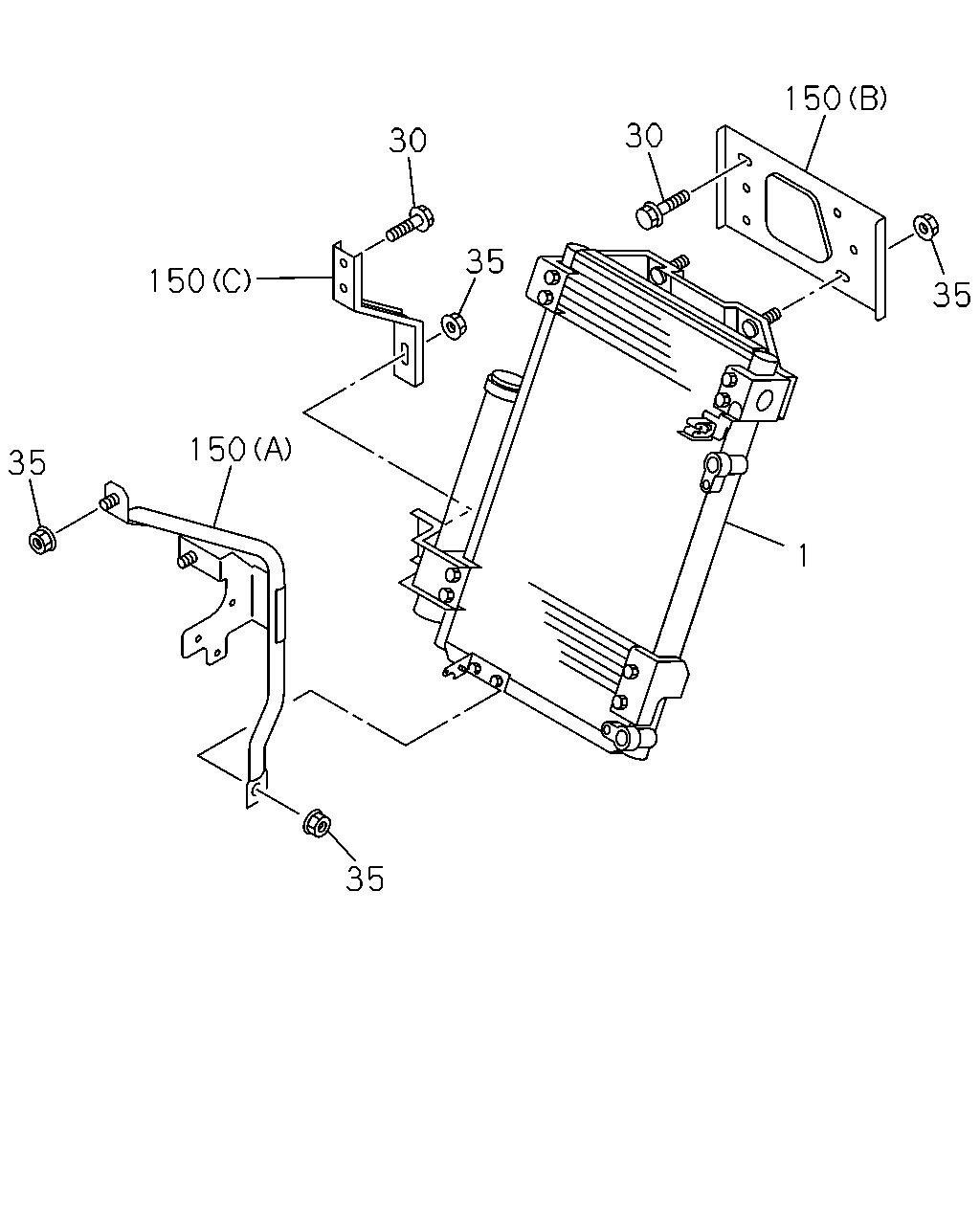

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CONDENSER; A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83534-206-2	01	1	0407-0509
1	CONDENSER; A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	8-98024-412-0	01	1	0510-0511
1	CONDENSER; A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-97605-201-1	01	1	0512-0703
1	CONDENSER; A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-98076-087-2	01	1	0704-
30	BOLT; CONDENSER,A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0407-0511
30	BOLT; CONDENSER,A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0512-0904
30	BOLT; CONDENSER,A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	0905-
35	NUT; CONDENSER,A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M8 FLANGE	0-91150-108-0	05	1	0407-0511
35	NUT; CONDENSER,A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE	0-91150-108-0	05	1	0512-0602
35	NUT; CONDENSER,A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE	0-91180-108-0	05	1	0603-
150	BRACKET; CONDENSER,MTG AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83571-984-0	01	1	0407-0511
150	BRACKET; CONDENSER,MTG AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83571-984-0	01	1	0512-
150	BRACKET; CONDENSER,MTG AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (C)	1-83571-985-0	01	1	0407-0511
150	BRACKET; CONDENSER,MTG AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83571-985-0	01	1	0512-
150	BRACKET; CONDENSER,MTG AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83573-242-1	01	1	0407-0511
150	BRACKET; CONDENSER,MTG AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83573-242-1	01	1	0512-

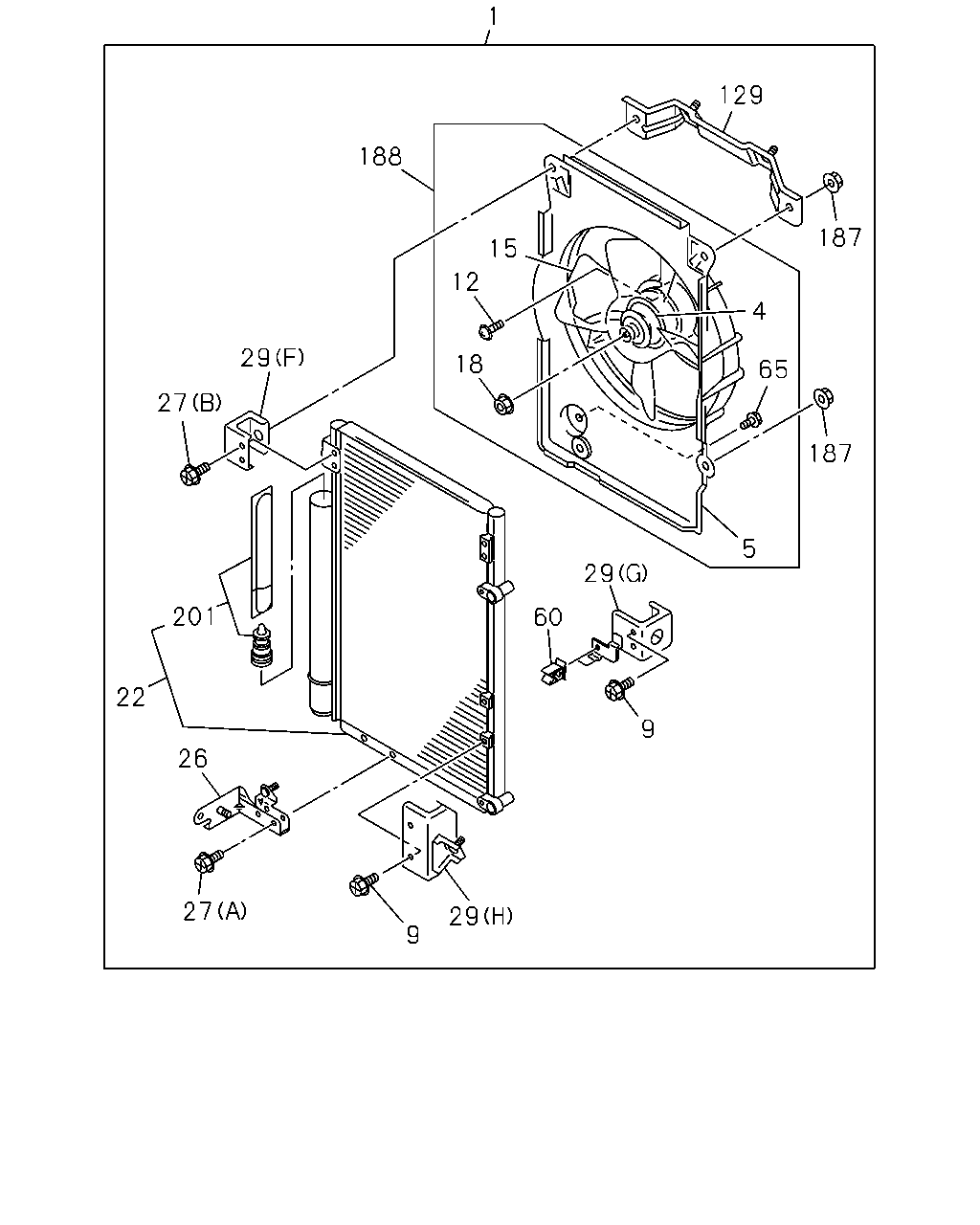

1 129 188 187 15 12 4 29 18 65 27 187 5 29 201 60 22 9 26 27 29 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CONDENSER; A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83534-206-2	01	1	0407-0509
1	CONDENSER; A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	8-98024-412-0	01	1	0510-0511
1	CONDENSER; A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-97605-201-1	01	1	0512-0703
1	CONDENSER; A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-98076-087-2	01	1	0704-
4	MOTOR ASM; FAN AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83561-139-3	01	1	0407-0509
4	MOTOR ASM; FAN AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	8-98014-458-0	01	1	0510-0511
4	MOTOR ASM; FAN AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83561-139-3	01	1	0512-0703
4	MOTOR ASM; FAN AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-98078-763-0	01	1	0704-
5	SHROUD; FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83539-362-1	01	1	0407-0511
5	SHROUD; FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83539-362-1	01	1	0512-0703
5	SHROUD; FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-98076-093-0	01	1	0704-
9	BOLT; BRKT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M6X16	8-97096-525-0	04	1	0407-0511
9	BOLT; BRKT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M6X14	1-83539-382-0	04	1	0512-
12	BOLT; FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83539-314-0	03	1	0407-0511
12	BOLT; FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83539-314-0	03	1	0512-0703
12	BOLT; FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-98290-384-0	03	1	0704-1201
12	BOLT; FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-98290-384-0	01	1	1202-1409
12	BOLT; FAN MOTOR	8-98290-384-0	03	1	1410-
15	FAN; MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83561-140-0	01	1	0407-0511
15	FAN; MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83561-140-0	01	1	0512-0703
15	FAN; MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-98076-092-0	01	1	0704-
18	NUT; FAN,CENTER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83539-313-0	01	1	0407-0511
18	NUT; FAN,CENTER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83539-313-0	01	1	0512-
22	CONDENSER ASM; A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83534-231-1	01	1	0407-0511
22	CONDENSER ASM; A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83534-261-0	01	1	0512-1409
22	CONDENSER ASM; A/C	8-98275-189-0	01	1	1410-
26	BRACKET; LOW AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83573-128-1	01	1	0407-0511
26	BRACKET; LOW AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83573-281-0	01	1	0512-
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) M6X16	8-97096-525-0	02	1	0407-0511
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M6X14	1-83539-382-0	02	1	0512-
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) M5X25	8-97178-770-0	02	1	0407-0511
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M5X25	8-97178-770-0	02	1	0512-
29	BRACKET; SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83573-010-0	02	1	0407-0511
29	BRACKET; SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (F)	1-83573-278-0	01	1	0512-
29	BRACKET; SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83573-125-0	01	1	0407-0511
29	BRACKET; SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (G)	1-83573-279-0	01	1	0512-
29	BRACKET; SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (C)	1-83573-126-0	01	1	0407-0511
29	BRACKET; SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (H)	1-83573-280-0	01	1	0512-
29	BRACKET; SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (D)	1-83573-127-1	01	1	0407-0511
29	BRACKET; SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (E)	8-97180-263-0	02	1	0407-0511
60	CLIP; PIPE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83574-266-0	01	1	0407-0511
60	CLIP; PIPE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83574-266-0	01	1	0512-
65	BOLT; SHROUD AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M6X16	8-97096-525-0	01	1	0407-0511
65	BOLT; SHROUD AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M6X16	8-97096-525-0	01	1	0512-
129	BRACKET; UPR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83573-129-1	01	1	0407-0511
129	BRACKET; UPR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83573-129-0	01	1	0512-
187	NUT; SHROUD AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M6	1-83539-354-0	04	1	0407-0511
187	NUT; SHROUD AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M6	1-83539-354-0	04	1	0512-
188	BLOWER ASM; SHROUD AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83561-162-2	01	1	0407-0511
188	BLOWER ASM; SHROUD AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83561-162-1	01	1	0512-0703
188	BLOWER ASM; SHROUD AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-98078-760-1	01	1	0704-
201	DRYER ASM; CONDENSER	8-98282-482-0	01	1	1410-
201	DRYER ASM; CONDENSER	1-83535-097-0	01	1	0407-1409

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
