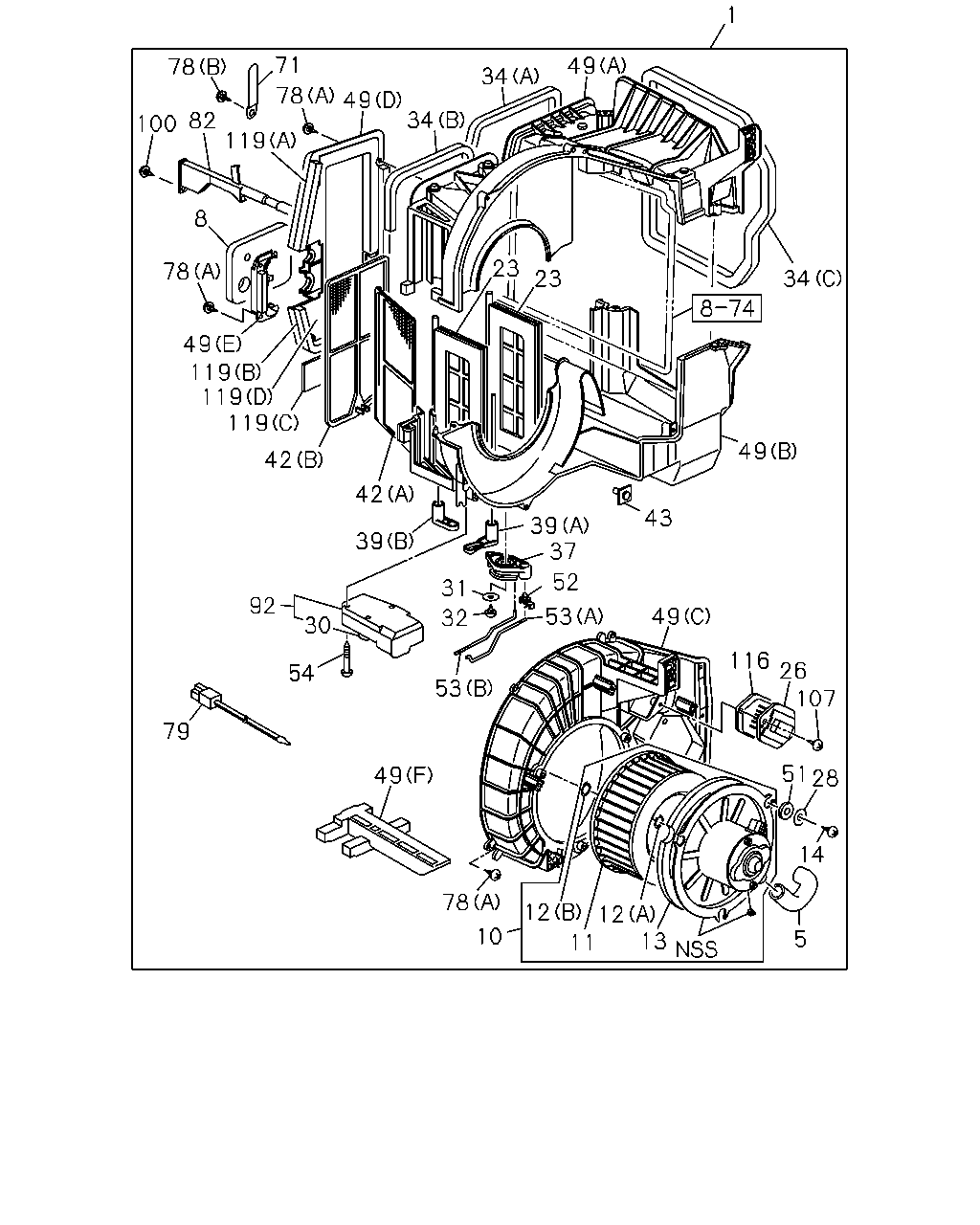

8-73 — BLOWER UNIT (#29204) — 96 parça

1 71 49 78 34 78 49 34 82 100 119 8 23 78 23 34 49 119 119 119 49 42 42 43 39 37 39 52 31 92 49 53 32 30 116 26 107 54 53 79 51 28 49 14 78 12 12 13 10 5 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOWER ASM AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83561-154-3	01	1	0407-0511
1	BLOWER ASM AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83561-154-5	01	1	0512-
5	HOSE; AIR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83563-140-0	01	1	0407-0511
5	HOSE; AIR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83563-140-0	01	1	0512-
8	SEAL; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83539-261-1	01	1	0407-0511
8	SEAL; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83539-261-1	01	1	0512-
10	MOTOR ASM; FAN,BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83561-161-0	01	1	0407-0511
10	MOTOR ASM; FAN,BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83561-161-0	01	1	0512-
11	IMPELLER; FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-635-0	01	1	0407-0511
11	IMPELLER; FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-635-0	01	1	0512-
12	RING; SNAP,FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	5-83569-088-0	01	1	0407-0511
12	RING; SNAP,FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	5-83569-088-0	01	1	0512-
12	RING; SNAP,FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	8-94243-962-0	01	1	0407-0511
12	RING; SNAP,FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	8-94243-962-0	01	1	0512-
13	LINING; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-636-0	01	1	0407-0511
13	LINING; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-636-0	01	1	0512-
14	SCREW; COVER TO CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X20	9-09829-324-1	03	1	0512-
14	SCREW; COVER TO CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	8-97130-601-0	03	1	0407-0511
23	SHUTTER; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-637-0	02	1	0407-0511
23	SHUTTER; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-637-0	02	1	0512-
26	TRANSISTOR; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-654-0	01	1	0407-0511
26	TRANSISTOR; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-654-0	01	1	0512-
28	WASHER; PL,FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-170-0	03	1	0407-0511
28	WASHER; PL,FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-170-0	03	1	0512-
30	LEVER; ACTUATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83564-345-1	01	1	0407-0511
30	LEVER; ACTUATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83564-345-1	01	1	0512-
31	WASHER; LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-095-0	01	1	0407-0511
31	WASHER; LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-095-0	01	1	0512-
32	SCREW; LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X20	9-09829-324-1	01	1	0512-
32	SCREW; LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	8-97130-601-0	01	1	0407-0511
34	LINING; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83579-633-2	01	1	0407-0511
34	LINING; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-633-2	01	1	0512-
34	LINING; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83579-634-2	01	1	0407-0511
34	LINING; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-634-2	01	1	0512-
34	LINING; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (C)	1-83579-644-0	01	1	0407-0511
34	LINING; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83579-644-0	01	1	0512-
37	LEVER; MODE LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83564-344-0	01	1	0407-0511
37	LEVER; MODE LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83564-344-0	01	1	0512-
39	LEVER; SHUTTER,BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83564-342-0	01	1	0407-0511
39	LEVER; SHUTTER,BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83564-342-0	01	1	0512-
39	LEVER; SHUTTER,BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83564-343-0	01	1	0407-0511
39	LEVER; SHUTTER,BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83564-343-0	01	1	0512-
42	FILTER; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83579-643-2	01	1	0407-0511
42	FILTER; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-643-3	01	1	0512-
42	FILTER; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83579-993-0	02	1	0407-0511
42	FILTER; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-993-0	02	1	0512-
43	BOLT; CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-657-2	04	1	0407-0511
43	BOLT; CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-657-2	04	1	0512-
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (C)	1-83564-337-4	01	1	0407-0511
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83564-337-4	01	1	0512-
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (E)	1-83564-339-1	01	1	0407-0511
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (E)	1-83564-339-1	01	1	0512-
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (F)	1-83564-340-1	01	1	0407-0511
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (F)	1-83564-340-1	01	1	0512-
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83564-351-1	01	1	0407-0511
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83564-351-1	01	1	0512-
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (D)	1-83564-353-1	01	1	0407-0511
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D)	1-83564-353-1	01	1	0512-
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83564-406-1	01	1	0407-0511
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83564-406-1	01	1	0512-
51	ISOLATOR; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-496-0	03	1	0407-0511
51	ISOLATOR; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-496-0	03	1	0512-
52	CLIP; LEVER TO CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	8-94248-794-0	02	1	0407-0511
52	CLIP; LEVER TO CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94248-794-0	02	1	0512-
53	ROD; ACTUATOR,BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83579-638-0	01	1	0407-0511
53	ROD; ACTUATOR,BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-638-0	01	1	0512-
53	ROD; ACTUATOR,BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83579-639-0	01	1	0407-0511
53	ROD; ACTUATOR,BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-639-0	01	1	0512-
54	SCREW; ACTUATOR TO CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	8-94348-809-0	02	1	0407-0511
54	SCREW; ACTUATOR TO CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94348-809-0	02	1	0512-
71	CLIP; HARNESS AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83574-080-0	01	1	0407-0511
71	CLIP; HARNESS AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83574-080-0	01	1	0512-
78	SCREW; CASE TO CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) M5X10 TAPPING W/PL WASHER	0-74300-510-0	01	1	0407-0511
78	SCREW; CASE TO CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M5X10 TAPPING W/PL WASHER	0-74300-510-0	01	1	0512-
78	SCREW; CASE TO CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) M4X16	8-94324-850-0	17	1	0407-0511
78	SCREW; CASE TO CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M4X16	8-94324-850-0	17	1	0512-
79	SENSOR; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83544-037-0	01	1	0407-0511
79	SENSOR; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83544-037-0	01	1	0512-
82	BRACKET; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83571-871-1	01	1	0407-0511
82	BRACKET; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83571-871-1	01	1	0512-
92	ACTUATOR; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-640-1	01	1	0407-0511
92	ACTUATOR; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-640-1	01	1	0512-
100	SCREW; BRKT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M4X16	8-94324-850-0	01	1	0407-0511
100	SCREW; BRKT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M4X16	8-94324-850-0	01	1	0512-
107	SCREW; TRANSISTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M4X16	8-94324-850-0	02	1	0407-0511
107	SCREW; TRANSISTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M4X16	8-94324-850-0	02	1	0512-
116	SEAL; TRANSISTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-656-0	01	1	0407-0511
116	SEAL; TRANSISTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-656-0	01	1	0512-
119	LINING; CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (D)	1-83578-032-0	01	1	0407-0511
119	LINING; CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D)	1-83578-032-0	01	1	0512-
119	LINING; CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83579-670-1	01	1	0407-0511
119	LINING; CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-670-1	01	1	0512-
119	LINING; CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83579-671-1	01	1	0407-0511
119	LINING; CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-671-1	01	1	0512-
119	LINING; CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (C)	1-83579-961-0	01	1	0407-0511
119	LINING; CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83579-961-0	01	1	0512-
