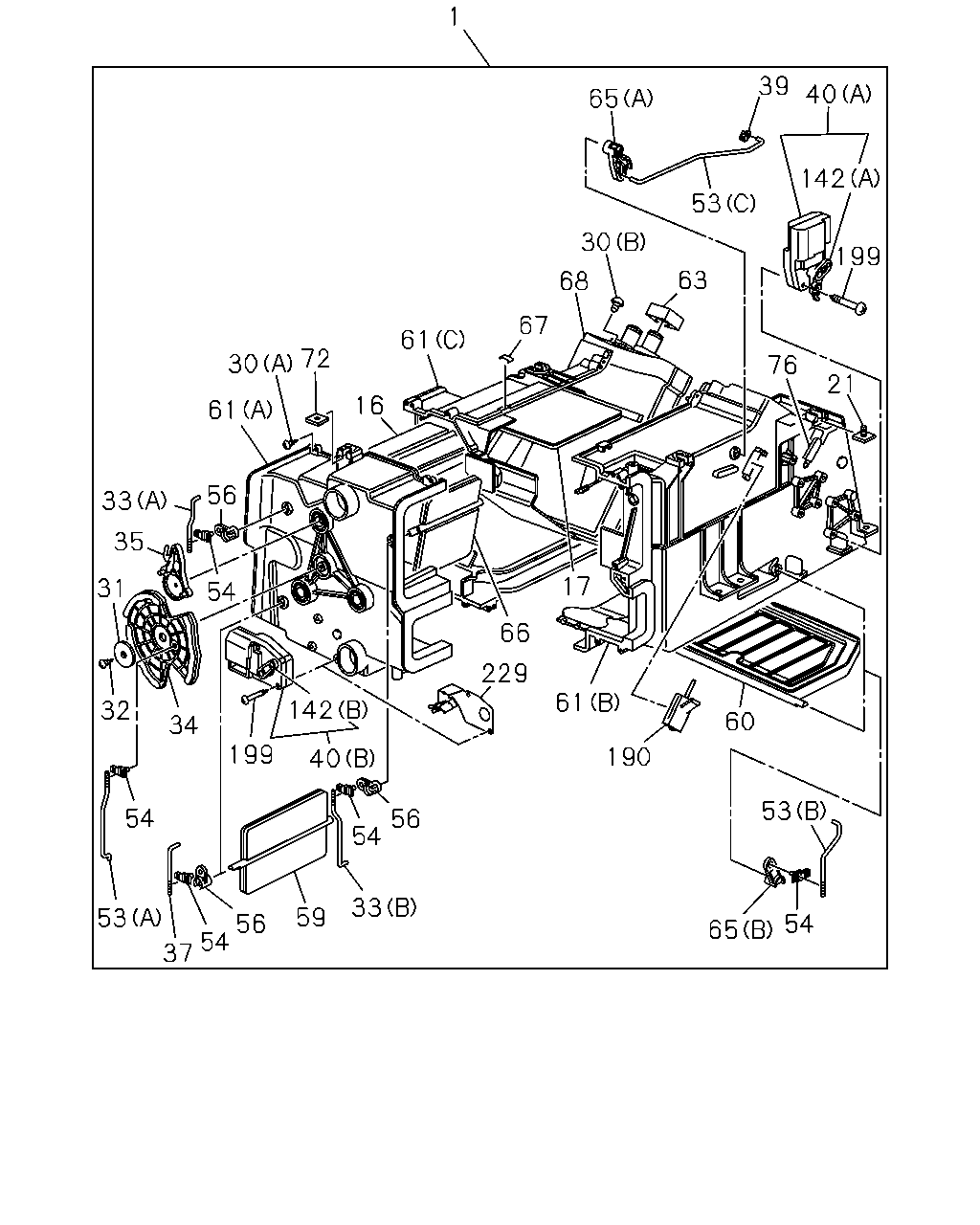

8-60 — HEATER UNIT; FRONT (#29202) — 83 parça

1 39 40 65 142 53 30 199 63 68 67 61 72 30 76 21 16 61 56 33 35 17 31 54 66 142 229 61 32 60 34 199 190 40 53 54 56 54 33 59 53 56 54 37 54 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83511-182-1	01	1	0512-
1	HEATER UNIT	1-83511-182-1	01	1	0407-0511
1	HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83511-184-1	01	1	0512-
16	SHUTTER; HTR UNIT,CENTER UPR	1-83579-625-1	01	1	0407-0511
16	SHUTTER; HTR UNIT,CENTER UPR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-625-1	01	1	0512-
17	SHUTTER; HTR UNIT,CENTER	1-83579-628-1	01	1	0407-0511
17	SHUTTER; HTR UNIT,CENTER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-628-1	01	1	0512-
21	BOLT; CASE,HTR UNIT	1-83579-657-2	02	1	0407-0511
21	BOLT; CASE,HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-657-2	02	1	0512-
30	SCREW; HTR UNIT (A) M4X16	8-94324-850-0	12	1	0407-0511
30	SCREW; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M4X16	8-94324-850-0	12	1	0512-
30	SCREW; HTR UNIT (B) M5X20	9-09829-324-1	01	1	0407-0511
30	SCREW; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M5X20	9-09829-324-1	01	1	0512-
31	WASHER; HTR UNIT	8-94129-950-0	01	1	0407-0511
31	WASHER; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94129-950-0	01	1	0512-
32	SCREW; HTR UNIT M5X20	9-09829-324-1	01	1	0407-0511
32	SCREW; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X20	9-09829-324-1	01	1	0512-
33	ROD; SHUTTER LEVER (A)	1-83579-619-0	01	1	0407-0511
33	ROD; SHUTTER LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-619-0	01	1	0512-
33	ROD; SHUTTER LEVER (B)	1-83579-621-0	01	1	0407-0511
33	ROD; SHUTTER LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-621-0	01	1	0512-
34	LEVER; SHUTTER,HTR UNIT	1-83564-326-0	01	1	0407-0511
34	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83564-326-0	01	1	0512-
35	LEVER; SHUTTER,HTR UNIT	8-94389-502-1	03	1	0407-0511
35	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94389-502-1	03	1	0512-
37	ROD; LEVER	1-83579-620-1	01	1	0407-0511
37	ROD; LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-620-1	01	1	0512-
39	CLIP; HTR UNIT	1-83574-136-0	01	1	0407-0511
39	CLIP; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83574-136-0	01	1	0512-
40	ACTUATOR; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83579-676-2	01	1	0512-
40	ACTUATOR; HTR UNIT (A)	1-83579-650-1	01	1	0407-0511
40	ACTUATOR; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-650-1	01	1	0512-
40	ACTUATOR; HTR UNIT (B)	1-83579-676-2	01	1	0407-0511
40	ACTUATOR; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-649-2	01	1	0512-
53	ROD; SHUTTER LEVER (A)	1-83579-622-0	01	1	0407-0511
53	ROD; SHUTTER LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-622-0	01	1	0512-
53	ROD; SHUTTER LEVER (B)	1-83579-623-0	01	1	0407-0511
53	ROD; SHUTTER LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-623-0	01	1	0512-
53	ROD; SHUTTER LEVER (C)	1-83579-624-0	01	1	0407-0511
53	ROD; SHUTTER LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83579-624-0	01	1	0512-
54	CLIP; SHUTTER LEVER	8-94248-794-0	05	1	0407-0511
54	CLIP; SHUTTER LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94248-794-0	05	1	0512-
56	LEVER; SHUTTER,HTR UNIT	1-83564-325-0	03	1	0407-0511
56	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83564-325-0	03	1	0512-
59	SHUTTER; HTR UNIT,SIDE	1-83579-626-2	01	1	0407-0511
59	SHUTTER; HTR UNIT,SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-626-2	01	1	0512-
60	DOOR; MIX,HTR UNIT	1-83578-084-0	01	1	0407-0511
60	DOOR; MIX,HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83578-084-0	01	1	0512-
61	CASE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83564-323-5	01	1	0512-
61	CASE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83564-347-3	01	1	0512-
61	CASE; HTR UNIT (B)	1-83564-323-5	01	1	0407-0511
61	CASE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83564-401-0	01	1	0512-
61	CASE; HTR UNIT (C)	1-83564-346-3	01	1	0407-0511
61	CASE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83564-346-3	01	1	0512-
61	CASE; HTR UNIT (A)	1-83564-347-3	01	1	0407-0511
61	CASE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83564-402-0	01	1	0512-
63	LINING; HTR UNIT	1-83579-557-0	02	1	0407-0511
63	LINING; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-557-0	02	1	0512-
65	LEVER; MIX,DOOR (A)	1-83564-327-0	01	1	0407-0511
65	LEVER; MIX,DOOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83564-327-0	01	1	0512-
65	LEVER; MIX,DOOR (B)	1-83564-328-1	01	1	0407-0511
65	LEVER; MIX,DOOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83564-328-1	01	1	0512-
66	SHUTTER; HTR UNIT,CENTER LWR	1-83579-680-0	01	1	0407-0511
66	SHUTTER; HTR UNIT,CENTER LWR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-680-0	01	1	0512-
67	CLIP; HTR UNIT	1-83574-148-0	01	1	0407-0511
67	CLIP; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83574-148-0	01	1	0512-
68	CORE; HTR UNIT	1-83562-078-1	01	1	0407-0511
68	CORE; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83562-078-1	01	1	0512-
72	NUT; CASE,HTR UNIT	1-83579-659-4	02	1	0407-0511
72	NUT; CASE,HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-659-4	02	1	0512-
76	BRACKET; HTR UNIT	1-83571-874-0	01	1	0407-0511
76	BRACKET; HTR UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83571-874-0	01	1	0512-
142	LEVER; ACTUATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83564-409-0	01	1	0512-
142	LEVER; ACTUATOR (B)	1-83564-409-0	01	1	0407-0511
142	LEVER; ACTUATOR AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83564-345-1	01	1	0512-
142	LEVER; ACTUATOR (A)	1-83564-414-0	01	1	0407-0511
142	LEVER; ACTUATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83564-414-0	01	1	0512-
190	SENSOR; HEATER UNIT	1-83579-658-1	01	1	0407-0511
190	SENSOR; HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-658-1	01	1	0512-
199	SCREW; ACTUATOR	8-94348-809-0	04	1	0407-0511
199	SCREW; ACTUATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94348-809-0	04	1	0512-
229	SWITCH ASM; MICRO,HEATER UNIT	1-83579-688-2	01	1	0407-0511
229	SWITCH ASM; MICRO,HEATER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-688-2	01	1	0512-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
