9-01 — TOOLS (#292) — 102 parça

70 77 91 92 89 85 84 93 297

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
70	TOOL; SETTING,OIL SEAL	8-94396-856-0	01	1	9212-
77	TOOL; SETTING,CYL LINER	8-94396-816-0	01	1	9212-
84	REPLACER; VALVE SEAL	8-94396-815-0	01	1	9212-
85	REPLACER ASM; VALVE SPR	8-94396-861-0	01	1	9212-
89	TOOL; PISTON RING	1-85221-029-0	01	1	9212-
91	REPLACER ASM; CYL LINER	8-94396-849-0	01	1	9212-
92	ANKLE; REPLACER,CYL LINER	8-94396-821-0	01	1	9212-
93	SETTING KIT; VALVE GUIDE	1-85220-001-0	01	1	9212-
297	CUTTER; SEAL,OIL PAN	8-94393-112-0	01	1	9212-

9 12 13 17 29 29 23 19 20 21 22 1 1 268 209 271 274 61 57 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> RR TIRE 7.50-20<91X>,RR TIRE 8.25-20<93X>,RR TIRE 9.00-20<94X> (A)	9-23110-018-0	01	1	9212-
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> RR TIRE 8.25-16<92X> (B) L=280	1-85515-007-0	01	1	9212-
9	WRENCH; WHEEL PIN BRAKE SYSTEM HEAVY DUTY VAR2(WG3) B=41X21 L=440	1-85113-015-0	01	1	9212-
9	WRENCH; WHEEL PIN RR TIRE 8.25-16<92X> B=41X21 L=440	1-85113-015-0	01	1	9212-
12	HANDLE; WRENCH,WHEEL PIN BRAKE SYSTEM HEAVY DUTY VAR2(WG3) OD=25 L=480	1-85116-011-0	01	1	9212-
13	WRENCH; MONKEY BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-85117-003-1	01	1	9212-9304
13	WRENCH; MONKEY RR TIRE 8.25-16<92X>	1-85117-003-1	01	1	9212-9304
13	WRENCH; MONKEY BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=255	1-85117-002-1	01	1	9305-
13	WRENCH; MONKEY RR TIRE 8.25-16<92X> L=255	1-85117-002-1	01	1	9305-
17	HAMMER BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	9-85121-406-0	01	1	9212-
17	HAMMER RR TIRE 8.25-16<92X>	9-85121-406-0	01	1	9212-
19	WRENCH; 7X8 BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 7X8	9-09592-107-0	01	1	9212-
19	WRENCH; 7X8 RR TIRE 8.25-16<92X> 7X8	9-09592-107-0	01	1	9212-
20	WRENCH; 10X12 BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 10X12	9-09592-110-0	01	1	9212-
20	WRENCH; 10X12 RR TIRE 8.25-16<92X> 10X12	9-09592-110-0	01	1	9212-
21	WRENCH; 14X17 BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 14X17	9-09592-114-0	01	1	9212-
21	WRENCH; 14X17 RR TIRE 8.25-16<92X> 14X17	9-09592-114-0	01	1	9212-
22	WRENCH; 19X22 BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 19X22	9-99592-119-0	01	1	9212-
22	WRENCH; 19X22 RR TIRE 8.25-16<92X> 19X22	9-99592-119-0	01	1	9212-
23	WRENCH; 24X27 BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 24X27	9-09592-124-0	01	1	9212-
23	WRENCH; 24X27 RR TIRE 8.25-16<92X> 24X27	9-09592-124-0	01	1	9212-
29	DRIVER; SCREW BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) <+> L=190	9-09595-522-0	01	1	9212-
29	DRIVER; SCREW RR TIRE 8.25-16<92X> (A) <+> L=190	9-09595-522-0	01	1	9212-
29	DRIVER; SCREW BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) <-> L=190	9-09595-726-0	01	1	9212-
29	DRIVER; SCREW BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) <-> L=320	9-09595-729-0	01	1	9212-
29	DRIVER; SCREW RR TIRE 8.25-16<92X> (B) <-> L=320	9-09595-729-0	01	1	9212-
57	TOOL; SETTING CRANK GEAR ID=134.5	8-94396-819-0	01	1	9212-
61	PULLER ASM; PILOT BRG	9-85210-157-0	01	1	9212-
82	PULLER ASM; CR/SHF GEAR	8-94396-818-0	01	1	9212-
209	CLIP; JACK HANDLE ID=12	1-73638-008-2	02	1	9212-
268	SCREW; CLIP M6X16 TAPPING	9-07066-616-0	02	1	9212-
271	CLIP; TIRE HANGER ID=14	1-73638-009-2	02	1	9212-
274	SCREW; CLIP M6X16 TAPPING	9-07066-616-0	02	1	9212-

178 179 180 232 182 193 193 186 208 230 237 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
178	BAR; TRANS GUIDE	9-85291-203-0	01	1	9212-
179	PULLER; SPD METER GEAR	9-85210-181-0	01	1	9212-
180	PULLER; FRT & RR HUB M20	9-85210-187-0	01	1	9212-
182	REMOVER ASM	9-85210-095-0	01	1	9212-
186	ADJUSTER; BRAKE RR TIRE 8.25-16<92X>	1-85269-007-0	01	1	9212-9311
186	ADJUSTER; BRAKE RR TIRE 8.25-16<92X>	1-85269-008-0	01	1	9312-
193	JACK ASM BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 7TON	1-85510-005-2	01	1	9212-9503
193	JACK ASM RR TIRE 8.25-16<92X> (A) 7TON	1-85510-005-2	01	1	9212-9503
193	JACK ASM BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) 7TON	1-85510-017-0	01	1	9504-
193	JACK ASM RR TIRE 8.25-16<92X> (B) 7TON	1-85510-017-0	01	1	9504-
208	HANDLE; JACK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=680	1-85515-004-0	01	1	9212-9405
208	HANDLE; JACK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=600	1-85515-008-0	01	1	9406-
208	HANDLE; JACK RR TIRE 8.25-16<92X> L=580	1-85515-005-1	01	1	9212-
230	PUMP; GREASE BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-85556-007-2	01	1	9212-
230	PUMP; GREASE RR TIRE 8.25-16<92X>	1-85556-007-2	01	1	9212-
232	HOSE; AIR,AIR CHARGE TIRE INFLATOR DEVICE<SG4>	1-09360-245-1	01	1	9212-
237	BAG; TOOL BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	8-94367-102-0	01	1	9212-
237	BAG; TOOL RR TIRE 8.25-16<92X>	8-94367-102-0	01	1	9212-
296	REPLACER; SLINGER	8-94396-858-0	01	1	9212-

110 115 125 126 118 129 129 128 126 130 130 130 130 141 141 141 143 144 149

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
110	CAP; VALVE RR TIRE 8.25-16<92X>	9-85163-906-1	01	1	9212-
115	PLIER BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	5-85171-001-0	01	1	9212-
115	PLIER RR TIRE 8.25-16<92X>	5-85171-001-0	01	1	9212-
118	WRENCH; OIL FILTER PARTIAL OIL FILTER CARTRIDGE<KC2>	1-85221-097-0	01	1	9212-
125	PULLER ASM; KING PIN L=360	9-85210-151-0	01	1	9212-
126	WRENCH; FRT HUB BRG NUT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=257 B=63	9-85111-373-0	01	1	9212-
126	WRENCH; FRT HUB BRG NUT EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=257 B=54	1-85111-011-0	01	1	9212-
128	PULLER ASM; STRG WHEEL	9-85210-099-0	01	1	9212-
129	PULLER ASM; PITMAN ARM POWER STEERING(N40) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	9-85210-147-0	01	1	9212-
129	PULLER ASM; PITMAN ARM BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	9-85210-147-0	01	1	9212-
129	PULLER ASM; PITMAN ARM EXC. POWER STEERING(N40),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	9-85210-170-0	01	1	9212-
130	WRENCH; BOX (D) B=46 & 54 L=165	9-85112-320-0	01	1	9212-
130	WRENCH; BOX (A) B=32 & 41 L=150	9-85112-322-0	01	1	9212-
130	WRENCH; BOX (B) B=36 & 41 L=200	9-85112-330-0	01	1	9212-
130	WRENCH; BOX (C) B=41 & 46 L=165	9-85113-401-0	01	1	9212-
141	HANDLE; WRENCH (C) OD=25 L=480	1-85116-011-0	01	1	9212-
141	HANDLE; WRENCH (B) OD=19 L=400	9-85114-306-0	01	1	9212-
141	HANDLE; WRENCH (A) OD=16 L=300	9-85114-307-0	01	1	9212-
143	GUIDE; BOOT,TIE ROD END	1-85229-011-0	01	1	9212-
144	BASE; BOOT GUIDE,TIE ROD END	1-85229-012-0	01	1	9212-
149	PLATE; PILOT BRG PULLER	1-85219-009-0	01	1	9212-

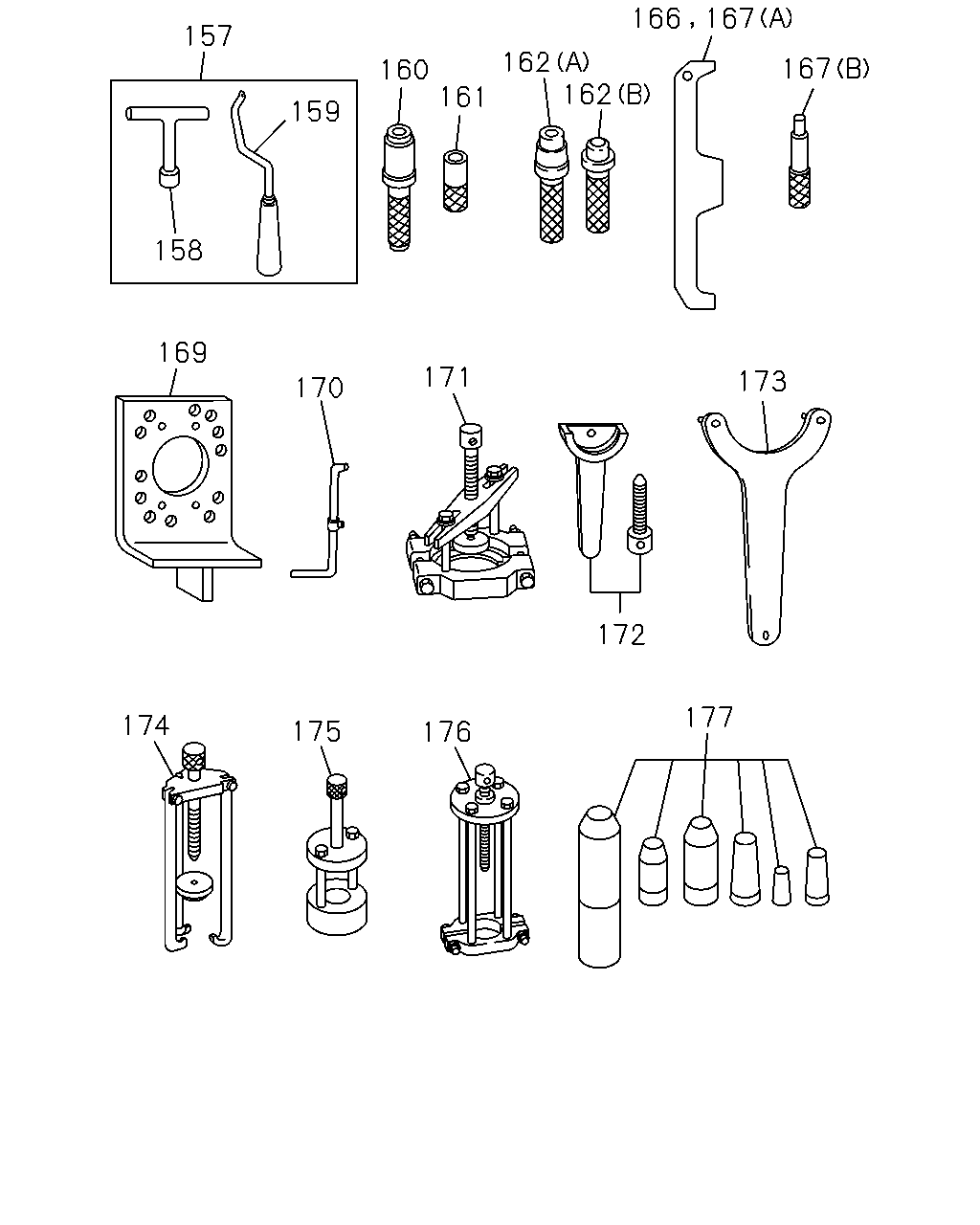

157 159 160 162 161 162 166 167 167 173 172 177 176 175 174 169 158 170 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
157	REPLACER KIT; RETURN SPR	9-85231-554-0	01	1	9212-
158	SETTING TOOL; RETURN SPR	9-85221-231-0	01	1	9212-
159	REMOVER; RETURN SPR	9-85231-555-0	01	1	9212-
160	REMOVER; NEEDLE BRG L=215	1-85238-007-0	01	1	9212-
161	REMOVER; TIE ROD ARM	1-85176-001-0	01	1	9212-
162	SETTING TOOL; NEEDLE BRG (A) L=200	1-85238-005-0	01	1	9212-
162	SETTING TOOL; NEEDLE BRG (B) L=175	1-85238-006-0	01	1	9212-
166	ALIGNER; CLU RELEASE LEVER L=460	9-85241-420-0	01	1	9212-
167	ALIGNER; CLU PILOT (B) L=185	1-85253-008-0	01	1	9212-
167	ALIGNER; CLU PILOT (A)	1-85253-014-0	01	1	9212-
169	BRACKET; SPLINE YOKE	9-85221-243-1	01	1	9212-
170	HANDLE; TURNING,FINAL	9-85251-121-0	01	1	9212-
171	PULLER ASM; PINION BRG	9-85210-172-0	01	1	9212-
172	PULLER ASM; BRG DIFF PILOT	9-85210-173-0	01	1	9212-
173	WRENCH; COUPLING DRIVER	9-85111-942-0	01	1	9212-
174	PULLER ASM; MAIN CLU SHAFT	9-85210-148-0	01	1	9212-
175	PULLER ASM; COOLER,MAINSHAFT	1-85210-020-0	01	1	9212-9310
175	PULLER ASM; COOLER,MAINSHAFT	1-85210-038-0	01	1	9311-
176	PULLER ASM; COUNTER SHAFT MAIN	9-85210-169-0	01	1	9212-
177	SETTING TOOL KIT	9-85220-040-0	01	1	9212-
