8-40 — HEATER SYSTEM (#29198) — 100 parça

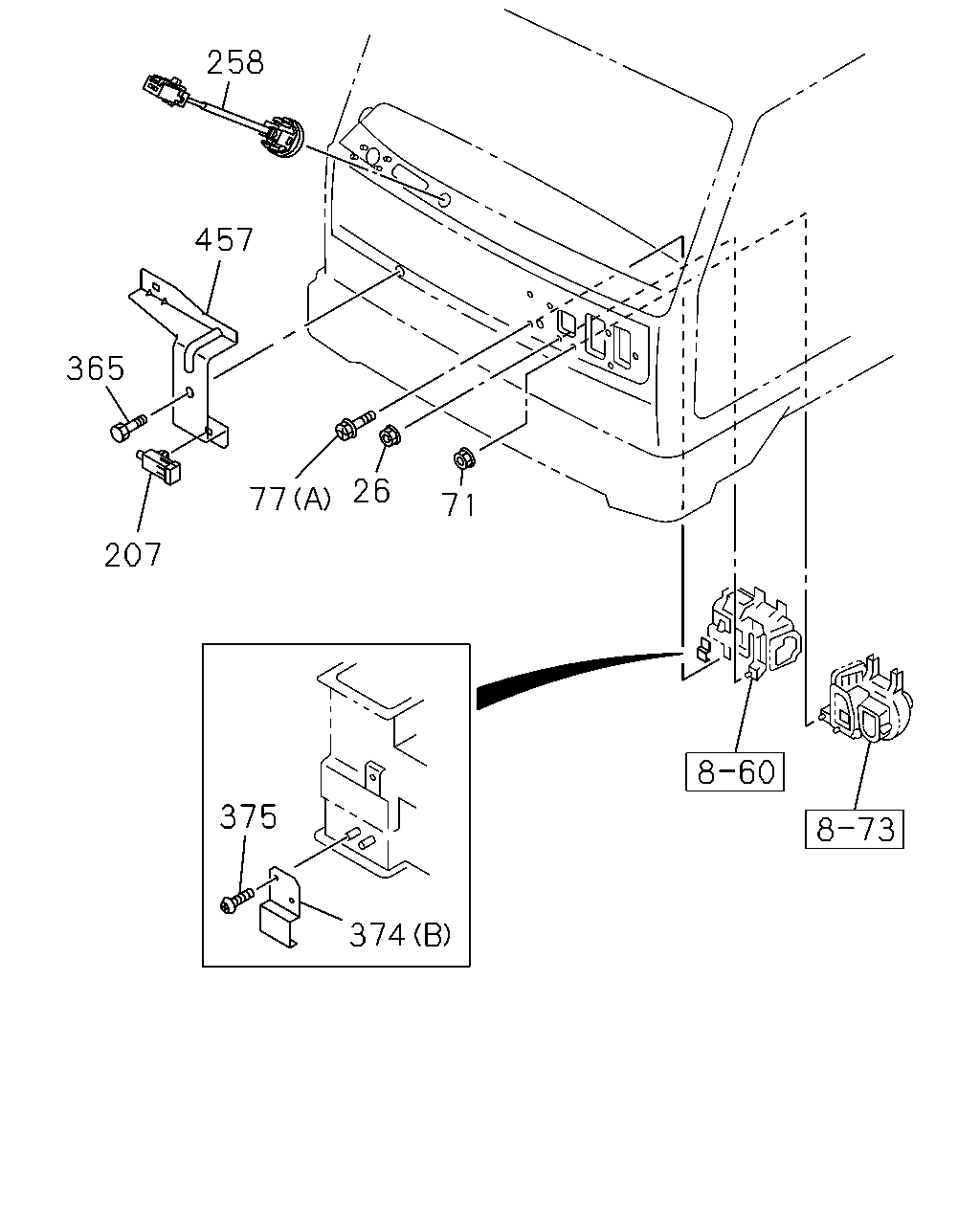

258 457 365 26 77 71 207 375 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	NUT; HTR M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0407-
71	NUT; BLOWER UNIT TO DASH M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0407-
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-1	02	1	0407-
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0407-
207	SENSOR; AMBIENT	8-97177-549-0	01	1	0407-1204
207	SENSOR; AMBIENT	8-98214-375-0	01	1	1205-
258	SENSOR; SUN	8-94472-043-2	01	1	0407-
365	BOLT; SENSOR M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0407-
374	HOLDER; DUCT (A)	1-76377-189-3	01	1	0407-0511
374	HOLDER; DUCT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-76377-189-3	01	1	0512-
374	HOLDER; DUCT (B)	1-76398-012-1	01	1	0407-
375	SCREW; HOLDER M5X14	8-94279-325-0	02	1	0407-
457	BRACKET; SENSOR	1-71907-603-1	01	1	0407-

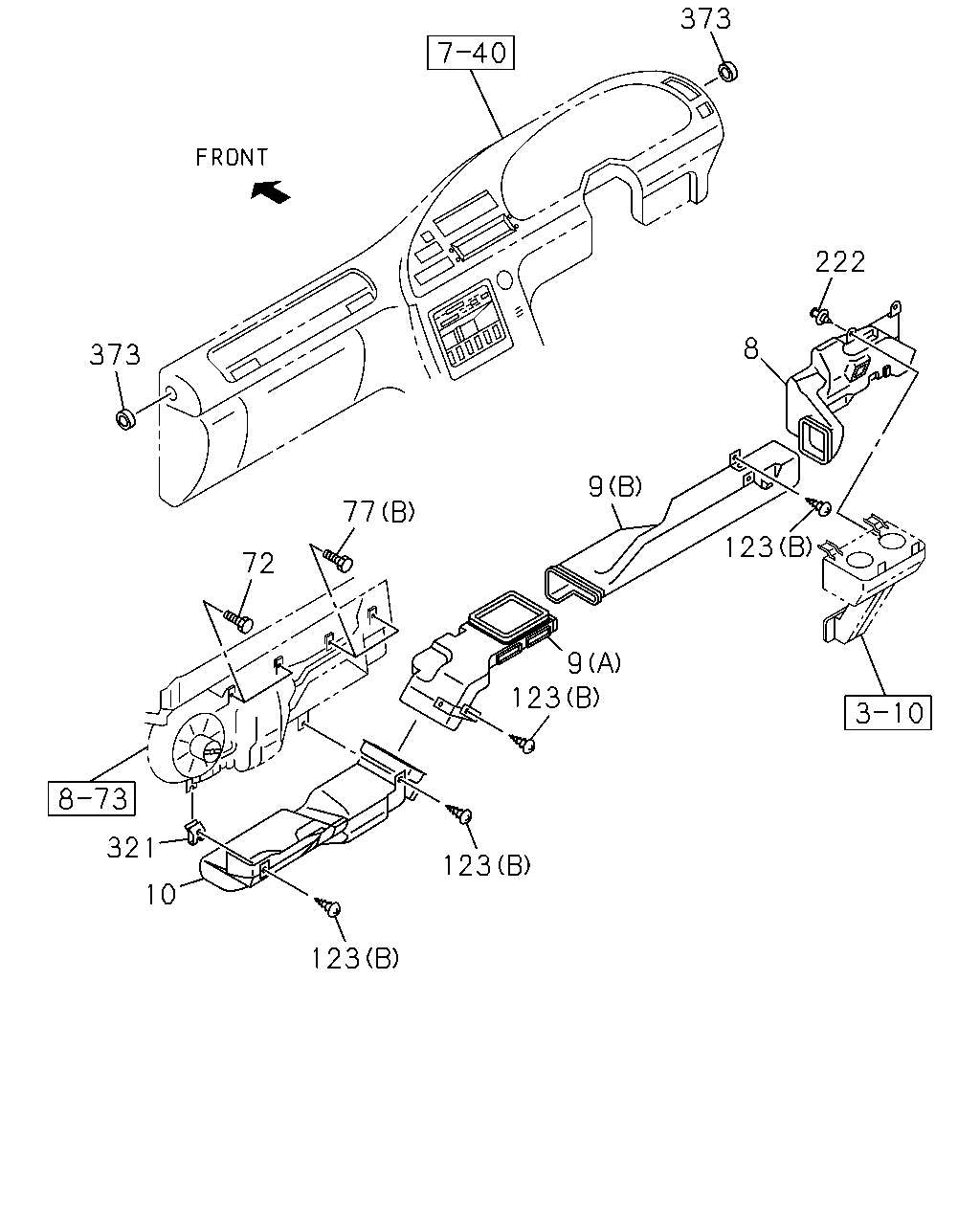

373 222 8 373 9 77 123 72 9 123 321 123 10 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	DUCT; HTR AIR,DRIVER FOOT	1-76377-208-0	01	1	0407-
9	DUCT; HTR AIR,FOOT CENTER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-76377-227-2	01	1	0407-
9	DUCT; HTR AIR,FOOT CENTER (B)	1-76377-210-1	01	1	0407-
9	DUCT; HTR AIR,FOOT CENTER EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-76377-226-2	01	1	0407-
10	DUCT; HTR AIR,ASSIST FOOT	1-76377-204-2	01	1	0407-
72	BOLT; BLOWER UNIT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0407-
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-1	02	1	0407-
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0407-
123	SCREW; DUCT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) M5X16 TAPPING W/PL WASHER	0-74115-516-0	05	1	0407-0604
123	SCREW; DUCT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) M5X16 TAPPING W/PL WASHER	0-74165-516-0	05	1	0605-
123	SCREW; DUCT (B) M5X14	8-94279-325-0	12	1	0407-
222	FASTENER; DUCT D6X12.5	8-94146-425-0	02	1	0407-
321	NUT; DUCT FIX M5	1-09984-150-0	01	1	0407-0409
321	NUT; DUCT FIX M5	1-09984-196-0	01	1	0410-
373	RUBBER; JOINT	1-76378-291-0	02	1	0407-

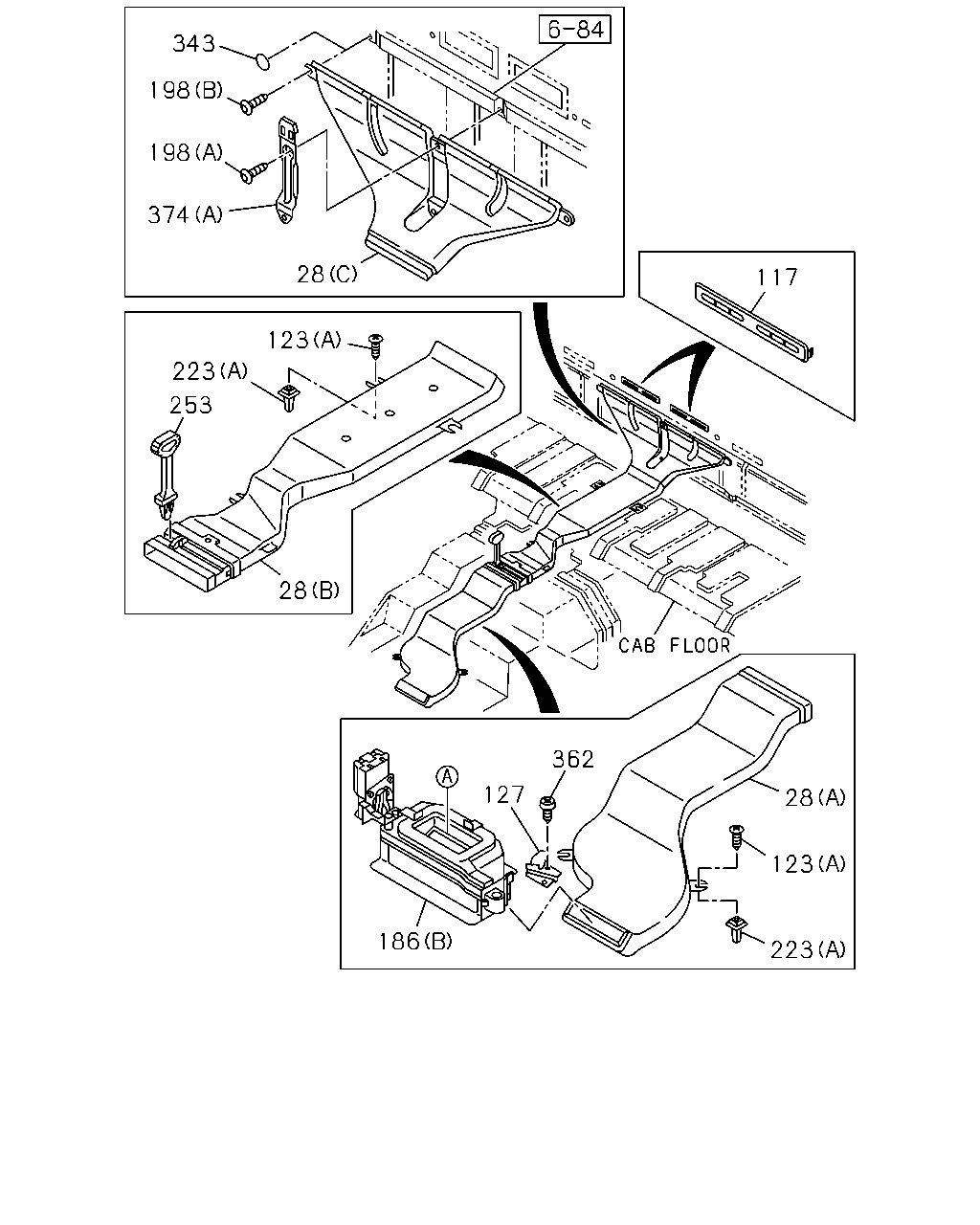

343 198 198 374 8 117 123 223 253 28 362 127 28 123 186 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	DUCT; HTR AIR,DRIVER FOOT	1-76377-208-0	01	1	0407-
28	DUCT; AIR,VENTILATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-76377-180-2	01	1	0407-
28	DUCT; AIR,VENTILATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-76377-203-0	01	1	0407-
28	DUCT; AIR,VENTILATOR (C)	1-76377-186-1	01	1	0407-0511
28	DUCT; AIR,VENTILATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (C)	1-76377-186-1	01	1	0512-
117	GRILLE; VENTILATOR	1-76377-187-5	01	1	0407-0511
117	GRILLE; VENTILATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-76377-187-5	01	1	0512-
117	GRILLE; VENTILATOR	1-76377-188-5	01	1	0407-0511
117	GRILLE; VENTILATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-76377-188-5	01	1	0512-
123	SCREW; DUCT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) M5X16 TAPPING W/PL WASHER	0-74115-516-0	05	1	0407-0604
123	SCREW; DUCT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) M5X16 TAPPING W/PL WASHER	0-74165-516-0	05	1	0605-
123	SCREW; DUCT (B) M5X14	8-94279-325-0	12	1	0407-
127	BRACKET; VENT DUCT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-76397-019-0	01	1	0407-
186	DUCT; VENTILATOR (A)	1-76377-155-9	01	1	0407-0610
186	DUCT; VENTILATOR (A)	1-76377-243-1	01	1	0611-
186	DUCT; VENTILATOR (A)	1-76377-173-6	01	1	0407-0710
186	DUCT; VENTILATOR (A)	1-76377-246-0	01	1	0711-
186	DUCT; VENTILATOR (B)	1-83542-107-3	01	1	0407-0511
186	DUCT; VENTILATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83542-107-3	01	1	0512-
198	CLIP; DUCT (A) D6X23 BLACK	1-09987-114-0	02	1	0407-0511
198	CLIP; DUCT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) D6X23 BLACK	1-09987-114-0	02	1	0512-1204
198	CLIP; DUCT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) D6X23 LIGHT GRAY	1-73318-629-0	02	1	1205-
198	CLIP; DUCT (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	0407-
223	GROMMET; SCREW AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	05	1	0407-0511
223	GROMMET; SCREW (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	05	1	0512-
223	GROMMET; SCREW (B) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	0407-
253	KNOB; CONT LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-76377-185-1	01	1	0407-
343	SEAL; AIR DUCT EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) OD=25 BLACK	1-76798-019-0	05	1	0512-0709
362	SCREW; DUCT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M5X14	8-94279-325-0	02	1	0407-
374	HOLDER; DUCT (A)	1-76377-189-3	01	1	0407-0511
374	HOLDER; DUCT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-76377-189-3	01	1	0512-
374	HOLDER; DUCT (B)	1-76398-012-1	01	1	0407-

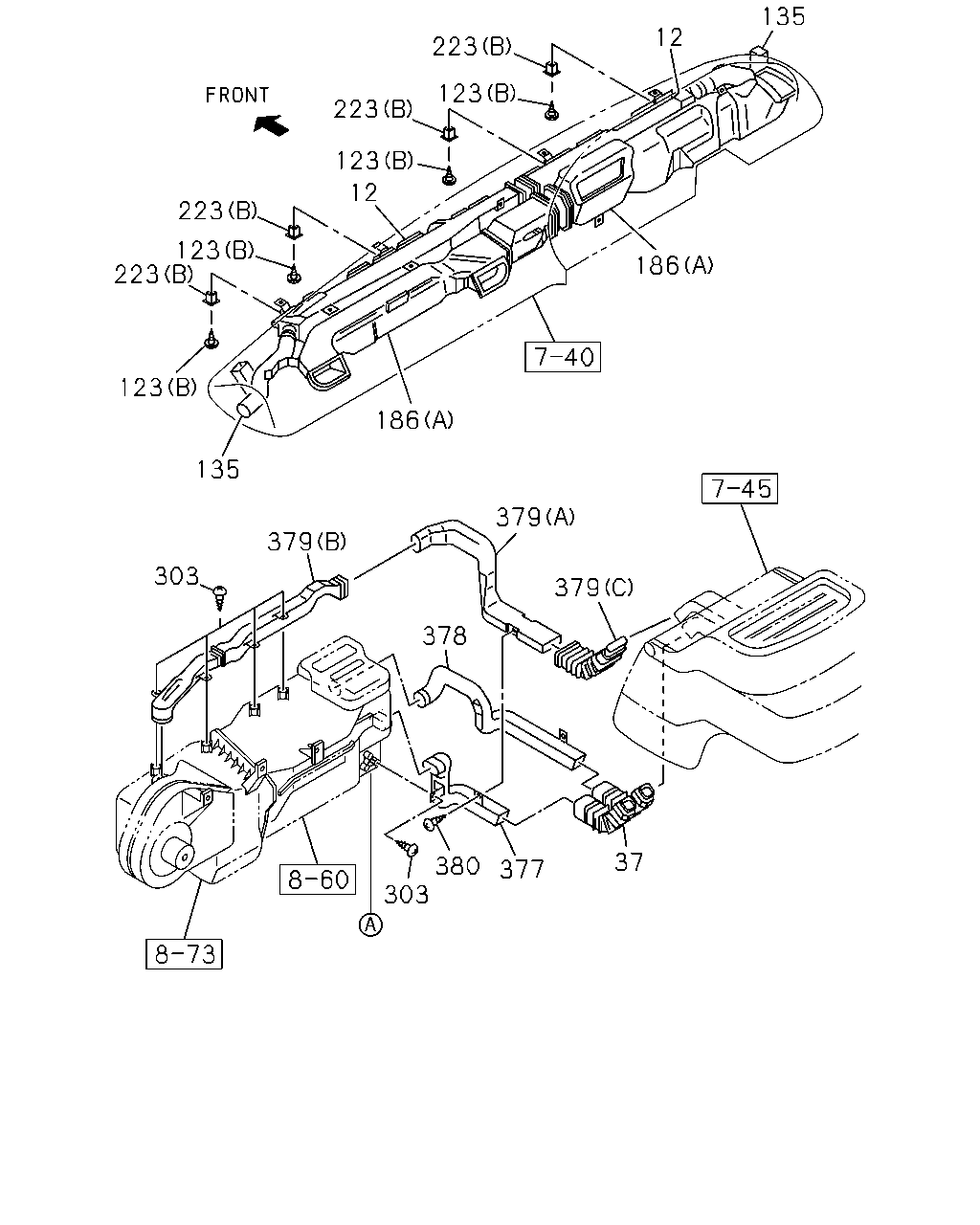

135 12 223 123 223 123 12 223 123 223 186 123 186 135 379 379 303 379 378 37 380 303 377

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NOZZLE; DEFROSTER	1-76377-153-5	01	1	0407-
12	NOZZLE; DEFROSTER	1-76377-172-7	01	1	0407-
37	HOSE; AIR,HTR COOL & HOT BOX<TMU>	1-76377-193-3	01	1	0407-
123	SCREW; DUCT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) M5X16 TAPPING W/PL WASHER	0-74115-516-0	05	1	0407-0604
123	SCREW; DUCT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) M5X16 TAPPING W/PL WASHER	0-74165-516-0	05	1	0605-
123	SCREW; DUCT (B) M5X14	8-94279-325-0	12	1	0407-
135	HOSE; DEFROSTER	1-76378-252-7	01	1	0407-
135	HOSE; DEFROSTER	1-76378-253-4	01	1	0407-
186	DUCT; VENTILATOR (A)	1-76377-155-9	01	1	0407-0610
186	DUCT; VENTILATOR (A)	1-76377-243-1	01	1	0611-
186	DUCT; VENTILATOR (A)	1-76377-173-6	01	1	0407-0710
186	DUCT; VENTILATOR (A)	1-76377-246-0	01	1	0711-
186	DUCT; VENTILATOR (B)	1-83542-107-3	01	1	0407-0511
186	DUCT; VENTILATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83542-107-3	01	1	0512-
223	GROMMET; SCREW AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	05	1	0407-0511
223	GROMMET; SCREW (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	05	1	0512-
223	GROMMET; SCREW (B) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	0407-
303	SCREW; HOSE COOL & HOT BOX<TMU> M5X14	8-94279-325-0	05	1	0407-
377	HOSE; BOX,INLET,COOL COOL & HOT BOX<TMU>	1-76377-159-5	01	1	0407-
378	HOSE; BOX,INLET,HOT COOL & HOT BOX<TMU>	1-76377-161-6	01	1	0407-
379	HOSE; BOX,OUTLET COOL & HOT BOX<TMU> (A)	1-76377-163-5	01	1	0407-
379	HOSE; BOX,OUTLET COOL & HOT BOX<TMU> (B)	1-76377-164-3	01	1	0407-
379	HOSE; BOX,OUTLET COOL & HOT BOX<TMU> (C)	1-76377-192-4	01	1	0407-
380	FASTENER; HOSE COOL & HOT BOX<TMU> D4.6X14.7 BLACK	1-09983-104-0	03	1	0407-

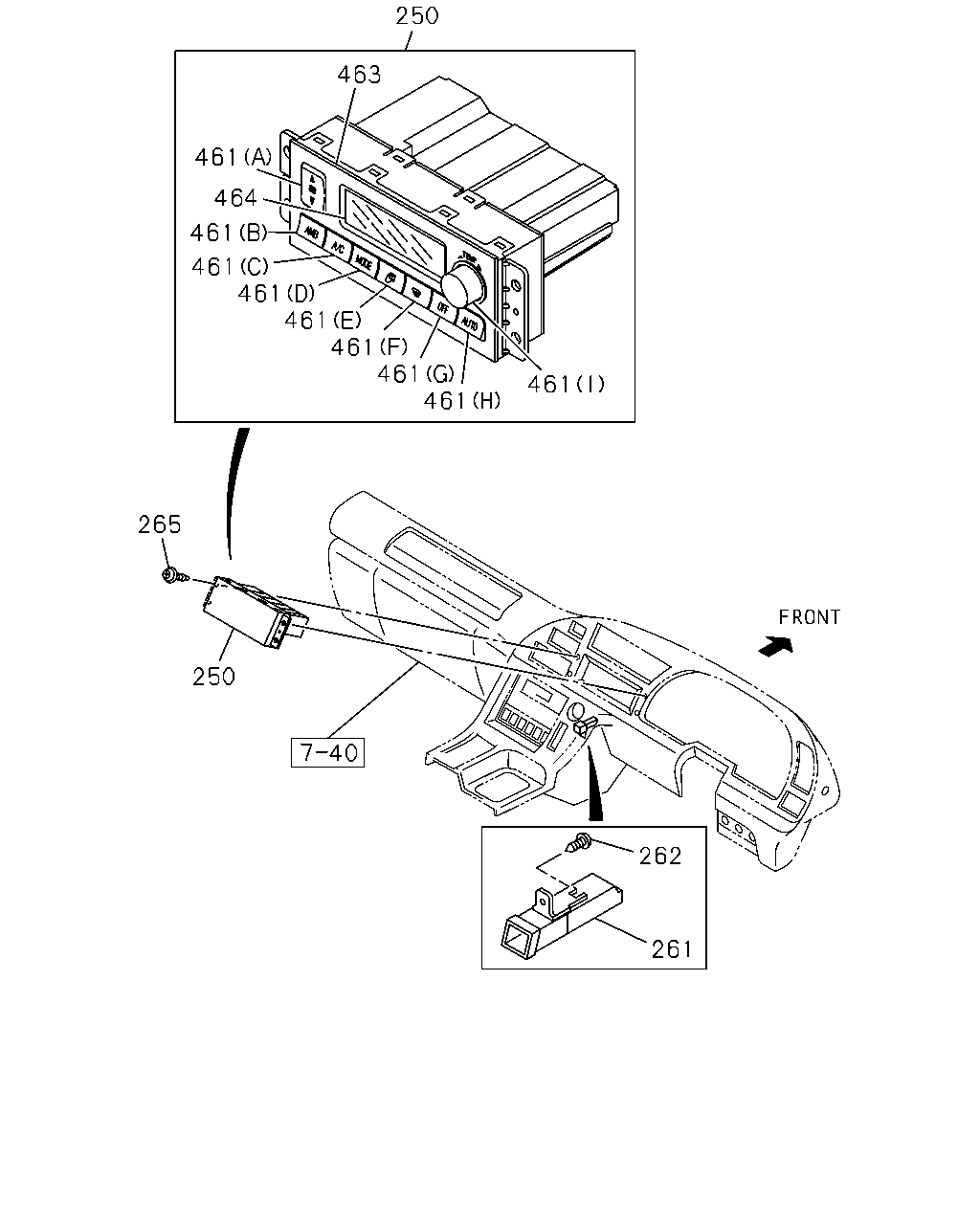

250 463 461 464 461 461 461 461 461 461 461 461 265 250 262 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
250	CONTROL ASM; A/C	1-83543-038-1	01	1	0407-
261	SENSOR; IN CAR	1-83544-023-1	01	1	0407-
262	SCREW; IN CAR SENSOR M5X14	8-94279-325-0	01	1	0407-
265	SCREW; A/C CONT UNIT M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	0407-0604
265	SCREW; A/C CONT UNIT M6X20 TAPPING W/PL WASHER	0-74160-620-0	01	1	0605-
461	KNOB; CONTROL ASM,A/C (A)	1-83549-018-0	01	1	0407-
461	KNOB; CONTROL ASM,A/C (B)	1-83549-019-0	01	1	0407-
461	KNOB; CONTROL ASM,A/C (C)	1-83549-020-0	01	1	0407-
461	KNOB; CONTROL ASM,A/C (D)	1-83549-021-0	01	1	0407-
461	KNOB; CONTROL ASM,A/C (E)	1-83549-022-0	01	1	0407-
461	KNOB; CONTROL ASM,A/C (F)	1-83549-023-0	01	1	0407-
461	KNOB; CONTROL ASM,A/C (G)	1-83549-024-0	01	1	0407-
461	KNOB; CONTROL ASM,A/C (H)	1-83549-025-0	01	1	0407-
461	KNOB; CONTROL ASM,A/C (I)	1-83549-026-0	01	1	0407-
463	BEZEL; CONTROL PANEL	1-83549-027-0	01	1	0407-
464	PLATE; CONTROL PANEL	1-83549-028-0	01	1	0407-
