◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 10956 - EXY NEW ZEALAND ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#29195) — 156 parça

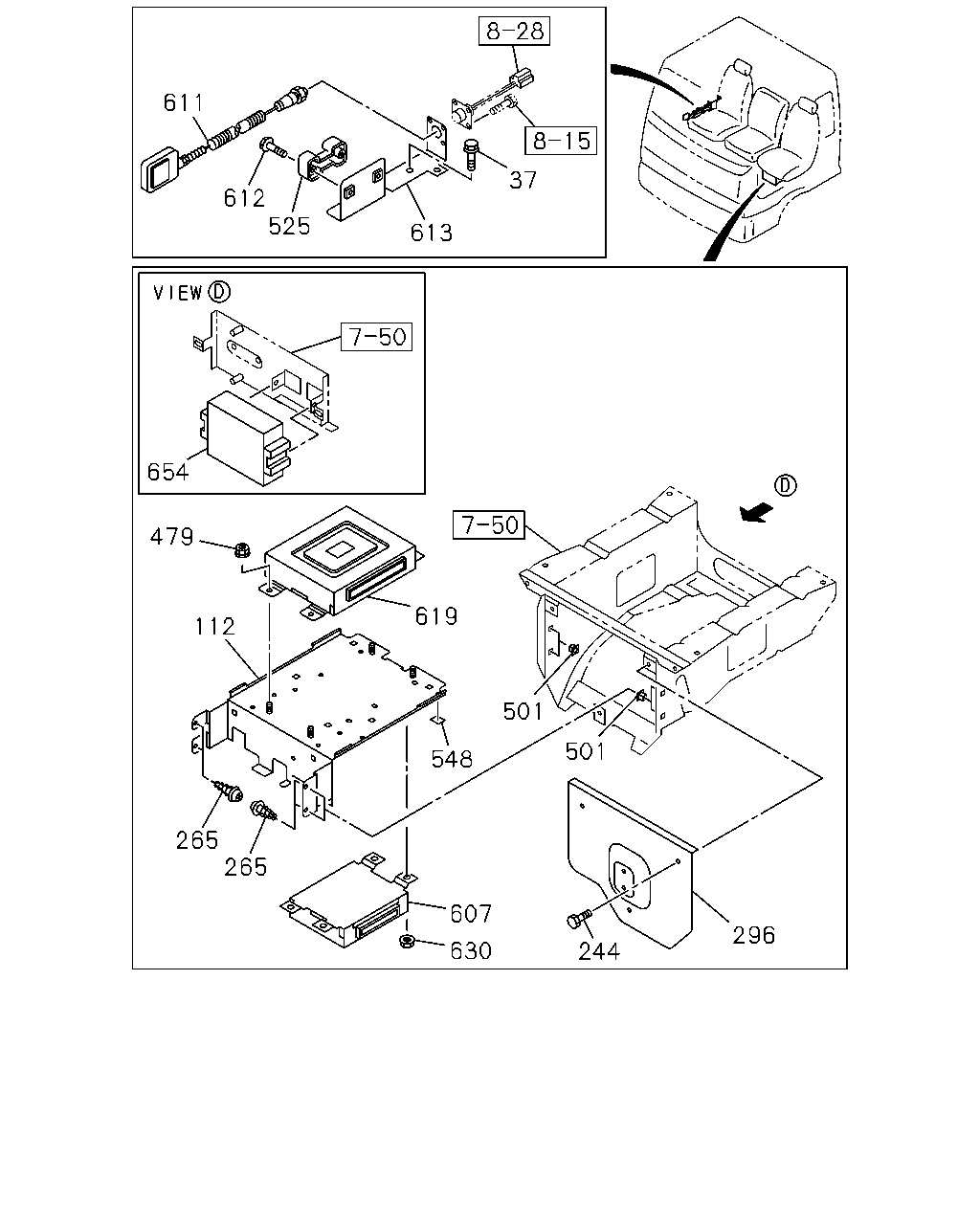

çizim 88198
611 37 612 525 613 654 479 619 112 501 501 548 265 265 607 296 630 244
BalonParca AdiParca NoAdetTipApplied Date
37 BOLT; BRKT FIX
M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0407-
112 BRACKET; CONT UNIT 1-75557-503-6 01 1 0407-
244 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0407-0703
244 BOLT; COVER
M6X16 		0-52000-616-0 03 1 0704-
265 SCREW; BRKT,CONT UNIT
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0407-
296 COVER; CONT UNIT 1-75558-556-1 01 1 0407-0511
296 COVER; CONT UNIT 8-97388-687-0 01 1 0512-
479 NUT; CONTROLLER
M6 FLANGE 		0-91150-106-0 04 1 0407-0602
479 NUT; CONTROLLER
M6 FLANGE 		0-91180-106-0 04 1 0603-
501 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 0407-
525 HOLDER; SW 1-82389-018-0 01 1 0407-
548 SEAL; NOISE
30X30 		1-74998-128-1 03 1 0407-0908
548 SEAL; NOISE
30X30 		8-98142-344-0 03 1 0909-1305
548 SEAL; NOISE
30X30 		8-98142-344-0 01 1 1306-
607 CONTROL UNIT; AIR SUSPENSION
MEMORY SYSTEM RUNNING CONDITION<NCR> 		1-80159-019-0 01 1 0407-0511
607 CONTROL UNIT; AIR SUSPENSION 1-80159-181-0 01 1 0512-
607 CONTROL UNIT; AIR SUSPENSION
EXC. MEMORY SYSTEM RUNNING CONDITION<NCR> 		1-80159-025-0 01 1 0407-0511
611 SWITCH ASM; AIR SUS 1-82380-162-0 01 1 0407-
612 SCREW; HOLDER
M6X14 W/PL WASHER 		9-03900-614-0 02 1 0407-0604
612 SCREW; HOLDER
M6X14 W/PL WASHER 		0-36210-614-0 02 1 0605-
613 BRACKET; HOLDER,SW 1-79907-117-0 01 1 0407-0407
613 BRACKET; HOLDER,SW 1-79907-125-1 01 1 0408-
619 CONTROL UNIT; T/M
6WG1 TC-S(97L) 		1-80111-358-0 01 1 0512-0606
619 CONTROL UNIT; T/M
6WG1 TC-S(97L) 		1-80111-387-0 01 1 0607-0704
619 CONTROL UNIT; T/M
6WG1 TC-S(97L) 		8-98078-922-0 01 1 0705-1108
619 CONTROL UNIT; T/M
6WG1 TC-S(97L) 		8-98196-690-0 01 1 1109-
619 CONTROL UNIT; T/M 1-80111-086-2 01 1 0407-0511
619 CONTROL UNIT; T/M
6WF1 TC-C(1B8) 		1-80111-222-0 01 1 0512-
630 NUT; CONT UNIT,AIR SUSP
M6 FLANGE 		0-91150-106-0 04 1 0407-0602
630 NUT; CONT UNIT,AIR SUSP
M6 FLANGE 		0-91180-106-0 04 1 0603-
654 CONTROL UNIT; EXH & RETARDER
6WG1 TC-S(97L) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-80150-118-0 01 1 0512-
654 CONTROL UNIT; EXH & RETARDER 1-80150-117-0 01 1 0407-0511
654 CONTROL UNIT; EXH & RETARDER
6WG1 TC-S(97L) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-80150-117-0 01 1 0512-

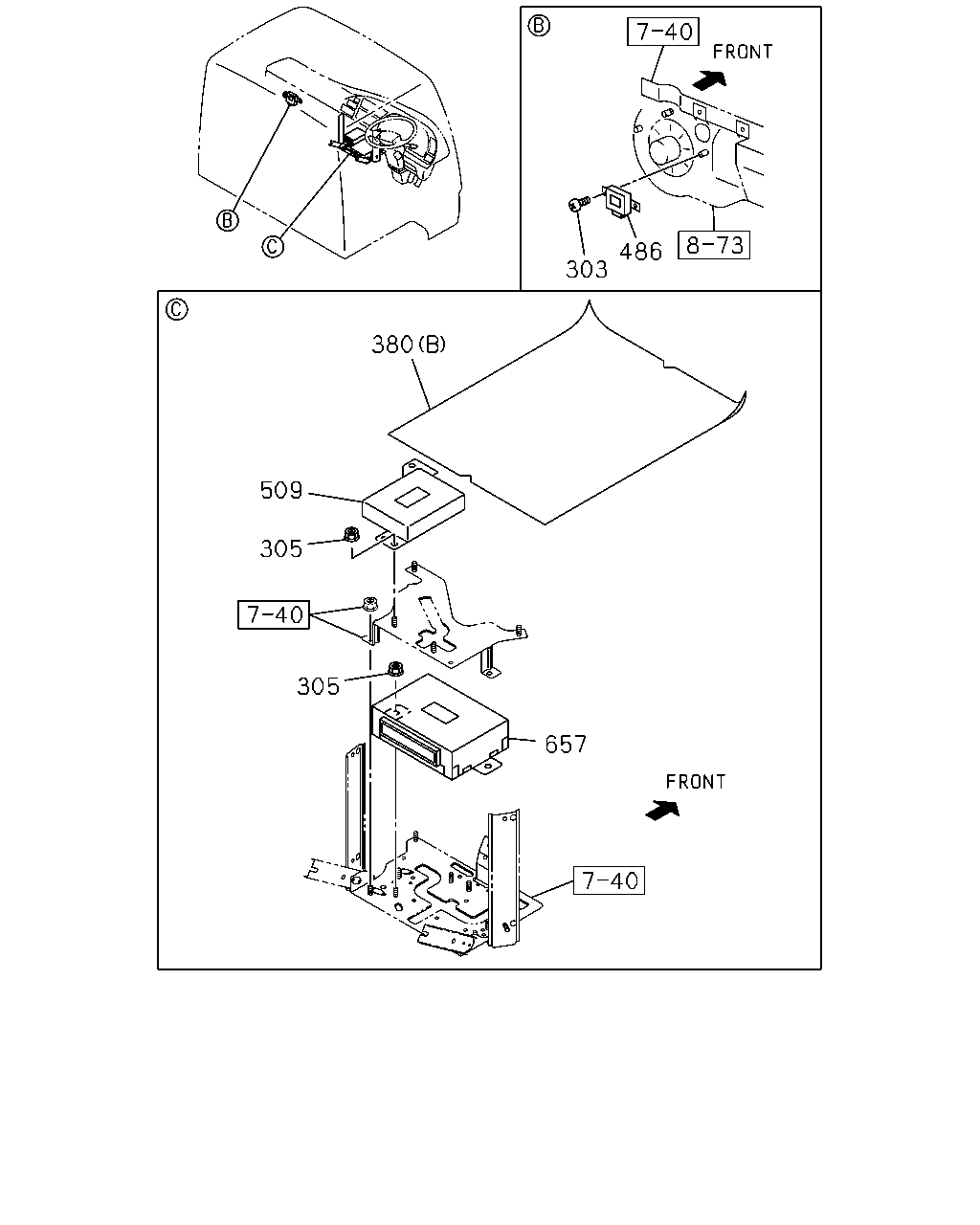

çizim 88247
486 303 380 509 305 305 657
BalonParca AdiParca NoAdetTipApplied Date
303 SCREW; CONT UNIT
MIR STAY O/S W/REMOTE<TBA> M5X14 		8-94279-325-0 01 1 0407-
305 NUT; CONT UNIT
M6 FLANGE 		0-91150-106-0 02 1 0407-0602
305 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<SLG> M6 FLANGE 		0-91150-106-0 02 1 0407-0602
305 NUT; CONT UNIT
MEMORY SYSTEM RUNNING CONDITION<NCR> M6 FLANGE 		0-91150-106-0 02 1 0407-0602
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0603-0809
305 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<SLG> M6 FLANGE 		0-91180-106-0 02 1 0603-0809
305 NUT; CONT UNIT
MEMORY SYSTEM RUNNING CONDITION<NCR> M6 FLANGE 		0-91180-106-0 02 1 0603-0809
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0810-
305 NUT; CONT UNIT
MEMORY SYSTEM RUNNING CONDITION<NCR> M6 FLANGE 		0-91180-106-0 02 1 0810-
380 SEAL
(B) 450X350 		1-76770-008-0 01 1 0407-
380 SEAL
(A) OD=25 BLACK 		1-76798-019-0 01 1 0407-
486 CONTROL UNIT; MIRROR
MIR STAY O/S W/REMOTE<TBA> 		1-82540-046-0 01 1 0407-
509 CONTROL UNIT; CAB SUS 1-80150-042-1 01 1 0407-
657 CONTROL UNIT; MIMAMORI
6WG1 TC-S(97L) MEMORY SYSTEM RUNNING CONDITION<NCR> 		1-80190-179-0 01 1 0512-
657 CONTROL UNIT; MIMAMORI
MEMORY SYSTEM RUNNING CONDITION<NCR> 		1-80190-150-0 01 1 0407-0411
657 CONTROL UNIT; MIMAMORI
MEMORY SYSTEM RUNNING CONDITION<NCR> 		1-80190-156-0 01 1 0412-0511
657 CONTROL UNIT; MIMAMORI
6WF1 TC-C(1B8) MEMORY SYSTEM RUNNING CONDITION<NCR> 		1-80190-175-0 01 1 0512-
çizim 88248
554 466 273 264 452 263 452 554 453 452 264 273 263
BalonParca AdiParca NoAdetTipApplied Date
263 BOLT; CONT UNIT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 0407-
264 BRACKET; CONT UNIT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82547-034-3 01 1 0407-
264 BRACKET; CONT UNIT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82547-035-2 01 1 0407-
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=140 		5-09707-031-1 01 1 0407-
452 BOLT; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0407-
452 BOLT; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0407-0904
452 BOLT; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905-
453 NUT; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8 FLANGE 		0-91150-108-0 02 1 0407-0602
453 NUT; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8 FLANGE 		0-91180-108-0 02 1 0603-
466 NUT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M6 FLANGE 		1-09984-141-0 01 1 0407-
554 CONTROL UNIT; HEAD LAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-80150-155-0 01 1 0407-
554 CONTROL UNIT; HEAD LAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-80150-156-0 01 1 0407-

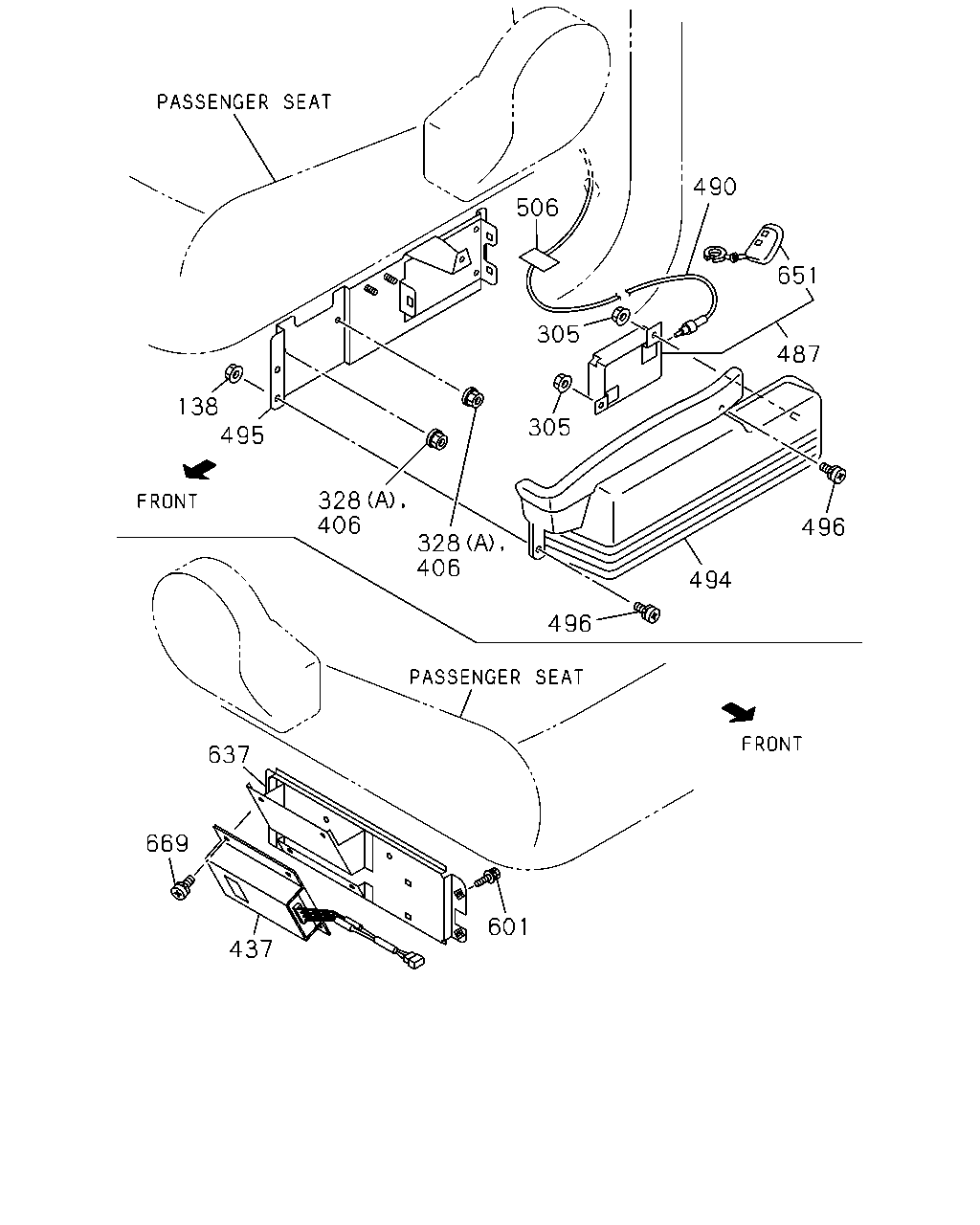

çizim 88288
490 506 651 305 487 138 495 305 328 406 496 328 406 494 496 637 669 601 437
BalonParca AdiParca NoAdetTipApplied Date
138 NUT; BRKT
ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. CUSTOM CAB(SR5) M6 FLANGE 		0-91150-106-0 02 1 0407-0511
138 NUT; BRKT
CUSTOM CAB(SR5) M6 FLANGE 		0-91150-106-0 02 1 0407-0511
138 NUT; BRKT
M6 FLANGE 		0-91150-106-0 02 1 0512-0602
138 NUT; BRKT
M6 FLANGE 		0-91180-106-0 02 1 0603-
305 NUT; CONT UNIT
M6 FLANGE 		0-91150-106-0 02 1 0407-0602
305 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<SLG> M6 FLANGE 		0-91150-106-0 02 1 0407-0602
305 NUT; CONT UNIT
MEMORY SYSTEM RUNNING CONDITION<NCR> M6 FLANGE 		0-91150-106-0 02 1 0407-0602
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0603-0809
305 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<SLG> M6 FLANGE 		0-91180-106-0 02 1 0603-0809
305 NUT; CONT UNIT
MEMORY SYSTEM RUNNING CONDITION<NCR> M6 FLANGE 		0-91180-106-0 02 1 0603-0809
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0810-
305 NUT; CONT UNIT
MEMORY SYSTEM RUNNING CONDITION<NCR> M6 FLANGE 		0-91180-106-0 02 1 0810-
328 NUT
(A) M6 FLANGE 		0-91150-106-0 02 1 0407-0511
328 NUT
ELECTRONIC BRAKE SYSTEM EBS(NLH) (A) M6 FLANGE 		0-91150-106-0 02 1 0407-0511
328 NUT
ELECTRONIC BRAKE SYSTEM EBS(NLH) (A) M6 FLANGE 		0-91150-106-0 02 1 0512-0602
328 NUT
ELECTRONIC BRAKE SYSTEM EBS(NLH) (A) M6 FLANGE 		0-91180-106-0 02 1 0603-
328 NUT
(B) M16 		9-99111-416-0 02 1 0407-0511
328 NUT
6WF1 TC-C(1B8) (B) M16 		9-99111-416-0 02 1 0512-0512
328 NUT
6WF1 TC-C(1B8) (B) M16 		0-91111-516-0 02 1 0601-
406 NUT; COVER
ELECTRONIC BRAKE SYSTEM EBS(NLH) M6 FLANGE 		0-91150-106-0 02 1 0407-0602
406 NUT; COVER
ELECTRONIC BRAKE SYSTEM EBS(NLH) M6 FLANGE 		0-91180-106-0 02 1 0603-
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> MITSUBISHI 		1-84122-034-1 01 1 0407-0511
437 CONVERTER; DC
MITSUBISHI 		1-84122-034-1 01 1 0512-0604
437 CONVERTER; DC
METRO DENSO 		8-98046-423-0 01 1 0605-
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE
REMOTE CONT DOOR LOCK<SLG> 		1-86855-033-2 01 1 0407-0809
490 ANTENNA; AUTO REMOTE DOOR LOCK
REMOTE CONT DOOR LOCK<SLG> 		1-86855-023-1 01 1 0407-0809
494 COVER; ELEC BOX
ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. CUSTOM CAB(SR5) 		1-72538-160-2 01 1 0407-0511
494 COVER; ELEC BOX
CUSTOM CAB(SR5) 		1-72538-160-2 01 1 0407-0511
494 COVER; ELEC BOX 1-72538-160-3 01 1 0512-0810
494 COVER; ELEC BOX 8-97589-725-0 01 1 0811-
495 BRACKET; ELEC BOX
ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. CUSTOM CAB(SR5) 		1-75558-488-5 01 1 0407-0511
495 BRACKET; ELEC BOX
CUSTOM CAB(SR5) 		1-75558-488-5 01 1 0407-0511
495 BRACKET; ELEC BOX 1-75558-488-5 01 1 0512-
496 SCREW; COVER
ELECTRONIC BRAKE SYSTEM EBS(NLH) EXC. CUSTOM CAB(SR5) M6X16 W/LK&PL WASHER 		8-94279-402-0 03 1 0407-0511
496 SCREW; COVER
CUSTOM CAB(SR5) M6X16 W/LK&PL WASHER 		8-94279-402-0 03 1 0407-0511
496 SCREW; COVER
M6X16 W/LK&PL WASHER 		8-94279-402-0 03 1 0512-0703
496 SCREW; COVER
M6X12 W/LK&PL WASHER 		0-36230-612-0 03 1 0704-
506 TAPE; ANTENNA
REMOTE CONT DOOR LOCK<SLG> 100X30 		1-74998-068-0 06 1 0407-0809
601 BOLT; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0407-0511
601 BOLT; DC-DC CONVERTER
M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0512-0703
601 BOLT; DC-DC CONVERTER
M6X12 W/LK&PL WASHER 		0-36230-612-0 02 1 0704-
637 BRACKET; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> 		1-75557-483-1 01 1 0407-0511
637 BRACKET; DC-DC CONVERTER 1-75557-483-1 01 1 0512-
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE
REMOTE CONT DOOR LOCK<SLG> 		1-86860-008-0 01 1 0407-0809
669 SCREW; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> M6X12 W/PL WASHER 		1-09981-380-0 04 1 0407-0511
669 SCREW; DC-DC CONVERTER
M6X12 W/PL WASHER 		1-09981-380-0 04 1 0512-

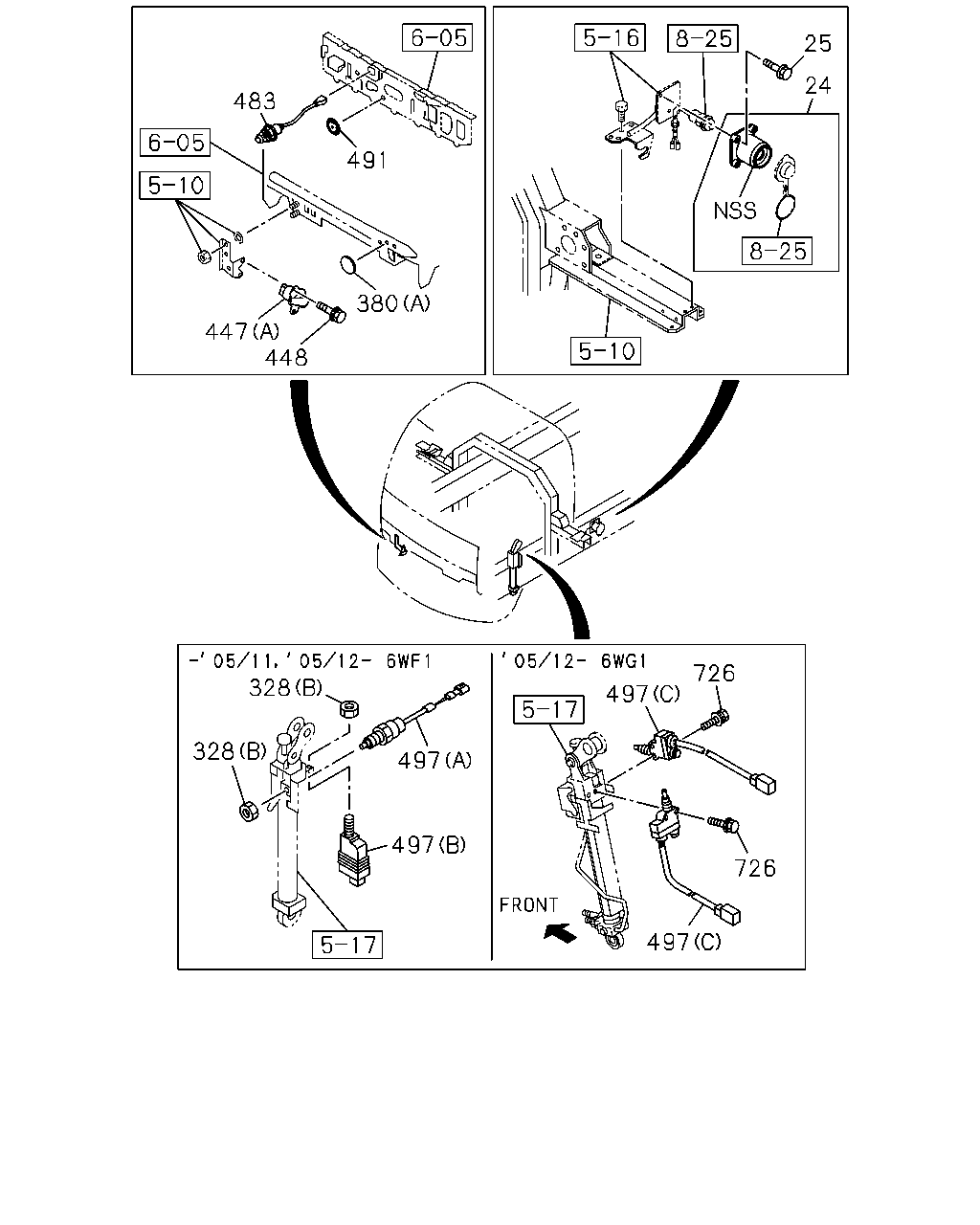

çizim 88346
25 24 483 491 380 447 448 328 726 497 328 497 497 726 497
BalonParca AdiParca NoAdetTipApplied Date
24 BOX; SW,CAB TILT 1-82389-007-1 01 1 0407-0511
24 BOX; SW,CAB TILT
6WF1 TC-C(1B8) 		1-82389-007-1 01 1 0512-
25 BOLT; SW BOX
M6X16 FLANGE 		0-28080-616-0 02 1 0407-0511
25 BOLT; SW BOX
6WF1 TC-C(1B8) M6X16 FLANGE 		0-28080-616-0 02 1 0512-0512
25 BOLT; SW BOX
6WF1 TC-C(1B8) M6X16 FLANGE 		0-28050-616-0 02 1 0601-
328 NUT
(A) M6 FLANGE 		0-91150-106-0 02 1 0407-0511
328 NUT
ELECTRONIC BRAKE SYSTEM EBS(NLH) (A) M6 FLANGE 		0-91150-106-0 02 1 0407-0511
328 NUT
ELECTRONIC BRAKE SYSTEM EBS(NLH) (A) M6 FLANGE 		0-91150-106-0 02 1 0512-0602
328 NUT
ELECTRONIC BRAKE SYSTEM EBS(NLH) (A) M6 FLANGE 		0-91180-106-0 02 1 0603-
328 NUT
(B) M16 		9-99111-416-0 02 1 0407-0511
328 NUT
6WF1 TC-C(1B8) (B) M16 		9-99111-416-0 02 1 0512-0512
328 NUT
6WF1 TC-C(1B8) (B) M16 		0-91111-516-0 02 1 0601-
380 SEAL
(B) 450X350 		1-76770-008-0 01 1 0407-
380 SEAL
(A) OD=25 BLACK 		1-76798-019-0 01 1 0407-
447 SENSOR; HEIGHT
(A) 		1-80250-010-1 01 1 0407-
447 SENSOR; HEIGHT
(B) 		1-80250-011-1 01 1 0407-
448 BOLT; SENSOR
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0407-
483 SWITCH 1-82440-118-0 01 1 0407-
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 0407-
497 SWITCH; CAB TILT
6WG1 TC-S(97L) (C) STAMP NO 		1-82380-172-1 02 1 0512-
497 SWITCH; CAB TILT
(A) STAMP NC 		1-82380-125-1 01 1 0407-0511
497 SWITCH; CAB TILT
6WF1 TC-C(1B8) (A) STAMP NC 		1-82380-125-1 01 1 0512-
497 SWITCH; CAB TILT
(B) 		1-82380-128-1 01 1 0407-0511
497 SWITCH; CAB TILT
6WF1 TC-C(1B8) (B) 		1-82380-128-1 01 1 0512-
726 BOLT; SW,CAB TILT
6WG1 TC-S(97L) M6X25 FLANGE 		0-28080-625-0 04 1 0512-0512
726 BOLT; SW,CAB TILT
6WG1 TC-S(97L) M6X25 FLANGE 		0-28050-625-0 04 1 0601-

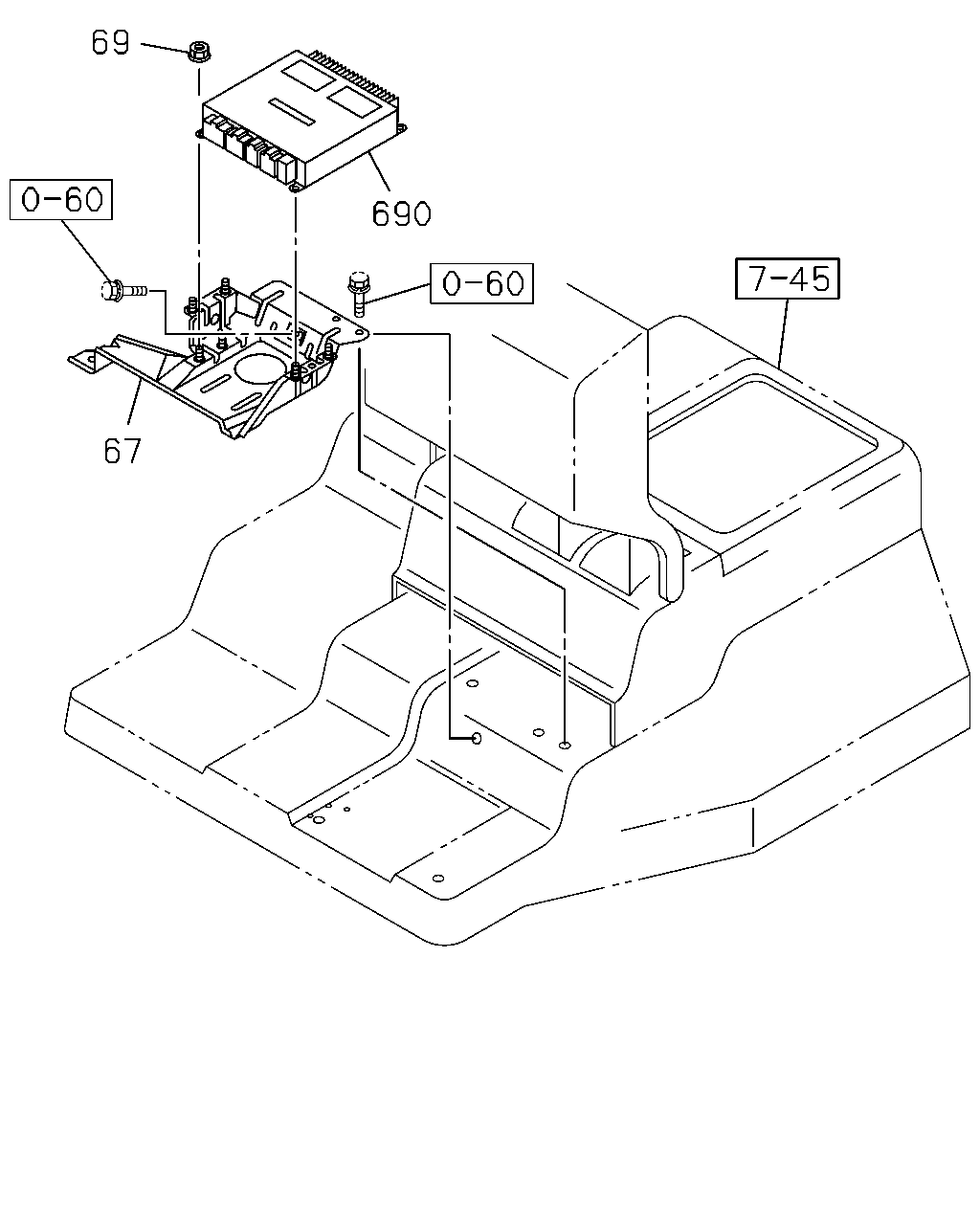

çizim 104711
69 690 67
BalonParca AdiParca NoAdetTipApplied Date
67 BRACKET; CONT UNIT 1-72537-234-1 01 1 0407-
69 NUT; BRKT
M6 FLANGE 		0-91150-106-0 02 1 0407-0602
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 02 1 0603-
690 CONTROL UNIT; EBS
ELECTRONIC BRAKE SYSTEM EBS(NLH) 		1-80119-183-0 01 1 0407-0511
690 CONTROL UNIT; EBS
ELECTRONIC BRAKE SYSTEM EBS(NLH) 		1-80119-252-0 01 1 0512-

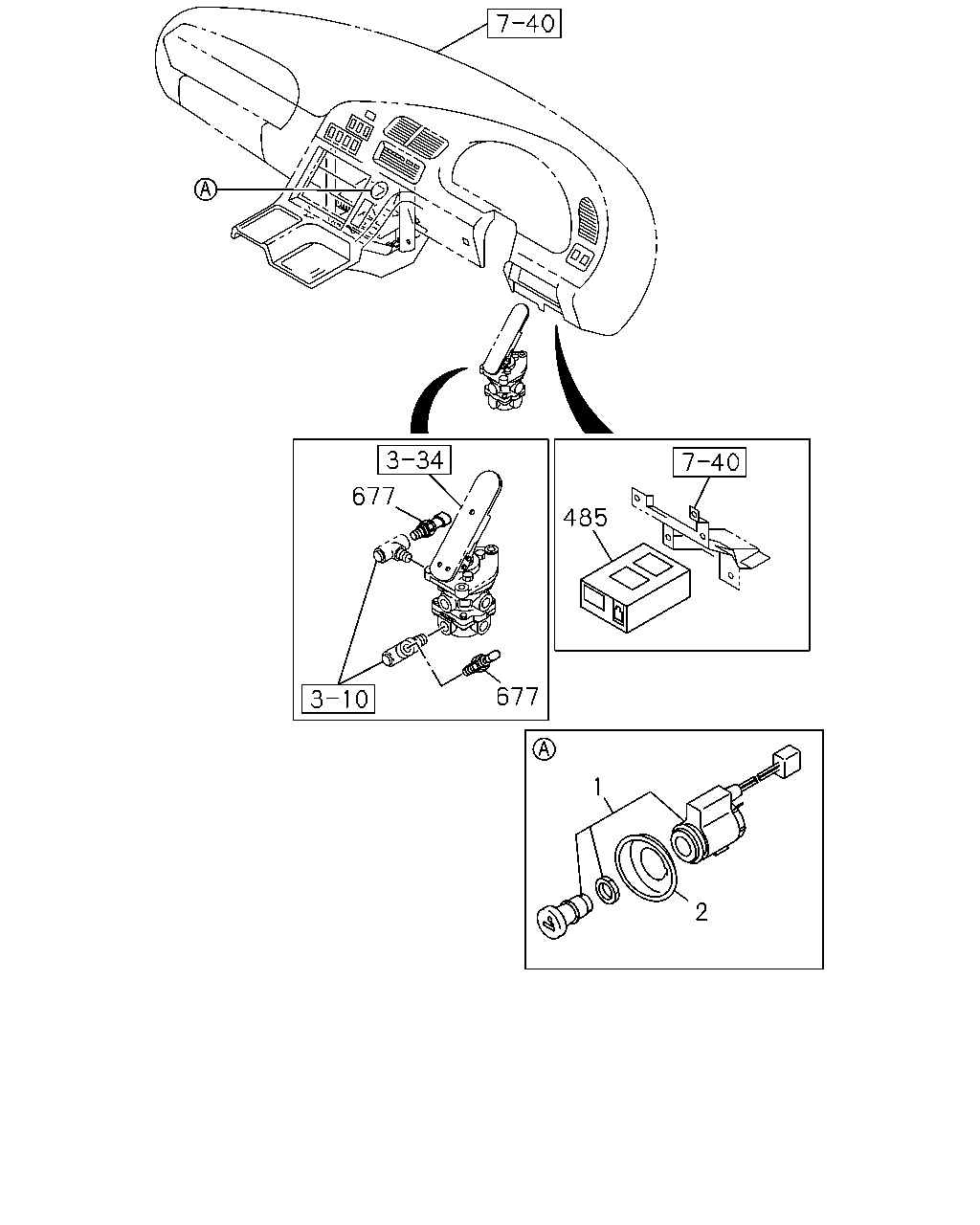

çizim 104714
677 485 677 1 2
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0407-
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 0407-
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 0407-0511
485 CONTROL UNIT; SPEED SENSOR 1-80190-158-0 01 1 0512-
677 SENSOR; AIR METER
6WG1 TC-S(97L) THREAD R1/4 		1-80220-023-1 02 1 0512-

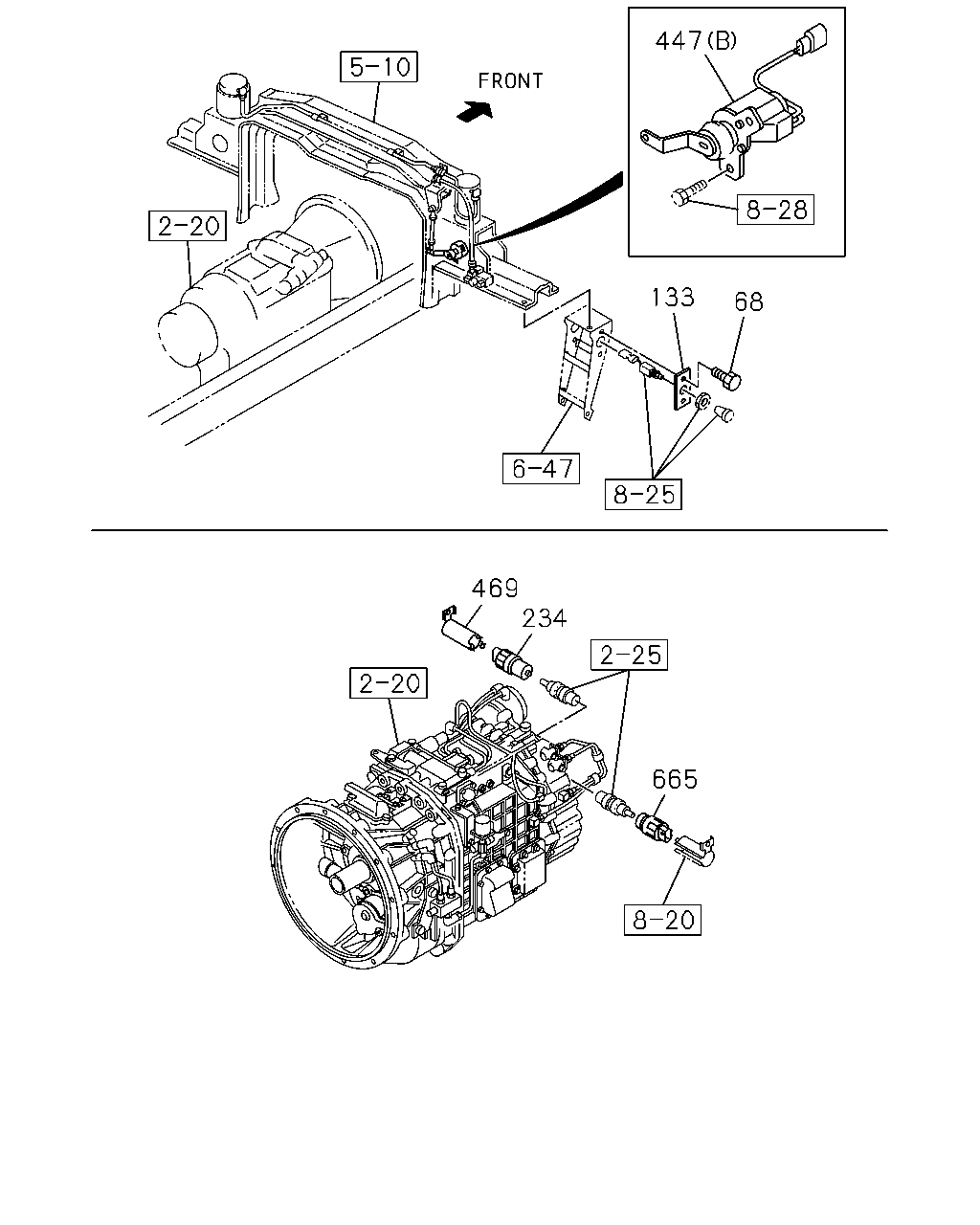

çizim 104825
447 133 68 469 234 665
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0407-0512
68 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
133 BRACKET; SWITCH 1-82699-815-0 01 1 0407-
234 SENSOR; VEHICLE SPD
25 PULSE 		1-80240-029-0 01 1 0407-1301
234 SENSOR; VEHICLE SPD
25 PULSE 		8-98234-167-0 01 1 1302-
447 SENSOR; HEIGHT
(A) 		1-80250-010-1 01 1 0407-
447 SENSOR; HEIGHT
(B) 		1-80250-011-1 01 1 0407-
469 PROTECTOR; SPEED SENSOR 8-97168-308-0 01 1 0407-0511
469 PROTECTOR; SPEED SENSOR
6WF1 TC-C(1B8) 		8-97168-308-0 01 1 0512-0808
469 PROTECTOR; SPEED SENSOR
6WF1 TC-C(1B8) 		8-98119-901-0 01 1 0809-
665 SENSOR; SPEED
25 PULSE ALUMINUM 		8-97328-058-0 01 1 0407-0511
665 SENSOR; SPEED
6WF1 TC-C(1B8) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0512-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
