◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 10956 - EXY NEW ZEALAND ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#29194) — 104 parça

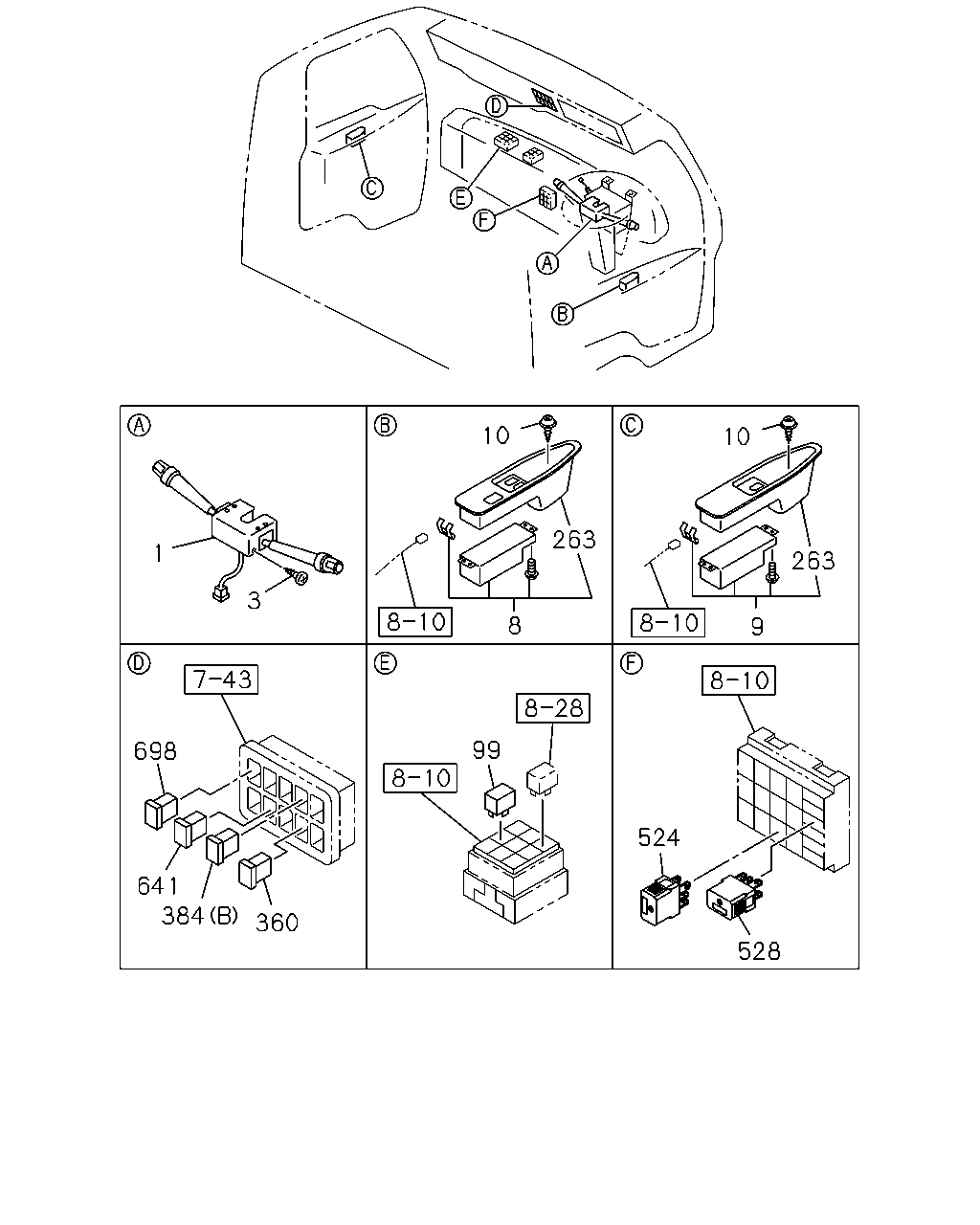

çizim 88278
10 10 263 1 263 3 8 9 99 698 524 641 384 360 528
BalonParca AdiParca NoAdetTipApplied Date
1 SWITCH; COMB
AUTO CRUISE W/RESUME<NKA> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82360-695-2 01 1 0512-
1 SWITCH; COMB 1-82360-694-1 01 1 0407-0511
1 SWITCH; COMB
AUTO CRUISE W/RESUME<NKA> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82360-694-2 01 1 0512-
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 0407-0604
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74165-512-0 04 1 0605-
8 SWITCH; POWER WINDOW
DRIVER 		1-82380-166-2 01 1 0407-
9 SWITCH; POWER WINDOW
PASSENGER 		1-82380-167-1 01 1 0407-
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0407-0604
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-
99 RELAY; FOG LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0407-
263 COVER; SW 1-82385-005-2 01 1 0407-
263 COVER; SW 1-82385-006-3 01 1 0407-
360 SWITCH ASM; DIFF LK 1-82340-404-0 01 1 0407-
384 SWITCH; IDLING CONT,ELEC
6WG1 TC-S(97L) (C) 		1-82350-321-1 01 1 0512-
384 SWITCH; IDLING CONT,ELEC
(A) 		1-82350-213-1 01 1 0407-
384 SWITCH; IDLING CONT,ELEC
(B) 		1-82350-342-0 01 1 0407-0511
384 SWITCH; IDLING CONT,ELEC
6WF1 TC-C(1B8) (B) 		1-82350-342-0 01 1 0512-
524 RELAY; LAMP
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0407-0511
524 RELAY; LAMP
INSPECTION LAMP<T95> 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0512-
528 RELAY; BUZZER
24V 10A PANASONIC 		8-97173-035-1 01 1 0407-
641 SWITCH; MAP
6WG1 TC-S(97L) 		1-82350-372-0 01 1 0512-
641 SWITCH; MAP 1-82350-362-1 01 1 0407-0511
641 SWITCH; MAP
6WF1 TC-C(1B8) 		1-82350-362-1 01 1 0512-
698 SWITCH; EDS 1-82340-698-0 01 1 0407-0511
698 SWITCH; EDS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82340-698-0 01 1 0512-

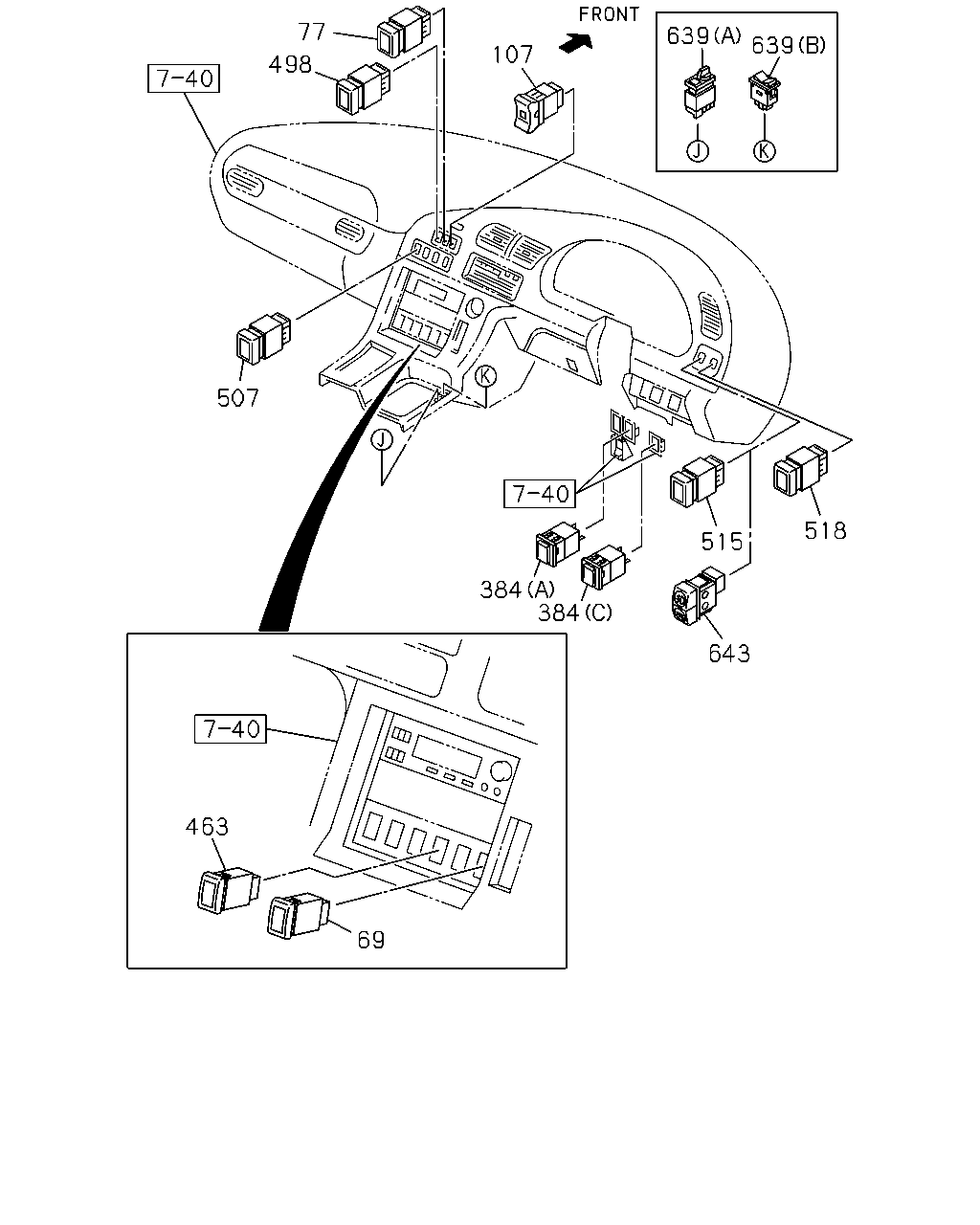

çizim 88313
77 639 639 107 498 507 518 515 384 384 643 463 69
BalonParca AdiParca NoAdetTipApplied Date
69 SWITCH; AUTO CRUISE 1-82340-682-0 01 1 0407-0511
69 SWITCH; AUTO CRUISE
AUTO CRUISE W/RESUME<NKA> 		1-82340-682-0 01 1 0512-
77 SWITCH; PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 		1-82340-413-0 01 1 0407-
107 SWITCH; REMOTE CONT,MIRROR
MIR STAY O/S W/REMOTE<TBA> 		1-82350-233-0 01 1 0407-
384 SWITCH; IDLING CONT,ELEC
6WG1 TC-S(97L) (C) 		1-82350-321-1 01 1 0512-
384 SWITCH; IDLING CONT,ELEC
(A) 		1-82350-213-1 01 1 0407-
384 SWITCH; IDLING CONT,ELEC
(B) 		1-82350-342-0 01 1 0407-0511
384 SWITCH; IDLING CONT,ELEC
6WF1 TC-C(1B8) (B) 		1-82350-342-0 01 1 0512-
463 SWITCH; SPOT LAMP 1-82340-411-0 01 1 0407-0511
463 SWITCH; SPOT LAMP
INSPECTION LAMP<T95> 		1-82340-411-0 01 1 0512-
498 SWITCH; ASR 1-82340-642-0 01 1 0407-0511
498 SWITCH; ASR
ANTI SPIN REGULATOR ASR<BCF> 		1-82340-642-0 01 1 0512-
507 SWITCH; MIRROR HEATER
MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> 		1-82340-423-0 01 1 0407-
515 SWITCH; FLUORESCENT LAMP 1-82350-230-0 01 1 0407-0511
515 SWITCH; FLUORESCENT LAMP
6WF1 TC-C(1B8) 		1-82350-230-0 01 1 0512-
518 SWITCH; RADIO TUNE 1-82350-231-0 01 1 0512-
639 SWITCH; EMERGENCY
(A) 		1-82330-068-0 01 1 0407-
639 SWITCH; EMERGENCY
(B) 		1-82350-363-0 01 1 0407-
643 SWITCH; SKIP SHIFT
6WG1 TC-S(97L) 		8-97381-249-0 01 1 0512-
643 SWITCH; SKIP SHIFT 1-82340-689-0 01 1 0407-0511
643 SWITCH; SKIP SHIFT
6WF1 TC-C(1B8) 		1-82340-689-0 01 1 0512-

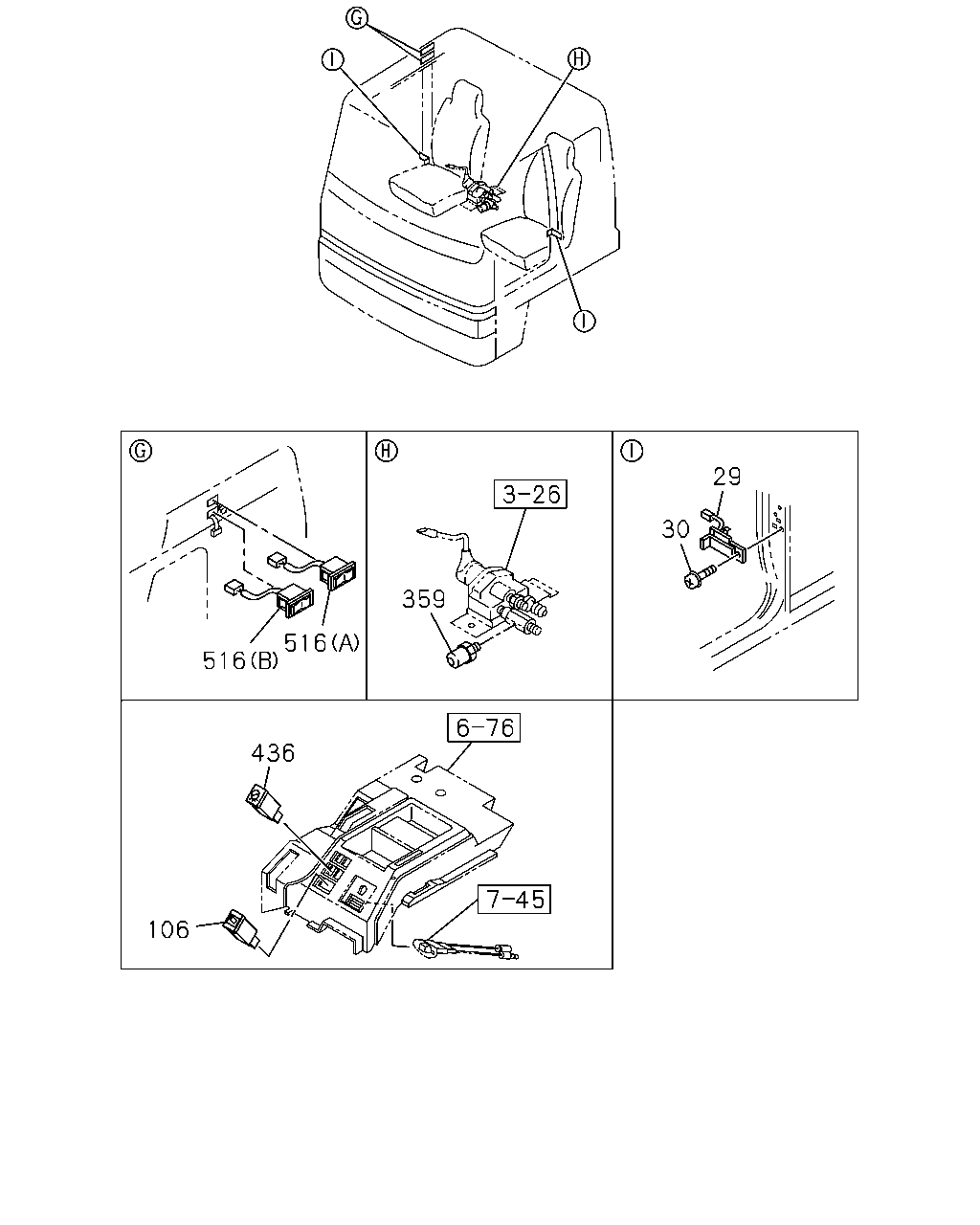

çizim 88316
29 30 359 516 516 436 106
BalonParca AdiParca NoAdetTipApplied Date
29 SWITCH; DOOR 8-97855-032-3 02 1 0407-
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 02 1 0407-
106 SWITCH; REMOTE CONT MIRROR
MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> 		1-82350-223-0 01 1 0407-
359 SWITCH; TRAILER BRAKE
GREEN 		1-82410-176-1 01 1 0407-
436 SWITCH; HEADLAMP LEVELING 1-82330-043-0 01 1 0407-0511
516 SWITCH; CURTAIN
AUTO ROUND CURTAIN<TAR> (A) 		1-82350-239-2 01 1 0407-
516 SWITCH; CURTAIN
AUTO ROUND CURTAIN<TAR> (B) 		1-82350-240-2 01 1 0407-

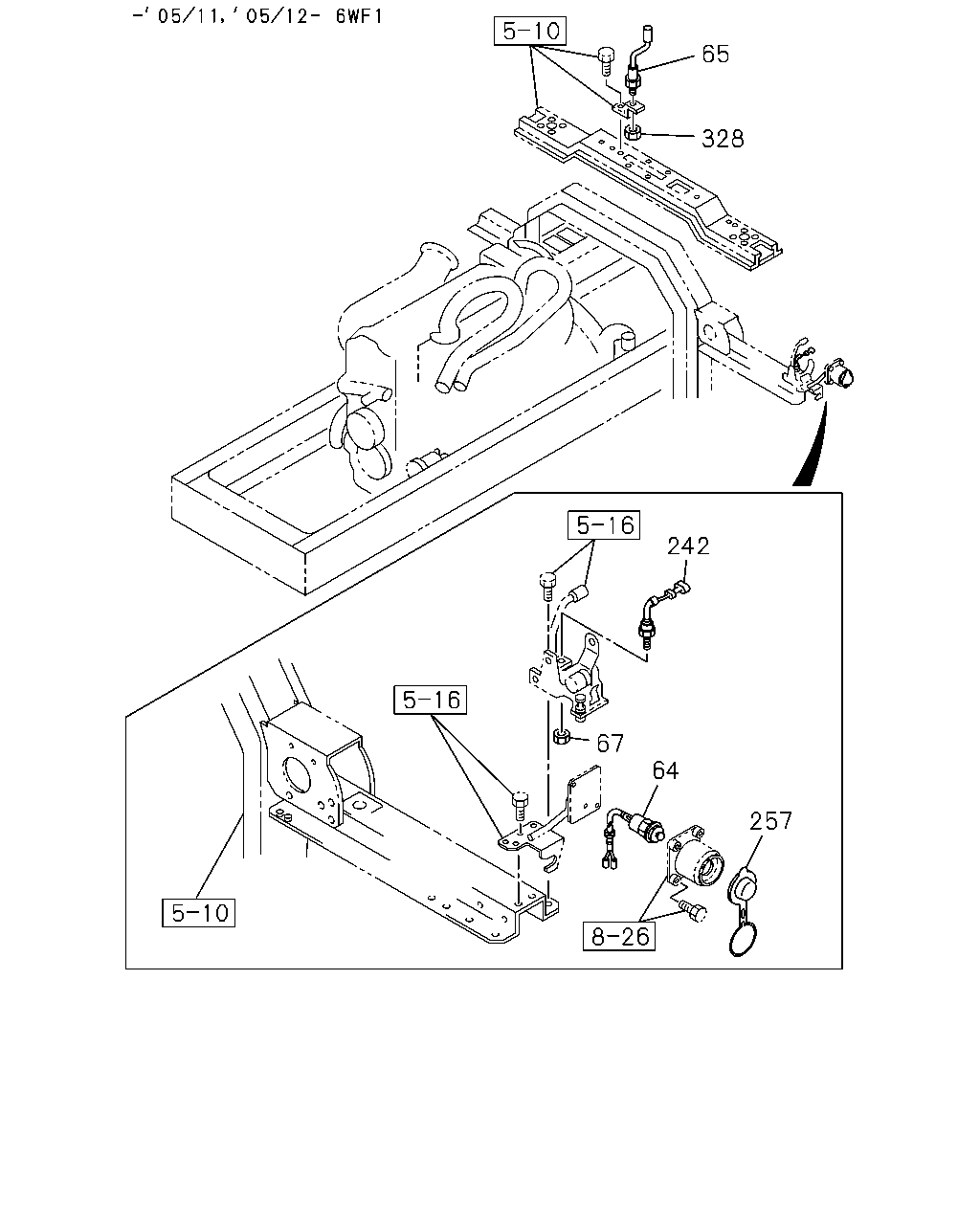

çizim 88347
65 328 242 67 64 257
BalonParca AdiParca NoAdetTipApplied Date
64 SWITCH; CAB TILT MAIN
6WG1 TC-S(97L) 		1-82380-173-2 01 1 0512-
64 SWITCH; CAB TILT MAIN 1-82380-108-0 01 1 0407-0511
64 SWITCH; CAB TILT MAIN
6WF1 TC-C(1B8) 		1-82380-108-0 01 1 0512-
65 SWITCH; CAB TILT LK
STAMP NC 		1-82380-125-1 01 1 0407-
67 NUT; SW,CAB TILT
M16 H=18.5 		1-09409-013-0 01 1 0407-0511
67 NUT; SW,CAB TILT
6WF1 TC-C(1B8) M16 H=18.5 		1-09409-013-0 01 1 0512-
242 SWITCH
6WG1 TC-S(97L) STAMP NO 		1-82380-172-1 01 1 0512-
242 SWITCH
STAMP NO 		1-82380-126-0 01 1 0407-0511
242 SWITCH
6WF1 TC-C(1B8) STAMP NO 		1-82380-126-0 01 1 0512-
257 COVER; HOLE,SW 1-82389-008-0 01 1 0407-0511
257 COVER; HOLE,SW
6WF1 TC-C(1B8) 		1-82389-008-0 01 1 0512-
328 NUT; SW
M16 		9-99110-416-0 01 1 0407-0512
328 NUT; SW
M16 		0-91110-516-0 01 1 0601-

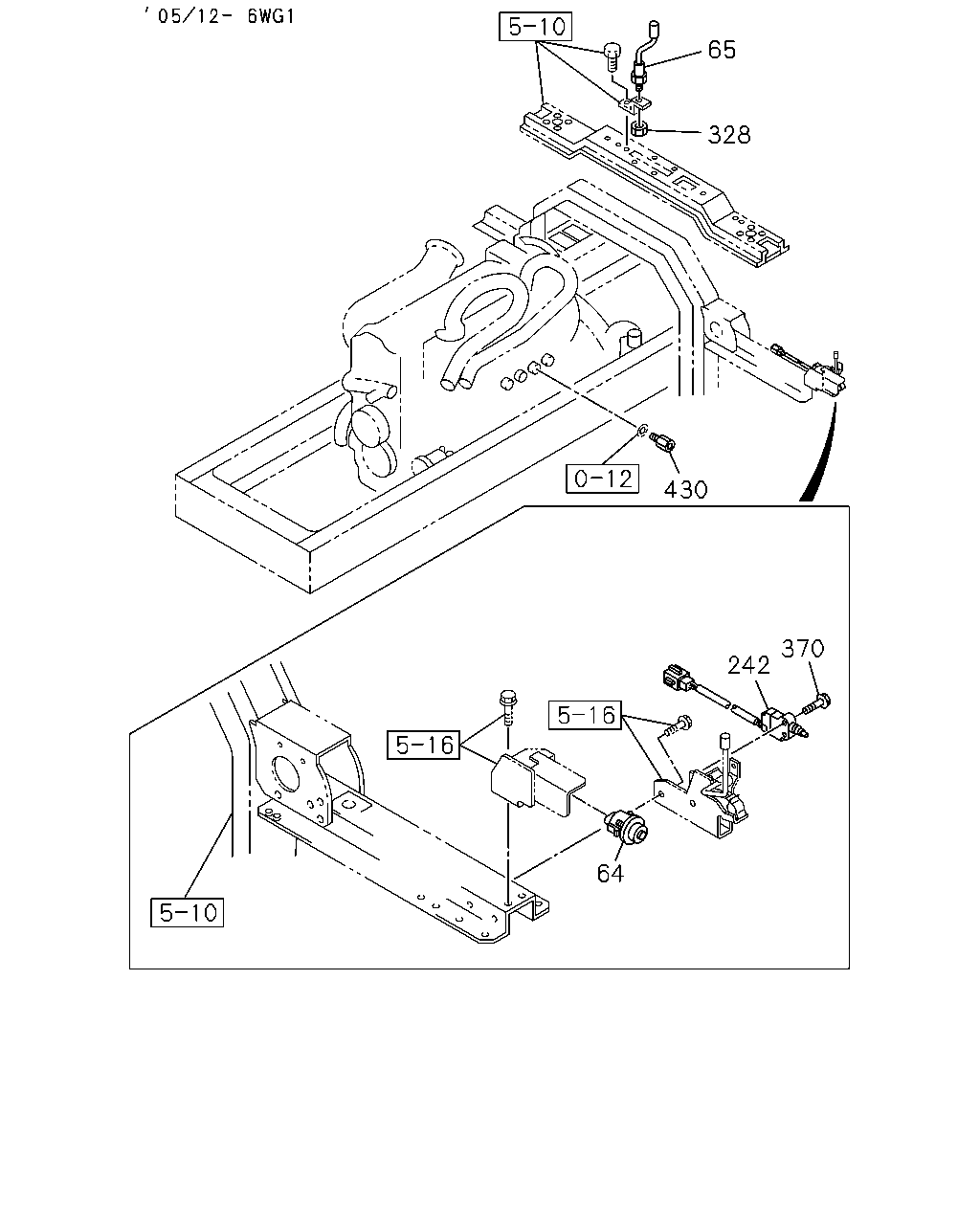

çizim 104824
65 328 430 370 242 64
BalonParca AdiParca NoAdetTipApplied Date
64 SWITCH; CAB TILT MAIN
6WG1 TC-S(97L) 		1-82380-173-2 01 1 0512-
64 SWITCH; CAB TILT MAIN 1-82380-108-0 01 1 0407-0511
64 SWITCH; CAB TILT MAIN
6WF1 TC-C(1B8) 		1-82380-108-0 01 1 0512-
65 SWITCH; CAB TILT LK
STAMP NC 		1-82380-125-1 01 1 0407-
242 SWITCH
6WG1 TC-S(97L) STAMP NO 		1-82380-172-1 01 1 0512-
242 SWITCH
STAMP NO 		1-82380-126-0 01 1 0407-0511
242 SWITCH
6WF1 TC-C(1B8) STAMP NO 		1-82380-126-0 01 1 0512-
328 NUT; SW
M16 		9-99110-416-0 01 1 0407-0512
328 NUT; SW
M16 		0-91110-516-0 01 1 0601-
370 BOLT; SW
6WG1 TC-S(97L) M6X30 FLANGE 		0-28680-630-0 02 1 0512-0512
370 BOLT; SW
6WG1 TC-S(97L) M6X30 FLANGE 		0-28650-630-0 02 1 0601-
430 ADAPTER; SW
6WG1 TC-S(97L) M14 & PT1/4 STRAIGHT 		1-09669-130-0 01 1 0512-

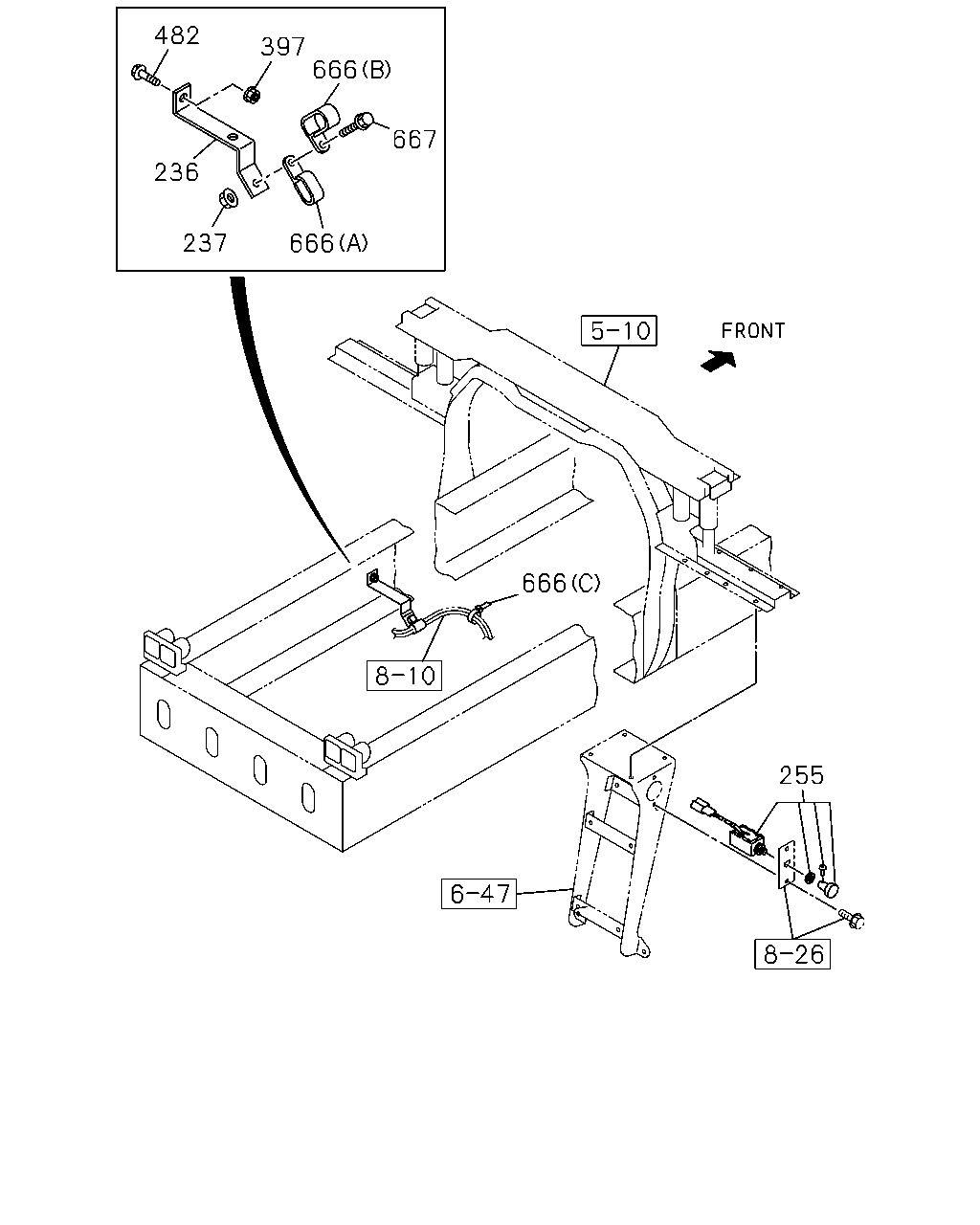

çizim 105185
482 397 666 667 236 237 666 666 255
BalonParca AdiParca NoAdetTipApplied Date
236 BRACKET; AXLE HARNESS,RR 1-82699-996-1 01 1 0407-0511
236 BRACKET; AXLE HARNESS,RR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82699-996-1 01 1 0512-
237 NUT
M8 FLANGE 		0-91150-108-0 01 1 0407-0511
237 NUT
ELECTRONIC BRAKE SYSTEM EBS(NLH) M8 FLANGE 		0-91150-108-0 01 1 0512-0602
237 NUT
ELECTRONIC BRAKE SYSTEM EBS(NLH) M8 FLANGE 		0-91180-108-0 01 1 0603-
255 SWITCH; SEARCH LIGHT
INSPECTION LAMP<T95> 		1-82340-360-1 01 1 0407-0706
255 SWITCH; SEARCH LIGHT
INSPECTION LAMP<T95> 		8-97621-403-0 01 1 0707-0711
255 SWITCH; SEARCH LIGHT
INSPECTION LAMP<T95> 		8-98106-483-0 01 1 0712-
397 NUT; BRKT FIX
M8 FLANGE 		0-91150-108-0 01 1 0407-0511
397 NUT; BRKT FIX
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91150-108-0 01 1 0512-0602
397 NUT; BRKT FIX
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91180-108-0 01 1 0603-
482 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0407-0511
482 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X30 FLANGE 		0-28680-830-0 01 1 0512-0512
482 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X30 FLANGE 		0-28650-830-0 01 1 0601-
666 CLIP; AXLE HARNESS
(B) ID=11X2 L=20 		1-09700-871-0 03 1 0407-0511
666 CLIP; AXLE HARNESS
ELECTRONIC BRAKE SYSTEM EBS(NLH) (B) ID=11X2 L=20 		1-09700-871-0 03 1 0512-
666 CLIP; AXLE HARNESS
(C) L=350 		1-09707-183-0 01 1 0407-0511
666 CLIP; AXLE HARNESS
ELECTRONIC BRAKE SYSTEM EBS(NLH) (C) L=350 		1-09707-183-0 01 1 0512-
666 CLIP; AXLE HARNESS
(A) ID=11X2 L=16 		9-09535-025-0 01 1 0407-0511
666 CLIP; AXLE HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=16 		9-09525-025-0 01 1 0512-0606
666 CLIP; AXLE HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=16 		0-95235-025-0 01 1 0607-
667 BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X20 FLANGE 		0-28680-820-0 01 1 0512-0512
667 BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X20 FLANGE 		0-28650-820-0 01 1 0601-
667 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 03 1 0407-0511
667 BOLT; CLIP
ELECTRONIC BRAKE SYSTEM EBS(NLH) M8X20 FLANGE 		0-28680-820-0 03 1 0512-0512
667 BOLT; CLIP
ELECTRONIC BRAKE SYSTEM EBS(NLH) M8X20 FLANGE 		0-28650-820-0 03 1 0601-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
