8-21 — METER ASM (#29193) — 158 parça

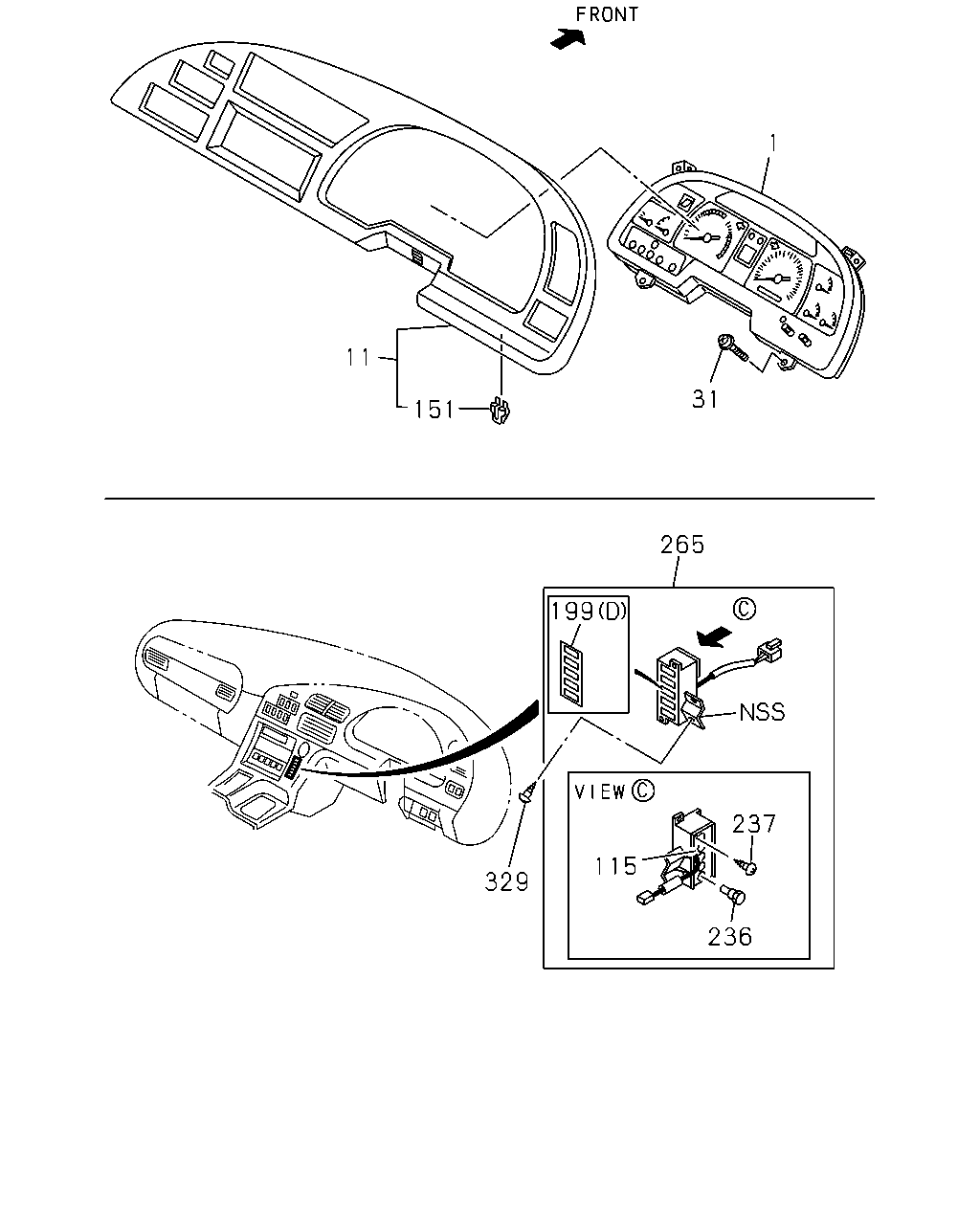

1 11 31 151 265 199 237 115 329 236

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	METER COMPL; CLUSTER 6WF1 TC-C(1B8)	1-82116-015-0	01	1	0512-
1	METER COMPL; CLUSTER	1-83116-151-0	01	1	0407-0511
1	METER COMPL; CLUSTER 6WG1 TC-S(97L)	1-83116-354-2	01	1	0512-1107
1	METER COMPL; CLUSTER 6WG1 TC-S(97L)	8-98194-299-1	01	1	1108-
11	CLUSTER ASM; METER CUSTOM CAB(SR5)	1-72418-014-9	01	1	0407-0511
11	CLUSTER ASM; METER	1-72418-014-9	01	1	0512-
11	CLUSTER ASM; METER EXC. CUSTOM CAB(SR5)	1-72418-012-9	01	1	0407-0511
31	SCREW; METER,INST PANEL M6X20 TAPPING W/PL WASHER	0-74110-620-0	03	1	0407-0604
31	SCREW; METER,INST PANEL M6X20 TAPPING W/PL WASHER	0-74160-620-0	03	1	0605-
115	CIRCUIT; PRINTED,CLUSTER METER	1-82259-006-0	01	1	0512-
151	CLIP; METER CLUSTER	8-97217-066-0	10	1	0407-
199	LENS; WARNING LAMP 6WF1 TC-C(1B8) (A)	1-83119-858-0	01	1	0512-
199	LENS; WARNING LAMP 6WF1 TC-C(1B8) (B)	1-83119-911-0	01	1	0512-
199	LENS; WARNING LAMP 6WG1 TC-S(97L) (C)	1-83119-891-0	01	1	0512-
199	LENS; WARNING LAMP (D)	1-82255-312-0	01	1	0512-
199	LENS; WARNING LAMP (A)	1-83119-722-0	01	1	0407-0511
199	LENS; WARNING LAMP 6WG1 TC-S(97L) (A)	1-83119-888-0	01	1	0512-
199	LENS; WARNING LAMP (B)	1-83119-849-0	01	1	0407-0511
199	LENS; WARNING LAMP 6WG1 TC-S(97L) (B)	1-83119-890-0	01	1	0512-
236	BULB ASM; WARNING LAMP 24V 1.8W BROWN SOCKET	1-82194-062-0	05	1	0512-
237	SCREW; CIRCUIT PRINT FIX,WARNING LAMP M3 TAPPING	1-83119-052-0	03	1	0512-
265	LAMP ASM; WARNING	1-82250-358-1	01	1	0512-
329	SCREW; WARNING LAMP M5X14	8-94279-325-0	02	1	0512-

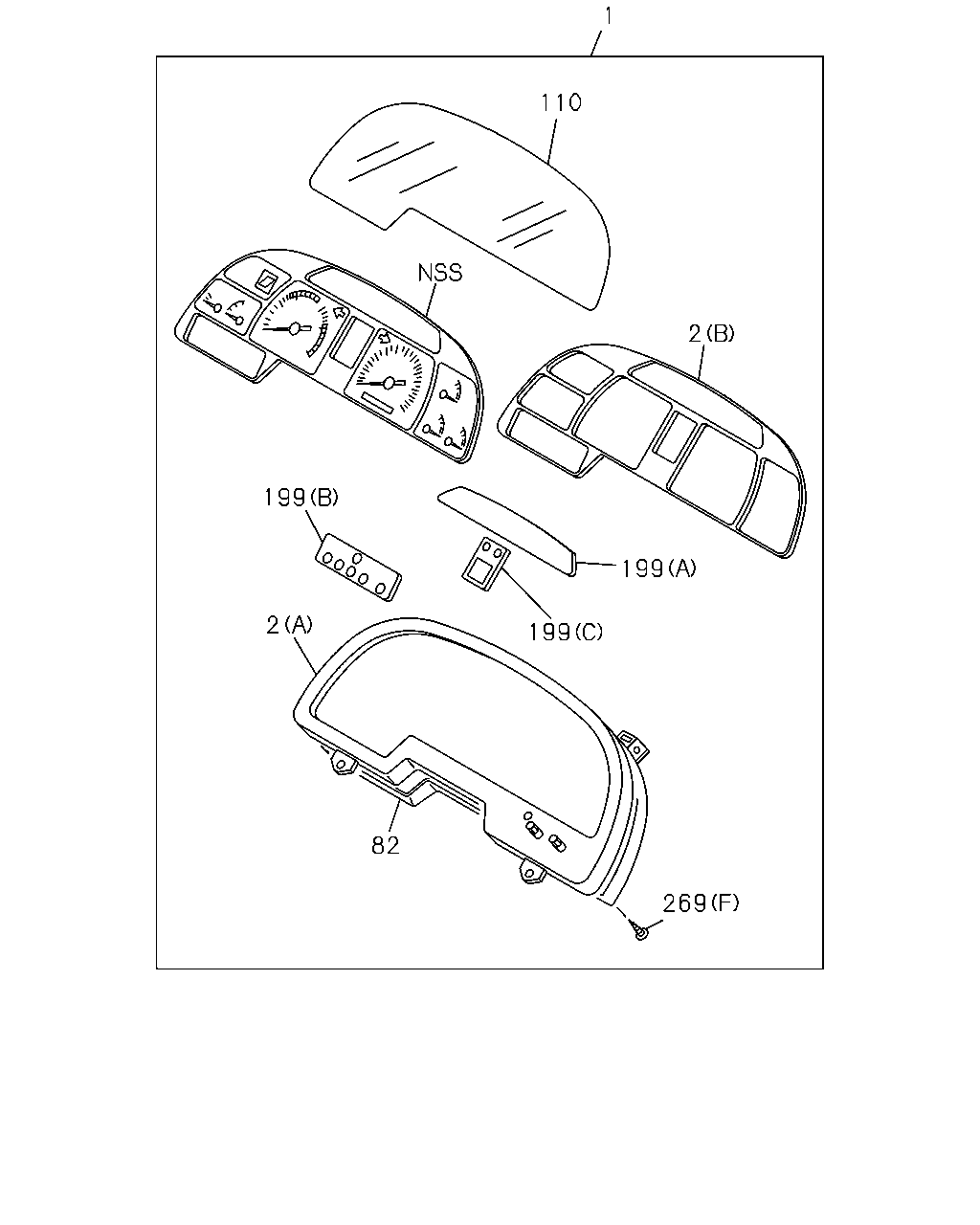

1 110 2 199 199 2 199 82 269

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	METER COMPL; CLUSTER 6WF1 TC-C(1B8)	1-82116-015-0	01	1	0512-
1	METER COMPL; CLUSTER	1-83116-151-0	01	1	0407-0511
1	METER COMPL; CLUSTER 6WG1 TC-S(97L)	1-83116-354-2	01	1	0512-1107
1	METER COMPL; CLUSTER 6WG1 TC-S(97L)	8-98194-299-1	01	1	1108-
2	PANEL; CLUSTER 6WF1 TC-C(1B8) (B)	1-83119-843-0	01	1	0512-
2	PANEL; CLUSTER 6WF1 TC-C(1B8) (A)	1-83119-854-0	01	1	0512-
2	PANEL; CLUSTER (B)	1-83119-843-0	01	1	0407-0511
2	PANEL; CLUSTER 6WG1 TC-S(97L) (B)	1-83119-885-0	01	1	0512-
2	PANEL; CLUSTER (A)	1-83119-854-0	01	1	0407-0511
2	PANEL; CLUSTER 6WG1 TC-S(97L) (A)	1-83119-887-0	01	1	0512-
82	CASE ASM; CLUSTER METER 6WF1 TC-C(1B8)	1-83119-860-0	01	1	0512-
82	CASE ASM; CLUSTER METER	1-83119-847-0	01	1	0407-0511
82	CASE ASM; CLUSTER METER 6WG1 TC-S(97L)	1-83119-892-0	01	1	0512-
110	GLASS; CLUSTER METER 6WF1 TC-C(1B8)	1-83119-707-0	01	1	0512-
110	GLASS; CLUSTER METER	1-83119-707-0	01	1	0407-0511
110	GLASS; CLUSTER METER 6WG1 TC-S(97L)	1-83119-886-0	01	1	0512-
199	LENS; WARNING LAMP 6WF1 TC-C(1B8) (A)	1-83119-858-0	01	1	0512-
199	LENS; WARNING LAMP 6WF1 TC-C(1B8) (B)	1-83119-911-0	01	1	0512-
199	LENS; WARNING LAMP 6WG1 TC-S(97L) (C)	1-83119-891-0	01	1	0512-
199	LENS; WARNING LAMP (D)	1-82255-312-0	01	1	0512-
199	LENS; WARNING LAMP (A)	1-83119-722-0	01	1	0407-0511
199	LENS; WARNING LAMP 6WG1 TC-S(97L) (A)	1-83119-888-0	01	1	0512-
199	LENS; WARNING LAMP (B)	1-83119-849-0	01	1	0407-0511
199	LENS; WARNING LAMP 6WG1 TC-S(97L) (B)	1-83119-890-0	01	1	0512-
269	SCREW; METER CLUSTER 6WF1 TC-C(1B8) (E) M3 TAPPING	1-83119-677-0	03	1	0512-
269	SCREW; METER CLUSTER 6WF1 TC-C(1B8) (C) M3 TAPPING	1-83119-052-0	04	1	0512-
269	SCREW; METER CLUSTER (C) M3 TAPPING	1-83119-052-0	04	1	0407-0511
269	SCREW; METER CLUSTER 6WG1 TC-S(97L) (F)	1-83119-893-0	09	1	0512-
269	SCREW; METER CLUSTER (B) M3X8	1-83119-058-0	03	1	0407-0511
269	SCREW; METER CLUSTER 6WF1 TC-C(1B8) (B) M3X8	1-83119-058-0	03	1	0512-
269	SCREW; METER CLUSTER (D) M3 TAPPING	1-83119-657-0	06	1	0407-0511
269	SCREW; METER CLUSTER 6WF1 TC-C(1B8) (D) M3 TAPPING	1-83119-657-0	06	1	0512-
269	SCREW; METER CLUSTER (A) M3 TAPPING	1-83119-675-0	05	1	0407-0511
269	SCREW; METER CLUSTER 6WF1 TC-C(1B8) (A) M3 TAPPING	1-83119-675-0	05	1	0512-

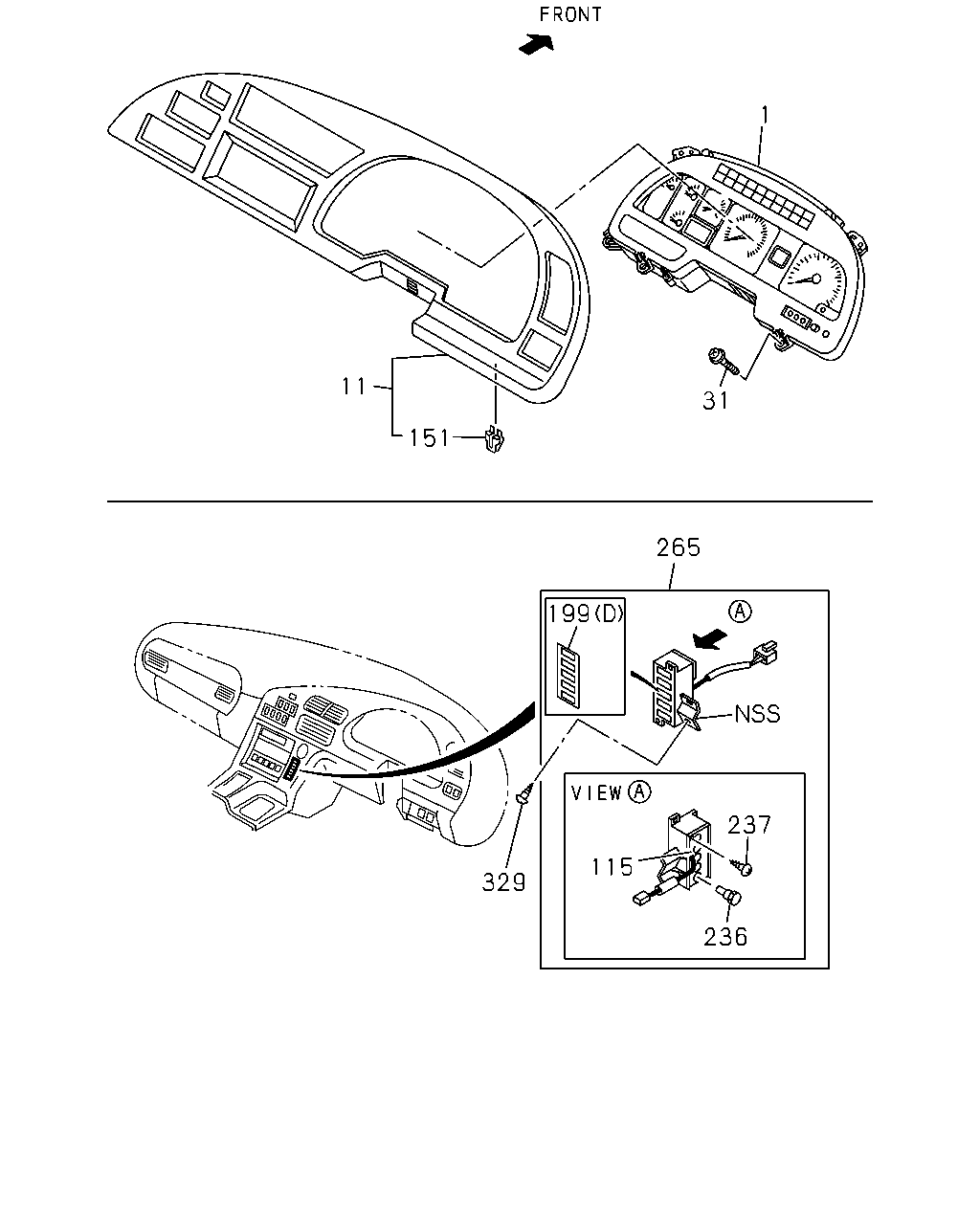

1 11 31 151 265 199 237 115 329 236

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	METER COMPL; CLUSTER 6WF1 TC-C(1B8)	1-82116-015-0	01	1	0512-
1	METER COMPL; CLUSTER	1-83116-151-0	01	1	0407-0511
1	METER COMPL; CLUSTER 6WG1 TC-S(97L)	1-83116-354-2	01	1	0512-1107
1	METER COMPL; CLUSTER 6WG1 TC-S(97L)	8-98194-299-1	01	1	1108-
11	CLUSTER ASM; METER CUSTOM CAB(SR5)	1-72418-014-9	01	1	0407-0511
11	CLUSTER ASM; METER	1-72418-014-9	01	1	0512-
11	CLUSTER ASM; METER EXC. CUSTOM CAB(SR5)	1-72418-012-9	01	1	0407-0511
31	SCREW; METER,INST PANEL M6X20 TAPPING W/PL WASHER	0-74110-620-0	03	1	0407-0604
31	SCREW; METER,INST PANEL M6X20 TAPPING W/PL WASHER	0-74160-620-0	03	1	0605-
115	CIRCUIT; PRINTED,CLUSTER METER	1-82259-006-0	01	1	0512-
151	CLIP; METER CLUSTER	8-97217-066-0	10	1	0407-
199	LENS; WARNING LAMP 6WF1 TC-C(1B8) (A)	1-83119-858-0	01	1	0512-
199	LENS; WARNING LAMP 6WF1 TC-C(1B8) (B)	1-83119-911-0	01	1	0512-
199	LENS; WARNING LAMP 6WG1 TC-S(97L) (C)	1-83119-891-0	01	1	0512-
199	LENS; WARNING LAMP (D)	1-82255-312-0	01	1	0512-
199	LENS; WARNING LAMP (A)	1-83119-722-0	01	1	0407-0511
199	LENS; WARNING LAMP 6WG1 TC-S(97L) (A)	1-83119-888-0	01	1	0512-
199	LENS; WARNING LAMP (B)	1-83119-849-0	01	1	0407-0511
199	LENS; WARNING LAMP 6WG1 TC-S(97L) (B)	1-83119-890-0	01	1	0512-
236	BULB ASM; WARNING LAMP 24V 1.8W BROWN SOCKET	1-82194-062-0	05	1	0512-
237	SCREW; CIRCUIT PRINT FIX,WARNING LAMP M3 TAPPING	1-83119-052-0	03	1	0512-
265	LAMP ASM; WARNING	1-82250-358-1	01	1	0512-
329	SCREW; WARNING LAMP M5X14	8-94279-325-0	02	1	0512-

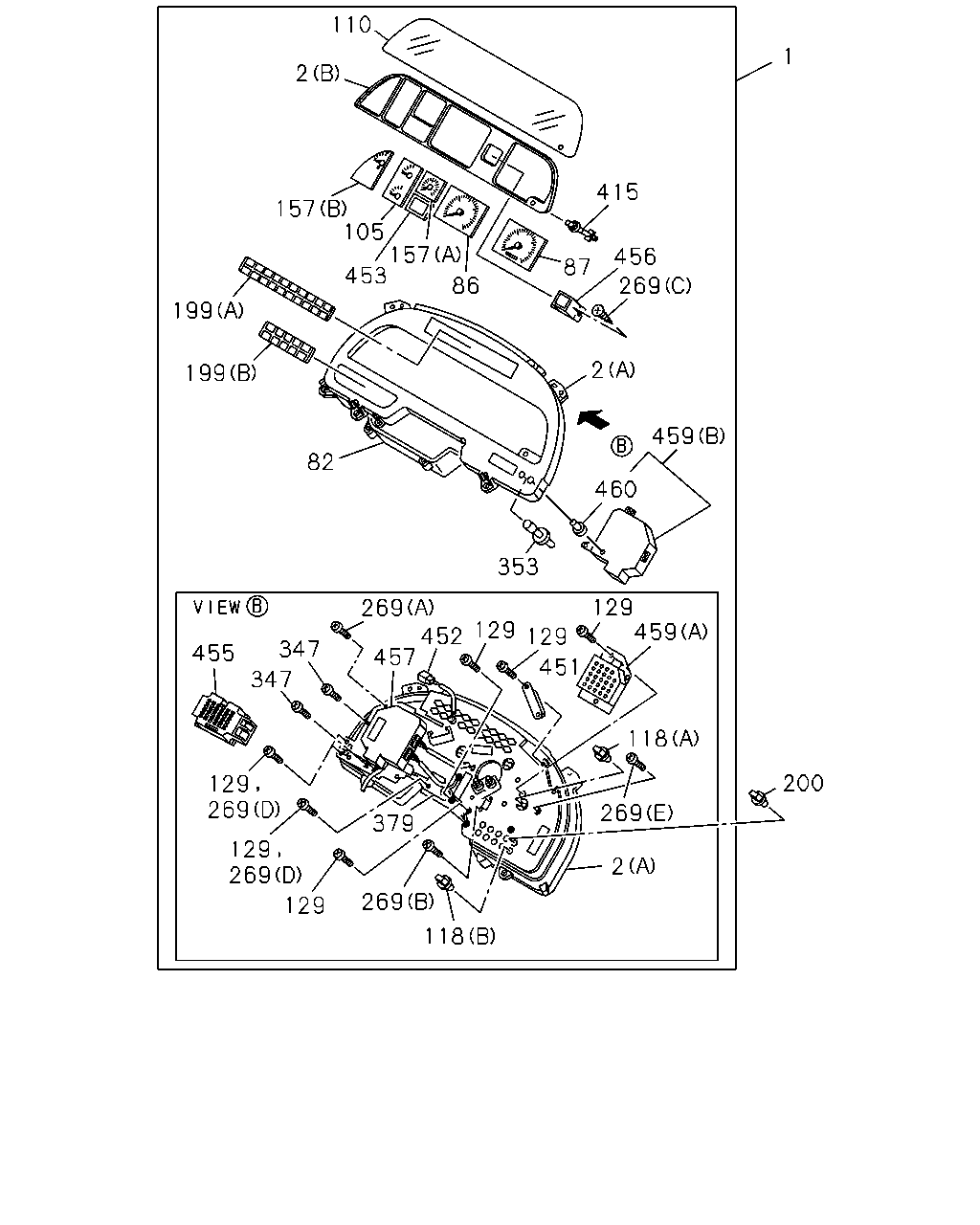

110 1 2 415 157 105 157 453 456 87 86 269 199 2 199 459 82 460 353 129 459 269 129 129 452 457 347 455 451 347 118 200 129 269 269 379 129 269 2 269 129 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	METER COMPL; CLUSTER 6WF1 TC-C(1B8)	1-82116-015-0	01	1	0512-
1	METER COMPL; CLUSTER	1-83116-151-0	01	1	0407-0511
1	METER COMPL; CLUSTER 6WG1 TC-S(97L)	1-83116-354-2	01	1	0512-1107
1	METER COMPL; CLUSTER 6WG1 TC-S(97L)	8-98194-299-1	01	1	1108-
2	PANEL; CLUSTER 6WF1 TC-C(1B8) (B)	1-83119-843-0	01	1	0512-
2	PANEL; CLUSTER 6WF1 TC-C(1B8) (A)	1-83119-854-0	01	1	0512-
2	PANEL; CLUSTER (B)	1-83119-843-0	01	1	0407-0511
2	PANEL; CLUSTER 6WG1 TC-S(97L) (B)	1-83119-885-0	01	1	0512-
2	PANEL; CLUSTER (A)	1-83119-854-0	01	1	0407-0511
2	PANEL; CLUSTER 6WG1 TC-S(97L) (A)	1-83119-887-0	01	1	0512-
82	CASE ASM; CLUSTER METER 6WF1 TC-C(1B8)	1-83119-860-0	01	1	0512-
82	CASE ASM; CLUSTER METER	1-83119-847-0	01	1	0407-0511
82	CASE ASM; CLUSTER METER 6WG1 TC-S(97L)	1-83119-892-0	01	1	0512-
86	TACHOMETER; CLUSTER METER	1-83120-908-0	01	1	0407-0511
86	TACHOMETER; CLUSTER METER 6WF1 TC-C(1B8)	1-83120-900-0	01	1	0512-
87	SPEEDOMETER	1-83120-903-0	01	1	0407-0511
87	SPEEDOMETER 6WF1 TC-C(1B8)	1-83120-903-0	01	1	0512-
105	GAUGE; THERMO & FUEL,CLUSTER METER	1-83180-281-0	01	1	0407-0511
105	GAUGE; THERMO & FUEL,CLUSTER METER 6WF1 TC-C(1B8)	1-83180-281-0	01	1	0512-
110	GLASS; CLUSTER METER 6WF1 TC-C(1B8)	1-83119-707-0	01	1	0512-
110	GLASS; CLUSTER METER	1-83119-707-0	01	1	0407-0511
110	GLASS; CLUSTER METER 6WG1 TC-S(97L)	1-83119-886-0	01	1	0512-
118	BULB; CLUSTER METER (A) 24V 3W GREEN SOCKET	1-82194-061-0	04	1	0407-0511
118	BULB; CLUSTER METER 6WF1 TC-C(1B8) (A) 24V 3W GREEN SOCKET	1-82194-061-0	04	1	0512-
118	BULB; CLUSTER METER (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	26	1	0407-0511
118	BULB; CLUSTER METER 6WF1 TC-C(1B8) (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	27	1	0512-
129	SCREW; PRINTED CIRCUIT,CLUSTER METER M3 TAPPING	1-83119-657-0	06	1	0407-0511
129	SCREW; PRINTED CIRCUIT,CLUSTER METER 6WF1 TC-C(1B8) M3 TAPPING	1-83119-657-0	06	1	0512-
157	METER; AIR PRESSURE,CLUSTER METER (A)	1-83150-264-0	01	1	0407-0511
157	METER; AIR PRESSURE,CLUSTER METER 6WF1 TC-C(1B8) (A)	1-83150-270-0	01	1	0512-
157	METER; AIR PRESSURE,CLUSTER METER (B)	1-83150-265-0	01	1	0407-0511
157	METER; AIR PRESSURE,CLUSTER METER 6WF1 TC-C(1B8) (B)	1-83150-273-0	01	1	0512-
199	LENS; WARNING LAMP 6WF1 TC-C(1B8) (A)	1-83119-858-0	01	1	0512-
199	LENS; WARNING LAMP 6WF1 TC-C(1B8) (B)	1-83119-911-0	01	1	0512-
199	LENS; WARNING LAMP 6WG1 TC-S(97L) (C)	1-83119-891-0	01	1	0512-
199	LENS; WARNING LAMP (D)	1-82255-312-0	01	1	0512-
199	LENS; WARNING LAMP (A)	1-83119-722-0	01	1	0407-0511
199	LENS; WARNING LAMP 6WG1 TC-S(97L) (A)	1-83119-888-0	01	1	0512-
199	LENS; WARNING LAMP (B)	1-83119-849-0	01	1	0407-0511
199	LENS; WARNING LAMP 6WG1 TC-S(97L) (B)	1-83119-890-0	01	1	0512-
200	BULB; WARNING LAMP 24V 1.8W BROWN SOCKET	1-82194-062-0	02	1	0408-0511
200	BULB; WARNING LAMP 6WF1 TC-C(1B8) AUTO CRUISE W/RESUME<NKA> 24V 1.8W BROWN SOCKET	1-82194-062-0	02	1	0512-
269	SCREW; METER CLUSTER 6WF1 TC-C(1B8) (E) M3 TAPPING	1-83119-677-0	03	1	0512-
269	SCREW; METER CLUSTER 6WF1 TC-C(1B8) (C) M3 TAPPING	1-83119-052-0	04	1	0512-
269	SCREW; METER CLUSTER (C) M3 TAPPING	1-83119-052-0	04	1	0407-0511
269	SCREW; METER CLUSTER 6WG1 TC-S(97L) (F)	1-83119-893-0	09	1	0512-
269	SCREW; METER CLUSTER (B) M3X8	1-83119-058-0	03	1	0407-0511
269	SCREW; METER CLUSTER 6WF1 TC-C(1B8) (B) M3X8	1-83119-058-0	03	1	0512-
269	SCREW; METER CLUSTER (D) M3 TAPPING	1-83119-657-0	06	1	0407-0511
269	SCREW; METER CLUSTER 6WF1 TC-C(1B8) (D) M3 TAPPING	1-83119-657-0	06	1	0512-
269	SCREW; METER CLUSTER (A) M3 TAPPING	1-83119-675-0	05	1	0407-0511
269	SCREW; METER CLUSTER 6WF1 TC-C(1B8) (A) M3 TAPPING	1-83119-675-0	05	1	0512-
347	SCREW; CONTROL UNIT M3 TAPPING	1-83119-052-0	03	1	0407-0511
347	SCREW; CONTROL UNIT 6WF1 TC-C(1B8) M3 TAPPING	1-83119-052-0	03	1	0512-
353	KNOB; RHEOSTAT	1-83119-730-0	01	1	0407-0511
353	KNOB; RHEOSTAT 6WF1 TC-C(1B8)	1-83119-730-0	01	1	0512-
379	CIRCUIT; DROP	1-83189-391-0	01	1	0407-0511
379	CIRCUIT; DROP 6WF1 TC-C(1B8)	1-83189-391-0	01	1	0512-
415	KNOB; TRIP,METER	1-83119-729-0	01	1	0407-0511
415	KNOB; TRIP,METER 6WF1 TC-C(1B8)	1-83119-729-0	01	1	0512-
451	DROPER; METER	1-83189-393-0	01	1	0407-0511
451	DROPER; METER 6WF1 TC-C(1B8)	1-83189-393-0	01	1	0512-
452	LAMP ASM; CLUSTER METER	1-82194-088-0	01	1	0407-0511
452	LAMP ASM; CLUSTER METER 6WF1 TC-C(1B8)	1-82194-088-0	01	1	0512-
453	INDICATOR; ECOGIT	1-83119-728-0	01	1	0407-0511
453	INDICATOR; ECOGIT 6WF1 TC-C(1B8)	1-83119-728-0	01	1	0512-
455	MODULE ASM; METER	1-83189-418-0	01	1	0407-0511
455	MODULE ASM; METER 6WF1 TC-C(1B8)	1-83189-419-0	01	1	0512-
456	WARNING ASM; MULTI	1-83119-734-0	01	1	0407-0511
456	WARNING ASM; MULTI 6WF1 TC-C(1B8)	1-83119-734-0	01	1	0512-
457	CONTROLLER ASM; MULTI WARNING	1-83119-817-0	01	1	0407-0511
457	CONTROLLER ASM; MULTI WARNING 6WF1 TC-C(1B8)	1-83119-817-0	01	1	0512-
459	POWER SUPPLY ASM (A)	1-83119-783-0	01	1	0407-0511
459	POWER SUPPLY ASM 6WF1 TC-C(1B8) (A)	1-83119-925-0	01	1	0512-
459	POWER SUPPLY ASM (B)	1-83119-820-1	01	1	0407-0511
459	POWER SUPPLY ASM 6WF1 TC-C(1B8) (B)	1-83119-820-1	01	1	0512-
460	SWITCH; MULTI WARNING	1-83119-736-1	01	1	0407-0511
460	SWITCH; MULTI WARNING 6WF1 TC-C(1B8)	1-83119-736-1	01	1	0512-
