◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 10956 - EXY NEW ZEALAND ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#29191) — 1183 parça
çizim 88037
119 255 127 423 515 340 294 219 524
BalonParca AdiParca NoAdetTipApplied Date
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 0407-
127 SCREW; FACIA HARNESS CLIP
M3X10 		9-93490-310-0 04 1 0407-
219 NUT
M8 FLANGE 		0-91150-108-0 11 1 0512-0602
219 NUT
M8 FLANGE 		0-91180-108-0 03 1 0603-
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0512-0602
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0512-0602
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0512-0602
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-0606
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-0606
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-0606
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0607-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0607-
219 NUT
M8 FLANGE 		0-91150-108-0 14 1 0407-0511
219 NUT
M8 FLANGE 		0-91150-108-0 03 1 0512-0602
219 NUT
M8 FLANGE 		0-91180-108-0 11 1 0603-
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0407-0511
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0407-0511
219 NUT
6WF1 TC-C(1B8) M8 FLANGE 		0-91150-108-0 04 1 0512-0602
219 NUT
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 04 1 0603-
219 NUT
M8 FLANGE 		0-91150-108-0 02 1 0407-0511
219 NUT
M8 FLANGE 		0-91150-108-0 02 1 0407-0511
219 NUT
M8 FLANGE 		0-91150-108-0 02 1 0512-0602
219 NUT
M8 FLANGE 		0-91150-108-0 02 1 0512-0602
219 NUT
M8 FLANGE 		0-91150-108-0 02 1 0512-0602
219 NUT
6WG1 TC-S(97L) M8 FLANGE 		0-91150-108-0 02 1 0512-0602
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603-
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603-
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603-
219 NUT
6WG1 TC-S(97L) M8 FLANGE 		0-91180-108-0 02 1 0603-
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74305-620-0 02 1 0407-0511
294 NUT
M8 FLANGE 		0-91150-108-0 02 1 0407-0511
294 NUT
M8 FLANGE 		0-91150-108-0 05 1 0512-0602
294 NUT
M8 FLANGE 		0-91180-108-0 05 1 0603-0606
294 NUT
M8 FLANGE 		0-91180-108-0 05 1 0607-
294 NUT
6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) M8 FLANGE 		0-91180-108-0 05 1 0607-
294 NUT
M8 FLANGE 		0-91150-108-0 05 1 0407-0511
294 NUT
ELECTRONIC BRAKE SYSTEM EBS(NLH) M8 FLANGE 		0-91150-108-0 06 1 0512-0602
294 NUT
M8 FLANGE 		0-91180-108-0 06 1 0603-0606
294 NUT
6WF1 TC-C(1B8) ELECTRONIC BRAKE SYSTEM EBS(NLH) M8 FLANGE 		0-91180-108-0 06 1 0607-
294 NUT
M8 FLANGE 		0-91150-108-0 06 1 0407-0511
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0512-0602
294 NUT
6WF1 TC-C(1B8) M8 FLANGE 		0-91150-108-0 01 1 0512-0602
294 NUT
6WF1 TC-C(1B8) M8 FLANGE 		0-91150-108-0 01 1 0512-0602
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-0606
294 NUT
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 01 1 0603-0606
294 NUT
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 01 1 0603-0606
294 NUT
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 01 1 0607-
294 NUT
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 01 1 0607-
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0407-0511
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0407-0511
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0407-0511
294 NUT
M8 FLANGE 		0-91150-108-0 02 1 0512-0602
294 NUT
6WF1 TC-C(1B8) M8 FLANGE 		0-91150-108-0 02 1 0512-0602
294 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603-0606
294 NUT
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 02 1 0603-0606
294 NUT
M8 FLANGE 		0-91180-108-0 02 1 0607-
294 NUT
M8 FLANGE 		0-91180-108-0 02 1 0607-
340 NUT; HARNESS CAB TO FRAME
6WG1 TC-S(97L) M8 FLANGE 		0-91150-108-0 01 1 0512-0602
340 NUT; HARNESS CAB TO FRAME
6WG1 TC-S(97L) M8 FLANGE 		0-91180-108-0 01 1 0603-
340 NUT; HARNESS CAB TO FRAME
CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 02 1 0407-0511
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 02 1 0512-0602
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0603-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 04 1 0512-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 05 1 0407-0511
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 01 1 0512-
515 NUT; BRKT
6WG1 TC-S(97L) M8 FLANGE 		0-91150-108-0 03 1 0512-0602
515 NUT; BRKT
6WG1 TC-S(97L) M8 FLANGE 		0-91180-108-0 03 1 0603-
515 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 0407-0511
515 NUT; BRKT
6WF1 TC-C(1B8) M8 FLANGE 		0-91150-108-0 04 1 0512-0602
515 NUT; BRKT
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 04 1 0603-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0407-0602
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0603-
çizim 88068
5 530 530 178 178 178 178 224 178 178 178 530 292 1 224 1 1
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) ID=38.1 L=50 		5-09360-835-0 01 1 0407-0511
1 SLEEVE; RUBBER
(A) ID=38.1 L=50 		5-09360-835-0 01 1 0512-0603
1 SLEEVE; RUBBER
(C) ID=38.1 L=25 		1-09337-052-0 01 1 0604-
1 SLEEVE; RUBBER
(B) ID=14 OD=18 L=60 		1-09337-030-0 01 1 0407-
5 GUIDE; HARNESS
L=360 		1-82699-476-1 01 1 0407-0511
5 GUIDE; HARNESS
6WF1 TC-C(1B8) L=360 		1-82699-476-1 01 1 0512-
178 GROMMET; HARNESS
ELECTRONIC BRAKE SYSTEM EBS(NLH) (A) ID=24 OD=30 T=22 		1-09332-126-0 02 1 0512-
178 GROMMET; HARNESS
(E) ID=39 OD=45 T=13 		1-09332-076-0 02 1 0407-0511
178 GROMMET; HARNESS
(F) ID=32 OD=40 T=18 		1-09891-003-0 02 1 0512-
178 GROMMET; HARNESS
(A) ID=24 OD=30 T=22 		1-09332-104-0 01 1 0407-0511
178 GROMMET; HARNESS
(A) ID=24 OD=30 T=22 		1-09332-104-0 02 1 0512-0705
178 GROMMET; HARNESS
(A) ID=24 OD=30 T=22 		1-09332-104-0 01 1 0706-
178 GROMMET; HARNESS
(A) ID=24 OD=30 T=22 		1-09332-104-0 01 1 0706-
178 GROMMET; HARNESS
(A) ID=24 OD=30 T=22 		1-09332-126-0 02 1 0407-0511
178 GROMMET; HARNESS
(G) ID=32 OD=40 T=23 		1-09332-112-0 01 1 0512-
178 GROMMET; HARNESS
(B) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 0407-
178 GROMMET; HARNESS
(C) ID=19 OD=23 T=18 		9-09956-130-1 01 1 0407-0511
178 GROMMET; HARNESS
INSPECTION LAMP<T95> (C) ID=19 OD=23 T=18 		9-09956-130-1 01 1 0512-
178 GROMMET; HARNESS
(D) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0407-
178 GROMMET; HARNESS
(F) ID=32 OD=40 T=18 		1-09891-003-0 02 1 0407-0511
178 GROMMET; HARNESS
(F) ID=32 OD=40 T=18 		1-09891-003-0 02 1 0407-0511
178 GROMMET; HARNESS
ELECTRONIC BRAKE SYSTEM EBS(NLH) (E) ID=39 OD=45 T=13 		1-09332-076-0 02 1 0512-
224 SLEEVE; RUBBER,HARNESS
(A) ID=32 OD=36 L=50 		1-09337-023-0 01 1 0407-0511
224 SLEEVE; RUBBER,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=32 OD=36 L=50 		1-09337-023-0 01 1 0512-
224 SLEEVE; RUBBER,HARNESS
(B) ID=6 L=30 		5-09360-352-0 01 1 0407-
292 CAP; RUBBER 1-82690-667-0 01 1 0407-0511
292 CAP; RUBBER
6WG1 TC-S(97L) 		1-82690-667-0 01 1 0512-
530 SEAL; HARNESS
(A) 180X40 		1-72498-019-1 16 1 0407-
530 SEAL; HARNESS
(A) 100X40 		1-72498-022-1 01 1 0407-
530 SEAL; HARNESS
(C) 		1-76770-009-2 01 1 0407-0511
530 SEAL; HARNESS
EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) 100X40 		1-72498-022-1 02 1 0512-
530 SEAL; HARNESS
(B) OD=25 BLACK 		1-76798-019-0 01 1 0407-

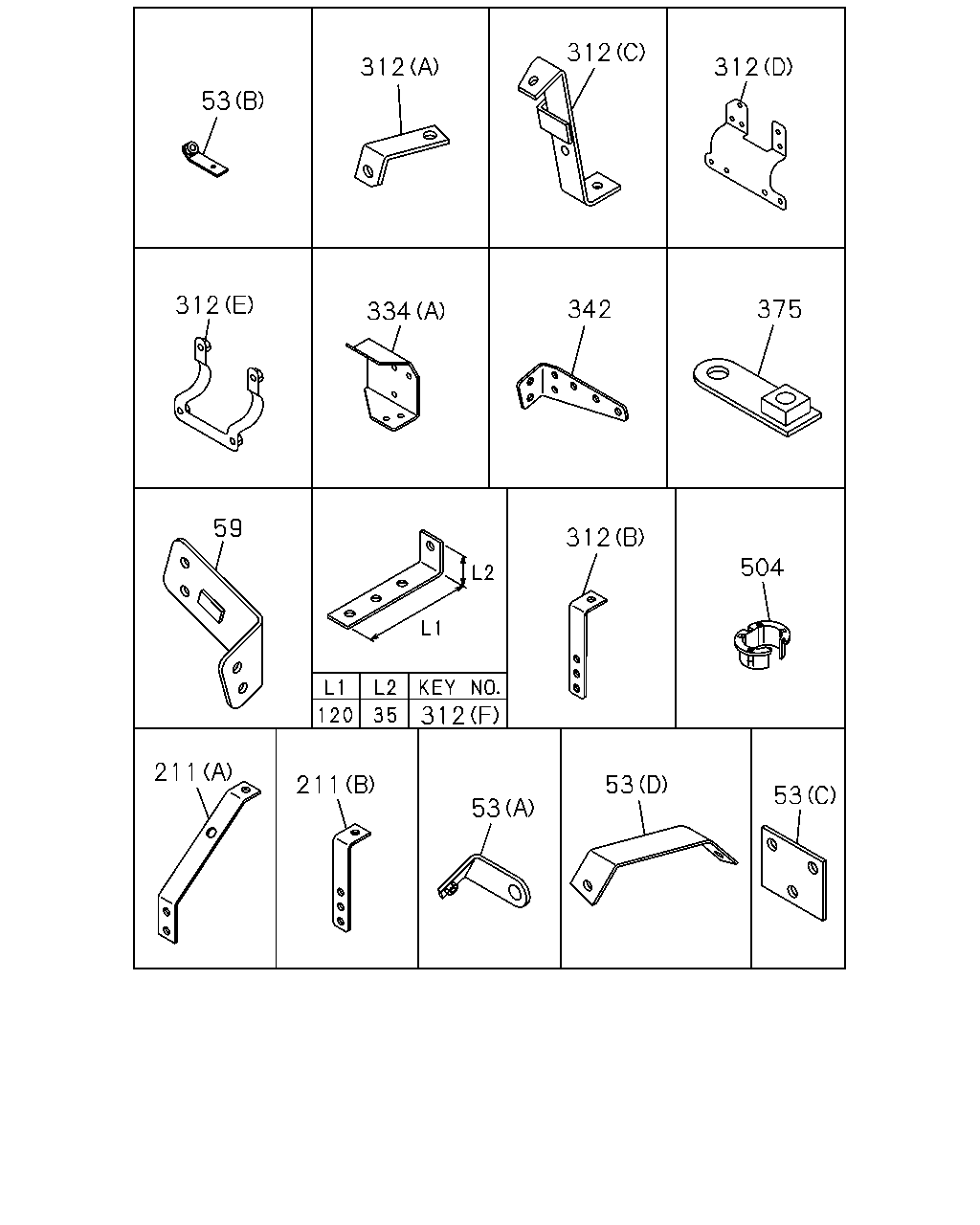

çizim 88140
312 312 312 53 312 342 375 334 59 312 504 312 211 211 53 53 53
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
6WF1 TC-C(1B8) (F) 		1-82698-440-0 01 1 0512-
53 BRACKET; HARNESS
6WG1 TC-S(97L) (G) 		1-82698-495-2 01 1 0512-
53 BRACKET; HARNESS
6WG1 TC-S(97L) (H) 		8-97610-991-0 01 1 0512-
53 BRACKET; HARNESS
(D) 		1-47479-537-0 05 1 0512-
53 BRACKET; HARNESS
(I) 		1-82698-382-0 01 1 0512-
53 BRACKET; HARNESS
(A) 		1-42129-495-0 01 1 0407-0511
53 BRACKET; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-42129-495-0 01 1 0512-
53 BRACKET; HARNESS
(B) 		1-81582-005-1 01 1 0407-0511
53 BRACKET; HARNESS
6WG1 TC-S(97L) (E) 		1-83129-472-1 01 1 0512-
53 BRACKET; HARNESS
CAB UP +110MM<TGG> (C) 		1-82698-469-0 02 1 0407-0511
53 BRACKET; HARNESS
6WF1 TC-C(1B8) (C) 		1-82698-469-0 02 1 0512-
53 BRACKET; HARNESS
(D) 		1-47479-537-0 09 1 0407-0511
53 BRACKET; HARNESS
(D) 		1-47479-537-0 04 1 0512-
59 BRACKET; FRAME HARNESS 1-82698-531-0 01 1 0407-0511
59 BRACKET; FRAME HARNESS 1-82698-531-0 01 1 0602-
211 BRACKET; AXLE HARNESS
6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) (C) 		1-82698-588-0 01 1 0512-
211 BRACKET; AXLE HARNESS
(A) 		1-47479-430-0 02 1 0407-0511
211 BRACKET; AXLE HARNESS
ELECTRONIC BRAKE SYSTEM EBS(NLH) (A) 		1-47479-430-0 02 1 0512-
211 BRACKET; AXLE HARNESS
(B) L=120 H=35 		1-82699-970-0 02 1 0407-0511
211 BRACKET; AXLE HARNESS
6WF1 TC-C(1B8) ELECTRONIC BRAKE SYSTEM EBS(NLH) (C) 		1-82698-588-0 02 1 0512-
312 BRACKET; CLIP HARNESS
(K) 		1-82699-182-0 01 1 0512-0606
312 BRACKET; CLIP HARNESS
6WG1 TC-S(97L) (L) 		1-82698-570-0 01 1 0607-
312 BRACKET; CLIP HARNESS
6WF1 TC-C(1B8) (J) L=120 		1-82699-465-0 01 1 0512-
312 BRACKET; CLIP HARNESS
6WG1 TC-S(97L) (G) 		1-82698-556-0 01 1 0512-
312 BRACKET; CLIP HARNESS
6WG1 TC-S(97L) (H) 		1-82699-199-0 01 1 0512-
312 BRACKET; CLIP HARNESS
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (I) 		1-82698-443-0 01 1 0512-
312 BRACKET; CLIP HARNESS
CAB UP +110MM<TGG> (C) L=195.5 		1-82698-502-0 01 1 0407-0511
312 BRACKET; CLIP HARNESS
6WF1 TC-C(1B8) (F) L=120 H=35 		1-82698-088-0 01 1 0512-
312 BRACKET; CLIP HARNESS
(F) L=120 H=35 		1-82698-088-0 01 1 0407-0511
312 BRACKET; CLIP HARNESS
(C) L=195.5 		1-82698-502-0 01 1 0512-
312 BRACKET; CLIP HARNESS
(A) 		1-82698-440-0 01 1 0407-0511
312 BRACKET; CLIP HARNESS
6WF1 TC-C(1B8) (A) 		1-82698-440-0 01 1 0512-
312 BRACKET; CLIP HARNESS
(D) 		1-82698-474-1 01 1 0407-
312 BRACKET; CLIP HARNESS
(E) 		1-82698-476-0 01 1 0407-
312 BRACKET; CLIP HARNESS
(B) L=120 H=35 		1-82699-970-0 01 1 0407-0511
312 BRACKET; CLIP HARNESS
6WF1 TC-C(1B8) (B) L=120 H=35 		1-82699-970-0 01 1 0512-0905
312 BRACKET; CLIP HARNESS
6WF1 TC-C(1B8) (M) 		1-82698-358-0 01 1 0906-
334 BRACKET
6WF1 TC-C(1B8) (B) 		1-53458-362-0 01 1 0512-
334 BRACKET
6WG1 TC-S(97L) (C) 		1-53457-153-2 01 1 0512-
334 BRACKET
(A) 		1-53458-932-0 01 1 0407-0511
334 BRACKET
(D) 		1-82698-650-0 01 1 0512-
342 BRACKET; HARNESS CAB MTG 1-82699-625-0 01 1 0407-
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 0407-
504 PROTECTOR; HARNESS
MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> 		1-82698-391-0 02 1 0407-

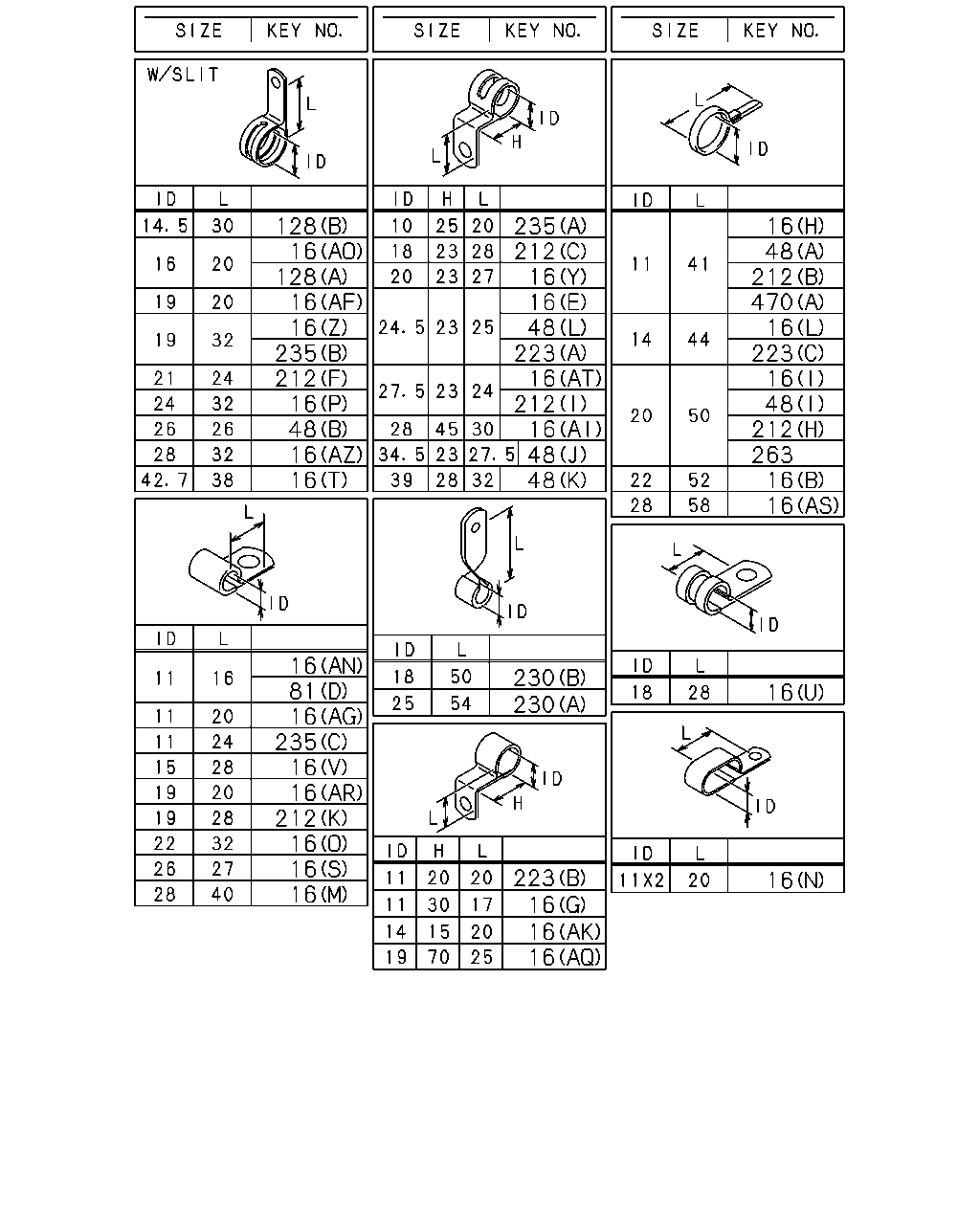

çizim 88284
16 81 16 148 168
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
6WG1 TC-S(97L) (BA) ID=24-30 L=18 		1-09709-297-0 01 1 0607-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (P) ID=24 L=32 		1-09700-766-1 02 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (H) ID=11 L=41 		1-09700-403-0 02 1 0512-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 0512-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 02 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Y) ID=20 H=23 L=27 		1-09700-861-0 02 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AP) ID=21 L=47.5 		8-94178-108-0 02 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AQ) ID=19 H=70 L=25 		8-97360-209-0 01 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AR) ID=19 L=20 		9-09525-832-0 01 1 0512-0606
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AR) ID=19 L=20 		0-95235-832-0 01 1 0607-
16 CLIP; HARNESS
(AG) ID=11 L=20 		9-09525-032-0 01 1 0512-0606
16 CLIP; HARNESS
(AG) ID=11 L=20 		0-95235-032-0 01 1 0607-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AS) ID=28 L=58 		1-09700-400-0 04 1 0512-

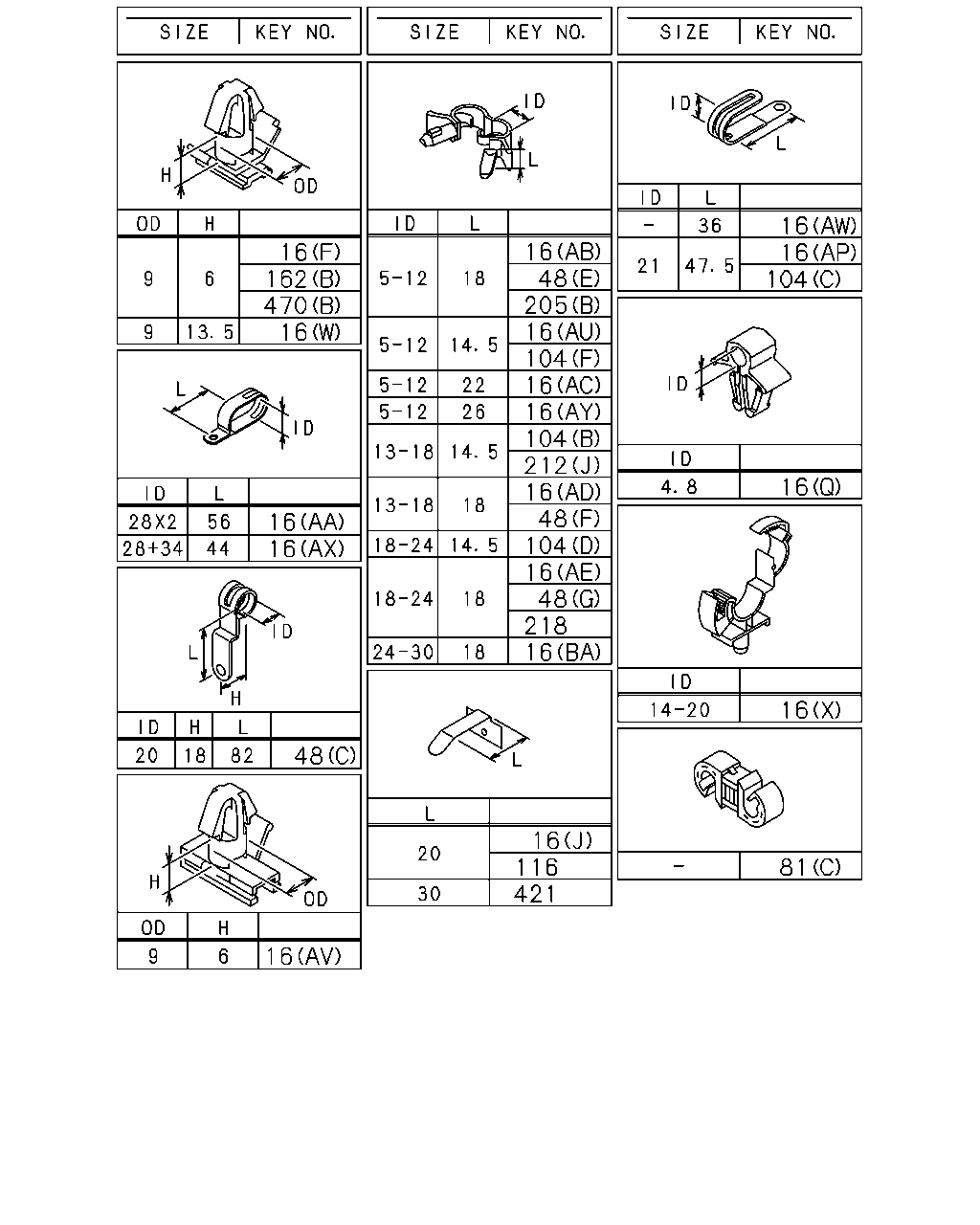

16 CLIP; HARNESS
6WG1 TC-S(97L) (H) ID=11 L=41 		1-09700-403-0 04 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AT) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0512-1105
16 CLIP; HARNESS
6WG1 TC-S(97L) (E) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 1106-
16 CLIP; HARNESS

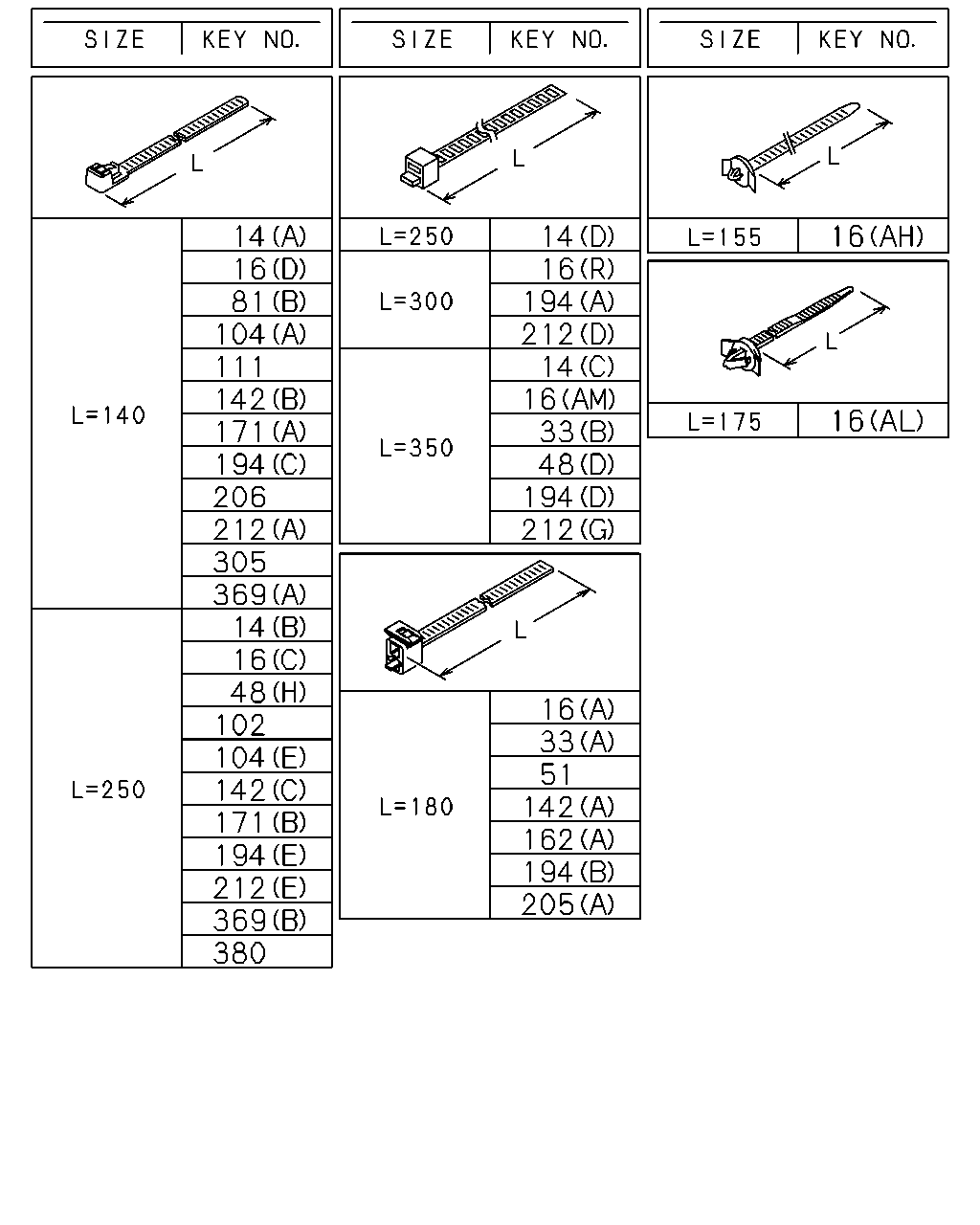

6WG1 TC-S(97L) (A) L=180 		1-09707-162-1 08 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) (F) OD=9 H=6 		1-09709-178-0 07 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AU) ID=5-12 L=14.5 		1-09987-221-0 02 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AV) OD=9 H=6 		8-97368-793-0 03 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AT) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AT) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AP) ID=21 L=47.5 		8-94178-108-0 04 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AW) L=36 		8-94224-891-1 01 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AV) OD=9 H=6 		8-97368-793-0 02 1 0512-
16 CLIP; HARNESS
(AU) ID=5-12 L=14.5 		1-09987-221-0 01 1 0512-
16 CLIP; HARNESS
(AU) ID=5-12 L=14.5 		1-09987-221-0 01 1 0512-
16 CLIP; HARNESS
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (AL) L=175 		8-97110-167-0 04 1 0512-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) L=250 		5-09707-030-1 01 1 0407-
16 CLIP; HARNESS
(G) ID=11 H=30 L=17 		1-09700-113-0 01 1 0407-0511
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (G) ID=11 H=30 L=17 		1-09700-113-0 01 1 0512-
16 CLIP; HARNESS
(AG) ID=11 L=20 		9-09525-035-0 02 1 0407-0511
16 CLIP; HARNESS
6WG1 TC-S(97L) (AG) ID=11 L=20 		9-09525-035-0 02 1 0512-0606
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AG) ID=11 L=20 		9-09525-035-0 02 1 0512-0606
16 CLIP; HARNESS
6WG1 TC-S(97L) (AG) ID=11 L=20 		0-95235-035-0 02 1 0607-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AG) ID=11 L=20 		0-95235-035-0 02 1 0607-
16 CLIP; HARNESS
(AI) ID=28 H=45 L=30 		1-09700-948-0 01 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0512-0606
16 CLIP; HARNESS
6WF1 TC-C(1B8) (E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0512-0606
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0607-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0607-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0607-
16 CLIP; HARNESS
(M) ID=28 L=40 		1-09701-261-0 02 1 0407-0511
16 CLIP; HARNESS
INSPECTION LAMP<T95> (H) ID=11 L=41 		1-09700-403-0 01 1 0512-
16 CLIP; HARNESS
(AG) ID=11 L=20 		9-09525-032-0 01 1 0407-0407
16 CLIP; HARNESS
(AG) ID=11 L=20 		9-09525-035-0 01 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (P) ID=24 L=32 		1-09700-766-1 01 1 0512-
16 CLIP; HARNESS
(AF) ID=19 L=20 		9-09525-836-0 02 1 0407-0511
16 CLIP; HARNESS
6WG1 TC-S(97L) (AF) ID=19 L=20 		9-09525-836-0 01 1 0512-0606
16 CLIP; HARNESS
6WG1 TC-S(97L) (AF) ID=19 L=20 		0-95235-836-0 01 1 0607-
16 CLIP; HARNESS
(N) ID=11X2 L=20 		9-09535-035-0 02 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (N) ID=11X2 L=20 		9-09535-035-0 02 1 0512-0606
16 CLIP; HARNESS
6WF1 TC-C(1B8) (N) ID=11X2 L=20 		0-95325-035-0 02 1 0607-1208
16 CLIP; HARNESS
6WF1 TC-C(1B8) (N) ID=11X2 L=20 		0-95325-035-0 01 1 1209-
16 CLIP; HARNESS
(O) ID=22 L=32 		1-09700-126-1 01 1 0407-
16 CLIP; HARNESS
(I) ID=20 L=50 		1-09700-679-1 01 1 0407-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0407-0606
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0407-0606
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0607-
16 CLIP; HARNESS
HIGH ROOF<S2F> (J) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0407-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 03 1 0407-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 05 1 0407-0511
16 CLIP; HARNESS
(AX) ID=28+34 L=44 		1-09701-311-0 01 1 0512-
16 CLIP; HARNESS
(P) ID=24 L=32 		1-09700-766-1 03 1 0407-0511
16 CLIP; HARNESS
(AY) ID=5-12 L=26 		1-09709-289-0 01 1 0512-0610
16 CLIP; HARNESS
(AB) ID=5-12 L=18 		1-09709-287-0 01 1 0611-
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0407-0511
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 0512-0606
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 03 1 0607-
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AS) ID=28 L=58 		1-09700-400-0 03 1 0512-
16 CLIP; HARNESS
(S) ID=26 L=27 		1-09701-006-0 02 1 0407-0511
16 CLIP; HARNESS
(AV) OD=9 H=6 		8-97368-793-0 01 1 0512-
16 CLIP; HARNESS
(U) ID=18 L=28 		1-09701-067-0 01 1 0407-
16 CLIP; HARNESS
(V) ID=15 L=28 		1-09701-216-0 01 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (S) ID=26 L=27 		1-09701-006-0 02 1 0512-
16 CLIP; HARNESS
(Q) ID=4.8 		1-09701-218-0 01 1 0407-
16 CLIP; HARNESS
(AA) ID=28X2 L=28 		1-09701-302-0 01 1 0407-0511
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 02 1 0512-0606
16 CLIP; HARNESS
ELECTRONIC BRAKE SYSTEM EBS(NLH) (AM) L=350 		1-09707-183-0 02 1 0512-0606
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 02 1 0607-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AM) L=350 		1-09707-183-0 02 1 0607-
16 CLIP; HARNESS
ELECTRONIC BRAKE SYSTEM EBS(NLH) (AM) L=350 		1-09707-183-0 02 1 0607-
16 CLIP; HARNESS
(T) ID=42.7 L=38 		1-09701-313-0 01 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (T) ID=42.7 L=38 		1-09701-313-0 01 1 0512-
16 CLIP; HARNESS
(R) L=300 		1-09707-001-1 02 1 0407-0504
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 01 1 0407-0511
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 02 1 0512-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 02 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (A) L=180 		1-09707-162-1 09 1 0512-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 07 1 0407-0511
16 CLIP; HARNESS
INSPECTION LAMP<T95> (A) L=180 		1-09707-162-1 01 1 0512-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 01 1 0512-
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 02 1 0407-0504
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 02 1 0505-0511
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 02 1 0505-0511
16 CLIP; HARNESS
(V) ID=15 L=28 		1-09701-216-0 01 1 0512-
16 CLIP; HARNESS
(V) ID=15 L=28 		1-09701-216-0 01 1 0512-
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 04 1 0407-0511
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 03 1 0512-
16 CLIP; HARNESS
(K) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0407-0511
16 CLIP; HARNESS
6WG1 TC-S(97L) (A) L=180 		1-09707-162-1 04 1 0512-
16 CLIP; HARNESS
(K) W/SPONGE RUBBER 		1-09709-150-0 01 1 0407-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 06 1 0407-0511
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 05 1 0512-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 11 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (F) OD=9 H=6 		1-09709-178-0 11 1 0512-
16 CLIP; HARNESS
(W) OD=9 H=13.5 		1-09709-180-0 01 1 0407-
16 CLIP; HARNESS
(AB) ID=5-12 L=18 		1-09709-287-0 02 1 0407-0511
16 CLIP; HARNESS
ELECTRONIC BRAKE SYSTEM EBS(NLH) (AB) ID=5-12 L=18 		1-09709-287-0 02 1 0512-
16 CLIP; HARNESS
(AC) ID=5-12 L=22 		1-09709-288-0 01 1 0407-
16 CLIP; HARNESS
(AD) ID=13-18 L=18 		1-09709-291-0 02 1 0407-
16 CLIP; HARNESS
(AE) ID=18-24 L=18 		1-09709-294-0 04 1 0407-
16 CLIP; HARNESS
(AH) L=155 		1-82698-097-0 01 1 0407-0511
16 CLIP; HARNESS
DOOR WITH UNDER VIEW WINDOW<YD8> (AH) L=155 		1-82698-097-0 01 1 0512-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 0407-0511
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 05 1 0512-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 05 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (C) L=250 		5-09707-030-1 02 1 0512-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 0407-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 05 1 0407-
16 CLIP; HARNESS
(AJ) L=55 		8-94432-655-0 03 1 0407-
16 CLIP; HARNESS
(AK) ID=14 H=15 L=20 		8-94437-032-0 01 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AK) ID=14 H=15 L=20 		8-94437-032-0 01 1 0512-
16 CLIP; HARNESS
(X) ID=14-20 		8-97061-603-0 03 1 0407-
16 CLIP; HARNESS
(AL) L=175 		8-97110-167-0 02 1 0407-0511
16 CLIP; HARNESS
DOOR WITH UNDER VIEW WINDOW<YD8> (AL) L=175 		8-97110-167-0 02 1 0512-
16 CLIP; HARNESS
(AN) ID=11 L=16 		9-09525-025-0 02 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (F) OD=9 H=6 		1-09709-178-0 01 1 0512-
16 CLIP; HARNESS
(AO) ID=16 L=20 		9-09525-535-0 02 1 0407-0606
16 CLIP; HARNESS
(AO) ID=16 L=20 		0-95235-535-0 02 1 0607-
16 CLIP; HARNESS
(Z) ID=19 L=32 		9-09525-866-0 02 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Z) ID=19 L=32 		9-09525-866-0 02 1 0512-0606
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Z) ID=19 L=32 		0-95235-866-0 02 1 0607-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 02 1 0407-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 05 1 0407-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0407-0511
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0512-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 06 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (I) ID=20 L=50 		9-09917-430-0 06 1 0512-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 09 1 0407-0511
16 CLIP; HARNESS
6WG1 TC-S(97L) (I) ID=20 L=50 		9-09917-430-0 07 1 0512-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 05 1 0407-0511
16 CLIP; HARNESS
(AZ) ID=28 L=32 		1-09701-107-1 02 1 0512-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 02 1 0407-0511
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 02 1 0407-0511
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 01 1 0512-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 01 1 0512-
81 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) L=140 		5-09707-031-1 06 1 0512-
81 CLIP; HARNESS
(C) ID=6.35 & 12 		1-09709-275-1 02 1 0407-
81 CLIP; HARNESS
(B) L=140 		5-09707-031-1 02 1 0407-0511
81 CLIP; HARNESS
6WF1 TC-C(1B8) (B) L=140 		5-09707-031-1 02 1 0512-
81 CLIP; HARNESS
(A) ID=7-10 		8-94472-578-0 02 1 0407-0511
81 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) ID=7-10 		8-94472-578-0 02 1 0512-
81 CLIP; HARNESS
(D) ID=11 L=16 		9-09525-025-0 02 1 0407-0511
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) ID=11 L=16 		9-09525-025-0 02 1 0512-0606
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) ID=11 L=16 		0-95235-025-0 02 1 0607-
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 04 1 0407-
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 05 1 0407-
çizim 88356
53 53 53 53 312 312 211 312 53 312 312 312 312 334 334 334
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
6WF1 TC-C(1B8) (F) 		1-82698-440-0 01 1 0512-
53 BRACKET; HARNESS
6WG1 TC-S(97L) (G) 		1-82698-495-2 01 1 0512-
53 BRACKET; HARNESS
6WG1 TC-S(97L) (H) 		8-97610-991-0 01 1 0512-
53 BRACKET; HARNESS
(D) 		1-47479-537-0 05 1 0512-
53 BRACKET; HARNESS
(I) 		1-82698-382-0 01 1 0512-
53 BRACKET; HARNESS
(A) 		1-42129-495-0 01 1 0407-0511
53 BRACKET; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-42129-495-0 01 1 0512-
53 BRACKET; HARNESS
(B) 		1-81582-005-1 01 1 0407-0511
53 BRACKET; HARNESS
6WG1 TC-S(97L) (E) 		1-83129-472-1 01 1 0512-
53 BRACKET; HARNESS
CAB UP +110MM<TGG> (C) 		1-82698-469-0 02 1 0407-0511
53 BRACKET; HARNESS
6WF1 TC-C(1B8) (C) 		1-82698-469-0 02 1 0512-
53 BRACKET; HARNESS
(D) 		1-47479-537-0 09 1 0407-0511
53 BRACKET; HARNESS
(D) 		1-47479-537-0 04 1 0512-
211 BRACKET; AXLE HARNESS
6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) (C) 		1-82698-588-0 01 1 0512-
211 BRACKET; AXLE HARNESS
(A) 		1-47479-430-0 02 1 0407-0511
211 BRACKET; AXLE HARNESS
ELECTRONIC BRAKE SYSTEM EBS(NLH) (A) 		1-47479-430-0 02 1 0512-
211 BRACKET; AXLE HARNESS
(B) L=120 H=35 		1-82699-970-0 02 1 0407-0511
211 BRACKET; AXLE HARNESS
6WF1 TC-C(1B8) ELECTRONIC BRAKE SYSTEM EBS(NLH) (C) 		1-82698-588-0 02 1 0512-
312 BRACKET; CLIP HARNESS
(K) 		1-82699-182-0 01 1 0512-0606
312 BRACKET; CLIP HARNESS
6WG1 TC-S(97L) (L) 		1-82698-570-0 01 1 0607-
312 BRACKET; CLIP HARNESS
6WF1 TC-C(1B8) (J) L=120 		1-82699-465-0 01 1 0512-
312 BRACKET; CLIP HARNESS
6WG1 TC-S(97L) (G) 		1-82698-556-0 01 1 0512-
312 BRACKET; CLIP HARNESS
6WG1 TC-S(97L) (H) 		1-82699-199-0 01 1 0512-
312 BRACKET; CLIP HARNESS
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (I) 		1-82698-443-0 01 1 0512-
312 BRACKET; CLIP HARNESS
CAB UP +110MM<TGG> (C) L=195.5 		1-82698-502-0 01 1 0407-0511
312 BRACKET; CLIP HARNESS
6WF1 TC-C(1B8) (F) L=120 H=35 		1-82698-088-0 01 1 0512-
312 BRACKET; CLIP HARNESS
(F) L=120 H=35 		1-82698-088-0 01 1 0407-0511
312 BRACKET; CLIP HARNESS
(C) L=195.5 		1-82698-502-0 01 1 0512-
312 BRACKET; CLIP HARNESS
(A) 		1-82698-440-0 01 1 0407-0511
312 BRACKET; CLIP HARNESS
6WF1 TC-C(1B8) (A) 		1-82698-440-0 01 1 0512-
312 BRACKET; CLIP HARNESS
(D) 		1-82698-474-1 01 1 0407-
312 BRACKET; CLIP HARNESS
(E) 		1-82698-476-0 01 1 0407-
312 BRACKET; CLIP HARNESS
(B) L=120 H=35 		1-82699-970-0 01 1 0407-0511
312 BRACKET; CLIP HARNESS
6WF1 TC-C(1B8) (B) L=120 H=35 		1-82699-970-0 01 1 0512-0905
312 BRACKET; CLIP HARNESS
6WF1 TC-C(1B8) (M) 		1-82698-358-0 01 1 0906-
334 BRACKET
6WF1 TC-C(1B8) (B) 		1-53458-362-0 01 1 0512-
334 BRACKET
6WG1 TC-S(97L) (C) 		1-53457-153-2 01 1 0512-
334 BRACKET
(A) 		1-53458-932-0 01 1 0407-0511
334 BRACKET
(D) 		1-82698-650-0 01 1 0512-
çizim 89735
16 16 104 16 48 205 16 104 16 16 104 212 16 48 104 16 48 218 16 16 162 470 16 16 16 16 16 48 16 116 421 81 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
6WG1 TC-S(97L) (BA) ID=24-30 L=18 		1-09709-297-0 01 1 0607-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (P) ID=24 L=32 		1-09700-766-1 02 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (H) ID=11 L=41 		1-09700-403-0 02 1 0512-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 0512-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 02 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Y) ID=20 H=23 L=27 		1-09700-861-0 02 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AP) ID=21 L=47.5 		8-94178-108-0 02 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AQ) ID=19 H=70 L=25 		8-97360-209-0 01 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AR) ID=19 L=20 		9-09525-832-0 01 1 0512-0606
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AR) ID=19 L=20 		0-95235-832-0 01 1 0607-
16 CLIP; HARNESS
(AG) ID=11 L=20 		9-09525-032-0 01 1 0512-0606
16 CLIP; HARNESS
(AG) ID=11 L=20 		0-95235-032-0 01 1 0607-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AS) ID=28 L=58 		1-09700-400-0 04 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) (H) ID=11 L=41 		1-09700-403-0 04 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AT) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0512-1105
16 CLIP; HARNESS
6WG1 TC-S(97L) (E) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 1106-
16 CLIP; HARNESS
6WG1 TC-S(97L) (A) L=180 		1-09707-162-1 08 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) (F) OD=9 H=6 		1-09709-178-0 07 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AU) ID=5-12 L=14.5 		1-09987-221-0 02 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AV) OD=9 H=6 		8-97368-793-0 03 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AT) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AT) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AP) ID=21 L=47.5 		8-94178-108-0 04 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AW) L=36 		8-94224-891-1 01 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AV) OD=9 H=6 		8-97368-793-0 02 1 0512-
16 CLIP; HARNESS
(AU) ID=5-12 L=14.5 		1-09987-221-0 01 1 0512-
16 CLIP; HARNESS
(AU) ID=5-12 L=14.5 		1-09987-221-0 01 1 0512-
16 CLIP; HARNESS
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (AL) L=175 		8-97110-167-0 04 1 0512-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) L=250 		5-09707-030-1 01 1 0407-
16 CLIP; HARNESS
(G) ID=11 H=30 L=17 		1-09700-113-0 01 1 0407-0511
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (G) ID=11 H=30 L=17 		1-09700-113-0 01 1 0512-
16 CLIP; HARNESS
(AG) ID=11 L=20 		9-09525-035-0 02 1 0407-0511
16 CLIP; HARNESS
6WG1 TC-S(97L) (AG) ID=11 L=20 		9-09525-035-0 02 1 0512-0606
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AG) ID=11 L=20 		9-09525-035-0 02 1 0512-0606
16 CLIP; HARNESS
6WG1 TC-S(97L) (AG) ID=11 L=20 		0-95235-035-0 02 1 0607-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AG) ID=11 L=20 		0-95235-035-0 02 1 0607-
16 CLIP; HARNESS
(AI) ID=28 H=45 L=30 		1-09700-948-0 01 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0512-0606
16 CLIP; HARNESS
6WF1 TC-C(1B8) (E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0512-0606
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0607-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0607-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0607-
16 CLIP; HARNESS
(M) ID=28 L=40 		1-09701-261-0 02 1 0407-0511
16 CLIP; HARNESS
INSPECTION LAMP<T95> (H) ID=11 L=41 		1-09700-403-0 01 1 0512-
16 CLIP; HARNESS
(AG) ID=11 L=20 		9-09525-032-0 01 1 0407-0407
16 CLIP; HARNESS
(AG) ID=11 L=20 		9-09525-035-0 01 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (P) ID=24 L=32 		1-09700-766-1 01 1 0512-
16 CLIP; HARNESS
(AF) ID=19 L=20 		9-09525-836-0 02 1 0407-0511
16 CLIP; HARNESS
6WG1 TC-S(97L) (AF) ID=19 L=20 		9-09525-836-0 01 1 0512-0606
16 CLIP; HARNESS
6WG1 TC-S(97L) (AF) ID=19 L=20 		0-95235-836-0 01 1 0607-
16 CLIP; HARNESS
(N) ID=11X2 L=20 		9-09535-035-0 02 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (N) ID=11X2 L=20 		9-09535-035-0 02 1 0512-0606
16 CLIP; HARNESS
6WF1 TC-C(1B8) (N) ID=11X2 L=20 		0-95325-035-0 02 1 0607-1208
16 CLIP; HARNESS
6WF1 TC-C(1B8) (N) ID=11X2 L=20 		0-95325-035-0 01 1 1209-
16 CLIP; HARNESS
(O) ID=22 L=32 		1-09700-126-1 01 1 0407-
16 CLIP; HARNESS
(I) ID=20 L=50 		1-09700-679-1 01 1 0407-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0407-0606
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0407-0606
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0607-
16 CLIP; HARNESS
HIGH ROOF<S2F> (J) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0407-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 03 1 0407-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 05 1 0407-0511
16 CLIP; HARNESS
(AX) ID=28+34 L=44 		1-09701-311-0 01 1 0512-
16 CLIP; HARNESS
(P) ID=24 L=32 		1-09700-766-1 03 1 0407-0511
16 CLIP; HARNESS
(AY) ID=5-12 L=26 		1-09709-289-0 01 1 0512-0610
16 CLIP; HARNESS
(AB) ID=5-12 L=18 		1-09709-287-0 01 1 0611-
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0407-0511
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 0512-0606
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 03 1 0607-
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AS) ID=28 L=58 		1-09700-400-0 03 1 0512-
16 CLIP; HARNESS
(S) ID=26 L=27 		1-09701-006-0 02 1 0407-0511
16 CLIP; HARNESS
(AV) OD=9 H=6 		8-97368-793-0 01 1 0512-
16 CLIP; HARNESS
(U) ID=18 L=28 		1-09701-067-0 01 1 0407-
16 CLIP; HARNESS
(V) ID=15 L=28 		1-09701-216-0 01 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (S) ID=26 L=27 		1-09701-006-0 02 1 0512-
16 CLIP; HARNESS
(Q) ID=4.8 		1-09701-218-0 01 1 0407-
16 CLIP; HARNESS
(AA) ID=28X2 L=28 		1-09701-302-0 01 1 0407-0511
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 02 1 0512-0606
16 CLIP; HARNESS
ELECTRONIC BRAKE SYSTEM EBS(NLH) (AM) L=350 		1-09707-183-0 02 1 0512-0606
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 02 1 0607-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AM) L=350 		1-09707-183-0 02 1 0607-
16 CLIP; HARNESS
ELECTRONIC BRAKE SYSTEM EBS(NLH) (AM) L=350 		1-09707-183-0 02 1 0607-
16 CLIP; HARNESS
(T) ID=42.7 L=38 		1-09701-313-0 01 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (T) ID=42.7 L=38 		1-09701-313-0 01 1 0512-
16 CLIP; HARNESS
(R) L=300 		1-09707-001-1 02 1 0407-0504
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 01 1 0407-0511
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 02 1 0512-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 02 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (A) L=180 		1-09707-162-1 09 1 0512-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 07 1 0407-0511
16 CLIP; HARNESS
INSPECTION LAMP<T95> (A) L=180 		1-09707-162-1 01 1 0512-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 01 1 0512-
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 02 1 0407-0504
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 02 1 0505-0511
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 02 1 0505-0511
16 CLIP; HARNESS
(V) ID=15 L=28 		1-09701-216-0 01 1 0512-
16 CLIP; HARNESS
(V) ID=15 L=28 		1-09701-216-0 01 1 0512-
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 04 1 0407-0511
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 03 1 0512-
16 CLIP; HARNESS
(K) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0407-0511
16 CLIP; HARNESS
6WG1 TC-S(97L) (A) L=180 		1-09707-162-1 04 1 0512-
16 CLIP; HARNESS
(K) W/SPONGE RUBBER 		1-09709-150-0 01 1 0407-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 06 1 0407-0511
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 05 1 0512-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 11 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (F) OD=9 H=6 		1-09709-178-0 11 1 0512-
16 CLIP; HARNESS
(W) OD=9 H=13.5 		1-09709-180-0 01 1 0407-
16 CLIP; HARNESS
(AB) ID=5-12 L=18 		1-09709-287-0 02 1 0407-0511
16 CLIP; HARNESS
ELECTRONIC BRAKE SYSTEM EBS(NLH) (AB) ID=5-12 L=18 		1-09709-287-0 02 1 0512-
16 CLIP; HARNESS
(AC) ID=5-12 L=22 		1-09709-288-0 01 1 0407-
16 CLIP; HARNESS
(AD) ID=13-18 L=18 		1-09709-291-0 02 1 0407-
16 CLIP; HARNESS
(AE) ID=18-24 L=18 		1-09709-294-0 04 1 0407-
16 CLIP; HARNESS
(AH) L=155 		1-82698-097-0 01 1 0407-0511
16 CLIP; HARNESS
DOOR WITH UNDER VIEW WINDOW<YD8> (AH) L=155 		1-82698-097-0 01 1 0512-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 0407-0511
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 05 1 0512-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 05 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (C) L=250 		5-09707-030-1 02 1 0512-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 0407-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 05 1 0407-
16 CLIP; HARNESS
(AJ) L=55 		8-94432-655-0 03 1 0407-
16 CLIP; HARNESS
(AK) ID=14 H=15 L=20 		8-94437-032-0 01 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AK) ID=14 H=15 L=20 		8-94437-032-0 01 1 0512-
16 CLIP; HARNESS
(X) ID=14-20 		8-97061-603-0 03 1 0407-
16 CLIP; HARNESS
(AL) L=175 		8-97110-167-0 02 1 0407-0511
16 CLIP; HARNESS
DOOR WITH UNDER VIEW WINDOW<YD8> (AL) L=175 		8-97110-167-0 02 1 0512-
16 CLIP; HARNESS
(AN) ID=11 L=16 		9-09525-025-0 02 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (F) OD=9 H=6 		1-09709-178-0 01 1 0512-
16 CLIP; HARNESS
(AO) ID=16 L=20 		9-09525-535-0 02 1 0407-0606
16 CLIP; HARNESS
(AO) ID=16 L=20 		0-95235-535-0 02 1 0607-
16 CLIP; HARNESS
(Z) ID=19 L=32 		9-09525-866-0 02 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Z) ID=19 L=32 		9-09525-866-0 02 1 0512-0606
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Z) ID=19 L=32 		0-95235-866-0 02 1 0607-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 02 1 0407-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 05 1 0407-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0407-0511
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0512-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 06 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (I) ID=20 L=50 		9-09917-430-0 06 1 0512-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 09 1 0407-0511
16 CLIP; HARNESS
6WG1 TC-S(97L) (I) ID=20 L=50 		9-09917-430-0 07 1 0512-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 05 1 0407-0511
16 CLIP; HARNESS
(AZ) ID=28 L=32 		1-09701-107-1 02 1 0512-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 02 1 0407-0511
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 02 1 0407-0511
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 01 1 0512-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 01 1 0512-
48 CLIP; FRAME HARNESS
6WF1 TC-C(1B8) (J) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0512-
48 CLIP; FRAME HARNESS
6WG1 TC-S(97L) (K) ID=39 H=28 L=32 		1-09701-263-0 01 1 0512-
48 CLIP; FRAME HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0407-
48 CLIP; FRAME HARNESS
(B) ID=26 L=26 		1-09701-236-0 01 1 0407-0511
48 CLIP; FRAME HARNESS
6WF1 TC-C(1B8) (L) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0512-
48 CLIP; FRAME HARNESS
(C) ID=20 H=18 L=82 		1-09701-288-0 01 1 0407-
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 15 1 0407-
48 CLIP; FRAME HARNESS
(E) ID=5-12 L=18 		1-09709-287-0 01 1 0407-
48 CLIP; FRAME HARNESS
(F) ID=13-18 L=18 		1-09709-291-0 01 1 0407-
48 CLIP; FRAME HARNESS
(F) ID=13-18 L=18 		1-09709-291-0 04 1 0407-0511
48 CLIP; FRAME HARNESS
(F) ID=13-18 L=18 		1-09709-291-0 02 1 0512-
48 CLIP; FRAME HARNESS
(G) ID=18-24 L=18 		1-09709-294-0 03 1 0407-
48 CLIP; FRAME HARNESS
(H) L=250 		5-09707-030-1 06 1 0407-
48 CLIP; FRAME HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0407-
48 CLIP; FRAME HARNESS
(I) ID=20 L=50 		9-09917-430-0 02 1 0407-
81 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) L=140 		5-09707-031-1 06 1 0512-
81 CLIP; HARNESS
(C) ID=6.35 & 12 		1-09709-275-1 02 1 0407-
81 CLIP; HARNESS
(B) L=140 		5-09707-031-1 02 1 0407-0511
81 CLIP; HARNESS
6WF1 TC-C(1B8) (B) L=140 		5-09707-031-1 02 1 0512-
81 CLIP; HARNESS
(A) ID=7-10 		8-94472-578-0 02 1 0407-0511
81 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) ID=7-10 		8-94472-578-0 02 1 0512-
81 CLIP; HARNESS
(D) ID=11 L=16 		9-09525-025-0 02 1 0407-0511
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) ID=11 L=16 		9-09525-025-0 02 1 0512-0606
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) ID=11 L=16 		0-95235-025-0 02 1 0607-
104 CLIP; HEADLAMP HARNESS
HALOGEN HEADLAMPS<TT5> (E) L=250 		5-09707-030-1 02 1 0512-
104 CLIP; HEADLAMP HARNESS
HALOGEN HEADLAMPS<TT5> (A) L=140 		5-09707-031-1 02 1 0512-
104 CLIP; HEADLAMP HARNESS
(B) ID=13-18 L=14.5 		1-09709-290-0 06 1 0407-0511
104 CLIP; HEADLAMP HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C) ID=21 L=47.5 		8-94178-108-0 02 1 0512-0710
104 CLIP; HEADLAMP HARNESS
(D) ID=18-24 L=14.5 		1-09709-298-0 02 1 0407-0511
104 CLIP; HEADLAMP HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) ID=18-24 L=14.5 		1-09709-298-0 02 1 0512-
104 CLIP; HEADLAMP HARNESS
(A) L=140 		5-09707-031-1 10 1 0407-0511
104 CLIP; HEADLAMP HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) L=140 		5-09707-031-1 10 1 0512-
104 CLIP; HEADLAMP HARNESS
(A) L=140 		5-09707-031-1 02 1 0407-0511
104 CLIP; HEADLAMP HARNESS
(B) ID=13-18 L=14.5 		1-09709-290-0 06 1 0512-
104 CLIP; HEADLAMP HARNESS
(C) ID=21 L=47.5 		8-94178-108-0 02 1 0407-0511
104 CLIP; HEADLAMP HARNESS
HALOGEN HEADLAMPS<TT5> (F) ID=5-12 L=14.5 		1-09987-221-0 04 1 0512-
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 07 1 0407-
116 CLIP; ROOF HARNESS
EXC. HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 06 1 0407-
162 CLIP; SW HARNESS
6WG1 TC-S(97L) (B) OD=9 H=6 		1-09709-178-0 01 1 0512-
162 CLIP; SW HARNESS
CAB UP +110MM<TGG> (A) L=180 		1-09707-162-1 01 1 0407-0511
162 CLIP; SW HARNESS
6WF1 TC-C(1B8) (A) L=180 		1-09707-162-1 01 1 0512-
205 CLIP; BACK LAMP HARNESS
(A) L=180 		1-09707-162-1 01 1 0407-0511
205 CLIP; BACK LAMP HARNESS
(B) ID=5-12 L=18 		1-09709-287-0 01 1 0512-
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (C) ID=18 H=23 L=28 		1-09700-860-0 01 1 0512-
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (H) ID=20 L=50 		9-09917-430-0 02 1 0512-
212 CLIP; HORN HARNESS
6WG1 TC-S(97L) (I) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0512-
212 CLIP; HORN HARNESS
6WG1 TC-S(97L) (J) ID=13-18 L=14.5 		1-09709-290-0 01 1 0512-
212 CLIP; HORN HARNESS
6WG1 TC-S(97L) (K) ID=19 L=28 		9-09525-856-0 01 1 0512-0606
212 CLIP; HORN HARNESS
6WG1 TC-S(97L) (K) ID=19 L=28 		0-95235-856-0 01 1 0607-
212 CLIP; HORN HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0407-
212 CLIP; HORN HARNESS
(C) ID=18 H=23 L=28 		1-09700-860-0 01 1 0407-0511
212 CLIP; HORN HARNESS
(D) L=300 		1-09707-001-1 01 1 0512-
212 CLIP; HORN HARNESS
(D) L=300 		1-09707-001-1 01 1 0407-0504
212 CLIP; HORN HARNESS
(G) L=350 		1-09707-183-0 01 1 0505-0511
212 CLIP; HORN HARNESS
(G) L=350 		1-09707-183-0 02 1 0512-
212 CLIP; HORN HARNESS
(E) L=250 		5-09707-030-1 02 1 0407-
212 CLIP; HORN HARNESS
(A) L=140 		5-09707-031-1 02 1 0407-0511
212 CLIP; HORN HARNESS
(A) L=140 		5-09707-031-1 01 1 0512-
212 CLIP; HORN HARNESS
(F) ID=21 L=24 		8-94176-807-1 01 1 0407-0511
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (F) ID=21 L=24 		8-94176-807-1 01 1 0512-
212 CLIP; HORN HARNESS
(G) L=350 		1-09707-183-0 01 1 0407-0504
212 CLIP; HORN HARNESS
(G) L=350 		1-09707-183-0 01 1 0407-0504
212 CLIP; HORN HARNESS
(G) L=350 		1-09707-183-0 02 1 0505-0511
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (G) L=350 		1-09707-183-0 01 1 0512-
218 CLIP; BAND,RR COMB
ID=18-24 L=18 		1-09709-294-0 04 1 0512-
421 CLIP; FLOOR HARNESS
L=30 SET=10 PIECE 		1-09987-265-0 05 1 0407-
470 CLIP; HARNESS,LICENSE LAMP
(A) ID=11 L=41 		1-09700-403-0 01 1 0407-
470 CLIP; HARNESS,LICENSE LAMP
(B) OD=9 H=6 		1-09709-178-0 01 1 0407-

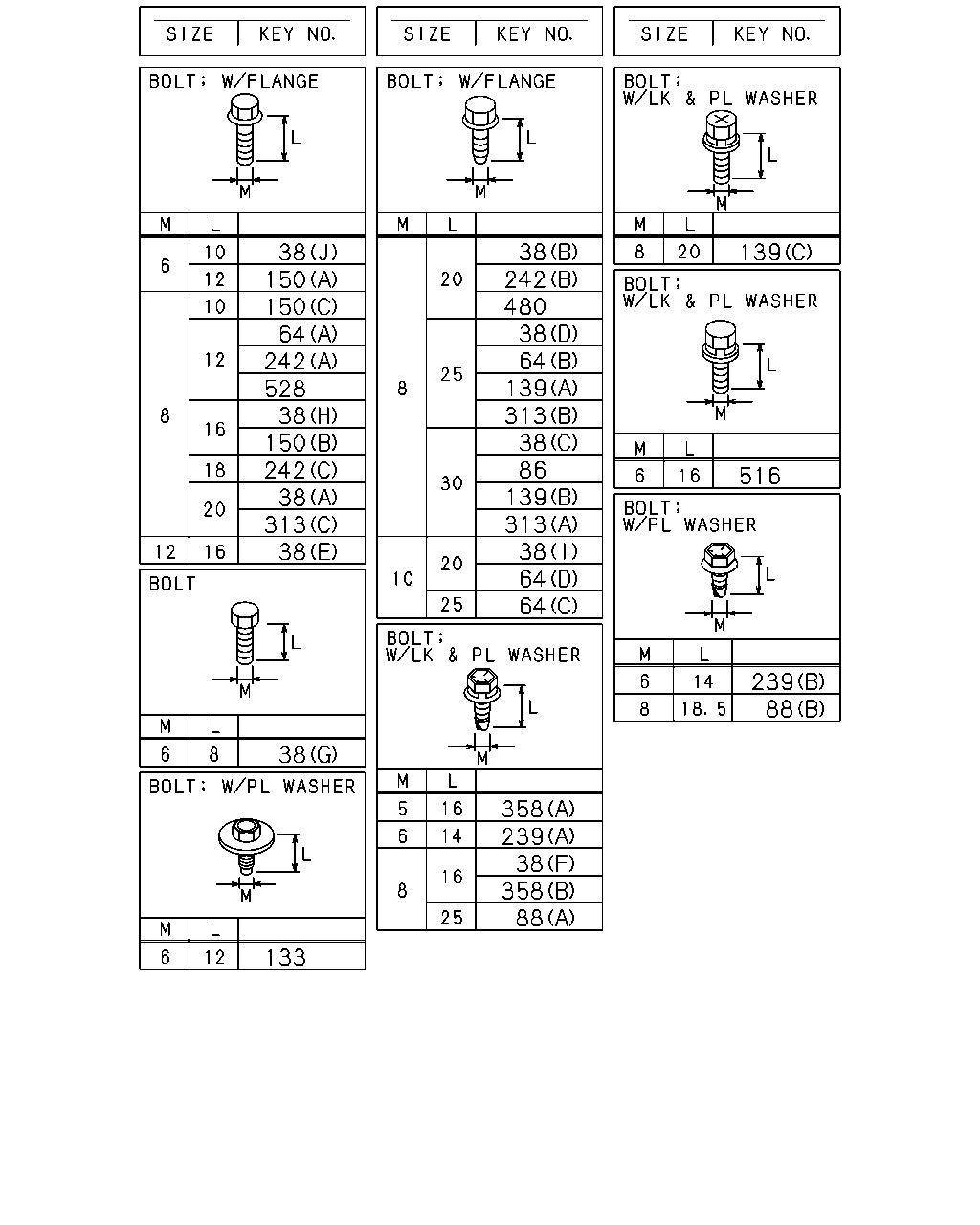

çizim 104605
38 242 480 38 64 139 313 38 86 139 313 38 64 64 38 150 150 64 242 528 38 150 242 38 313 38 139 516 239 88 38 358 239 38 358 88 133
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) (I) M10X20 FLANGE 		0-28781-020-0 01 1 0512-0512
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) (I) M10X20 FLANGE 		0-28751-020-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) (D) M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) (D) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
38 BOLT; CLIP,HARNESS
6WG1 TC-S(97L) (A) M8X20 FLANGE 		0-28080-820-0 01 1 0512-0512
38 BOLT; CLIP,HARNESS
6WG1 TC-S(97L) (A) M8X20 FLANGE 		0-28050-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
6WG1 TC-S(97L) (C) M8X30 FLANGE 		0-28680-830-0 02 1 0512-0512
38 BOLT; CLIP,HARNESS
6WG1 TC-S(97L) (C) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(G) M6X8 		0-20800-608-0 01 1 0407-0511
38 BOLT; CLIP,HARNESS
(J) M6X10 FLANGE 		0-28080-610-0 01 1 0512-0512
38 BOLT; CLIP,HARNESS
(J) M6X10 FLANGE 		0-28050-610-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(H) M8X16 FLANGE 		0-28080-816-0 02 1 0407-0511
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (H) M8X16 FLANGE 		0-28080-816-0 02 1 0512-0512
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (H) M8X16 FLANGE 		0-28050-816-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28080-820-0 02 1 0407-0511
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) (A) M8X20 FLANGE 		0-28080-820-0 03 1 0512-0512
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) (A) M8X20 FLANGE 		0-28050-820-0 03 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 05 1 0407-0511
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 05 1 0512-0512
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 05 1 0512-0512
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) (B) M8X20 FLANGE 		0-28680-820-0 05 1 0512-0512
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 05 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 05 1 0601-
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) (B) M8X20 FLANGE 		0-28650-820-0 05 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 10 1 0407-0511
38 BOLT; CLIP,HARNESS
6WG1 TC-S(97L) (B) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512
38 BOLT; CLIP,HARNESS
6WG1 TC-S(97L) (B) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28680-830-0 01 1 0407-0512
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(E) M12X16 FLANGE 		1-09044-079-0 01 1 0407-1105
38 BOLT; CLIP,HARNESS
(E) M12X16 FLANGE 		0-28051-216-0 01 1 1106-
38 BOLT; CLIP,HARNESS
(F) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0407-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0407-0512
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0407-0512
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 02 1 0407-0511
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 02 1 0407-0511
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 02 1 0407-0511
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) (D) M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) (D) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
64 SCREW; CLIP
6WG1 TC-S(97L) (D) M10X20 FLANGE 		0-28781-020-0 01 1 0512-0512
64 SCREW; CLIP
6WG1 TC-S(97L) (D) M10X20 FLANGE 		0-28751-020-0 01 1 0601-
64 SCREW; CLIP
(A) M8X12 FLANGE 		0-28080-812-0 05 1 0407-0511
64 SCREW; CLIP
6WF1 TC-C(1B8) (A) M8X12 FLANGE 		0-28080-812-0 05 1 0512-0512
64 SCREW; CLIP
6WF1 TC-C(1B8) (A) M8X12 FLANGE 		0-28050-812-0 05 1 0601-
64 SCREW; CLIP
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0407-0511
64 SCREW; CLIP
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512
64 SCREW; CLIP
6WF1 TC-C(1B8) (B) M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512
64 SCREW; CLIP
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0711
64 SCREW; CLIP
6WF1 TC-C(1B8) (B) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0711
64 SCREW; CLIP
6WF1 TC-C(1B8) (B) M8X25 FLANGE 		0-28650-825-0 01 1 0712-
64 SCREW; CLIP
6WF1 TC-C(1B8) (B) M8X25 FLANGE 		0-28650-825-0 01 1 0712-
64 SCREW; CLIP
(C) M10X25 FLANGE 		0-28781-025-0 02 1 0407-0511
64 SCREW; CLIP
6WF1 TC-C(1B8) (C) M10X25 FLANGE 		0-28781-025-0 02 1 0512-0512
64 SCREW; CLIP
6WF1 TC-C(1B8) (C) M10X25 FLANGE 		0-28751-025-0 02 1 0601-
86 BOLT; CLIP BRKT
6WG1 TC-S(97L) M8X30 FLANGE 		0-28650-830-0 02 1 0607-
86 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0407-0511
86 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0407-0511
86 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0512-0512
86 BOLT; CLIP BRKT
6WF1 TC-C(1B8) M8X30 FLANGE 		0-28680-830-0 01 1 0512-0512
86 BOLT; CLIP BRKT
6WF1 TC-C(1B8) M8X30 FLANGE 		0-28680-830-0 01 1 0512-0512
86 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0601-0606
86 BOLT; CLIP BRKT
6WF1 TC-C(1B8) M8X30 FLANGE 		0-28650-830-0 01 1 0601-0606
86 BOLT; CLIP BRKT
6WF1 TC-C(1B8) M8X30 FLANGE 		0-28650-830-0 01 1 0601-0606
86 BOLT; CLIP BRKT
6WF1 TC-C(1B8) M8X30 FLANGE 		0-28650-830-0 01 1 0607-
86 BOLT; CLIP BRKT
6WF1 TC-C(1B8) M8X30 FLANGE 		0-28650-830-0 01 1 0607-
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0407-1007
88 BOLT; DOOR HARNESS EARTH
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1008-
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 0407-
139 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0602-0904
139 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 04 1 0407-0511
139 BOLT; BRKT
6WG1 TC-S(97L) (B) M8X30 FLANGE 		0-28680-830-0 04 1 0512-0512
139 BOLT; BRKT
6WG1 TC-S(97L) (B) M8X30 FLANGE 		0-28650-830-0 04 1 0601-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 02 1 0407-0511
139 BOLT; BRKT
6WF1 TC-C(1B8) (B) M8X30 FLANGE 		0-28680-830-0 05 1 0512-0512
139 BOLT; BRKT
6WF1 TC-C(1B8) (B) M8X30 FLANGE 		0-28650-830-0 05 1 0601-0606
139 BOLT; BRKT
6WF1 TC-C(1B8) ELECTRONIC BRAKE SYSTEM EBS(NLH) (B) M8X30 FLANGE 		0-28650-830-0 06 1 0607-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 06 1 0407-0511
139 BOLT; BRKT
ELECTRONIC BRAKE SYSTEM EBS(NLH) (B) M8X30 FLANGE 		0-28680-830-0 06 1 0512-0512
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 06 1 0601-0606
139 BOLT; BRKT
6WF1 TC-C(1B8) (B) M8X30 FLANGE 		0-28650-830-0 05 1 0607-
139 BOLT; BRKT
6WG1 TC-S(97L) ELECTRONIC BRAKE SYSTEM EBS(NLH) (B) M8X30 FLANGE 		0-28650-830-0 05 1 0607-
139 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0407-0511
150 BOLT; CLIP
6WG1 TC-S(97L) (B) M8X16 FLANGE 		0-28050-816-0 03 1 1209-
150 BOLT; CLIP
(C) M8X10 FLANGE 		0-28080-810-0 02 1 0407-0511
150 BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M8X10 FLANGE 		0-28080-810-0 02 1 0512-0512
150 BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M8X10 FLANGE 		0-28050-810-0 02 1 0601-
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0407-0511
150 BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X16 FLANGE 		0-28080-816-0 01 1 0512-0512
150 BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X16 FLANGE 		0-28050-816-0 01 1 0601-
150 BOLT; CLIP
(A) M6X12 FLANGE 		0-28080-612-0 02 1 0407-0407
150 BOLT; CLIP
(A) M6X12 FLANGE 		0-28080-612-0 01 1 0408-0511
150 BOLT; CLIP
(A) M6X12 FLANGE 		0-28080-612-0 02 1 0512-0512
150 BOLT; CLIP
(A) M6X12 FLANGE 		0-28050-612-0 02 1 0601-
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28080-816-0 09 1 0407-0511
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28080-816-0 03 1 0512-0512
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 03 1 0601-1208
150 BOLT; CLIP
6WF1 TC-C(1B8) (B) M8X16 FLANGE 		0-28050-816-0 02 1 1209-
239 BOLT; GRAND
(A) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0407-1007
239 BOLT; GRAND
(B) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008-
242 BOLT; BRKT,HARNESS
6WG1 TC-S(97L) (C) M8X18 FLANGE 		0-28080-818-0 01 1 0512-
242 BOLT; BRKT,HARNESS
(A) M8X12 FLANGE 		0-28080-812-0 01 1 0407-0512
242 BOLT; BRKT,HARNESS
(A) M8X12 FLANGE 		0-28050-812-0 01 1 0601-
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0407-0511
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 04 1 0512-0512
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 04 1 0601-
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 04 1 0407-0511
242 BOLT; BRKT,HARNESS
6WF1 TC-C(1B8) (B) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512
242 BOLT; BRKT,HARNESS
6WF1 TC-C(1B8) (B) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
313 BOLT; BRKT
6WG1 TC-S(97L) (C) M8X20 FLANGE 		0-28080-820-0 02 1 0512-0512
313 BOLT; BRKT
6WG1 TC-S(97L) (C) M8X20 FLANGE 		0-28050-820-0 02 1 0601-
313 BOLT; BRKT
(C) M8X20 FLANGE 		0-28080-820-0 01 1 0407-0511
313 BOLT; BRKT
6WF1 TC-C(1B8) (C) M8X20 FLANGE 		0-28080-820-0 01 1 0512-0512
313 BOLT; BRKT
6WF1 TC-C(1B8) (C) M8X20 FLANGE 		0-28050-820-0 01 1 0601-
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0407-0511
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 05 1 0512-0512
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 05 1 0601-
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 05 1 0407-0511
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 11 1 0512-0512
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 11 1 0601-
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0407-0511
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0407-0511
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0512-0512
313 BOLT; BRKT
6WF1 TC-C(1B8) (A) M8X30 FLANGE 		0-28680-830-0 01 1 0512-0512
313 BOLT; BRKT
6WF1 TC-C(1B8) (A) M8X30 FLANGE 		0-28680-830-0 01 1 0512-0512
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0601-
313 BOLT; BRKT
6WF1 TC-C(1B8) (A) M8X30 FLANGE 		0-28650-830-0 01 1 0601-
313 BOLT; BRKT
6WF1 TC-C(1B8) (A) M8X30 FLANGE 		0-28650-830-0 01 1 0601-
358 BOLT; EARTH
(A) M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0407-
358 BOLT; EARTH
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0407-
480 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 04 1 0407-0512
480 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0601-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0407-
528 BOLT; CONNECTOR
6WG1 TC-S(97L) M8X12 FLANGE 		0-28080-812-0 01 1 0512-0512
528 BOLT; CONNECTOR
6WG1 TC-S(97L) M8X12 FLANGE 		0-28050-812-0 01 1 0601-
çizim 104606
14 16 194 212 14 16 33 48 194 212 16 14 16 81 104 111 142 171 194 206 212 305 369 14 16 48 102 104 142 171 194 212 369 380 16 16 33 51 142 162 194 205
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) L=250 		1-09707-126-0 01 1 0512-
14 CLIP; BAND,HARNESS
(B) L=250 		5-09707-030-1 01 1 0407-0511
14 CLIP; BAND,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) L=250 		5-09707-030-1 01 1 0512-
14 CLIP; BAND,HARNESS
(A) L=140 		5-09707-031-1 01 1 0407-0511
14 CLIP; BAND,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=140 		5-09707-031-1 01 1 0512-
14 CLIP; BAND,HARNESS
(D) L=250 		1-09707-126-0 02 1 0407-
14 CLIP; BAND,HARNESS
(D) L=250 		1-09707-126-0 01 1 0407-0511
14 CLIP; BAND,HARNESS
(C) L=350 		1-09707-183-0 02 1 0512-0606
14 CLIP; BAND,HARNESS
(C) L=350 		1-09707-183-0 02 1 0607-
14 CLIP; BAND,HARNESS
(C) L=350 		1-09707-183-0 02 1 0607-
14 CLIP; BAND,HARNESS
(C) L=350 		1-09707-183-0 02 1 0407-0511
14 CLIP; BAND,HARNESS
(C) L=350 		1-09707-183-0 01 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) (BA) ID=24-30 L=18 		1-09709-297-0 01 1 0607-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (P) ID=24 L=32 		1-09700-766-1 02 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (H) ID=11 L=41 		1-09700-403-0 02 1 0512-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 0512-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 02 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Y) ID=20 H=23 L=27 		1-09700-861-0 02 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AP) ID=21 L=47.5 		8-94178-108-0 02 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AQ) ID=19 H=70 L=25 		8-97360-209-0 01 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AR) ID=19 L=20 		9-09525-832-0 01 1 0512-0606
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AR) ID=19 L=20 		0-95235-832-0 01 1 0607-
16 CLIP; HARNESS
(AG) ID=11 L=20 		9-09525-032-0 01 1 0512-0606
16 CLIP; HARNESS
(AG) ID=11 L=20 		0-95235-032-0 01 1 0607-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AS) ID=28 L=58 		1-09700-400-0 04 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) (H) ID=11 L=41 		1-09700-403-0 04 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AT) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0512-1105
16 CLIP; HARNESS
6WG1 TC-S(97L) (E) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 1106-
16 CLIP; HARNESS
6WG1 TC-S(97L) (A) L=180 		1-09707-162-1 08 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) (F) OD=9 H=6 		1-09709-178-0 07 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AU) ID=5-12 L=14.5 		1-09987-221-0 02 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AV) OD=9 H=6 		8-97368-793-0 03 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AT) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AT) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AP) ID=21 L=47.5 		8-94178-108-0 04 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AW) L=36 		8-94224-891-1 01 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AV) OD=9 H=6 		8-97368-793-0 02 1 0512-
16 CLIP; HARNESS
(AU) ID=5-12 L=14.5 		1-09987-221-0 01 1 0512-
16 CLIP; HARNESS
(AU) ID=5-12 L=14.5 		1-09987-221-0 01 1 0512-
16 CLIP; HARNESS
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (AL) L=175 		8-97110-167-0 04 1 0512-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) L=250 		5-09707-030-1 01 1 0407-
16 CLIP; HARNESS
(G) ID=11 H=30 L=17 		1-09700-113-0 01 1 0407-0511
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (G) ID=11 H=30 L=17 		1-09700-113-0 01 1 0512-
16 CLIP; HARNESS
(AG) ID=11 L=20 		9-09525-035-0 02 1 0407-0511
16 CLIP; HARNESS
6WG1 TC-S(97L) (AG) ID=11 L=20 		9-09525-035-0 02 1 0512-0606
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AG) ID=11 L=20 		9-09525-035-0 02 1 0512-0606
16 CLIP; HARNESS
6WG1 TC-S(97L) (AG) ID=11 L=20 		0-95235-035-0 02 1 0607-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AG) ID=11 L=20 		0-95235-035-0 02 1 0607-
16 CLIP; HARNESS
(AI) ID=28 H=45 L=30 		1-09700-948-0 01 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0512-0606
16 CLIP; HARNESS
6WF1 TC-C(1B8) (E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0512-0606
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0607-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0607-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0607-
16 CLIP; HARNESS
(M) ID=28 L=40 		1-09701-261-0 02 1 0407-0511
16 CLIP; HARNESS
INSPECTION LAMP<T95> (H) ID=11 L=41 		1-09700-403-0 01 1 0512-
16 CLIP; HARNESS
(AG) ID=11 L=20 		9-09525-032-0 01 1 0407-0407
16 CLIP; HARNESS
(AG) ID=11 L=20 		9-09525-035-0 01 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (P) ID=24 L=32 		1-09700-766-1 01 1 0512-
16 CLIP; HARNESS
(AF) ID=19 L=20 		9-09525-836-0 02 1 0407-0511
16 CLIP; HARNESS
6WG1 TC-S(97L) (AF) ID=19 L=20 		9-09525-836-0 01 1 0512-0606
16 CLIP; HARNESS
6WG1 TC-S(97L) (AF) ID=19 L=20 		0-95235-836-0 01 1 0607-
16 CLIP; HARNESS
(N) ID=11X2 L=20 		9-09535-035-0 02 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (N) ID=11X2 L=20 		9-09535-035-0 02 1 0512-0606
16 CLIP; HARNESS
6WF1 TC-C(1B8) (N) ID=11X2 L=20 		0-95325-035-0 02 1 0607-1208
16 CLIP; HARNESS
6WF1 TC-C(1B8) (N) ID=11X2 L=20 		0-95325-035-0 01 1 1209-
16 CLIP; HARNESS
(O) ID=22 L=32 		1-09700-126-1 01 1 0407-
16 CLIP; HARNESS
(I) ID=20 L=50 		1-09700-679-1 01 1 0407-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0407-0606
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0407-0606
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0607-
16 CLIP; HARNESS
HIGH ROOF<S2F> (J) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0407-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 03 1 0407-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 05 1 0407-0511
16 CLIP; HARNESS
(AX) ID=28+34 L=44 		1-09701-311-0 01 1 0512-
16 CLIP; HARNESS
(P) ID=24 L=32 		1-09700-766-1 03 1 0407-0511
16 CLIP; HARNESS
(AY) ID=5-12 L=26 		1-09709-289-0 01 1 0512-0610
16 CLIP; HARNESS
(AB) ID=5-12 L=18 		1-09709-287-0 01 1 0611-
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0407-0511
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 0512-0606
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 03 1 0607-
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AS) ID=28 L=58 		1-09700-400-0 03 1 0512-
16 CLIP; HARNESS
(S) ID=26 L=27 		1-09701-006-0 02 1 0407-0511
16 CLIP; HARNESS
(AV) OD=9 H=6 		8-97368-793-0 01 1 0512-
16 CLIP; HARNESS
(U) ID=18 L=28 		1-09701-067-0 01 1 0407-
16 CLIP; HARNESS
(V) ID=15 L=28 		1-09701-216-0 01 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (S) ID=26 L=27 		1-09701-006-0 02 1 0512-
16 CLIP; HARNESS
(Q) ID=4.8 		1-09701-218-0 01 1 0407-
16 CLIP; HARNESS
(AA) ID=28X2 L=28 		1-09701-302-0 01 1 0407-0511
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 02 1 0512-0606
16 CLIP; HARNESS
ELECTRONIC BRAKE SYSTEM EBS(NLH) (AM) L=350 		1-09707-183-0 02 1 0512-0606
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 02 1 0607-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AM) L=350 		1-09707-183-0 02 1 0607-
16 CLIP; HARNESS
ELECTRONIC BRAKE SYSTEM EBS(NLH) (AM) L=350 		1-09707-183-0 02 1 0607-
16 CLIP; HARNESS
(T) ID=42.7 L=38 		1-09701-313-0 01 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (T) ID=42.7 L=38 		1-09701-313-0 01 1 0512-
16 CLIP; HARNESS
(R) L=300 		1-09707-001-1 02 1 0407-0504
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 01 1 0407-0511
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 02 1 0512-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 02 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (A) L=180 		1-09707-162-1 09 1 0512-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 07 1 0407-0511
16 CLIP; HARNESS
INSPECTION LAMP<T95> (A) L=180 		1-09707-162-1 01 1 0512-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 01 1 0512-
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 02 1 0407-0504
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 02 1 0505-0511
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 02 1 0505-0511
16 CLIP; HARNESS
(V) ID=15 L=28 		1-09701-216-0 01 1 0512-
16 CLIP; HARNESS
(V) ID=15 L=28 		1-09701-216-0 01 1 0512-
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 04 1 0407-0511
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 03 1 0512-
16 CLIP; HARNESS
(K) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0407-0511
16 CLIP; HARNESS
6WG1 TC-S(97L) (A) L=180 		1-09707-162-1 04 1 0512-
16 CLIP; HARNESS
(K) W/SPONGE RUBBER 		1-09709-150-0 01 1 0407-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 06 1 0407-0511
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 05 1 0512-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 11 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (F) OD=9 H=6 		1-09709-178-0 11 1 0512-
16 CLIP; HARNESS
(W) OD=9 H=13.5 		1-09709-180-0 01 1 0407-
16 CLIP; HARNESS
(AB) ID=5-12 L=18 		1-09709-287-0 02 1 0407-0511
16 CLIP; HARNESS
ELECTRONIC BRAKE SYSTEM EBS(NLH) (AB) ID=5-12 L=18 		1-09709-287-0 02 1 0512-
16 CLIP; HARNESS
(AC) ID=5-12 L=22 		1-09709-288-0 01 1 0407-
16 CLIP; HARNESS
(AD) ID=13-18 L=18 		1-09709-291-0 02 1 0407-
16 CLIP; HARNESS
(AE) ID=18-24 L=18 		1-09709-294-0 04 1 0407-
16 CLIP; HARNESS
(AH) L=155 		1-82698-097-0 01 1 0407-0511
16 CLIP; HARNESS
DOOR WITH UNDER VIEW WINDOW<YD8> (AH) L=155 		1-82698-097-0 01 1 0512-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 0407-0511
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 05 1 0512-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 05 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (C) L=250 		5-09707-030-1 02 1 0512-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 0407-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 05 1 0407-
16 CLIP; HARNESS
(AJ) L=55 		8-94432-655-0 03 1 0407-
16 CLIP; HARNESS
(AK) ID=14 H=15 L=20 		8-94437-032-0 01 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AK) ID=14 H=15 L=20 		8-94437-032-0 01 1 0512-
16 CLIP; HARNESS
(X) ID=14-20 		8-97061-603-0 03 1 0407-
16 CLIP; HARNESS
(AL) L=175 		8-97110-167-0 02 1 0407-0511
16 CLIP; HARNESS
DOOR WITH UNDER VIEW WINDOW<YD8> (AL) L=175 		8-97110-167-0 02 1 0512-
16 CLIP; HARNESS
(AN) ID=11 L=16 		9-09525-025-0 02 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (F) OD=9 H=6 		1-09709-178-0 01 1 0512-
16 CLIP; HARNESS
(AO) ID=16 L=20 		9-09525-535-0 02 1 0407-0606
16 CLIP; HARNESS
(AO) ID=16 L=20 		0-95235-535-0 02 1 0607-
16 CLIP; HARNESS
(Z) ID=19 L=32 		9-09525-866-0 02 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Z) ID=19 L=32 		9-09525-866-0 02 1 0512-0606
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Z) ID=19 L=32 		0-95235-866-0 02 1 0607-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 02 1 0407-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 05 1 0407-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0407-0511
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0512-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 06 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (I) ID=20 L=50 		9-09917-430-0 06 1 0512-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 09 1 0407-0511
16 CLIP; HARNESS
6WG1 TC-S(97L) (I) ID=20 L=50 		9-09917-430-0 07 1 0512-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 05 1 0407-0511
16 CLIP; HARNESS
(AZ) ID=28 L=32 		1-09701-107-1 02 1 0512-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 02 1 0407-0511
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 02 1 0407-0511
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 01 1 0512-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 01 1 0512-
33 CLIP; HARNESS,VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) L=350 		1-09707-183-0 01 1 0607-
33 CLIP; HARNESS,VLV
(A) L=180 		1-09707-162-1 01 1 0407-
48 CLIP; FRAME HARNESS
6WF1 TC-C(1B8) (J) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0512-
48 CLIP; FRAME HARNESS
6WG1 TC-S(97L) (K) ID=39 H=28 L=32 		1-09701-263-0 01 1 0512-
48 CLIP; FRAME HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0407-
48 CLIP; FRAME HARNESS
(B) ID=26 L=26 		1-09701-236-0 01 1 0407-0511
48 CLIP; FRAME HARNESS
6WF1 TC-C(1B8) (L) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0512-
48 CLIP; FRAME HARNESS
(C) ID=20 H=18 L=82 		1-09701-288-0 01 1 0407-
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 15 1 0407-
48 CLIP; FRAME HARNESS
(E) ID=5-12 L=18 		1-09709-287-0 01 1 0407-
48 CLIP; FRAME HARNESS
(F) ID=13-18 L=18 		1-09709-291-0 01 1 0407-
48 CLIP; FRAME HARNESS
(F) ID=13-18 L=18 		1-09709-291-0 04 1 0407-0511
48 CLIP; FRAME HARNESS
(F) ID=13-18 L=18 		1-09709-291-0 02 1 0512-
48 CLIP; FRAME HARNESS
(G) ID=18-24 L=18 		1-09709-294-0 03 1 0407-
48 CLIP; FRAME HARNESS
(H) L=250 		5-09707-030-1 06 1 0407-
48 CLIP; FRAME HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0407-
48 CLIP; FRAME HARNESS
(I) ID=20 L=50 		9-09917-430-0 02 1 0407-
51 CLIP; COOLER CMPR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) L=180 		1-09707-162-1 01 1 0407-0511
51 CLIP; COOLER CMPR
L=180 		1-09707-162-1 01 1 0512-
81 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) L=140 		5-09707-031-1 06 1 0512-
81 CLIP; HARNESS
(C) ID=6.35 & 12 		1-09709-275-1 02 1 0407-
81 CLIP; HARNESS
(B) L=140 		5-09707-031-1 02 1 0407-0511
81 CLIP; HARNESS
6WF1 TC-C(1B8) (B) L=140 		5-09707-031-1 02 1 0512-
81 CLIP; HARNESS
(A) ID=7-10 		8-94472-578-0 02 1 0407-0511
81 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) ID=7-10 		8-94472-578-0 02 1 0512-
81 CLIP; HARNESS
(D) ID=11 L=16 		9-09525-025-0 02 1 0407-0511
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) ID=11 L=16 		9-09525-025-0 02 1 0512-0606
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) ID=11 L=16 		0-95235-025-0 02 1 0607-
102 CLIP; BAND
6WG1 TC-S(97L) L=250 		5-09707-030-1 01 1 0512-
104 CLIP; HEADLAMP HARNESS
HALOGEN HEADLAMPS<TT5> (E) L=250 		5-09707-030-1 02 1 0512-
104 CLIP; HEADLAMP HARNESS
HALOGEN HEADLAMPS<TT5> (A) L=140 		5-09707-031-1 02 1 0512-
104 CLIP; HEADLAMP HARNESS
(B) ID=13-18 L=14.5 		1-09709-290-0 06 1 0407-0511
104 CLIP; HEADLAMP HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C) ID=21 L=47.5 		8-94178-108-0 02 1 0512-0710
104 CLIP; HEADLAMP HARNESS
(D) ID=18-24 L=14.5 		1-09709-298-0 02 1 0407-0511
104 CLIP; HEADLAMP HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) ID=18-24 L=14.5 		1-09709-298-0 02 1 0512-
104 CLIP; HEADLAMP HARNESS
(A) L=140 		5-09707-031-1 10 1 0407-0511
104 CLIP; HEADLAMP HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) L=140 		5-09707-031-1 10 1 0512-
104 CLIP; HEADLAMP HARNESS
(A) L=140 		5-09707-031-1 02 1 0407-0511
104 CLIP; HEADLAMP HARNESS
(B) ID=13-18 L=14.5 		1-09709-290-0 06 1 0512-
104 CLIP; HEADLAMP HARNESS
(C) ID=21 L=47.5 		8-94178-108-0 02 1 0407-0511
104 CLIP; HEADLAMP HARNESS
HALOGEN HEADLAMPS<TT5> (F) ID=5-12 L=14.5 		1-09987-221-0 04 1 0512-
111 CLIP; STOP LAMP SW HARNESS
L=140 		5-09707-031-1 01 1 0407-
142 CLIP; HARNESS,ENG
(A) L=180 		1-09707-162-1 02 1 0407-0407
142 CLIP; HARNESS,ENG
(A) L=180 		1-09707-162-1 01 1 0408-1207
142 CLIP; HARNESS,ENG
(A) L=180 		8-98216-427-0 01 1 1208-
142 CLIP; HARNESS,ENG
(C) L=250 		5-09707-030-1 01 1 0407-0511
142 CLIP; HARNESS,ENG
(B) L=140 		5-09707-031-1 03 1 0407-0511
162 CLIP; SW HARNESS
6WG1 TC-S(97L) (B) OD=9 H=6 		1-09709-178-0 01 1 0512-
162 CLIP; SW HARNESS
CAB UP +110MM<TGG> (A) L=180 		1-09707-162-1 01 1 0407-0511
162 CLIP; SW HARNESS
6WF1 TC-C(1B8) (A) L=180 		1-09707-162-1 01 1 0512-
171 CLIP; STARTER HARNESS
6WG1 TC-S(97L) (B) L=250 		5-09707-030-1 03 1 0512-
171 CLIP; STARTER HARNESS
(B) L=250 		5-09707-030-1 03 1 0407-0511
171 CLIP; STARTER HARNESS
6WF1 TC-C(1B8) (B) L=250 		5-09707-030-1 02 1 0512-
171 CLIP; STARTER HARNESS
(A) L=140 		5-09707-031-1 08 1 0407-
194 CLIP; BAND
6WF1 TC-C(1B8) (D) L=350 		1-09707-183-0 01 1 0512-
194 CLIP; BAND
6WF1 TC-C(1B8) (E) L=250 		5-09707-030-1 04 1 0512-
194 CLIP; BAND
6WG1 TC-S(97L) (E) L=250 		5-09707-030-1 05 1 0512-
194 CLIP; BAND
ELECTRONIC BRAKE SYSTEM EBS(NLH) (C) L=140 		5-09707-031-1 01 1 0407-0511
194 CLIP; BAND
ELECTRONIC BRAKE SYSTEM EBS(NLH) (C) L=140 		5-09707-031-1 01 1 0512-
194 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 0512-
194 CLIP; BAND
(A) L=300 		1-09707-001-1 01 1 0407-0504
194 CLIP; BAND
(B) L=180 		1-09707-162-1 03 1 0407-
194 CLIP; BAND
(D) L=350 		1-09707-183-0 03 1 0407-0504
194 CLIP; BAND
(D) L=350 		1-09707-183-0 04 1 0505-0511
194 CLIP; BAND
(D) L=350 		1-09707-183-0 03 1 0512-
194 CLIP; BAND
(E) L=250 		5-09707-030-1 04 1 0407-0511
194 CLIP; BAND
(A) L=300 		1-09707-001-1 01 1 0512-
194 CLIP; BAND
(B) L=180 		1-09707-162-1 01 1 0407-0511
194 CLIP; BAND
(B) L=180 		1-09707-162-1 01 1 0407-0511
194 CLIP; BAND
(B) L=180 		1-09707-162-1 01 1 0512-
194 CLIP; BAND
6WF1 TC-C(1B8) (B) L=180 		1-09707-162-1 01 1 0512-
205 CLIP; BACK LAMP HARNESS
(A) L=180 		1-09707-162-1 01 1 0407-0511
205 CLIP; BACK LAMP HARNESS
(B) ID=5-12 L=18 		1-09709-287-0 01 1 0512-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0407-
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (C) ID=18 H=23 L=28 		1-09700-860-0 01 1 0512-
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (H) ID=20 L=50 		9-09917-430-0 02 1 0512-
212 CLIP; HORN HARNESS
6WG1 TC-S(97L) (I) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0512-
212 CLIP; HORN HARNESS
6WG1 TC-S(97L) (J) ID=13-18 L=14.5 		1-09709-290-0 01 1 0512-
212 CLIP; HORN HARNESS
6WG1 TC-S(97L) (K) ID=19 L=28 		9-09525-856-0 01 1 0512-0606
212 CLIP; HORN HARNESS
6WG1 TC-S(97L) (K) ID=19 L=28 		0-95235-856-0 01 1 0607-
212 CLIP; HORN HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0407-
212 CLIP; HORN HARNESS
(C) ID=18 H=23 L=28 		1-09700-860-0 01 1 0407-0511
212 CLIP; HORN HARNESS
(D) L=300 		1-09707-001-1 01 1 0512-
212 CLIP; HORN HARNESS
(D) L=300 		1-09707-001-1 01 1 0407-0504
212 CLIP; HORN HARNESS
(G) L=350 		1-09707-183-0 01 1 0505-0511
212 CLIP; HORN HARNESS
(G) L=350 		1-09707-183-0 02 1 0512-
212 CLIP; HORN HARNESS
(E) L=250 		5-09707-030-1 02 1 0407-
212 CLIP; HORN HARNESS
(A) L=140 		5-09707-031-1 02 1 0407-0511
212 CLIP; HORN HARNESS
(A) L=140 		5-09707-031-1 01 1 0512-
212 CLIP; HORN HARNESS
(F) ID=21 L=24 		8-94176-807-1 01 1 0407-0511
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (F) ID=21 L=24 		8-94176-807-1 01 1 0512-
212 CLIP; HORN HARNESS
(G) L=350 		1-09707-183-0 01 1 0407-0504
212 CLIP; HORN HARNESS
(G) L=350 		1-09707-183-0 01 1 0407-0504
212 CLIP; HORN HARNESS
(G) L=350 		1-09707-183-0 02 1 0505-0511
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (G) L=350 		1-09707-183-0 01 1 0512-
305 CLIP; ENG HARNESS
6WG1 TC-S(97L) L=140 		5-09707-031-1 03 1 0512-
305 CLIP; ENG HARNESS
L=140 		5-09707-031-1 01 1 0407-0511
305 CLIP; ENG HARNESS
6WF1 TC-C(1B8) L=140 		5-09707-031-1 01 1 0512-
369 CLIP; BAND EDS HARNESS
6WG1 TC-S(97L) (A) L=140 		5-09707-031-1 02 1 0512-
369 CLIP; BAND EDS HARNESS
(A) L=140 		5-09707-031-1 01 1 0408-0511
369 CLIP; BAND EDS HARNESS
6WF1 TC-C(1B8) (B) L=250 		5-09707-030-1 02 1 0512-
380 CLIP; EARTH HARNESS
L=250 		5-09707-030-1 01 1 0512-
çizim 104715
128 16 128 16 16 235 212 16 48 16 16 235 212 16 16 48 223 16 212 16 48 48 16 48 212 470 16 223 16 48 212 263 16 16 16 81 16 235 16 16 212 16 16 16 230 230 16 223 16 16 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
6WG1 TC-S(97L) (BA) ID=24-30 L=18 		1-09709-297-0 01 1 0607-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (P) ID=24 L=32 		1-09700-766-1 02 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (H) ID=11 L=41 		1-09700-403-0 02 1 0512-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 0512-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 02 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Y) ID=20 H=23 L=27 		1-09700-861-0 02 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AP) ID=21 L=47.5 		8-94178-108-0 02 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AQ) ID=19 H=70 L=25 		8-97360-209-0 01 1 0512-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AR) ID=19 L=20 		9-09525-832-0 01 1 0512-0606
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AR) ID=19 L=20 		0-95235-832-0 01 1 0607-
16 CLIP; HARNESS
(AG) ID=11 L=20 		9-09525-032-0 01 1 0512-0606
16 CLIP; HARNESS
(AG) ID=11 L=20 		0-95235-032-0 01 1 0607-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AS) ID=28 L=58 		1-09700-400-0 04 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) (H) ID=11 L=41 		1-09700-403-0 04 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AT) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0512-1105
16 CLIP; HARNESS
6WG1 TC-S(97L) (E) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 1106-
16 CLIP; HARNESS
6WG1 TC-S(97L) (A) L=180 		1-09707-162-1 08 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) (F) OD=9 H=6 		1-09709-178-0 07 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AU) ID=5-12 L=14.5 		1-09987-221-0 02 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AV) OD=9 H=6 		8-97368-793-0 03 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AT) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AT) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AP) ID=21 L=47.5 		8-94178-108-0 04 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AW) L=36 		8-94224-891-1 01 1 0512-
16 CLIP; HARNESS
6WG1 TC-S(97L) (AV) OD=9 H=6 		8-97368-793-0 02 1 0512-
16 CLIP; HARNESS
(AU) ID=5-12 L=14.5 		1-09987-221-0 01 1 0512-
16 CLIP; HARNESS
(AU) ID=5-12 L=14.5 		1-09987-221-0 01 1 0512-
16 CLIP; HARNESS
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (AL) L=175 		8-97110-167-0 04 1 0512-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) L=250 		5-09707-030-1 01 1 0407-
16 CLIP; HARNESS
(G) ID=11 H=30 L=17 		1-09700-113-0 01 1 0407-0511
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (G) ID=11 H=30 L=17 		1-09700-113-0 01 1 0512-
16 CLIP; HARNESS
(AG) ID=11 L=20 		9-09525-035-0 02 1 0407-0511
16 CLIP; HARNESS
6WG1 TC-S(97L) (AG) ID=11 L=20 		9-09525-035-0 02 1 0512-0606
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AG) ID=11 L=20 		9-09525-035-0 02 1 0512-0606
16 CLIP; HARNESS
6WG1 TC-S(97L) (AG) ID=11 L=20 		0-95235-035-0 02 1 0607-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AG) ID=11 L=20 		0-95235-035-0 02 1 0607-
16 CLIP; HARNESS
(AI) ID=28 H=45 L=30 		1-09700-948-0 01 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0512-0606
16 CLIP; HARNESS
6WF1 TC-C(1B8) (E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0512-0606
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0607-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0607-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0607-
16 CLIP; HARNESS
(M) ID=28 L=40 		1-09701-261-0 02 1 0407-0511
16 CLIP; HARNESS
INSPECTION LAMP<T95> (H) ID=11 L=41 		1-09700-403-0 01 1 0512-
16 CLIP; HARNESS
(AG) ID=11 L=20 		9-09525-032-0 01 1 0407-0407
16 CLIP; HARNESS
(AG) ID=11 L=20 		9-09525-035-0 01 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (P) ID=24 L=32 		1-09700-766-1 01 1 0512-
16 CLIP; HARNESS
(AF) ID=19 L=20 		9-09525-836-0 02 1 0407-0511
16 CLIP; HARNESS
6WG1 TC-S(97L) (AF) ID=19 L=20 		9-09525-836-0 01 1 0512-0606
16 CLIP; HARNESS
6WG1 TC-S(97L) (AF) ID=19 L=20 		0-95235-836-0 01 1 0607-
16 CLIP; HARNESS
(N) ID=11X2 L=20 		9-09535-035-0 02 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (N) ID=11X2 L=20 		9-09535-035-0 02 1 0512-0606
16 CLIP; HARNESS
6WF1 TC-C(1B8) (N) ID=11X2 L=20 		0-95325-035-0 02 1 0607-1208
16 CLIP; HARNESS
6WF1 TC-C(1B8) (N) ID=11X2 L=20 		0-95325-035-0 01 1 1209-
16 CLIP; HARNESS
(O) ID=22 L=32 		1-09700-126-1 01 1 0407-
16 CLIP; HARNESS
(I) ID=20 L=50 		1-09700-679-1 01 1 0407-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0407-0606
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0407-0606
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0607-
16 CLIP; HARNESS
HIGH ROOF<S2F> (J) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0407-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 03 1 0407-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 05 1 0407-0511
16 CLIP; HARNESS
(AX) ID=28+34 L=44 		1-09701-311-0 01 1 0512-
16 CLIP; HARNESS
(P) ID=24 L=32 		1-09700-766-1 03 1 0407-0511
16 CLIP; HARNESS
(AY) ID=5-12 L=26 		1-09709-289-0 01 1 0512-0610
16 CLIP; HARNESS
(AB) ID=5-12 L=18 		1-09709-287-0 01 1 0611-
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0407-0511
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 0512-0606
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 03 1 0607-
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AS) ID=28 L=58 		1-09700-400-0 03 1 0512-
16 CLIP; HARNESS
(S) ID=26 L=27 		1-09701-006-0 02 1 0407-0511
16 CLIP; HARNESS
(AV) OD=9 H=6 		8-97368-793-0 01 1 0512-
16 CLIP; HARNESS
(U) ID=18 L=28 		1-09701-067-0 01 1 0407-
16 CLIP; HARNESS
(V) ID=15 L=28 		1-09701-216-0 01 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (S) ID=26 L=27 		1-09701-006-0 02 1 0512-
16 CLIP; HARNESS
(Q) ID=4.8 		1-09701-218-0 01 1 0407-
16 CLIP; HARNESS
(AA) ID=28X2 L=28 		1-09701-302-0 01 1 0407-0511
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 02 1 0512-0606
16 CLIP; HARNESS
ELECTRONIC BRAKE SYSTEM EBS(NLH) (AM) L=350 		1-09707-183-0 02 1 0512-0606
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 02 1 0607-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AM) L=350 		1-09707-183-0 02 1 0607-
16 CLIP; HARNESS
ELECTRONIC BRAKE SYSTEM EBS(NLH) (AM) L=350 		1-09707-183-0 02 1 0607-
16 CLIP; HARNESS
(T) ID=42.7 L=38 		1-09701-313-0 01 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (T) ID=42.7 L=38 		1-09701-313-0 01 1 0512-
16 CLIP; HARNESS
(R) L=300 		1-09707-001-1 02 1 0407-0504
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 01 1 0407-0511
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 02 1 0512-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 02 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (A) L=180 		1-09707-162-1 09 1 0512-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 07 1 0407-0511
16 CLIP; HARNESS
INSPECTION LAMP<T95> (A) L=180 		1-09707-162-1 01 1 0512-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 01 1 0512-
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 02 1 0407-0504
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 02 1 0505-0511
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 02 1 0505-0511
16 CLIP; HARNESS
(V) ID=15 L=28 		1-09701-216-0 01 1 0512-
16 CLIP; HARNESS
(V) ID=15 L=28 		1-09701-216-0 01 1 0512-
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 04 1 0407-0511
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 03 1 0512-
16 CLIP; HARNESS
(K) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0407-0511
16 CLIP; HARNESS
6WG1 TC-S(97L) (A) L=180 		1-09707-162-1 04 1 0512-
16 CLIP; HARNESS
(K) W/SPONGE RUBBER 		1-09709-150-0 01 1 0407-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 06 1 0407-0511
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 05 1 0512-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 11 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (F) OD=9 H=6 		1-09709-178-0 11 1 0512-
16 CLIP; HARNESS
(W) OD=9 H=13.5 		1-09709-180-0 01 1 0407-
16 CLIP; HARNESS
(AB) ID=5-12 L=18 		1-09709-287-0 02 1 0407-0511
16 CLIP; HARNESS
ELECTRONIC BRAKE SYSTEM EBS(NLH) (AB) ID=5-12 L=18 		1-09709-287-0 02 1 0512-
16 CLIP; HARNESS
(AC) ID=5-12 L=22 		1-09709-288-0 01 1 0407-
16 CLIP; HARNESS
(AD) ID=13-18 L=18 		1-09709-291-0 02 1 0407-
16 CLIP; HARNESS
(AE) ID=18-24 L=18 		1-09709-294-0 04 1 0407-
16 CLIP; HARNESS
(AH) L=155 		1-82698-097-0 01 1 0407-0511
16 CLIP; HARNESS
DOOR WITH UNDER VIEW WINDOW<YD8> (AH) L=155 		1-82698-097-0 01 1 0512-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 0407-0511
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 05 1 0512-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 05 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (C) L=250 		5-09707-030-1 02 1 0512-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 0407-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 05 1 0407-
16 CLIP; HARNESS
(AJ) L=55 		8-94432-655-0 03 1 0407-
16 CLIP; HARNESS
(AK) ID=14 H=15 L=20 		8-94437-032-0 01 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AK) ID=14 H=15 L=20 		8-94437-032-0 01 1 0512-
16 CLIP; HARNESS
(X) ID=14-20 		8-97061-603-0 03 1 0407-
16 CLIP; HARNESS
(AL) L=175 		8-97110-167-0 02 1 0407-0511
16 CLIP; HARNESS
DOOR WITH UNDER VIEW WINDOW<YD8> (AL) L=175 		8-97110-167-0 02 1 0512-
16 CLIP; HARNESS
(AN) ID=11 L=16 		9-09525-025-0 02 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (F) OD=9 H=6 		1-09709-178-0 01 1 0512-
16 CLIP; HARNESS
(AO) ID=16 L=20 		9-09525-535-0 02 1 0407-0606
16 CLIP; HARNESS
(AO) ID=16 L=20 		0-95235-535-0 02 1 0607-
16 CLIP; HARNESS
(Z) ID=19 L=32 		9-09525-866-0 02 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Z) ID=19 L=32 		9-09525-866-0 02 1 0512-0606
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Z) ID=19 L=32 		0-95235-866-0 02 1 0607-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 02 1 0407-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 05 1 0407-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0407-0511
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0512-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 06 1 0407-0511
16 CLIP; HARNESS
6WF1 TC-C(1B8) (I) ID=20 L=50 		9-09917-430-0 06 1 0512-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 09 1 0407-0511
16 CLIP; HARNESS
6WG1 TC-S(97L) (I) ID=20 L=50 		9-09917-430-0 07 1 0512-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 05 1 0407-0511
16 CLIP; HARNESS
(AZ) ID=28 L=32 		1-09701-107-1 02 1 0512-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 02 1 0407-0511
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 02 1 0407-0511
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 01 1 0512-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 01 1 0512-
48 CLIP; FRAME HARNESS
6WF1 TC-C(1B8) (J) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0512-
48 CLIP; FRAME HARNESS
6WG1 TC-S(97L) (K) ID=39 H=28 L=32 		1-09701-263-0 01 1 0512-
48 CLIP; FRAME HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0407-
48 CLIP; FRAME HARNESS
(B) ID=26 L=26 		1-09701-236-0 01 1 0407-0511
48 CLIP; FRAME HARNESS
6WF1 TC-C(1B8) (L) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0512-
48 CLIP; FRAME HARNESS
(C) ID=20 H=18 L=82 		1-09701-288-0 01 1 0407-
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 15 1 0407-
48 CLIP; FRAME HARNESS
(E) ID=5-12 L=18 		1-09709-287-0 01 1 0407-
48 CLIP; FRAME HARNESS
(F) ID=13-18 L=18 		1-09709-291-0 01 1 0407-
48 CLIP; FRAME HARNESS
(F) ID=13-18 L=18 		1-09709-291-0 04 1 0407-0511
48 CLIP; FRAME HARNESS
(F) ID=13-18 L=18 		1-09709-291-0 02 1 0512-
48 CLIP; FRAME HARNESS
(G) ID=18-24 L=18 		1-09709-294-0 03 1 0407-
48 CLIP; FRAME HARNESS
(H) L=250 		5-09707-030-1 06 1 0407-
48 CLIP; FRAME HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0407-
48 CLIP; FRAME HARNESS
(I) ID=20 L=50 		9-09917-430-0 02 1 0407-
81 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) L=140 		5-09707-031-1 06 1 0512-
81 CLIP; HARNESS
(C) ID=6.35 & 12 		1-09709-275-1 02 1 0407-
81 CLIP; HARNESS
(B) L=140 		5-09707-031-1 02 1 0407-0511
81 CLIP; HARNESS
6WF1 TC-C(1B8) (B) L=140 		5-09707-031-1 02 1 0512-
81 CLIP; HARNESS
(A) ID=7-10 		8-94472-578-0 02 1 0407-0511
81 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) ID=7-10 		8-94472-578-0 02 1 0512-
81 CLIP; HARNESS
(D) ID=11 L=16 		9-09525-025-0 02 1 0407-0511
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) ID=11 L=16 		9-09525-025-0 02 1 0512-0606
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) ID=11 L=16 		0-95235-025-0 02 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0407-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0407-
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (C) ID=18 H=23 L=28 		1-09700-860-0 01 1 0512-
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (H) ID=20 L=50 		9-09917-430-0 02 1 0512-
212 CLIP; HORN HARNESS
6WG1 TC-S(97L) (I) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0512-
212 CLIP; HORN HARNESS
6WG1 TC-S(97L) (J) ID=13-18 L=14.5 		1-09709-290-0 01 1 0512-
212 CLIP; HORN HARNESS
6WG1 TC-S(97L) (K) ID=19 L=28 		9-09525-856-0 01 1 0512-0606
212 CLIP; HORN HARNESS
6WG1 TC-S(97L) (K) ID=19 L=28 		0-95235-856-0 01 1 0607-
212 CLIP; HORN HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0407-
212 CLIP; HORN HARNESS
(C) ID=18 H=23 L=28 		1-09700-860-0 01 1 0407-0511
212 CLIP; HORN HARNESS
(D) L=300 		1-09707-001-1 01 1 0512-
212 CLIP; HORN HARNESS
(D) L=300 		1-09707-001-1 01 1 0407-0504
212 CLIP; HORN HARNESS
(G) L=350 		1-09707-183-0 01 1 0505-0511
212 CLIP; HORN HARNESS
(G) L=350 		1-09707-183-0 02 1 0512-
212 CLIP; HORN HARNESS
(E) L=250 		5-09707-030-1 02 1 0407-
212 CLIP; HORN HARNESS
(A) L=140 		5-09707-031-1 02 1 0407-0511
212 CLIP; HORN HARNESS
(A) L=140 		5-09707-031-1 01 1 0512-
212 CLIP; HORN HARNESS
(F) ID=21 L=24 		8-94176-807-1 01 1 0407-0511
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (F) ID=21 L=24 		8-94176-807-1 01 1 0512-
212 CLIP; HORN HARNESS
(G) L=350 		1-09707-183-0 01 1 0407-0504
212 CLIP; HORN HARNESS
(G) L=350 		1-09707-183-0 01 1 0407-0504
212 CLIP; HORN HARNESS
(G) L=350 		1-09707-183-0 02 1 0505-0511
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (G) L=350 		1-09707-183-0 01 1 0512-
223 CLIP; AIR TANK HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0407-0511
223 CLIP; AIR TANK HARNESS
6WF1 TC-C(1B8) (A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0512-
223 CLIP; AIR TANK HARNESS
(B) ID=11 H=20 L=20 		5-09700-351-0 03 1 0407-0707
223 CLIP; AIR TANK HARNESS
(B) ID=11 H=20 L=20 		8-98033-780-0 03 1 0708-
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 		9-09917-427-0 02 1 0407-
230 CLIP; C/MBR HARNESS
(A) ID=25 L=54 		1-09700-392-0 01 1 0407-0511
230 CLIP; C/MBR HARNESS
(B) ID=18 L=50 		1-09700-302-1 01 1 0512-
235 CLIP; HARNESS,SPD SENSOR,SSPS
6WG1 TC-S(97L) (C) ID=11 L=24 		9-09525-045-0 01 1 0512-0606
235 CLIP; HARNESS,SPD SENSOR,SSPS
6WG1 TC-S(97L) (C) ID=11 L=24 		0-95235-045-0 01 1 0607-0711
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=10 H=25 L=20 		1-09700-519-0 01 1 0407-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) ID=19 L=32 		9-09525-866-0 01 1 0407-0511
235 CLIP; HARNESS,SPD SENSOR,SSPS
6WF1 TC-C(1B8) (B) ID=19 L=32 		9-09525-866-0 01 1 0512-0606
235 CLIP; HARNESS,SPD SENSOR,SSPS
6WF1 TC-C(1B8) (B) ID=19 L=32 		0-95235-866-0 01 1 0607-
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50 		9-09917-430-0 02 1 0407-
470 CLIP; HARNESS,LICENSE LAMP
(A) ID=11 L=41 		1-09700-403-0 01 1 0407-
470 CLIP; HARNESS,LICENSE LAMP
(B) OD=9 H=6 		1-09709-178-0 01 1 0407-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
