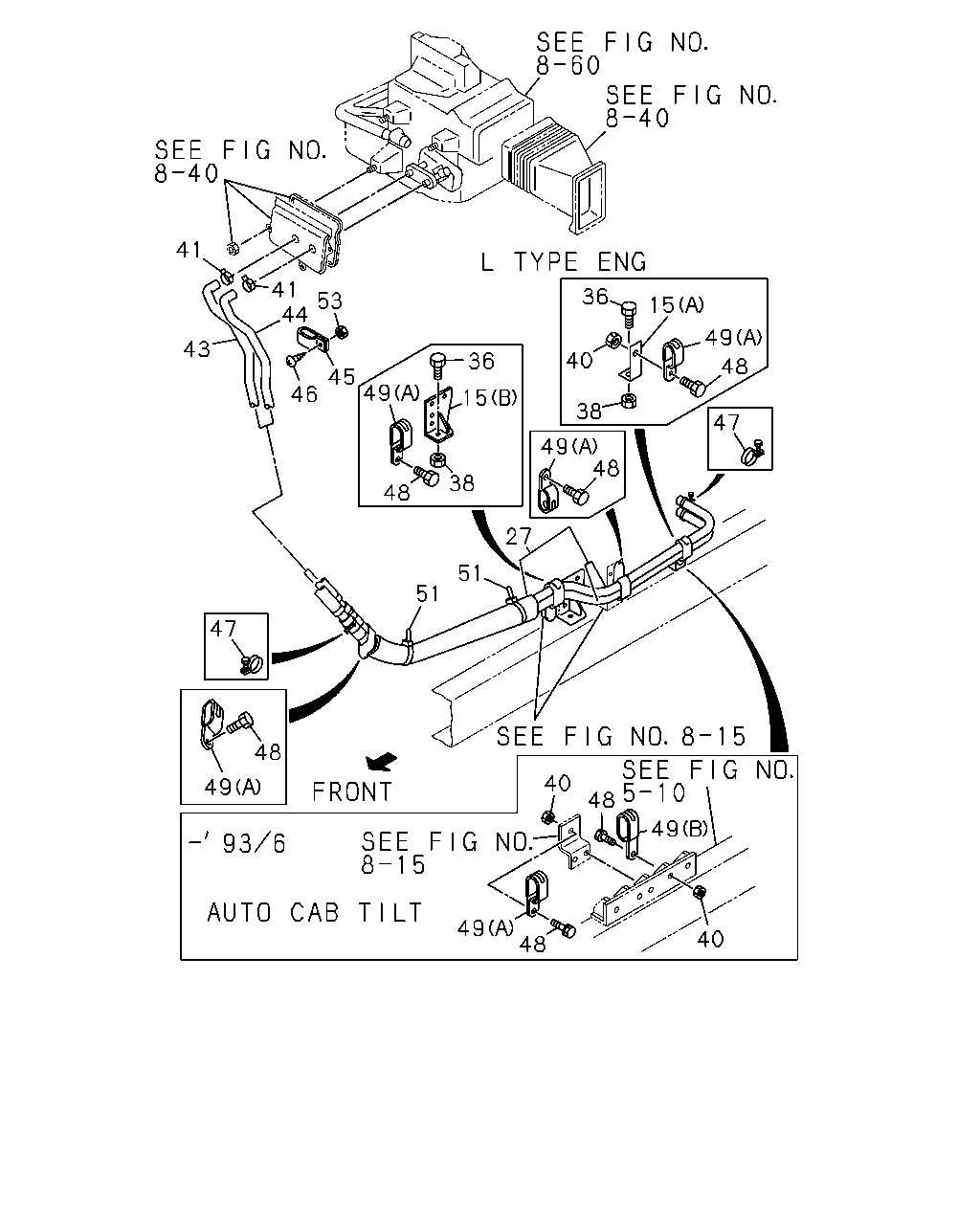

15 |
BRACKET; WATER HOSE
L TYPE ENG<90L>
(A)
L=68
|
1-47475-525-0 |
01 |
1 |
9002- |
● |
● |
| |
15 |
BRACKET; WATER HOSE
NYLON TUBE AIR PIPING<Z29>
(B)
|
1-47476-705-0 |
01 |
1 |
9002-9306 |
● |
● |
| |
15 |
BRACKET; WATER HOSE
NYLON TUBE AIR PIPING<Z29>
(B)
|
1-47475-485-2 |
01 |
1 |
9307- |
|
● |
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
10PD1 STD ENG(40L)
|
1-83565-428-0 |
01 |
1 |
9002- |
● |
● |
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
6RB1 STD ENG(07L),6RA1TC ENG(19L)
|
1-83565-431-0 |
01 |
1 |
9002- |
● |
● |
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
6RB1TC ENG(30L)
|
1-83565-374-0 |
01 |
1 |
9002- |
● |
● |
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
8PD1 STD ENG(38L)
|
1-83565-433-1 |
01 |
1 |
9307- |
● |
● |
| |
36 |
BOLT; BRKT
L TYPE ENG<90L>
M8X20 W/LK WASHER
|
9-01900-820-0 |
01 |
1 |
9002-9009 |
● |
● |
| |
36 |
BOLT; BRKT
L TYPE ENG<90L>
M8X25 W/LK WASHER
|
9-01900-825-0 |
01 |
1 |
9010-9204 |
● |
● |
| |
36 |
BOLT; BRKT
L TYPE ENG<90L>
M8X25 W/LK WASHER
|
0-50040-825-0 |
01 |
1 |
9205-9302 |
● |
● |
| |
36 |
BOLT; BRKT
L TYPE ENG<90L>
M8X25 FLANGE
|
0-28080-825-0 |
01 |
1 |
9303-9306 |
● |
● |
| |
36 |
BOLT; BRKT
NYLON TUBE AIR PIPING<Z29>
M8X22
|
9-01900-822-0 |
02 |
1 |
9002-9006 |
● |
● |
| |
36 |
BOLT; BRKT
NYLON TUBE AIR PIPING<Z29>
M8X30 W/LK WASHER
|
9-01900-830-0 |
02 |
1 |
9007-9204 |
● |
● |
| |
36 |
BOLT; BRKT
NYLON TUBE AIR PIPING<Z29>
M8X30 W/LK WASHER
|
0-50040-830-0 |
02 |
1 |
9205-9302 |
● |
● |
| |
36 |
BOLT; BRKT
NYLON TUBE AIR PIPING<Z29>
M8X30 FLANGE
|
0-28080-830-0 |
02 |
1 |
9303-9306 |
● |
● |
| |
36 |
BOLT; BRKT
L TYPE ENG<90L>
M8X30 FLANGE
|
0-28080-830-0 |
01 |
1 |
9307- |
● |
● |
| |
36 |
BOLT; BRKT
M8X30 FLANGE
|
0-28080-830-0 |
02 |
1 |
9307- |
● |
● |
| |
38 |
NUT; BRKT
M8
|
9-09110-408-0 |
02 |
1 |
9307- |
● |
● |
| |
38 |
NUT; BRKT
L TYPE ENG<90L>
M8
|
9-09110-408-0 |
01 |
1 |
9307- |
● |
● |
| |
38 |
NUT; BRKT
NYLON TUBE AIR PIPING<Z29>
M8
|
9-09110-408-0 |
02 |
1 |
9002-9006 |
● |
● |
| |
40 |
NUT; CLIP
AUTO CAB TILT<WV2>
CAB UP 110MM(W60)
M8
|
9-09110-408-0 |
02 |
1 |
9105-9306 |
● |
● |
| |
40 |
NUT; CLIP
L TYPE ENG<90L>
M8
|
9-09110-408-0 |
02 |
1 |
9002-9010 |
● |
● |
| |
40 |
NUT; CLIP
L TYPE ENG<90L>
M8
|
9-09110-408-0 |
01 |
1 |
9011- |
● |
● |
| |
40 |
NUT; CLIP
V TYPE ENG<91L>
M8
|
9-09110-408-0 |
01 |
1 |
9002-9010 |
● |
● |
| |
40 |
NUT; CLIP
AUTO CAB TILT<WV2>
CAB UP 110MM(W60)
M8
|
9-09110-408-0 |
03 |
1 |
9002-9010 |
|
● |
| |
40 |
NUT; CLIP
AUTO CAB TILT<WV2>
CAB UP 110MM(W60)
M8
|
9-09110-408-0 |
02 |
1 |
9011-9104 |
|
● |
| |
41 |
CLAMP; WATER HOSE,HTR
ID=26
|
1-09704-090-1 |
02 |
1 |
9002- |
● |
● |
| |
43 |
HOSE; WATER,OUTLET,HTR
|
1-83565-295-0 |
01 |
1 |
9002- |
● |
● |
| |
44 |
HOSE; WATER,HTR,INL
|
1-83565-294-0 |
01 |
1 |
9002- |
● |
● |
| |
45 |
CLIP; WATER PIPE
|
1-09700-625-0 |
01 |
1 |
9002- |
● |
● |
| |
46 |
SCREW; CLIP
M6X20
|
1-09980-279-0 |
01 |
1 |
9002- |
● |
● |
| |
47 |
CLAMP; WATER HOSE,HTR
ID=26
|
1-09704-090-1 |
04 |
1 |
9002- |
● |
● |
| |
48 |
BOLT; CLIP FIX
M8X20 W/LK WASHER
|
9-01900-820-0 |
01 |
1 |
9011-9204 |
● |
● |
| |
48 |
BOLT; CLIP FIX
M8X20 W/LK WASHER
|
0-50040-820-0 |
01 |
1 |
9205-9302 |
● |
● |
| |
48 |
BOLT; CLIP FIX
M8X20 FLANGE
|
0-28080-820-0 |
01 |
1 |
9303- |
● |
● |
| |
48 |
BOLT; CLIP FIX
L TYPE ENG<90L>
M8X20 W/LK WASHER
|
9-01900-820-0 |
03 |
1 |
9002-9204 |
● |
● |
| |
48 |
BOLT; CLIP FIX
L TYPE ENG<90L>
M8X20 W/LK WASHER
|
0-50040-820-0 |
03 |
1 |
9205-9302 |
● |
● |
| |
48 |
BOLT; CLIP FIX
L TYPE ENG<90L>
M8X20 FLANGE
|
0-28080-820-0 |
03 |
1 |
9303-9306 |
● |
● |
| |
48 |
BOLT; CLIP FIX
L TYPE ENG<90L>
M8X20 FLANGE
|
0-28080-820-0 |
01 |
1 |
9307- |
● |
● |
| |
48 |
BOLT; CLIP FIX
V TYPE ENG<91L>
M8X20 W/LK WASHER
|
9-01900-820-0 |
02 |
1 |
9002-9003 |
● |
● |
| |
48 |
BOLT; CLIP FIX
M8X20 W/LK WASHER
|
9-01900-820-0 |
02 |
1 |
9004-9010 |
● |
● |
| |
48 |
BOLT; CLIP FIX
V TYPE ENG<91L>
M8X20 W/LK WASHER
|
9-01900-820-0 |
02 |
1 |
9004-9010 |
● |
● |
| |
48 |
BOLT; CLIP FIX
V TYPE ENG<91L>
M8X20 W/LK WASHER
|
9-01900-820-0 |
02 |
1 |
9011-9204 |
● |
● |
| |
48 |
BOLT; CLIP FIX
V TYPE ENG<91L>
M8X20 W/LK WASHER
|
0-50040-820-0 |
02 |
1 |
9205-9302 |
● |
● |
| |
48 |
BOLT; CLIP FIX
V TYPE ENG<91L>
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9303-9306 |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
(A)
ID=24X2 L=25
|
1-09700-710-0 |
03 |
1 |
9011- |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
AUTO CAB TILT<WV2>
CAB UP 110MM(W60)
(B)
WO/SCREW
|
1-09701-143-0 |
01 |
1 |
9002-9306 |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
L TYPE ENG<90L>
(A)
ID=24X2 L=25
|
1-09700-710-0 |
01 |
1 |
9307- |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
V TYPE ENG<91L>
(A)
ID=24X2 L=25
|
1-09700-710-0 |
02 |
1 |
9002-9003 |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
AUTO CAB TILT<WV2>
CAB UP 110MM(W60)
(A)
ID=24X2 L=25
|
1-09700-710-0 |
02 |
1 |
9002-9003 |
|
● |
| |
49 |
CLIP; WATER HOSE,HTR
(A)
ID=24X2 L=25
|
1-09700-710-0 |
02 |
1 |
9004-9010 |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
V TYPE ENG<91L>
(A)
ID=24X2 L=25
|
1-09700-710-0 |
02 |
1 |
9004-9010 |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
AUTO CAB TILT<WV2>
CAB UP 110MM(W60)
(A)
ID=24X2 L=25
|
1-09700-710-0 |
02 |
1 |
9004-9010 |
|
● |
| |
49 |
CLIP; WATER HOSE,HTR
V TYPE ENG<91L>
(A)
ID=24X2 L=25
|
1-09700-710-0 |
02 |
1 |
9011-9306 |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
AUTO CAB TILT<WV2>
CAB UP 110MM(W60)
(A)
ID=24X2 L=25
|
1-09700-710-0 |
02 |
1 |
9011-9306 |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
6RB1 STD ENG(07L)
(A)
ID=24X2 L=25
|
1-09700-710-0 |
03 |
1 |
9002-9306 |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
6RA1TC ENG(19L),6RB1TC ENG(30L)
EXC. AUTO CAB TILT<WV2>
(A)
ID=24X2 L=25
|
1-09700-710-0 |
03 |
1 |
9002-9306 |
● |
● |
| |
51 |
CLIP; WATER HOSE,HTR
L=250
|
5-09707-030-1 |
02 |
1 |
9002- |
● |
● |
