Sayfa 8-01 - Isuzu EPC

8-01 — LAMP; FRONT AND FRONT SIDE (#29187) — 276 parça

327 61 91 321 242 62 66 344 104 185 324 127 129 399 124 125 326

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
61	LAMP ASM; CORNERING 24V 30W	1-86830-187-2	01	1	0407-0511
61	LAMP ASM; CORNERING 24V 30W	1-86830-388-1	01	1	0512-
61	LAMP ASM; CORNERING 24V 30W	1-86830-188-2	01	1	0407-0511
61	LAMP ASM; CORNERING 24V 30W	1-86830-389-1	01	1	0512-
62	BULB; CORNERING LAMP 24V 30W	8-97010-179-0	02	1	0407-
66	HARNESS; CORNERING LAMP	1-86830-146-0	02	1	0407-
91	BULB; SIDE TURN SIGNAL 24V 12W	1-82194-030-0	02	1	0407-0511
91	BULB; SIDE TURN SIGNAL 24V 10W	1-82194-037-0	02	1	0512-
104	SCREW; SIDE TURN SIGNAL	1-86830-149-0	02	1	0407-
124	BULB; FRT TURN SIGNAL 24V 21W	1-82194-036-0	02	1	0407-0511
124	BULB; FRT TURN SIGNAL 24V 21W	1-82194-105-0	02	1	0512-
125	GASKET; FRT TURN SIGNAL	1-82216-033-0	02	1	0407-0511
127	LENS; FRT TURN SIGNAL ORANGE	1-82215-064-0	01	1	0407-0511
127	LENS; FRT TURN SIGNAL ORANGE	1-82215-073-0	01	1	0512-
127	LENS; FRT TURN SIGNAL ORANGE	1-82215-065-0	01	1	0407-0511
127	LENS; FRT TURN SIGNAL ORANGE	1-82215-074-0	01	1	0512-
129	SCREW; FRT TURN SIGNAL	1-82219-026-0	04	1	0407-0511
185	GROMMET; SCREW (B) M5 SCREW GROMMET	1-09983-131-0	12	1	0407-
185	GROMMET; SCREW (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	0407-0511
242	SCREW; CORNERING LAMP M4X20 TAPPING STAINLESS	0-71090-420-0	04	1	0407-
321	HARNESS; SIDE FLASHER LAMP	1-86830-253-0	02	1	0407-
324	LAMP; FRT FLASHER	1-82210-202-1	01	1	0407-0511
324	LAMP; FRT FLASHER	1-82210-259-1	01	1	0512-
324	LAMP; FRT FLASHER	1-82210-203-1	01	1	0407-0511
324	LAMP; FRT FLASHER	1-82210-260-1	01	1	0512-
326	WASHER; PL,FRT TURN SIGNAL	1-82216-032-0	04	1	0407-0511
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-007-6	01	1	0407-0511
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-264-2	01	1	0512-
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-011-6	01	1	0407-0511
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-265-2	01	1	0512-
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-240-1	01	1	0407-0511
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-266-2	01	1	0512-
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-241-1	01	1	0407-0511
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-267-1	01	1	0512-
399	SOCKET; TURN SIGNAL	1-82219-034-0	02	1	0407-0511
399	SOCKET; TURN SIGNAL	1-82219-038-0	02	1	0512-

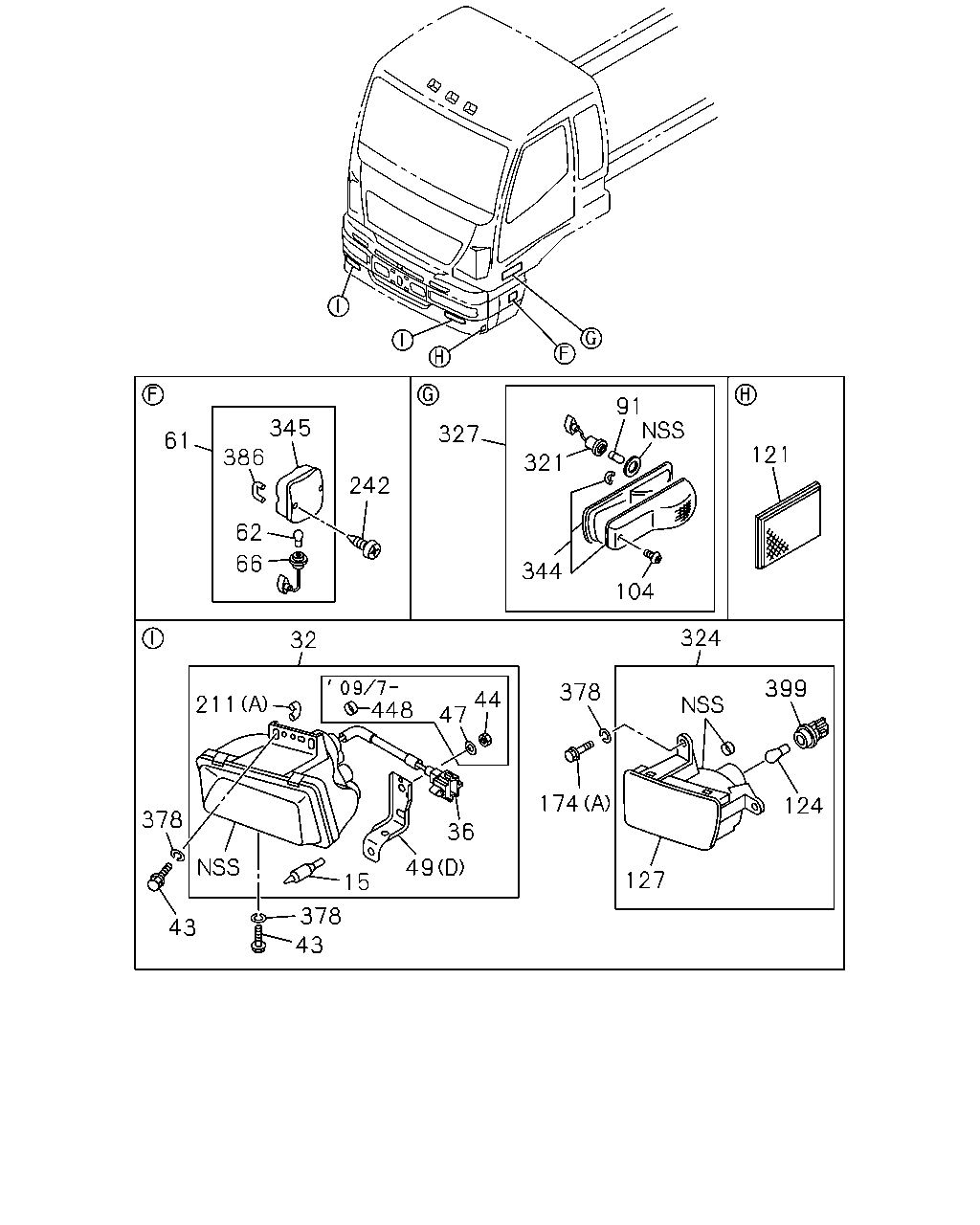

61 345 386 62 66 242 327 321 91 344 104 121 324 378 399 174 127 124 211 448 47 44 378 43 378 43 15 49 36 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	BULB; FOG LAMP 24V 55W	1-82194-079-0	02	1	0407-0511
15	BULB; FOG LAMP 24V 55W	1-82194-110-0	02	1	0512-
32	LAMP ASM; FOG	1-82110-451-0	01	1	0512-0906
32	LAMP ASM; FOG	8-98149-141-1	01	1	0907-1301
32	LAMP ASM; FOG	8-98232-112-0	01	1	1302-
32	LAMP ASM; FOG	1-82110-452-0	01	1	0512-0906
32	LAMP ASM; FOG	8-98149-142-1	01	1	0907-1301
32	LAMP ASM; FOG	8-98232-057-0	01	1	1302-
36	CORD; FOG LAMP	1-82118-015-0	01	1	0512-
36	CORD; FOG LAMP	1-82118-016-0	01	1	0512-
43	BOLT; FOG LAMP M6X20 W/LK&PL WASHER	0-50140-620-0	04	1	0512-0512
43	BOLT; FOG LAMP M6X20 W/LK&PL WASHER	0-50640-620-0	04	1	0601-0601
43	BOLT; FOG LAMP M6X20 FLANGE	0-28650-620-0	04	1	0602-
43	BOLT; FOG LAMP M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	0512-0512
43	BOLT; FOG LAMP M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	0601-0601
43	BOLT; FOG LAMP M8X20 FLANGE	0-28650-820-0	02	1	0602-
44	NUT; FOG LAMP M6	8-98217-430-0	02	1	0907-
47	WASHER; PL,FOG LAMP	8-98217-429-0	02	1	0907-
49	BRACKET; LAMP (D)	8-98051-437-0	01	1	0512-
49	BRACKET; LAMP (D)	8-98051-438-0	01	1	0512-
49	BRACKET; LAMP (C)	1-82117-176-0	01	1	0512-
49	BRACKET; LAMP (C)	1-82117-177-0	01	1	0512-
49	BRACKET; LAMP (A)	1-82117-100-0	02	1	0407-
49	BRACKET; LAMP (B)	1-82117-101-1	01	1	0407-
49	BRACKET; LAMP (B)	1-82117-102-1	01	1	0407-
61	LAMP ASM; CORNERING 24V 30W	1-86830-187-2	01	1	0407-0511
61	LAMP ASM; CORNERING 24V 30W	1-86830-388-1	01	1	0512-
61	LAMP ASM; CORNERING 24V 30W	1-86830-188-2	01	1	0407-0511
61	LAMP ASM; CORNERING 24V 30W	1-86830-389-1	01	1	0512-
62	BULB; CORNERING LAMP 24V 30W	8-97010-179-0	02	1	0407-
66	HARNESS; CORNERING LAMP	1-86830-146-0	02	1	0407-
91	BULB; SIDE TURN SIGNAL 24V 12W	1-82194-030-0	02	1	0407-0511
91	BULB; SIDE TURN SIGNAL 24V 10W	1-82194-037-0	02	1	0512-
104	SCREW; SIDE TURN SIGNAL	1-86830-149-0	02	1	0407-
121	REFLECTOR; REFLEX	8-98013-990-1	02	1	0512-
124	BULB; FRT TURN SIGNAL 24V 21W	1-82194-036-0	02	1	0407-0511
124	BULB; FRT TURN SIGNAL 24V 21W	1-82194-105-0	02	1	0512-
127	LENS; FRT TURN SIGNAL ORANGE	1-82215-064-0	01	1	0407-0511
127	LENS; FRT TURN SIGNAL ORANGE	1-82215-073-0	01	1	0512-
127	LENS; FRT TURN SIGNAL ORANGE	1-82215-065-0	01	1	0407-0511
127	LENS; FRT TURN SIGNAL ORANGE	1-82215-074-0	01	1	0512-
174	BOLT (A) M6X20 W/LK&PL WASHER	0-50140-620-0	04	1	0512-0512
174	BOLT (A) M6X20 W/LK&PL WASHER	0-50640-620-0	04	1	0601-0601
174	BOLT (A) M6X20 FLANGE	0-28650-620-0	04	1	0602-
174	BOLT (B) M6X28 W/LK&PL WASHER	1-09980-543-0	04	1	0407-
211	TUBE; HEADLAMP (D)	1-86830-413-0	01	1	0510-0511
211	TUBE; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D)	1-86830-413-0	01	1	0512-1003
211	TUBE; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D)	8-98175-922-0	01	1	1004-
211	TUBE; HEADLAMP (D)	1-86830-414-0	01	1	0510-0511
211	TUBE; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D)	1-86830-414-0	01	1	0512-1003
211	TUBE; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D)	8-98175-923-0	01	1	1004-
211	TUBE; HEADLAMP HALOGEN HEADLAMPS<TT5> (B)	1-86830-330-0	01	1	0512-0711
211	TUBE; HEADLAMP HALOGEN HEADLAMPS<TT5> (B)	8-98101-137-0	01	1	0712-
211	TUBE; HEADLAMP HALOGEN HEADLAMPS<TT5> (B)	1-86830-331-0	01	1	0512-0711
211	TUBE; HEADLAMP HALOGEN HEADLAMPS<TT5> (B)	8-98101-138-0	01	1	0712-
211	TUBE; HEADLAMP (A)	8-97025-128-0	02	1	0512-0906
211	TUBE; HEADLAMP (C)	1-86830-328-0	01	1	0407-0511
211	TUBE; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C)	1-86830-328-0	01	1	0512-
211	TUBE; HEADLAMP (C)	1-86830-329-0	01	1	0407-0511
211	TUBE; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C)	1-86830-329-0	01	1	0512-
242	SCREW; CORNERING LAMP M4X20 TAPPING STAINLESS	0-71090-420-0	04	1	0407-
321	HARNESS; SIDE FLASHER LAMP	1-86830-253-0	02	1	0407-
324	LAMP; FRT FLASHER	1-82210-202-1	01	1	0407-0511
324	LAMP; FRT FLASHER	1-82210-259-1	01	1	0512-
324	LAMP; FRT FLASHER	1-82210-203-1	01	1	0407-0511
324	LAMP; FRT FLASHER	1-82210-260-1	01	1	0512-
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-007-6	01	1	0407-0511
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-264-2	01	1	0512-
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-011-6	01	1	0407-0511
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-265-2	01	1	0512-
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-240-1	01	1	0407-0511
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-266-2	01	1	0512-
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-241-1	01	1	0407-0511
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-267-1	01	1	0512-
345	LAMP UNIT; CORNERING	8-98004-041-0	01	1	0512-
345	LAMP UNIT; CORNERING	8-98004-042-0	01	1	0512-
378	WASHER; PL ID=6.4 OD=14	9-09160-606-0	08	1	0602-0605
378	WASHER; PL ID=6.4	0-91610-606-0	08	1	0606-
386	TUBE; CORNERING LAMP	8-94451-175-0	02	1	0512-
399	SOCKET; TURN SIGNAL	1-82219-034-0	02	1	0407-0511
399	SOCKET; TURN SIGNAL	1-82219-038-0	02	1	0512-
448	CAP ASM; LAMP	8-97378-874-0	02	1	0907-

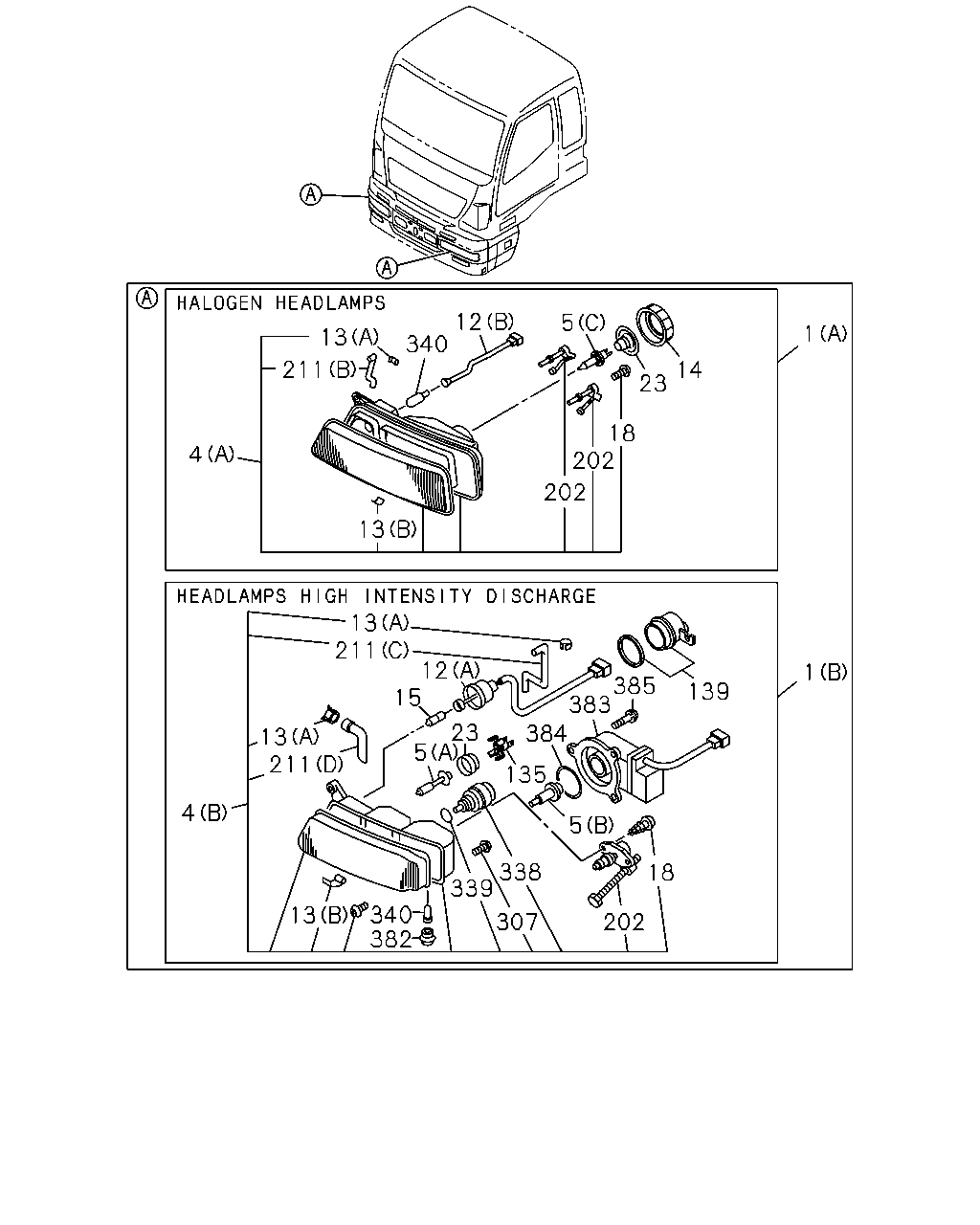

12 340 5 1 13 211 14 23 18 202 4 202 13 13 211 12 15 1 385 383 139 23 384 5 13 211 135 4 5 338 339 340 382 18 13 307 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> (A)	1-82110-403-2	01	1	0512-0711
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> (A)	8-98097-198-0	01	1	0712-
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> (A)	1-82110-404-2	01	1	0512-0711
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> (A)	8-98097-199-0	01	1	0712-
1	LAMP ASM; HEAD (B)	1-82110-435-0	01	1	0407-0509
1	LAMP ASM; HEAD (B)	8-98028-862-0	01	1	0510-0511
1	LAMP ASM; HEAD HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B)	1-82110-473-1	01	1	0512-1003
1	LAMP ASM; HEAD HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B)	8-98144-076-0	01	1	1004-
1	LAMP ASM; HEAD (B)	1-82110-436-0	01	1	0407-0509
1	LAMP ASM; HEAD (B)	8-98028-863-0	01	1	0510-0511
1	LAMP ASM; HEAD HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B)	1-82110-474-1	01	1	0512-1003
1	LAMP ASM; HEAD HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B)	8-98144-077-0	01	1	1004-
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> (A)	1-82119-173-0	01	1	0512-
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> (A)	1-82119-174-0	01	1	0512-
4	HEADLAMP UNIT (B)	1-82119-208-0	01	1	0407-0511
4	HEADLAMP UNIT HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B)	1-82119-218-0	01	1	0512-
4	HEADLAMP UNIT (B)	1-82119-209-0	01	1	0407-0511
4	HEADLAMP UNIT HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B)	1-82119-219-0	01	1	0512-
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> (C) 24V 75/70W	1-82194-063-0	02	1	0512-
5	BULB; HEADLAMP (B) 85V 35W	1-82194-092-0	02	1	0407-0511
5	BULB; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 85V 35W	1-82194-092-0	02	1	0512-
5	BULB; HEADLAMP (A) 24V 70W	8-94405-658-0	02	1	0407-0511
5	BULB; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 24V 70W	8-94405-658-0	02	1	0512-
12	HARNESS; HEADLAMP (A)	1-82118-013-0	02	1	0407-0511
12	HARNESS; HEADLAMP HALOGEN HEADLAMPS<TT5> (B)	1-82118-014-0	02	1	0512-
13	CLIP; HEADLAMP HALOGEN HEADLAMPS<TT5> (A)	1-82119-084-0	02	1	0712-1003
13	CLIP; HEADLAMP (A)	1-82119-084-0	02	1	0407-0509
13	CLIP; HEADLAMP (A)	1-82119-084-0	04	1	0510-0711
13	CLIP; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A)	1-82119-084-0	04	1	0712-1003
13	CLIP; HEADLAMP (A)	1-82119-084-0	02	1	1004-
13	CLIP; HEADLAMP (B)	8-94381-588-0	14	1	0407-
14	CAP; BULB,LAMP HALOGEN HEADLAMPS<TT5>	1-86830-148-0	02	1	0512-
15	BULB; FOG LAMP 24V 55W	1-82194-079-0	02	1	0407-0511
15	BULB; FOG LAMP 24V 55W	1-82194-110-0	02	1	0512-
18	SCREW; GEAR CASE M4X16 TAPPING	1-82119-067-0	08	1	0407-
23	COVER; BULB,HEADLAMP HALOGEN HEADLAMPS<TT5>	1-86830-147-0	02	1	0512-
23	COVER; BULB,HEADLAMP	1-82119-150-0	02	1	0407-0511
23	COVER; BULB,HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-82119-150-0	02	1	0512-
135	ADAPTER; HEADLAMP	1-82119-149-0	02	1	0407-0511
135	ADAPTER; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-82119-149-0	02	1	0512-
139	COVER; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-82119-224-0	02	1	0512-
202	GEAR UNIT; HEADLAMP	1-86830-139-0	04	1	0407-
211	TUBE; HEADLAMP (D)	1-86830-413-0	01	1	0510-0511
211	TUBE; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D)	1-86830-413-0	01	1	0512-1003
211	TUBE; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D)	8-98175-922-0	01	1	1004-
211	TUBE; HEADLAMP (D)	1-86830-414-0	01	1	0510-0511
211	TUBE; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D)	1-86830-414-0	01	1	0512-1003
211	TUBE; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D)	8-98175-923-0	01	1	1004-
211	TUBE; HEADLAMP HALOGEN HEADLAMPS<TT5> (B)	1-86830-330-0	01	1	0512-0711
211	TUBE; HEADLAMP HALOGEN HEADLAMPS<TT5> (B)	8-98101-137-0	01	1	0712-
211	TUBE; HEADLAMP HALOGEN HEADLAMPS<TT5> (B)	1-86830-331-0	01	1	0512-0711
211	TUBE; HEADLAMP HALOGEN HEADLAMPS<TT5> (B)	8-98101-138-0	01	1	0712-
211	TUBE; HEADLAMP (A)	8-97025-128-0	02	1	0512-0906
211	TUBE; HEADLAMP (C)	1-86830-328-0	01	1	0407-0511
211	TUBE; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C)	1-86830-328-0	01	1	0512-
211	TUBE; HEADLAMP (C)	1-86830-329-0	01	1	0407-0511
211	TUBE; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C)	1-86830-329-0	01	1	0512-
307	SCREW; TAPPING,HEAD LAMP M4X16 TAPPING	1-82119-067-0	02	1	0407-0511
307	SCREW; TAPPING,HEAD LAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M4X16 TAPPING	1-82119-067-0	02	1	0512-
338	LEVELING; HEADLAMP	1-86830-138-0	02	1	0407-0511
339	GASKET; LEVELING	1-86830-158-0	02	1	0407-0511
340	BULB; POSITION 24V 5W	1-82194-042-0	02	1	0407-
382	PLUG; SOCKET,HEADLAMP	1-82119-193-0	02	1	0407-0511
382	PLUG; SOCKET,HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-82119-193-1	02	1	0512-
383	STARTER ASM; DISCHARGE,HEADLAMP	1-82119-183-1	01	1	0407-0511
383	STARTER ASM; DISCHARGE,HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-82119-183-1	01	1	0512-
383	STARTER ASM; DISCHARGE,HEADLAMP	1-82119-184-1	01	1	0407-0511
383	STARTER ASM; DISCHARGE,HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-82119-184-1	01	1	0512-
384	GASKET; DISCHARGE,HEADLAMP	1-82119-152-0	02	1	0407-0511
384	GASKET; DISCHARGE,HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-82119-152-0	02	1	0512-
385	SCREW; DISCHARGE,HEADLAMP	1-82119-203-0	06	1	0407-0511
385	SCREW; DISCHARGE,HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-82119-203-0	06	1	0512-

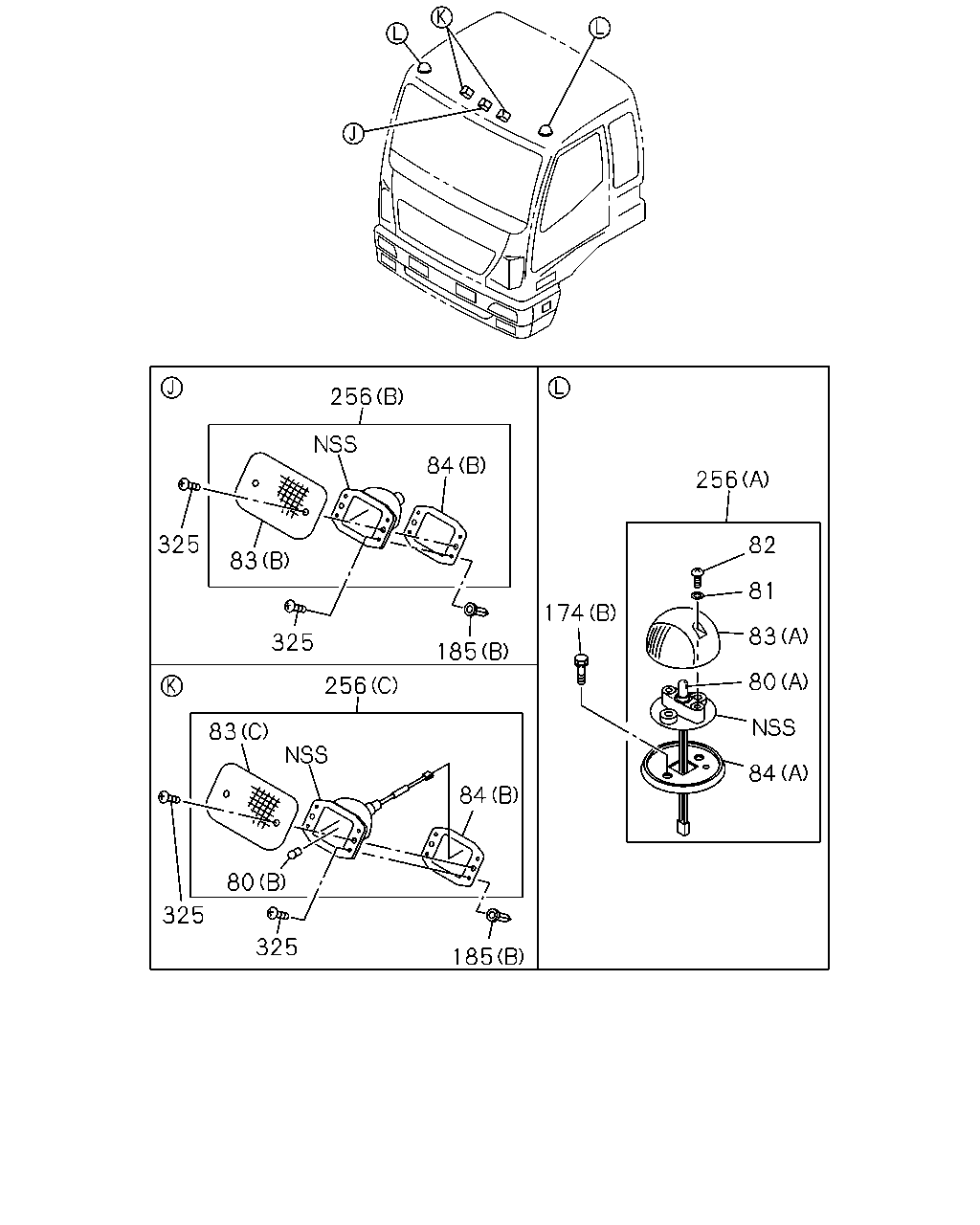

256 84 256 325 82 83 81 174 83 325 185 80 256 83 84 84 80 325 325 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	BULB; MARKER LAMP (A) 24V 5W	8-94135-397-0	02	1	0407-
80	BULB; MARKER LAMP (B) 24V 12W	9-82691-302-0	02	1	0407-
81	SEAT; SCREW	1-82219-012-0	04	1	0407-
82	SCREW; MARKER LAMP	1-82219-011-0	04	1	0407-
83	LENS; MARKER LAMP HIGH ROOF<S2F> (C)	1-86830-320-0	02	1	0407-
83	LENS; MARKER LAMP HIGH ROOF<S2F> (B)	1-86830-321-0	01	1	0407-
83	LENS; MARKER LAMP (A)	1-82215-048-0	02	1	0407-
83	LENS; MARKER LAMP EXC. HIGH ROOF<S2F> (C)	1-82215-068-0	02	1	0407-
83	LENS; MARKER LAMP EXC. HIGH ROOF<S2F> (B)	1-82215-069-0	01	1	0407-
84	GASKET; MARKER LAMP (B)	1-86830-153-0	03	1	0407-
84	GASKET; MARKER LAMP (A)	1-86830-288-0	02	1	0407-
174	BOLT (A) M6X20 W/LK&PL WASHER	0-50140-620-0	04	1	0512-0512
174	BOLT (A) M6X20 W/LK&PL WASHER	0-50640-620-0	04	1	0601-0601
174	BOLT (A) M6X20 FLANGE	0-28650-620-0	04	1	0602-
174	BOLT (B) M6X28 W/LK&PL WASHER	1-09980-543-0	04	1	0407-
185	GROMMET; SCREW (B) M5 SCREW GROMMET	1-09983-131-0	12	1	0407-
185	GROMMET; SCREW (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	0407-0511
256	LAMP; MARKER HIGH ROOF<S2F> (C)	1-82210-229-0	02	1	0407-
256	LAMP; MARKER HIGH ROOF<S2F> (B)	1-82210-230-0	01	1	0407-
256	LAMP; MARKER (A)	1-86830-129-1	02	1	0407-
256	LAMP; MARKER EXC. HIGH ROOF<S2F> (B)	1-86830-131-0	01	1	0407-
256	LAMP; MARKER EXC. HIGH ROOF<S2F> (C)	1-86830-170-0	02	1	0407-
325	SCREW; SPD INDICATOR LAMP LOW ROOF<6XQ> M5X14 TAPPING	9-07066-514-0	12	1	0512-0603
325	SCREW; SPD INDICATOR LAMP LOW ROOF<6XQ> M5X14 TAPPING	0-71040-514-0	12	1	0604-
325	SCREW; SPD INDICATOR LAMP M5X20 TAPPING	0-71090-520-0	18	1	0407-

206 19 28 28 206 1 1 49 273 266 30 422 172 49 273 30 28 140 343 28 16 49 273 140 16 175 162 28 10 199 175 171 267 28 175 162 199 183 175 175 1 1 342 1 162 257 162 257 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> (A)	1-82110-403-2	01	1	0512-0711
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> (A)	8-98097-198-0	01	1	0712-
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> (A)	1-82110-404-2	01	1	0512-0711
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> (A)	8-98097-199-0	01	1	0712-
1	LAMP ASM; HEAD (B)	1-82110-435-0	01	1	0407-0509
1	LAMP ASM; HEAD (B)	8-98028-862-0	01	1	0510-0511
1	LAMP ASM; HEAD HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B)	1-82110-473-1	01	1	0512-1003
1	LAMP ASM; HEAD HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B)	8-98144-076-0	01	1	1004-
1	LAMP ASM; HEAD (B)	1-82110-436-0	01	1	0407-0509
1	LAMP ASM; HEAD (B)	8-98028-863-0	01	1	0510-0511
1	LAMP ASM; HEAD HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B)	1-82110-474-1	01	1	0512-1003
1	LAMP ASM; HEAD HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B)	8-98144-077-0	01	1	1004-
10	WASHER; PL,HEADLAMP RIM ID=8.4	9-09160-508-0	02	1	0407-0511
16	BRACKET; HEADLAMP (B)	8-97608-506-2	01	1	0512-
16	BRACKET; HEADLAMP (A)	1-82117-155-2	02	1	0407-0511
16	BRACKET; HEADLAMP (B)	8-97608-505-1	01	1	0512-
19	NUT; HEADLAMP M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0407-
28	BOLT; HEADLAMP (C) M10X30 FLANGE	0-28681-030-0	06	1	0407-0512
28	BOLT; HEADLAMP (C) M10X30 FLANGE	0-28651-030-0	06	1	0601-
28	BOLT; HEADLAMP (B) M10X28,M10X15 L=50	5-09300-050-0	02	1	0407-
28	BOLT; HEADLAMP (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	0407-
28	BOLT; HEADLAMP (D) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0407-
30	BOLT; STAY 6WF1 TC-C(1B8) M8X25 FLANGE	0-28680-825-0	02	1	0512-0512
30	BOLT; STAY 6WF1 TC-C(1B8) M8X25 FLANGE	0-28650-825-0	02	1	0601-
30	BOLT; STAY CAB UP +110MM<TGG> M10X25 FLANGE	0-28681-025-0	04	1	0407-0511
30	BOLT; STAY 6WF1 TC-C(1B8) M10X25 FLANGE	0-28681-025-0	04	1	0512-0512
30	BOLT; STAY 6WF1 TC-C(1B8) M10X25 FLANGE	0-28651-025-0	04	1	0601-
49	BRACKET; LAMP (D)	8-98051-437-0	01	1	0512-
49	BRACKET; LAMP (D)	8-98051-438-0	01	1	0512-
49	BRACKET; LAMP (C)	1-82117-176-0	01	1	0512-
49	BRACKET; LAMP (C)	1-82117-177-0	01	1	0512-
49	BRACKET; LAMP (A)	1-82117-100-0	02	1	0407-
49	BRACKET; LAMP (B)	1-82117-101-1	01	1	0407-
49	BRACKET; LAMP (B)	1-82117-102-1	01	1	0407-
140	NUT M10 FLANGE	0-91150-210-0	02	1	0407-0602
140	NUT M10 FLANGE	0-91180-210-0	02	1	0603-
162	RUBBER; CUSHION UPR	1-82117-086-0	08	1	0407-
171	NUT M6 FLANGE	0-91150-106-0	02	1	0407-0511
172	NUT; STAY 6WF1 TC-C(1B8) M8 FLANGE	0-91150-108-0	02	1	0512-0602
172	NUT; STAY 6WF1 TC-C(1B8) M8 FLANGE	0-91180-108-0	02	1	0603-
175	NUT; BRKT CUSHION RUBBER M8 FLANGE	0-91150-108-0	16	1	0407-0602
175	NUT; BRKT CUSHION RUBBER M8 FLANGE	0-91180-108-0	16	1	0603-
183	WASHER; HEADLAMP ID=8.5	9-09855-333-0	02	1	0407-0511
199	BUSHING	5-15549-001-1	04	1	0407-0511
206	HOLDER; HEADLAMP (A)	1-65671-569-5	01	1	0407-
206	HOLDER; HEADLAMP (A)	1-65671-570-6	01	1	0407-
206	HOLDER; HEADLAMP (B)	1-65671-761-3	01	1	0407-
206	HOLDER; HEADLAMP (B)	1-65671-762-3	01	1	0407-
257	BOLT; BRKT HD LAMP M8X20 FLANGE	0-28080-820-0	04	1	0407-0511
266	STAY; BRKT,HEADLAMP CAB UP +110MM<TGG>	1-82117-154-2	01	1	0407-0510
266	STAY; BRKT,HEADLAMP CAB UP +110MM<TGG>	1-82117-182-0	01	1	0511-0511
266	STAY; BRKT,HEADLAMP 6WF1 TC-C(1B8)	1-82117-182-0	01	1	0512-
267	WASHER; PL,STAY CAB UP +110MM<TGG> ID=10.5 OD=22	9-09164-610-0	04	1	0407-0511
273	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	04	1	0512-0512
273	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	04	1	0601-
273	BOLT; BRKT M6X16 FLANGE	0-28680-616-0	08	1	0407-0512
273	BOLT; BRKT M6X16 FLANGE	0-28650-616-0	08	1	0601-
342	HINGE; LAMP	1-82117-087-2	01	1	0407-0511
342	HINGE; LAMP	1-82117-088-2	01	1	0407-0511
343	SHAFT; HINGE	1-82119-096-1	02	1	0407-0511
422	BRACKET; HEADLAMP STAY 6WF1 TC-C(1B8)	1-82698-605-0	02	1	0512-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
