◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 10956 - EXY NEW ZEALAND ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-70 - SEPARATER AND BED ▶
7-70 — SEPARATER AND BED (#29186) — 151 parça

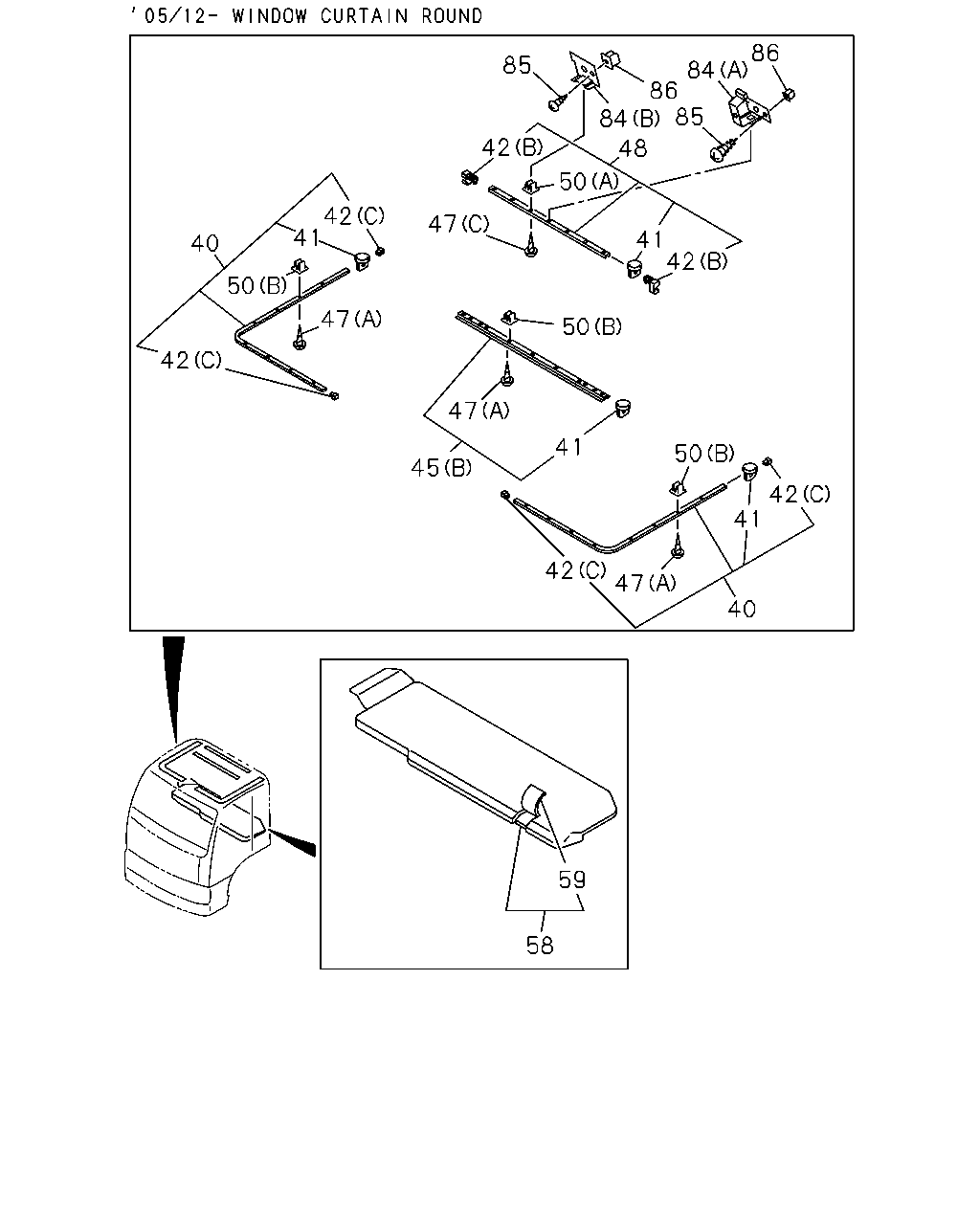

çizim 88360
86 85 84 86 42 48 50 42 41 47 41 42 40 50 47 50 42 47 41 50 45 42 41 42 47 40 59 58 84 85
BalonParca AdiParca NoAdetTipApplied Date
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-537-1 01 1 0512-
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> 		1-73907-535-1 01 1 0512-
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> 		1-73907-536-1 01 1 0512-
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-538-0 01 1 0512-
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> H=14.5 WHITE 		1-73996-398-0 08 1 0512-
41 HOOK; CURTAIN RAIL
H=14.5 WHITE 		1-73996-398-0 08 1 0407-0511
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE 		1-73996-398-0 34 1 0512-
41 HOOK; CURTAIN RAIL
H=14.5 WHITE 		1-73996-398-0 14 1 0407-0511
41 HOOK; CURTAIN RAIL
HIGH ROOF<S2F> H=14.5 WHITE 		1-73996-398-0 14 1 0512-
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F> H=14.5 WHITE 		1-73996-398-0 14 1 0512-
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> (B) 		1-73996-399-0 01 1 0512-
42 STOPPER; CURTAIN RAIL
(A) 		1-73907-657-0 02 1 0407-0511
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (A) 		1-73907-657-0 02 1 0512-
42 STOPPER; CURTAIN RAIL
(B) 		1-73996-399-0 02 1 0407-0511
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> (C) 		1-73996-393-0 04 1 0512-
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> (C) 		1-73996-393-0 02 1 0512-
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> (B) 		1-73996-399-0 02 1 0512-
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F> (B) 		1-73907-546-3 01 1 0512-
45 RAIL; CURTAIN,FRT
EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F>,AUTO ROUND CURTAIN<TAR> (C) 		1-73907-545-2 01 1 0512-
45 RAIL; CURTAIN,FRT
(A) 		1-73907-592-1 01 1 0407-0511
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> (A) 		1-73907-592-2 01 1 0512-
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 27 1 0407-
47 SCREW; CURTAIN RAIL
(C) M5X25 		5-09981-093-0 07 1 0407-
47 SCREW; CURTAIN RAIL
(B) M5X16 		9-93490-516-0 04 1 0407-0511
47 SCREW; CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> (B) M5X16 		9-93490-516-0 04 1 0512-
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> 		1-73996-385-1 01 1 0512-
48 RAIL; CURTAIN,BACK 1-73996-386-0 01 1 0407-0511
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> 		1-73996-386-1 01 1 0512-
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=13 M5 		1-09983-159-0 07 1 0407-
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 27 1 0407-
58 BED; MAT
MATTRESS SLEEPER CAB<E40> 		1-75127-181-0 01 1 0407-0511
58 BED; MAT 1-75127-181-1 01 1 0512-1011
58 BED; MAT 8-98168-337-1 01 1 1012-
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> 		1-75127-182-0 01 1 0407-0511
59 COVER ASM; TRIM,BED MAT 1-75127-182-0 01 1 0512-1011
59 COVER ASM; TRIM,BED MAT 8-98168-341-1 01 1 1012-
84 BRACKET; CURTAIN RAIL
(A) 		1-73907-661-0 01 1 0407-0511
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (A) 		1-73907-661-0 01 1 0512-
84 BRACKET; CURTAIN RAIL
(B) 		1-73998-987-4 06 1 0407-0511
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (B) 		1-73998-987-4 06 1 0512-
85 SCREW; BRKT
EXC. AUTO ROUND CURTAIN<TAR> M5X20 		5-09981-059-0 09 1 0512-
85 SCREW; BRKT
M5X20 		5-09981-059-0 07 1 0407-0511
85 SCREW; BRKT
AUTO ROUND CURTAIN<TAR> M5X20 		5-09981-059-0 07 1 0512-
86 GROMMET; SCREW,BRKT
EXC. AUTO ROUND CURTAIN<TAR> D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 0512-
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 07 1 0407-0511
86 GROMMET; SCREW,BRKT
AUTO ROUND CURTAIN<TAR> D=8.6X7.7 L=7.5 		8-94279-078-0 07 1 0512-

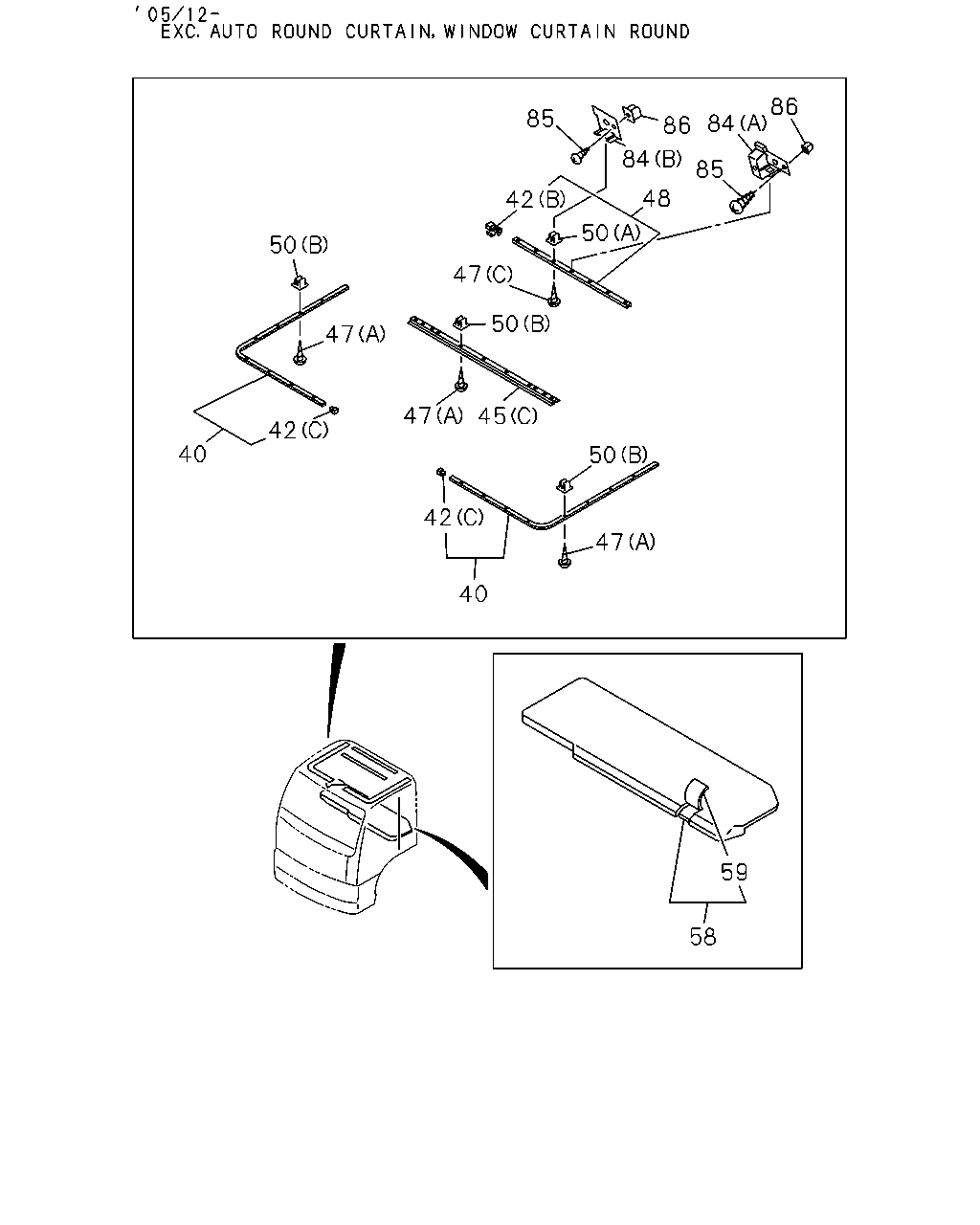

çizim 88381
86 85 84 86 84 85 48 42 50 50 47 50 47 47 45 42 40 50 42 47 40 59 58
BalonParca AdiParca NoAdetTipApplied Date
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-537-1 01 1 0512-
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> 		1-73907-535-1 01 1 0512-
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> 		1-73907-536-1 01 1 0512-
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-538-0 01 1 0512-
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> (B) 		1-73996-399-0 01 1 0512-
42 STOPPER; CURTAIN RAIL
(A) 		1-73907-657-0 02 1 0407-0511
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (A) 		1-73907-657-0 02 1 0512-
42 STOPPER; CURTAIN RAIL
(B) 		1-73996-399-0 02 1 0407-0511
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> (C) 		1-73996-393-0 04 1 0512-
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> (C) 		1-73996-393-0 02 1 0512-
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> (B) 		1-73996-399-0 02 1 0512-
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F> (B) 		1-73907-546-3 01 1 0512-
45 RAIL; CURTAIN,FRT
EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F>,AUTO ROUND CURTAIN<TAR> (C) 		1-73907-545-2 01 1 0512-
45 RAIL; CURTAIN,FRT
(A) 		1-73907-592-1 01 1 0407-0511
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> (A) 		1-73907-592-2 01 1 0512-
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 27 1 0407-
47 SCREW; CURTAIN RAIL
(C) M5X25 		5-09981-093-0 07 1 0407-
47 SCREW; CURTAIN RAIL
(B) M5X16 		9-93490-516-0 04 1 0407-0511
47 SCREW; CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> (B) M5X16 		9-93490-516-0 04 1 0512-
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> 		1-73996-385-1 01 1 0512-
48 RAIL; CURTAIN,BACK 1-73996-386-0 01 1 0407-0511
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> 		1-73996-386-1 01 1 0512-
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=13 M5 		1-09983-159-0 07 1 0407-
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 27 1 0407-
58 BED; MAT
MATTRESS SLEEPER CAB<E40> 		1-75127-181-0 01 1 0407-0511
58 BED; MAT 1-75127-181-1 01 1 0512-1011
58 BED; MAT 8-98168-337-1 01 1 1012-
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> 		1-75127-182-0 01 1 0407-0511
59 COVER ASM; TRIM,BED MAT 1-75127-182-0 01 1 0512-1011
59 COVER ASM; TRIM,BED MAT 8-98168-341-1 01 1 1012-
84 BRACKET; CURTAIN RAIL
(A) 		1-73907-661-0 01 1 0407-0511
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (A) 		1-73907-661-0 01 1 0512-
84 BRACKET; CURTAIN RAIL
(B) 		1-73998-987-4 06 1 0407-0511
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (B) 		1-73998-987-4 06 1 0512-
85 SCREW; BRKT
EXC. AUTO ROUND CURTAIN<TAR> M5X20 		5-09981-059-0 09 1 0512-
85 SCREW; BRKT
M5X20 		5-09981-059-0 07 1 0407-0511
85 SCREW; BRKT
AUTO ROUND CURTAIN<TAR> M5X20 		5-09981-059-0 07 1 0512-
86 GROMMET; SCREW,BRKT
EXC. AUTO ROUND CURTAIN<TAR> D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 0512-
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 07 1 0407-0511
86 GROMMET; SCREW,BRKT
AUTO ROUND CURTAIN<TAR> D=8.6X7.7 L=7.5 		8-94279-078-0 07 1 0512-

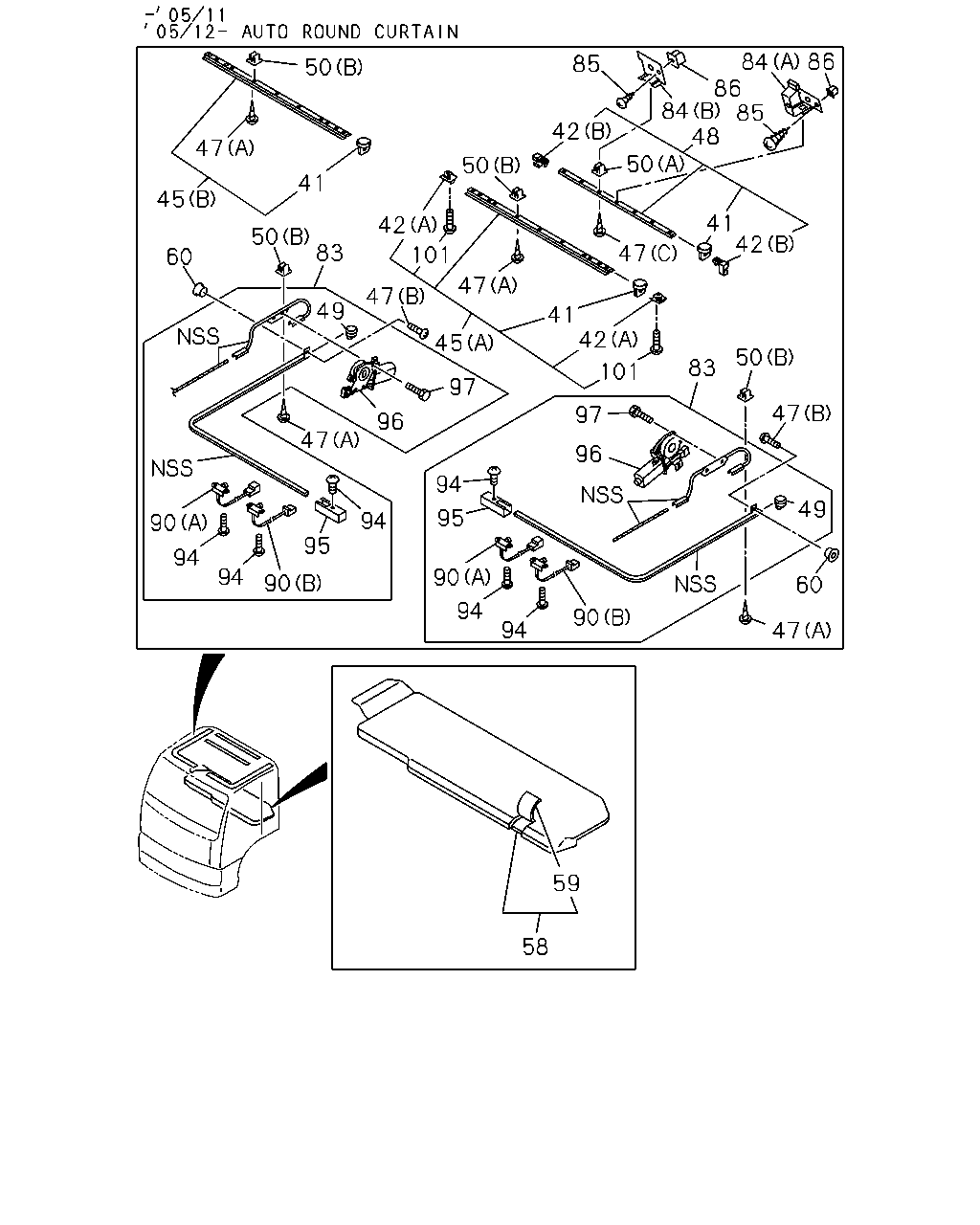

çizim 104482
84 86 48 86 85 50 42 47 50 50 41 45 41 42 42 50 83 47 101 60 47 47 49 41 42 45 50 83 101 97 47 97 96 47 96 94 49 95 94 90 95 94 94 90 90 60 94 90 94 47 59 58 84 85
BalonParca AdiParca NoAdetTipApplied Date
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> H=14.5 WHITE 		1-73996-398-0 08 1 0512-
41 HOOK; CURTAIN RAIL
H=14.5 WHITE 		1-73996-398-0 08 1 0407-0511
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE 		1-73996-398-0 34 1 0512-
41 HOOK; CURTAIN RAIL
H=14.5 WHITE 		1-73996-398-0 14 1 0407-0511
41 HOOK; CURTAIN RAIL
HIGH ROOF<S2F> H=14.5 WHITE 		1-73996-398-0 14 1 0512-
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F> H=14.5 WHITE 		1-73996-398-0 14 1 0512-
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> (B) 		1-73996-399-0 01 1 0512-
42 STOPPER; CURTAIN RAIL
(A) 		1-73907-657-0 02 1 0407-0511
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (A) 		1-73907-657-0 02 1 0512-
42 STOPPER; CURTAIN RAIL
(B) 		1-73996-399-0 02 1 0407-0511
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> (C) 		1-73996-393-0 04 1 0512-
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> (C) 		1-73996-393-0 02 1 0512-
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> (B) 		1-73996-399-0 02 1 0512-
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F> (B) 		1-73907-546-3 01 1 0512-
45 RAIL; CURTAIN,FRT
EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F>,AUTO ROUND CURTAIN<TAR> (C) 		1-73907-545-2 01 1 0512-
45 RAIL; CURTAIN,FRT
(A) 		1-73907-592-1 01 1 0407-0511
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> (A) 		1-73907-592-2 01 1 0512-
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 27 1 0407-
47 SCREW; CURTAIN RAIL
(C) M5X25 		5-09981-093-0 07 1 0407-
47 SCREW; CURTAIN RAIL
(B) M5X16 		9-93490-516-0 04 1 0407-0511
47 SCREW; CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> (B) M5X16 		9-93490-516-0 04 1 0512-
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> 		1-73996-385-1 01 1 0512-
48 RAIL; CURTAIN,BACK 1-73996-386-0 01 1 0407-0511
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> 		1-73996-386-1 01 1 0512-
49 HOOK; CURTAIN
H=14.5 DARK GRAY 		1-73996-105-0 32 1 0407-0511
49 HOOK; CURTAIN
AUTO ROUND CURTAIN<TAR> H=14.5 DARK GRAY 		1-73996-105-0 32 1 0512-
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=13 M5 		1-09983-159-0 07 1 0407-
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 27 1 0407-
58 BED; MAT
MATTRESS SLEEPER CAB<E40> 		1-75127-181-0 01 1 0407-0511
58 BED; MAT 1-75127-181-1 01 1 0512-1011
58 BED; MAT 8-98168-337-1 01 1 1012-
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> 		1-75127-182-0 01 1 0407-0511
59 COVER ASM; TRIM,BED MAT 1-75127-182-0 01 1 0512-1011
59 COVER ASM; TRIM,BED MAT 8-98168-341-1 01 1 1012-
60 HOLDER 1-79198-011-0 04 1 0407-0511
60 HOLDER
AUTO ROUND CURTAIN<TAR> 		1-79198-011-0 04 1 0512-
83 RAIL; CURTAIN,AUTOMATIC 1-73907-288-5 01 1 0407-0511
83 RAIL; CURTAIN,AUTOMATIC
AUTO ROUND CURTAIN<TAR> 		1-73907-288-6 01 1 0512-
83 RAIL; CURTAIN,AUTOMATIC 1-73907-289-5 01 1 0407-0511
83 RAIL; CURTAIN,AUTOMATIC
AUTO ROUND CURTAIN<TAR> 		1-73907-289-6 01 1 0512-
84 BRACKET; CURTAIN RAIL
(A) 		1-73907-661-0 01 1 0407-0511
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (A) 		1-73907-661-0 01 1 0512-
84 BRACKET; CURTAIN RAIL
(B) 		1-73998-987-4 06 1 0407-0511
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (B) 		1-73998-987-4 06 1 0512-
85 SCREW; BRKT
EXC. AUTO ROUND CURTAIN<TAR> M5X20 		5-09981-059-0 09 1 0512-
85 SCREW; BRKT
M5X20 		5-09981-059-0 07 1 0407-0511
85 SCREW; BRKT
AUTO ROUND CURTAIN<TAR> M5X20 		5-09981-059-0 07 1 0512-
86 GROMMET; SCREW,BRKT
EXC. AUTO ROUND CURTAIN<TAR> D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 0512-
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 07 1 0407-0511
86 GROMMET; SCREW,BRKT
AUTO ROUND CURTAIN<TAR> D=8.6X7.7 L=7.5 		8-94279-078-0 07 1 0512-
90 SWITCH; CURTAIN RAIL
(A) 		1-73996-224-2 02 1 0407-0511
90 SWITCH; CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> (A) 		1-73996-224-2 02 1 0512-
90 SWITCH; CURTAIN RAIL
(B) 		1-73996-225-2 02 1 0407-0511
90 SWITCH; CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> (B) 		1-73996-225-2 02 1 0512-
94 FIXING PARTS; CURTAIN RAIL 1-73996-256-0 10 1 0407-0511
94 FIXING PARTS; CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> 		1-73996-256-0 10 1 0512-
95 COVER; SWITCH,CURTAIN RAIL 1-73996-254-0 02 1 0407-0511
95 COVER; SWITCH,CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> 		1-73996-254-0 02 1 0512-
96 MOTOR ASM; CURTAIN RAIL 1-73996-255-0 02 1 0407-0511
96 MOTOR ASM; CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> 		1-73996-255-0 02 1 0512-
97 SCREW; MOTOR,CURTAIN RAIL
M6X25 W/LK WASHER 		9-03910-625-0 04 1 0407-0511
97 SCREW; MOTOR,CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> M6X25 W/LK WASHER 		9-03910-625-0 04 1 0512-0604
97 SCREW; MOTOR,CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> M6X25 W/LK WASHER 		0-36220-625-0 04 1 0605-
101 SCREW; STOPPER 1-73907-400-0 02 1 0407-0511
101 SCREW; STOPPER
HIGH ROOF<S2F> 		1-73907-400-0 02 1 0512-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
