Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10954 - CXZ/CYZ NEW ZEALAND
▶
3 - Brakes, Brake System
▶
3-34 - BRAKE VALVE; AIR
▶
3-34 — BRAKE VALVE; AIR
(#29182) — 50 parça
Tümü
A - CXZ5MF
B - CYZ5MC
C - CYZ5MF
◀

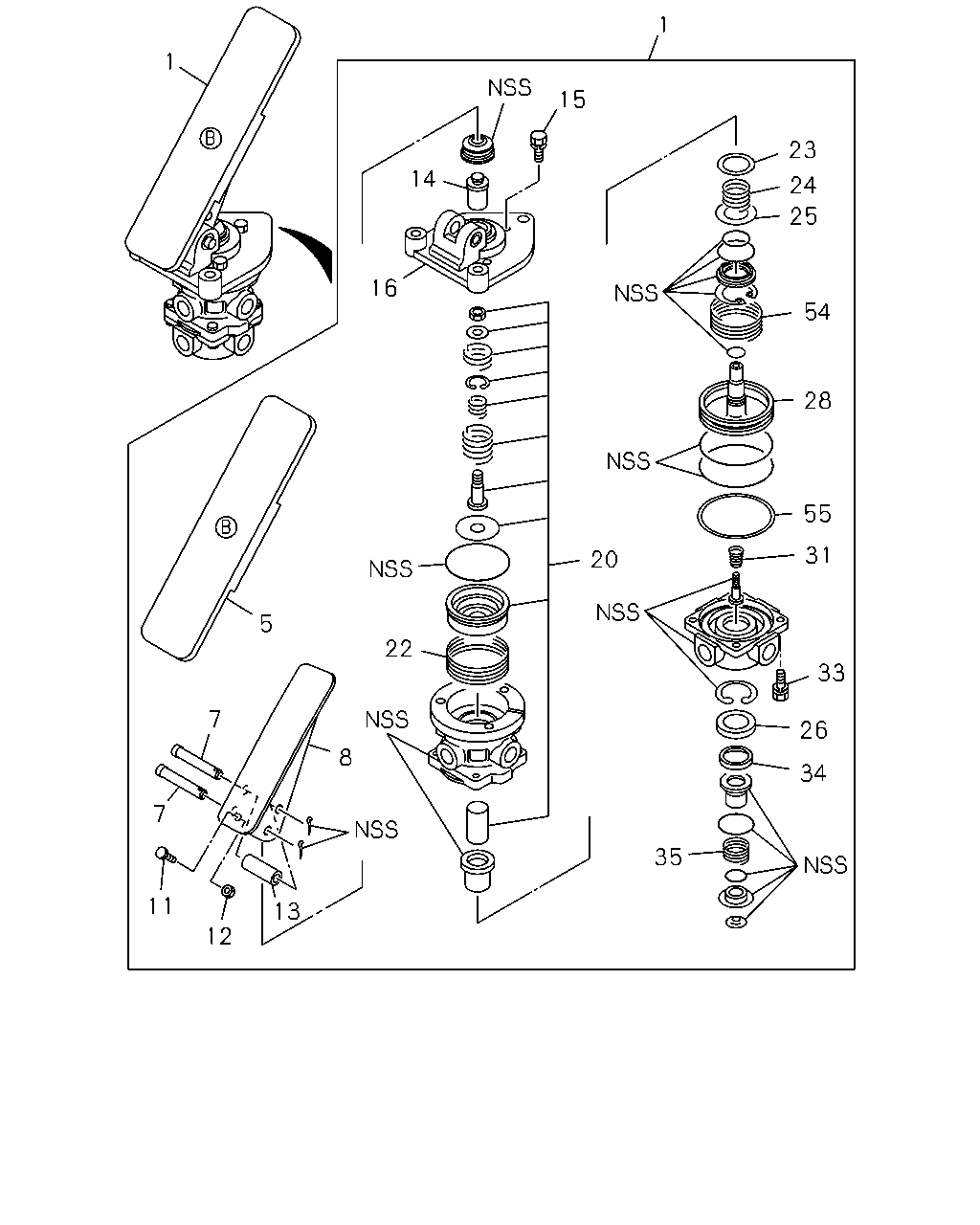

[334A] COMPONENT (47 parça)
[334A] REPAIR KIT (3 parça)
▶
1
1
15
23
14
24
25
16
54
28
55
31
20
5
22
33
7
26
8
34
7
35
11
13
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
VALVE; BRK
1-48100-868-1
01
1
0407-0511
●
1
VALVE; BRK
1-48100-868-1
01
1
0512-1211
●
●
1
VALVE; BRK
8-98222-801-0
01
1
1212-
●
●
5
COVER; PEDAL,BRK VLV
1-48119-432-0
01
1
0407-0511
●
5
COVER; PEDAL,BRK VLV
1-48119-432-0
01
1
0512-
●
●
7
PIN; PEDAL,BRK VLV
1-48119-431-0
02
1
0407-0511
●
7
PIN; PEDAL,BRK VLV
1-48119-431-0
02
1
0512-
●
●
8
PEDAL; BRK VLV
1-48119-429-0
01
1
0407-0511
●
8
PEDAL; BRK VLV
1-48119-429-0
01
1
0512-
●
●
11
SCREW; SET,BRK VLV
1-48119-003-1
01
1
0407-0511
●
11
SCREW; SET,BRK VLV
1-48119-003-1
01
1
0512-
●
●
12
NUT; SCREW,PEDAL,BRK VLV
9-88510-123-0
01
1
0407-0511
●
12
NUT; SCREW,PEDAL,BRK VLV
9-88510-123-0
01
1
0512-
●
●
13
ROLLER; PEDAL,BRK VLV
1-48119-430-0
01
1
0407-0511
●
13
ROLLER; PEDAL,BRK VLV
1-48119-430-0
01
1
0512-
●
●
14
PLUNGER; BRK VLV
1-48119-434-0
01
1
0407-0511
●
14
PLUNGER; BRK VLV
1-48119-434-0
01
1
0512-
●
●
15
BOLT; PLATE,BRK VLV
1-48219-039-0
03
1
0407-0511
●
15
BOLT; PLATE,BRK VLV
1-48219-039-0
03
1
0512-
●
●
16
PLATE; MTG,BRKT VLV
1-48119-433-0
01
1
0407-0511
●
16
PLATE; MTG,BRKT VLV
1-48119-433-0
01
1
0512-
●
●
20
PISTON; UPR,BRK VLV
1-48119-592-0
01
1
0407-0511
●
20
PISTON; UPR,BRK VLV
1-48119-592-0
01
1
0512-
●
●
22
SPRING; PISTON,LWR,BRK VLV
1-48123-076-0
01
1
0407-0511
●
22
SPRING; PISTON,LWR,BRK VLV
1-48123-076-0
01
1
0512-
●
●
23
WASHER; UPR,BRK VLV
1-48129-299-0
01
1
0407-0511
●
23
WASHER; UPR,BRK VLV
1-48129-299-0
01
1
0512-
●
●
24
SPRING; UPR,BRK VLV
1-48123-077-0
01
1
0407-0511
●
24
SPRING; UPR,BRK VLV
1-48123-077-0
01
1
0512-
●
●
25
WASHER; PISTON,BRK VLV
1-48129-300-0
01
1
0407-0511
●
25
WASHER; PISTON,BRK VLV
1-48129-300-0
01
1
0512-
●
●
26
RETAINER; VLV,BRK VLV
1-48129-308-0
01
1
0407-0511
●
26
RETAINER; VLV,BRK VLV
1-48129-308-0
01
1
0512-
●
●
28
PISTON; LWR,BRK VLV
1-48129-302-0
01
1
0407-0511
●
28
PISTON; LWR,BRK VLV
1-48129-302-0
01
1
0512-
●
●
31
SPRING; VLV,BRK VLV
1-48123-079-0
01
1
0407-0511
●
31
SPRING; VLV,BRK VLV
1-48123-079-0
01
1
0512-
●
●
33
BOLT; BODY,BRK VLV
1-48119-213-0
04
1
0407-0511
●
33
BOLT; BODY,BRK VLV
1-48119-213-0
04
1
0512-
●
●
34
RETAINER; VLV,BRK VLV
1-48129-307-0
01
1
0407-0511
●
34
RETAINER; VLV,BRK VLV
1-48129-307-0
01
1
0512-
●
●
35
SPRING; VLV,BRK VLV
1-48123-078-0
01
1
0407-0511
●
35
SPRING; VLV,BRK VLV
1-48123-078-0
01
1
0512-
●
●
54
SPRING; PISTON,UPR,BRK VLV
1-48123-075-0
01
1
0407-0511
●
54
SPRING; PISTON,UPR,BRK VLV
1-48123-075-0
01
1
0512-
●
●
55
RETAINER; PLATE,BRK VLV
1-48129-305-0
01
1
0407-0511
●
55
RETAINER; PLATE,BRK VLV
1-48129-305-0
01
1
0512-
●
●
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
REPAIR KIT; BRK VLV
1-85576-211-1
01
1
0407-0511
●
2
REPAIR KIT; BRK VLV
1-85576-211-1
01
1
0512-1211
●
●
2
REPAIR KIT; BRK VLV
8-98222-817-0
01
1
1212-
●
●
