Sayfa 3-26 - Isuzu EPC

3-26 — TRAILER CONTROL (#29181) — 337 parça

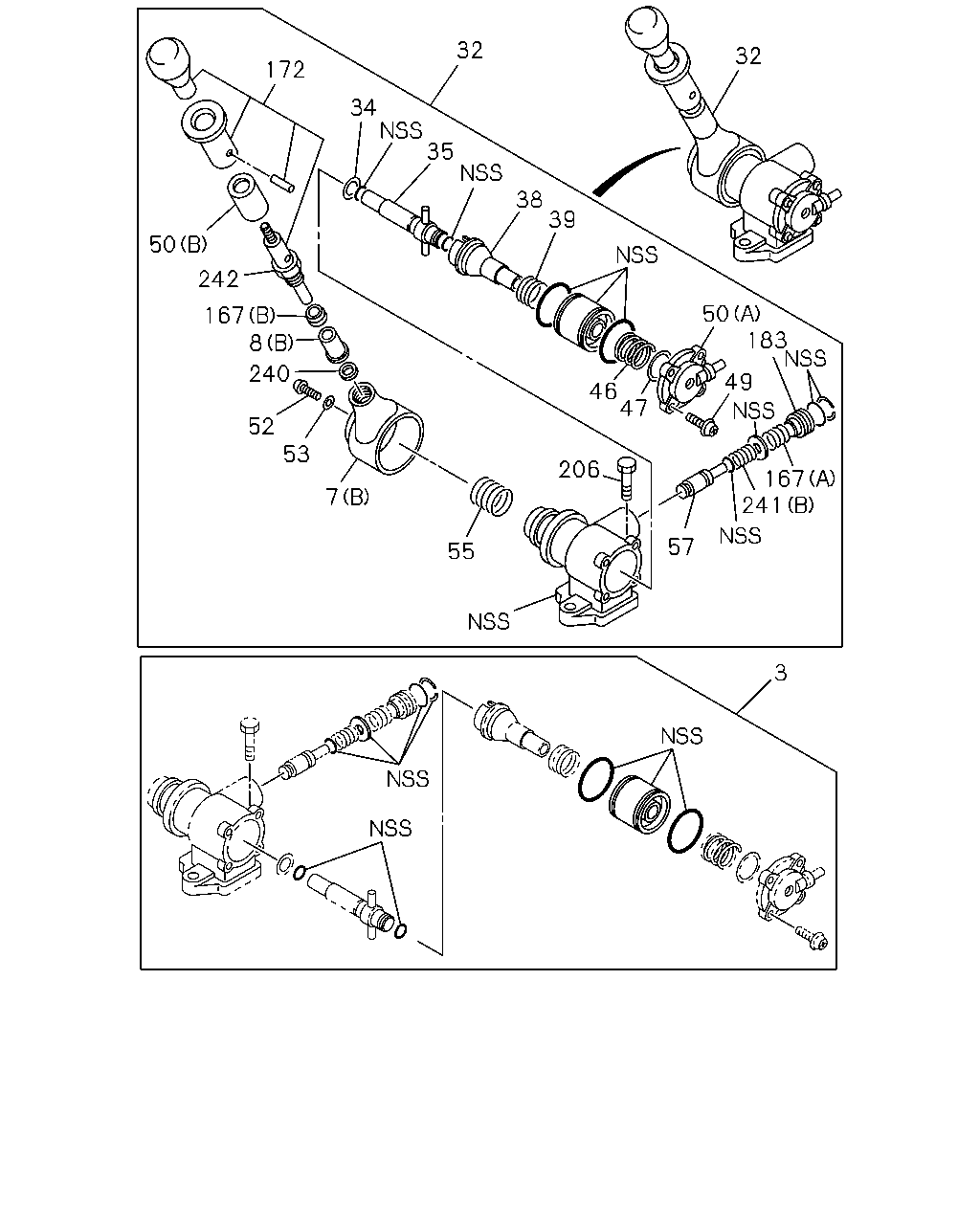

32 32 172 34 35 38 39 50 242 50 183 167 8 240 49 46 47 52 53 167 241 206 7 57 55 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	REPAIR KIT; HAND BRK VLV FULLER M/T<X9B>	1-48469-083-0	01	1	0512-	●
3	REPAIR KIT; HAND BRK VLV	1-85576-376-0	01	1	0407-0511		●
3	REPAIR KIT; HAND BRK VLV MJX M/T<Y9N>	1-85576-376-0	01	1	0512-	●
3	REPAIR KIT; HAND BRK VLV	1-85576-376-0	01	1	0512-			●
7	HEAD; BRK VLV (A)	1-48119-577-0	01	1	0407-0511		●
7	HEAD; BRK VLV (A)	1-48119-577-1	01	1	0512-	●		●
7	HEAD; BRK VLV (B)	1-48469-201-0	01	1	0407-0511		●
7	HEAD; BRK VLV MJX M/T<Y9N> (B)	1-48469-201-0	01	1	0512-	●
7	HEAD; BRK VLV (B)	1-48469-201-0	01	1	0512-			●
8	STOPPER; BRK VLV (A)	1-48119-327-0	01	1	0407-0511		●
8	STOPPER; BRK VLV (A)	1-48119-327-0	01	1	0512-	●		●
8	STOPPER; BRK VLV (B)	1-48469-200-0	01	1	0407-0511		●
8	STOPPER; BRK VLV MJX M/T<Y9N> (B)	1-48469-200-0	01	1	0512-	●
8	STOPPER; BRK VLV (B)	1-48469-200-0	01	1	0512-			●
32	VALVE; BRK,HAND CONT FULLER M/T<X9B>	1-48460-316-0	01	1	0512-	●
32	VALVE; BRK,HAND CONT	1-48460-339-1	01	1	0407-0511		●
32	VALVE; BRK,HAND CONT MJX M/T<Y9N>	1-48460-339-1	01	1	0512-	●
32	VALVE; BRK,HAND CONT	1-48460-339-1	01	1	0512-			●
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	0407-0511		●
34	SHIM; CAM HOLDER MJX M/T<Y9N>	1-48469-055-0	AR	1	0512-	●
34	SHIM; CAM HOLDER COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-055-0	AR	1	0512-	●
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	0512-			●
35	HOLDER; CAM FULLER M/T<X9B>	1-48469-054-0	01	1	0512-	●
35	HOLDER; CAM	1-48469-171-0	01	1	0407-0511		●
35	HOLDER; CAM MJX M/T<Y9N>	1-48469-171-0	01	1	0512-	●
35	HOLDER; CAM	1-48469-171-0	01	1	0512-			●
38	SEAT; EXH VLV FULLER M/T<X9B>	1-48469-057-0	01	1	0512-	●
38	SEAT; EXH VLV	1-48469-172-0	01	1	0407-0511		●
38	SEAT; EXH VLV MJX M/T<Y9N>	1-48469-172-0	01	1	0512-	●
38	SEAT; EXH VLV	1-48469-172-0	01	1	0512-			●
39	SPRING; RETURN,CAM RING FULLER M/T<X9B>	1-48469-063-0	01	1	0512-	●
39	SPRING; RETURN,CAM RING	1-48469-150-0	01	1	0407-0511		●
39	SPRING; RETURN,CAM RING MJX M/T<Y9N>	1-48469-150-0	01	1	0512-	●
39	SPRING; RETURN,CAM RING	1-48469-150-0	01	1	0512-			●
46	SPRING; MAIN,PISTON FULLER M/T<X9B>	1-48469-119-0	01	1	0512-	●
46	SPRING; MAIN,PISTON	1-48469-173-0	01	1	0407-0511		●
46	SPRING; MAIN,PISTON MJX M/T<Y9N>	1-48469-173-0	01	1	0512-	●
46	SPRING; MAIN,PISTON	1-48469-173-0	01	1	0512-			●
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	0407-0511		●
47	SHIM; MAIN SPRING MJX M/T<Y9N>	1-48469-072-0	AR	1	0512-	●
47	SHIM; MAIN SPRING COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-072-0	AR	1	0512-	●
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	0512-			●
49	SCREW; COVER FULLER M/T<X9B>	1-48469-120-0	04	1	0512-	●
49	SCREW; COVER	1-48469-169-0	04	1	0407-0511		●
49	SCREW; COVER MJX M/T<Y9N>	1-48469-169-0	04	1	0512-	●
49	SCREW; COVER	1-48469-169-0	04	1	0512-			●
50	COVER; HAND BRK VLV FULLER M/T<X9B> (C)	1-48469-073-0	01	1	0512-	●
50	COVER; HAND BRK VLV (A)	1-48469-153-0	01	1	0407-0511		●
50	COVER; HAND BRK VLV MJX M/T<Y9N> (A)	1-48469-153-0	01	1	0512-	●
50	COVER; HAND BRK VLV (A)	1-48469-153-0	01	1	0512-			●
50	COVER; HAND BRK VLV (B)	1-48469-196-0	01	1	0407-0511		●
50	COVER; HAND BRK VLV MJX M/T<Y9N> (B)	1-48469-196-0	01	1	0512-	●
50	COVER; HAND BRK VLV (B)	1-48469-196-0	01	1	0512-			●
52	SCREW; HANDLE	1-48469-062-0	01	1	0407-0511		●
52	SCREW; HANDLE MJX M/T<Y9N>	1-48469-062-0	01	1	0512-	●
52	SCREW; HANDLE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-062-0	01	1	0512-	●
52	SCREW; HANDLE	1-48469-062-0	01	1	0512-			●
53	WASHER; HANDLE	1-48469-061-0	01	1	0407-0511		●
53	WASHER; HANDLE MJX M/T<Y9N>	1-48469-061-0	01	1	0512-	●
53	WASHER; HANDLE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-061-0	01	1	0512-	●
53	WASHER; HANDLE	1-48469-061-0	01	1	0512-			●
55	SPRING; RETURN,HANDLE FULLER M/T<X9B>	1-48469-059-0	01	1	0512-	●
55	SPRING; RETURN,HANDLE	1-48469-155-0	01	1	0407-0511		●
55	SPRING; RETURN,HANDLE MJX M/T<Y9N>	1-48469-155-0	01	1	0512-	●
55	SPRING; RETURN,HANDLE	1-48469-155-0	01	1	0512-			●
57	PLUNGER; HAND BRK VLV FULLER M/T<X9B>	1-48469-076-0	01	1	0512-	●
57	PLUNGER; HAND BRK VLV	1-48469-180-0	01	1	0407-0511		●
57	PLUNGER; HAND BRK VLV MJX M/T<Y9N>	1-48469-180-0	01	1	0512-	●
57	PLUNGER; HAND BRK VLV	1-48469-180-0	01	1	0512-			●
167	SPRING; VALVE (A)	1-48469-177-0	01	1	0407-0511		●
167	SPRING; VALVE MJX M/T<Y9N> (A)	1-48469-177-0	01	1	0512-	●
167	SPRING; VALVE (A)	1-48469-177-0	01	1	0512-			●
167	SPRING; VALVE (B)	1-48469-184-0	01	1	0407-0511		●
167	SPRING; VALVE MJX M/T<Y9N> (B)	1-48469-184-0	01	1	0512-	●
167	SPRING; VALVE (B)	1-48469-184-0	01	1	0512-			●
172	KNOB; VALVE	1-48469-203-0	01	1	0407-0511		●
172	KNOB; VALVE MJX M/T<Y9N>	1-48469-203-0	01	1	0512-	●
172	KNOB; VALVE	1-48469-203-0	01	1	0512-			●
183	RETAINER; VALVE	1-48469-185-0	01	1	0407-0511		●
183	RETAINER; VALVE MJX M/T<Y9N>	1-48469-185-0	01	1	0512-	●
183	RETAINER; VALVE	1-48469-185-0	01	1	0512-			●
206	BOLT; HAND BRK VALVE	1-48469-160-0	01	1	0407-0511		●
206	BOLT; HAND BRK VALVE MJX M/T<Y9N>	1-48469-160-0	01	1	0512-	●
206	BOLT; HAND BRK VALVE	1-48469-160-0	01	1	0512-			●
240	RING; STOPPER	1-48469-199-0	01	1	0407-0511		●
240	RING; STOPPER MJX M/T<Y9N>	1-48469-199-0	01	1	0512-	●
240	RING; STOPPER	1-48469-199-0	01	1	0512-			●
241	SPRING; RETURN (A)	1-48119-576-0	01	1	0407-0511		●
241	SPRING; RETURN (A)	1-48119-576-0	01	1	0512-	●		●
241	SPRING; RETURN (B)	1-48469-182-0	01	1	0407-0511		●
241	SPRING; RETURN MJX M/T<Y9N> (B)	1-48469-182-0	01	1	0512-	●
241	SPRING; RETURN (B)	1-48469-182-0	01	1	0512-			●
242	NUT; LK	1-48469-179-0	01	1	0407-0511		●
242	NUT; LK MJX M/T<Y9N>	1-48469-179-0	01	1	0512-	●
242	NUT; LK	1-48469-179-0	01	1	0512-			●

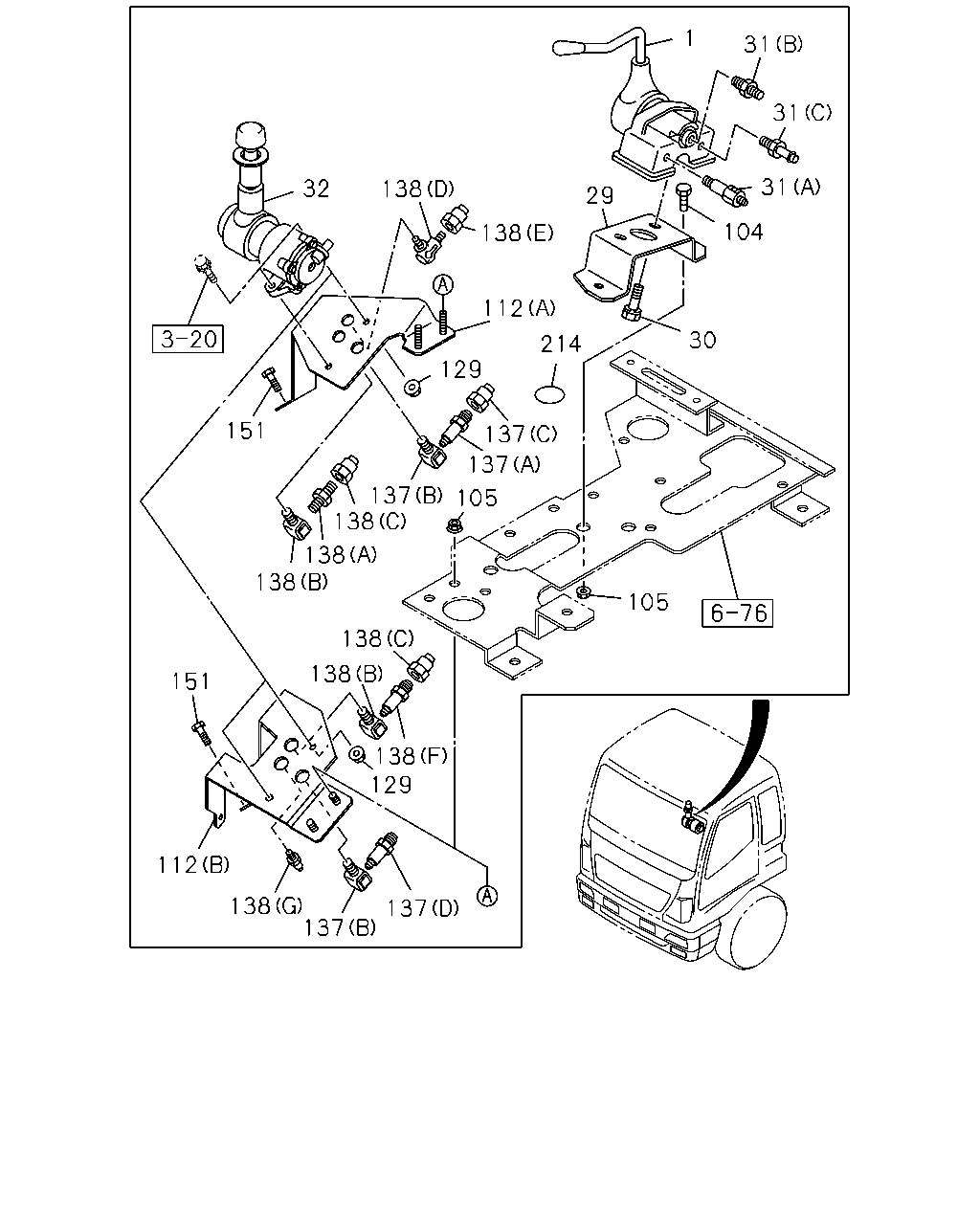

1 31 31 31 32 138 29 104 138 112 30 214 129 151 137 137 137 138 105 138 138 105 138 138 151 138 129 112 138 137 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	VALVE ASM; HAND BRK	1-48100-859-0	01	1	0407-0511		●
1	VALVE ASM; HAND BRK	1-48100-859-0	01	1	0512-	●		●
29	BRACKET; HAND BRK	1-79997-357-1	01	1	0407-0511		●
29	BRACKET; HAND BRK	1-79997-357-1	01	1	0512-	●		●
30	BOLT; BRKT,HAND BRK VLV M10X20 W/LK WASHER	0-50041-020-0	02	1	0407-0511		●
30	BOLT; BRKT,HAND BRK VLV M10X20 W/LK WASHER	0-50041-020-0	02	1	0512-0512	●		●
30	BOLT; BRKT,HAND BRK VLV M10X20 W/LK WASHER	0-50541-020-0	02	1	0601-	●		●
31	CONNECTOR; HAND BRK VLV (A) M14	1-09656-391-2	01	1	0407-0511		●
31	CONNECTOR; HAND BRK VLV (A) M14	1-09656-391-2	01	1	0512-	●		●
31	CONNECTOR; HAND BRK VLV (C) L=45	8-94338-874-0	01	1	0407-0511		●
31	CONNECTOR; HAND BRK VLV (C) L=45	8-94338-874-0	01	1	0512-	●		●
31	CONNECTOR; HAND BRK VLV (B) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	0407-0511		●
31	CONNECTOR; HAND BRK VLV (B) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	0512-0607	●		●
31	CONNECTOR; HAND BRK VLV (B) M16 & PT1/4 STRAIGHT	0-92121-810-0	01	1	0608-	●		●
32	VALVE; BRK,HAND CONT FULLER M/T<X9B>	1-48460-316-0	01	1	0512-	●
32	VALVE; BRK,HAND CONT	1-48460-339-1	01	1	0407-0511		●
32	VALVE; BRK,HAND CONT MJX M/T<Y9N>	1-48460-339-1	01	1	0512-	●
32	VALVE; BRK,HAND CONT	1-48460-339-1	01	1	0512-			●
104	BOLT; BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0407-0511		●
104	BOLT; BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0512-0612	●		●
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0407-0511		●
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0407-0511		●
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0512-0602	●		●
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0512-0602	●		●
105	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●		●
105	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●		●
112	BRACKET; CONT VLV FULLER M/T<X9B> (B)	1-79996-336-1	01	1	0512-	●
112	BRACKET; CONT VLV (A)	1-79996-387-0	01	1	0407-0511		●
112	BRACKET; CONT VLV MJX M/T<Y9N> (A)	1-79996-387-0	01	1	0512-	●
112	BRACKET; CONT VLV (A)	1-79996-387-0	01	1	0512-			●
129	NUT; VLV M8 FLANGE	0-91150-108-0	01	1	0407-0511		●
129	NUT; VLV M8 FLANGE	0-91150-108-0	01	1	0512-0602	●		●
129	NUT; VLV M8 FLANGE	0-91180-108-0	01	1	0603-	●		●
129	NUT; VLV M8 FLANGE	0-91150-108-0	02	1	0407-0511		●
129	NUT; VLV M8 FLANGE	0-91150-108-0	02	1	0512-0602	●		●
129	NUT; VLV M8 FLANGE	0-91180-108-0	02	1	0603-	●		●
137	CONNECTOR; SUPPLY FULLER M/T<X9B> (D) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	0512-	●
137	CONNECTOR; SUPPLY (A)	1-09650-352-1	01	1	0407-0511		●
137	CONNECTOR; SUPPLY MJX M/T<Y9N> (A)	1-09650-352-1	01	1	0512-	●
137	CONNECTOR; SUPPLY (A)	1-09650-352-1	01	1	0512-			●
137	CONNECTOR; SUPPLY (B) PT1/4 2WAY	1-09660-693-0	01	1	0407-0511		●
137	CONNECTOR; SUPPLY (B) PT1/4 2WAY	1-09660-693-0	01	1	0512-	●		●
137	CONNECTOR; SUPPLY (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0407-0511		●
137	CONNECTOR; SUPPLY MJX M/T<Y9N> (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0512-	●
137	CONNECTOR; SUPPLY (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0512-			●
138	CONNECTOR; DELIVERY FULLER M/T<X9B> (F) M14	1-09656-391-2	01	1	0512-	●
138	CONNECTOR; DELIVERY FULLER M/T<X9B> (G) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0512-	●
138	CONNECTOR; DELIVERY (D)	1-09650-263-2	01	1	0407-0511		●
138	CONNECTOR; DELIVERY MJX M/T<Y9N> (D)	1-09650-263-2	01	1	0512-	●
138	CONNECTOR; DELIVERY (D)	1-09650-263-2	01	1	0512-			●
138	CONNECTOR; DELIVERY (A) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	0407-0511		●
138	CONNECTOR; DELIVERY MJX M/T<Y9N> (A) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	0512-	●
138	CONNECTOR; DELIVERY (A) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	0512-			●
138	CONNECTOR; DELIVERY (B) PT1/4 2WAY	1-09660-693-0	01	1	0407-0511		●
138	CONNECTOR; DELIVERY (B) PT1/4 2WAY	1-09660-693-0	01	1	0512-	●		●
138	CONNECTOR; DELIVERY (C) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0407-0511		●
138	CONNECTOR; DELIVERY (C) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0512-	●		●
138	CONNECTOR; DELIVERY (E) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0407-0511		●
138	CONNECTOR; DELIVERY MJX M/T<Y9N> (E) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0512-	●
138	CONNECTOR; DELIVERY (E) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0512-			●
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0407-0409		●
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0410-0511		●
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0512-	●		●
214	SEAL; COVER,HAND BRK OD=25 BLACK	1-76798-019-0	01	1	0407-0511		●
214	SEAL; COVER,HAND BRK OD=25 BLACK	1-76798-019-0	01	1	0512-	●		●

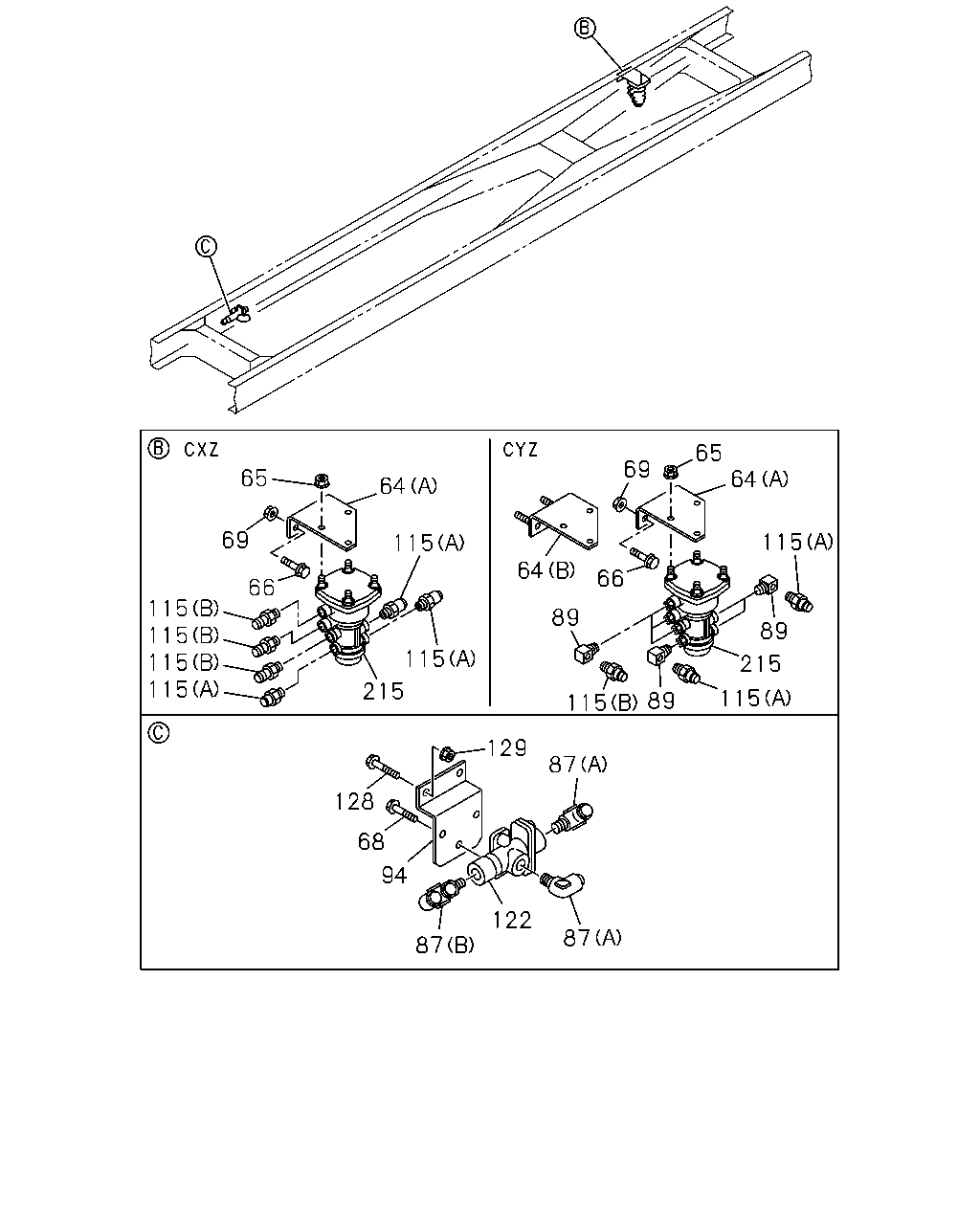

65 64 69 65 64 69 115 115 64 66 66 115 115 115 115 89 89 115 215 215 115 115 89 129 87 128 68 94 122 87 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
64	BRACKET; RELAY VLV (B)	1-48495-282-1	01	1	0512-0907	●
64	BRACKET; RELAY VLV (B)	8-98110-679-1	01	1	0908-	●
64	BRACKET; RELAY VLV (A)	1-48495-226-0	01	1	0407-0511		●
64	BRACKET; RELAY VLV (A)	1-48495-226-0	01	1	0512-			●
65	NUT; RELAY VLV M8 FLANGE	0-91150-108-0	03	1	0407-0511		●
65	NUT; RELAY VLV M8 FLANGE	0-91150-108-0	03	1	0512-0602	●		●
65	NUT; RELAY VLV M8 FLANGE	0-91180-108-0	03	1	0603-	●		●
66	BOLT; VLV BRKT M10X30 FLANGE	0-28681-030-0	02	1	0407-0511		●
66	BOLT; VLV BRKT M10X30 FLANGE	0-28681-030-0	02	1	0512-0512	●		●
66	BOLT; VLV BRKT M10X30 FLANGE	0-28681-030-0	02	1	0512-0512			●
66	BOLT; VLV BRKT M10X30 FLANGE	0-28651-030-0	02	1	0601-	●		●
66	BOLT; VLV BRKT M10X30 FLANGE	0-28651-030-0	02	1	0601-			●
68	BOLT; DOUBLE CHECK VLV M8X14 FLANGE	0-28080-814-0	02	1	0407-0511		●
68	BOLT; DOUBLE CHECK VLV M8X14 FLANGE	0-28080-814-0	02	1	0512-	●		●
69	NUT; VLV BRKT M10 FLANGE	0-91150-210-0	02	1	0407-0511		●
69	NUT; VLV BRKT M10 FLANGE	0-91150-210-0	02	1	0512-0602	●		●
69	NUT; VLV BRKT M10 FLANGE	0-91180-210-0	02	1	0603-	●		●
87	CONNECTOR; DBL CHECK VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0407-0511		●
87	CONNECTOR; DBL CHECK VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0512-	●		●
87	CONNECTOR; DBL CHECK VLV (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0407-0511		●
87	CONNECTOR; DBL CHECK VLV (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0512-	●		●
89	CONNECTOR; FLARE PT3/8 ELBOW	1-09660-696-0	06	1	0512-	●
94	BRACKET; CHECK VLV	1-47479-367-0	01	1	0407-0511		●
94	BRACKET; CHECK VLV	1-47479-367-0	01	1	0512-	●		●
115	CONNECTOR; DUAL RELAY VLV (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	03	1	0407-0511		●
115	CONNECTOR; DUAL RELAY VLV (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	03	1	0512-	●		●
115	CONNECTOR; DUAL RELAY VLV (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0407-0511		●
115	CONNECTOR; DUAL RELAY VLV (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0512-	●		●
122	VALVE ASM; DOUBLE CHECK	1-48410-531-0	01	1	0407-0511		●
122	VALVE ASM; DOUBLE CHECK	1-48410-531-1	01	1	0512-	●		●
128	BOLT; VLV M8X25 FLANGE	0-28680-825-0	02	1	0407-0511		●
128	BOLT; VLV M8X25 FLANGE	0-28680-825-0	02	1	0512-0512	●		●
128	BOLT; VLV M8X25 FLANGE	0-28650-825-0	02	1	0601-	●		●
129	NUT; VLV M8 FLANGE	0-91150-108-0	01	1	0407-0511		●
129	NUT; VLV M8 FLANGE	0-91150-108-0	01	1	0512-0602	●		●
129	NUT; VLV M8 FLANGE	0-91180-108-0	01	1	0603-	●		●
129	NUT; VLV M8 FLANGE	0-91150-108-0	02	1	0407-0511		●
129	NUT; VLV M8 FLANGE	0-91150-108-0	02	1	0512-0602	●		●
129	NUT; VLV M8 FLANGE	0-91180-108-0	02	1	0603-	●		●
215	VALVE; TRAILER CONT	1-48240-045-0	01	1	0407-0511		●
215	VALVE; TRAILER CONT	1-48240-045-1	01	1	0512-	●		●

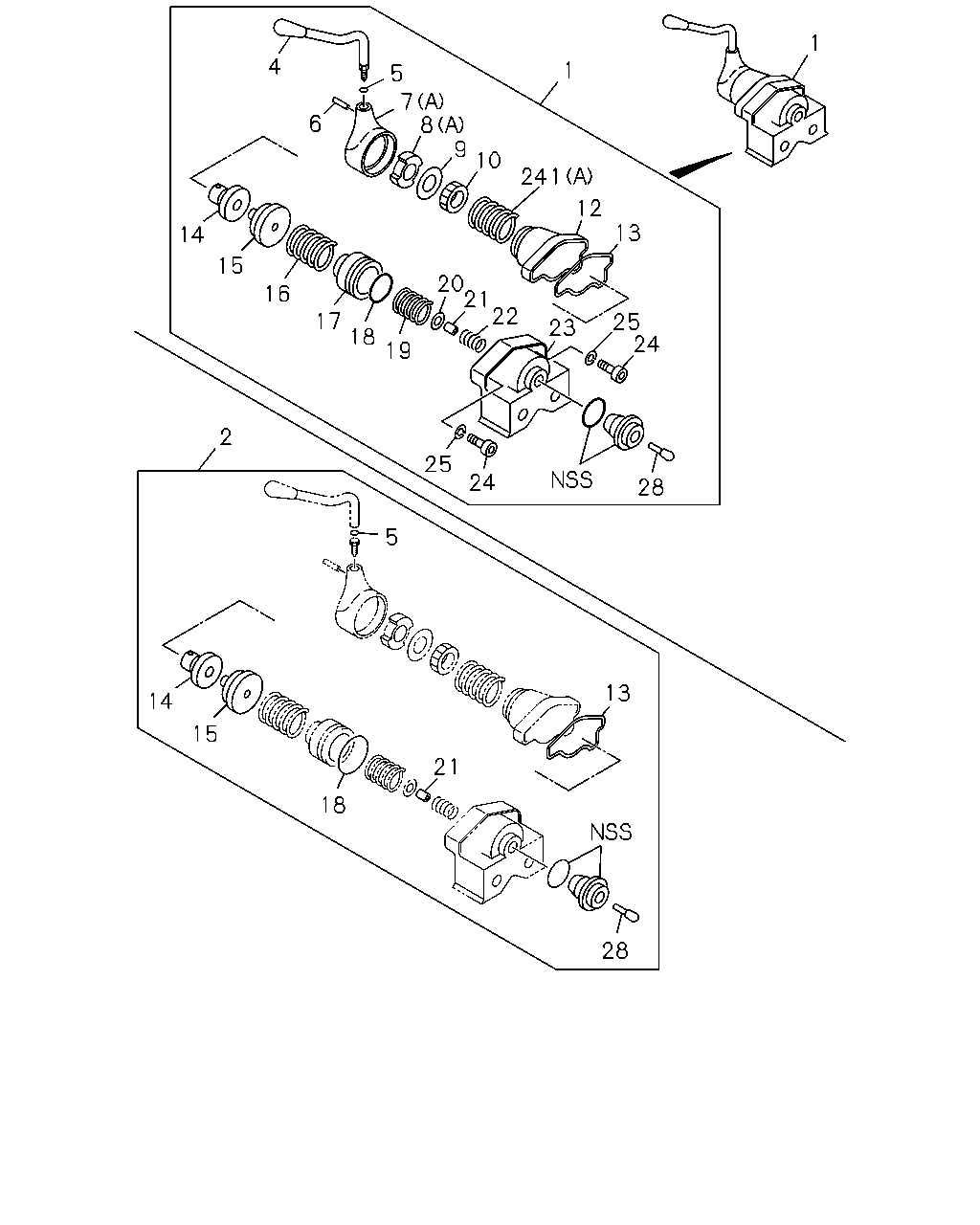

1 4 1 5 7 8 6 9 10 241 12 13 14 15 20 21 22 16 23 17 25 24 18 19 2 25 24 28 5 13 14 15 21 18 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	VALVE ASM; HAND BRK	1-48100-859-0	01	1	0407-0511		●
1	VALVE ASM; HAND BRK	1-48100-859-0	01	1	0512-	●		●
2	REPAIR KIT; HAND BRK VLV	1-85576-305-0	01	1	0407-0511		●
2	REPAIR KIT; HAND BRK VLV	1-85576-305-0	01	1	0512-	●		●
4	HANDLE ASM; BRK VLV	1-48119-580-0	01	1	0407-0511		●
4	HANDLE ASM; BRK VLV	1-48119-580-1	01	1	0512-	●		●
5	GASKET; HANDLE	1-48119-128-0	01	1	0407-0511		●
5	GASKET; HANDLE	1-48119-128-0	01	1	0512-	●		●
6	PIN; SPR	1-48119-143-0	01	1	0407-0511		●
6	PIN; SPR	1-48119-143-0	01	1	0512-	●		●
7	HEAD; BRK VLV (A)	1-48119-577-0	01	1	0407-0511		●
7	HEAD; BRK VLV (A)	1-48119-577-1	01	1	0512-	●		●
7	HEAD; BRK VLV (B)	1-48469-201-0	01	1	0407-0511		●
7	HEAD; BRK VLV MJX M/T<Y9N> (B)	1-48469-201-0	01	1	0512-	●
7	HEAD; BRK VLV (B)	1-48469-201-0	01	1	0512-			●
8	STOPPER; BRK VLV (A)	1-48119-327-0	01	1	0407-0511		●
8	STOPPER; BRK VLV (A)	1-48119-327-0	01	1	0512-	●		●
8	STOPPER; BRK VLV (B)	1-48469-200-0	01	1	0407-0511		●
8	STOPPER; BRK VLV MJX M/T<Y9N> (B)	1-48469-200-0	01	1	0512-	●
8	STOPPER; BRK VLV (B)	1-48469-200-0	01	1	0512-			●
9	WASHER; LK,ADJ	1-48119-123-0	01	1	0407-0511		●
9	WASHER; LK,ADJ	1-48119-123-0	01	1	0512-	●		●
10	RING; ADJ	1-48119-122-0	01	1	0407-0511		●
10	RING; ADJ	1-48119-122-0	01	1	0512-	●		●
12	COVER; BRK VLV	1-48129-319-0	01	1	0407-0511		●
12	COVER; BRK VLV	1-48129-319-1	01	1	0512-	●		●
13	GASKET; BODY TO COVER	1-48119-120-0	01	1	0407-0511		●
13	GASKET; BODY TO COVER	1-48119-120-0	01	1	0512-	●		●
14	FOLLOWER; CAM	1-48129-135-0	01	1	0407-0511		●
14	FOLLOWER; CAM	1-48129-135-0	01	1	0512-	●		●
15	CAM; FOLLOWER	1-48129-134-0	01	1	0407-0511		●
15	CAM; FOLLOWER	1-48129-134-0	01	1	0512-	●		●
16	SPRING; GRUDUATING	1-48129-101-0	01	1	0407-0511		●
16	SPRING; GRUDUATING	1-48129-101-0	01	1	0512-	●		●
17	PISTON; SPR	1-48129-095-0	01	1	0407-0511		●
17	PISTON; SPR	1-48129-095-0	01	1	0512-	●		●
18	GASKET; BODY	1-48129-096-0	01	1	0407-0511		●
18	GASKET; BODY	1-48129-096-0	01	1	0512-	●		●
19	SPRING; PISTON	1-48129-094-0	01	1	0407-0511		●
19	SPRING; PISTON	1-48129-094-0	01	1	0512-	●		●
20	GUIDE; VLV	1-48129-090-0	01	1	0407-0511		●
20	GUIDE; VLV	1-48129-090-0	01	1	0512-	●		●
21	VALVE; IN & EXH	1-48121-017-0	01	1	0407-0511		●
21	VALVE; IN & EXH	1-48121-017-0	01	1	0512-	●		●
22	SPRING; VLV	1-48123-024-0	01	1	0407-0511		●
22	SPRING; VLV	1-48123-024-0	01	1	0512-	●		●
23	BODY; BRK VLV	1-48111-060-0	01	1	0407-0511		●
23	BODY; BRK VLV	1-48111-060-1	01	1	0512-	●		●
24	BOLT; EXH VLV	1-48129-092-0	02	1	0407-0511		●
24	BOLT; EXH VLV	1-48129-092-0	02	1	0512-	●		●
25	WASHER; LK,EXH VLV	1-48129-093-0	02	1	0407-0511		●
25	WASHER; LK,EXH VLV	1-48129-093-0	02	1	0512-	●		●
28	STEM ASM; BRK VLV	1-48129-089-0	01	1	0407-0511		●
28	STEM ASM; BRK VLV	1-48129-089-0	01	1	0512-	●		●
241	SPRING; RETURN (A)	1-48119-576-0	01	1	0407-0511		●
241	SPRING; RETURN (A)	1-48119-576-0	01	1	0512-	●		●
241	SPRING; RETURN (B)	1-48469-182-0	01	1	0407-0511		●
241	SPRING; RETURN MJX M/T<Y9N> (B)	1-48469-182-0	01	1	0512-	●
241	SPRING; RETURN (B)	1-48469-182-0	01	1	0512-			●

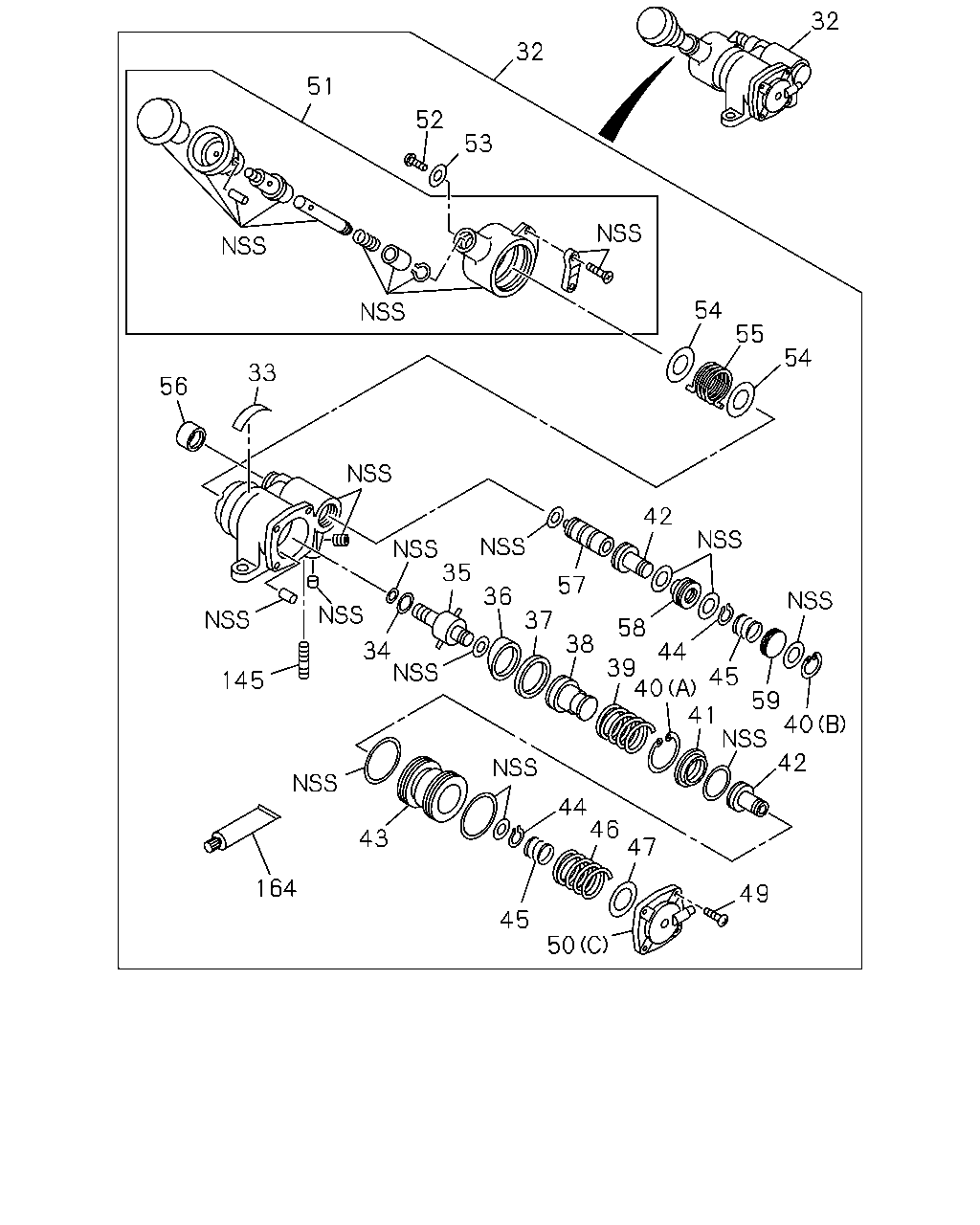

32 32 51 52 53 54 55 54 33 56 42 35 57 36 37 58 38 34 44 39 40 45 145 41 42 59 40 44 46 47 43 164 49 45 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
32	VALVE; BRK,HAND CONT FULLER M/T<X9B>	1-48460-316-0	01	1	0512-	●
32	VALVE; BRK,HAND CONT	1-48460-339-1	01	1	0407-0511		●
32	VALVE; BRK,HAND CONT MJX M/T<Y9N>	1-48460-339-1	01	1	0512-	●
32	VALVE; BRK,HAND CONT	1-48460-339-1	01	1	0512-			●
33	PLATE; CAUTION FULLER M/T<X9B>	1-48469-121-0	01	1	0512-	●
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	0407-0511		●
34	SHIM; CAM HOLDER MJX M/T<Y9N>	1-48469-055-0	AR	1	0512-	●
34	SHIM; CAM HOLDER COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-055-0	AR	1	0512-	●
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	0512-			●
35	HOLDER; CAM FULLER M/T<X9B>	1-48469-054-0	01	1	0512-	●
35	HOLDER; CAM	1-48469-171-0	01	1	0407-0511		●
35	HOLDER; CAM MJX M/T<Y9N>	1-48469-171-0	01	1	0512-	●
35	HOLDER; CAM	1-48469-171-0	01	1	0512-			●
36	RING; CAM FULLER M/T<X9B>	1-48469-056-0	01	1	0512-	●
37	GUIDE; CAM RING FULLER M/T<X9B>	1-48469-058-0	01	1	0512-	●
38	SEAT; EXH VLV FULLER M/T<X9B>	1-48469-057-0	01	1	0512-	●
38	SEAT; EXH VLV	1-48469-172-0	01	1	0407-0511		●
38	SEAT; EXH VLV MJX M/T<Y9N>	1-48469-172-0	01	1	0512-	●
38	SEAT; EXH VLV	1-48469-172-0	01	1	0512-			●
39	SPRING; RETURN,CAM RING FULLER M/T<X9B>	1-48469-063-0	01	1	0512-	●
39	SPRING; RETURN,CAM RING	1-48469-150-0	01	1	0407-0511		●
39	SPRING; RETURN,CAM RING MJX M/T<Y9N>	1-48469-150-0	01	1	0512-	●
39	SPRING; RETURN,CAM RING	1-48469-150-0	01	1	0512-			●
40	RING; SNAP FULLER M/T<X9B> (A)	1-48469-067-0	01	1	0512-	●
40	RING; SNAP FULLER M/T<X9B> (B)	1-48469-079-0	01	1	0512-	●
41	SEAT; FEED VLV FULLER M/T<X9B>	1-48469-066-0	01	1	0512-	●
42	VALVE; FEED FULLER M/T<X9B>	1-48469-065-0	02	1	0512-	●
43	PISTON; HAND BRK VLV FULLER M/T<X9B>	1-48469-064-0	01	1	0512-	●
44	RING; SNAP,FEED VLV FULLER M/T<X9B>	1-48469-068-0	02	1	0512-	●
45	SPRING; FEED VLV FULLER M/T<X9B>	1-48469-070-0	02	1	0512-	●
46	SPRING; MAIN,PISTON FULLER M/T<X9B>	1-48469-119-0	01	1	0512-	●
46	SPRING; MAIN,PISTON	1-48469-173-0	01	1	0407-0511		●
46	SPRING; MAIN,PISTON MJX M/T<Y9N>	1-48469-173-0	01	1	0512-	●
46	SPRING; MAIN,PISTON	1-48469-173-0	01	1	0512-			●
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	0407-0511		●
47	SHIM; MAIN SPRING MJX M/T<Y9N>	1-48469-072-0	AR	1	0512-	●
47	SHIM; MAIN SPRING COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-072-0	AR	1	0512-	●
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	0512-			●
49	SCREW; COVER FULLER M/T<X9B>	1-48469-120-0	04	1	0512-	●
49	SCREW; COVER	1-48469-169-0	04	1	0407-0511		●
49	SCREW; COVER MJX M/T<Y9N>	1-48469-169-0	04	1	0512-	●
49	SCREW; COVER	1-48469-169-0	04	1	0512-			●
50	COVER; HAND BRK VLV FULLER M/T<X9B> (C)	1-48469-073-0	01	1	0512-	●
50	COVER; HAND BRK VLV (A)	1-48469-153-0	01	1	0407-0511		●
50	COVER; HAND BRK VLV MJX M/T<Y9N> (A)	1-48469-153-0	01	1	0512-	●
50	COVER; HAND BRK VLV (A)	1-48469-153-0	01	1	0512-			●
50	COVER; HAND BRK VLV (B)	1-48469-196-0	01	1	0407-0511		●
50	COVER; HAND BRK VLV MJX M/T<Y9N> (B)	1-48469-196-0	01	1	0512-	●
50	COVER; HAND BRK VLV (B)	1-48469-196-0	01	1	0512-			●
51	HANDLE ASM; HAND BRK VLV FULLER M/T<X9B>	1-48469-060-0	01	1	0512-	●
52	SCREW; HANDLE	1-48469-062-0	01	1	0407-0511		●
52	SCREW; HANDLE MJX M/T<Y9N>	1-48469-062-0	01	1	0512-	●
52	SCREW; HANDLE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-062-0	01	1	0512-	●
52	SCREW; HANDLE	1-48469-062-0	01	1	0512-			●
53	WASHER; HANDLE	1-48469-061-0	01	1	0407-0511		●
53	WASHER; HANDLE MJX M/T<Y9N>	1-48469-061-0	01	1	0512-	●
53	WASHER; HANDLE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B>	1-48469-061-0	01	1	0512-	●
53	WASHER; HANDLE	1-48469-061-0	01	1	0512-			●
54	SEAT; SPRING FULLER M/T<X9B>	1-48469-082-0	02	1	0512-	●
55	SPRING; RETURN,HANDLE FULLER M/T<X9B>	1-48469-059-0	01	1	0512-	●
55	SPRING; RETURN,HANDLE	1-48469-155-0	01	1	0407-0511		●
55	SPRING; RETURN,HANDLE MJX M/T<Y9N>	1-48469-155-0	01	1	0512-	●
55	SPRING; RETURN,HANDLE	1-48469-155-0	01	1	0512-			●
56	BOOT; PLUNGER FULLER M/T<X9B>	1-48469-080-0	01	1	0512-	●
57	PLUNGER; HAND BRK VLV FULLER M/T<X9B>	1-48469-076-0	01	1	0512-	●
57	PLUNGER; HAND BRK VLV	1-48469-180-0	01	1	0407-0511		●
57	PLUNGER; HAND BRK VLV MJX M/T<Y9N>	1-48469-180-0	01	1	0512-	●
57	PLUNGER; HAND BRK VLV	1-48469-180-0	01	1	0512-			●
58	HOLDER; FEED VLV FULLER M/T<X9B>	1-48469-077-0	01	1	0512-	●
59	HOLDER; SPRING FULLER M/T<X9B>	1-48469-078-0	01	1	0512-	●
145	STUD; HAND BRK VLV FULLER M/T<X9B>	1-48469-069-0	01	1	0512-	●
164	GREASE; HAND BRK VLV FULLER M/T<X9B>	1-48469-084-0	01	1	0512-	●

180

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	180	REPAIR KIT; RELAY VLV	1-85576-449-0	01	1	0512-	●		●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

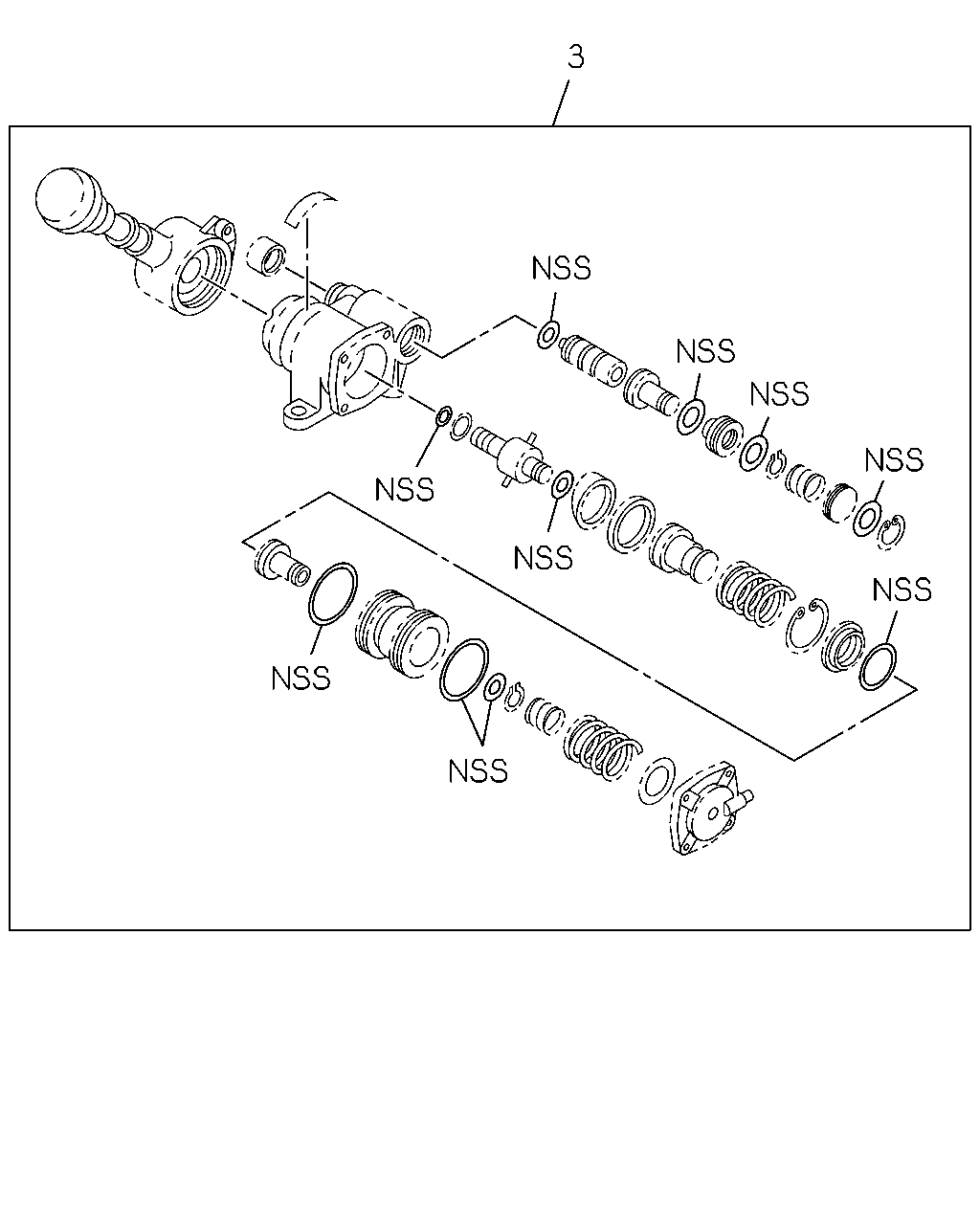

3	REPAIR KIT; HAND BRK VLV FULLER M/T<X9B>	1-48469-083-0	01	1	0512-	●
3	REPAIR KIT; HAND BRK VLV	1-85576-376-0	01	1	0407-0511		●
3	REPAIR KIT; HAND BRK VLV MJX M/T<Y9N>	1-85576-376-0	01	1	0512-	●
3	REPAIR KIT; HAND BRK VLV	1-85576-376-0	01	1	0512-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
