◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10954 - CXZ/CYZ NEW ZEALAND ▶ 3 - Brakes, Brake System ▶ 3-22 - AIR CONTROL PARTS ▶
3-22 — AIR CONTROL PARTS (#29180) — 155 parça

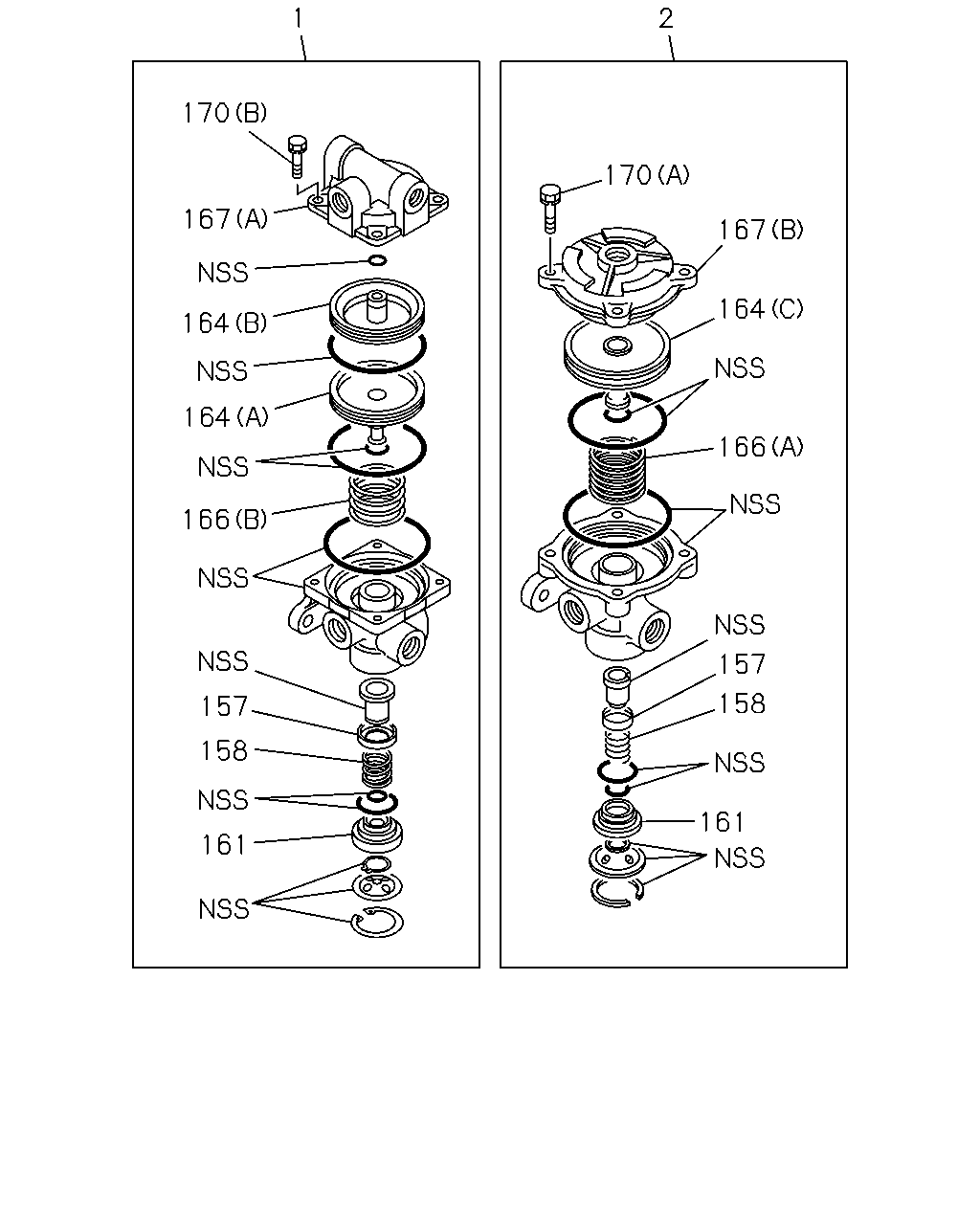

çizim 87262
2 1 170 170 167 167 164 164 164 166 166 157 158 157 158 161 161
BalonParca AdiParca NoAdetTipApplied Date A B C
1 VALVE; RELAY RWD RR 1-48240-041-0 01 1 0407-0511 ●
1 VALVE; RELAY RWD RR 1-48240-041-1 01 1 0512- ● ●
2 VALVE; RELAY 1-48210-875-0 01 1 0407-0511 ●
2 VALVE; RELAY 1-48210-875-0 01 1 0512- ● ●
2 VALVE; RELAY 1-48210-875-0 02 1 0407-0511 ●
2 VALVE; RELAY 1-48210-875-0 02 1 0512- ● ●
157 RETAINER; VALVE 1-48213-002-0 01 1 0407-0511 ●
157 RETAINER; VALVE 1-48213-002-0 01 1 0512- ● ●
157 RETAINER; VALVE 1-48213-002-0 03 1 0407-0511 ●
157 RETAINER; VALVE 1-48213-002-0 03 1 0512- ● ●
158 SPRING; VALVE 1-47819-089-0 01 1 0407-0511 ●
158 SPRING; VALVE 1-47819-089-0 01 1 0512- ● ●
158 SPRING; VALVE 1-47819-089-0 03 1 0407-0511 ●
158 SPRING; VALVE 1-47819-089-0 03 1 0512- ● ●
161 GUIDE; VALVE 1-48129-014-0 01 1 0407-0511 ●
161 GUIDE; VALVE 1-48129-014-0 01 1 0512- ● ●
161 GUIDE; VALVE 1-48129-014-0 03 1 0407-0511 ●
161 GUIDE; VALVE 1-48129-014-0 03 1 0512- ● ●
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 01 1 0407-0511 ●
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 01 1 0512- ● ●
164 PISTON; RELAY VALVE
(A) 		1-48219-032-0 01 1 0407-0511 ●
164 PISTON; RELAY VALVE
(A) 		1-48219-032-0 01 1 0512- ● ●
164 PISTON; RELAY VALVE
(B) 		1-48219-047-0 01 1 0407-0511 ●
164 PISTON; RELAY VALVE
(B) 		1-48219-047-0 01 1 0512- ● ●
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 02 1 0407-0511 ●
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 02 1 0512- ● ●
166 SPRING; PISTON
(A) 		1-47819-090-0 01 1 0407-0511 ●
166 SPRING; PISTON
(A) 		1-47819-090-0 01 1 0512- ● ●
166 SPRING; PISTON
(A) 		1-47819-090-0 02 1 0407-0511 ●
166 SPRING; PISTON
(A) 		1-47819-090-0 02 1 0512- ● ●
166 SPRING; PISTON
(B) 		1-48219-048-0 01 1 0407-0511 ●
166 SPRING; PISTON
(B) 		1-48219-048-0 01 1 0512- ● ●
167 COVER; VALVE
(B) 		1-48219-070-0 01 1 0407-0511 ●
167 COVER; VALVE
(B) 		1-48219-070-0 01 1 0512- ● ●
167 COVER; VALVE
(A) 		1-48219-050-1 01 1 0407-0511 ●
167 COVER; VALVE
(A) 		1-48219-050-1 01 1 0512- ● ●
167 COVER; VALVE
(B) 		1-48219-070-0 02 1 0407-0511 ●
167 COVER; VALVE
(B) 		1-48219-070-0 02 1 0512- ● ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 0407-0511 ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 0512- ● ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 08 1 0407-0511 ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 08 1 0512- ● ●
170 SCREW; COVER TO BODY
(B) 		1-48219-041-0 04 1 0407-0511 ●
170 SCREW; COVER TO BODY
(B) 		1-48219-041-0 04 1 0512- ● ●

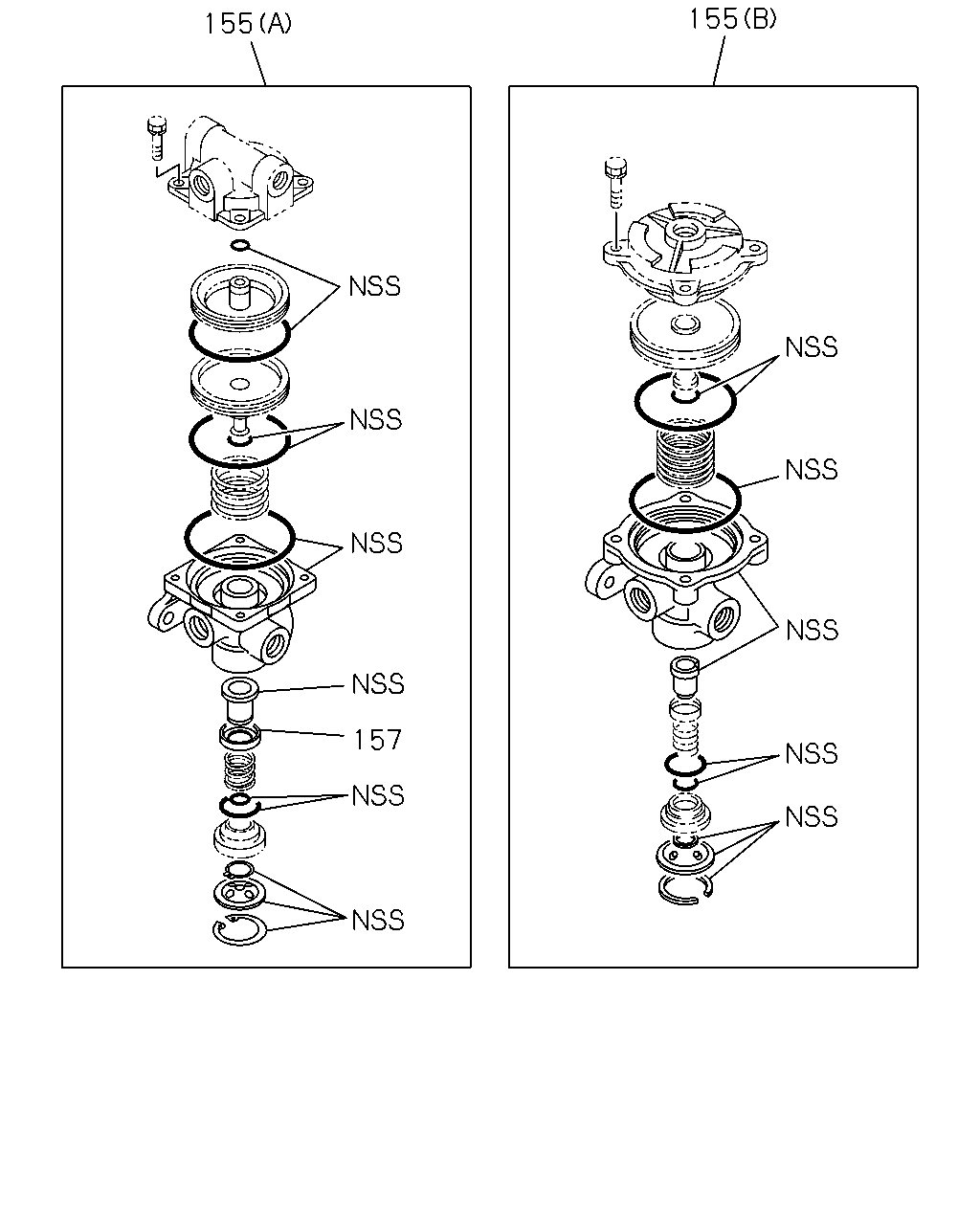

çizim 87357
155 155 157
BalonParca AdiParca NoAdetTipApplied Date A B C
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-033-0 01 1 0407-0511 ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-033-0 01 1 0512- ● ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-033-0 02 1 0407-0511 ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-033-0 02 1 0512- ● ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-035-0 01 1 0407-0511 ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-035-0 01 1 0512- ● ●
157 RETAINER; VALVE 1-48213-002-0 01 1 0407-0511 ●
157 RETAINER; VALVE 1-48213-002-0 01 1 0512- ● ●
157 RETAINER; VALVE 1-48213-002-0 03 1 0407-0511 ●
157 RETAINER; VALVE 1-48213-002-0 03 1 0512- ● ●

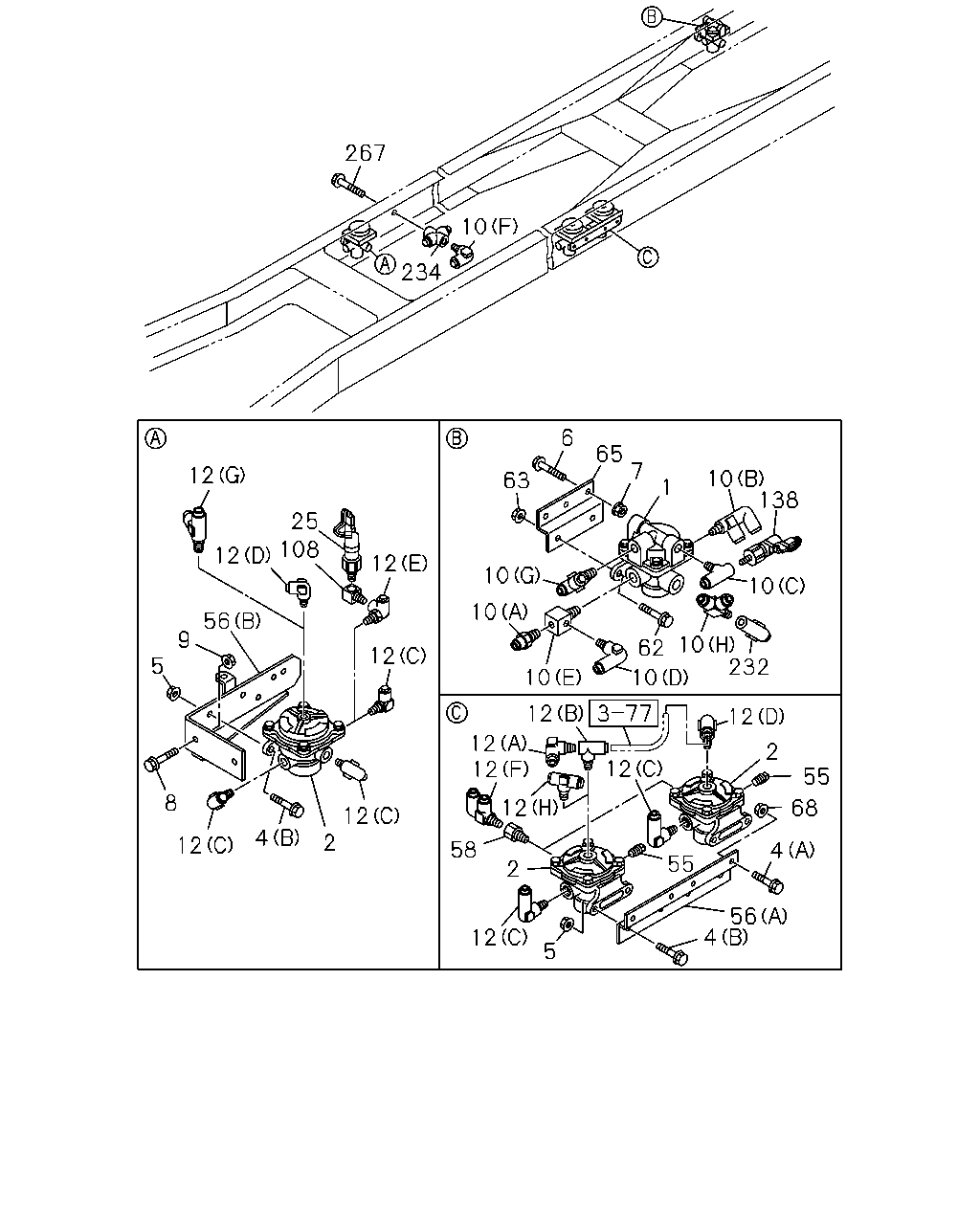

çizim 104166
267 10 234 6 65 7 1 10 138 10 63 10 10 10 62 10 10 232 12 108 25 12 12 56 9 5 12 12 2 4 12 8 12 12 12 58 2 12 5 4 56 4 68 55 55 12 12 2 12
BalonParca AdiParca NoAdetTipApplied Date A B C
1 VALVE; RELAY RWD RR 1-48240-041-0 01 1 0407-0511 ●
1 VALVE; RELAY RWD RR 1-48240-041-1 01 1 0512- ● ●
2 VALVE; RELAY 1-48210-875-0 01 1 0407-0511 ●
2 VALVE; RELAY 1-48210-875-0 01 1 0512- ● ●
2 VALVE; RELAY 1-48210-875-0 02 1 0407-0511 ●
2 VALVE; RELAY 1-48210-875-0 02 1 0512- ● ●
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28681-035-0 02 1 0407-0511 ●
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28681-035-0 02 1 0512-0512 ● ●
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0601- ● ●
4 BOLT; RELAY VLV TO BRKT
(A) M8X25 FLANGE 		0-28680-825-0 04 1 0407-0511 ●
4 BOLT; RELAY VLV TO BRKT
(A) M8X25 FLANGE 		0-28680-825-0 04 1 0512-0512 ● ●
4 BOLT; RELAY VLV TO BRKT
(A) M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ●
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28681-035-0 04 1 0407-0511 ●
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28681-035-0 04 1 0512-0512 ● ●
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28651-035-0 04 1 0601- ● ●
5 NUT
M10 FLANGE 		0-91150-210-0 02 1 0407-0511 ●
5 NUT
M10 FLANGE 		0-91150-210-0 02 1 0512-0602 ● ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
5 NUT
M10 FLANGE 		0-91150-210-0 04 1 0407-0511 ●
5 NUT
M10 FLANGE 		0-91150-210-0 04 1 0512-0602 ● ●
5 NUT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
6 BOLT; VLV
M8X25 FLANGE 		0-28680-825-0 02 1 0407-0511 ●
6 BOLT; VLV
M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512 ● ●
6 BOLT; VLV
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
7 NUT; RELAY VLV
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
7 NUT; RELAY VLV
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ● ●
7 NUT; RELAY VLV
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
8 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0407-0511 ●
8 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512 ● ●
8 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
9 NUT
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
9 NUT
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ● ●
9 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
10 CONNECTOR
(F) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0407-0511 ●
10 CONNECTOR
(D) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0407-0511 ●
10 CONNECTOR
(D) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0512- ● ●
10 CONNECTOR
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0407-0511 ●
10 CONNECTOR
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0512- ● ●
10 CONNECTOR
(G) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0407-0511 ●
10 CONNECTOR
(G) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0512- ● ●
10 CONNECTOR
(H) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 0407-0511 ●
10 CONNECTOR
(H) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 0512- ● ●
10 CONNECTOR
(B) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0407-0511 ●
10 CONNECTOR
(B) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0512- ● ●
10 CONNECTOR
(E) PT3/8 3WAY 		1-09661-300-0 01 1 0407-0511 ●
10 CONNECTOR
(E) PT3/8 3WAY 		1-09661-300-0 01 1 0512- ● ●
10 CONNECTOR
(C) 		1-09661-537-0 01 1 0407-0511 ●
10 CONNECTOR
(C) 		1-09661-537-0 01 1 0512-0704 ● ●
10 CONNECTOR
(C) DIN8 & RC1/4 & R3/8 3WAY 		8-97620-116-0 01 1 0705- ● ●
12 CONNECTOR; RELAY VLV
(G) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0512- ● ●
12 CONNECTOR; RELAY VLV
TRANSMISSION CONTROL LINK TYPE(B2A) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0407-0511 ●
12 CONNECTOR; RELAY VLV
TRANSMISSION CONTROL LINK TYPE(B2A) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0512- ●
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0407-0511 ●
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0407-0511 ●
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0512- ● ●
12 CONNECTOR; RELAY VLV
SMOOTHER-G(C1W) (E) DIN12 & R3/8 ELBOW 		1-09661-233-0 01 1 0407-0511 ●
12 CONNECTOR; RELAY VLV
SMOOTHER-G(C1W) (E) DIN12 & R3/8 ELBOW 		1-09661-233-0 01 1 0512- ●
12 CONNECTOR; RELAY VLV
(E) DIN12 & R3/8 ELBOW 		1-09661-233-0 01 1 0512- ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0407-0511 ●
12 CONNECTOR; RELAY VLV
SMOOTHER-G(C1W) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0407-0511 ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0512- ● ●
12 CONNECTOR; RELAY VLV
SMOOTHER-G(C1W) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0512- ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0512- ●
12 CONNECTOR; RELAY VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0407-0511 ●
12 CONNECTOR; RELAY VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0512-0706 ● ●
12 CONNECTOR; RELAY VLV
(H) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0707- ● ●
12 CONNECTOR; RELAY VLV
(F) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 0407-0511 ●
12 CONNECTOR; RELAY VLV
(F) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 0512- ● ●
12 CONNECTOR; RELAY VLV
(B) 		1-09661-537-0 01 1 0407-0511 ●
12 CONNECTOR; RELAY VLV
(B) 		1-09661-537-0 01 1 0512-0706 ● ●
25 SWITCH; PRESSURE
SMOOTHER-G(C1W) 		8-97383-820-0 01 1 0407-0511 ●
25 SWITCH; PRESSURE
SMOOTHER-G(C1W) 		8-97383-820-1 01 1 0512- ●
25 SWITCH; PRESSURE 8-97383-820-1 01 1 0512- ●
55 PLUG; SUPPLY
PT3/8 		9-09204-517-0 02 1 0407-0511 ●
55 PLUG; SUPPLY
PT3/8 		9-09204-517-0 02 1 0512- ● ●
56 BRACKET; RELAY VLV
(B) 		1-47479-893-1 01 1 0407-0511 ●
56 BRACKET; RELAY VLV
(B) 		1-47479-893-1 01 1 0512- ● ●
56 BRACKET; RELAY VLV
(A) 		1-47479-937-0 01 1 0407-0511 ●
56 BRACKET; RELAY VLV
(A) 		1-47479-937-0 01 1 0512- ● ●
58 ADAPTER
PT3/8 		1-09664-210-0 02 1 0407-0511 ●
58 ADAPTER
PT3/8 		1-09664-210-0 02 1 0512- ● ●
62 BOLT; BRKT FIX
M10X35 FLANGE 		0-28681-035-0 02 1 0407-0511 ●
62 BOLT; BRKT FIX
M10X35 FLANGE 		0-28681-035-0 02 1 0512-0512 ● ●
62 BOLT; BRKT FIX
M10X35 FLANGE 		0-28651-035-0 02 1 0601- ● ●
63 NUT; BRKT FIX
M10 FLANGE 		0-91150-210-0 02 1 0407-0511 ●
63 NUT; BRKT FIX
M10 FLANGE 		0-91150-210-0 02 1 0512-0602 ● ●
63 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
65 BRACKET; RELAY VLV RR 1-47479-328-0 01 1 0407-0511 ●
65 BRACKET; RELAY VLV RR 1-47479-328-0 01 1 0512- ● ●
68 NUT; RELAY VLV TO BRKT
M8 FLANGE 		0-91150-108-0 04 1 0407-0511 ●
68 NUT; RELAY VLV TO BRKT
M8 FLANGE 		0-91150-108-0 04 1 0512-0602 ● ●
68 NUT; RELAY VLV TO BRKT
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
108 CONNECTOR; ELBOW
SMOOTHER-G(C1W) PT1/4 2WAY 		1-09660-693-0 01 1 0407-0511 ●
108 CONNECTOR; ELBOW
SMOOTHER-G(C1W) PT1/4 2WAY 		1-09660-693-0 01 1 0512- ●
108 CONNECTOR; ELBOW
PT1/4 2WAY 		1-09660-693-0 01 1 0512- ●
138 SWITCH; RELAY VALVE 1-48340-067-0 01 1 0407-0511 ●
138 SWITCH; RELAY VALVE 1-48340-067-0 01 1 0512- ● ●
232 VALVE; CHECK 1-48320-031-1 01 1 0407-0511 ●
232 VALVE; CHECK 1-48320-031-1 01 1 0512- ● ●
234 UNION
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0407-0511 ●
267 BOLT; UNION
M8X20 FLANGE 		0-28680-820-0 01 1 0407-0511 ●
